Power Trim Motor for Honda BF115 BF135 BF150 Outboard 36120-ZY6-013 Replacement
Power Trim Motor for Honda BF115 BF135 BF150 Outboard 36120-ZY6-013 Replacement
SKU:36120-ZY6-023
Free shipping over £150. Terms apply
Couldn't load pickup availability

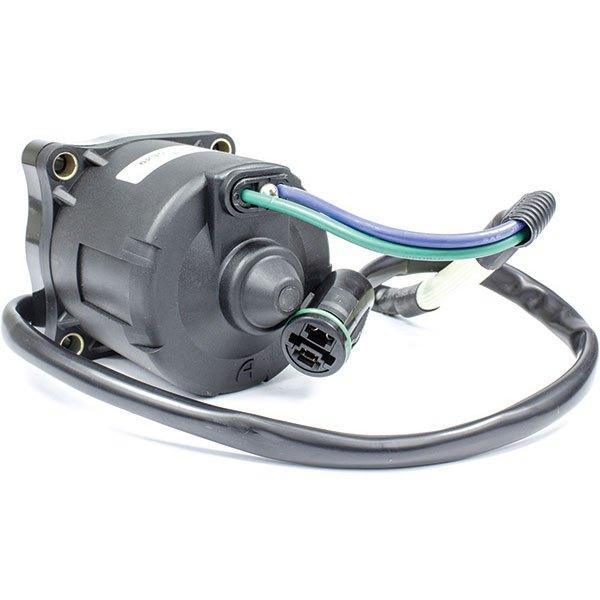

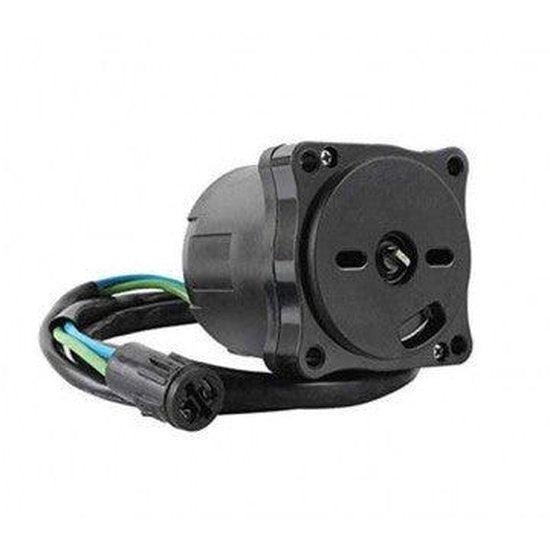

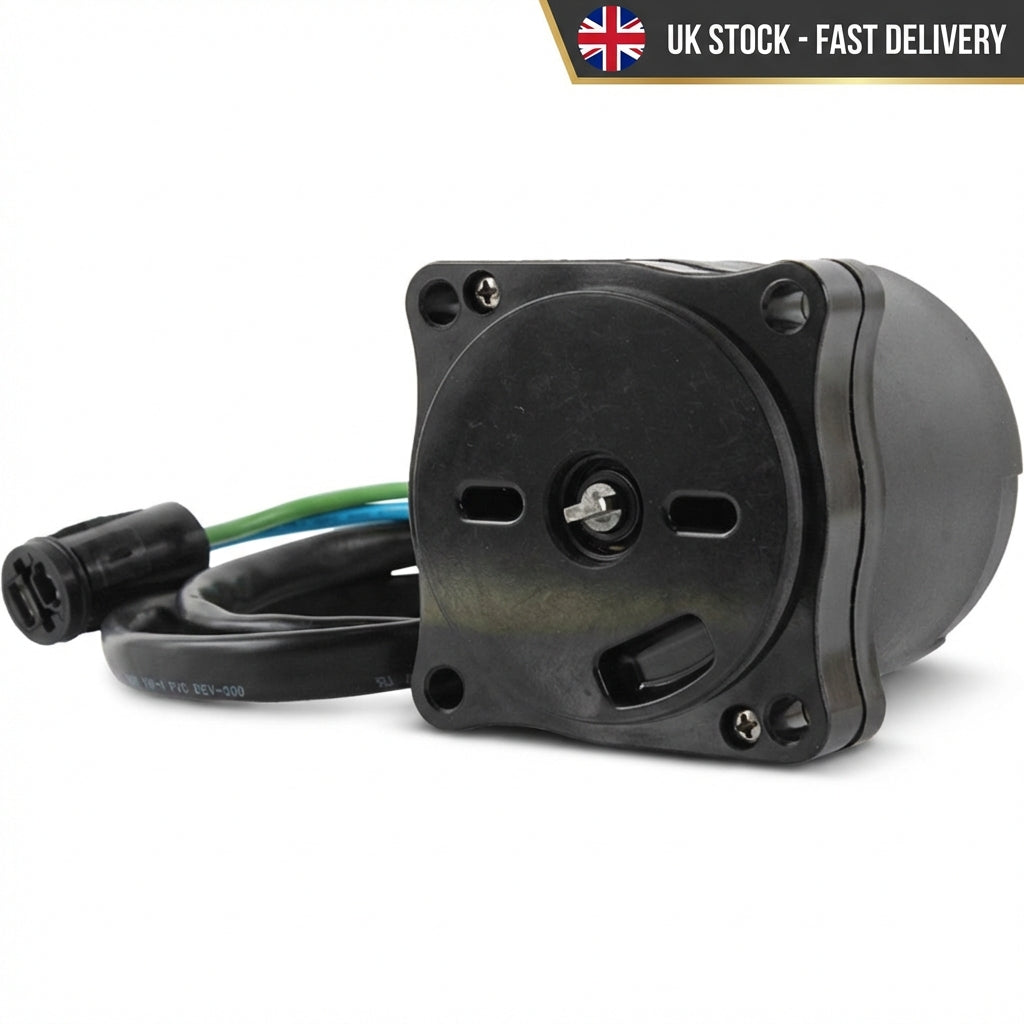

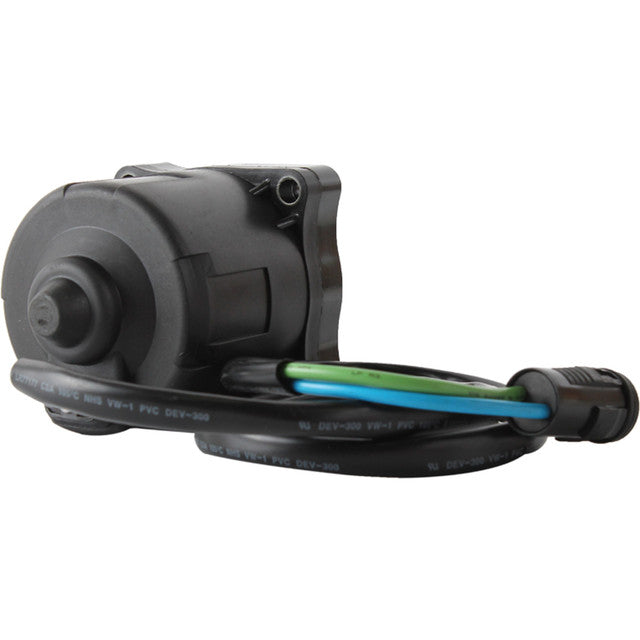

Power Trim Motor for Honda Outboards
SKU: 36120-ZY6-013 | High-Performance Replacement
Restore the smooth operation of your Honda outboard's tilt and trim system with this premium 4Drive Aftermarket power trim motor. Engineered specifically for heavy-duty marine environments, this motor provides the reliable lifting power needed to adjust your engine's angle for optimal performance and fuel efficiency.
Key Features
- ✔ Direct Fit: 4-Bolt mounting pattern
- ✔ Ready to Install: Includes sealed connector plug
- ✔ Marine Grade: Anti-corrosion black finish
- ✔ Reversible: 2-wire DC motor design
Technical Specs
| Voltage | 12V DC |
| Rotation | Reversible |
| Wiring | 2-Wire w/ Plug |
| Mounting | 4-Bolt Flange |
| Shaft Style | Flat Blade (Tang) |
Compatibility / Fitment Guide
| Engine Model | Year Range | Notes |
|---|---|---|
| Honda BF115D / DK1 | 2011 - 2019 | 115 HP 4-Stroke |
| Honda BF135A4 / AK2 | 2004 - 2019 | 135 HP 4-Stroke |
| Honda BF150A4 / AK2 | 2004 - 2019 | 150 HP 4-Stroke |
| Honda BF200 / BF225 | 2002 - Up | Check original plug style |
OEM Cross Reference Numbers
| Honda Marine | 36120-ZY6-013, 36120-ZY6-023, 36120-ZY3-013, 36120-ZY3-023 |
| Suzuki | 38100-90J30, 38100-93J11, 38100-96J11 |
| ARCO Marine | 6235 |
| Sierra Marine | 18-6831 |
| Arrowhead | TRM0105 |
Questions & Answers
Is this a genuine original part?
This is a premium quality 4Drive aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible with my engine?
We recommend checking the SKU (36120-ZY6-013) or cross-reference numbers on your current motor. This unit features the 4-bolt mounting pattern and the 2-wire lead common on 115HP-150HP Honda models from 2004 onwards.
Does it include the mounting O-ring?
Yes, this motor is typically supplied with the necessary O-ring pre-installed or included in the box for a watertight seal.
Note: Please verify your original part number against the references above before purchasing. Domain: 4drive.co.uk
