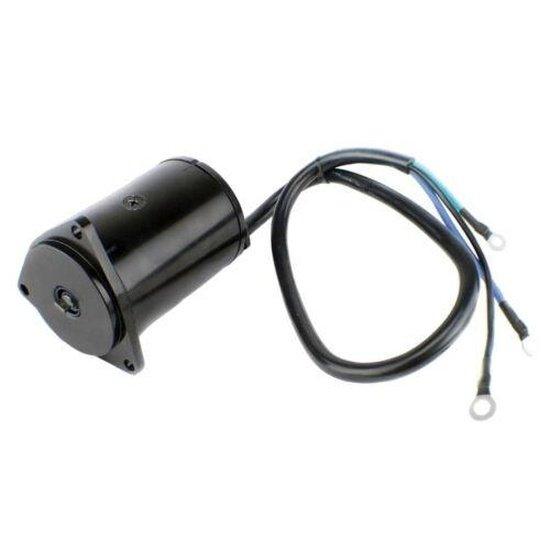

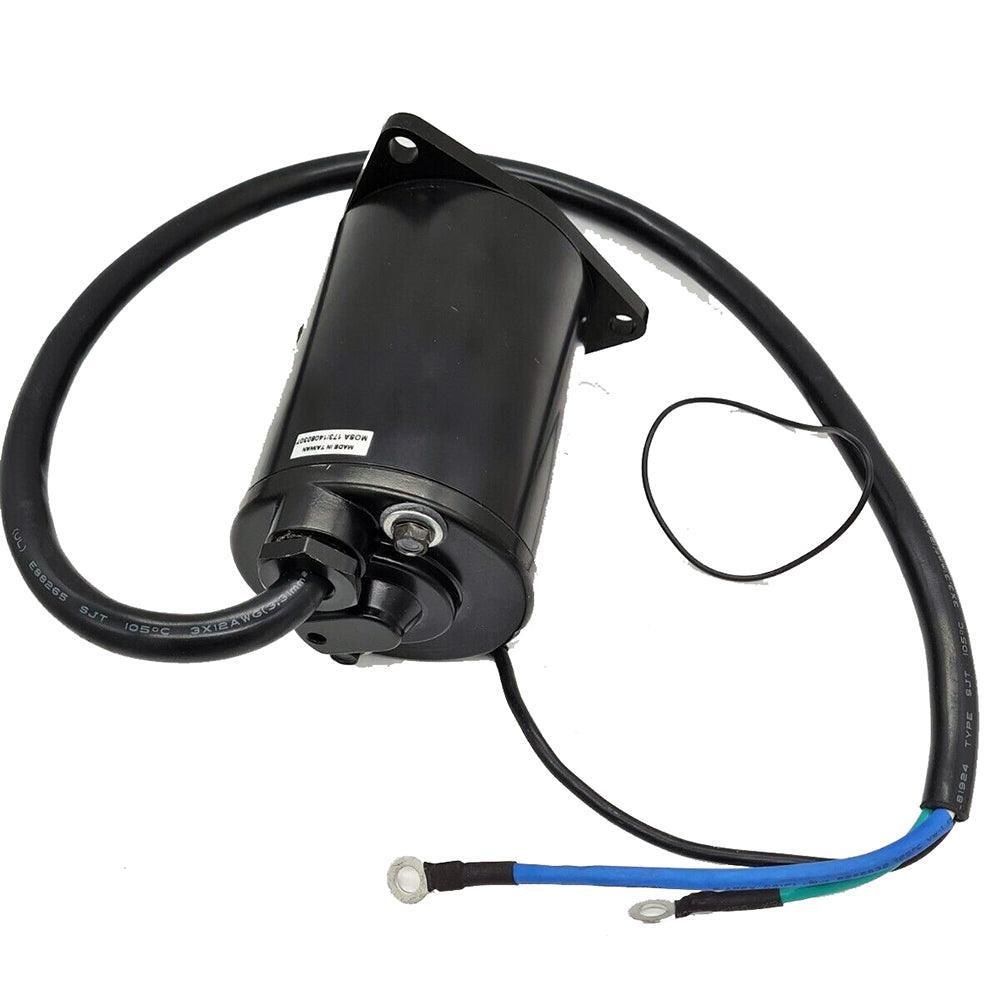

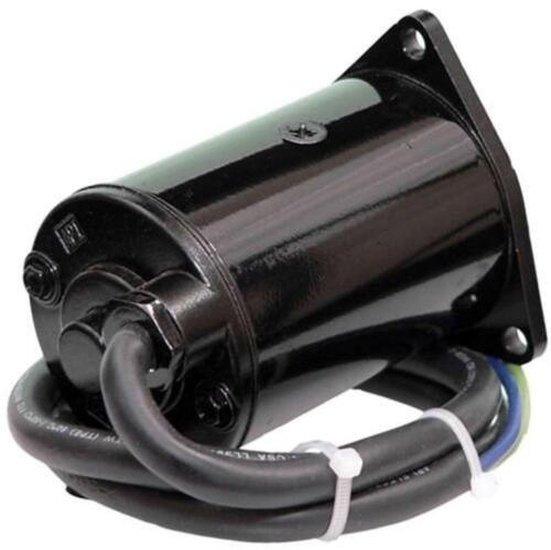

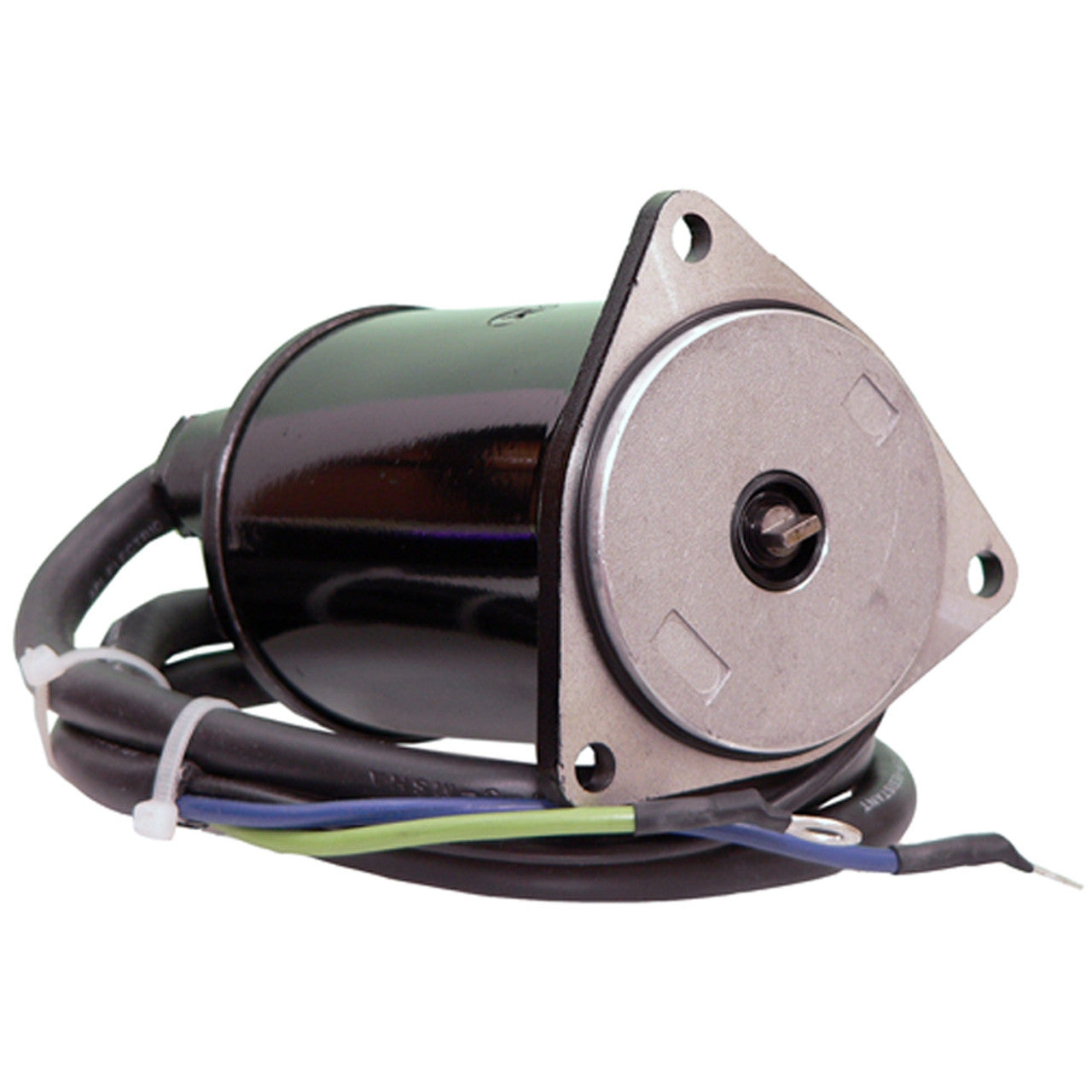

Power Trim Motor for Suzuki Outboard DT 90 100 HP 2-Stroke 3-Wire 3-Bolt
Power Trim Motor for Suzuki Outboard DT 90 100 HP 2-Stroke 3-Wire 3-Bolt
SKU:38100-87e10
Free shipping over £150. Terms apply
Couldn't load pickup availability
Suzuki Power Trim Motor (3-Wire / 3-Bolt)
Precision Engineered for Suzuki DT 90 / 100 HP 2-Stroke Engines
Restore full tilt and trim functionality to your Suzuki outboard with this heavy-duty, marine-grade power trim motor. Designed to meet or exceed original equipment (OE) specifications, this unit provides the high torque and reliable performance required for harsh saltwater and freshwater environments. This specific model features the 3-bolt mounting flange and the 3-wire electrical connection, typical of 1989-1997 DT90 and DT100 series engines.
Key Features
- ✔ Direct fit for 3-bolt/3-wire systems
- ✔ Includes sealing O-Ring
- ✔ Marine-grade moisture protection
- ✔ Precision balanced for quiet operation

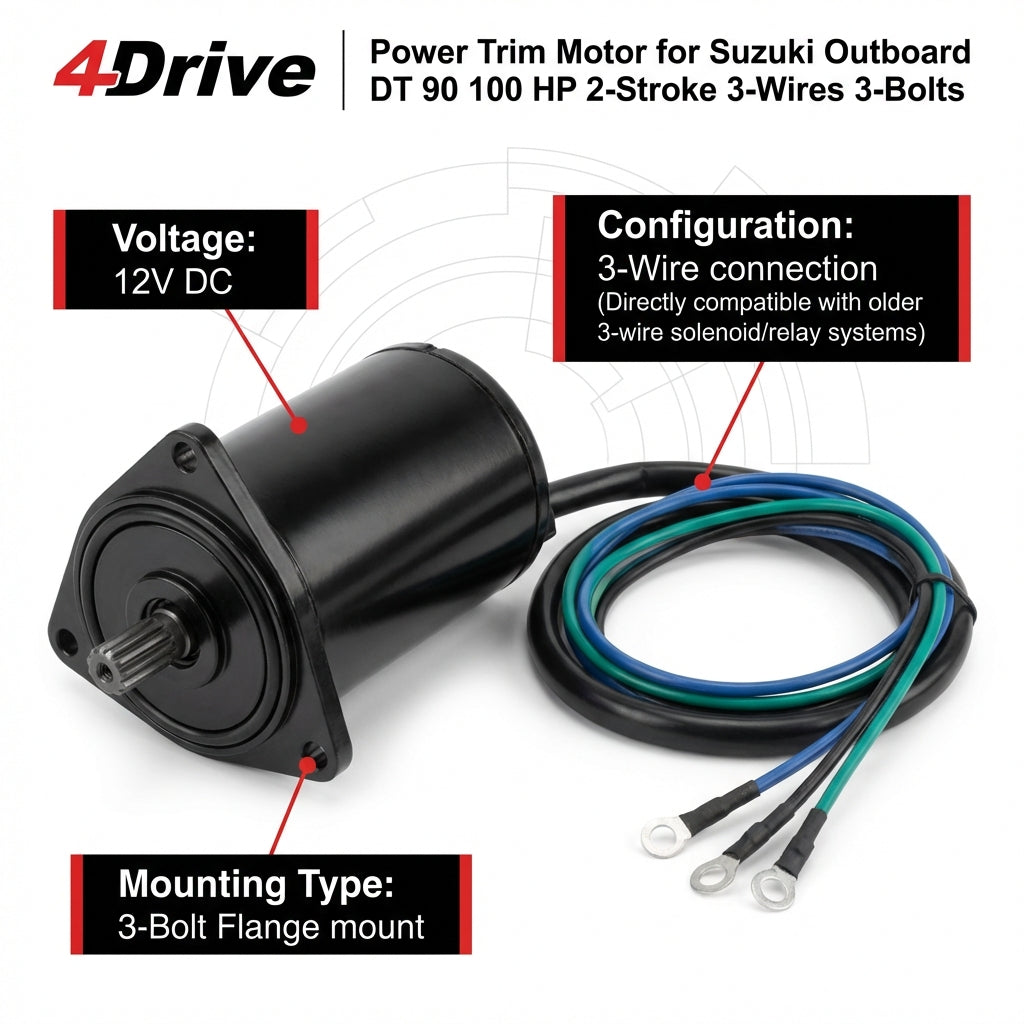

Technical Specs
| Voltage: | 12V DC |
| Connection: | 3-Wire |
| Mounting: | 3-Bolt Flange |
| OD: | 96mm (3.78") |
| Shaft Size: | 8mm (0.315") |
| Length: | 136mm (5.35") |
Compatibility / Fitment Guide
| Engine Series | Year Range | Notes |
|---|---|---|
| Suzuki DT90 (2-Stroke) | 1989 - 1997 | 3-Wire Connection |
| Suzuki DT100 (2-Stroke) | 1989 - 1997 | 3-Wire Connection |
| Suzuki DT150 / DT200 | 1986 - 1990 | Check bolt pattern |
OEM Cross Reference
| Suzuki: 38100-87E10-OED | Suzuki: 38100-87D00-01T | Suzuki: 38100-87D00-02H |
| API: PT650NM | Arco: 6269 | Sierra: 18-6785 |
| Lester: 10837 | Arrowhead: TRM0045 | J&N: 430-22083 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part from 4Drive, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
Please check your current motor's wiring. This unit has 3 wires. If your current unit only has 2 wires, this is not the correct part for your specific year/serial number.
What do the three wires represent?
The three-wire system typically uses a dedicated UP wire (Blue), a DOWN wire (Green), and a Ground wire (Black or via ring terminals) to operate the reversing DC motor.
Note: Professional installation is recommended. Please verify your original part number against the references above before purchasing. Domain: 4drive.co.uk
