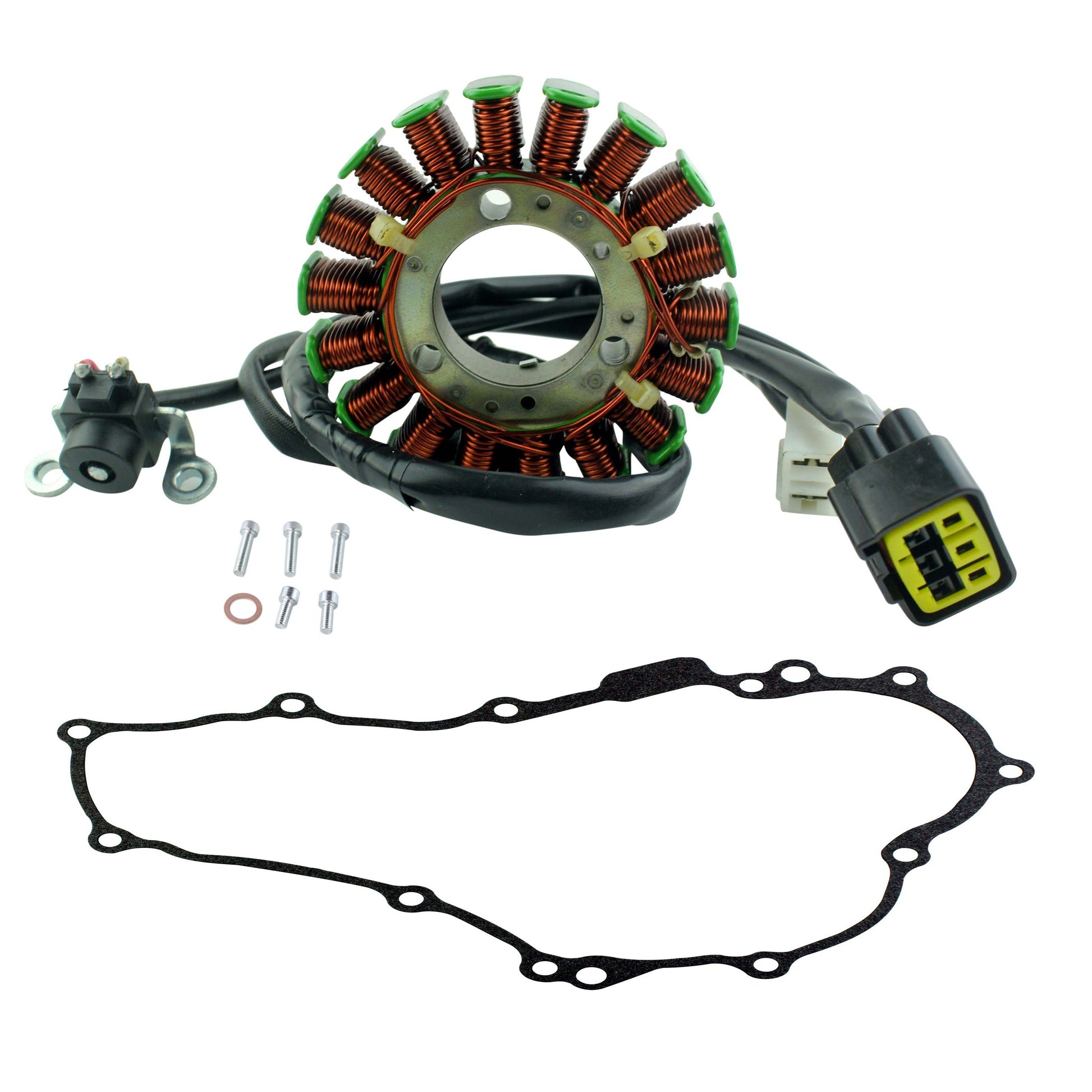

Generator Stator and Gasket Recall Kit for Yamaha WR 250 R and WR 250 X - RM22612

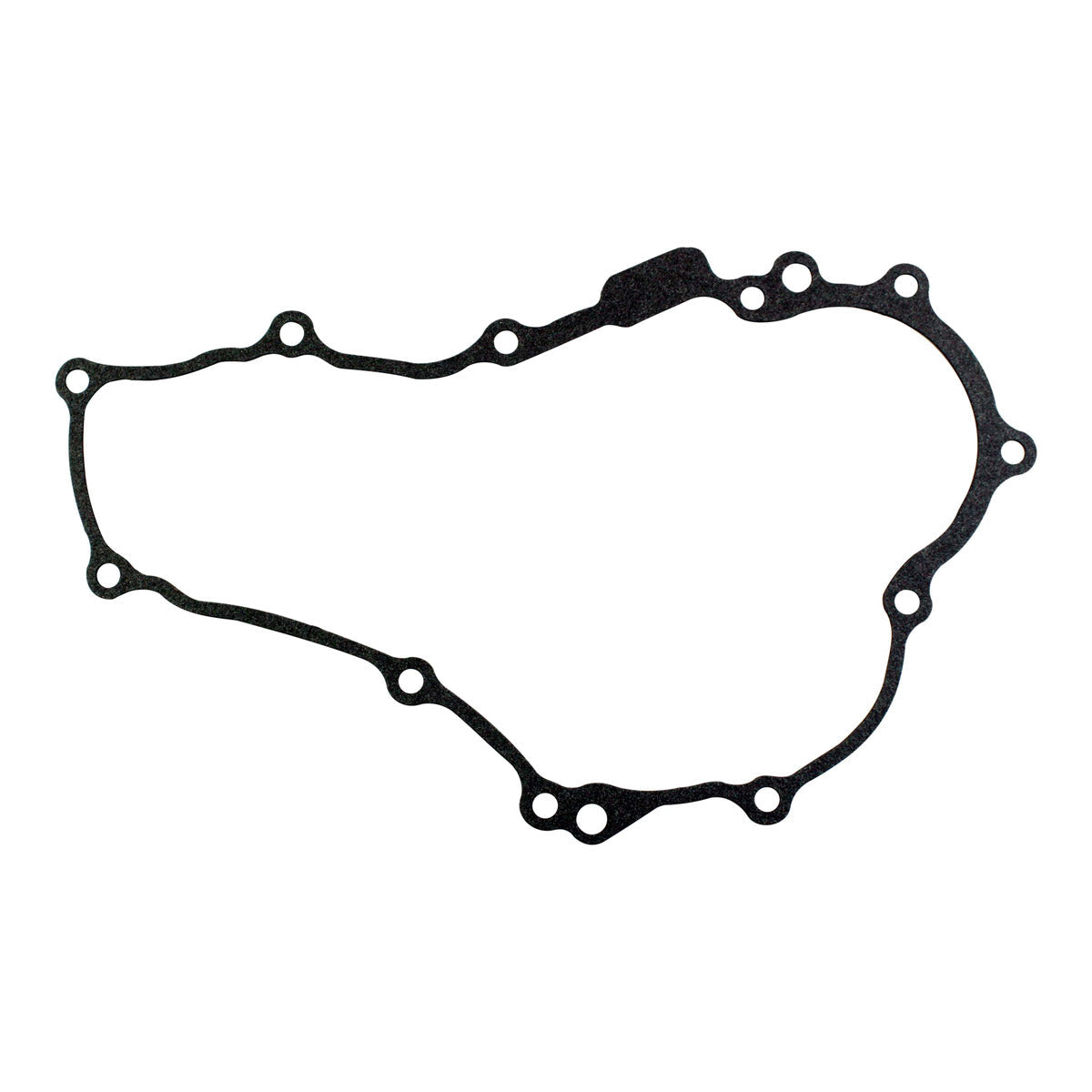

WR 250 R 2008-2020 - WR 250 X 2008-2011 - stator, bolt set and crankcase cover gasket

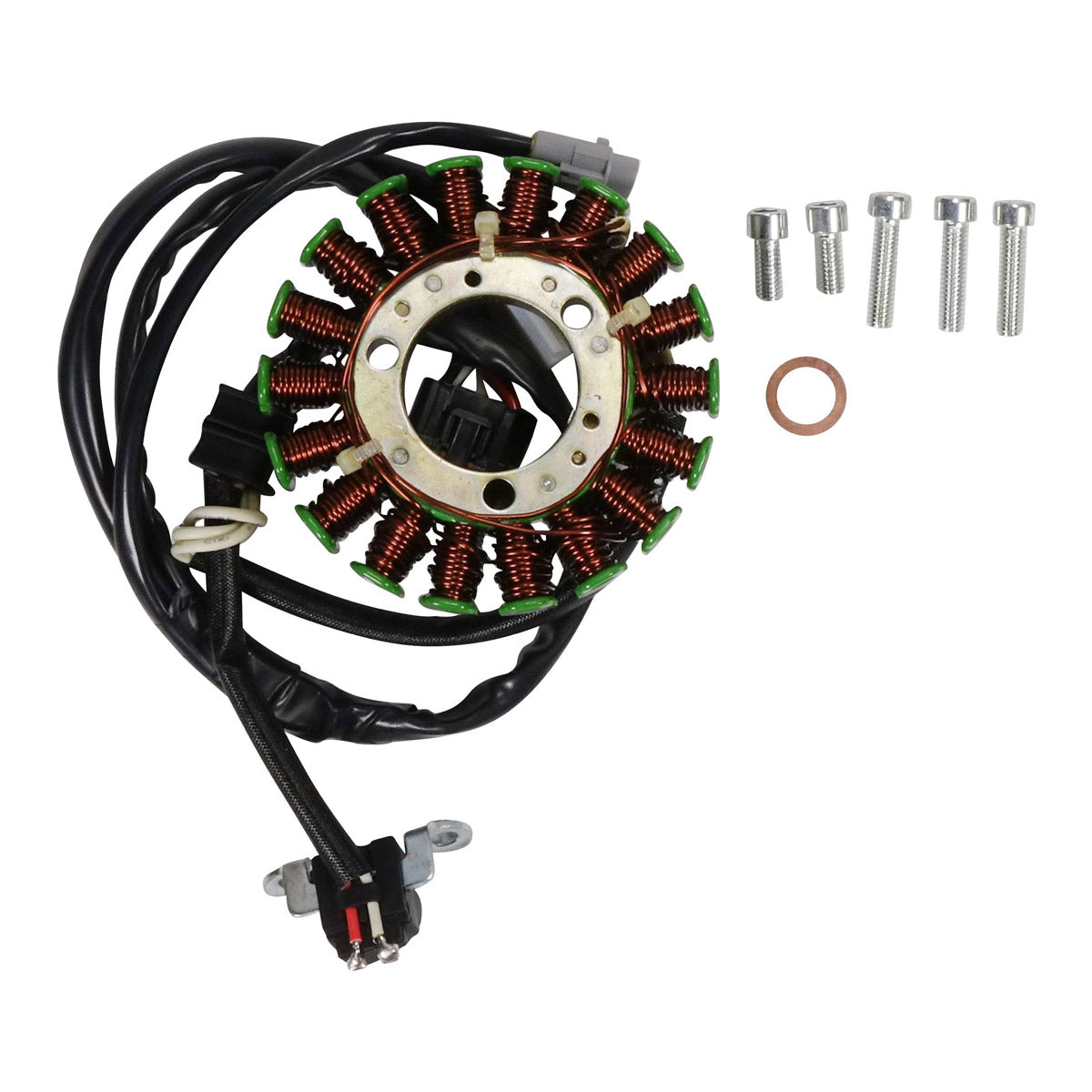

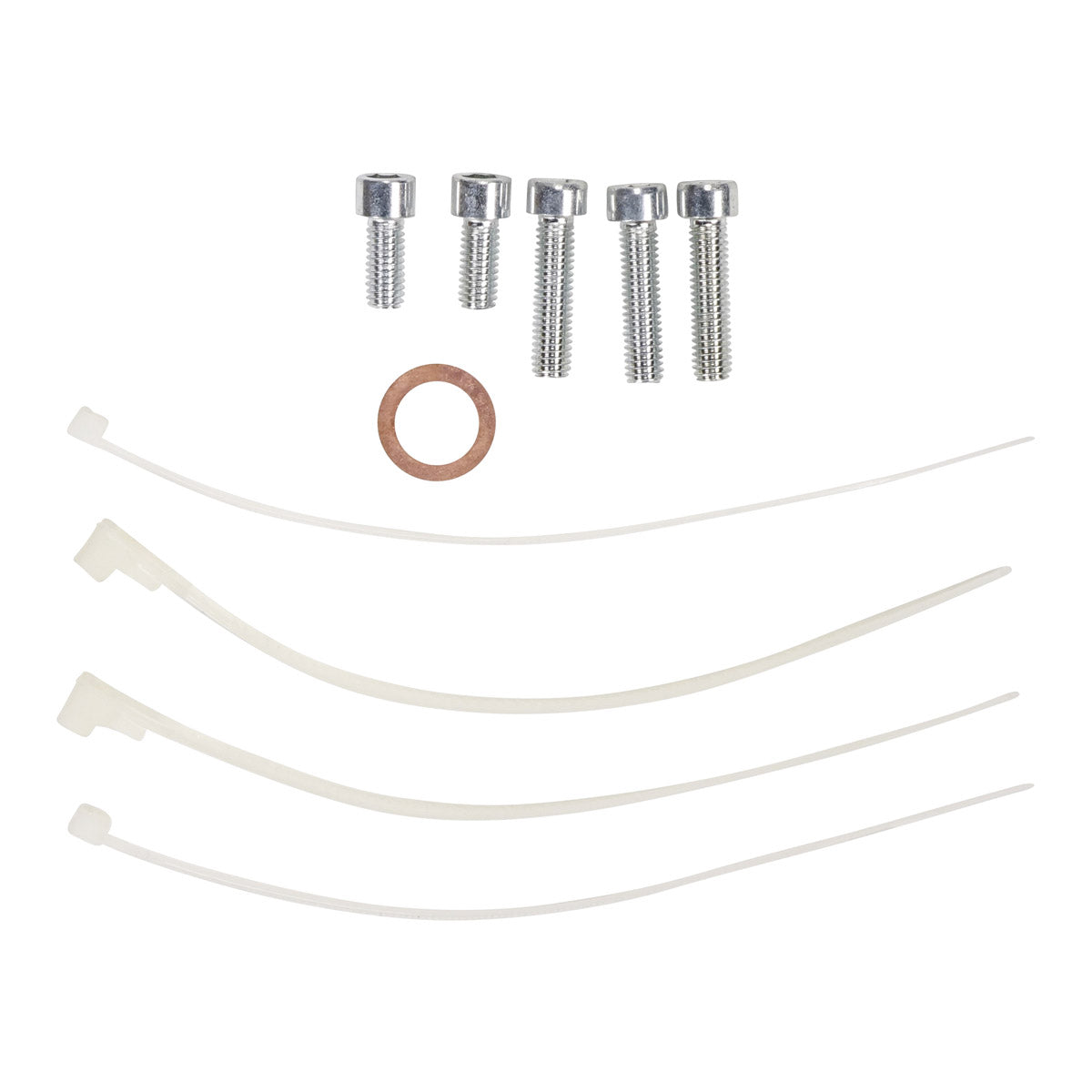

This is a complete recall-style replacement kit for the Yamaha WR 250 R and WR 250 X: a brand new generator stator, the bolt set and the stator crankcase cover gasket, supplied together so the job can be done in one sitting. Taking a bike to a dealer for recall work commonly means being without it for weeks. This kit ships quickly and can be fitted as soon as it arrives, which is the point of it - the parts that need renewing are all in the box, including the gasket that would otherwise have to be ordered separately once the cover is already off.

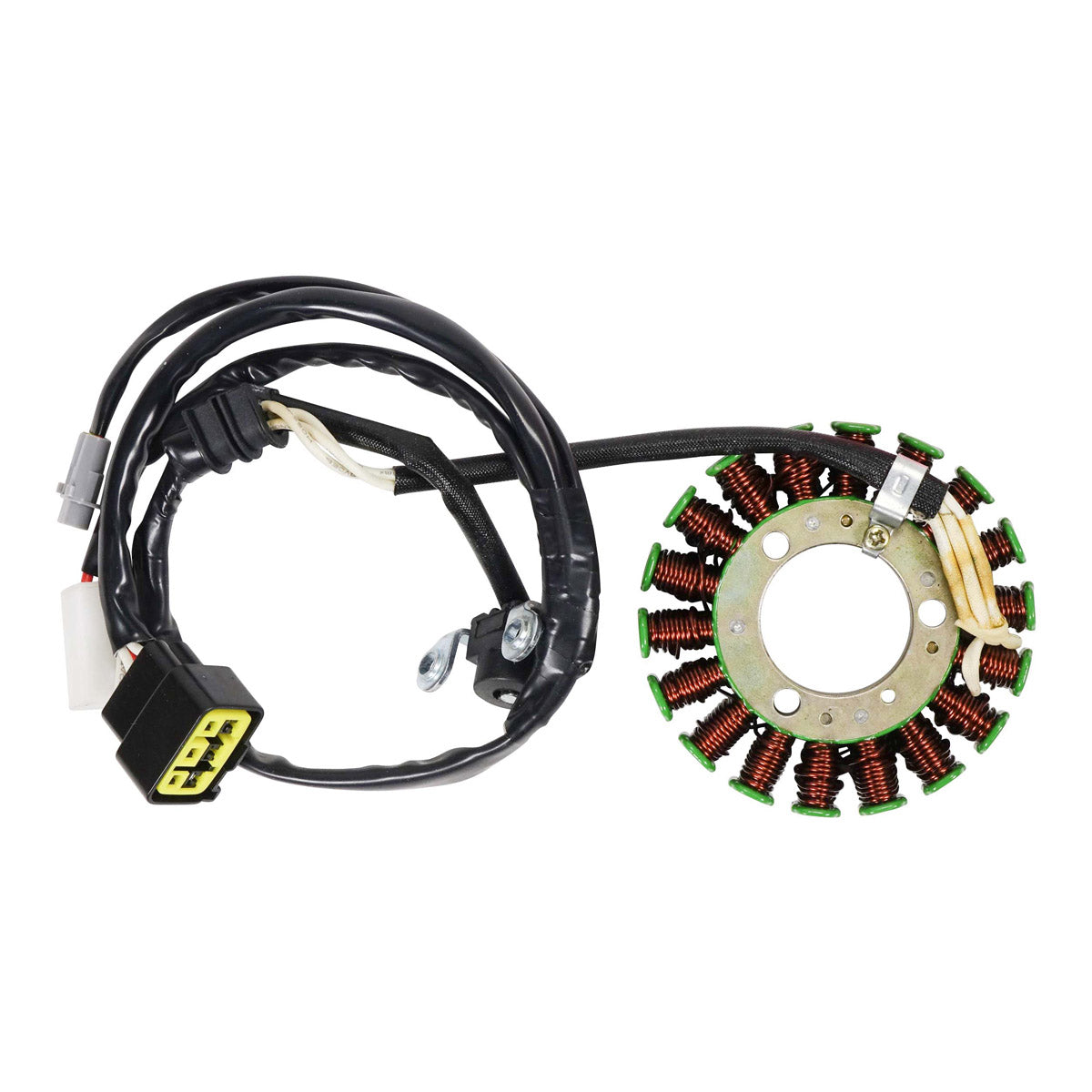

The stator itself is a direct replacement for the original unit and is plug-and-play, direct fit, with no drilling, cutting or harness modification needed. It uses the highest grade of lamination material and copper winding rated to withstand 200 degrees Celsius, and the pick-up pulsar coil, the connector and the rubber grommet are supplied with it. RMSTATOR have specialised in rebuilding and manufacturing stators for over twenty years, and every unit shipped is tested before it leaves.
Key Features
- Complete kit - stator, bolt set and crankcase cover gasket
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick-up pulsar coil included

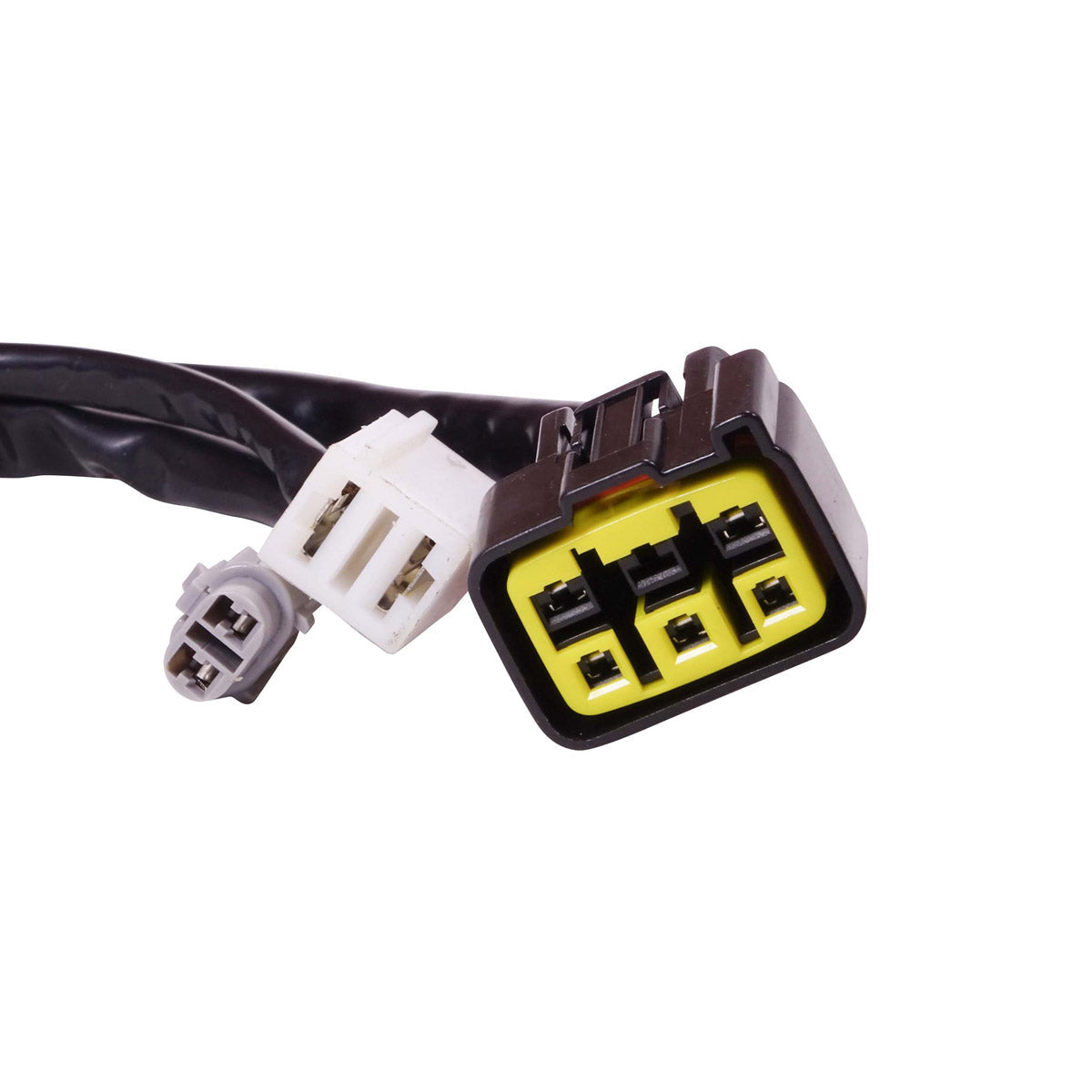

- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 35 mm |
| Exterior diameter | 98 mm |
| Thickness | 15 mm |
| Wire length, stator to grommet | 140 mm |
| Wire length, grommet to plug | 400 mm |
| Pick-up coil wire length to grommet | 85 mm |
| Number of wires | 7 |
| Number of plugs | 3 |
| Number of pins | 9 |
| Alternator resistance, white to white | 0.4 ohms +/- 20% |
| Pick-up resistance, pink to white | 265 ohms +/- 20% |
| Copper winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha WR 250 R | 2008-2020 |
| Yamaha WR 250 X | 2008-2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3D7-81410-00-00 | Yamaha - stator |
| 3D7-81410-01-00 | Yamaha - stator |
| 3D7-81410-03-00 | Yamaha - stator |
| 3D7-15451-00-00 | Yamaha - gasket |
