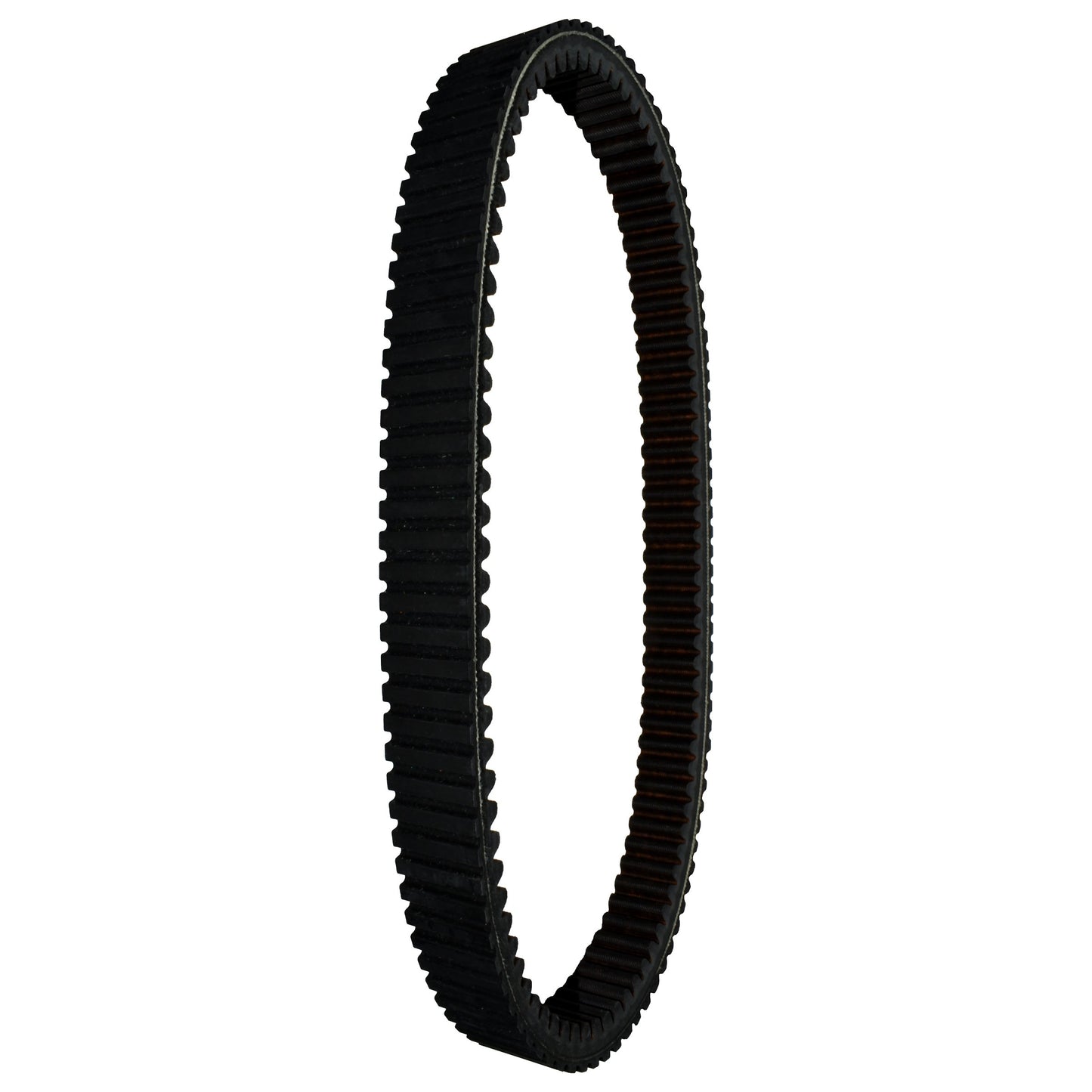

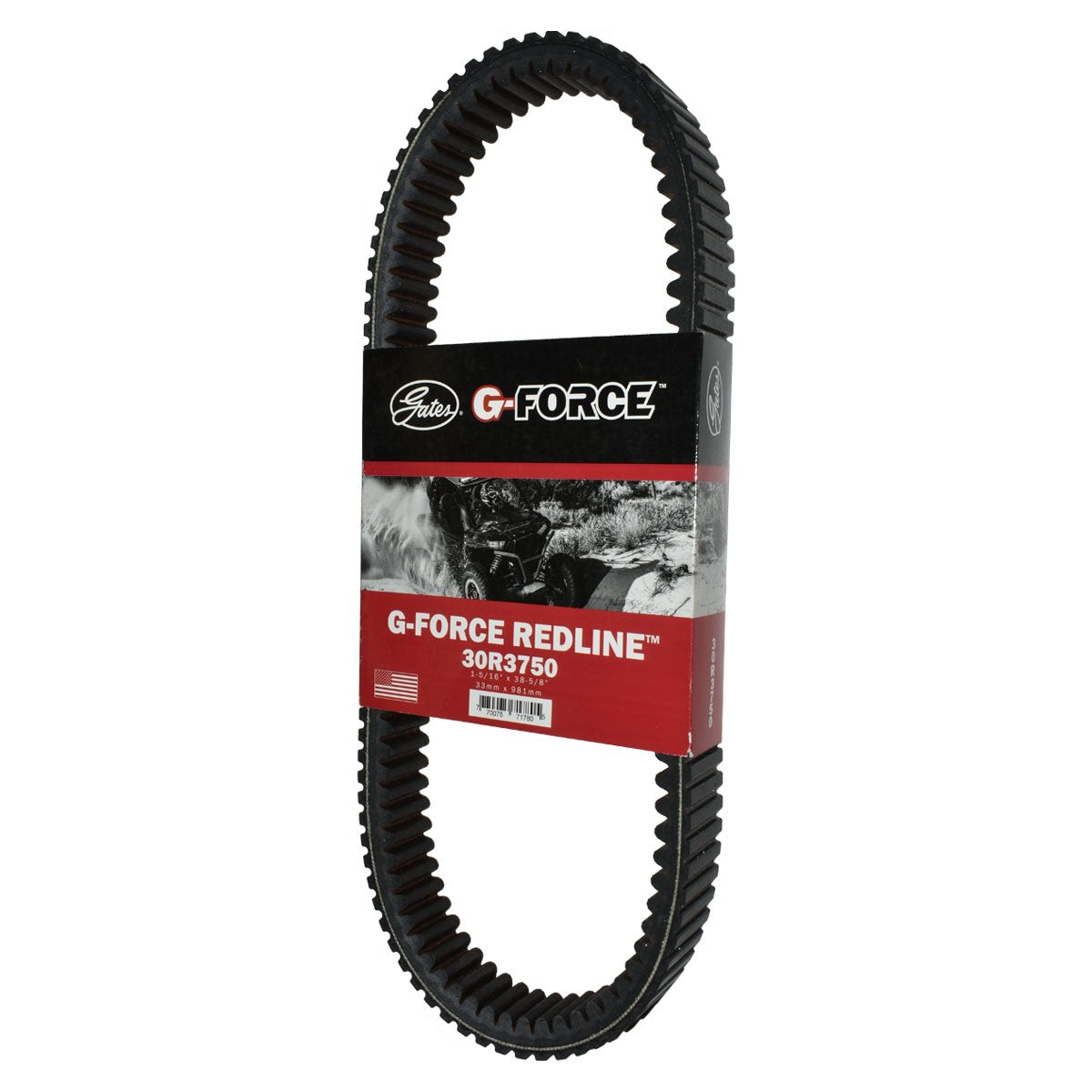

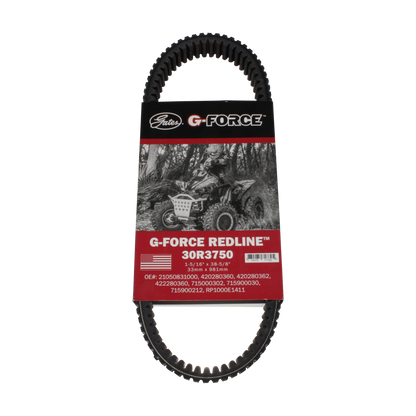

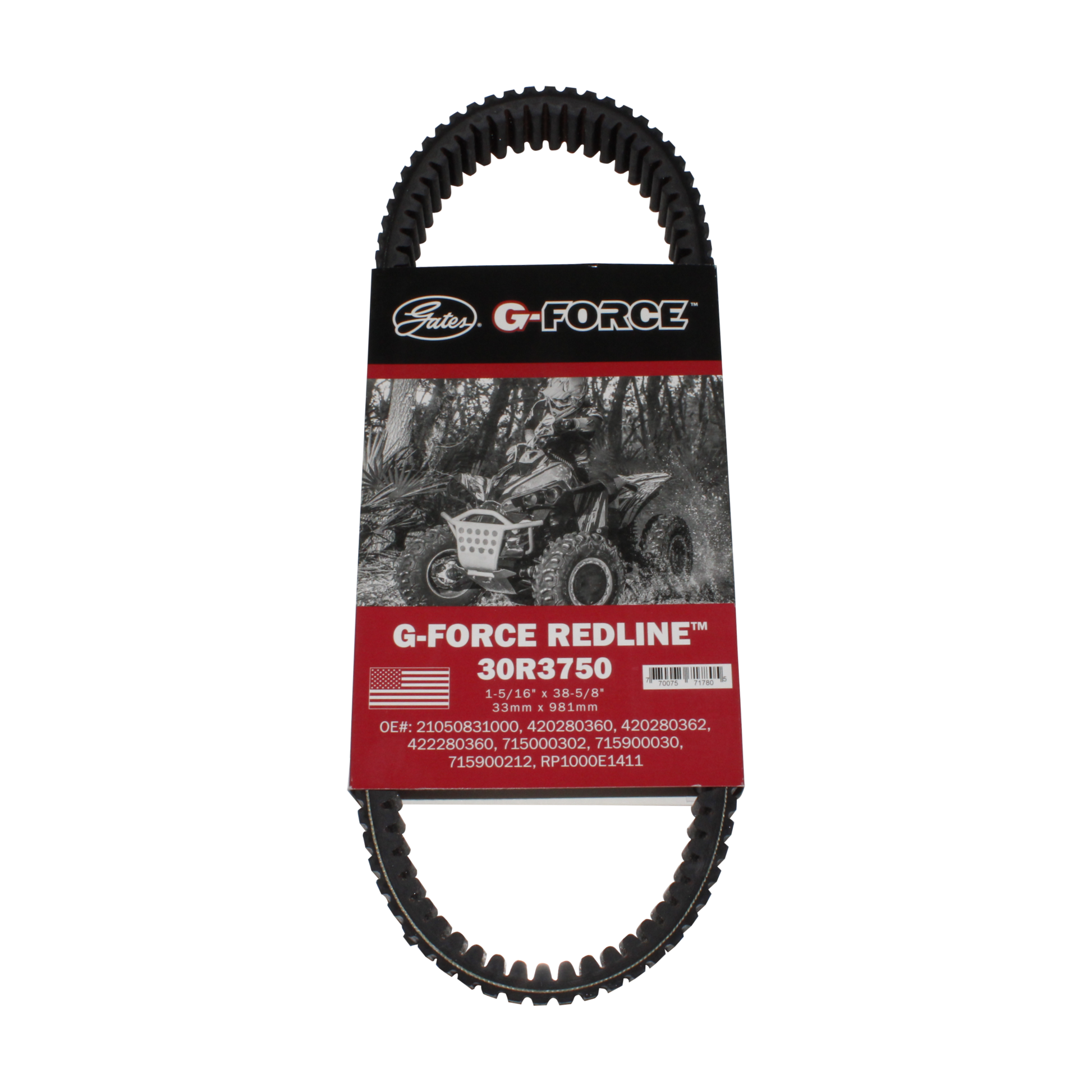

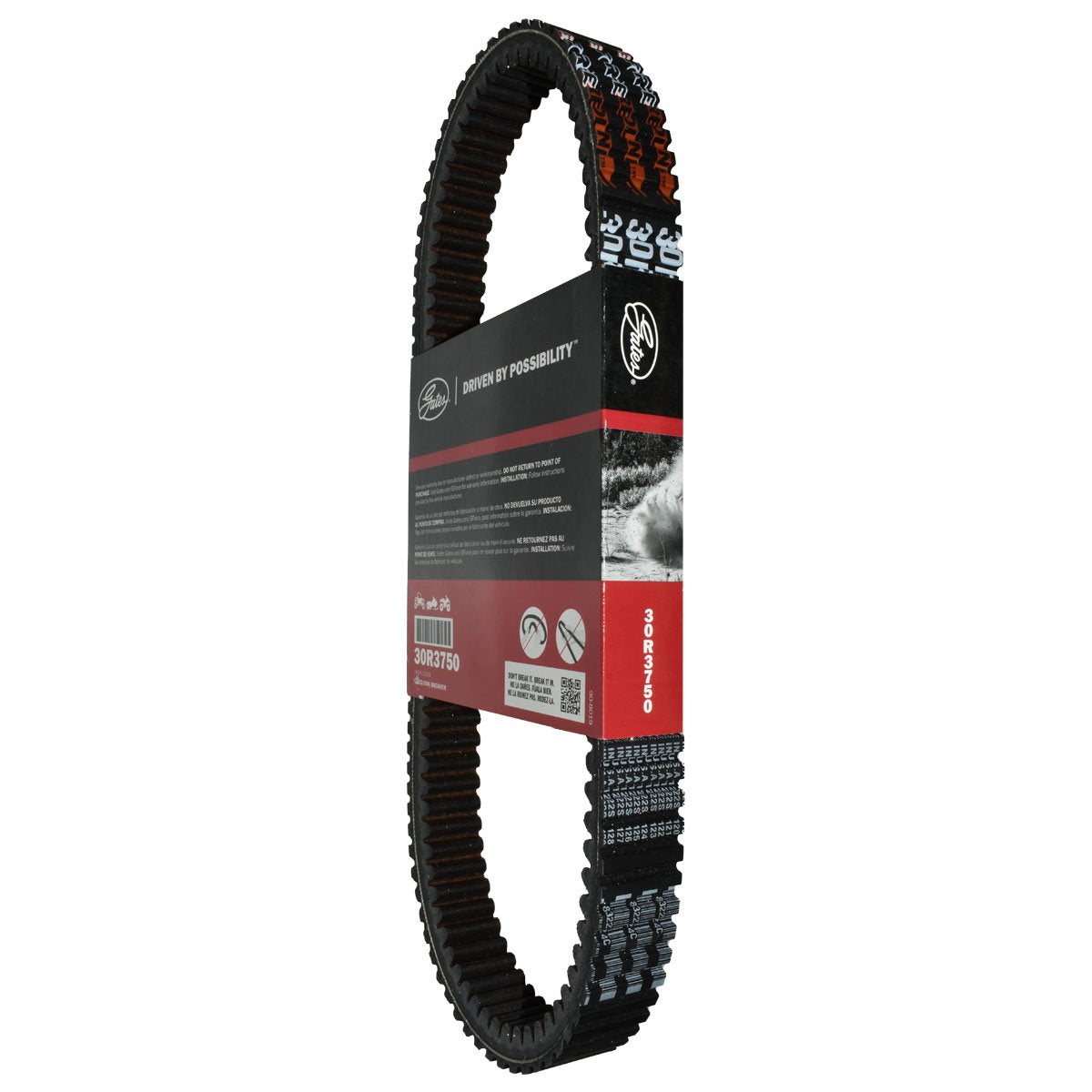

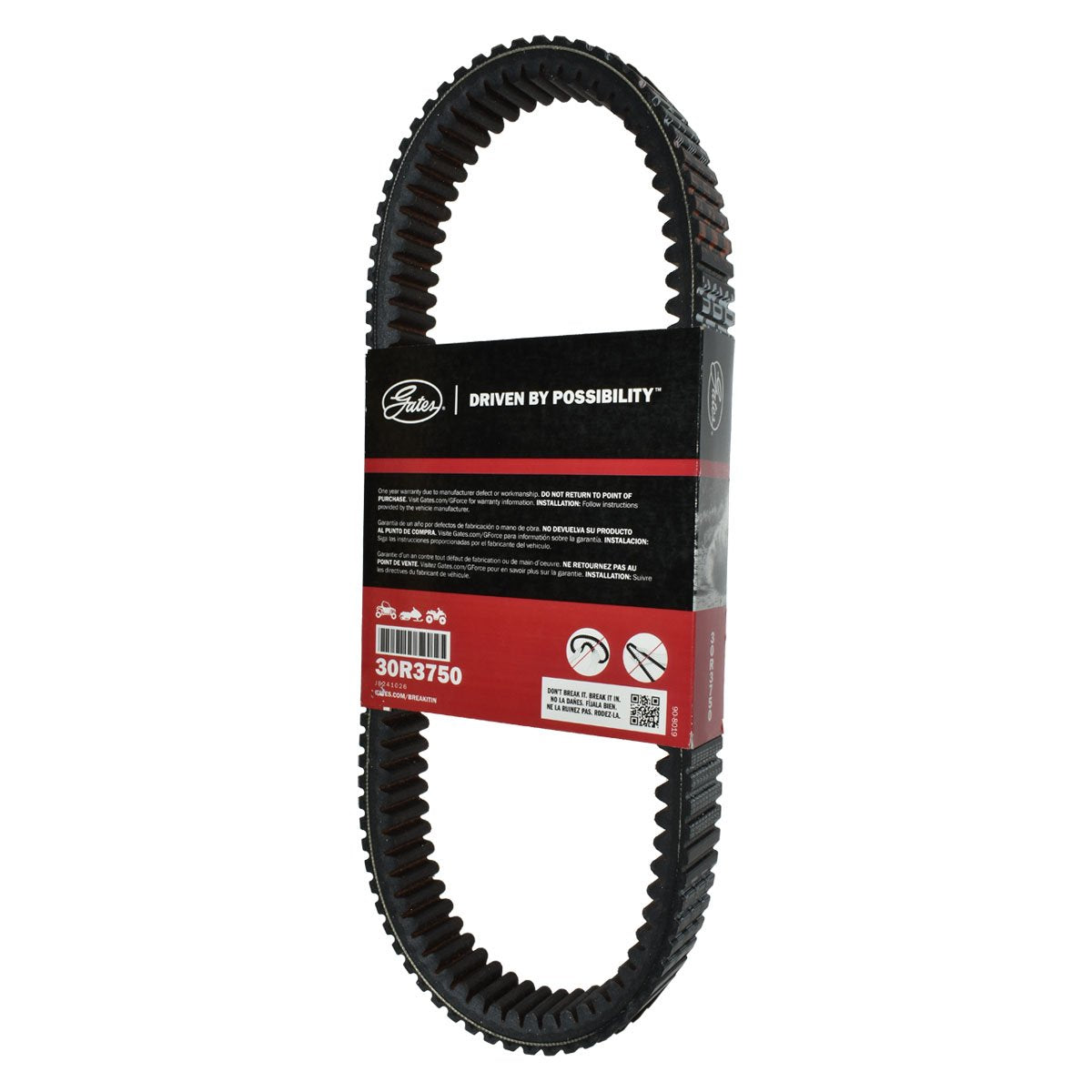

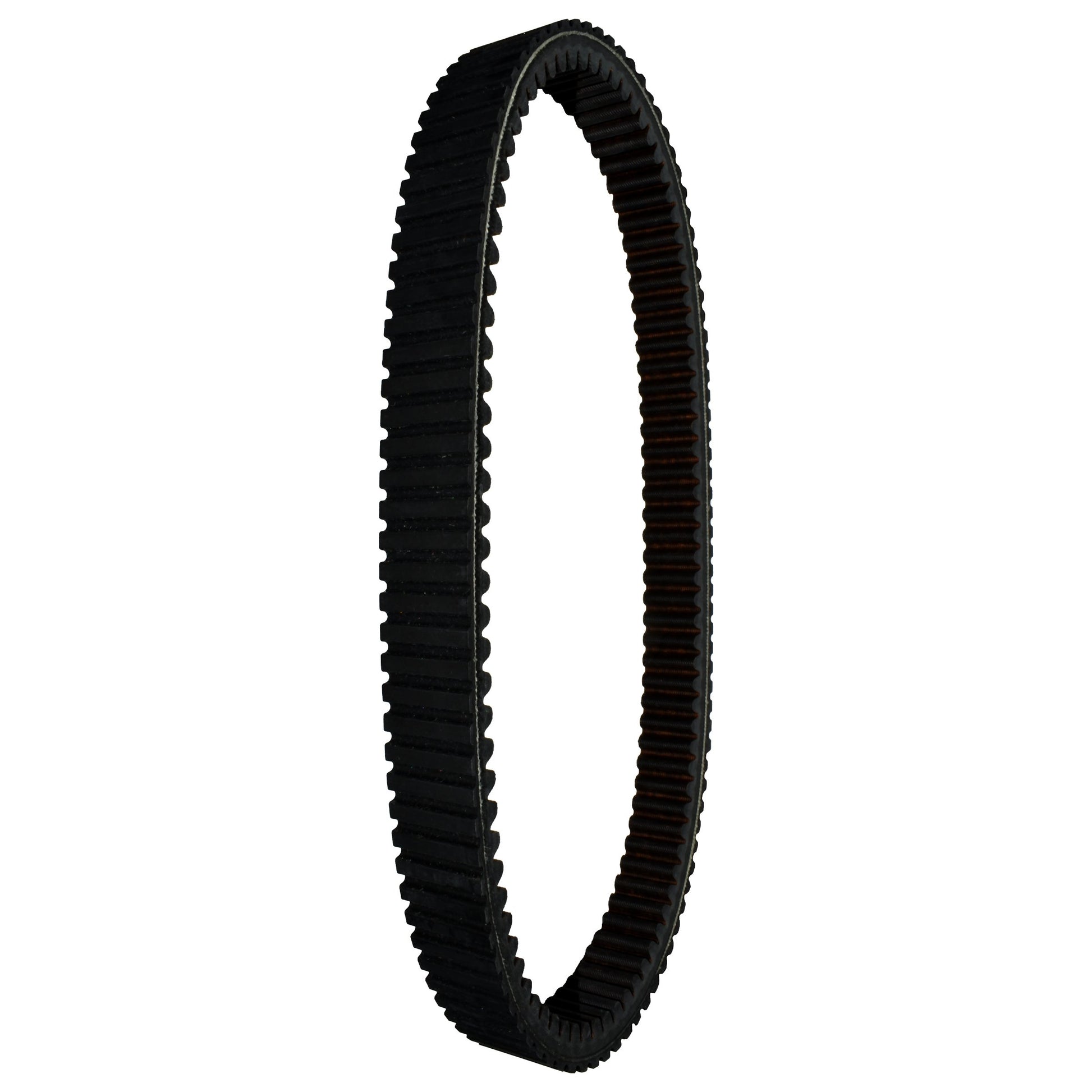

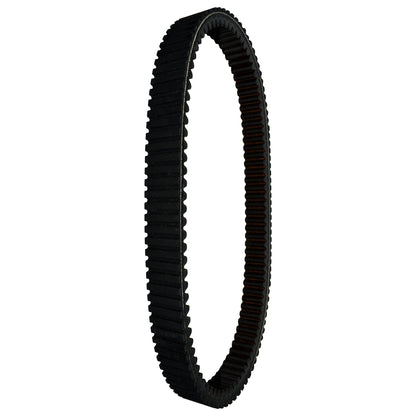

REDLINE CVT Drive Belt for Can-Am Outlander, Renegade & Maverick 500-976cc
REDLINE CVT Drive Belt for Can-Am Outlander, Renegade & Maverick 500-976cc
SKU:225.30R3750
Free shipping over £150. Terms apply
Couldn't load pickup availability
REDLINE CVT Drive Belt for Can-Am Outlander, Renegade & Maverick 500-976cc
Fits Can-Am Outlander, Renegade, Commander & Maverick 500cc-976cc, plus Bennche, Massimo & Odes equivalents
This Gates REDLINE CVT belt is a heavy-duty aramid-reinforced replacement for this wide range of Can-Am and Bombardier ATV and side-by-side models, engineered to OEM dimensions for a direct fit.
The REDLINE range uses an aramid and elastomer construction rather than a standard fabric belt, giving improved heat resistance and durability for demanding off-road use. The same platform is also sold under the Bennche, Massimo and Odes badges.
Key Features
- Aramid-reinforced, elastomer construction for improved heat resistance
- OE Improved / reinforced version over a standard fabric belt
- Width 33mm, outer length 981mm, thickness 159mm
- 26-degree angle to match factory pulley geometry
- Also fits Bennche, Massimo and Odes equivalents of this Can-Am platform
Technical Specs
| Specification | Detail |
|---|---|
| Version | OE Improved / Reinforced |
| Material | Aramid & Elastomer |
| Colour | Black |
| Width | 33mm |
| Outer Length | 981mm |
| Thickness | 159mm |
| Angle | 26° |
Vehicle Fitment Guide
Displacement (cc) is shown per model as published by the supplier; no model years were published for this belt. Please confirm fitment against the belt currently fitted to your machine before ordering.
| Make & Model | Years |
|---|---|
| Can-Am Outlander (500-976cc) | Not specified by supplier |
| Can-Am Outlander MAX (500-976cc) | Not specified by supplier |
| Can-Am Outlander XT (500-976cc) | Not specified by supplier |
| Can-Am Renegade (500-976cc) | Not specified by supplier |
| Can-Am Commander (800cc/976cc) | Not specified by supplier |
| Can-Am Commander MAX (800cc/976cc) | Not specified by supplier |
| Can-Am Commander XT (800cc/976cc) | Not specified by supplier |
| Can-Am Maverick (976cc) | Not specified by supplier |
| Can-Am Maverick Max (976cc) | Not specified by supplier |
| Bombardier Outlander 800 HO EFI (800cc) | Not specified by supplier |
| Bombardier Outlander 800 HO EFI XT (800cc) | Not specified by supplier |
| Bombardier Outlander MAX 800 HO EFI (800cc) | Not specified by supplier |
| Bennche Bighorn 850 (800cc) | Not specified by supplier |
| Bennche Warrior 800 (800cc) | Not specified by supplier |
| Massimo MSU850 (800cc) | Not specified by supplier |
| Massimo Warrior 800 (800cc) | Not specified by supplier |
| Odes Assailant (800cc) | Not specified by supplier |
| Odes Dominator (800cc/1000cc) | Not specified by supplier |
| Odes Raider (1000cc) | Not specified by supplier |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 715000302 | Can-Am |
| 715900030 | Can-Am |
| 422280362 | Can-Am |
| 422280360 | Can-Am |
| 422280366 | Can-Am |
| 225.30C3750 | Gates (standard, non-REDLINE equivalent) |
Frequently Asked Questions
Will this belt fit my Can-Am, Bombardier, Bennche, Massimo or Odes model without modification?
Yes, this REDLINE belt is manufactured to the same dimensions as the factory belt fitted across this range of models, so no modification is needed.
What's included?
One Gates REDLINE CVT belt, ready to fit.
How do I know my old belt has failed?
Look for cracking, glazing or fraying on the belt surface, a burning smell, a slipping or bogging sensation under acceleration, or a rattling noise from the CVT housing.
What makes the REDLINE range different from a standard CVT belt?
REDLINE belts use an aramid and elastomer construction rather than a plain fabric belt, giving greater heat resistance and a longer service life under heavy loads.
