Regulator Rectifier for Arctic Cat Bearcat 2001-2004, Mountain Cat, King Cat, Thundercat Models
Regulator Rectifier for Arctic Cat Bearcat 2001-2004, Mountain Cat, King Cat, Thundercat Models
SKU:RM30364
Free shipping over £150. Terms apply
Couldn't load pickup availability

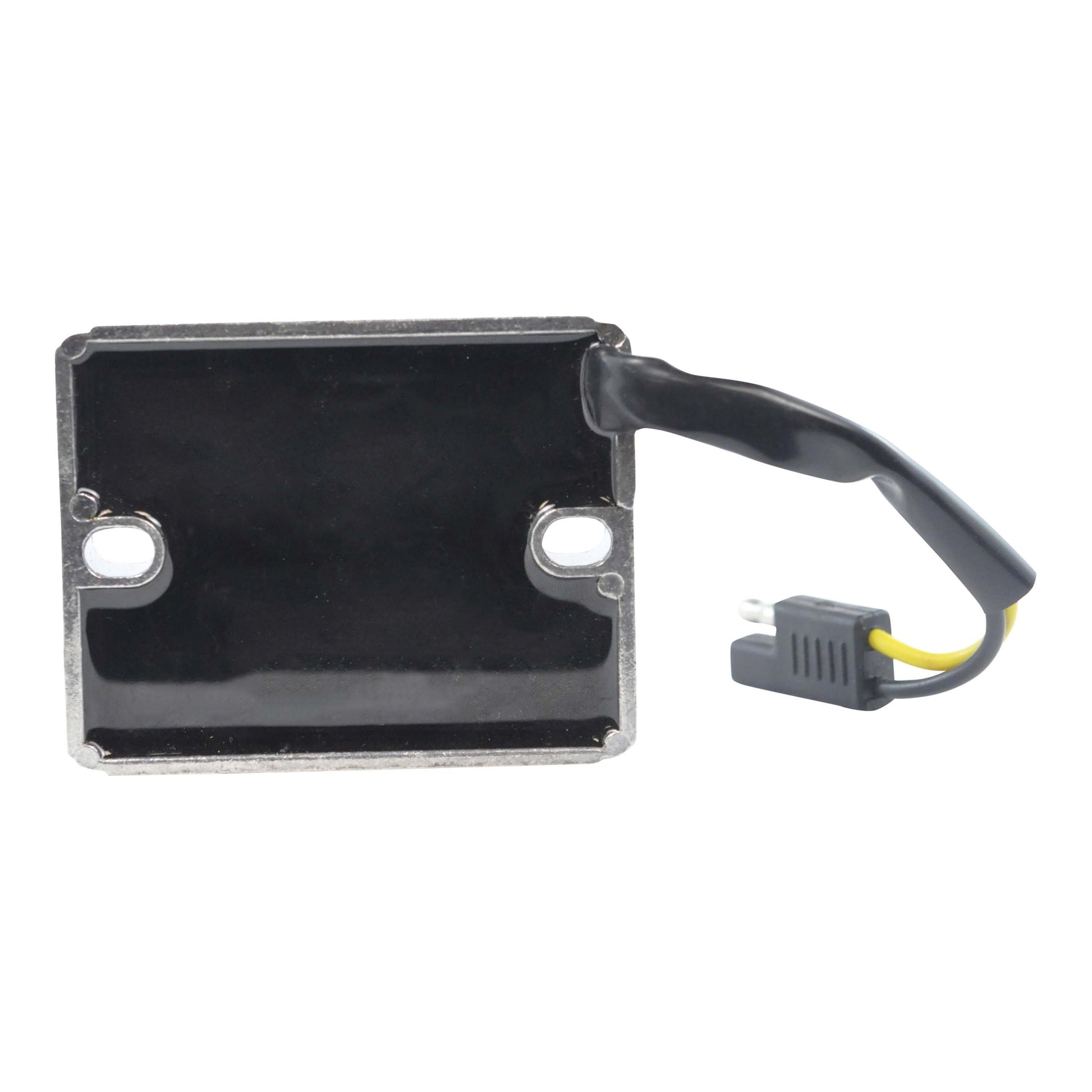

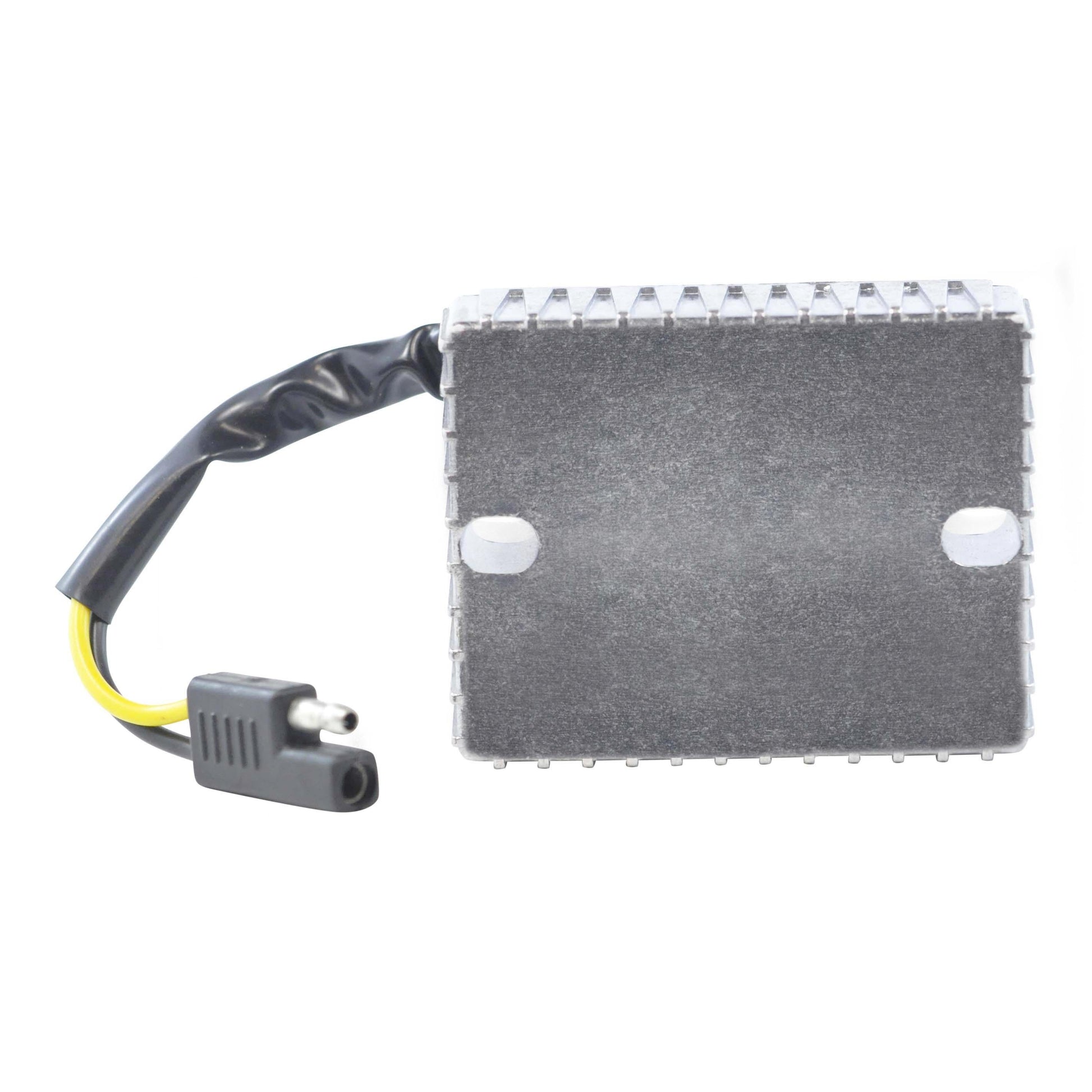

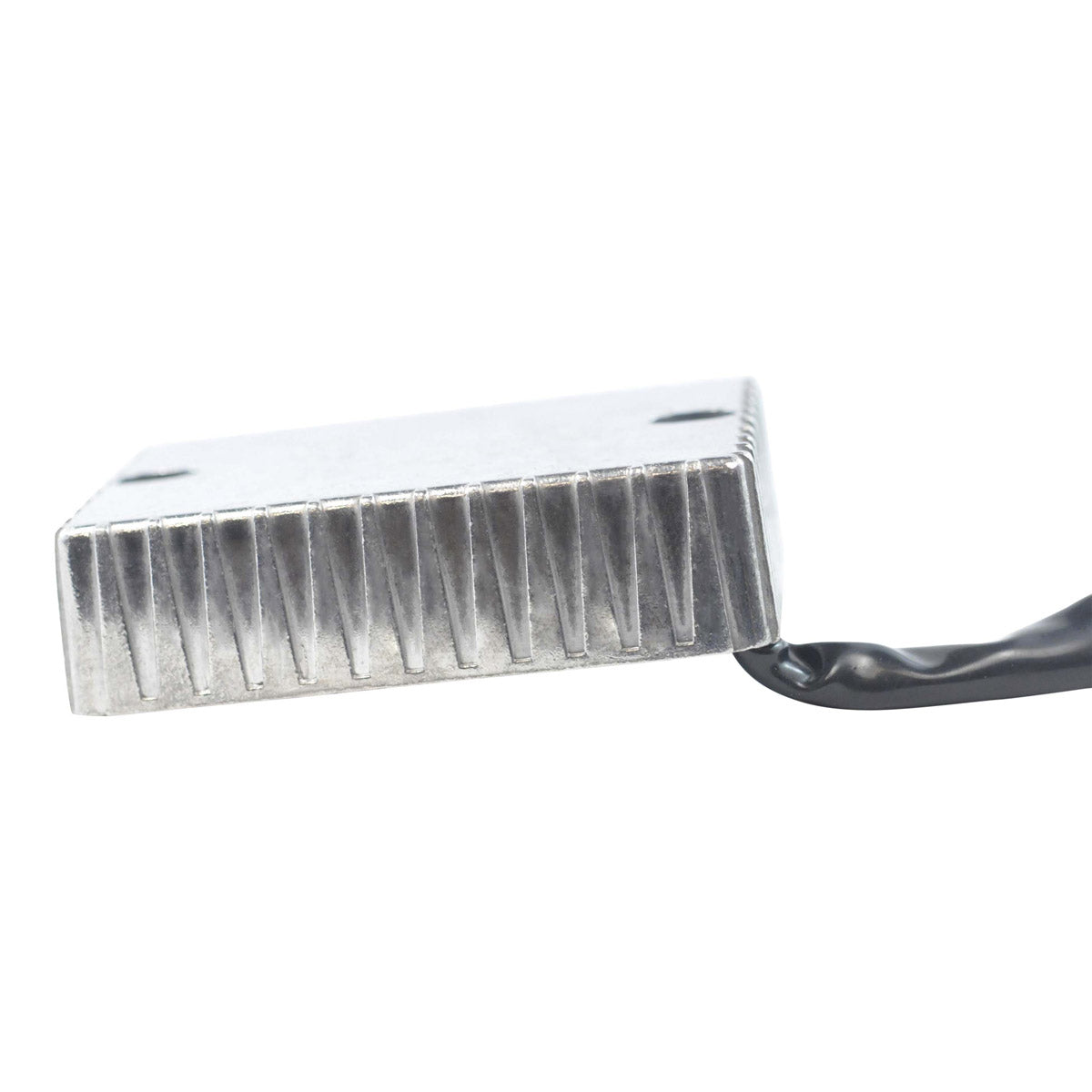

AC Voltage Regulator - RM30364
Arctic Cat Mountain Cat, Thundercat, Z, ZL, ZR and ZRT 440 500 570 600 800 900 1000 - 2001-2004
A brand new aftermarket AC voltage regulator for the Arctic Cat Mountain Cat, Thundercat, Z, ZL, ZR and ZRT models in 440, 500, 570, 600, 800, 900 and 1000 capacities. It is a direct replacement to your original unit, restoring correct voltage control to the lighting and charging circuit without any need to alter the existing loom.
The regulator is plug-and-play and a direct fit, with easy installation and no assembly required. It is built with a higher grade of electric components and the quality exceeds the OEM equipment. All products shipped are tested before dispatch. All item pictures are accurate, so if you are in any doubt do not hesitate to compare our item to your original part. It replaces Arctic Cat part number 0630-142, which is the surest way to confirm you are ordering the correct regulator for your sled.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- The quality exceeds the OEM equipment
- All products shipped are tested

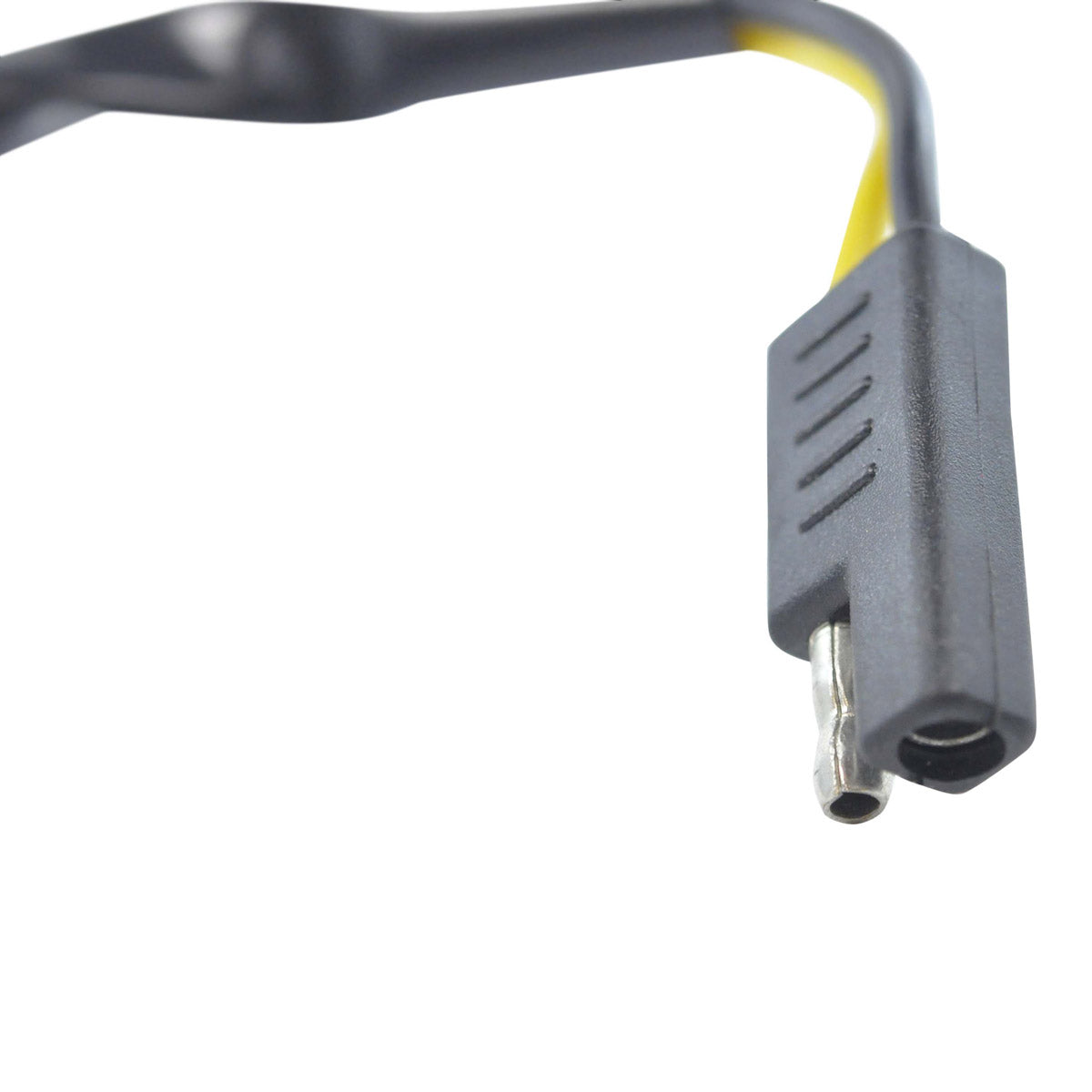

- Compact 2-wire single plug design
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30364 |
| Width | 66 mm |
| Length | 83 mm |
| Height | 22 mm |
| Wires length | 110 mm |
| Distance between fixation holes (centre to centre) | 65 mm |
| Number of plugs | 1 |
| Number of pins | 1 |
| Number of wires | 2 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 35 A / 400 W |
| Open circuit voltage | Less than 15 V |
| Operation temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat Mountain Cat 440 / 500 / 570 / 600 / 800 / 900 / 1000 | 2001-2004 |
| Arctic Cat Thundercat 440 / 500 / 570 / 600 / 800 / 900 / 1000 | 2001-2004 |
| Arctic Cat Z 440 / 500 / 570 / 600 / 800 / 900 / 1000 | 2001-2004 |
| Arctic Cat ZL 440 / 500 / 570 / 600 / 800 / 900 / 1000 | 2001-2004 |
| Arctic Cat ZR 440 / 500 / 570 / 600 / 800 / 900 / 1000 | 2001-2004 |
| Arctic Cat ZRT 440 / 500 / 570 / 600 / 800 / 900 / 1000 | 2001-2004 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0630-142 | Arctic Cat |
Frequently Asked Questions
Does fitting this require any modification?
No. It is a direct replacement to your original unit, plug-and-play and a direct fit, with easy installation and no assembly required. It uses a single plug with 1 pin and 2 wires of 110 mm length, and the fixation holes are 65 mm apart centre to centre.
What is included?
You receive the RM30364 AC voltage regulator, measuring 66 mm wide by 83 mm long by 22 mm high. All products shipped are tested before dispatch.
How do I tell whether my old regulator has failed?
A working unit holds the system voltage in check, reaching a minimum charging voltage of 14.5 V +/- 0.5 V with open circuit voltage below 15 V. Headlight and tail light bulbs that repeatedly blow are the classic symptom of a failed AC regulator letting the voltage run away, while dim or flickering lights point the other way. Burnt or corroded connector pins on the original unit are a further sign.
Is this an AC regulator or a regulator rectifier?
This part is supplied as an AC voltage regulator. It is a compact 2-wire unit with a single 1-pin plug, rated to 35 A / 400 W, and it replaces Arctic Cat 0630-142. If your original part carries that number, this is the correct replacement; if it does not, please compare our pictures against your original part before ordering.
