Regulator Rectifier for Arctic Cat Bearcat 1998-2008 Models
Regulator Rectifier for Arctic Cat Bearcat 1998-2008 Models
SKU:RM30915
Free shipping over £150. Terms apply
Couldn't load pickup availability

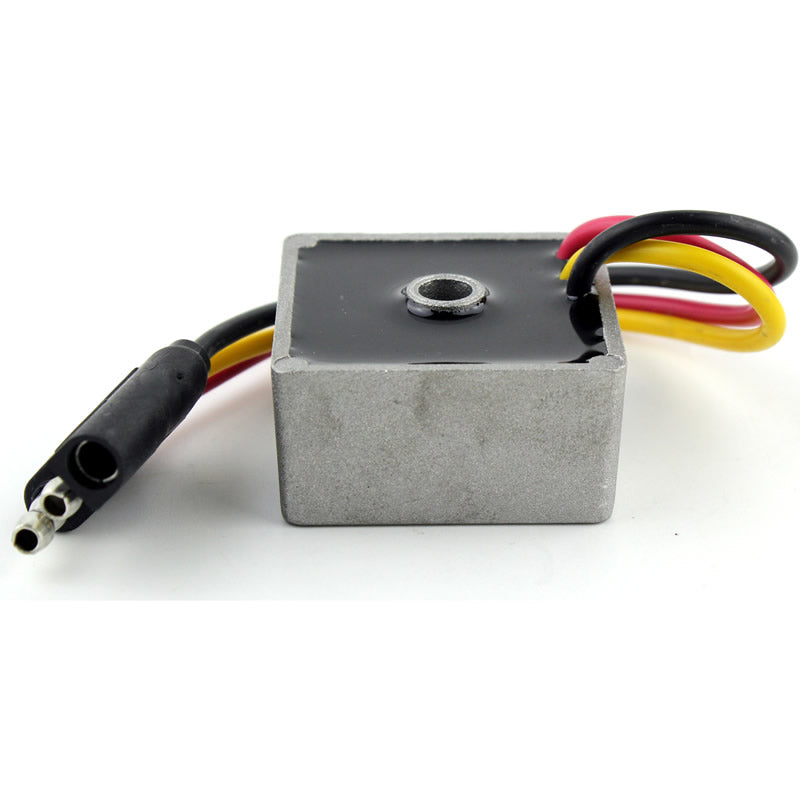

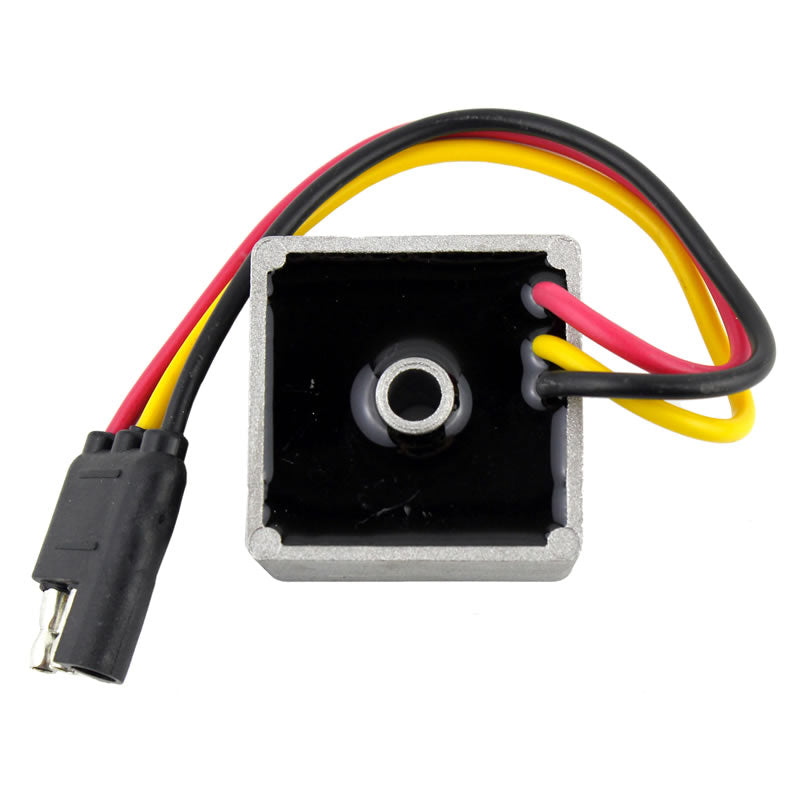

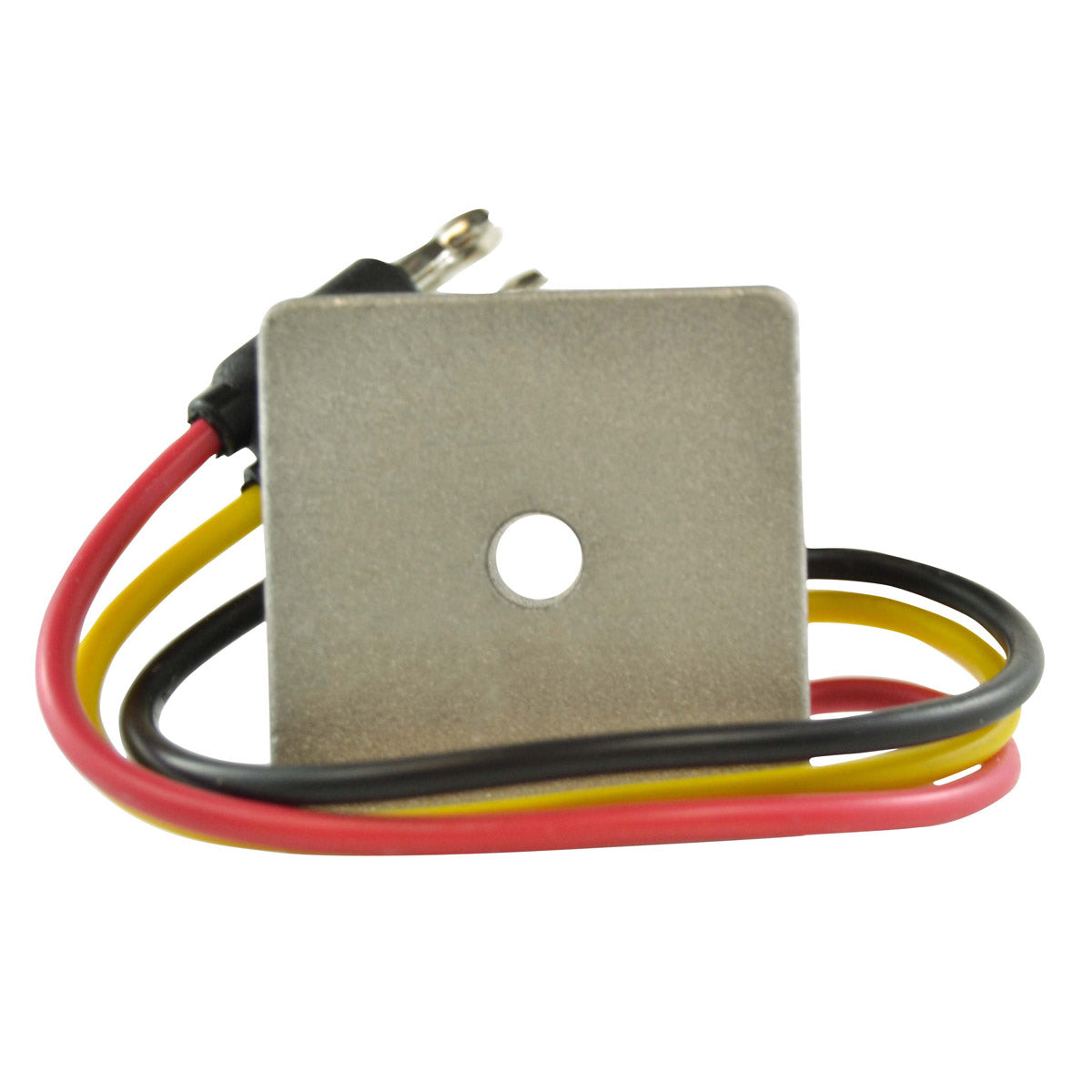

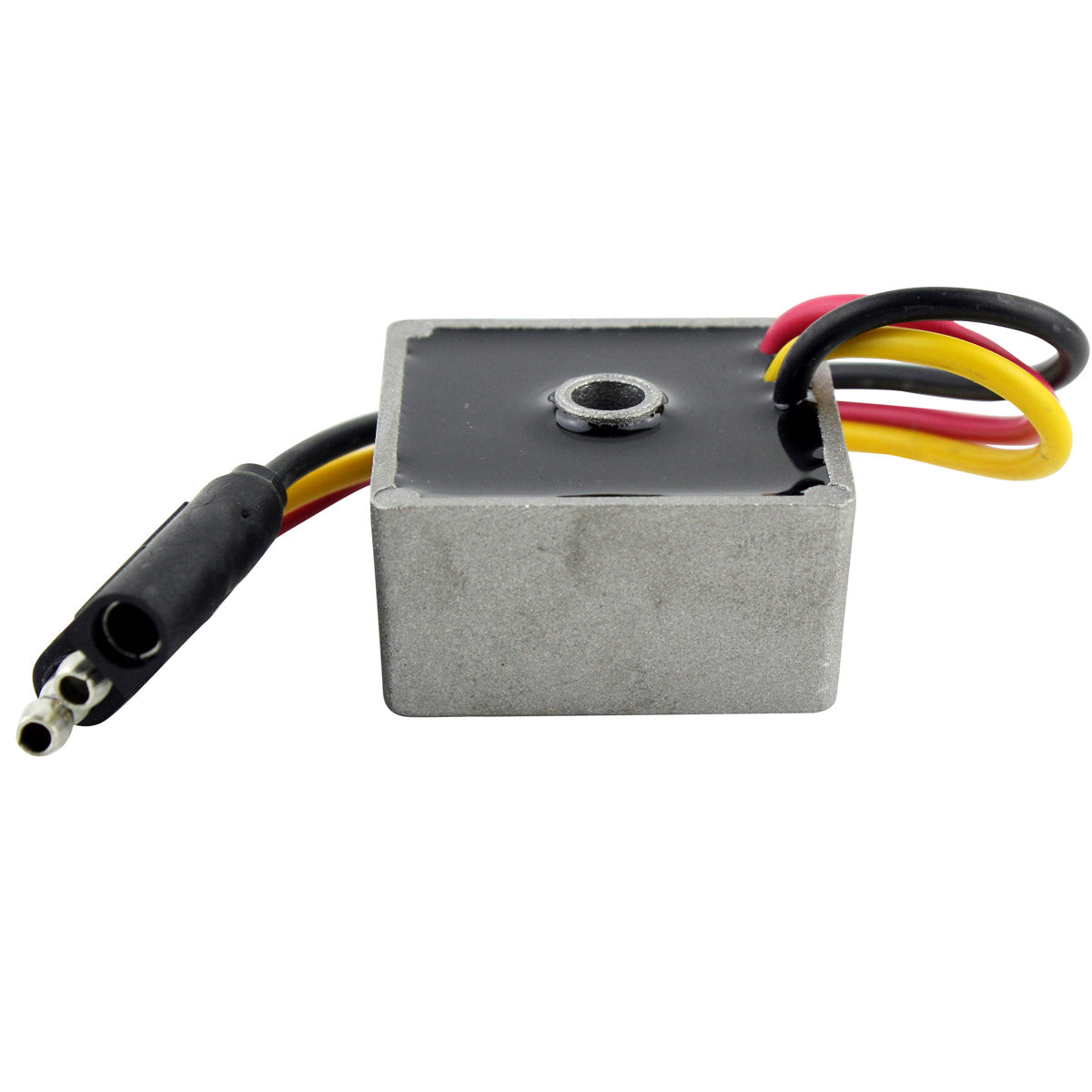

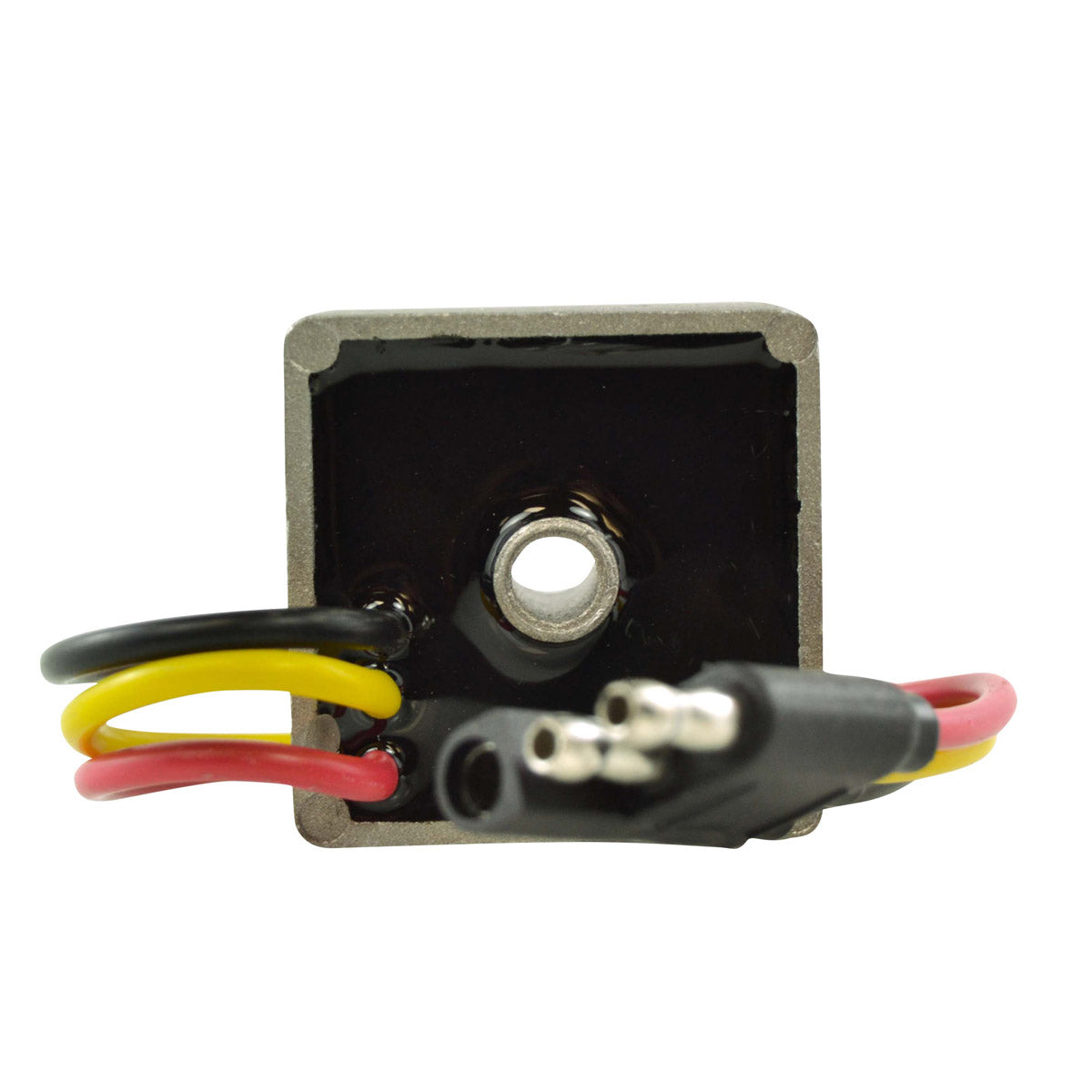

AC Regulator Rectifier for Arctic Cat Bearcat, Jag, Pantera, Panther, Z, ZL and Triple Touring
Arctic Cat 340, 440, 550, 580, 600 and 800 models, 1998-2008 - RMSTATOR part RM30915 - replaces OEM 0630-105
This is a brand new aftermarket AC voltage regulator rectifier built as a direct replacement for the original unit fitted to a wide range of Arctic Cat snowmobiles produced between 1998 and 2008. It is a plug-and-play, direct fit part with no assembly required, so it goes back onto the machine using the original mounting points and the original three-pin connector. Coverage runs across the Bearcat, Jag, Pantera, Panther, Z, ZL and Triple Touring families in 340, 440, 550, 580, 600 and 800 engine sizes.
The regulator rectifier is the component that converts the raw alternating current produced by the stator into the stable direct current the battery and the rest of the electrical system need. This unit holds a minimum charging voltage of 14.5 V +/- 0.5 V, handles a maximum charging current of 50 A / 500 W and keeps open circuit voltage below 15 V, so the battery, lights and gauges all see a steady supply instead of an unregulated one. It is built with a higher grade of electric components, the quality exceeds the OEM equipment, and every unit is tested before it is shipped.
Key Features
- Direct replacement for your original Arctic Cat unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Quality exceeds the OEM equipment
- Higher grade of electric components
- Regulates at 14.5 V +/- 0.5 V with open circuit voltage held below 15 V
- Rated to a maximum charging current of 50 A / 500 W
- Compact 41 mm x 41 mm body with a single three-pin plug and 55 mm wire length
- Rated for operation from -20 °C to 85 °C
- Replaces Arctic Cat OEM part number 0630-105
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30915 |
| Width | 41 mm |
| Length | 41 mm |
| Height | 21 mm |
| Wire length | 55 mm |
| Number of plugs | 1 |
| Number of pins | 3 |
| Number of wires | 3 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Less than 15 V |
| Operation temperature | -20 °C to 85 °C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat Bearcat | 1998-2008 |
| Arctic Cat Jag | 1998-2008 |
| Arctic Cat Pantera | 1998-2008 |
| Arctic Cat Panther | 1998-2008 |
| Arctic Cat Z | 1998-2008 |
| Arctic Cat ZL | 1998-2008 |
| Arctic Cat Triple Touring | 1998-2008 |
| Engine sizes covered | 340, 440, 550, 580, 600 and 800 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0630-105 | Arctic Cat |
| RM30915 | RMSTATOR (this part) |
Frequently Asked Questions
Does this fit without modification?

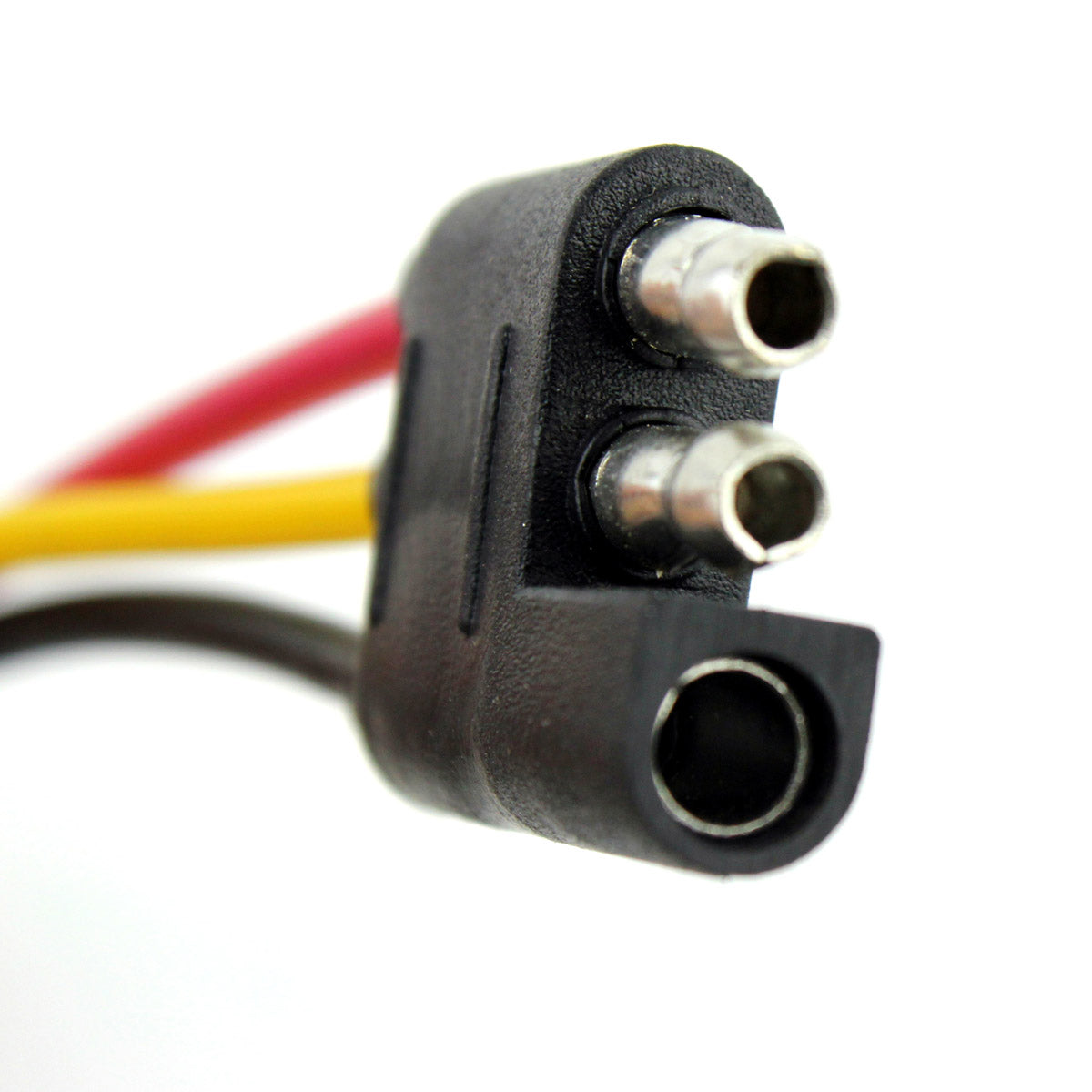

Yes. It is a direct replacement for your original unit and is described as plug-and-play and direct fit, with no assembly required. It uses a single three-pin plug with three wires, matching the original arrangement on the listed Arctic Cat models.
What is included?
You receive one new RM30915 AC regulator rectifier unit. Every unit is tested before it is shipped. No additional hardware is listed for this part, so retain the original fixings from the machine.
How do I know my old regulator rectifier has failed?
The usual check is to measure voltage at the battery terminals with the engine running. A healthy charging system should be regulating to around 14.5 V. A reading well below that points to a system that is not charging and a battery that will progressively go flat, while a reading above 15 V points to an unregulated output that will boil the battery and blow bulbs. This unit is specified to hold 14.5 V +/- 0.5 V with open circuit voltage below 15 V.
Which Arctic Cat engine sizes does it cover?
The listed coverage spans the 340, 440, 550, 580, 600 and 800 engine sizes across the Bearcat, Jag, Pantera, Panther, Z, ZL and Triple Touring ranges built between 1998 and 2008. If you are unsure, check the number moulded or stamped on the unit currently fitted against the OEM reference 0630-105.
