Regulator Rectifier for BMW Airhead & Moto Guzzi Twins
BMW R50, R60, R65, R75, R80, R90, R100 and Moto Guzzi V7 750, 850, LeMans, G5 1000, SP, V50, V75 - 1970-2001 - part number RMS020-102772

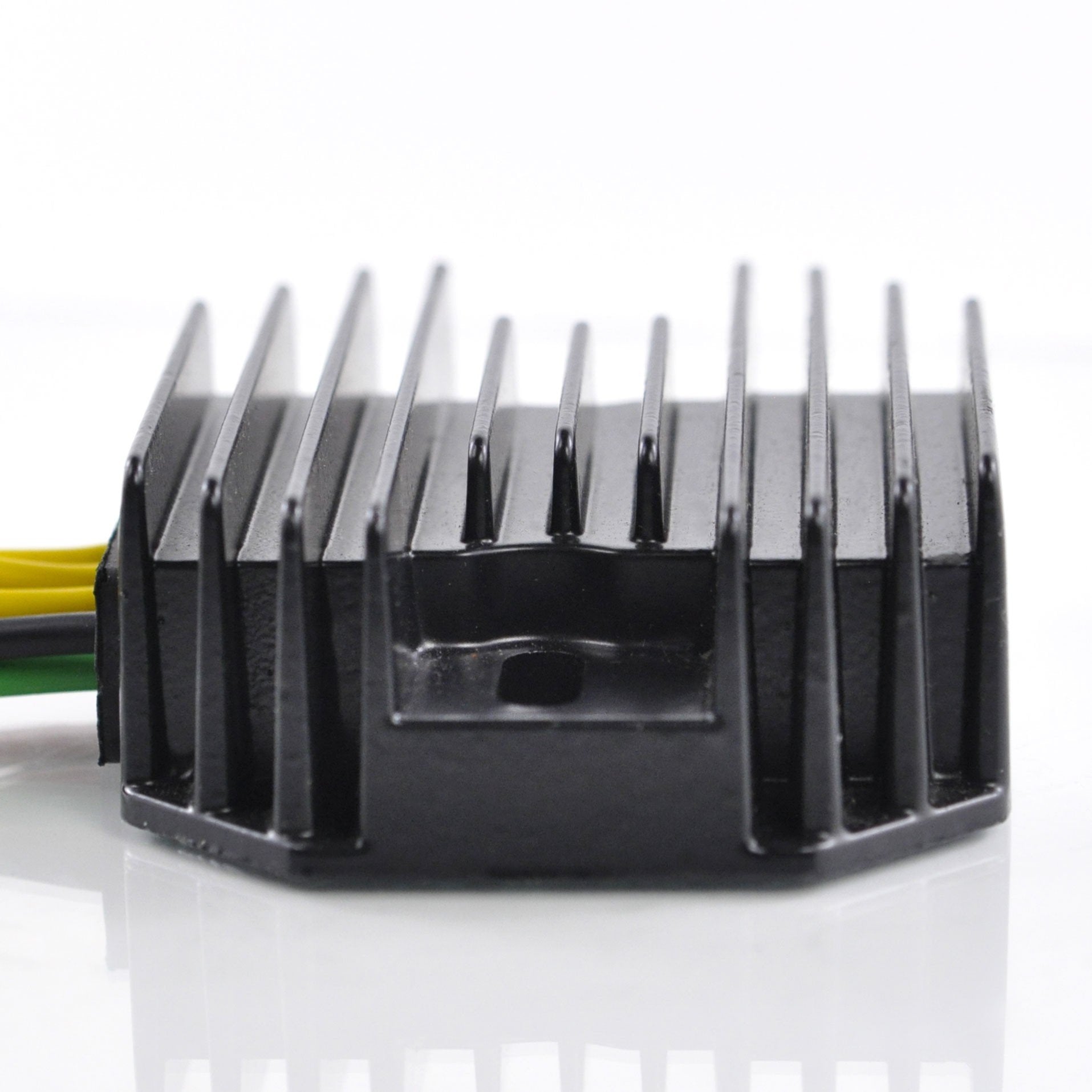

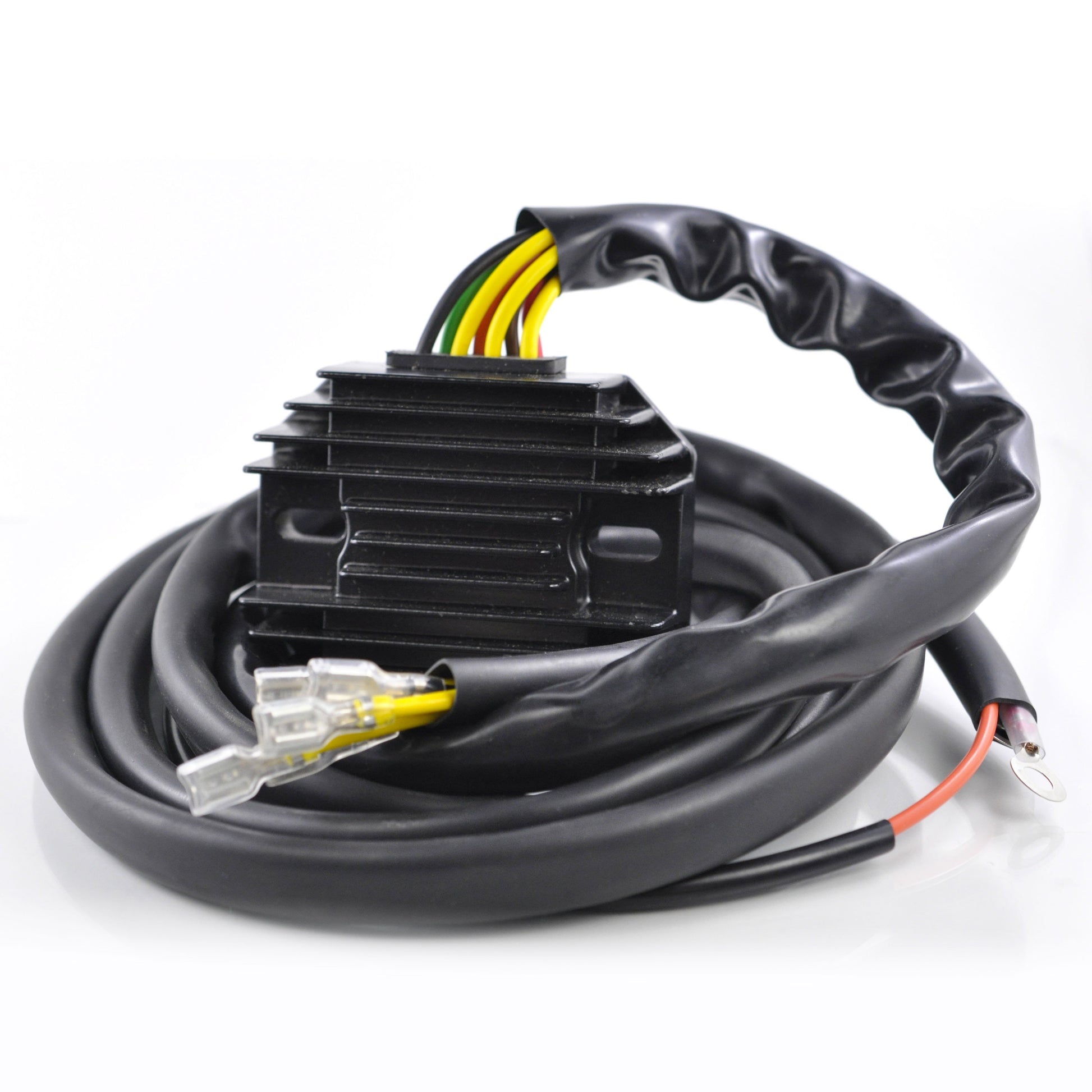

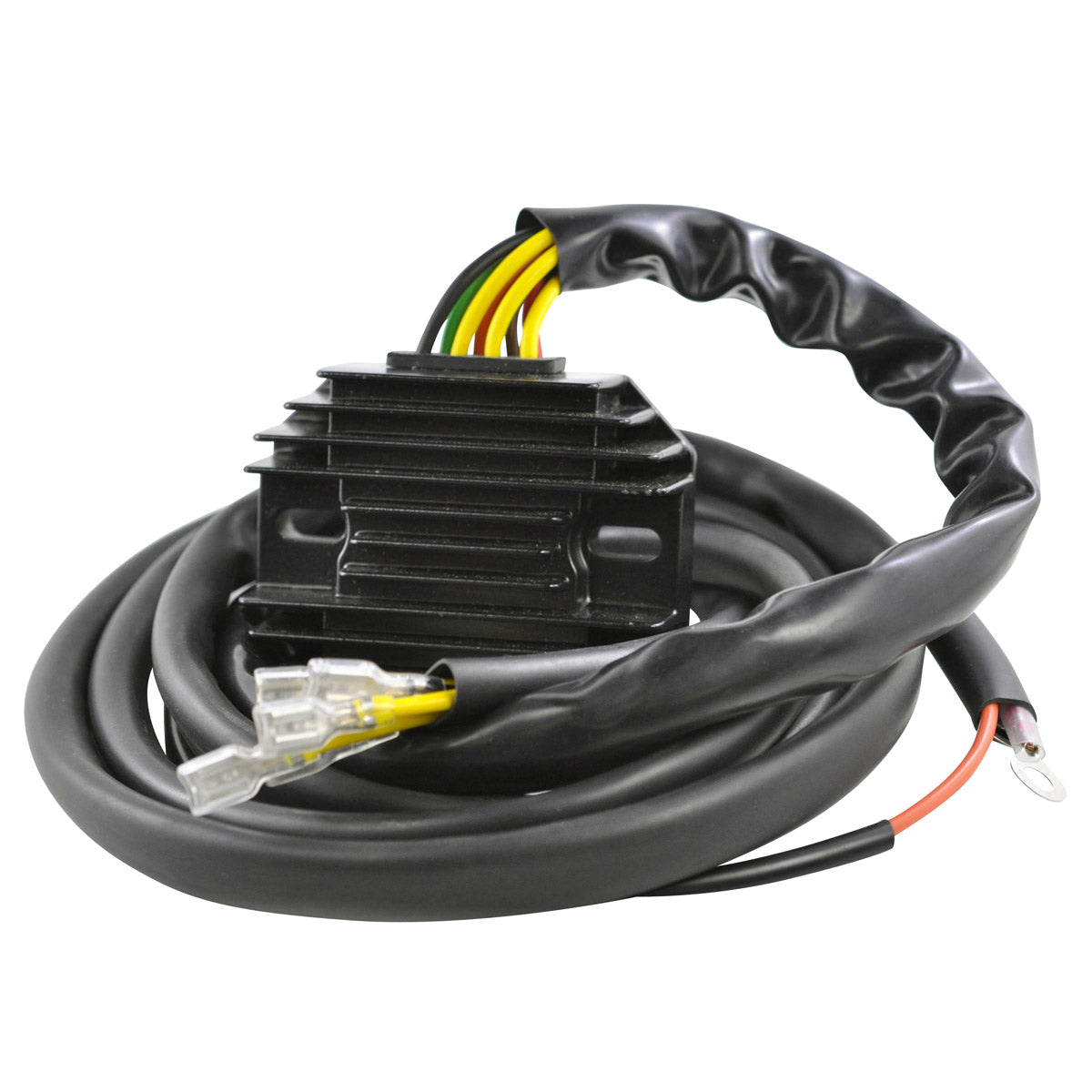

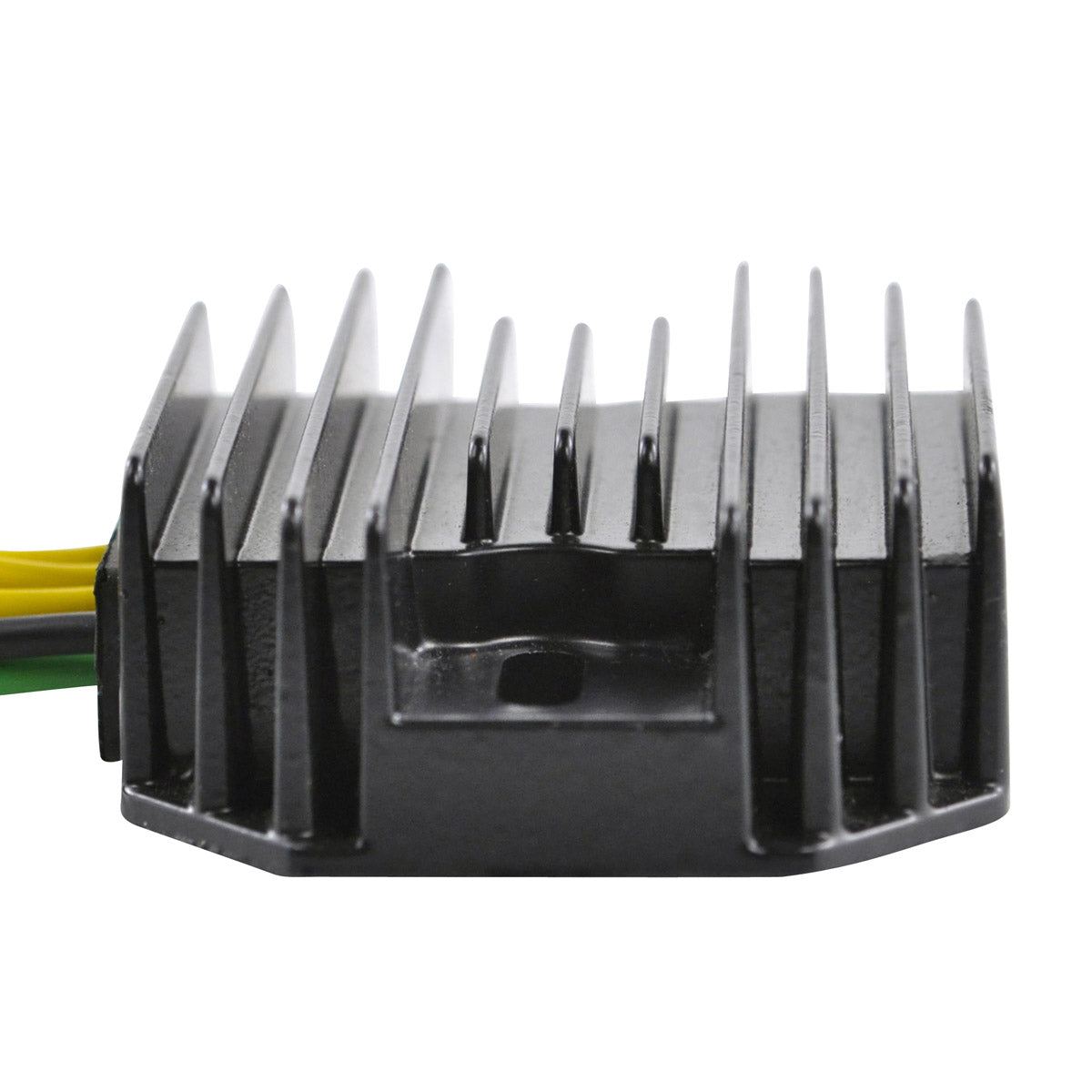

This is a brand new aftermarket regulator rectifier built as a direct replacement for the original unit fitted to BMW airhead boxers and Moto Guzzi twins between 1970 and 2001. It is a plug-and-play, direct fit part designed to mount and wire exactly like the original, so it goes straight in without modification to the loom or the mounting points.

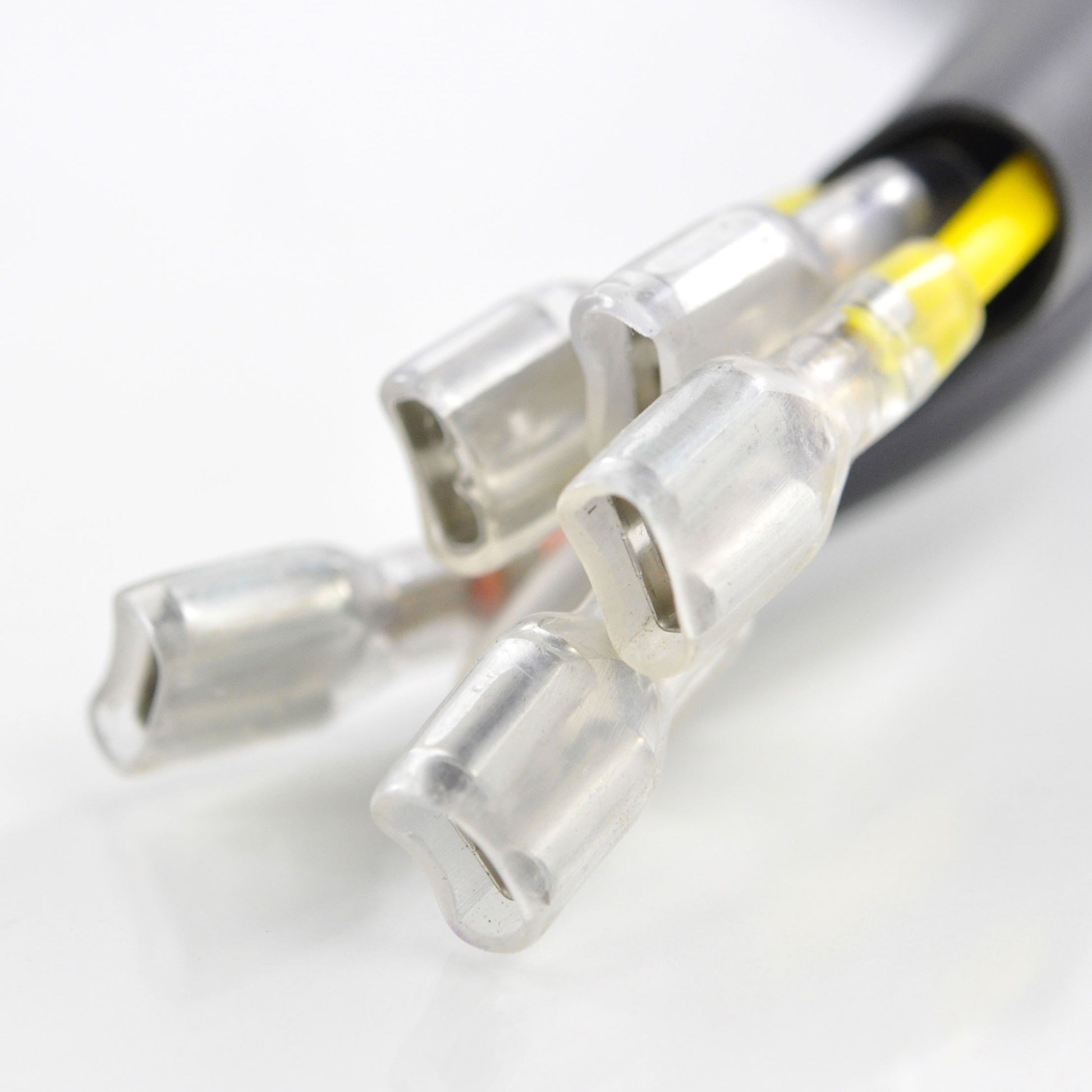

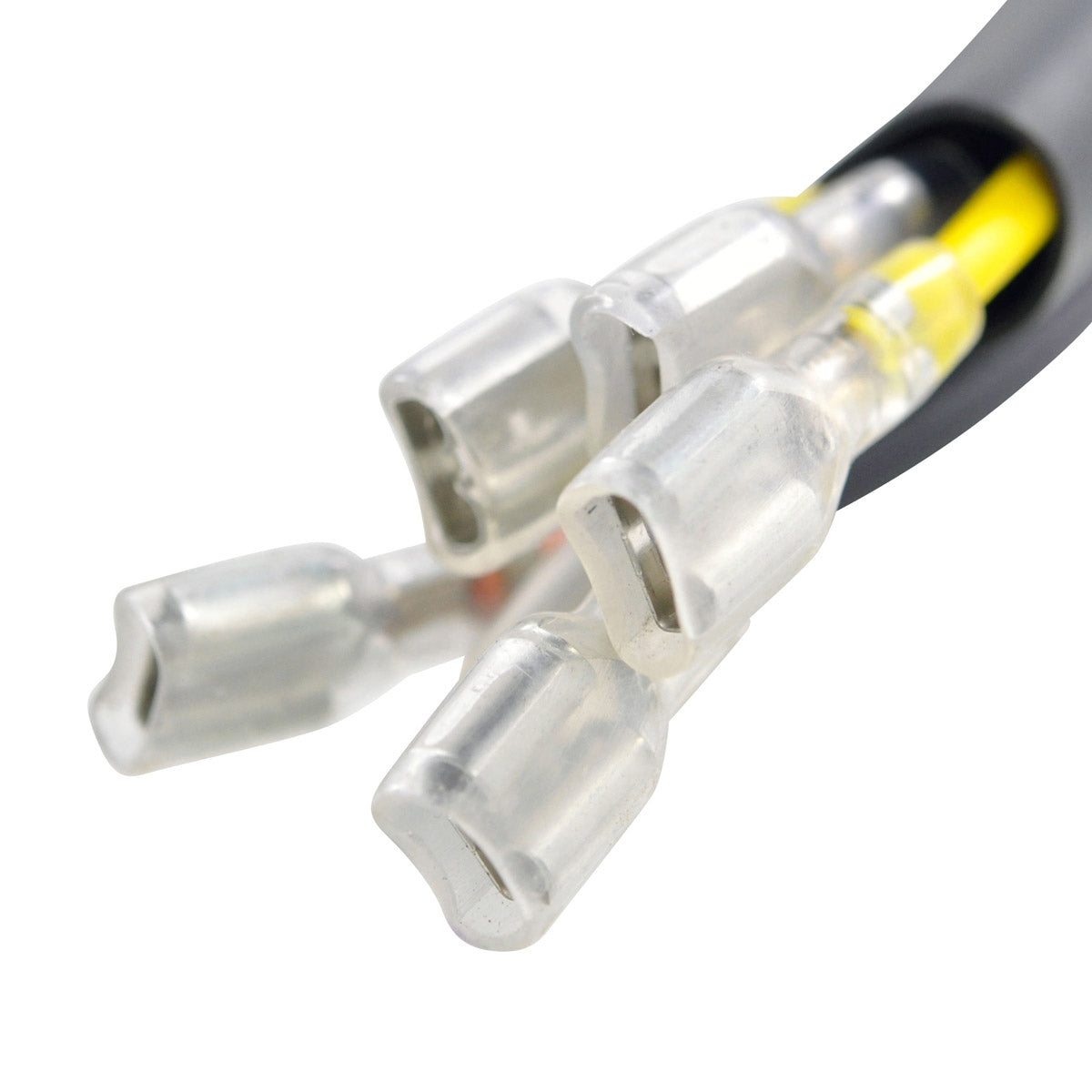

The unit is supplied with the opposite connector for the main harness side. On machines of this age that connector is very often melted, corroded or otherwise defective, and it is a major cause of repetitive electrical faults, so replacing both halves together is worth the few extra minutes. All units are tested before shipment. The regulator carries eight wires across six plugs, with long 1030 mm, 1450 mm and 1530 mm tails for routing on these frames, and the fixation holes are 60 mm centre to centre.
Key Features
- Direct replacement for the original unit - plug-and-play, direct fit, easy installation
- Supplied with the opposite connector for the main harness side
- Long wire tails of 1030 mm, 1450 mm and 1530 mm

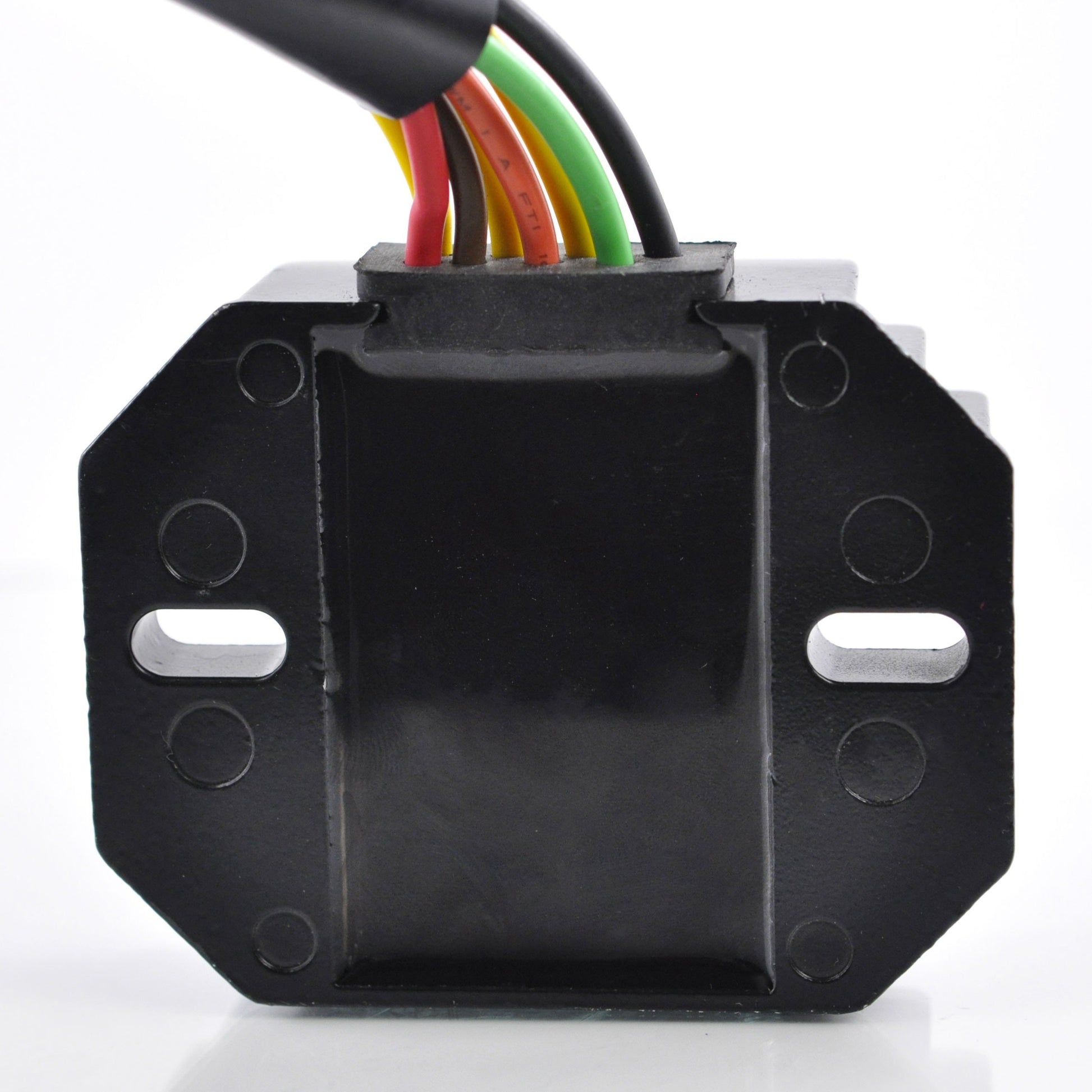

- Fixation holes 60 mm centre to centre
- Colour-coded wiring: 3 yellow (stator), black (D-), brown (DF), red (battery +), green (battery -), orange (ignition +)
- Rated to 50 A / 500 W maximum charging current
- All units tested before shipment
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS020-102772 |
| Width | 71 mm |
| Length | 81 mm |
| Height | 29 mm |
| Fixation holes centre to centre | 60 mm |
| Wire lengths | 1030 mm, 1450 mm, 1530 mm |
| Number of plugs | 6 |
| Number of pins | 8 |
| Number of wires | 8 |
| Wire colours | 3 yellow (stator), black (D-), brown (DF), red (battery +), green (battery -), orange (ignition +) |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Under 15 V |
| Operating temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| BMW R50 | 1970-2001 |
| BMW R60 | 1970-2001 |
| BMW R65 | 1970-2001 |
| BMW R75 | 1970-2001 |
| BMW R80 | 1970-2001 |
| BMW R90 | 1970-2001 |
| BMW R100 | 1970-2001 |
| Moto Guzzi V7 750 | 1970-2001 |
| Moto Guzzi 850 | 1970-2001 |
| Moto Guzzi LeMans | 1970-2001 |
| Moto Guzzi G5 1000 | 1970-2001 |
| Moto Guzzi SP | 1970-2001 |
| Moto Guzzi V50 | 1970-2001 |
| Moto Guzzi V75 | 1970-2001 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 12 32 1 244 409 | BMW |
| 12 32 1 243 983 | BMW |
| 12 32 1 355 457 | BMW |
| 12 32 1 358 109 | BMW |
| 12 32 1 358 134 | BMW |
| 12 31 1 244 063 | BMW |
| 12 31 1 244 062 | BMW |
| 12 31 1 357 498 | BMW |
| GU28703800 | Moto Guzzi |
| GU28712400 | Moto Guzzi |
| GU29703800 | Moto Guzzi |
Frequently Asked Questions
Does this need any modification to fit?
No. It is a direct replacement for the original unit - plug-and-play, direct fit and easy to install. The fixation holes are 60 mm centre to centre, matching the original mounting.
What is included?
The regulator rectifier unit and the opposite connector for the main harness side, so you can renew both halves of the connection in one go.
How do I know the old regulator has failed?
The charging system should hold at least 14.5 V +/- 0.5 V at the battery with the engine running. A battery that goes flat or boils, lights that dim or surge with revs, or a burnt regulator body or melted connector all point to a failed unit.
Which wire goes where?
The eight wires are colour coded: three yellow to the stator, black to D-, brown to DF, red to battery positive, green to battery negative and orange to ignition positive. Match them to your machine's wiring diagram before connecting.
