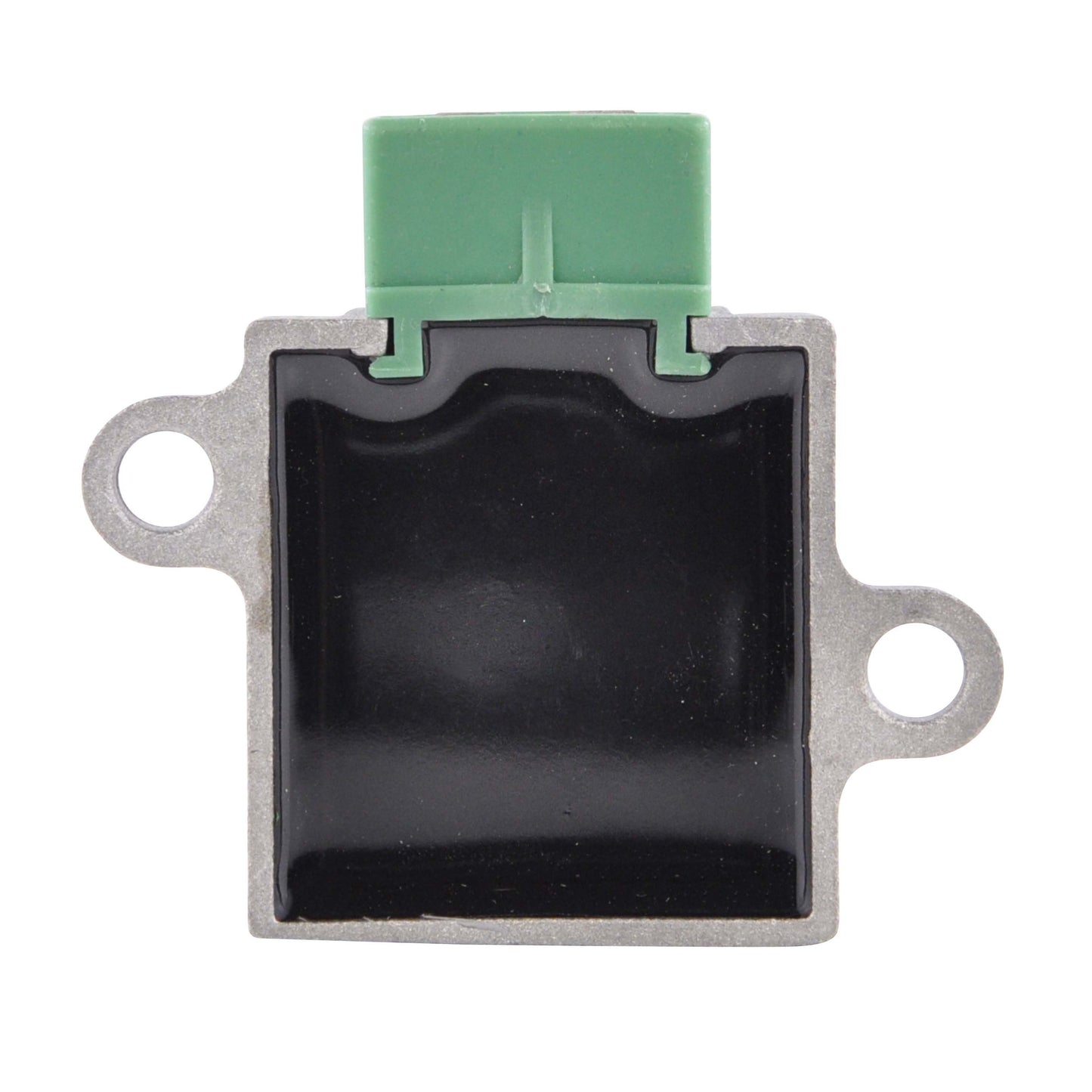

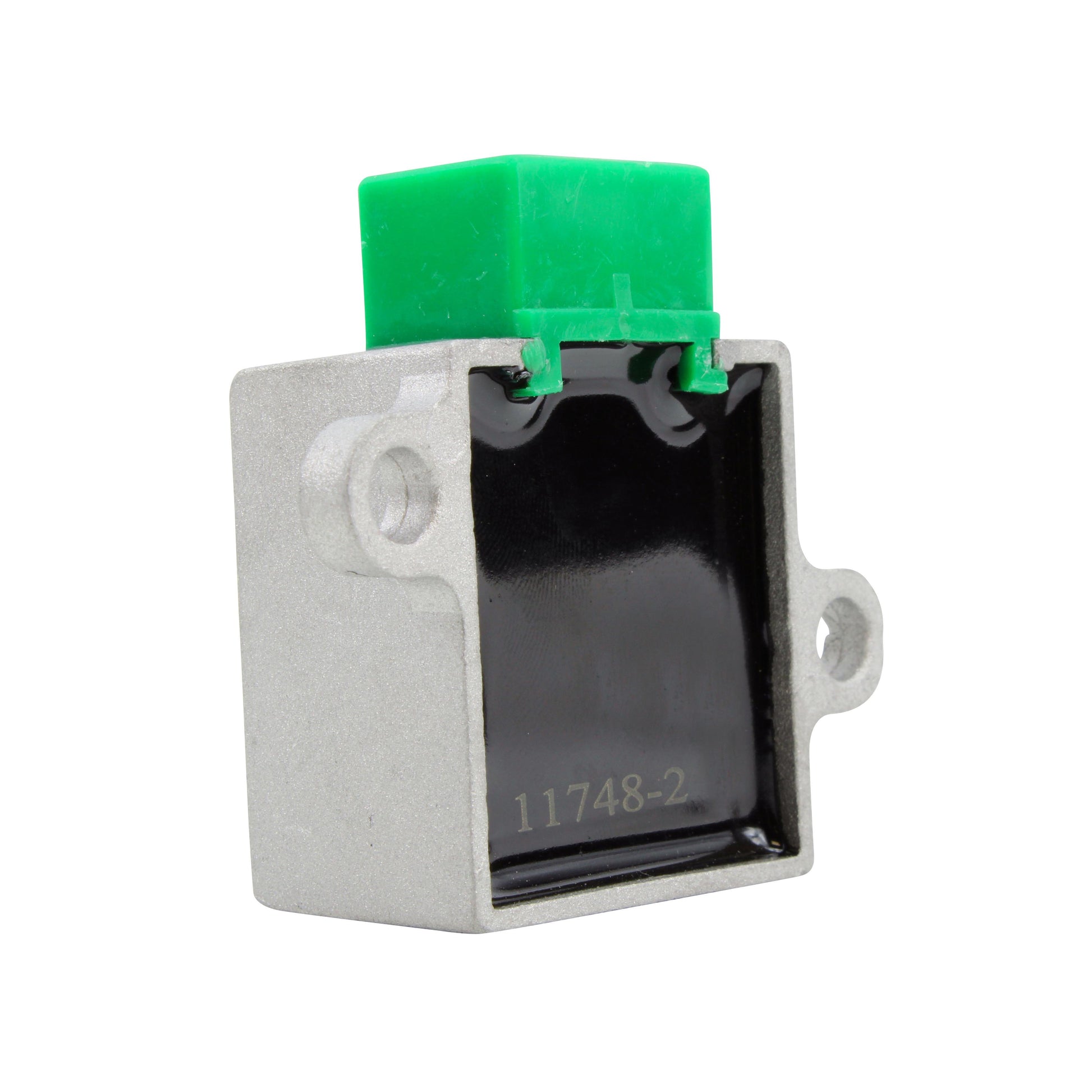

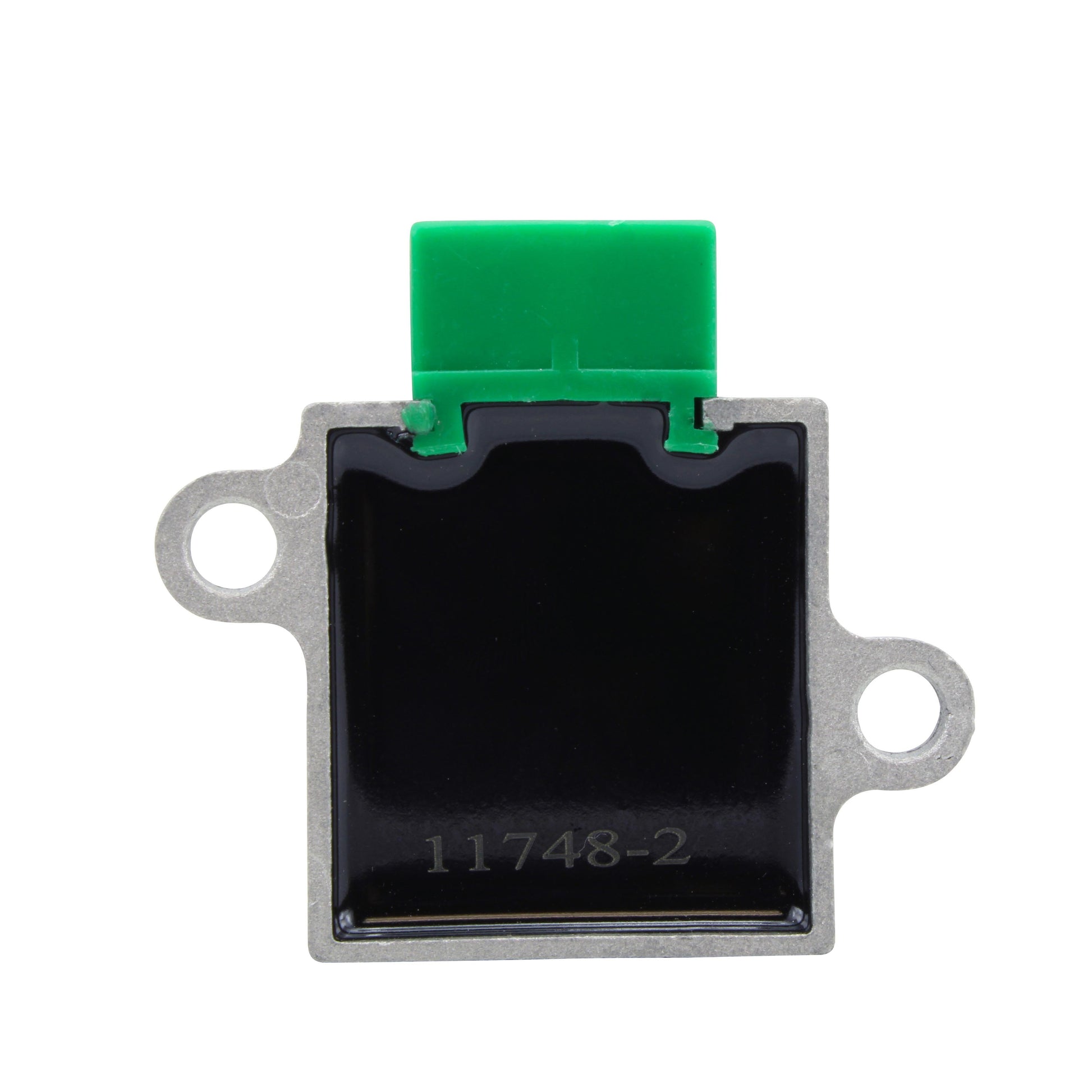

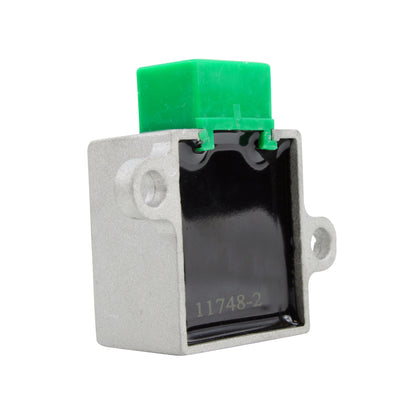

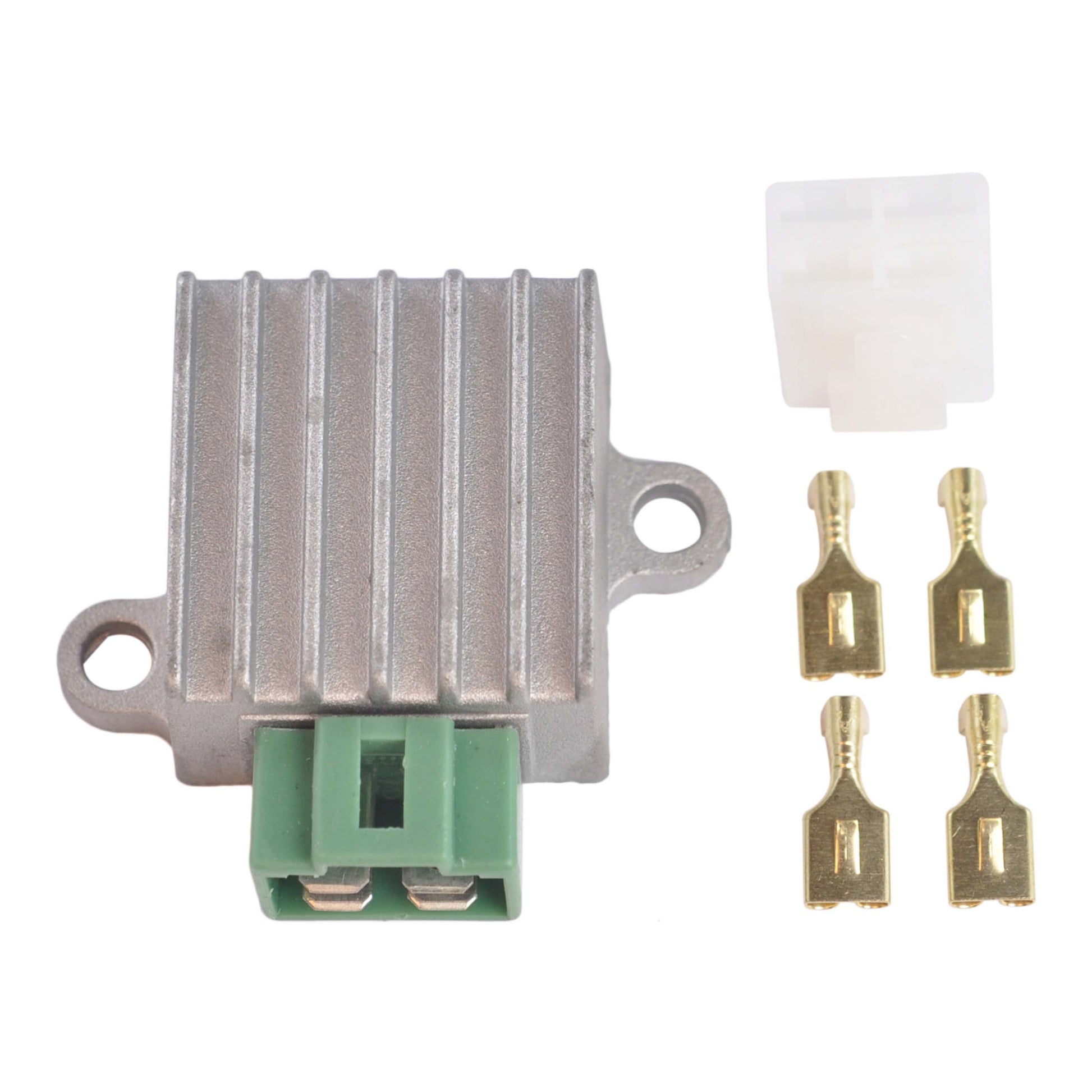

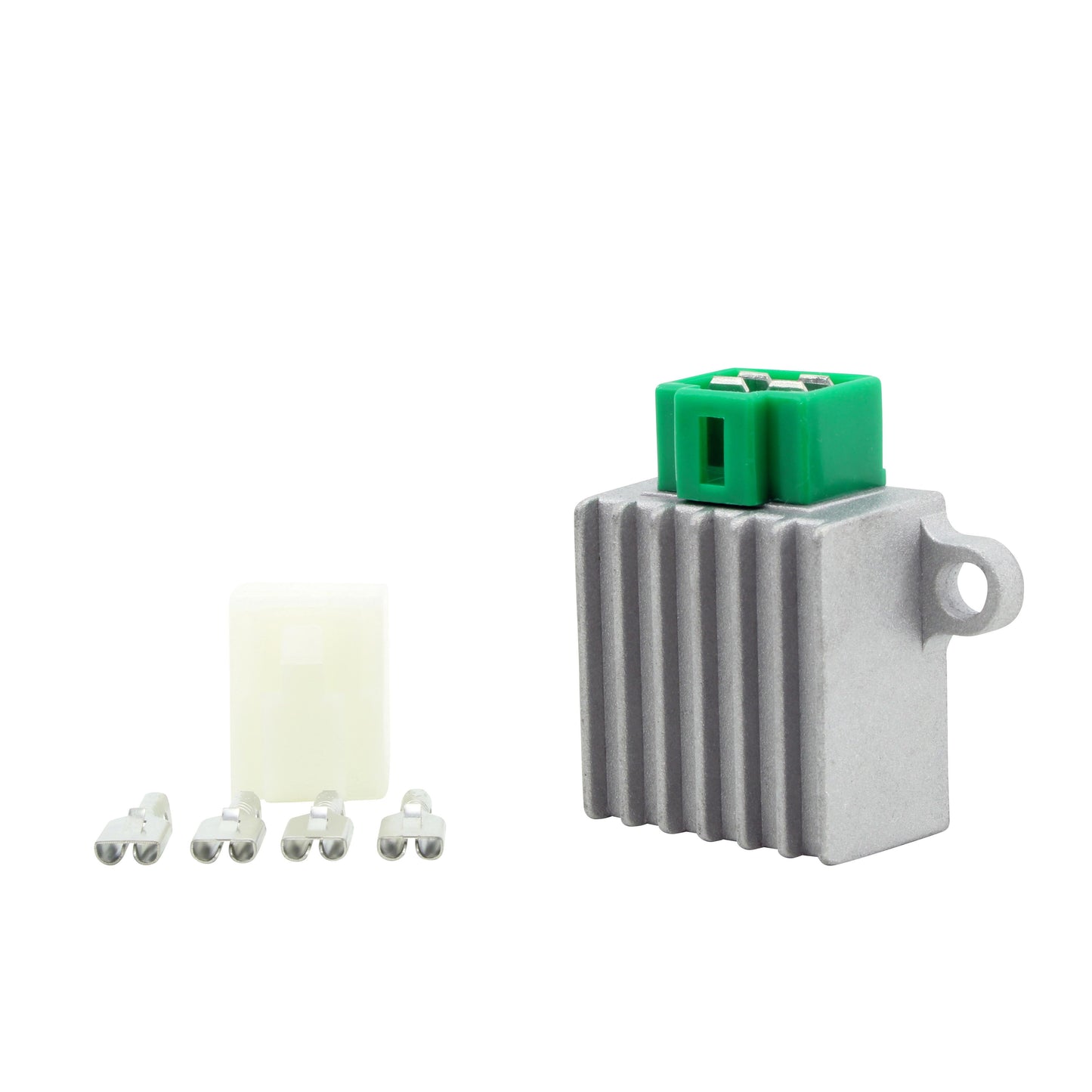

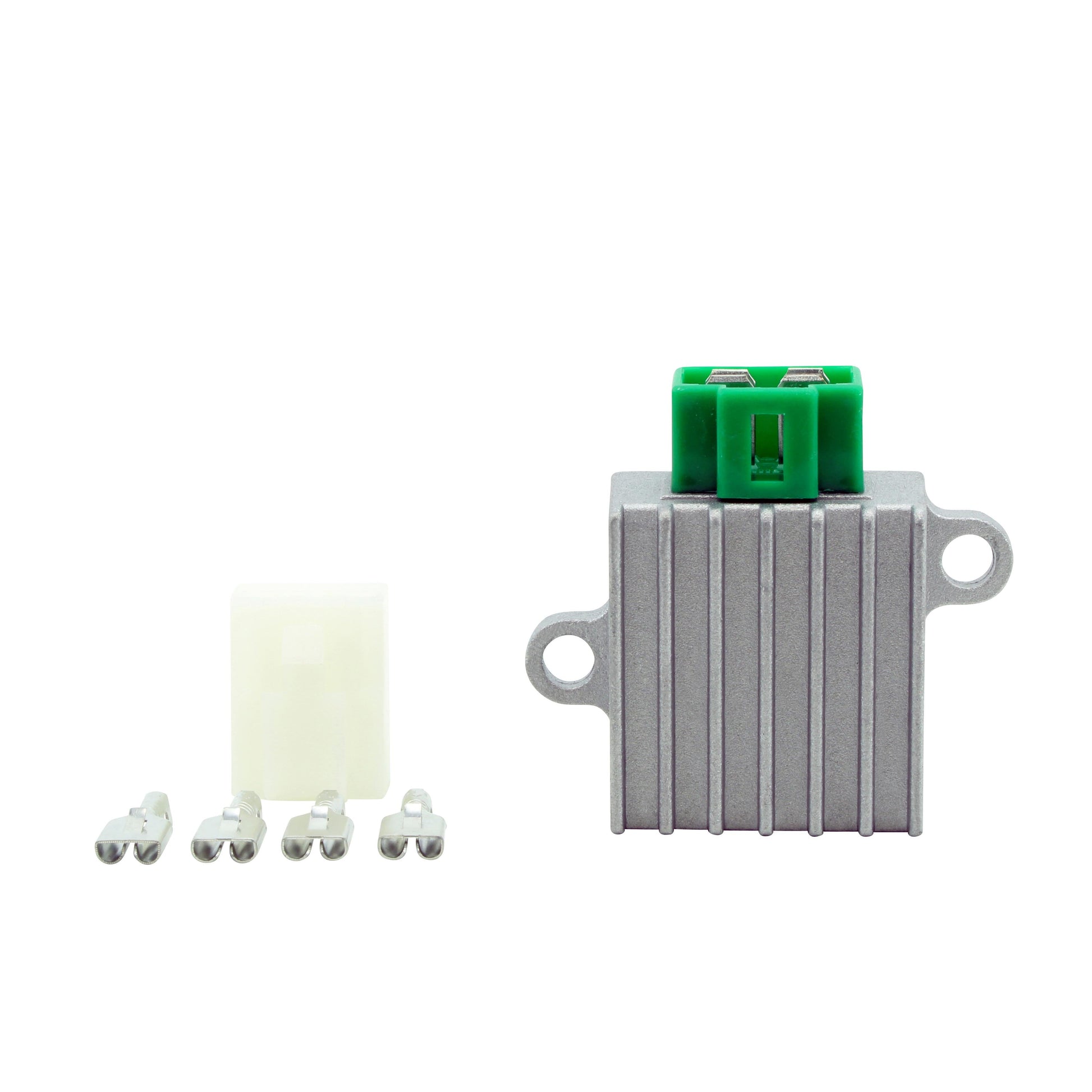

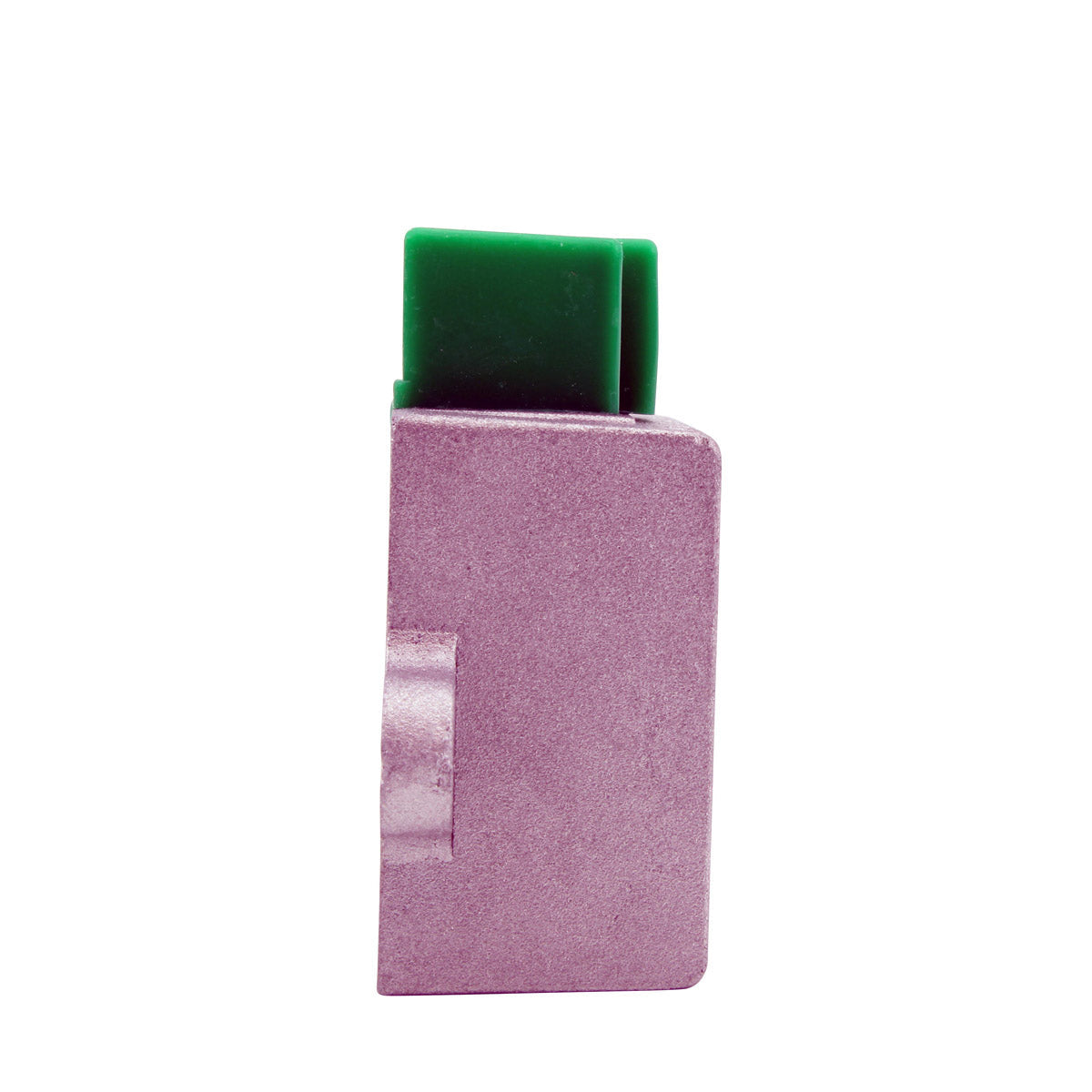

This is a brand new voltage regulator rectifier supplied as a direct replacement for your original unit. It is a plug-and-play, direct fit part, so installation is straightforward and no assembly is required before it goes on the machine.

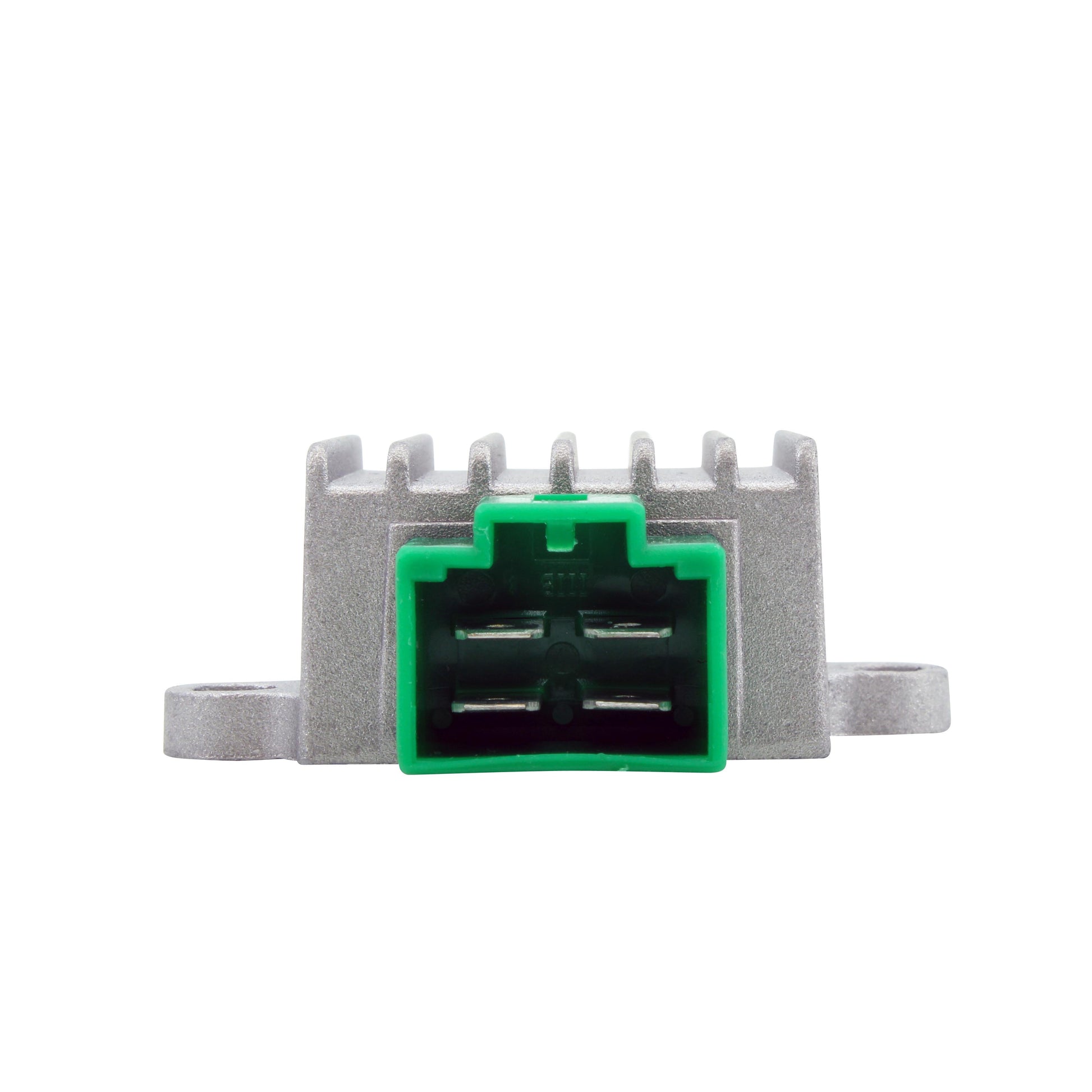

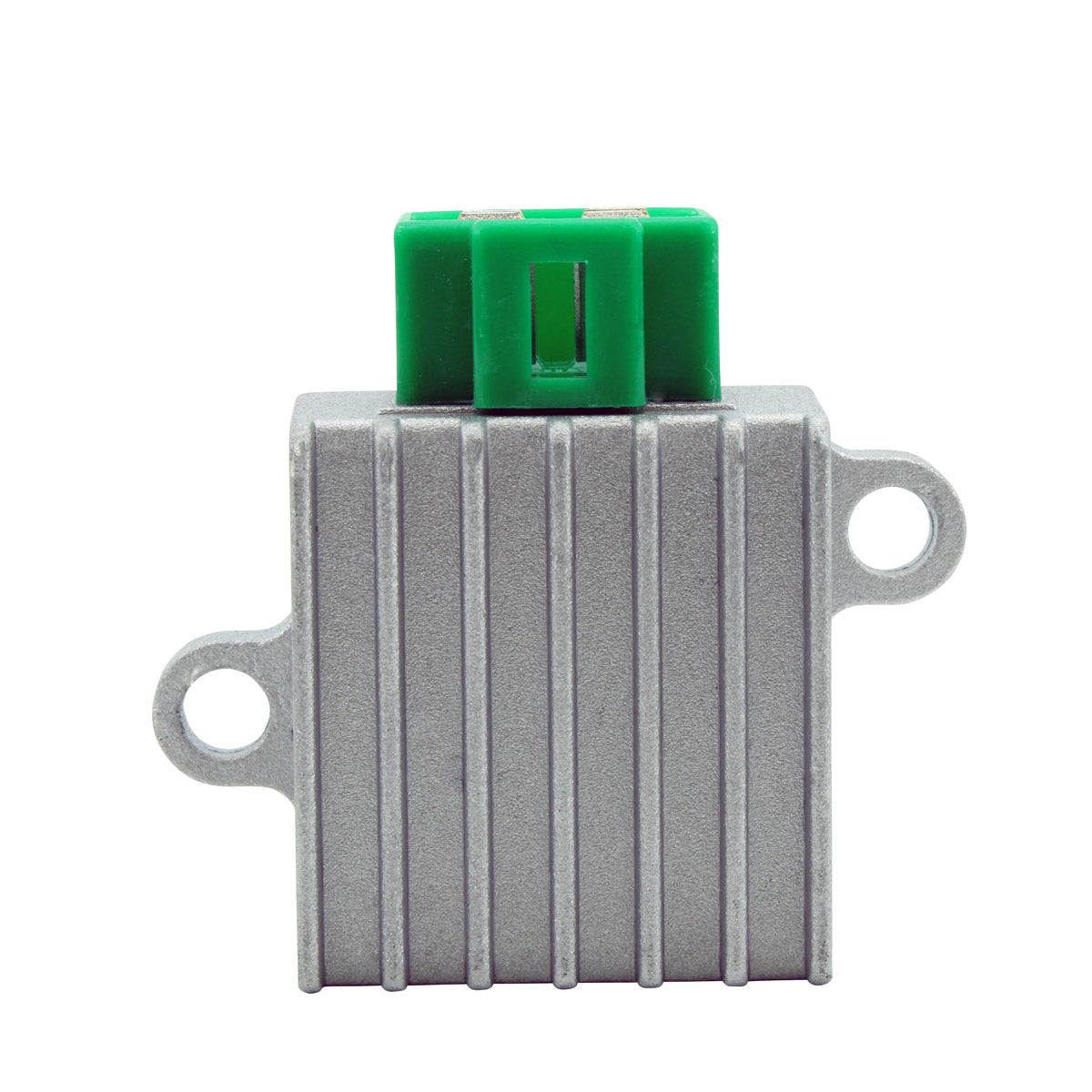

RMSTATOR builds this regulator to exceed the specification of the original equipment, using a higher grade of electric components throughout. Every unit shipped is tested before it leaves the factory. The regulator measures 38 mm wide by 53 mm long by 24 mm high, with 50 mm between the centres of the two fixation holes, and it uses a single 4-pin plug.
Key Features
- Direct replacement for the original unit - no modification needed
- Plug-and-play, direct fit, easy installation, no assembly required
- Quality exceeds the OEM equipment
- Higher grade of electric components

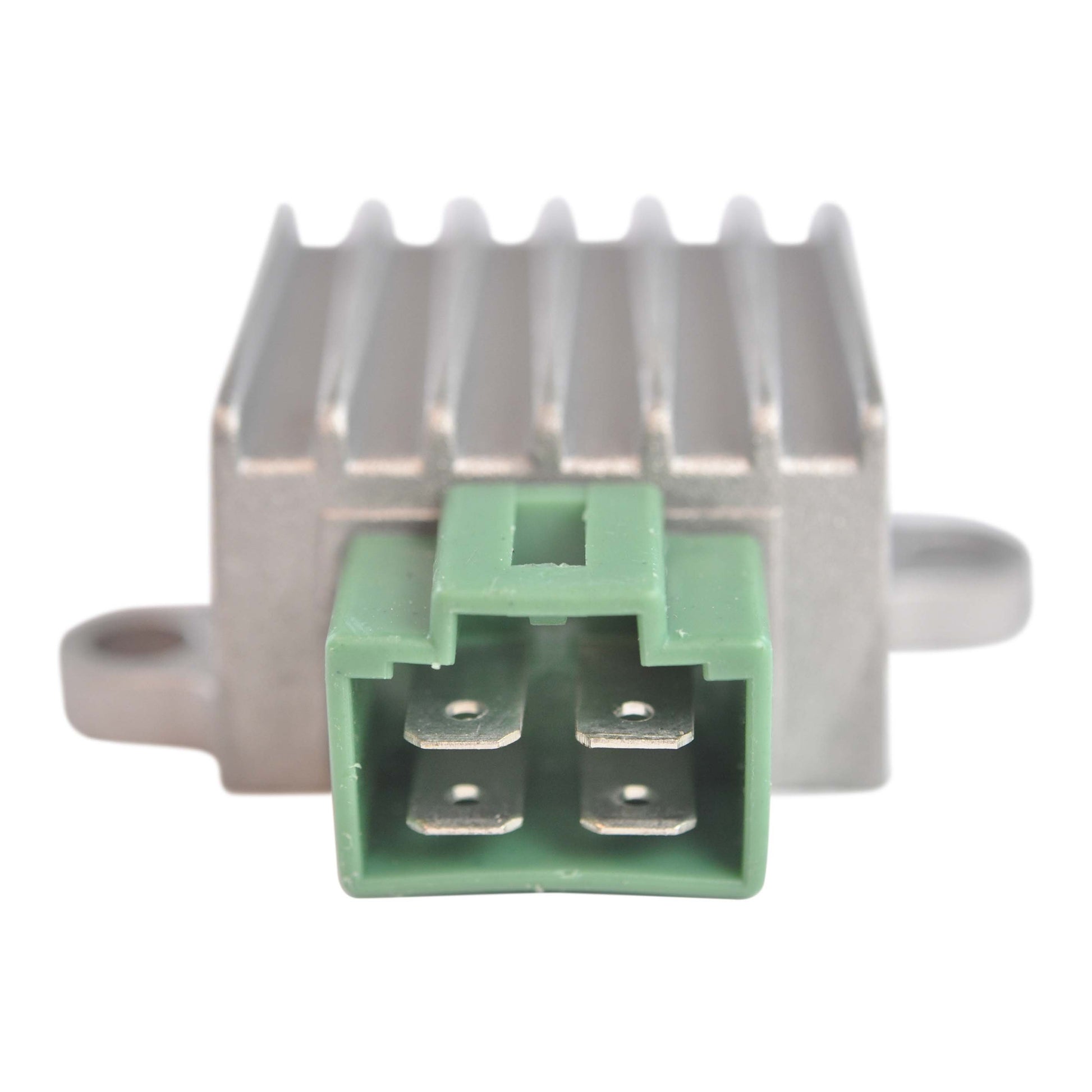

- Single plug with 4 pins
- Rated to 20 A / 150 W maximum charging current
- Every unit is tested before shipping
Technical Specs
| Specification |
Detail |
| Width |
38 mm |
| Length |
53 mm |
| Height |
24 mm |
| Distance between fixation holes (centre to centre) |
50 mm |
| Number of plugs |
1 |
| Number of pins |
4 |
| Minimum charging voltage |
14.5 V +/- 0.5 V |
| Maximum charging current |
20 A / 150 W |
| Open circuit voltage |
< 15 V |
| Operation temperature |
-20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Can-Am DS 50 |
2000-2011 |
| E-Ton RXL Viper 90 |
2000-2011 |
| Polaris Predator 50 |
2000-2011 |
| Polaris Predator 90 |
2000-2011 |
| Yamaha Zuma 50 |
2000-2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 0452061 |
OEM cross reference |
| 0450553 |
OEM cross reference |
| 03-ETON-50-70-90 |
OEM cross reference |
| A31600110000 |
OEM cross reference |
| A31600110001 |
OEM cross reference |
| 3GF-H1960-00-00 |
OEM cross reference |
Frequently Asked Questions
Will this fit without modifying the wiring?
Yes. It is a direct fit, plug-and-play replacement for the original unit on the machines listed above. No cutting, splicing or assembly is required. Check the OEM number on your existing regulator against the cross reference table before ordering.
What is included?
The voltage regulator rectifier itself, as shown in the RMSTATOR specification. No additional mounting hardware is listed by the manufacturer.
How do I know my old regulator has failed?
A failed regulator rectifier normally shows up as a battery that will not hold charge, or as charging voltage that sits outside the correct range. This unit holds a minimum charging voltage of 14.5 V +/- 0.5 V and an open circuit voltage below 15 V, so a reading well under or well over that range at the battery with the engine running points at the regulator.
What current can this regulator handle?
It is rated for a maximum charging current of 20 A / 150 W, and it is designed to operate between -20 C and 85 C.
