Regulator Rectifier for Honda GL Goldwing and C70 Passport Silicone Version 1977-2000
Regulator Rectifier for Honda GL Goldwing and C70 Passport Silicone Version 1977-2000
SKU:172-58002
Free shipping over £150. Terms apply
Couldn't load pickup availability
Regulator Rectifier for Honda GL Goldwing and C70 Passport Silicone
New aftermarket replacement part

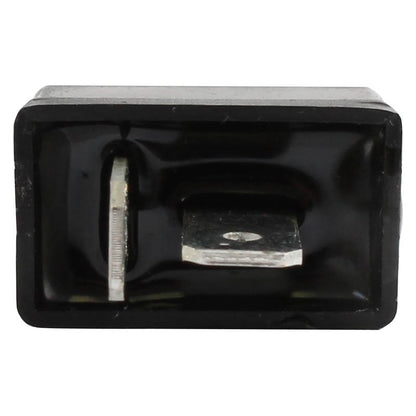

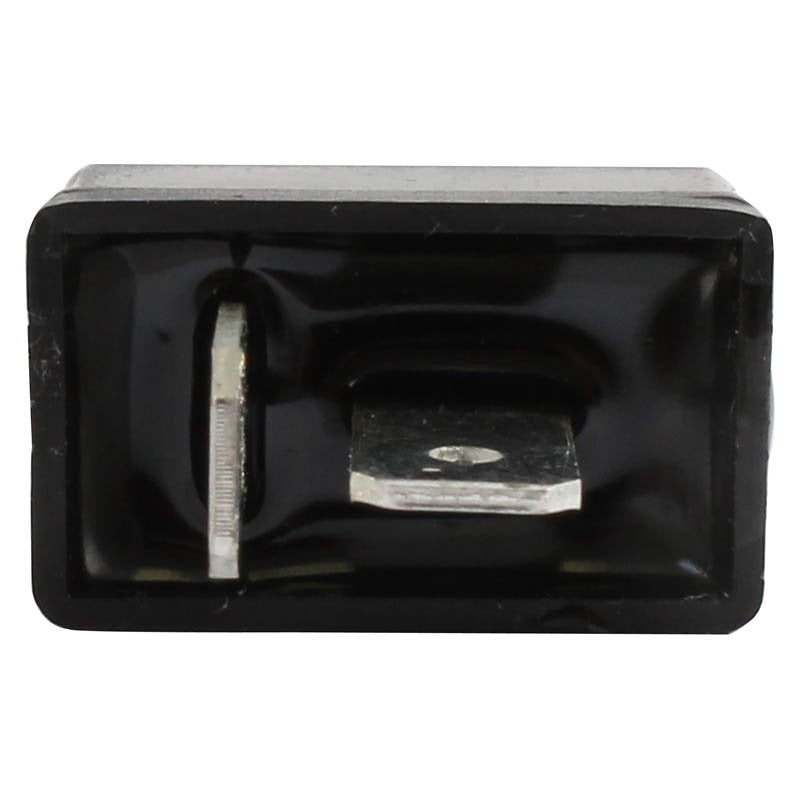

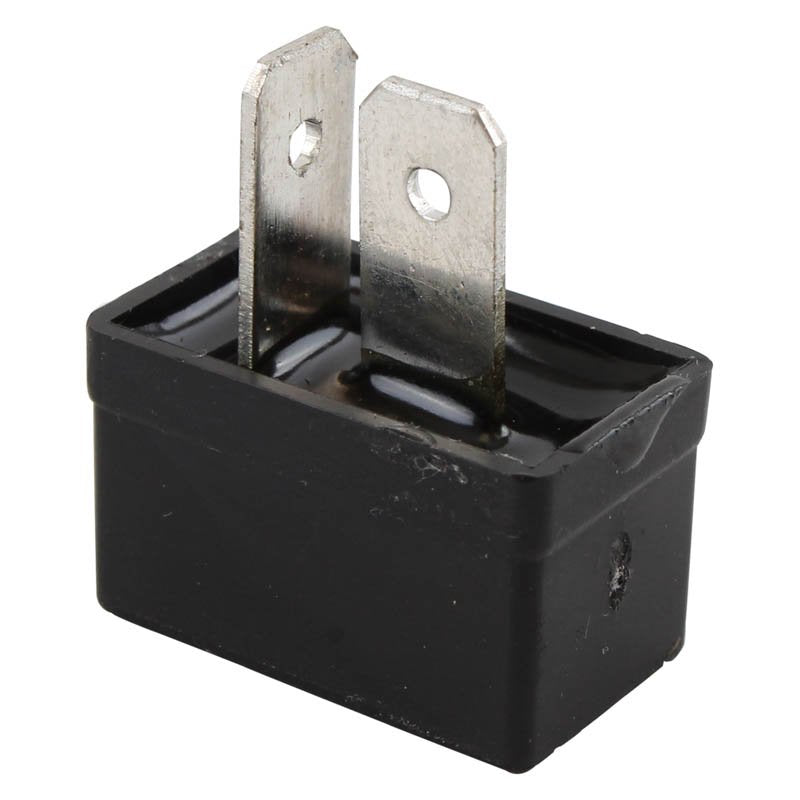

Regulator Rectifier for Honda GL Goldwing and C70 Passport Silicone Version 1977-2000 - a new aftermarket regulator / rectifier, supplied ready to fit.
The regulator/rectifier converts AC from the stator into regulated DC. When it fails you get boiling batteries and blown bulbs from overcharging, or a flat battery from no charge at all.
Key Features
- 100% new aftermarket unit - not a remanufactured core
- Direct-fit replacement, no modification required on listed applications
- Built to meet or exceed the original equipment specification
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | 172-58002 |
| Component | Regulator / Rectifier |
| Condition | New aftermarket |
| Warranty | 12 months |
Vehicle Fitment Guide
| Model | Years |
|---|---|
| Compatibility: Honda models from 1977 to | 2000 |
| C70 Passport | 1982-1983 |
| GL1000 Gold Wing | 1977-1979 |
| GL1200A Gold Wing Aspencade | 1984 |
| GL1200I Gold Wing Interstate | 1984 |
| GL1200L Gold Wing LTD | 1985 |
| GL1200SEI Gold Wing Aspencade | 1986 |
| GL1500 Gold Wing | 1988-1990 |
| GL1500A Gold Wing Aspencade | 1991-2000 |
| GL1500SE Gold Wing | 1990-2000 |
| XL175 | 1977-1978 |
Frequently Asked Questions
How do I test a regulator rectifier?
Measure battery voltage with the engine running: below about 13.5V means undercharging, above about 15V means the regulator has failed open and is overcharging. Check the stator output first so you do not replace the wrong part.
Does it come with the connector?
It is supplied with the original style connector on the models listed. Check the images against your existing unit.
Why do these fail so often?
Heat. They dissipate excess charging current as heat, so a blocked cooling fin area, a corroded earth or a weak battery all shorten their life. Mount it where it gets airflow.
Will a failed regulator damage anything else?
Yes - overcharging cooks batteries and blows bulbs, and a shorted regulator can take the stator with it. Fit the replacement promptly.
