Regulator Rectifier for Honda VT 1300 Stateline, Sabre, Interstate & Fury 2010-2020
Regulator Rectifier for Honda VT 1300 Stateline, Sabre, Interstate & Fury 2010-2020
SKU:RMS020-102328
Free shipping over £150. Terms apply
Couldn't load pickup availability

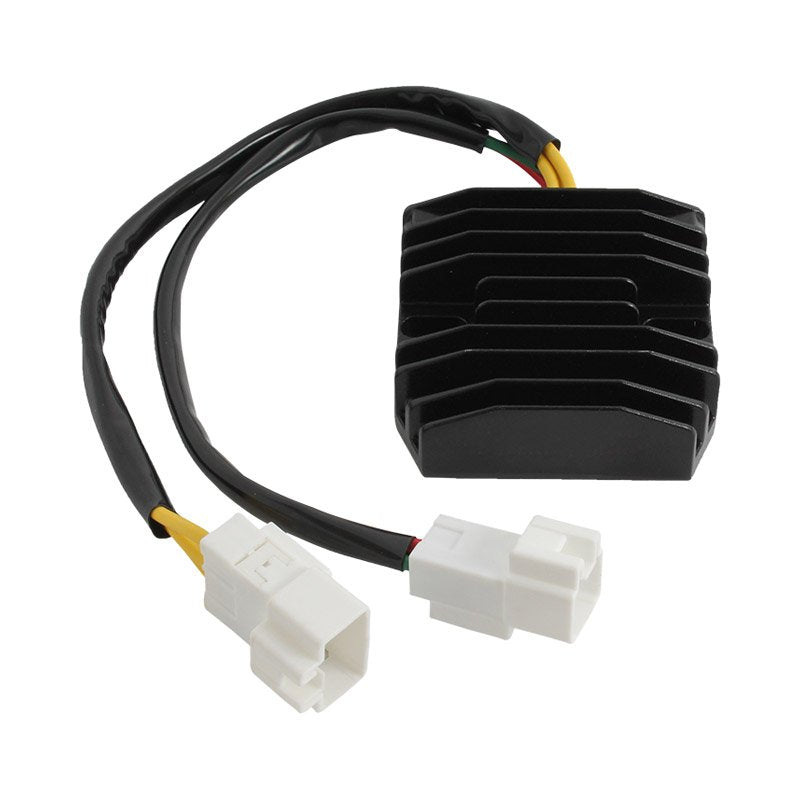

Regulator Rectifier for Honda VT 1300

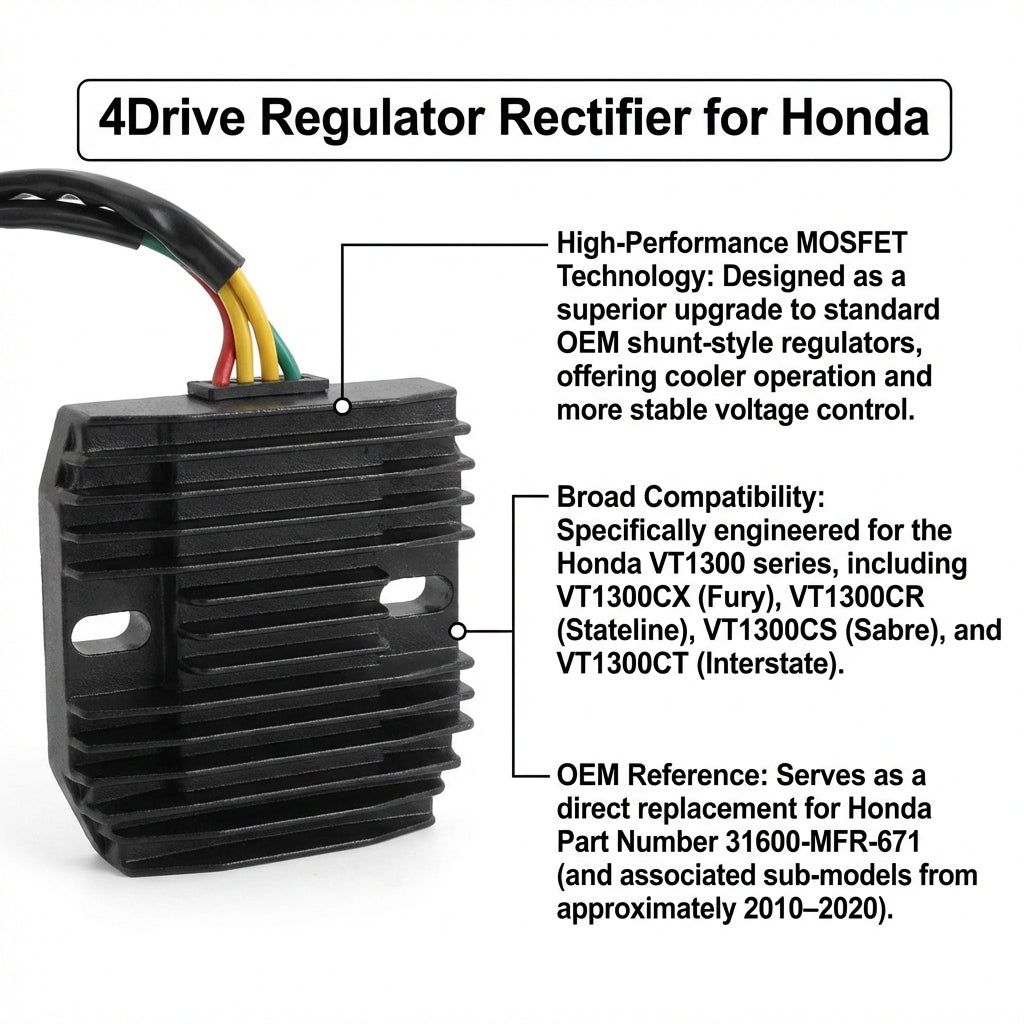

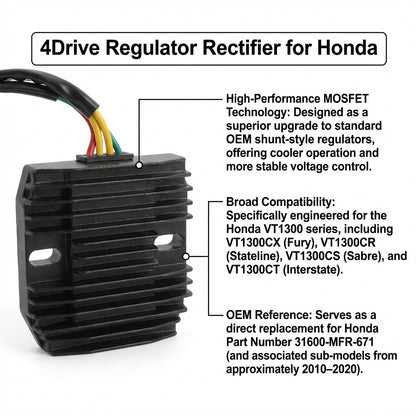

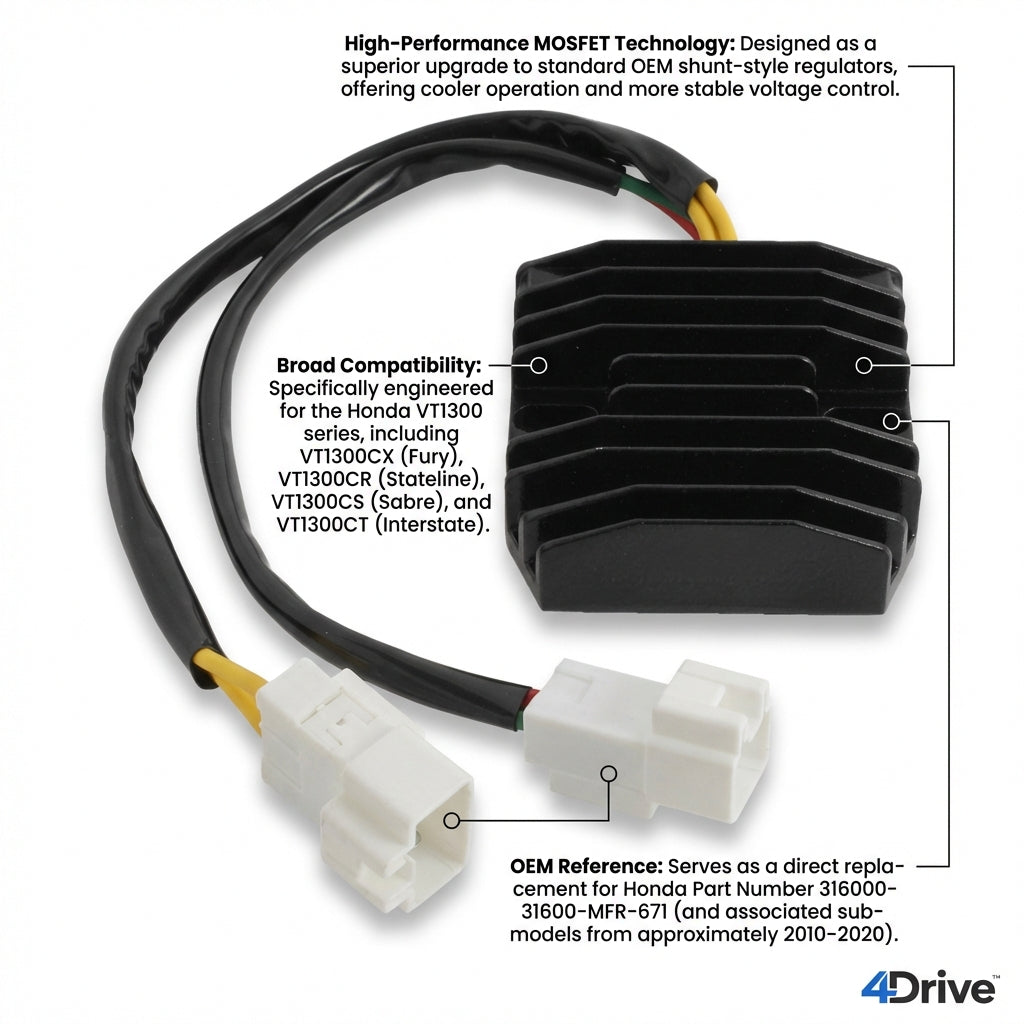

Honda VT 1300 CR Stateline / CS Sabre / CT Interstate / CX Fury 2010-2020 - replaces Honda 31600-MFR-671
A brand new aftermarket voltage regulator rectifier for the Honda VT 1300 family, built as a direct replacement for the original unit. It is plug-and-play and a direct fit, easy to install, with no assembly required. The RMSTATOR part number is RMS020-102328.
This unit uses a higher grade of electric components together with an improved heat sink and improved charging capabilities, and the quality exceeds the OEM equipment. All products shipped are tested. The opposite connector - the main harness side - is included, because that connector is often melted, corroded or defective and is a major cause of repetitive electrical issues on a bike that has already cooked one regulator.
Key Features
- Brand new aftermarket unit - direct replacement for your original regulator rectifier
- Plug-and-play, direct fit, easy installation - no assembly required

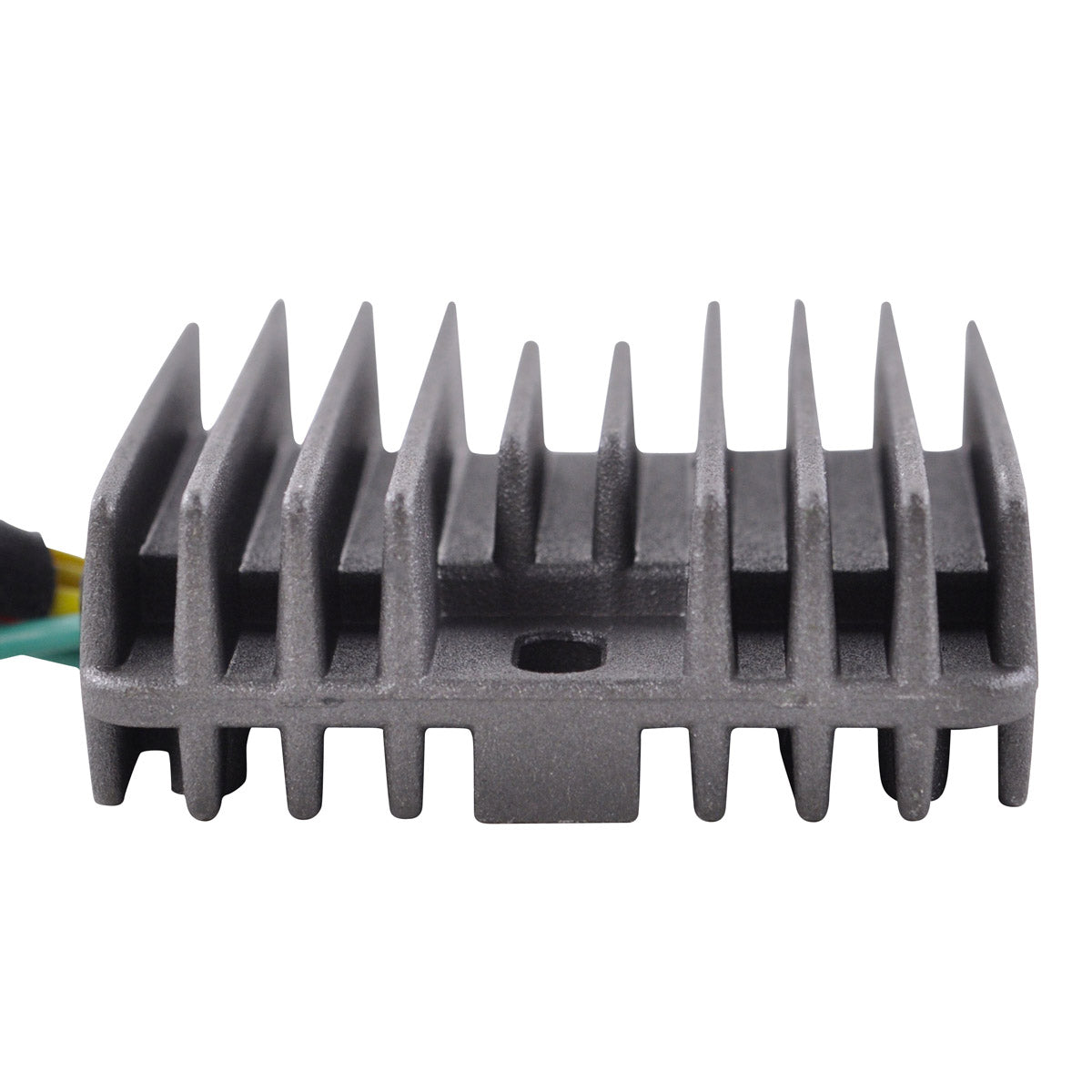

- Improved heat sink and improved charging capabilities
- Higher grade of electric components; quality exceeds the OEM equipment
- All products shipped are tested

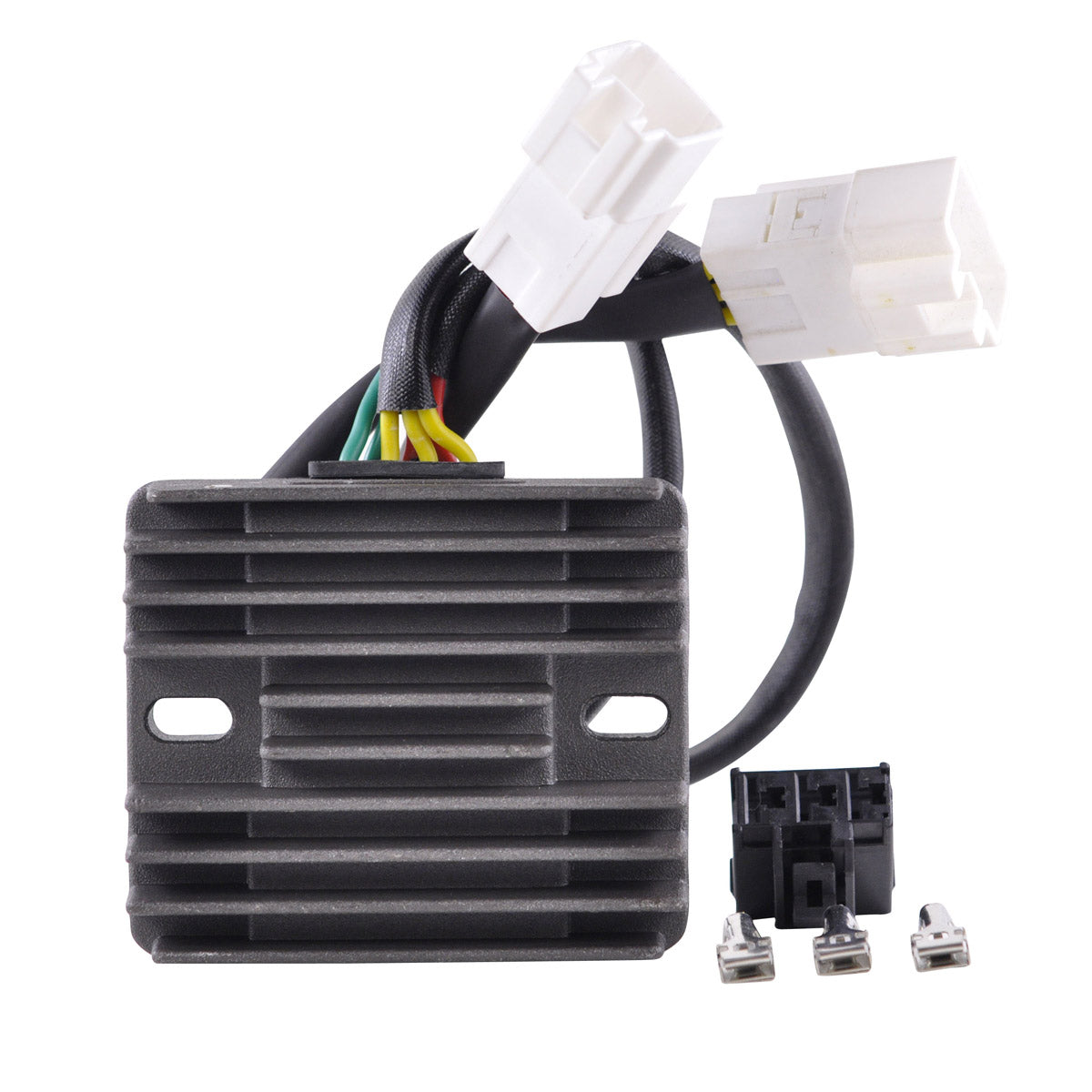

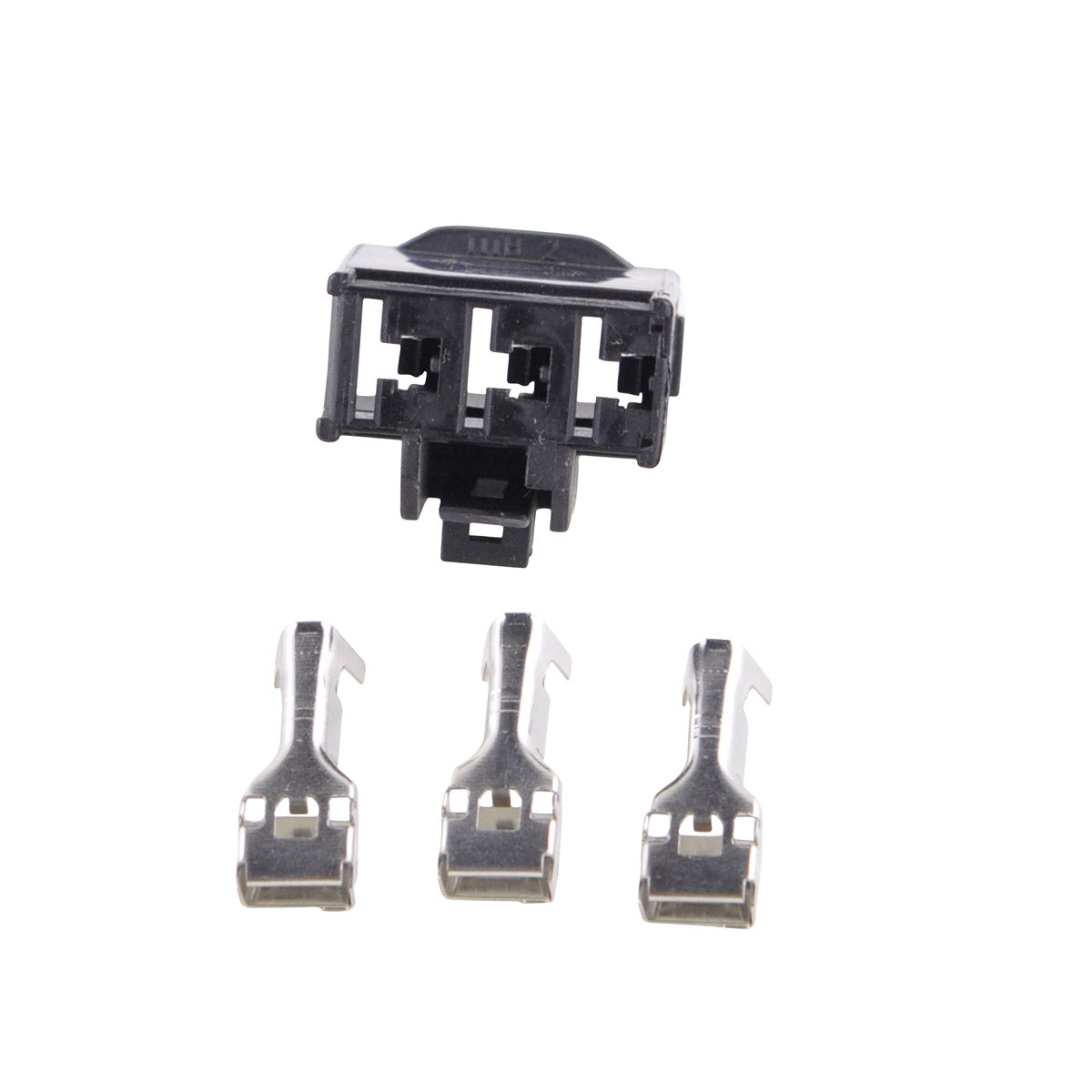

- Opposite connector (main harness side) included

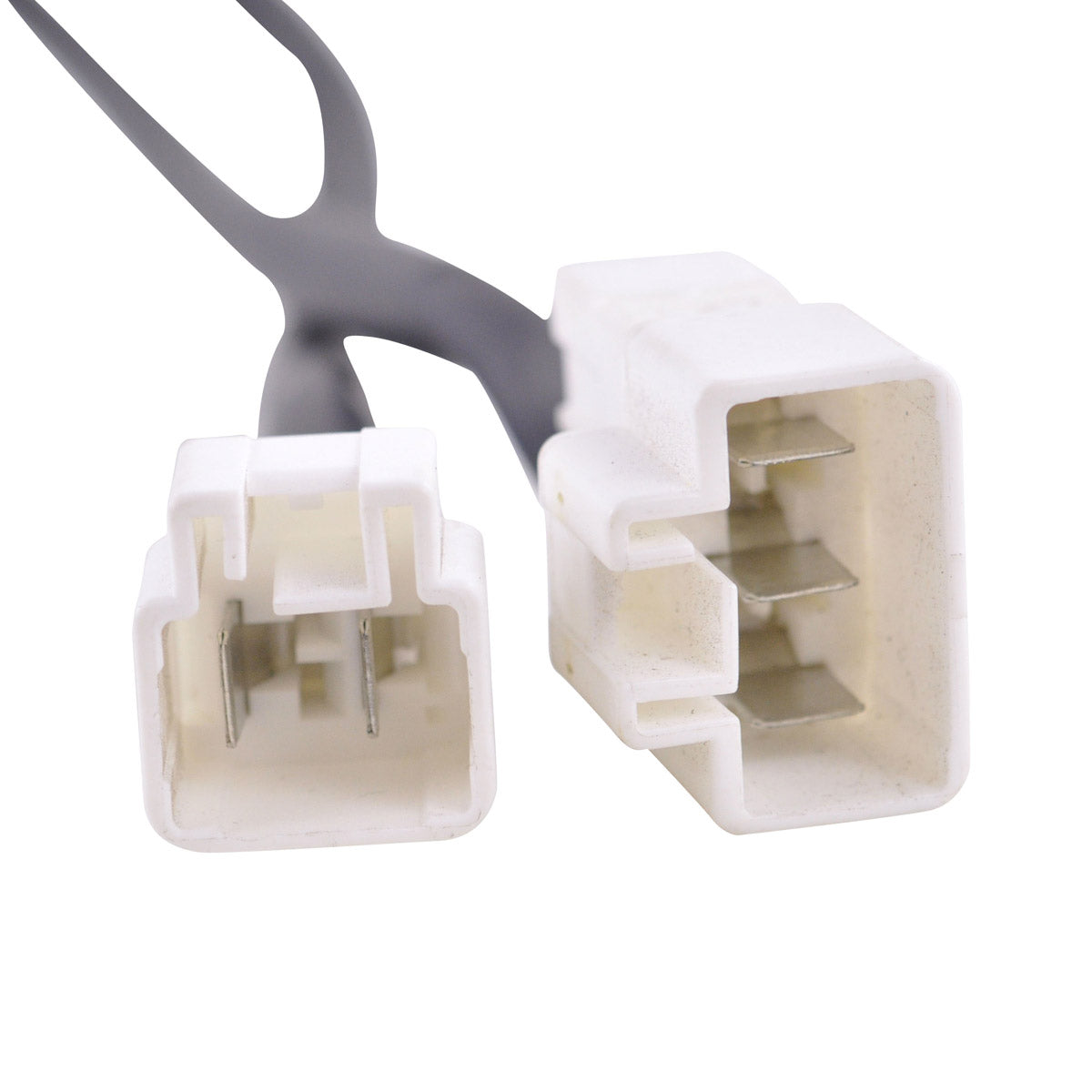

- Two plugs, five pins, five wires with 300 mm leads
Technical Specs
| Specification | Detail |
|---|---|
| Width | 103 mm |
| Length | 80 mm |
| Height | 33 mm |
| Wires length | 300 mm |
| Fixation holes centre to centre | 70 mm |
| Number of plugs | 2 |
| Number of pins | 5 |
| Number of wires | 5 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Under 15 V |
| Operation temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda VT 1300 CR Stateline | 2010-2020 |
| Honda VT 1300 CS Sabre | 2010-2020 |
| Honda VT 1300 CT Interstate | 2010-2020 |
| Honda VT 1300 CX Fury | 2010-2020 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31600-MFR-671 | Honda |
| RMS020-102328 | RMSTATOR |
Frequently Asked Questions
Will it fit my VT 1300 without modification?
Yes. It is a direct fit, plug-and-play replacement for the original regulator rectifier. The mounting holes are 70 mm apart centre to centre and the unit carries the same two plugs, five pins and five wires, so nothing needs to be cut or spliced.
What is included?
The regulator rectifier and the opposite connector for the main harness side.
How do I tell whether my old regulator rectifier has failed?
Common symptoms are a battery that will not stay charged, a battery that overcharges or boils, and lights that brighten and dim with revs. A healthy system holds a minimum charging voltage of 14.5 V +/- 0.5 V with an open circuit voltage below 15 V.
Why does this unit run cooler than the original?
It is built with an improved heat sink and improved charging capabilities compared with the OEM part, and is rated to operate from -20 C up to 85 C at a maximum charging current of 50 A / 500 W.
