Voltage Regulator for KTM 250 XC-W, 450 EXC & Yamaha YFM 50, 80 Raptor 1997-2020
Voltage Regulator for KTM 250 XC-W, 450 EXC & Yamaha YFM 50, 80 Raptor 1997-2020
SKU:RMS020-102045
Free shipping over £150. Terms apply
Couldn't load pickup availability

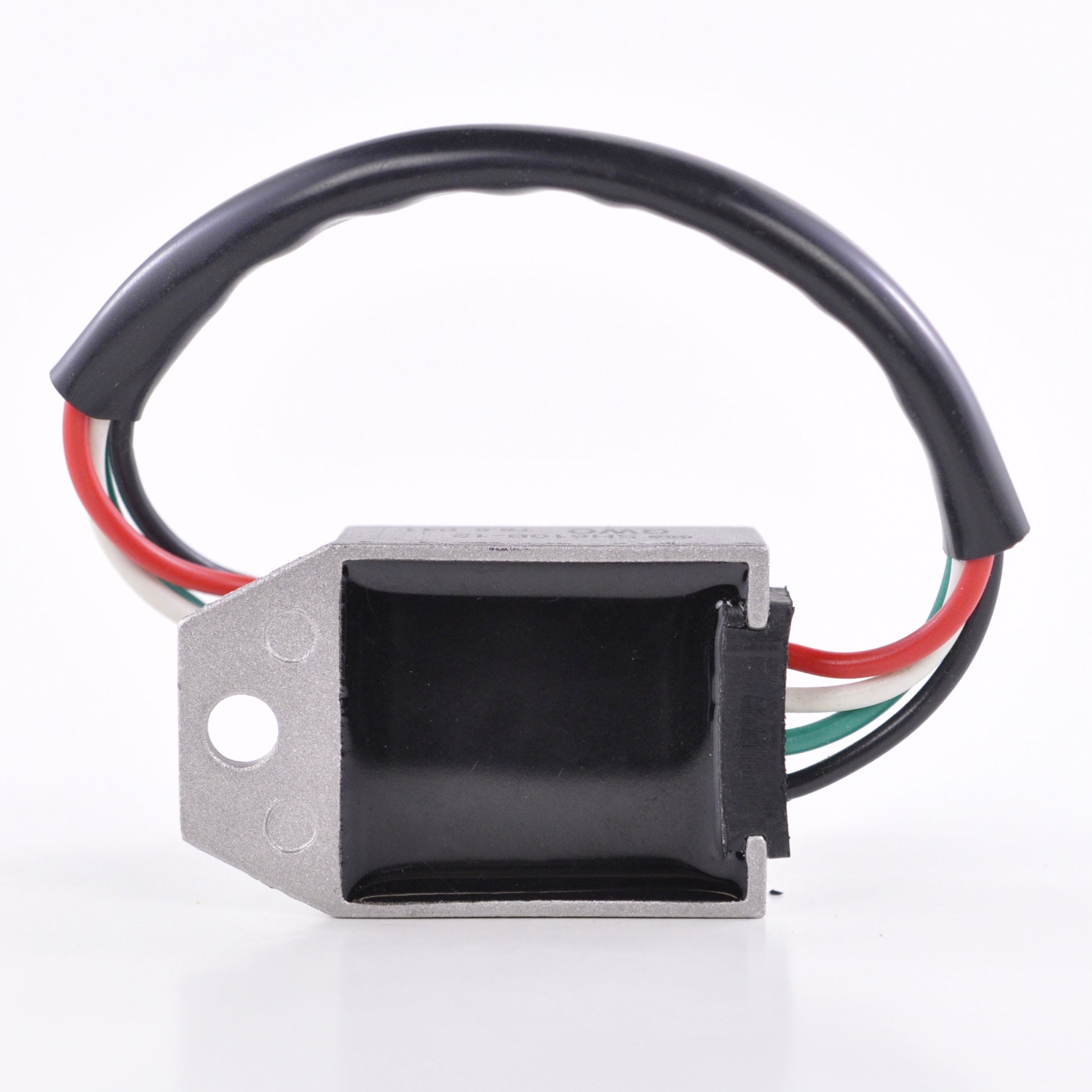

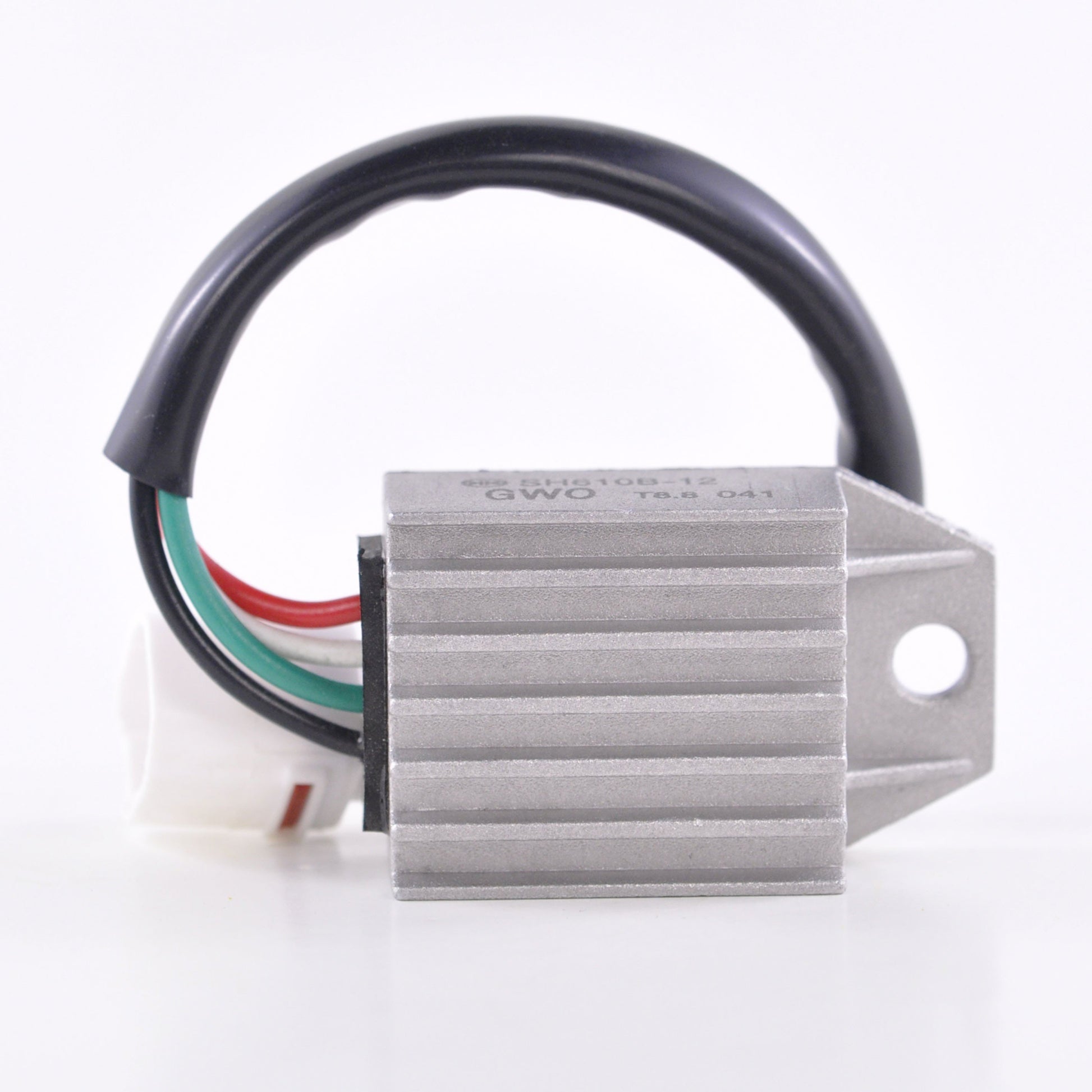

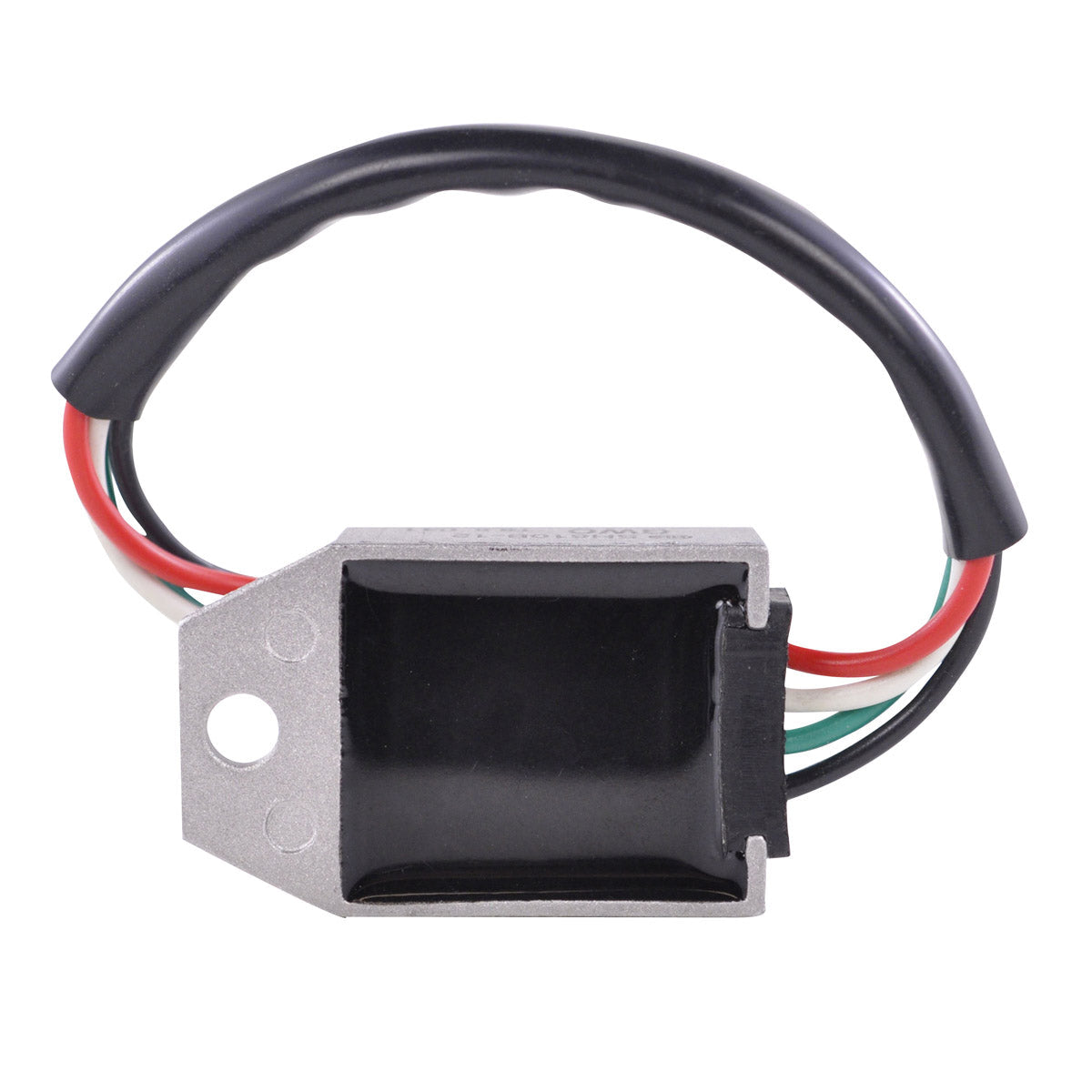

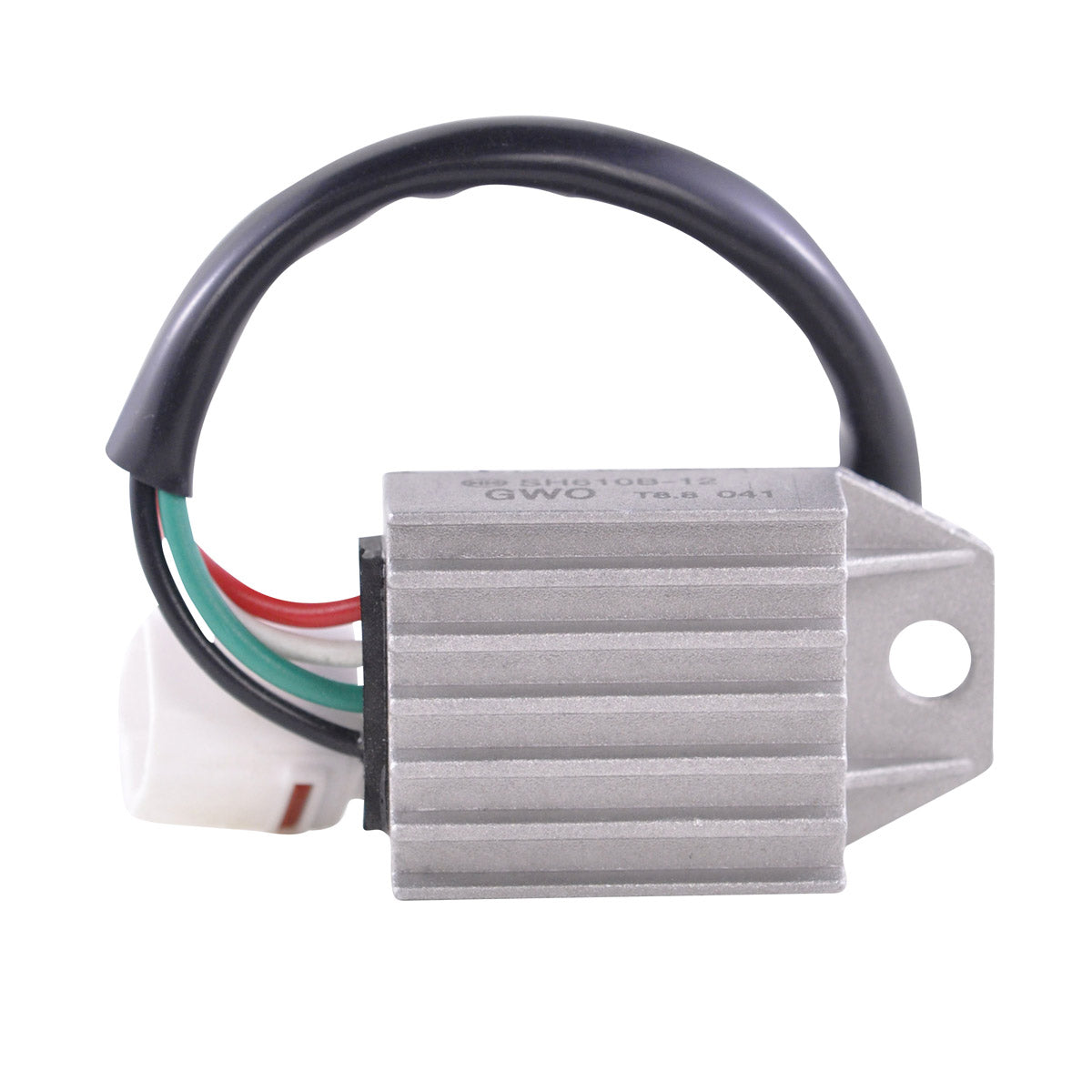

Voltage Regulator Rectifier - Part RMS020-102045
KTM 200, 250 XC-W, 250 and 300 XC, 450 EXC and Yamaha Breeze 125, YFM 50 and 80 Raptor, 1997-2020
This is a brand new aftermarket voltage regulator rectifier covering a wide spread of KTM two-stroke and four-stroke enduro machines and the small-capacity Yamaha quads. The regulator sits between the stator and the battery: it turns the alternating current the stator generates into direct current, and it caps the charging voltage so the battery and the electrics behind it are not damaged by whatever the engine is doing at the time.

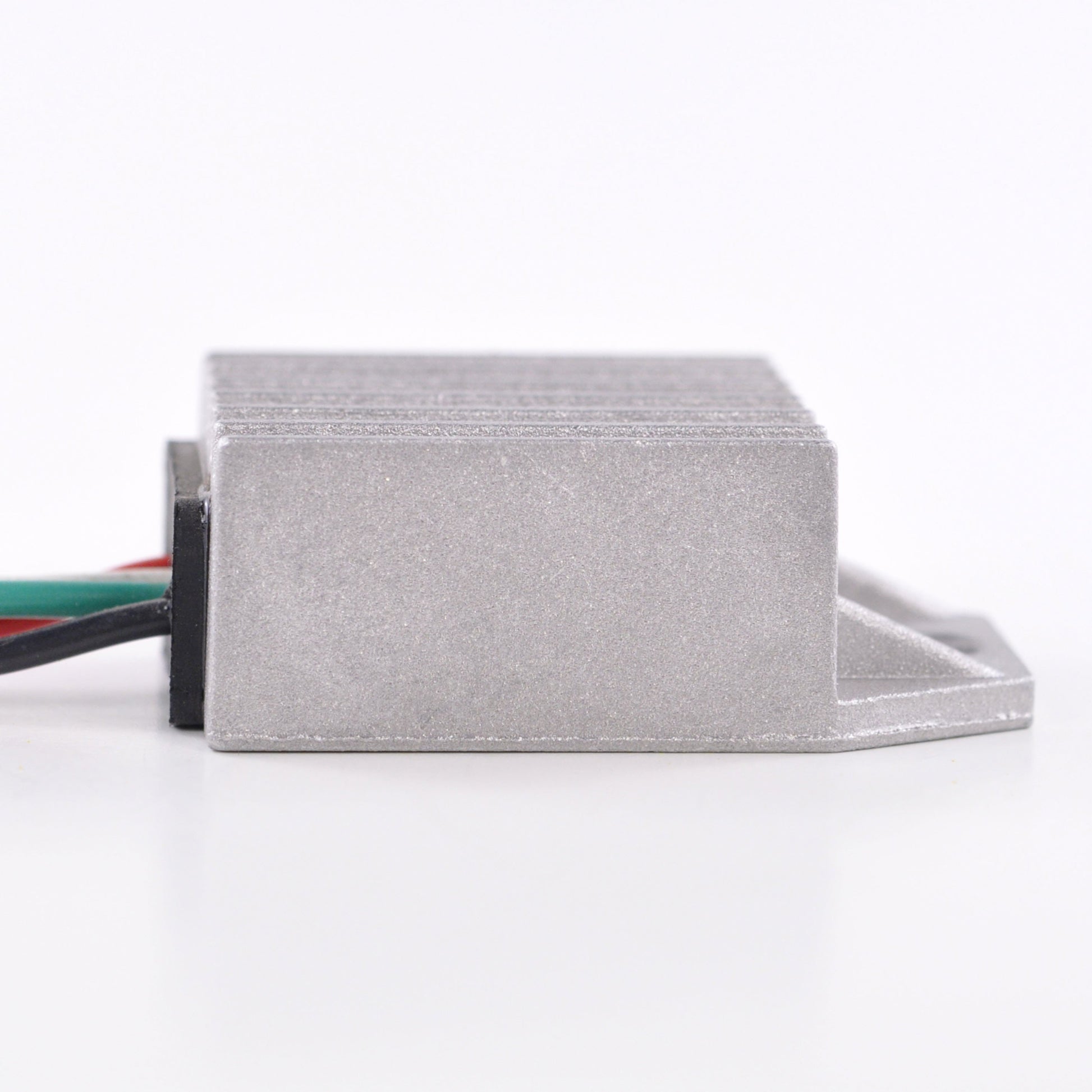

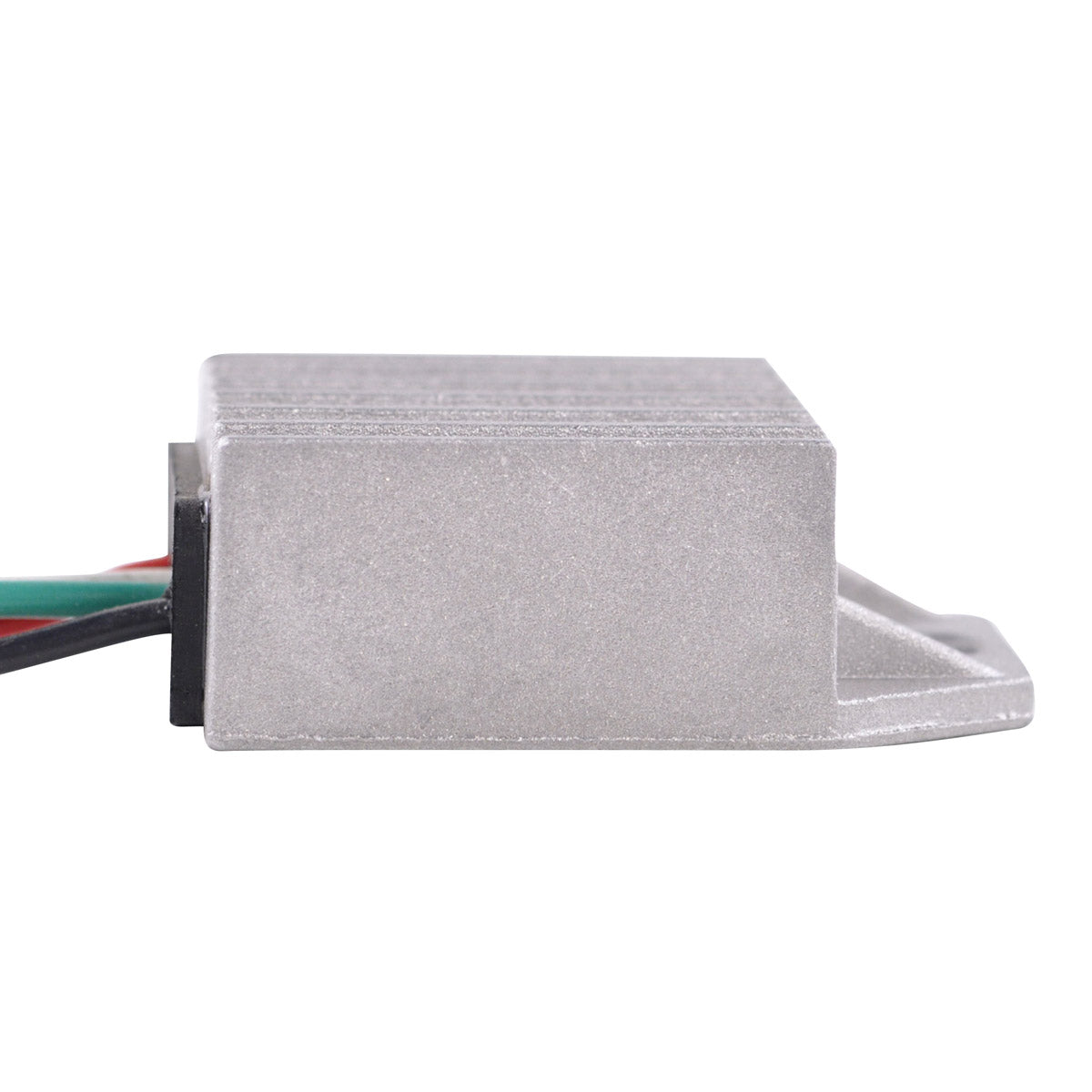

It is a direct replacement for the original unit - plug and play, direct fit, easy installation, no assembly required. The unit measures 88 mm wide by 79 mm long by 27 mm high with 110 mm wires, and carries a single 4-pin plug with 4 wires. It is rated at 20 A / 150 W with a minimum charging voltage of 14.5 V and an operating range of -20 C to 85 C. Higher grade electrical components are used throughout, so the quality exceeds the OEM equipment, and every unit is tested before it ships.
Key Features
- Brand new aftermarket voltage regulator rectifier
- Direct replacement to your original unit
- Plug and play, direct fit, easy installation
- No assembly required
- Higher grade electrical components - quality exceeds the OEM equipment

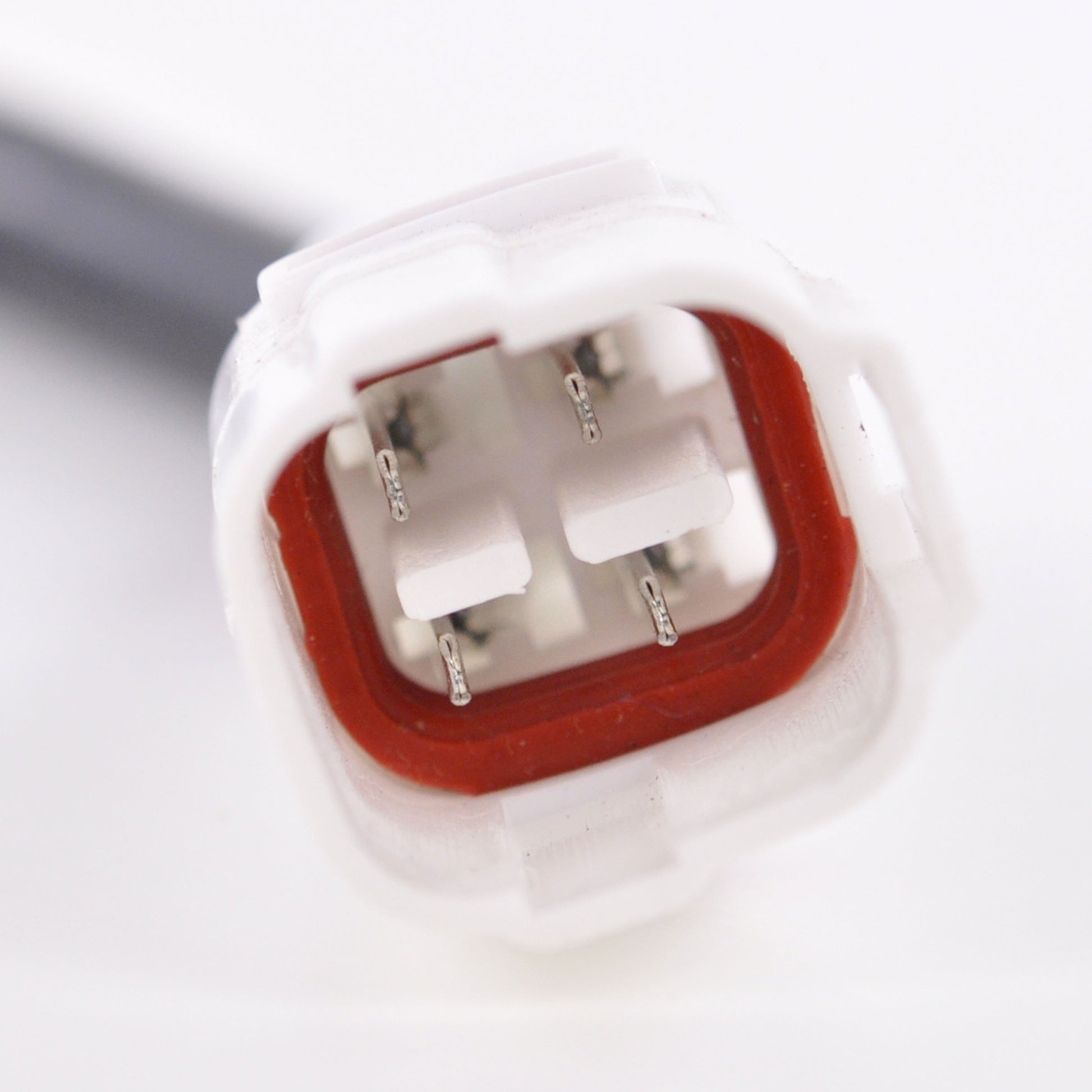

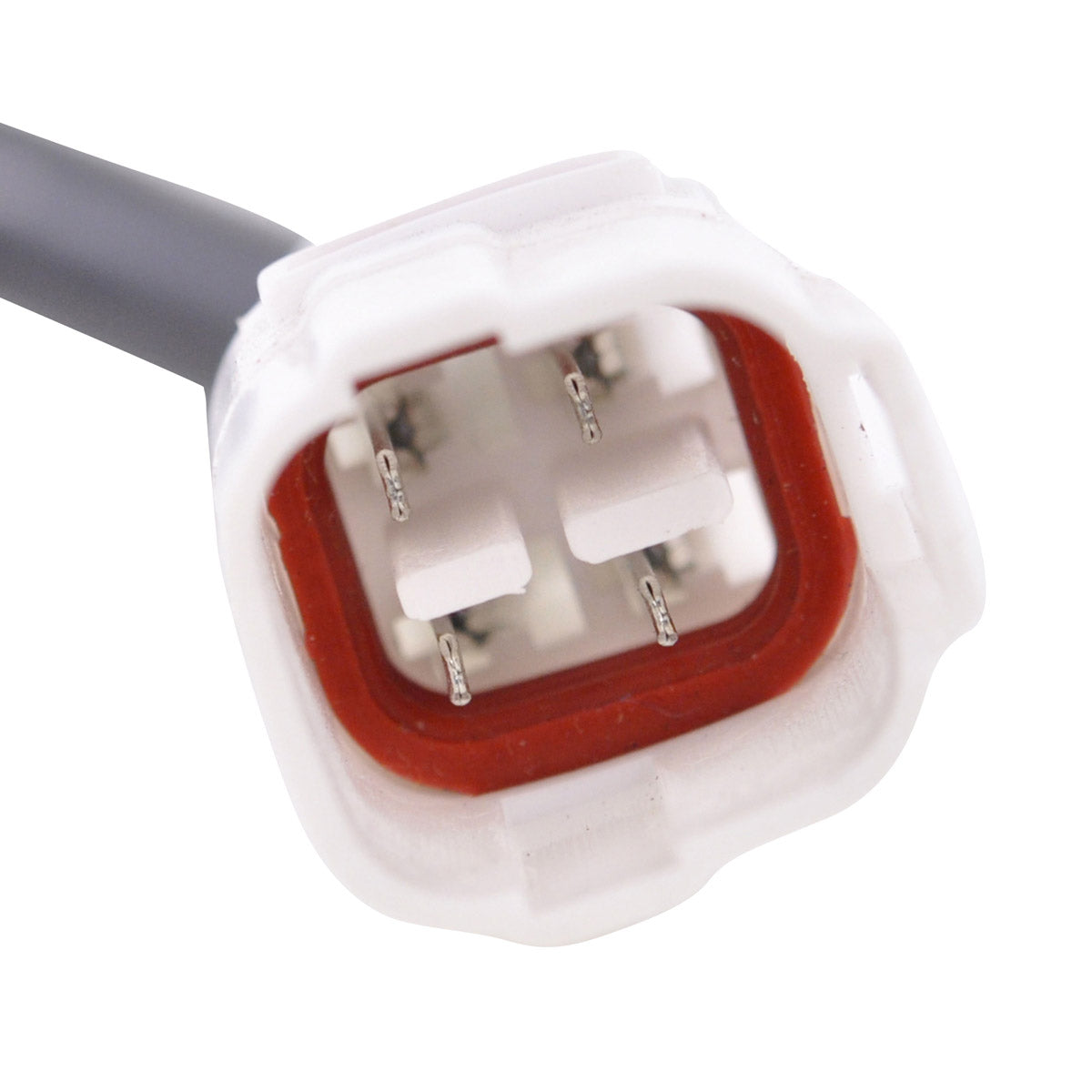

- Single 4-pin plug with 4 wires
- Rated at 20 A / 150 W
- Every unit is tested before dispatch
- Dispatched from the UK with a 12-month warranty
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS020-102045 |
| Width | 88 mm |
| Length | 79 mm |
| Height | 27 mm |
| Wires length | 110 mm |
| Number of plugs | 1 |
| Number of pins | 4 |
| Number of wires | 4 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 20 A / 150 W |
| Open circuit voltage | Less than 15 V |
| Operation temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| KTM 200 XC-W | 1997-2020 |
| KTM 250 XC-W | 1997-2020 |
| KTM 250 XC | 1997-2020 |
| KTM 300 XC | 1997-2020 |
| KTM 450 EXC | 1997-2020 |
| Yamaha Breeze 125 | 1997-2020 |
| Yamaha YFM 50 Raptor | 1997-2020 |
| Yamaha YFM 80 Raptor | 1997-2020 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 80011034000 | KTM |
| 5TH-81960-00-00 | Yamaha |
| 5TH-81960-01-00 | Yamaha |
| 3GB-81960-10-00 | Yamaha |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a direct fit, plug and play replacement with a single 4-pin plug and 110 mm wires, and no assembly is required. Compare the 88 x 79 x 27 mm body and the plug against your original before ordering.
What is included?
The regulator rectifier with its plug and wiring. No mounting hardware is listed for this part, so reuse the bolts and any rubber mounts from the unit you take off.
How do I know the old regulator has failed?
Watch the battery. A regulator that has stopped rectifying leaves the battery flat and the lights dim; one that has lost regulation overcharges, and the battery gets hot and loses electrolyte. Measure across the battery terminals with the engine running - a healthy system sits at about 14.5 V. Well below that, or above roughly 15 V, points at the regulator.
One part for both a KTM and a Yamaha quad - is that right?
Yes. The same regulator was used across these KTM enduro models and the small Yamaha quads, which is why one part covers both. The reliable check is the number on your original unit: 80011034000 on the KTM side, or 5TH-81960-00-00, 5TH-81960-01-00 or 3GB-81960-10-00 on the Yamaha side.
