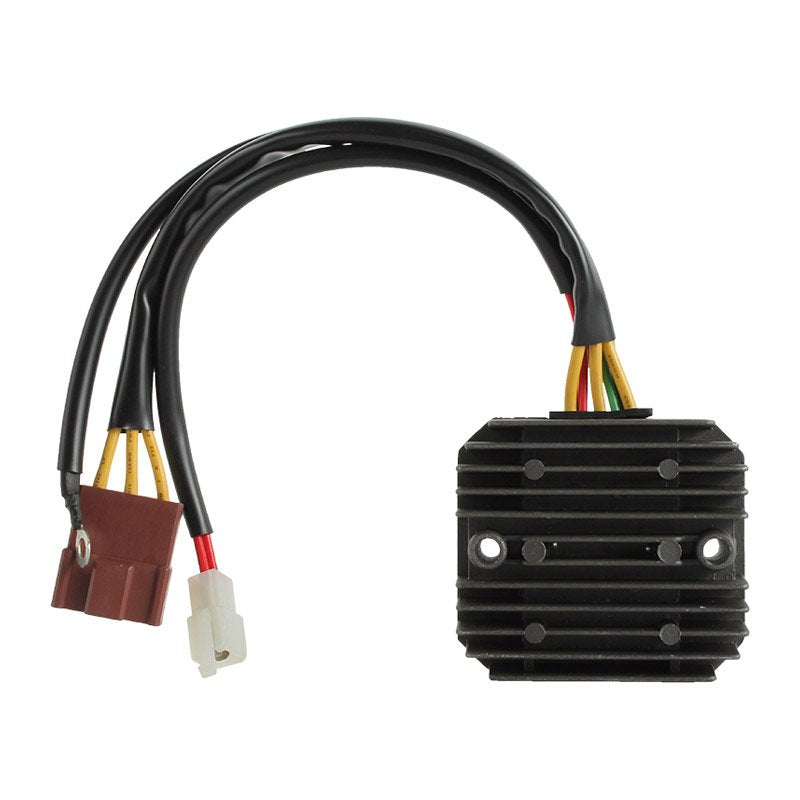

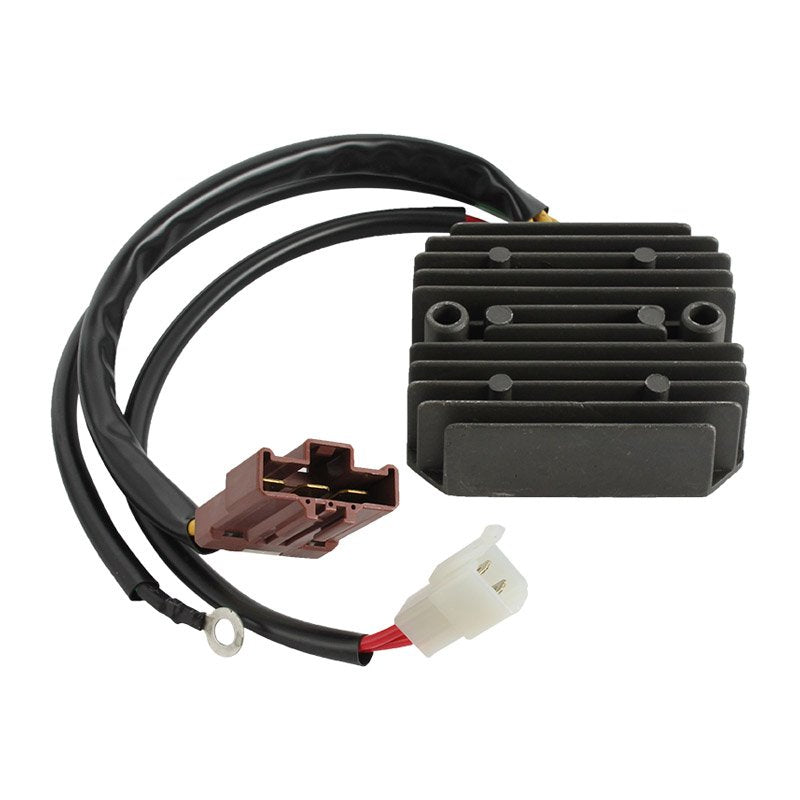

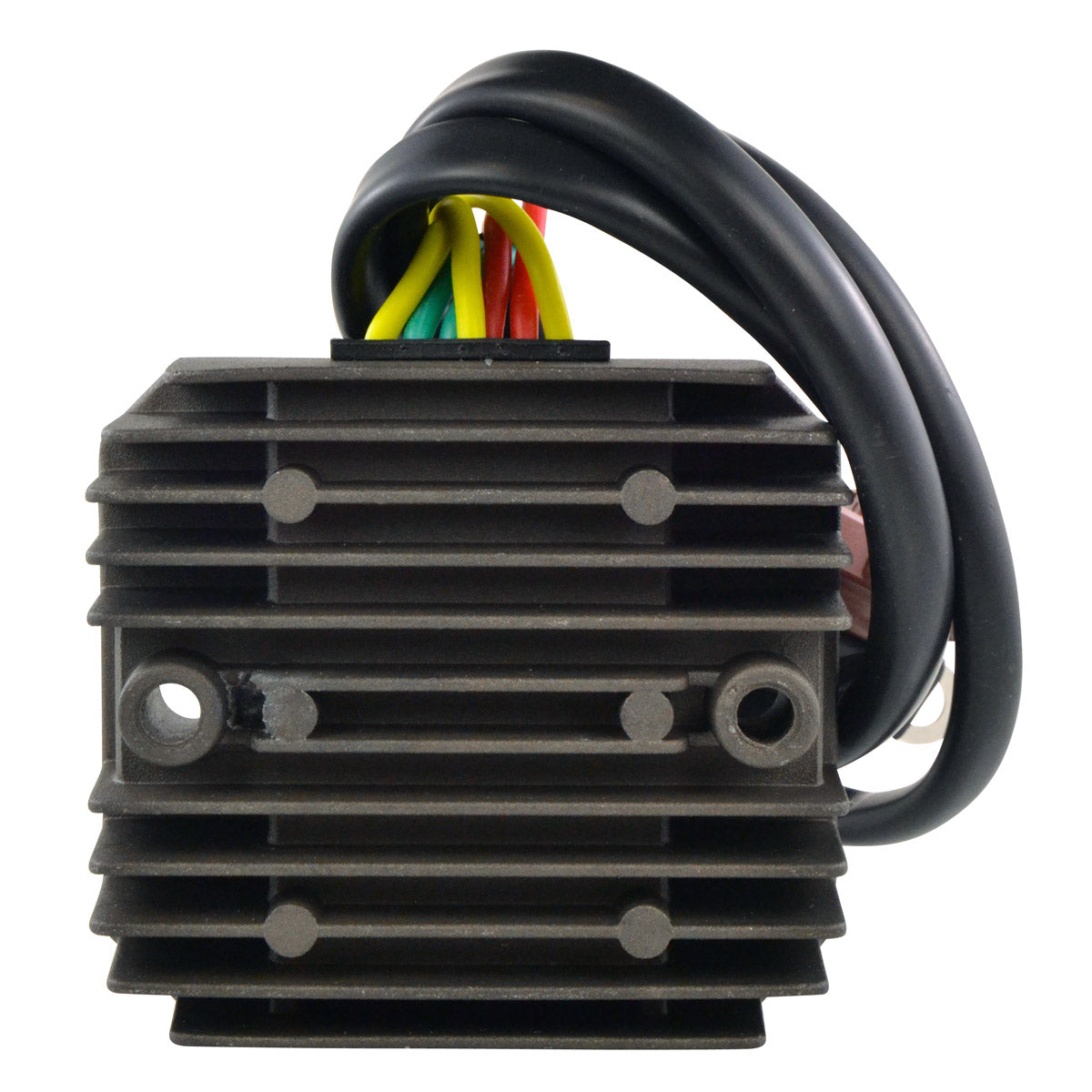

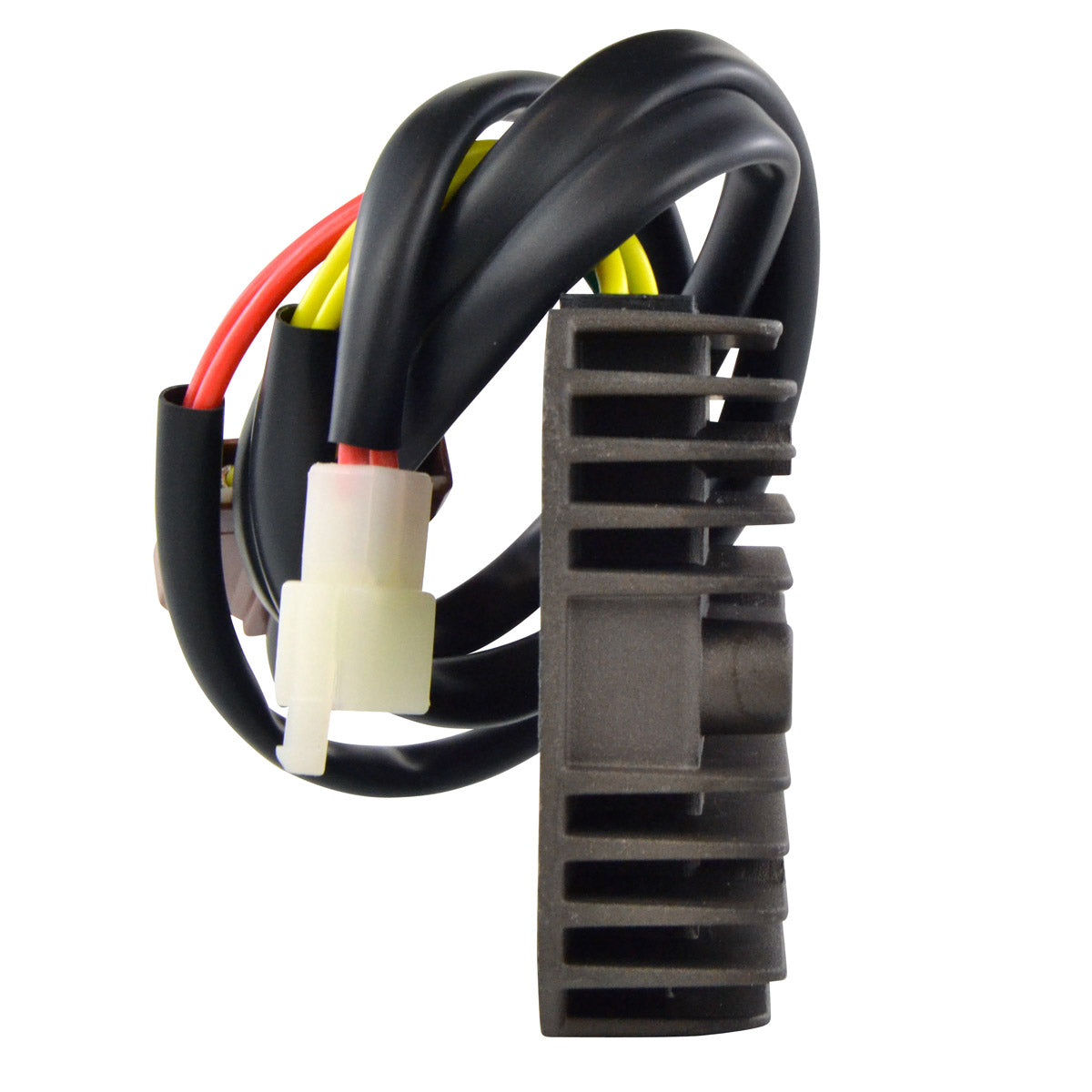

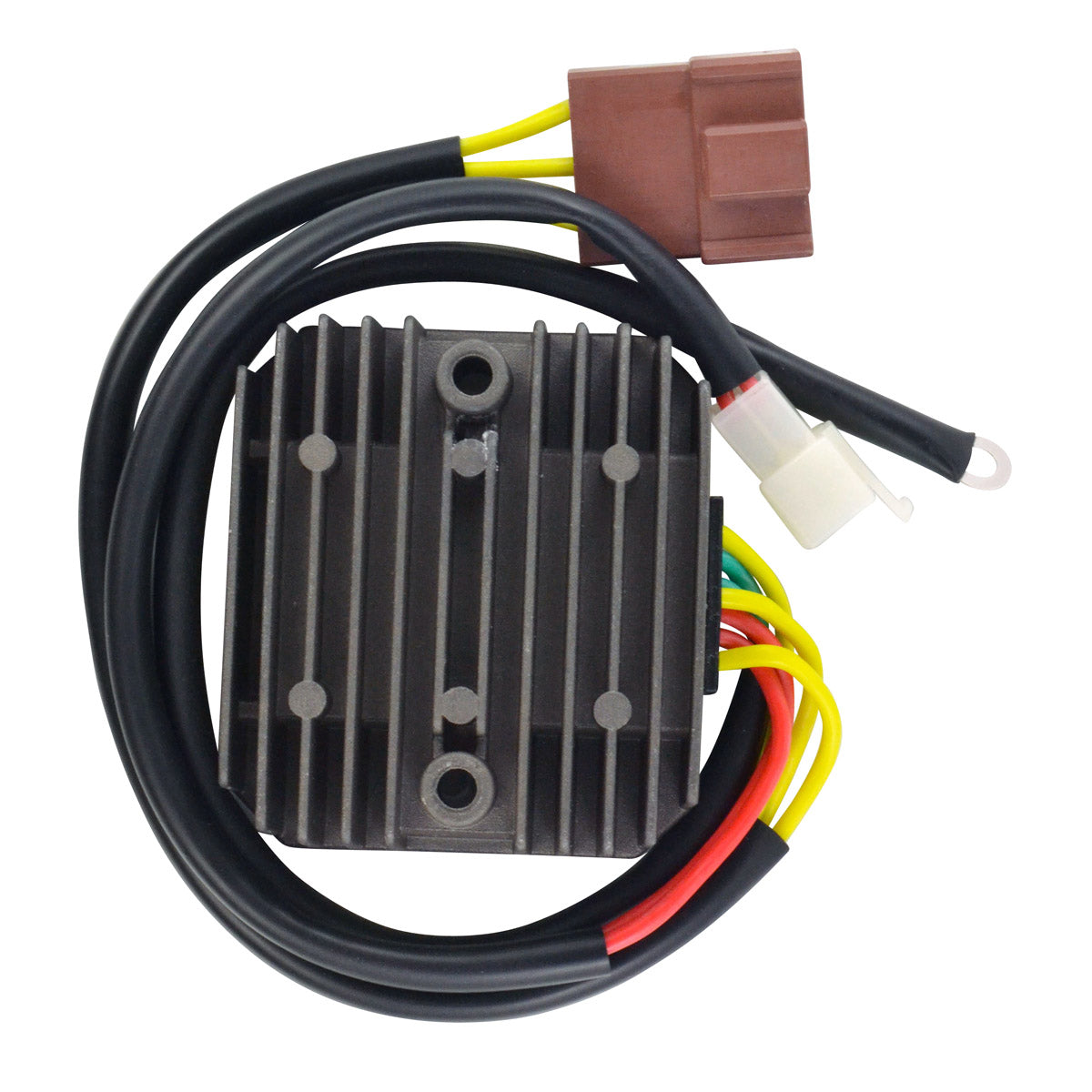

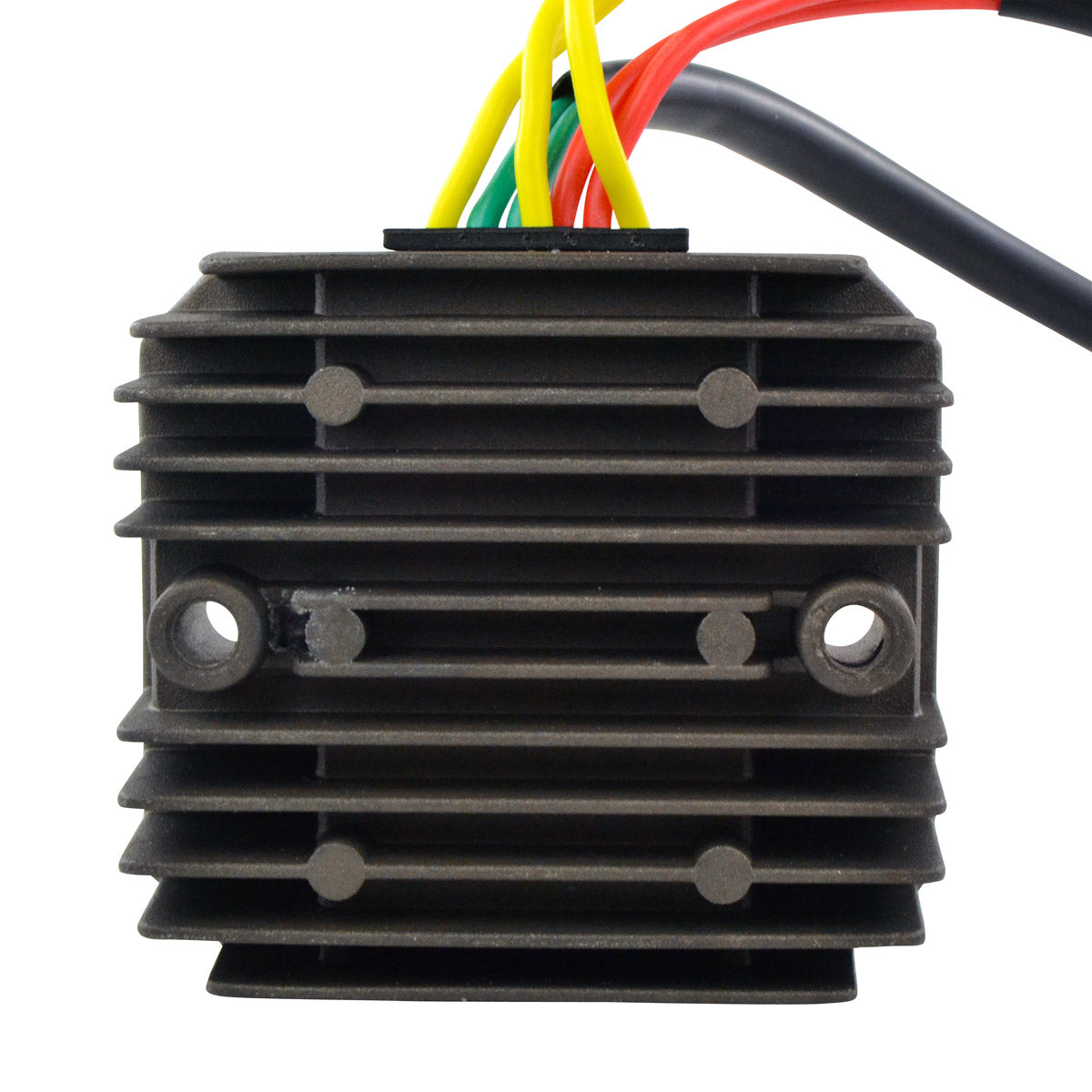

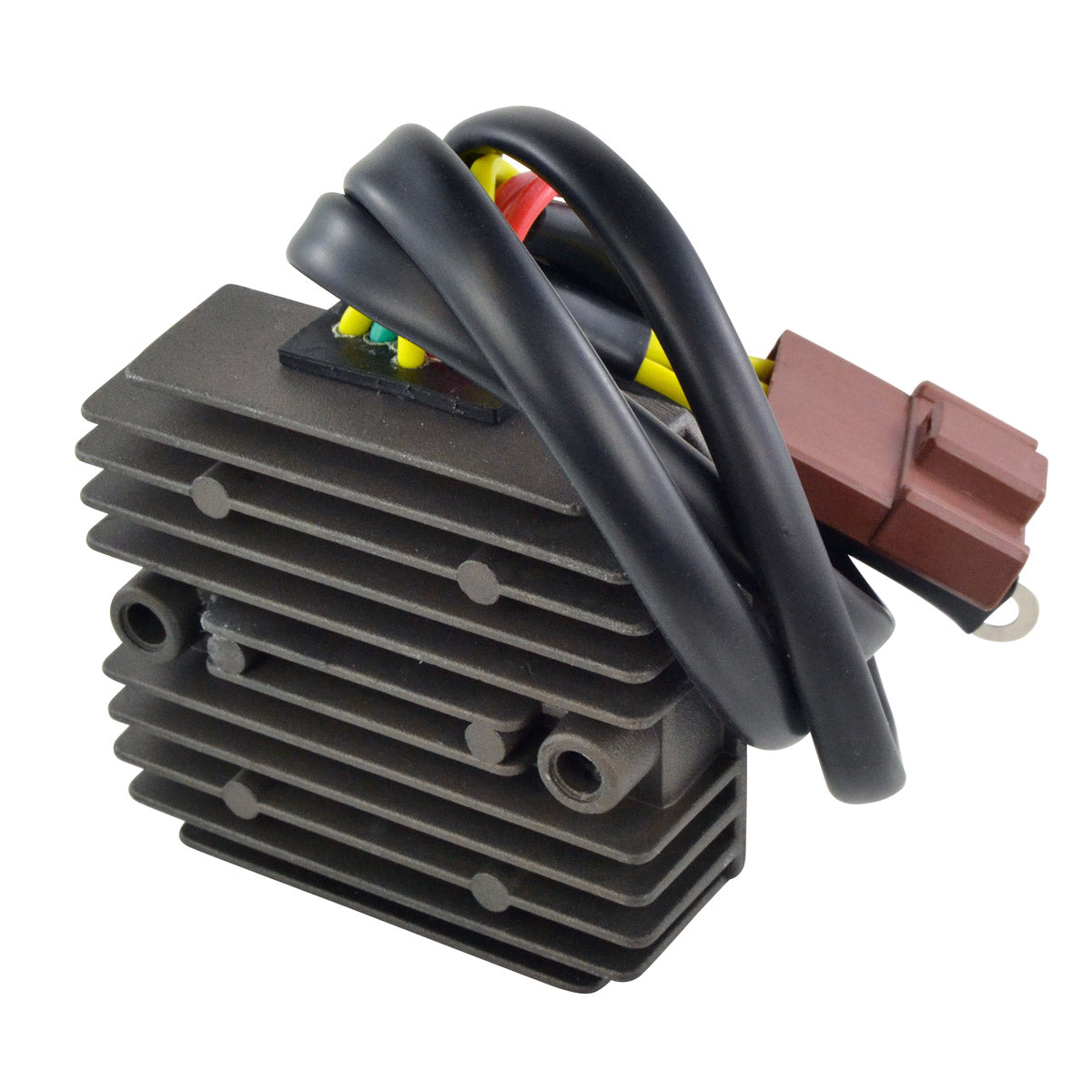

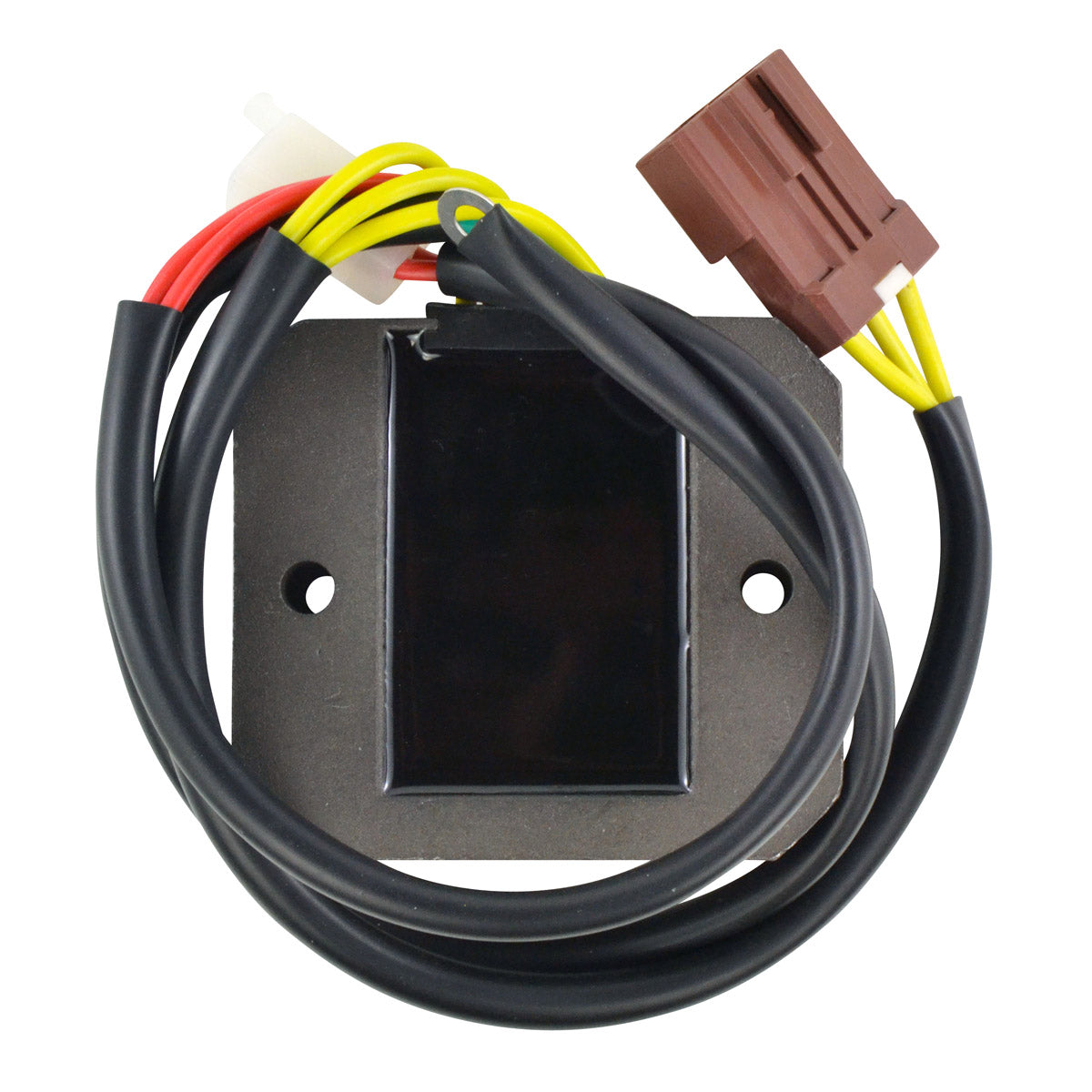

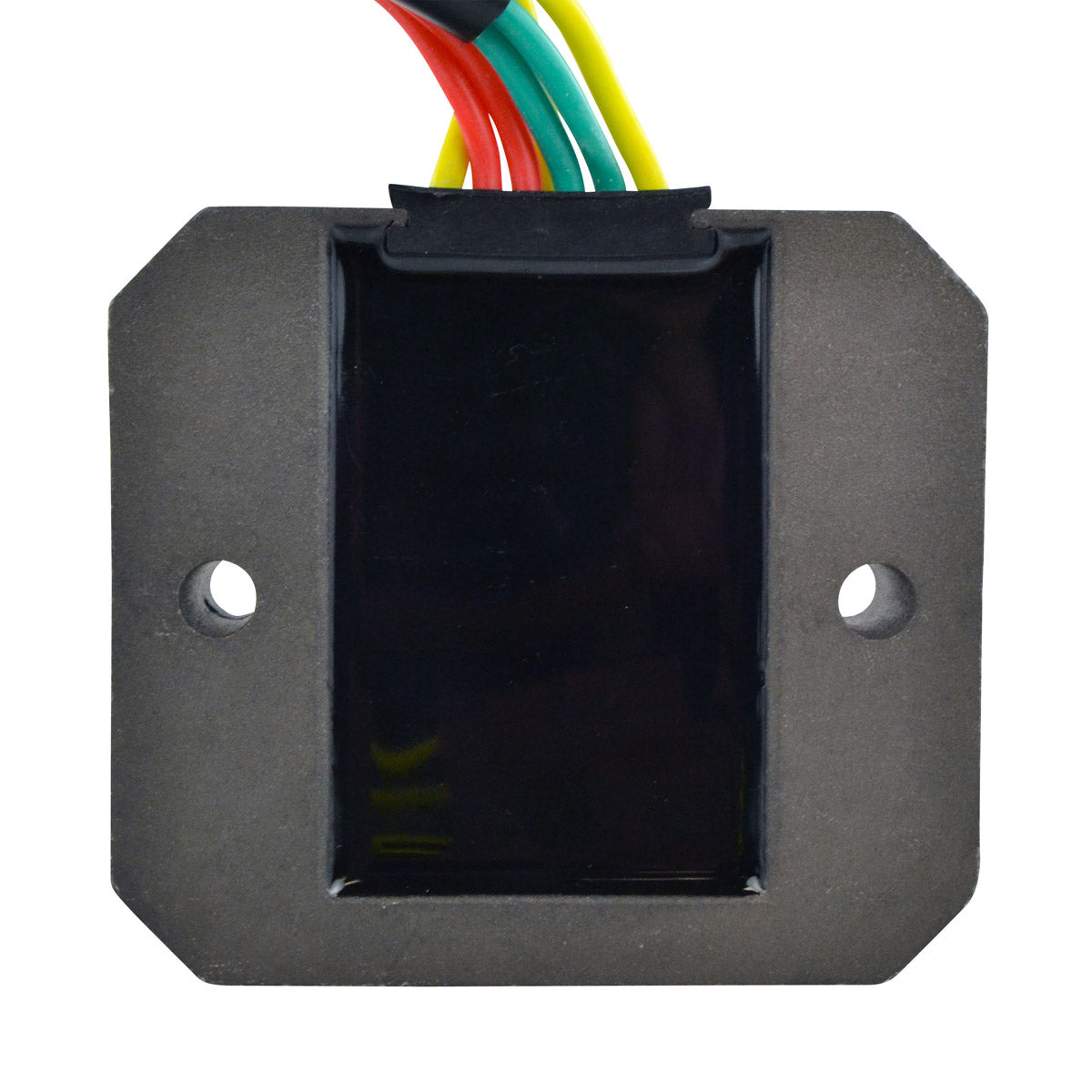

A brand new aftermarket voltage regulator rectifier covering a wide span of the KTM range - the 1190 RC8 and RC8R, the 690 Duke, Enduro R and Supermoto, and the 950 and 990 Adventure R and S and Super Duke. It is built as a direct replacement for the original unit and is plug-and-play, a direct fit, with no assembly required. The RMSTATOR part number is RMS020-103665.

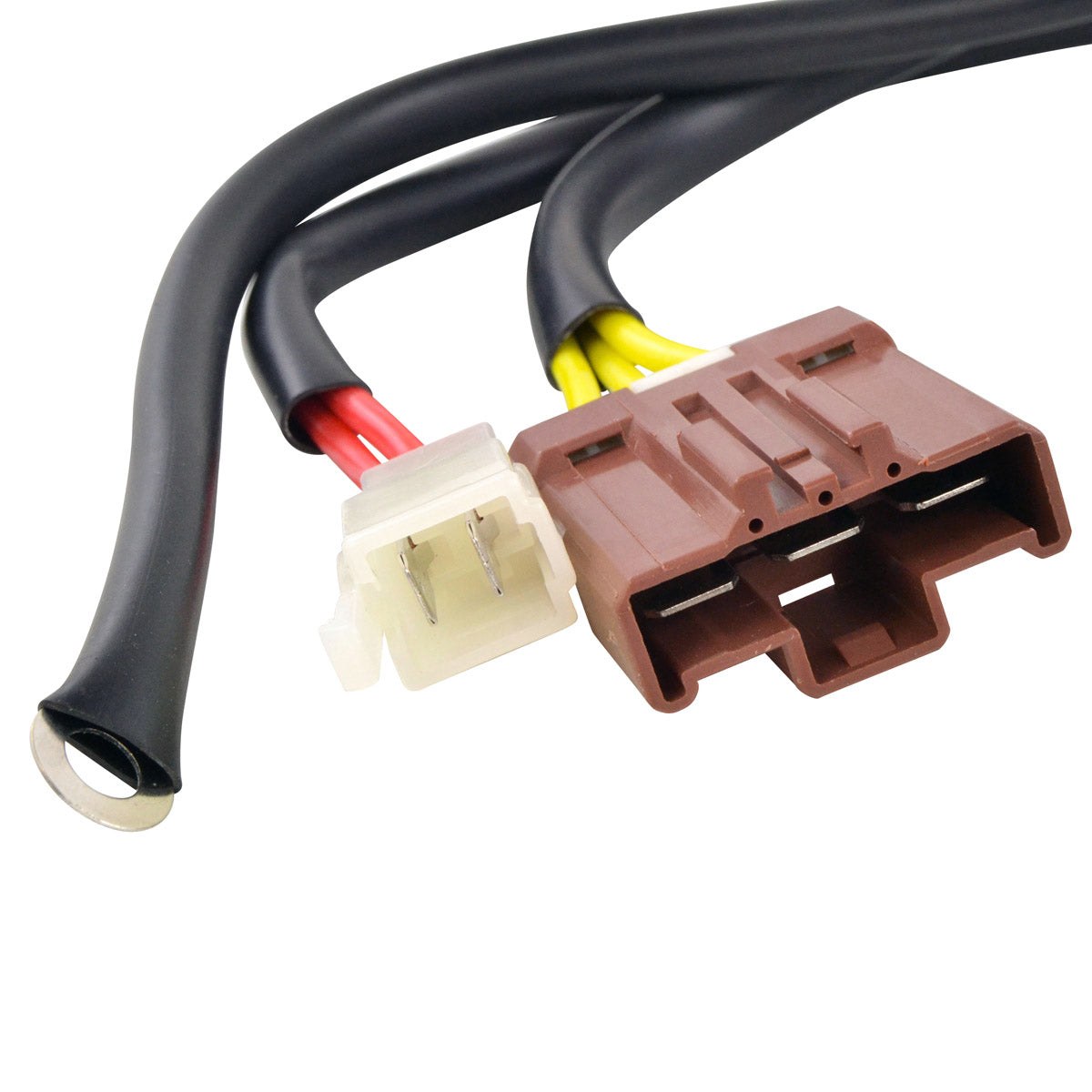

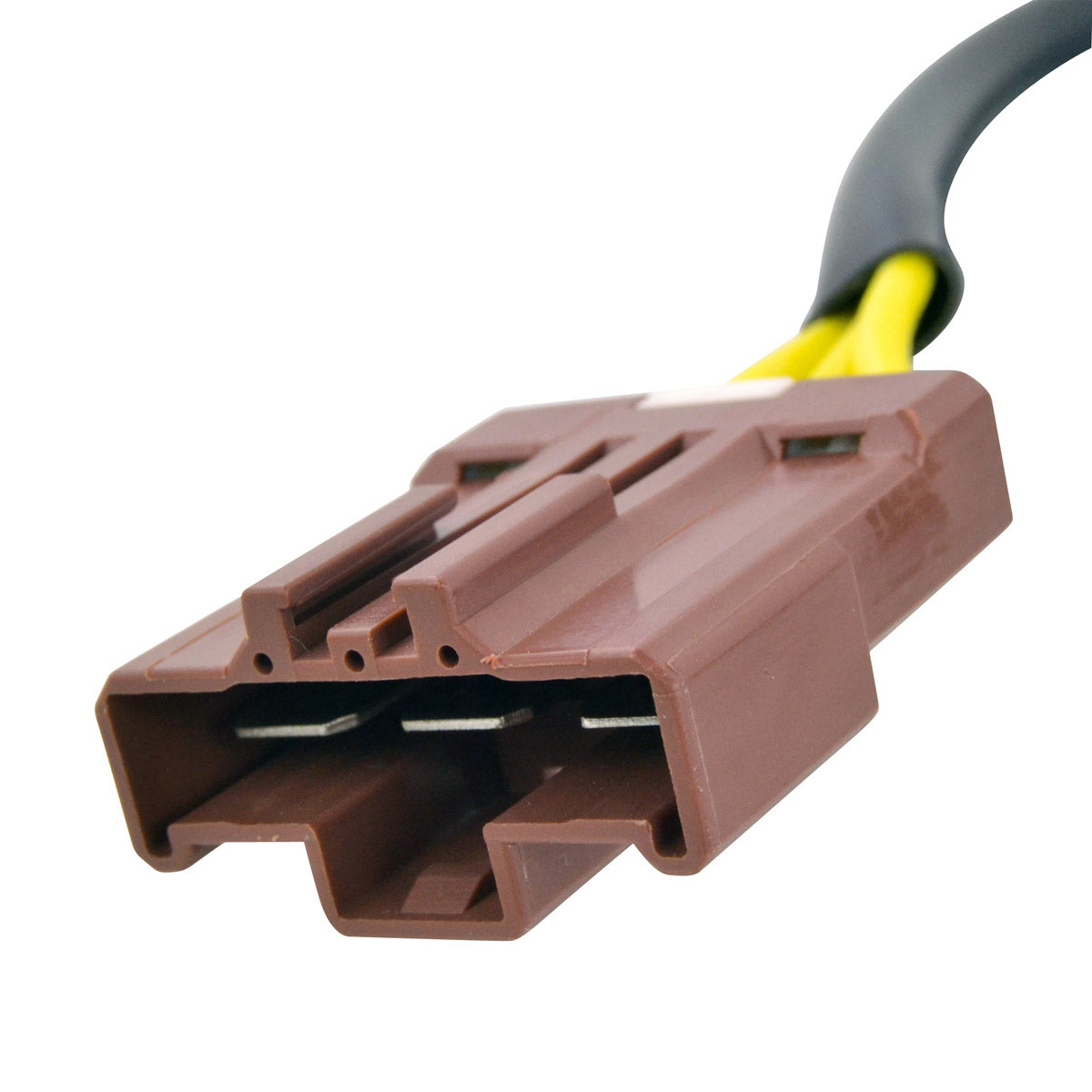

A higher grade of electric components is used throughout, so the quality exceeds the OEM equipment, and all products shipped are tested. The opposite connector - the main harness side - is included, because that connector is very often melted, corroded or defective and is a major cause of repetitive electrical issues that return shortly after a replacement regulator goes on.
Key Features
- Brand new aftermarket unit - direct replacement for your original voltage regulator
- Plug-and-play, direct fit, easy installation - no assembly required
- Higher grade of electric components; quality exceeds the OEM equipment
- All products shipped are tested
- Opposite connector (main harness side) included
- Two plugs, seven pins, seven wires with long 330 mm leads
- Rated for operation from -20 C to 85 C
Technical Specs
| Specification |
Detail |
| Width |
79 mm |
| Length |
88 mm |
| Height |
27 mm |
| Wires length |
330 mm |
| Fixation holes centre to centre |
67 mm |
| Number of plugs |
2 |
| Number of pins |
7 |
| Number of wires |
7 |
| Minimum charging voltage |
14.5 V +/- 0.5 V |
| Maximum charging current |
50 A / 500 W |
| Open circuit voltage |
Under 15 V |
| Operation temperature |
-20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| KTM 1190 RC8 / RC8R |
2004-2017 |
| KTM 690 Duke / Enduro R / Supermoto |
2004-2017 |
| KTM 950 Adventure / Super Duke |
2004-2017 |
| KTM 990 Adventure R / S / Super Duke |
2004-2017 |

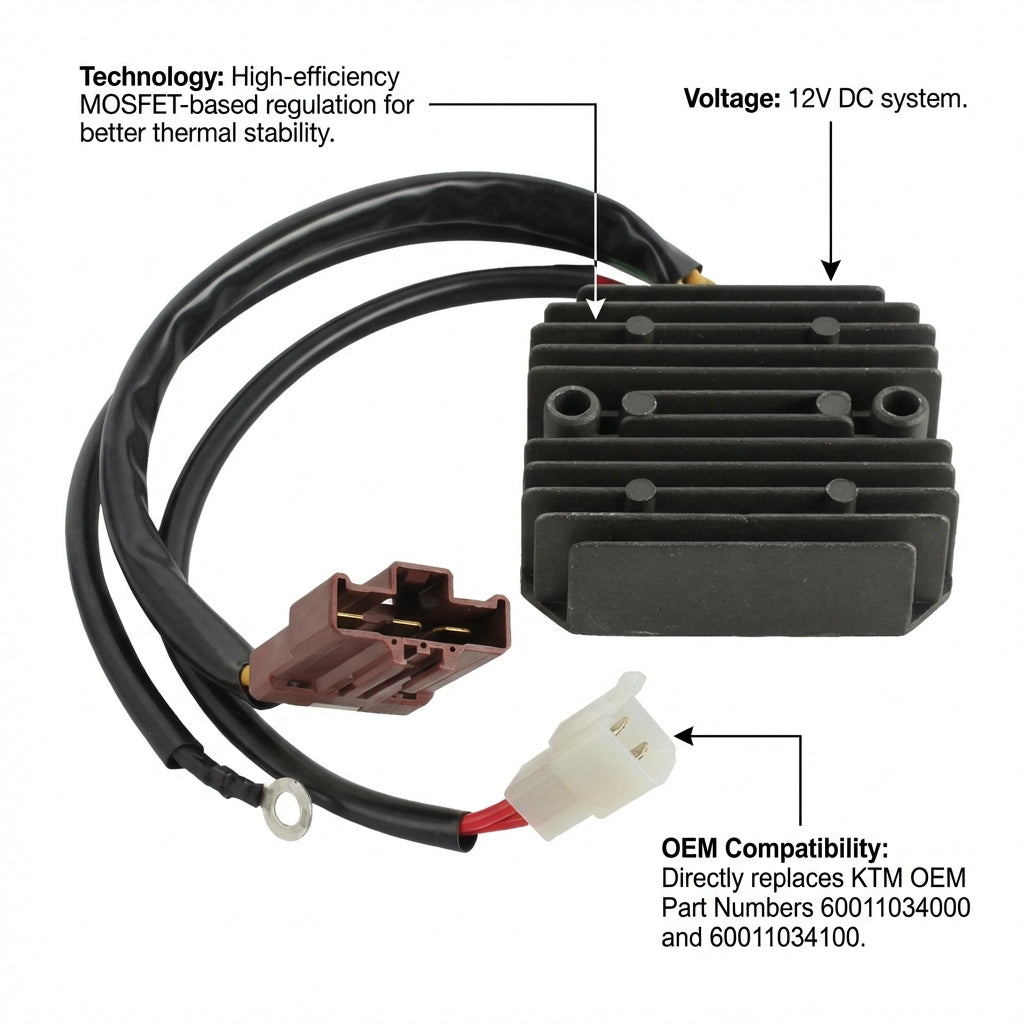

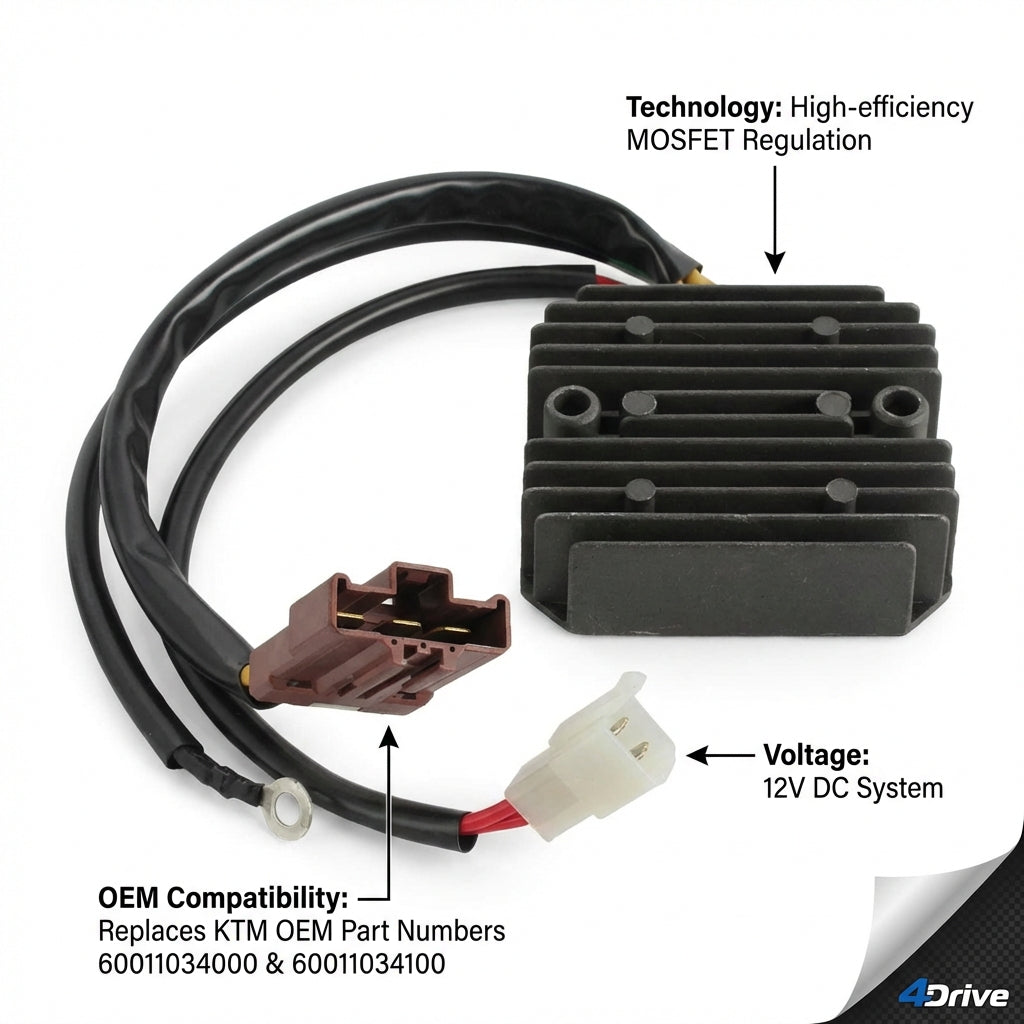

OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 60011034100 |
KTM |
| 60011034000 |
KTM |
| RMS020-103665 |
RMSTATOR |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a direct fit, plug-and-play replacement for the original KTM unit. The mounting holes are 67 mm apart centre to centre and the unit uses the same two plugs with seven pins and seven wires, so no cutting or splicing is needed.
What is included?
The voltage regulator, plus the opposite connector for the main harness side.
How do I tell whether my old regulator has failed?
A battery that repeatedly goes flat, a battery that overcharges or boils, and lights that surge with engine speed all point to the regulator. A healthy system holds a minimum charging voltage of 14.5 V +/- 0.5 V with an open circuit voltage below 15 V.
Why are the leads so long?
The wires measure 330 mm, which is enough to reach the mounting positions used across the 690, 950, 990 and 1190 models this part covers, without extending the loom.
