DC Voltage Regulator for Kymco Mxer 125 and 150
Kymco Mxer 125 cc and Mxer 150 cc - 2002 to 2007 - Part RMS020-102742

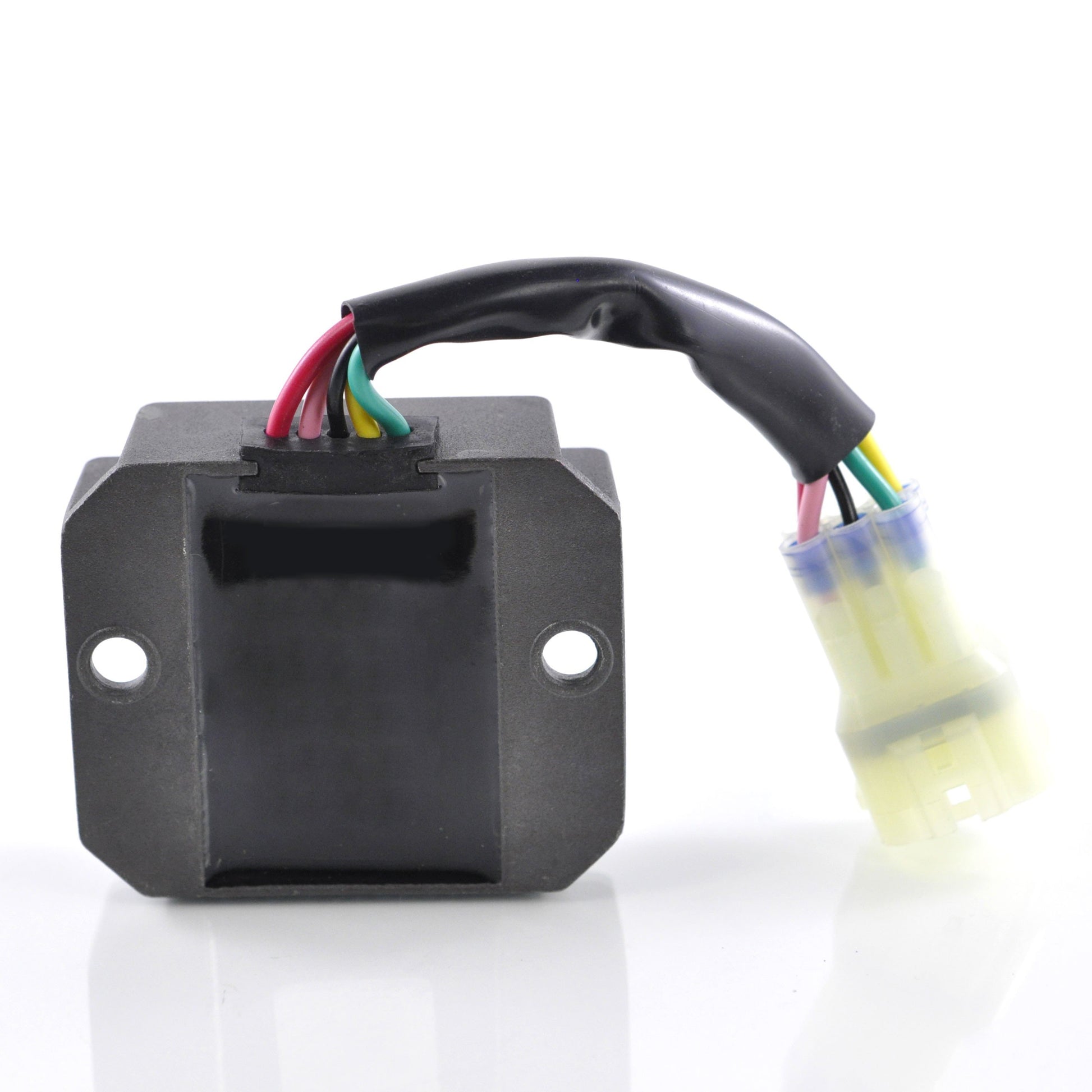

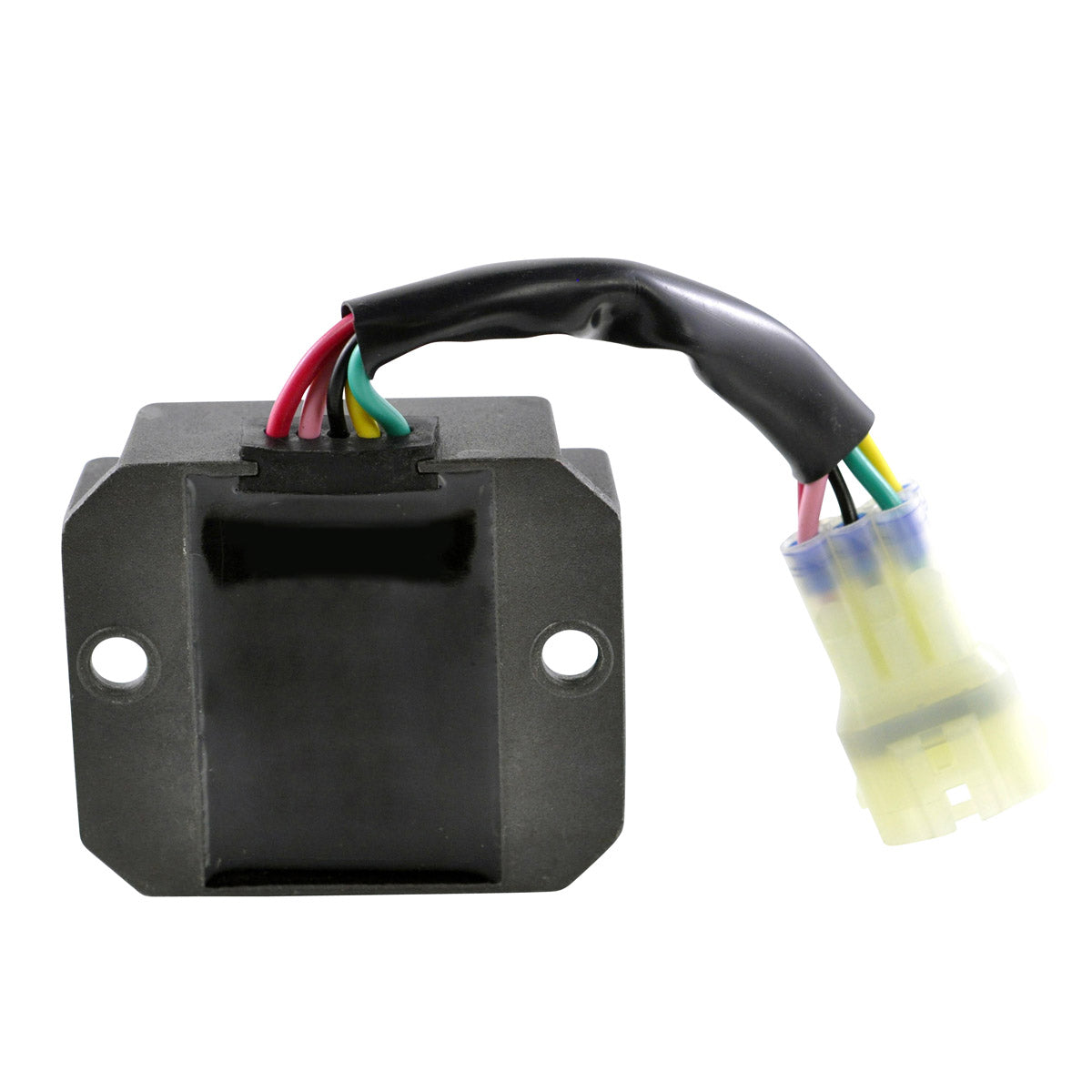

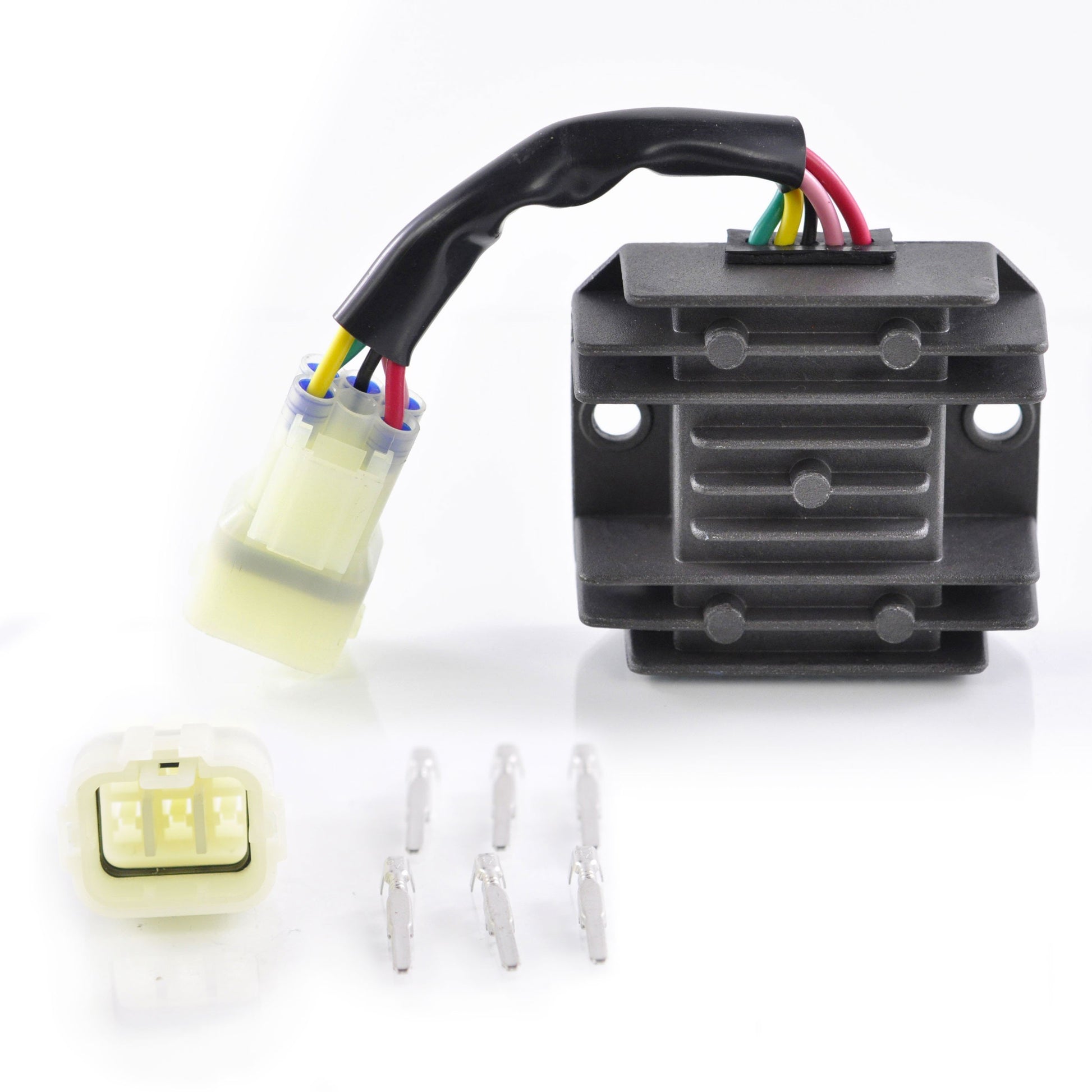

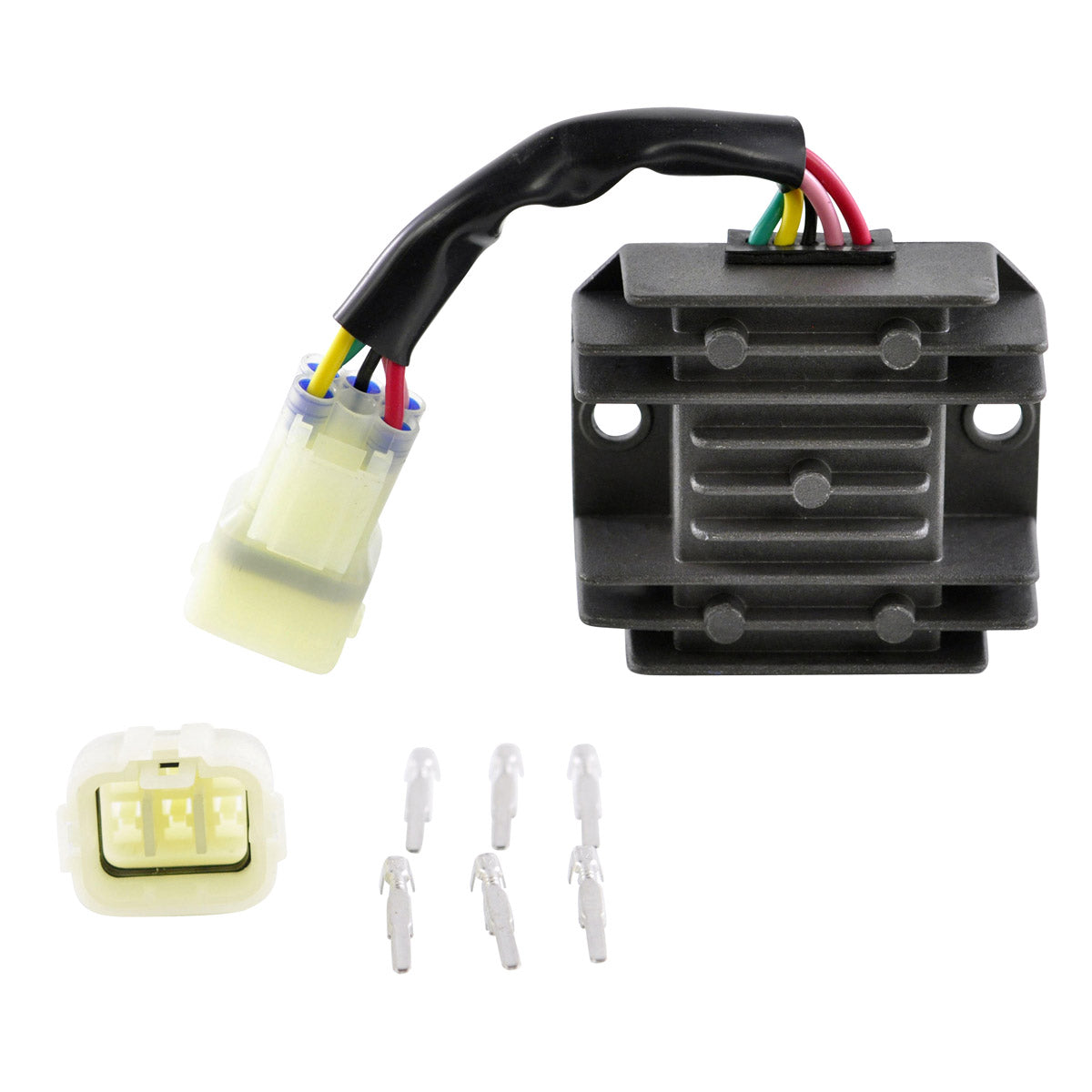

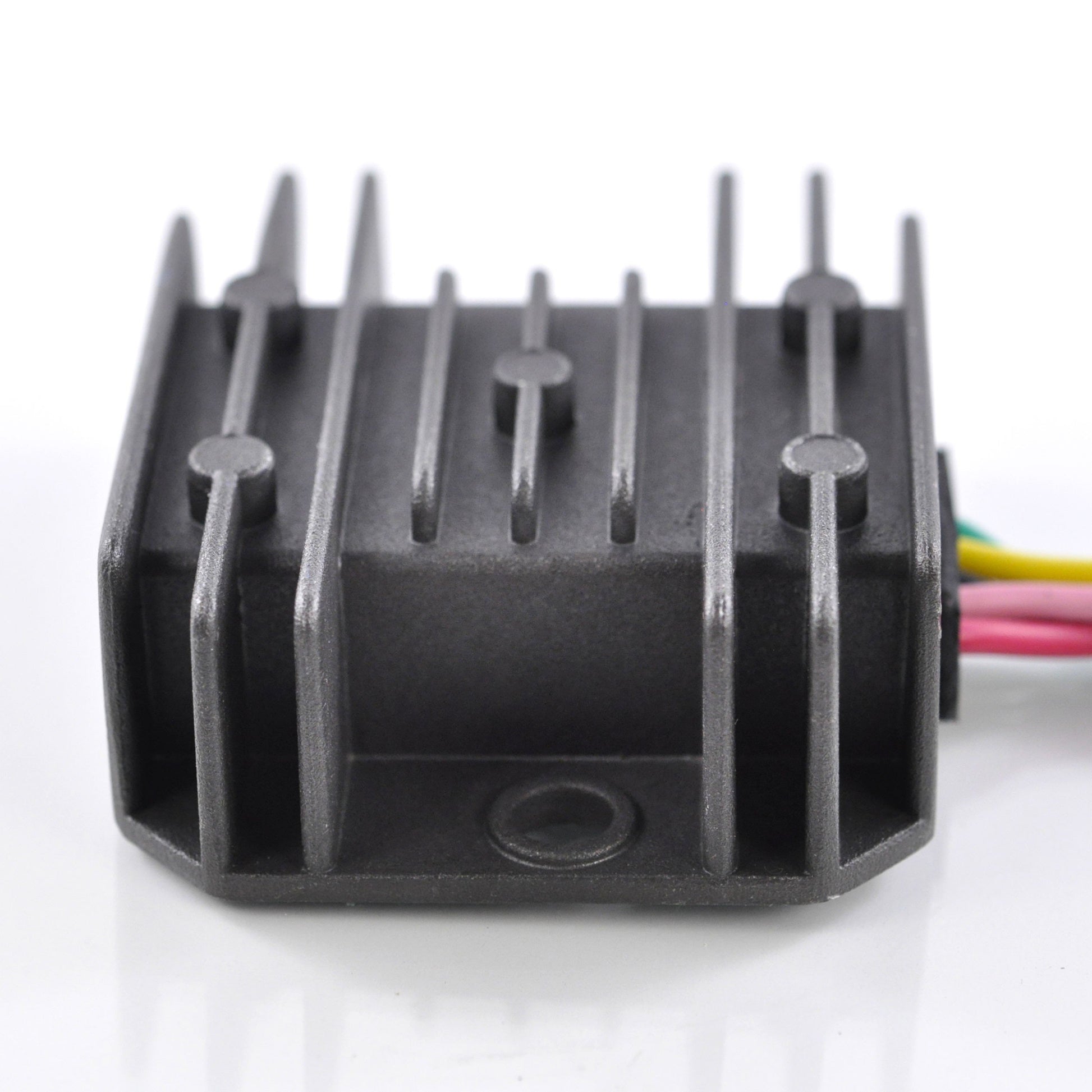

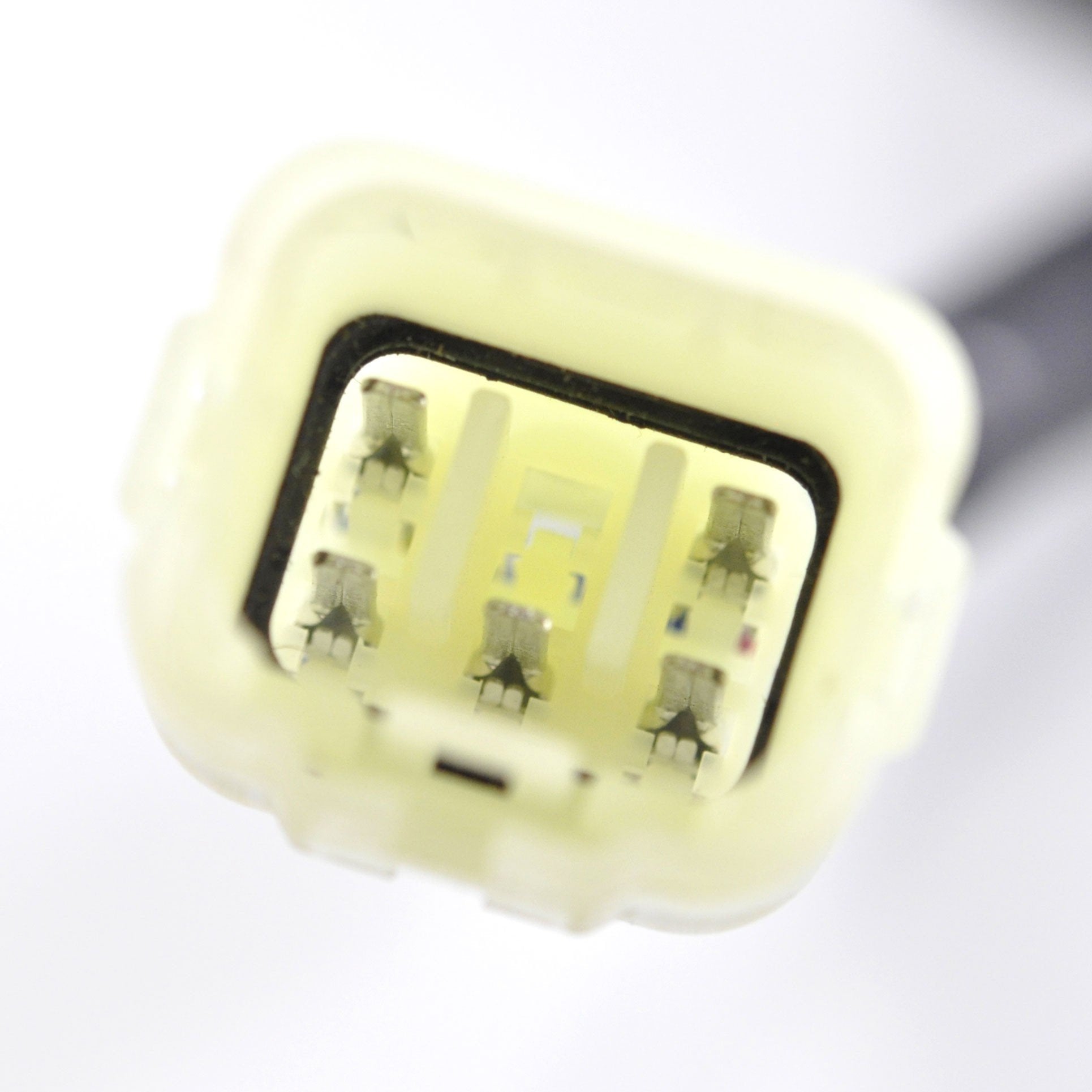

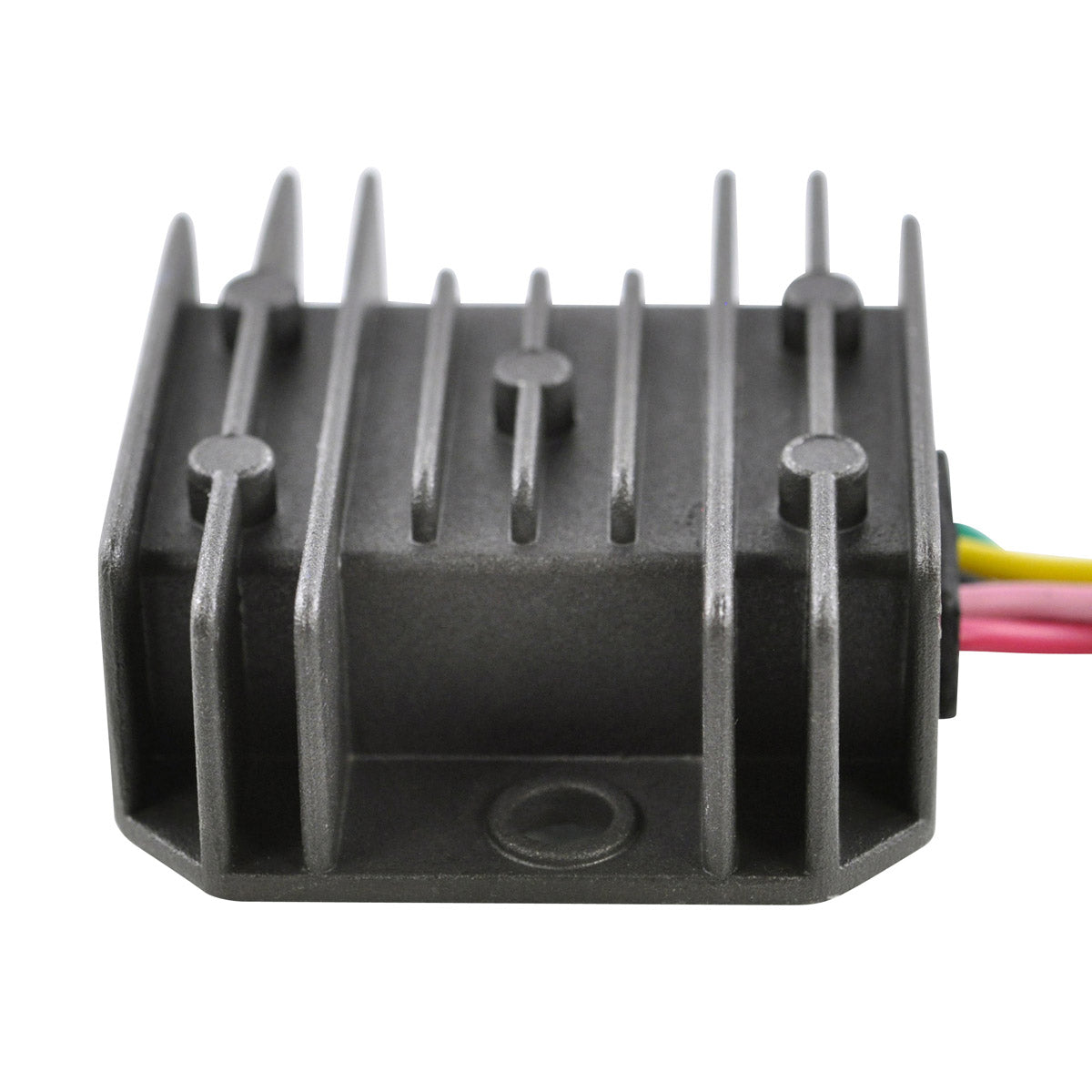

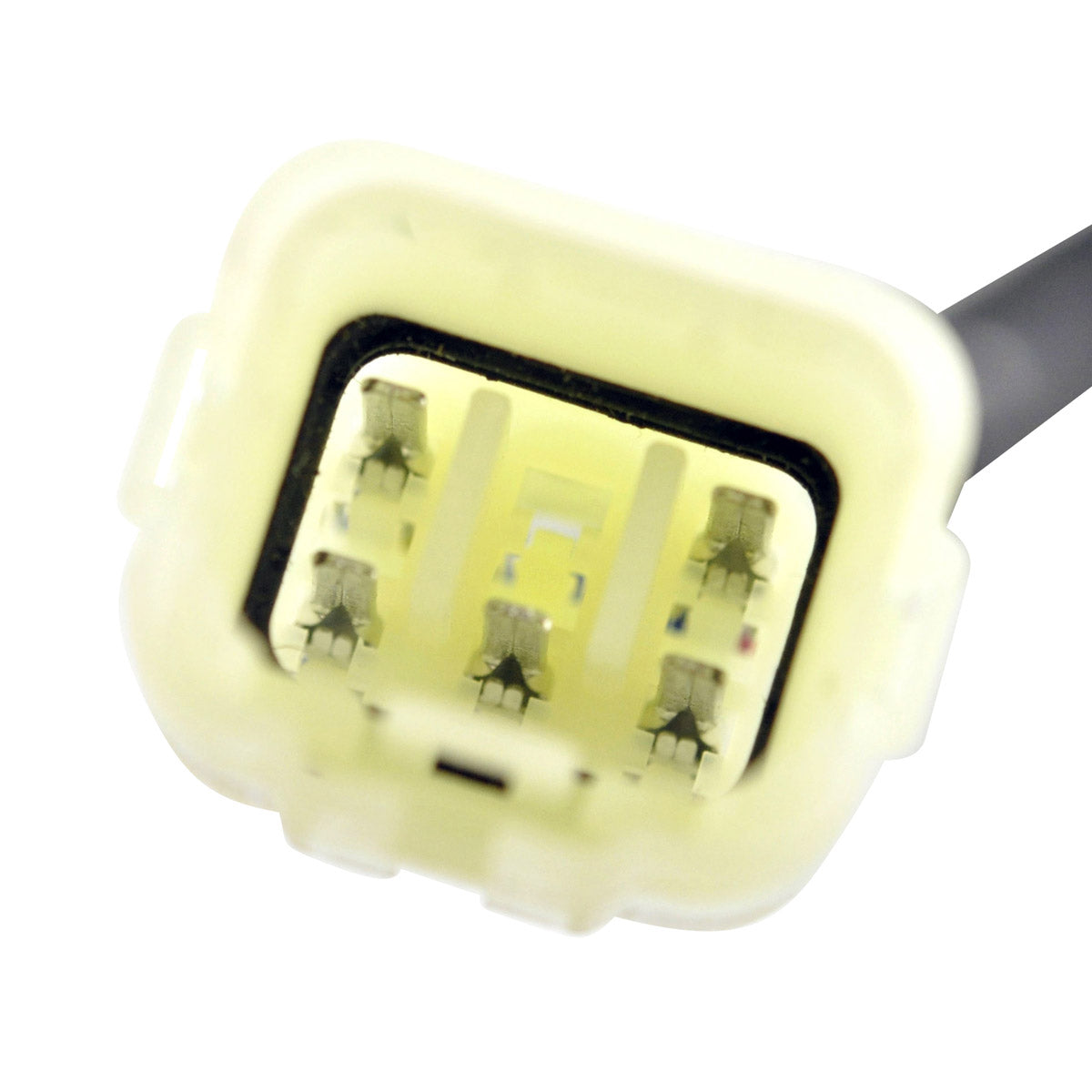

A brand new aftermarket DC voltage regulator rectifier for the Kymco Mxer 125 and Mxer 150 quad, built as a direct replacement for the original unit. It is plug-and-play and a direct fit: the single five-pin plug, the 53 mm fixing hole centres and the 85 mm wire tails all match the original, so the regulator mounts in the standard position and connects to the standard loom with no assembly and no wiring changes.
RMSTATOR build this unit with a higher grade of electrical components than the original equipment, and the quality exceeds the OEM part it replaces. Every regulator is tested before it is shipped. The box also contains the opposite connector - the plug on the main harness side - because on a machine of this age that connector is very often melted, corroded or otherwise defective. A damaged harness plug is one of the most common reasons a newly fitted regulator fails again shortly afterwards, so renewing it at the same time is worth the few extra minutes.
Key Features
- Direct replacement for the original Kymco unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Supplied with the opposite connector for the main harness side
- Higher grade of electrical components; the quality exceeds the OEM equipment
- Maximum charging current of 25 A / 300 W
- Minimum charging voltage of 14.5 V +/- 0.5 V
- Open circuit voltage held below 15 V so the battery is not overcharged
- Rated for operation from -20°C to 85°C
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS020-102742 |
| Width | 60 mm |
| Length | 69 mm |
| Height | 25 mm |
| Wire length | 85 mm |
| Fixing hole centres | 53 mm |
| Number of plugs | 1 |
| Number of pins | 5 |
| Number of wires | 5 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 25 A / 300 W |
| Open circuit voltage | Less than 15 V |
| Operating temperature | -20°C to 85°C |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Kymco Mxer 125 cc | 2002-2007 |
| Kymco Mxer 150 cc | 2002-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31600-LLB1-E00 | Kymco |
Frequently Asked Questions
Do I need to modify the loom or the bracket to fit it?
No. This is a direct fit for the original Kymco regulator. The fixing holes are on 53 mm centres and the single five-pin plug matches the standard harness, so it is plug-and-play with no assembly required.
What is included in the box?
The DC voltage regulator itself plus the opposite connector for the main harness side, so you can renew the loom-side plug at the same time if the original has melted or corroded.
How can I tell my old regulator has failed?
Measure the voltage across the battery with the engine running. A working charging system should reach at least 14.5 V +/- 0.5 V. If the reading never rises above resting battery voltage the regulator is not charging; if it climbs beyond 15 V the regulator is no longer limiting the output and will boil the battery. Discoloured casing or a melted connector are further signs.
Why does the harness connector matter so much?
The regulator carries the full charging current through that plug. Once the pins corrode or the housing distorts with heat, resistance rises, the joint gets hotter still and the fault repeats no matter how many regulators are fitted. Replacing the connector supplied in the box breaks that cycle.
