Voltage Regulator for Polaris 500, 600 & 700 Classic, Edge, SP & XC 2001-2016
Voltage Regulator for Polaris 500, 600 & 700 Classic, Edge, SP & XC 2001-2016
SKU:RM30913
Free shipping over £150. Terms apply
Couldn't load pickup availability

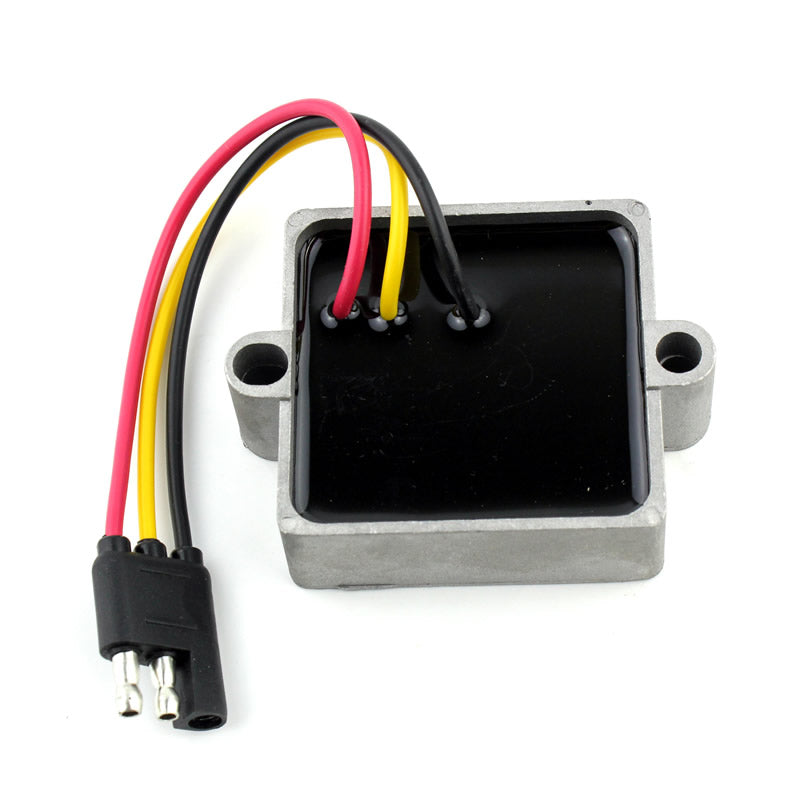

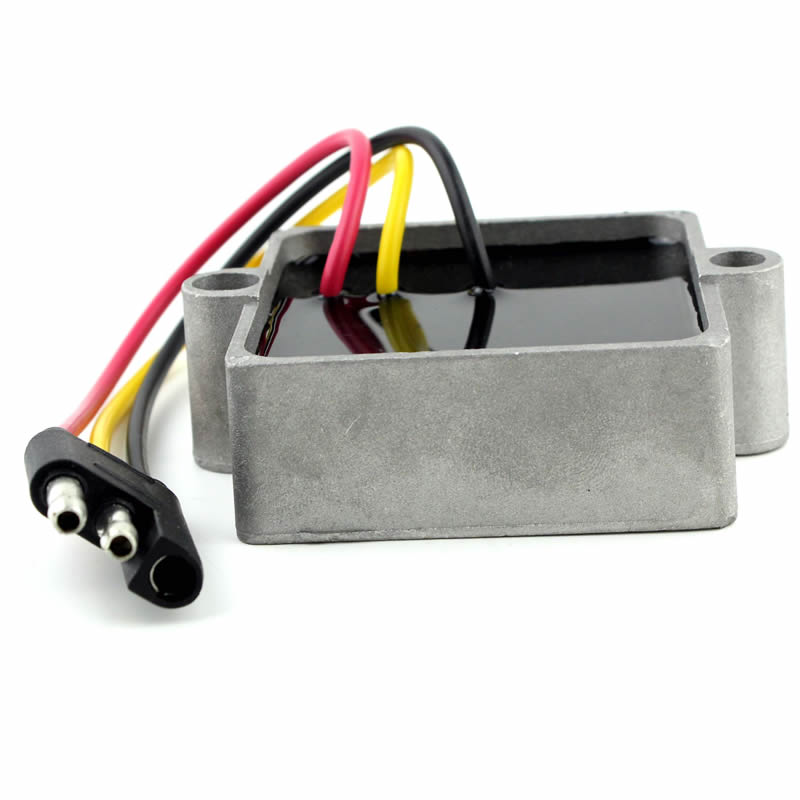

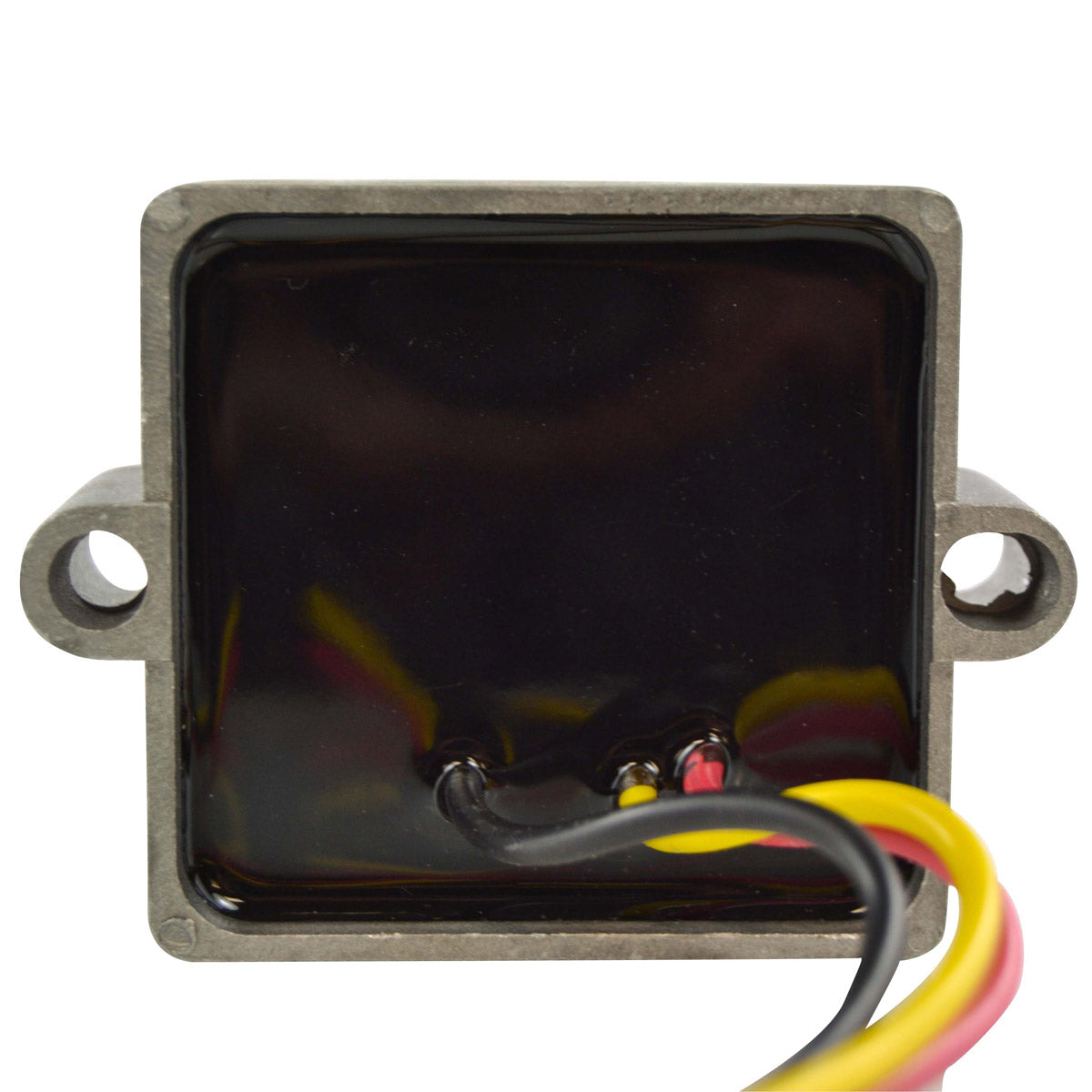

Voltage Regulator for Polaris 500, 600 & 700
Classic, Edge, SP, XC and 550 IQ / Shift - 2001-2016 - Part RM30913
This is an aftermarket voltage regulator rectifier built to serve as a direct replacement for the original equipment unit fitted to Polaris 500, 600 and 700 Classic, Edge, SP and XC machines, along with the 550 IQ and 550 Shift models, from 2001 through 2016. It is a plug-and-play, direct fit part that requires no assembly, so it mounts on the original fixing points and connects through the original three-pin plug without cutting, splicing or modifying the loom.
The regulator incorporates a higher grade of electrical components and an improved heat sink design with enhanced charging capabilities, so the finished unit exceeds the specification of the original equipment part it replaces. Every unit is tested before it is shipped. Please note that this regulator is compatible only with electric start models - kick and pull start machines without a charging circuit of this type are not covered.
Key Features
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electrical components
- Improved heat sink and charging capabilities
- Quality exceeds the OEM equipment
- All units are tested before shipping
- Suitable for electric start models only
Technical Specs
| Specification | Detail |
|---|---|
| Width | 63 mm |
| Length | 66 mm |

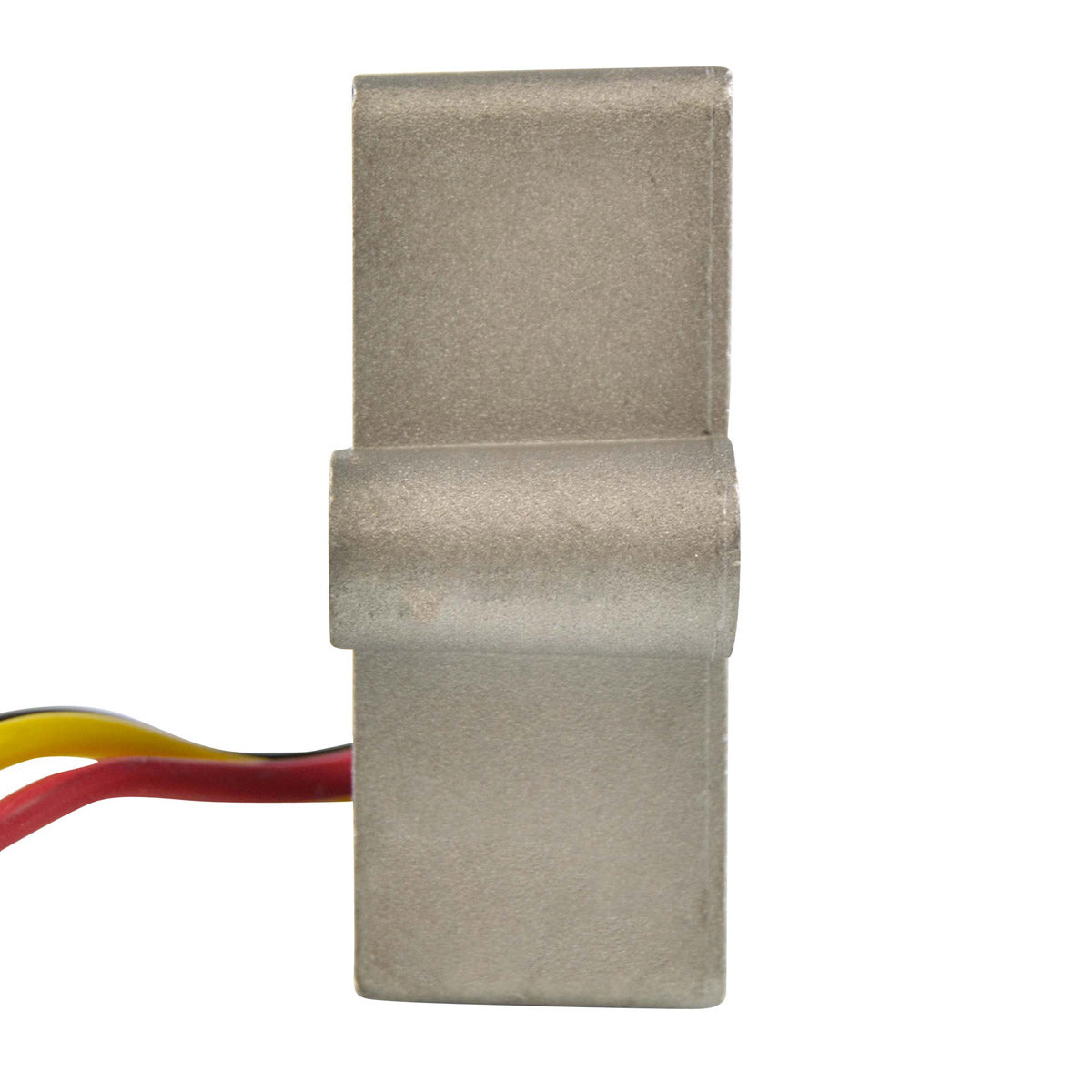

| Height | 25 mm |
| Wire length | 140 mm |

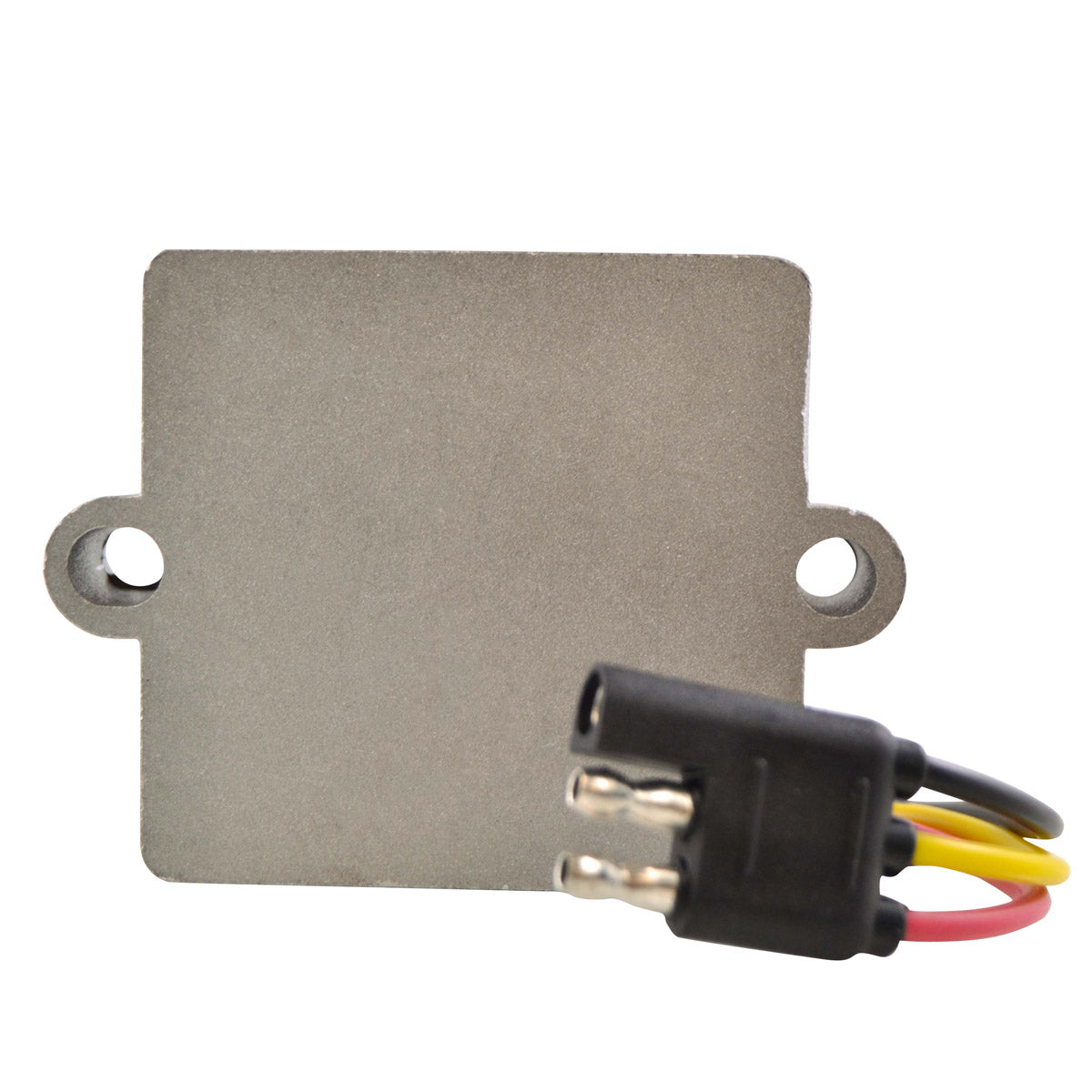

| Fixation holes, centre to centre | 68 mm |
| Number of plugs | 1 |

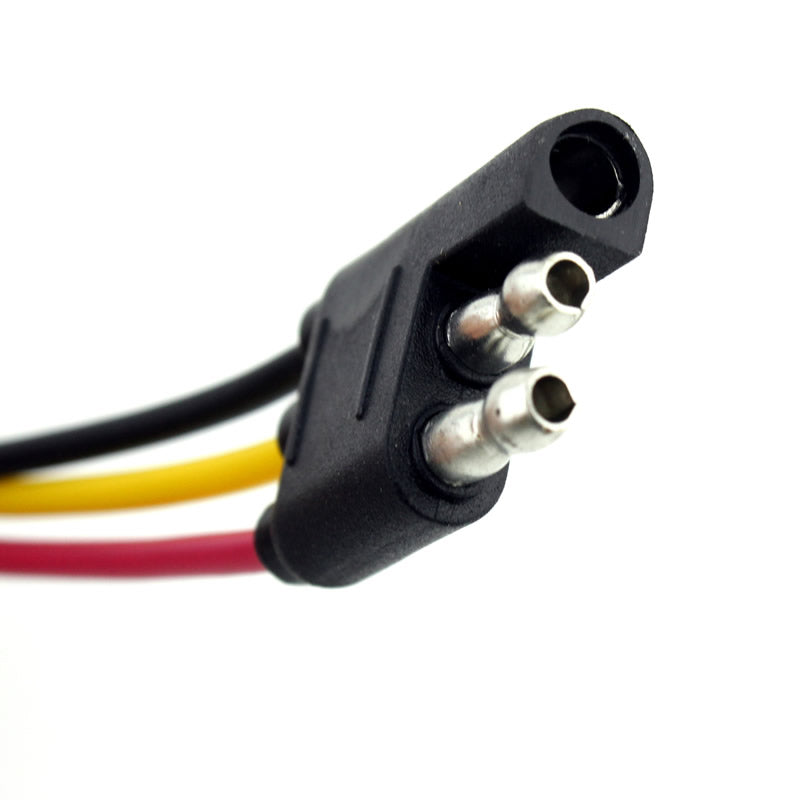

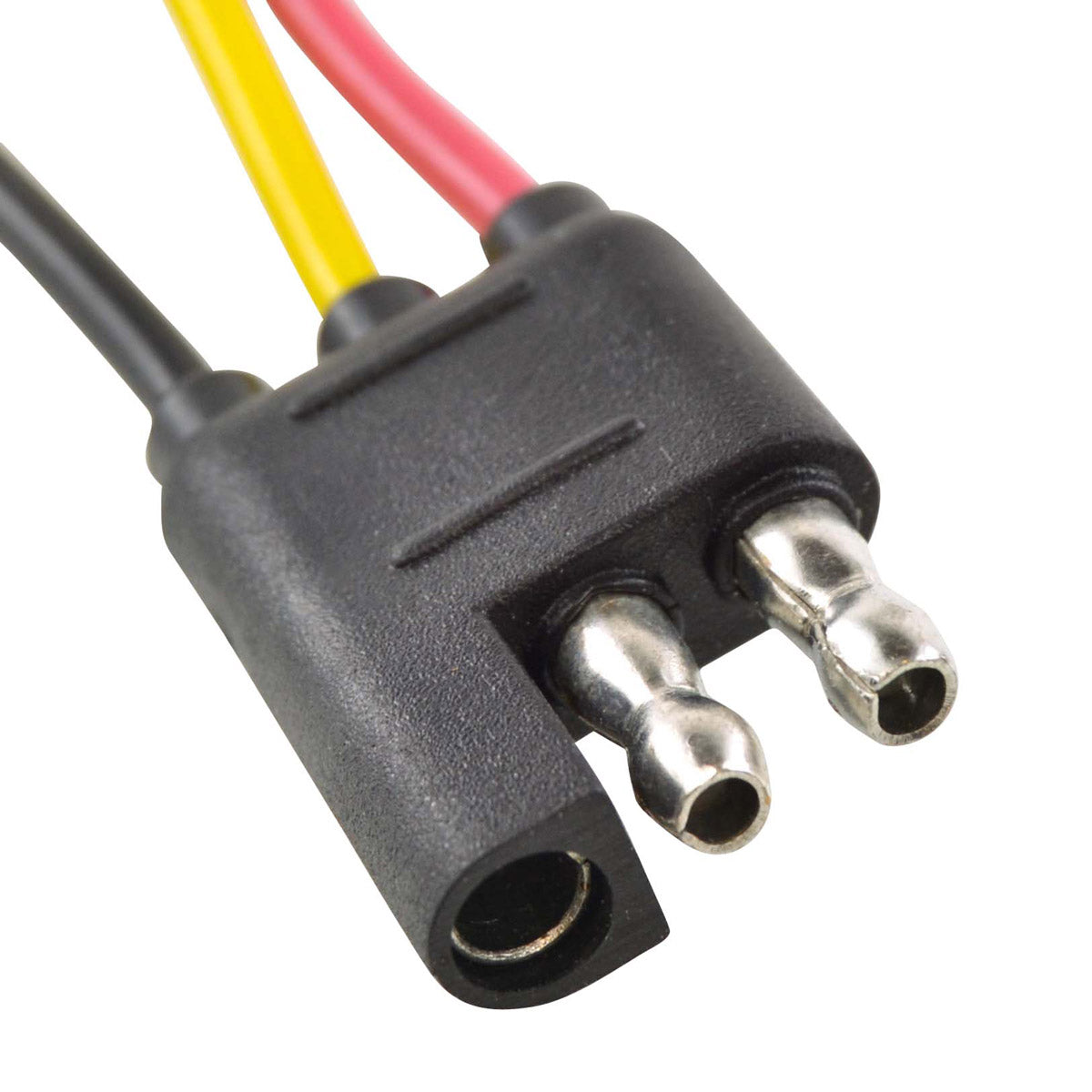

| Number of pins | 3 |
| Number of wires | 3 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 25 A / 300 W |
| Open circuit voltage | Under 15 V |
| Operating temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Polaris 500 Classic / Edge / SP / XC | 2001-2016 |
| Polaris 600 Classic / Edge / SP / XC | 2001-2016 |
| Polaris 700 Classic / Edge / SP / XC | 2001-2016 |
| Polaris 550 IQ | 2001-2016 |
| Polaris 550 Shift | 2001-2016 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 4010794 | Polaris |
| 4010355 | Polaris |
| 4011809 | Polaris |
| RM30913 | RMSTATOR (this part) |
Frequently Asked Questions
Does this fit without modification?
Yes. It is a direct fit, plug-and-play replacement that uses the original mounting holes at 68 mm centre to centre and the original single three-pin plug. No assembly, cutting or splicing is required.
What is included?
One voltage regulator rectifier with a 140 mm wire lead and its fitted three-pin connector. No additional hardware, loom or fixings are supplied, as the original fixings are reused.
How do I know my old regulator has failed?
A failed regulator normally shows up as a battery that will not hold charge, or as charging voltage that sits outside the normal range. With the engine running, a healthy system should reach a minimum charging voltage of 14.5 V plus or minus 0.5 V, and the open circuit voltage should stay under 15 V. Readings well below that point to no charge; readings above it point to overcharging, which boils batteries and blows bulbs.
Will it work on a pull start machine?
No. This regulator is compatible only with electric start models. Check that your machine has an electric start charging system before ordering.
