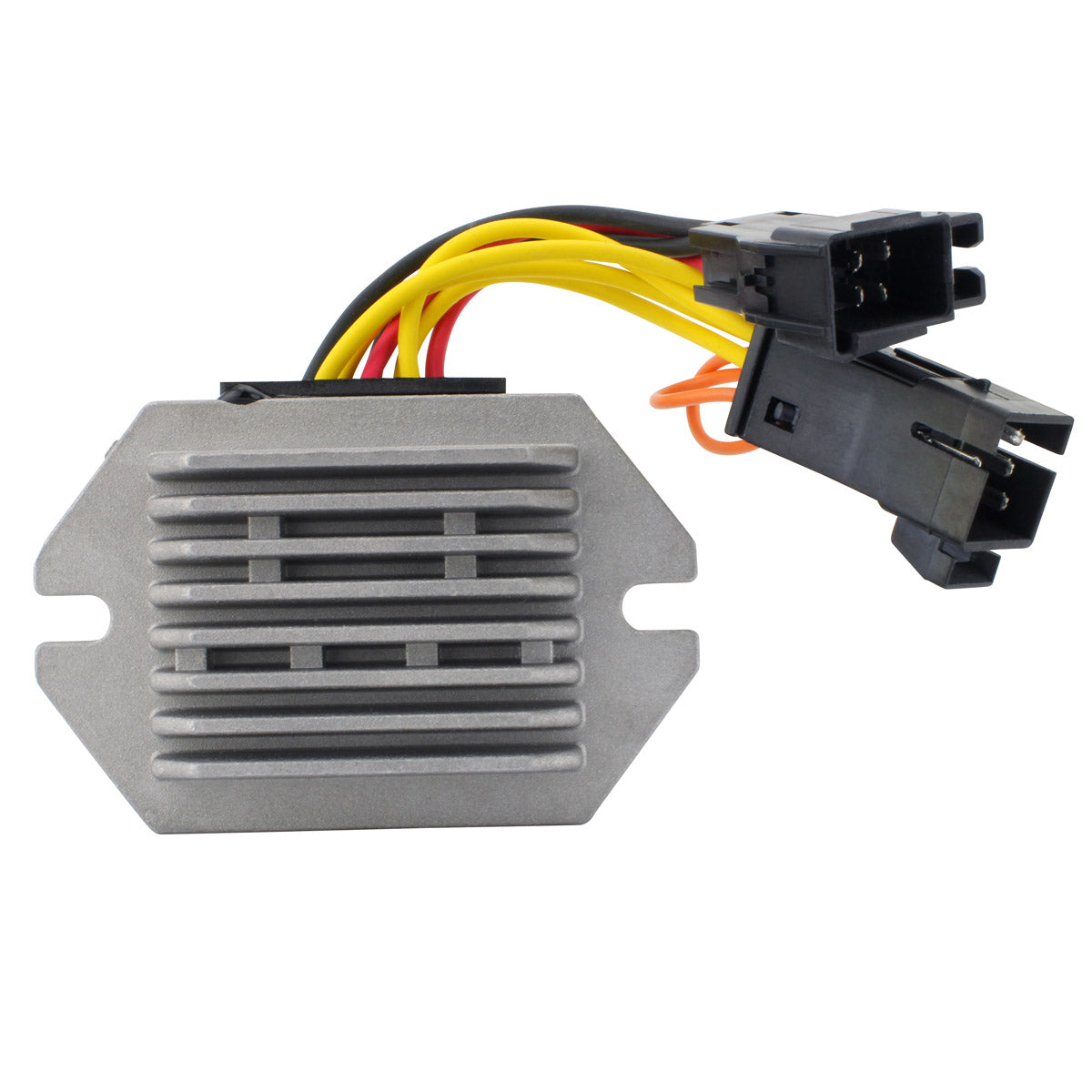

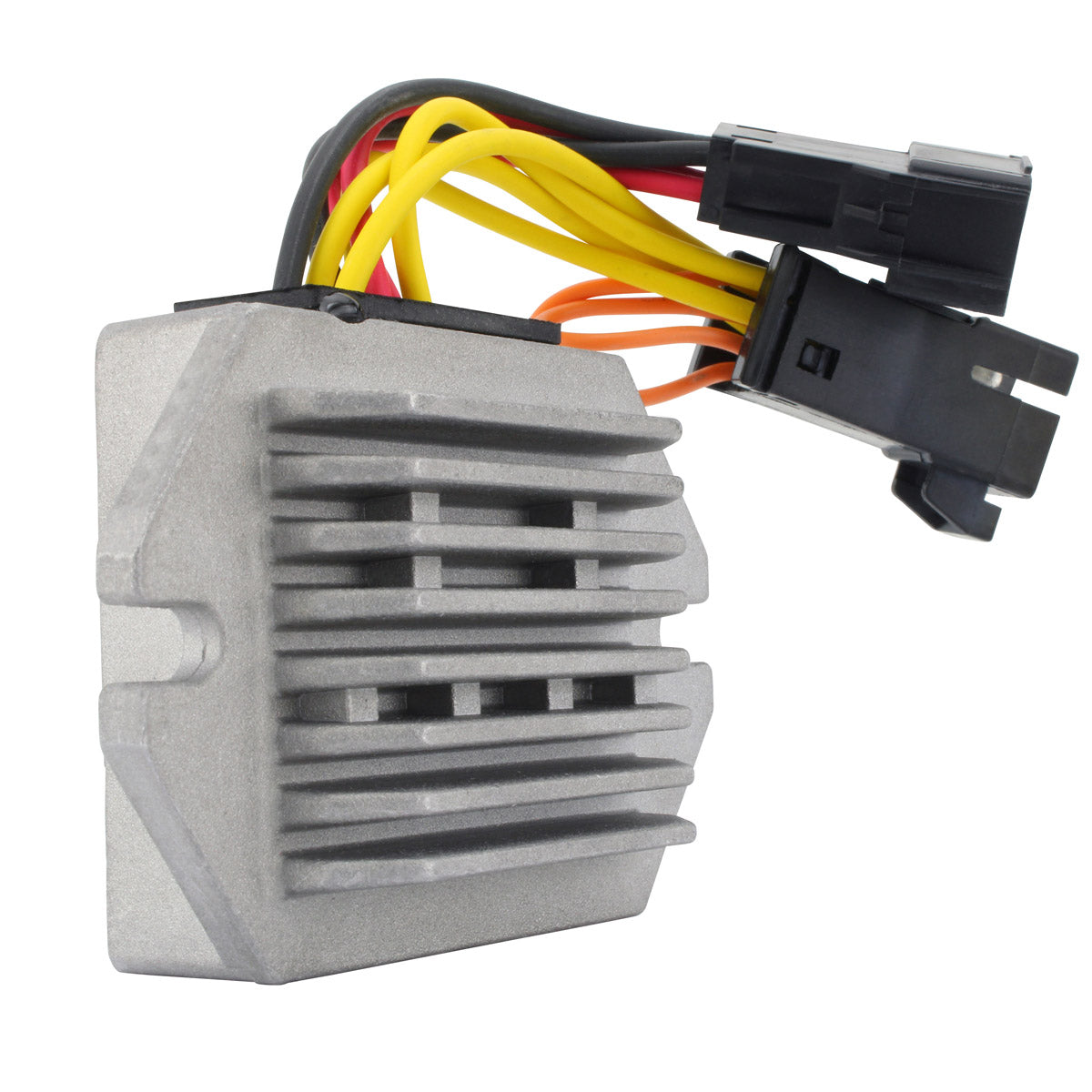

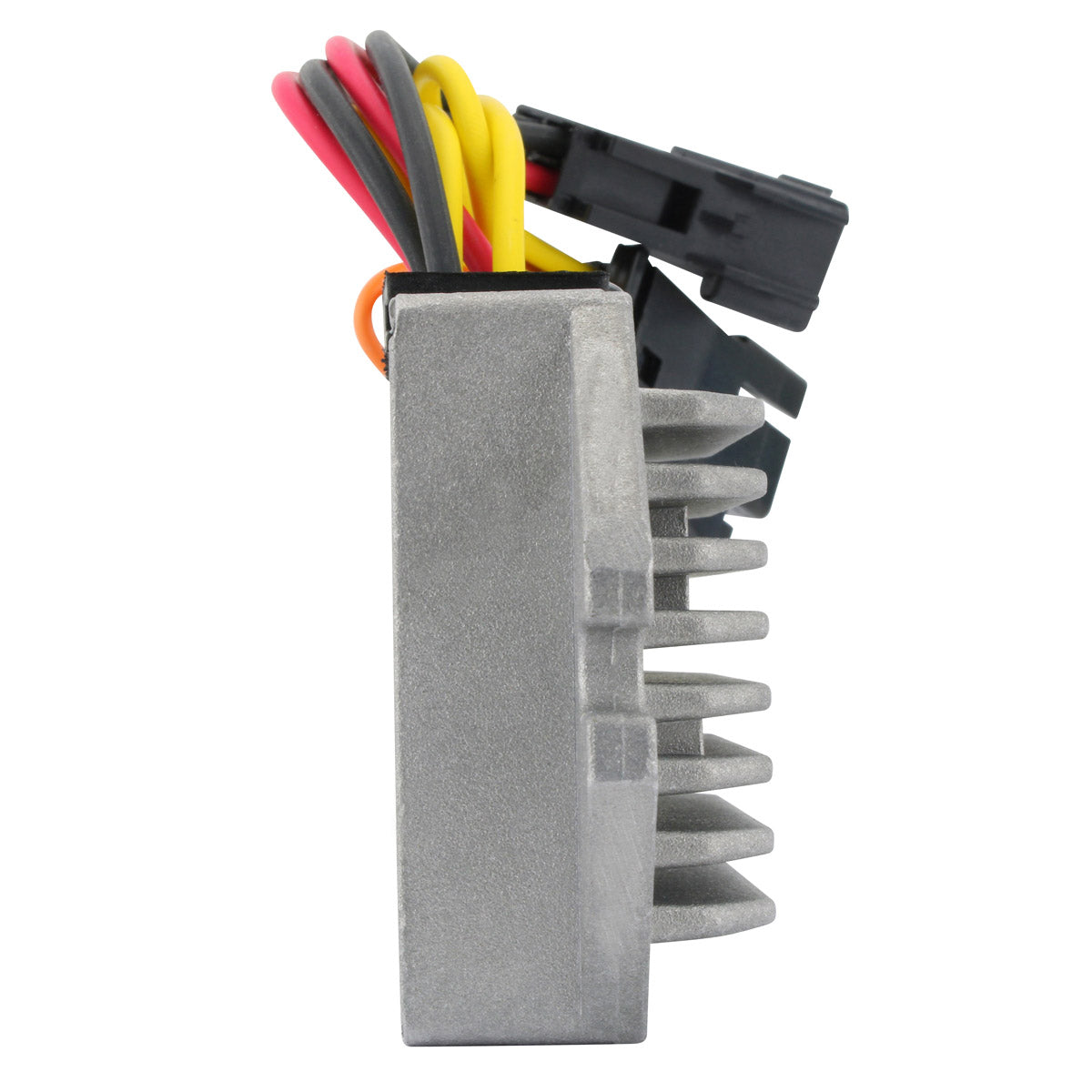

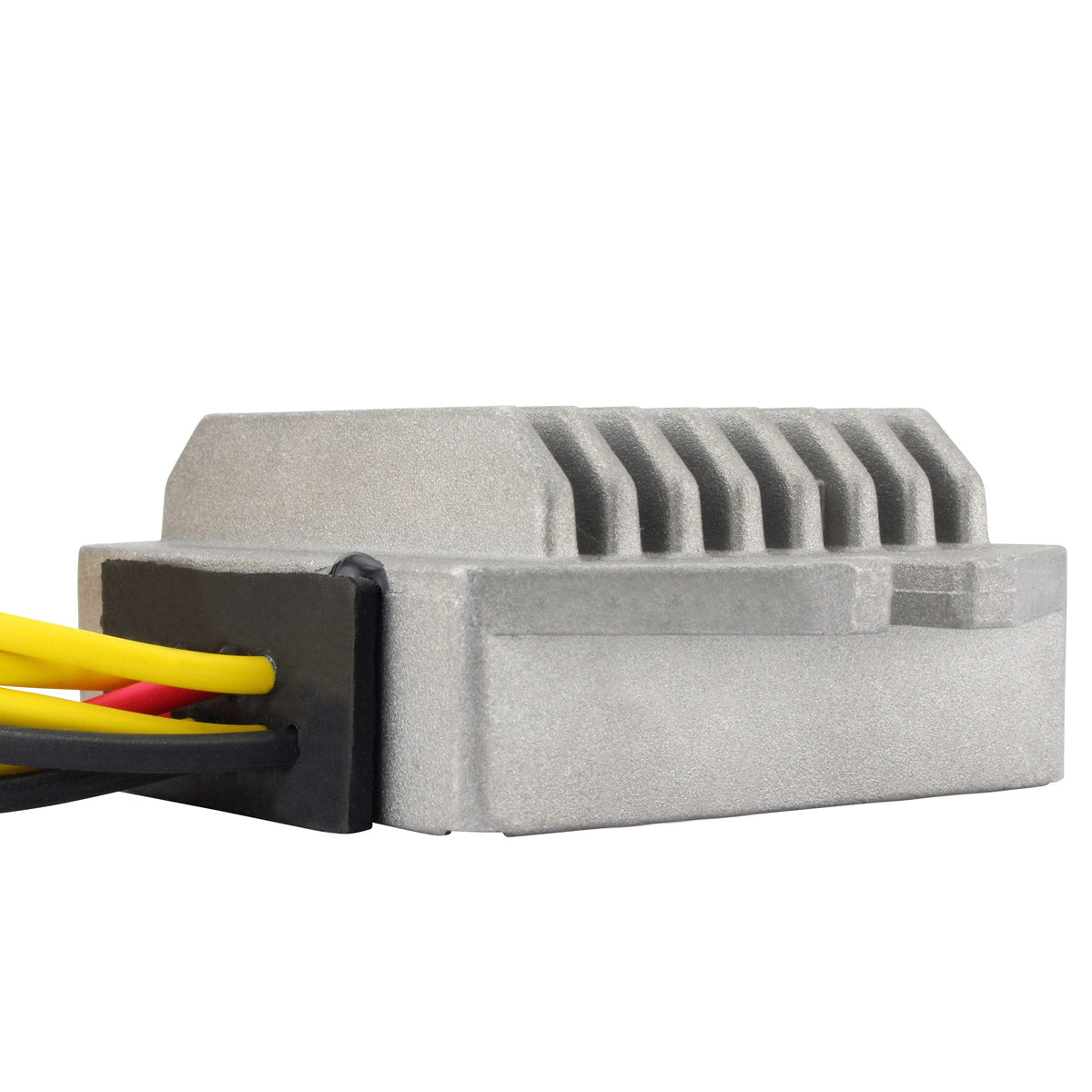

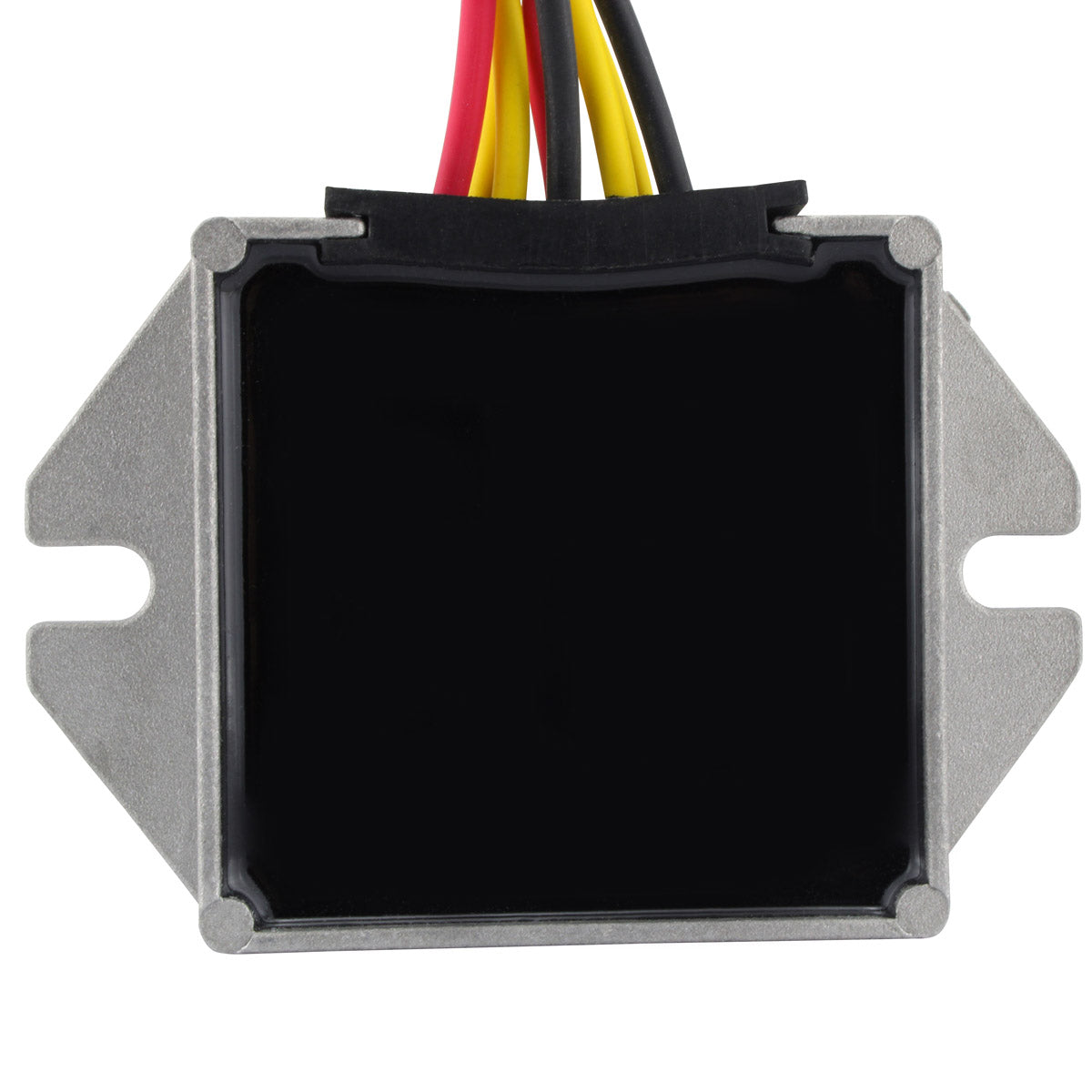

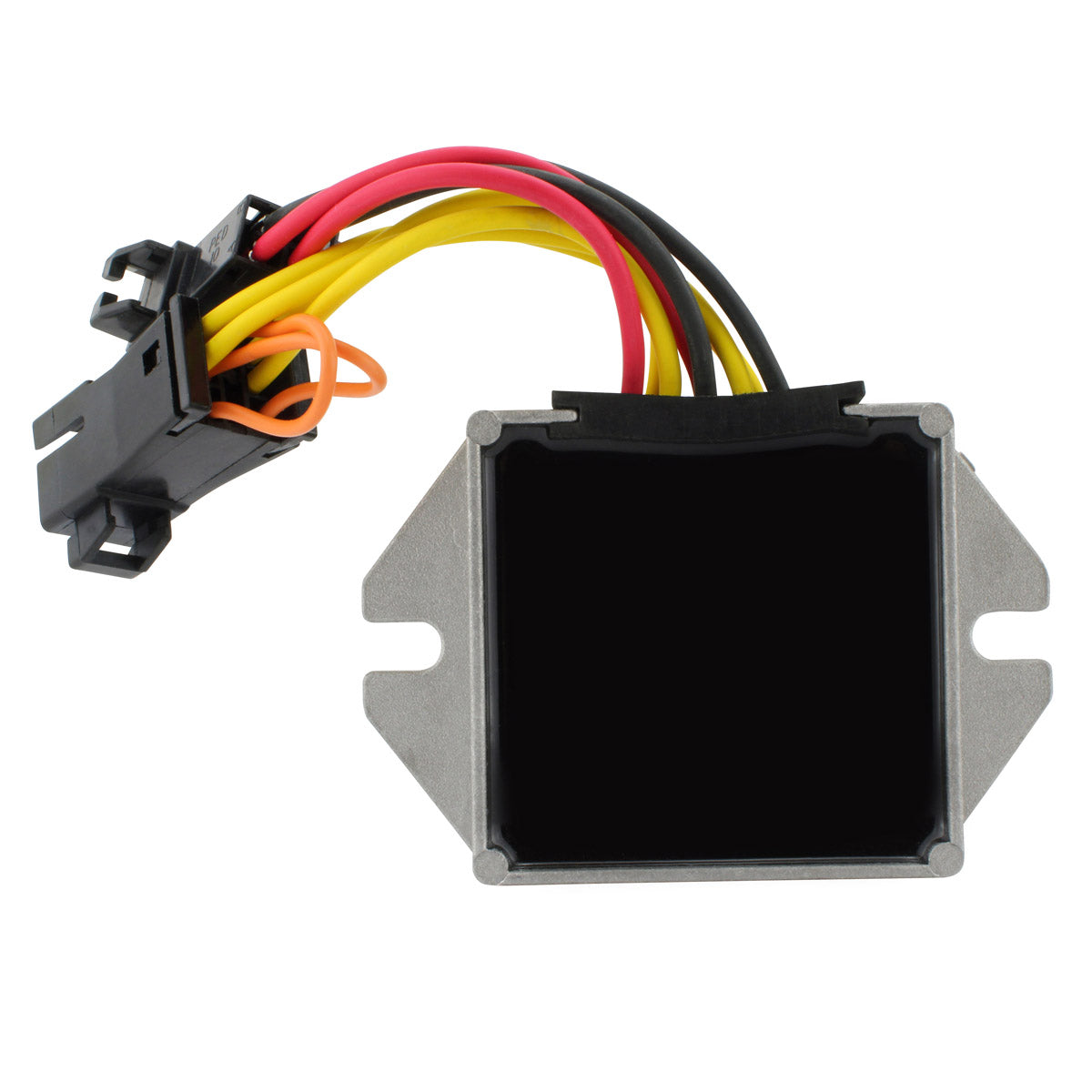

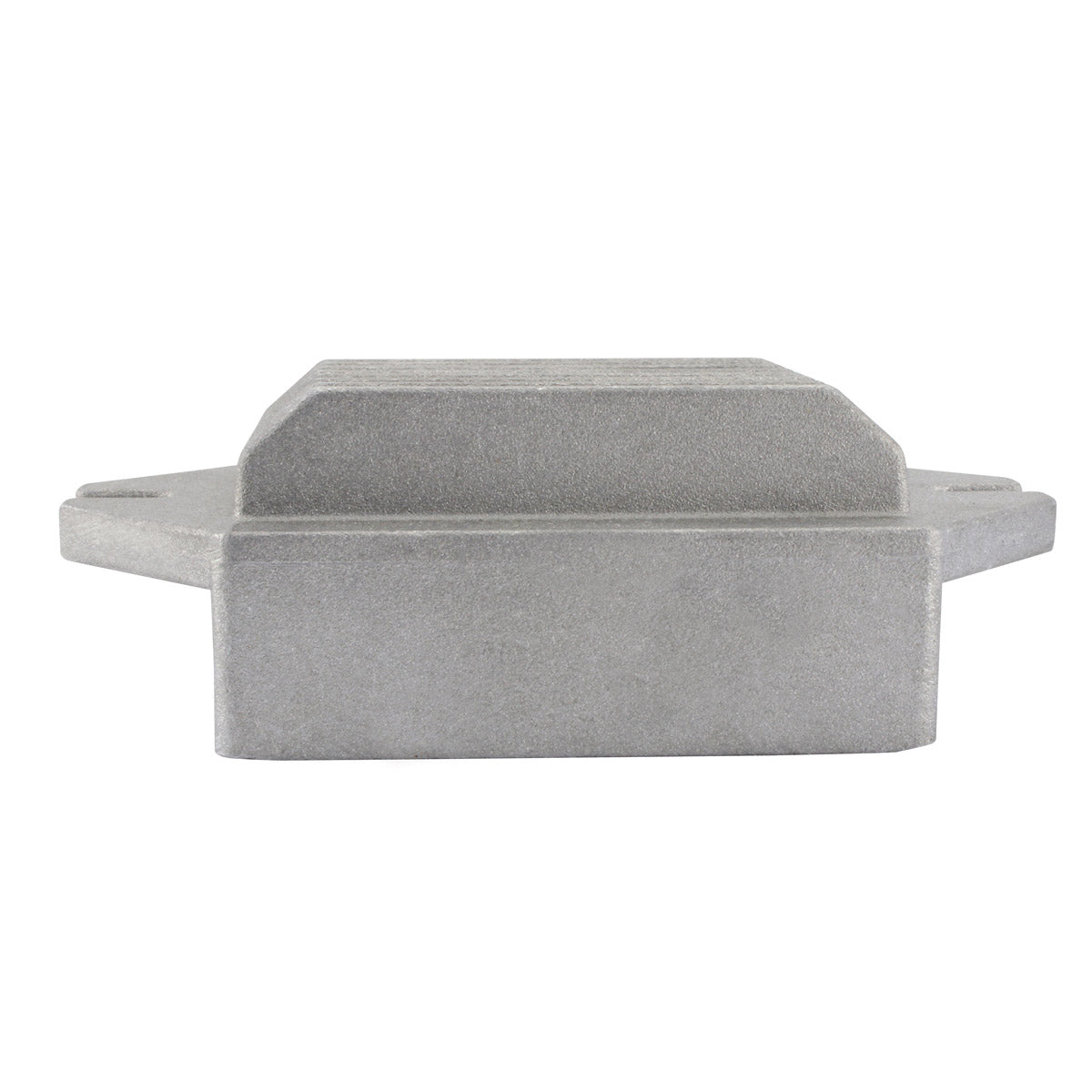

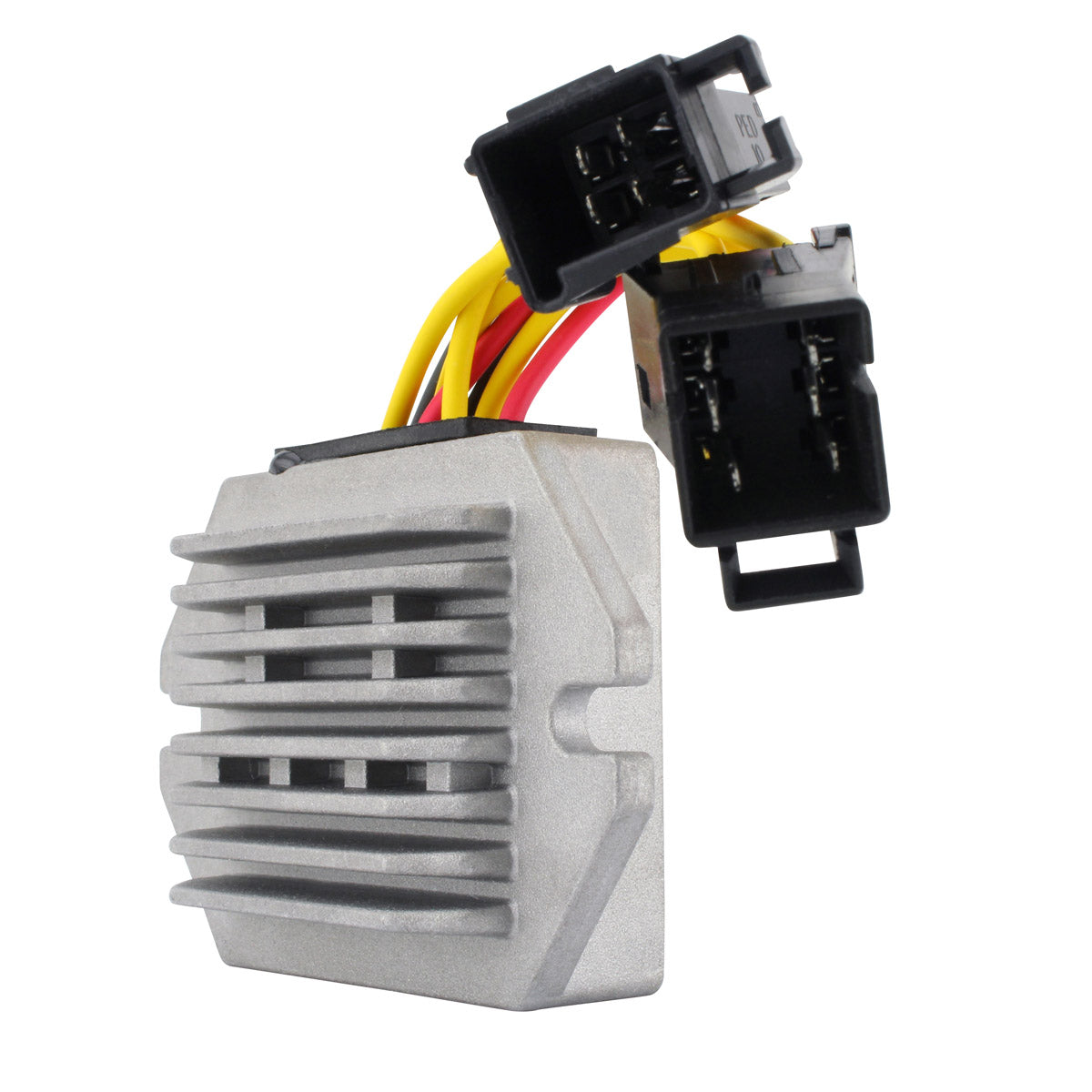

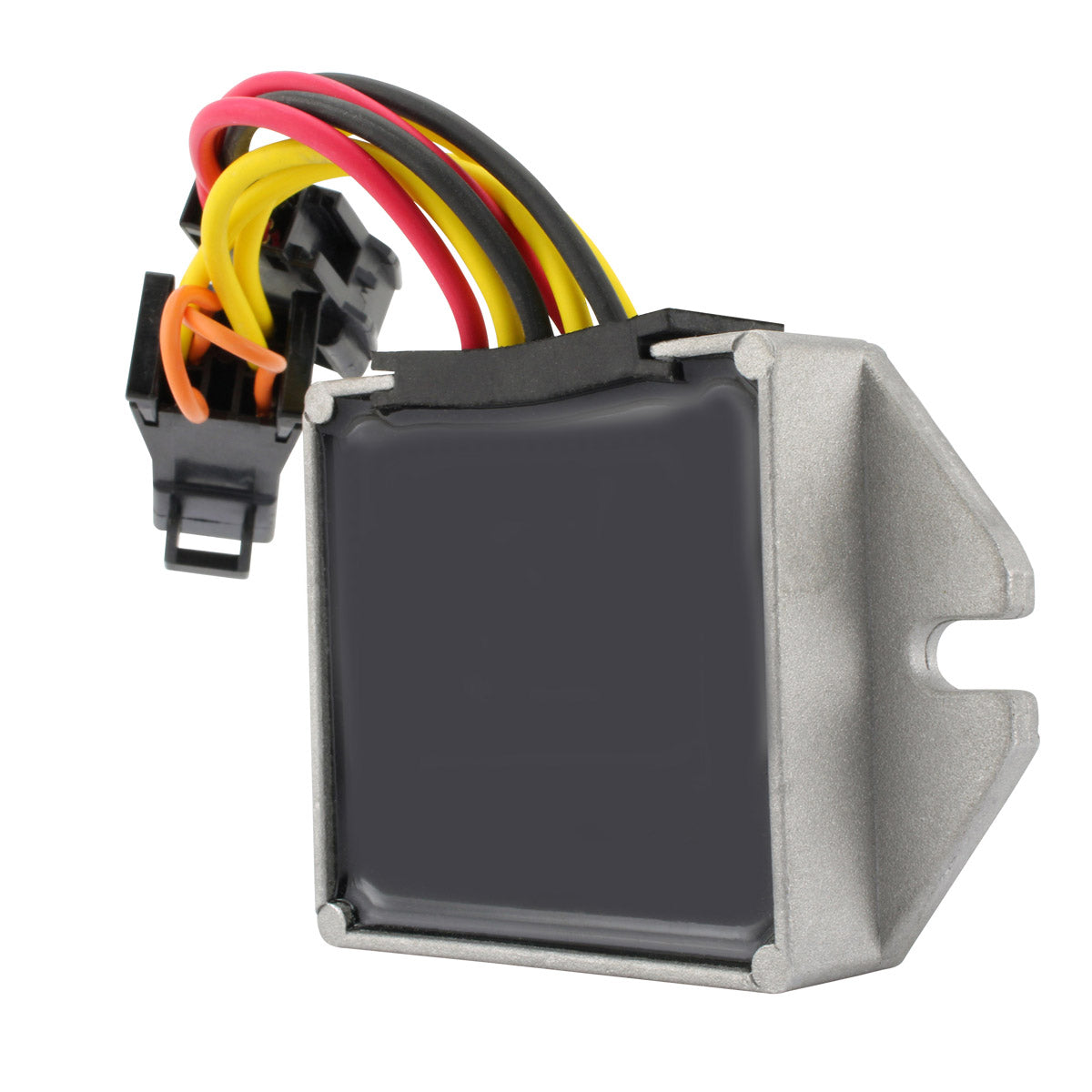

Brand new aftermarket voltage regulator rectifier, part number RMS020-107514, made as a direct replacement for the original unit on Polaris 600 Indy, 600 and 800 Switchback and 600 and 800 RMK snowmobiles. It cross references to OEM numbers 4014333 and 4015642.
The unit is plug-and-play and a direct fit, with two plugs, ten pins and ten wires matched to the factory loom, so installation is easy and no assembly is required. RMSTATOR specify a higher grade of electric components than the original equipment and state that the quality exceeds OEM. Every unit is tested before it leaves the factory.
Key Features
- Direct replacement for the original unit - plug-and-play, direct fit
- Easy installation, no assembly required
- Higher grade of electric components, quality exceeding OEM
- All units tested before shipping

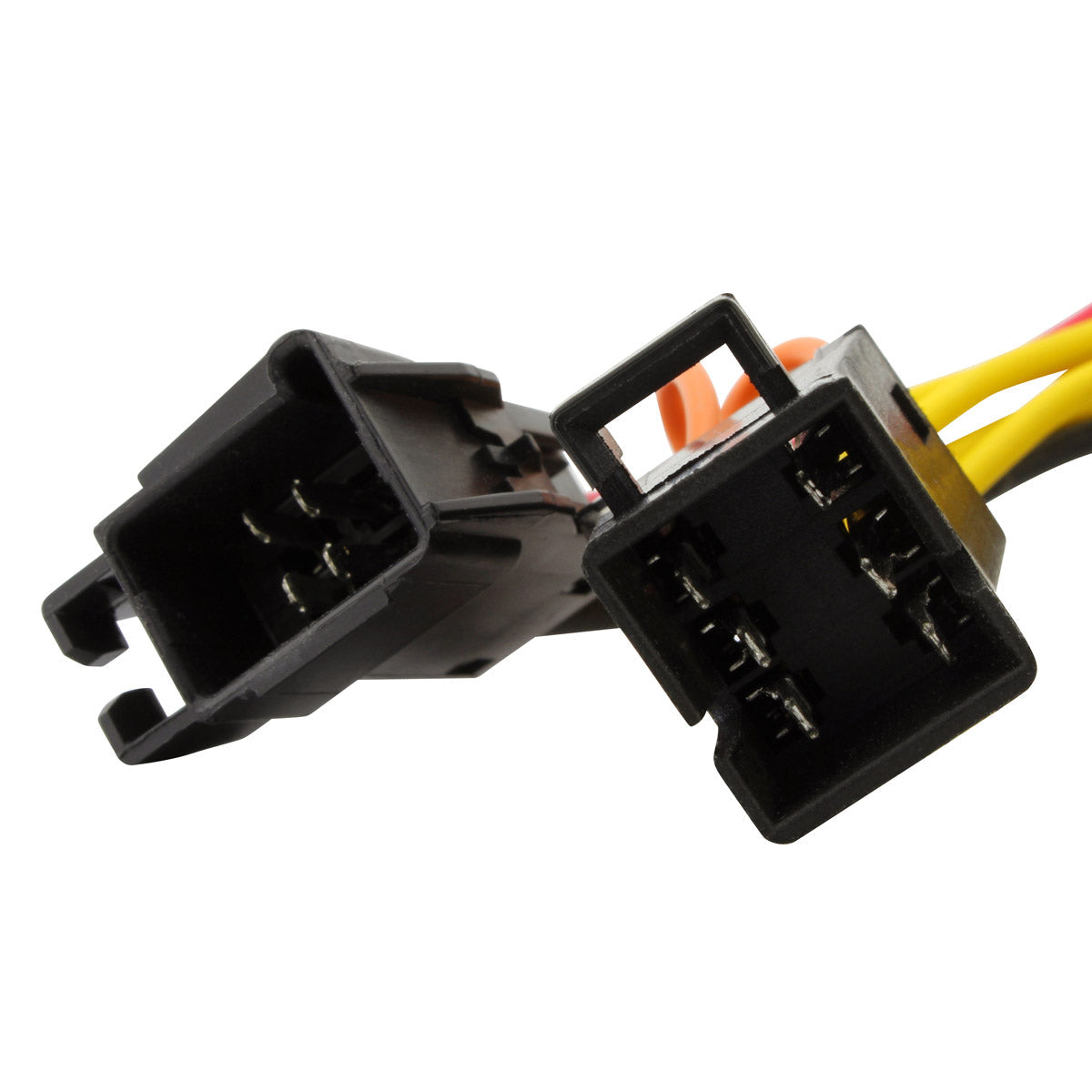

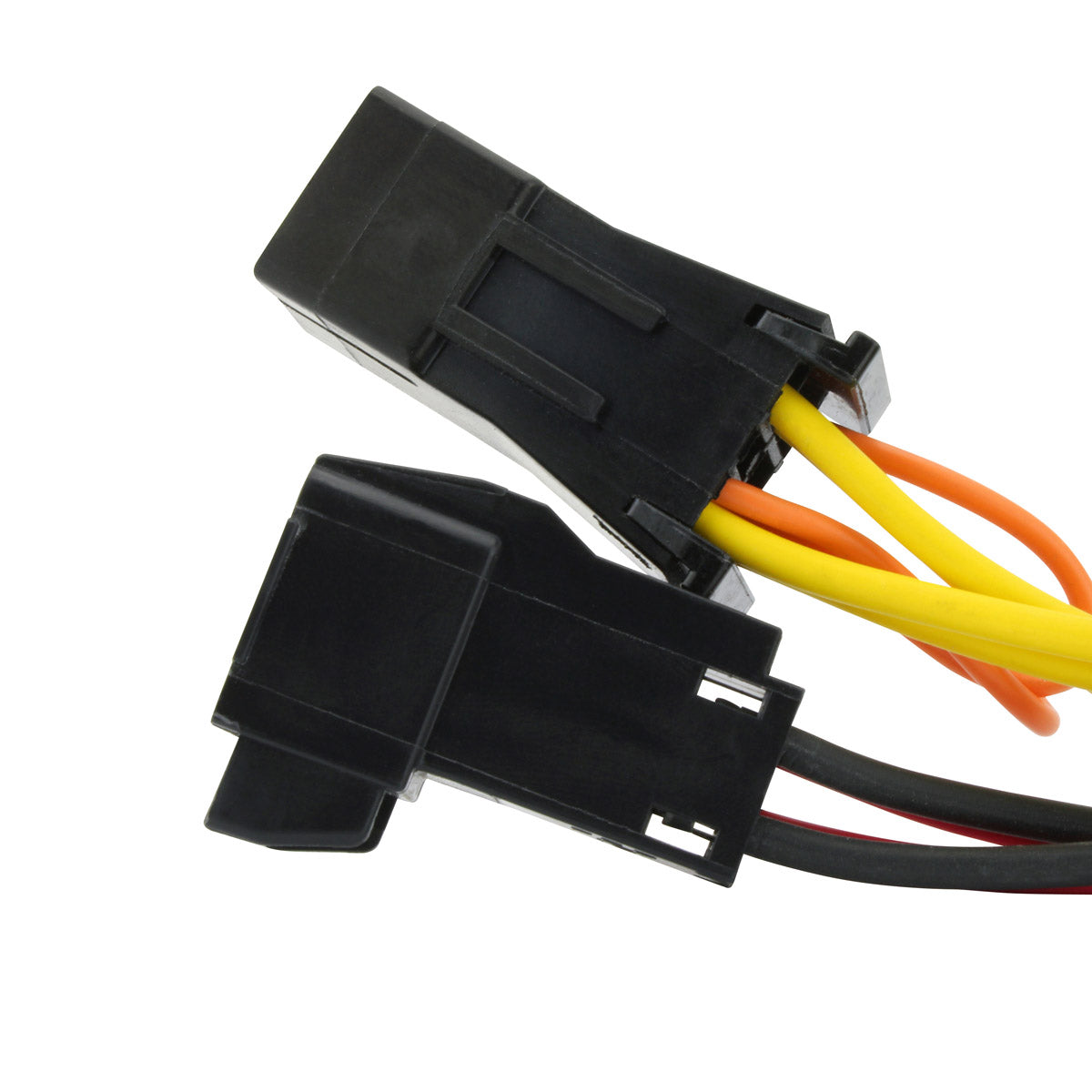

- Two plugs, ten pins, ten wires - matched to the factory harness

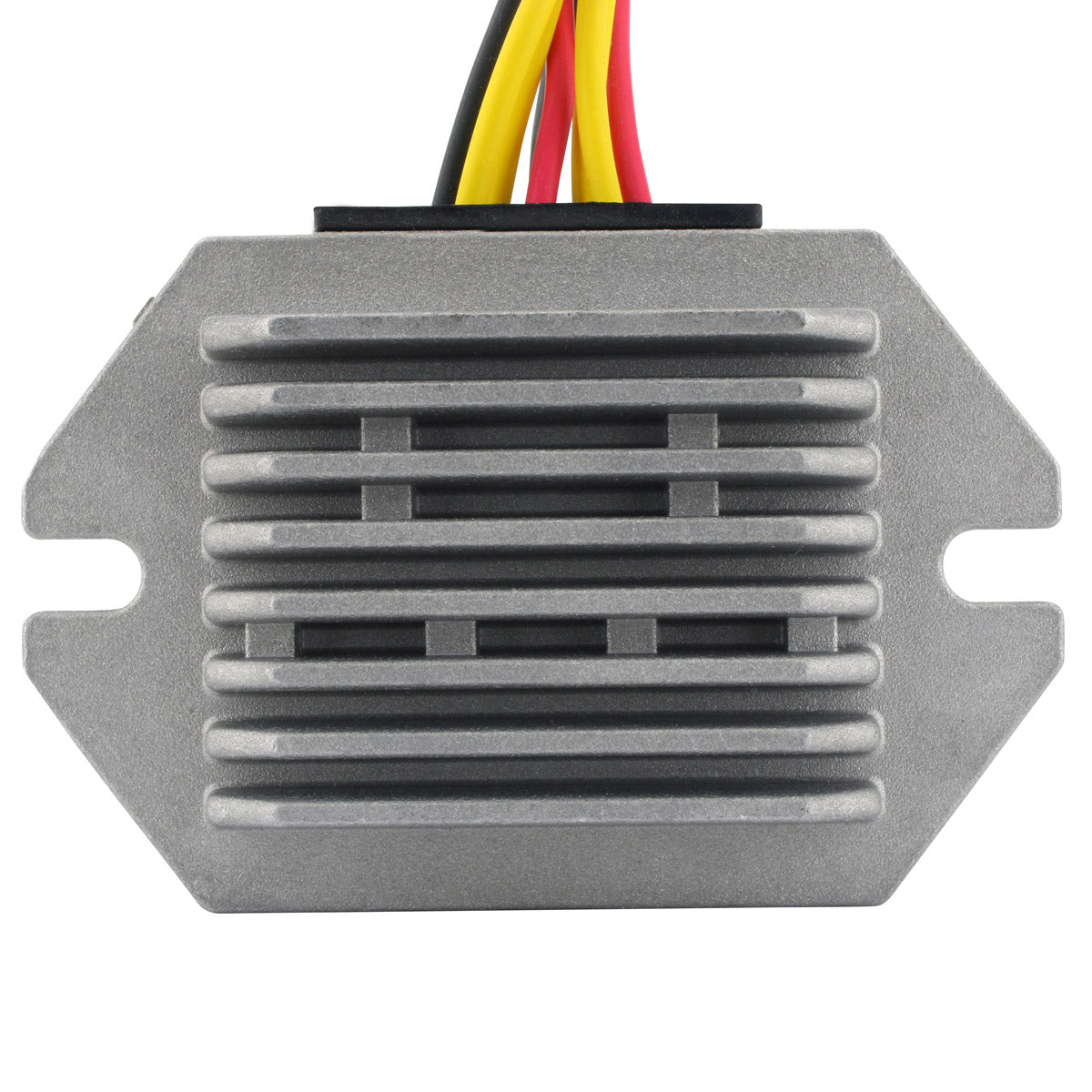

- 90 mm between fixing hole centres for a bolt-in mounting
- Rated to 50 A / 500 W maximum charging current
Technical Specs
| Specification |
Detail |
| Part number |
RMS020-107514 |
| Width |
102 mm |
| Length |
66 mm |
| Height |
33 mm |
| Wires length |
80 mm |
| Distance between fixation holes, centre to centre |
90 mm |
| Number of plugs |
2 |
| Number of pins |
10 |
| Number of wires |
10 |
| Minimum charging voltage |
14.5 V +/- 0.5 V |
| Maximum charging current |
50 A / 500 W |
| Open circuit voltage |
Less than 15 V |
| Operating temperature |
-20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Polaris 600 Indy |
2015 - 2023 |
| Polaris 600 Switchback |
2015 - 2023 |
| Polaris 800 Switchback |
2015 - 2023 |
| Polaris 600 RMK |
2015 - 2023 |
| Polaris 800 RMK |
2015 - 2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 4014333 |
Polaris |
| 4015642 |
Polaris |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct replacement for the original unit, plug-and-play and a direct fit with no assembly required. The two plugs carry ten pins to match the factory harness and the mounting holes are 90 mm apart. Confirm the OEM number 4014333 or 4015642 on your original regulator before ordering.
What is included?
The voltage regulator rectifier unit itself, supplied ready to fit with its 80 mm leads and both plugs already terminated.
How do I know my old regulator has failed?
Measure the voltage at the battery with the engine running. A healthy system should reach at least 14.5 V +/- 0.5 V. Readings noticeably below that, a battery that will not hold charge, or open circuit voltage above 15 V all point to a failed regulator rectifier.
How much charging current can it handle?
Maximum charging current is 50 A / 500 W, with a minimum charging voltage of 14.5 V +/- 0.5 V, and the unit is rated to operate between -20 C and 85 C.
