Voltage Regulator for Polaris Magnum 325, Ranger 500 and Sportsman 400
Magnum 325, Ranger 500, Sportsman 400, Xpedition 325 and Xplorer 400 - 1998-2004

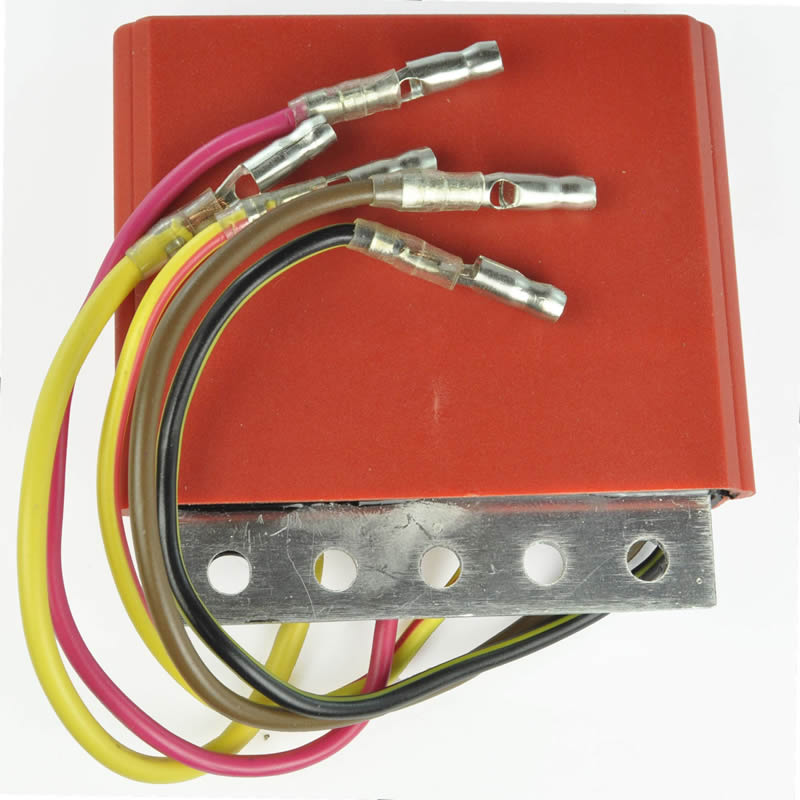

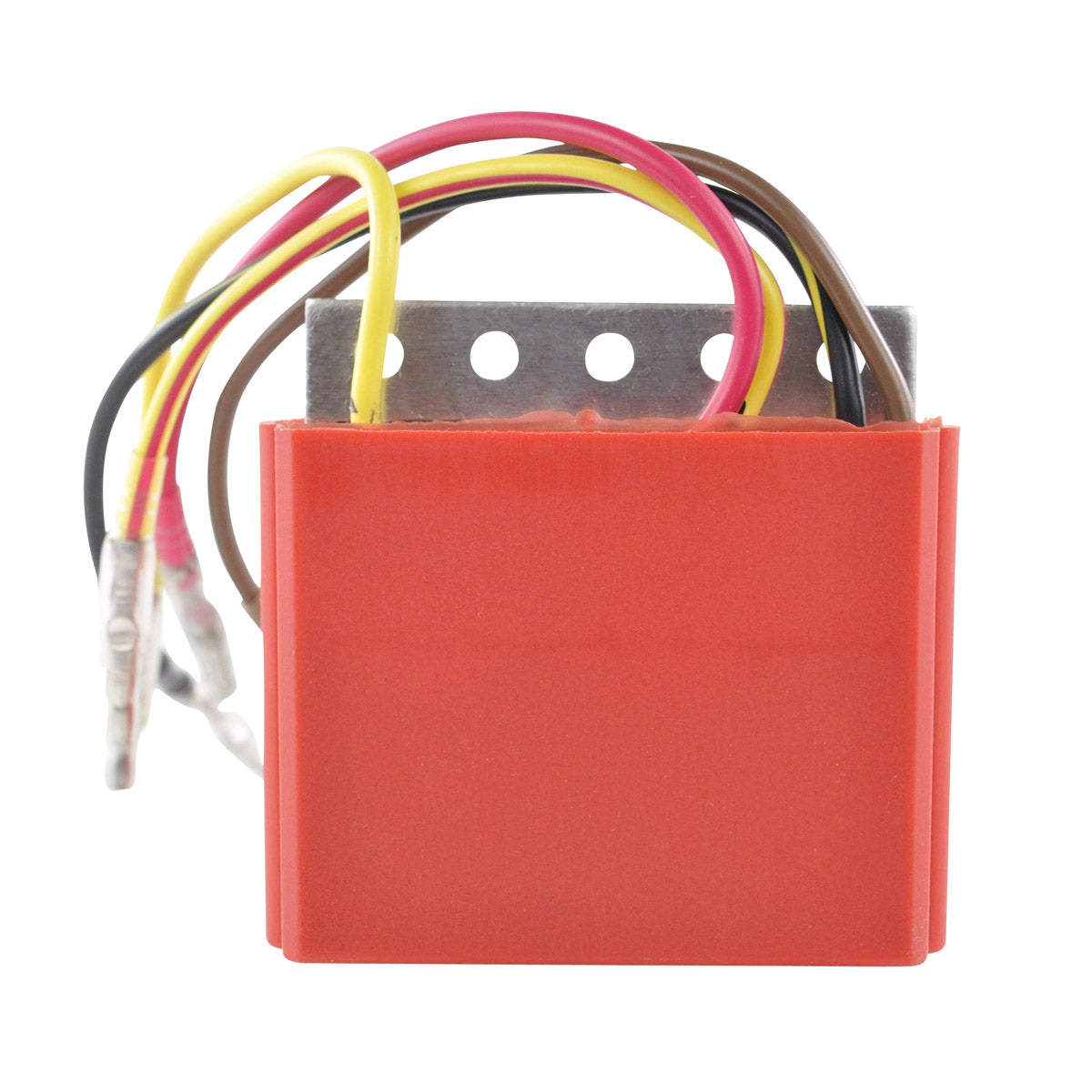

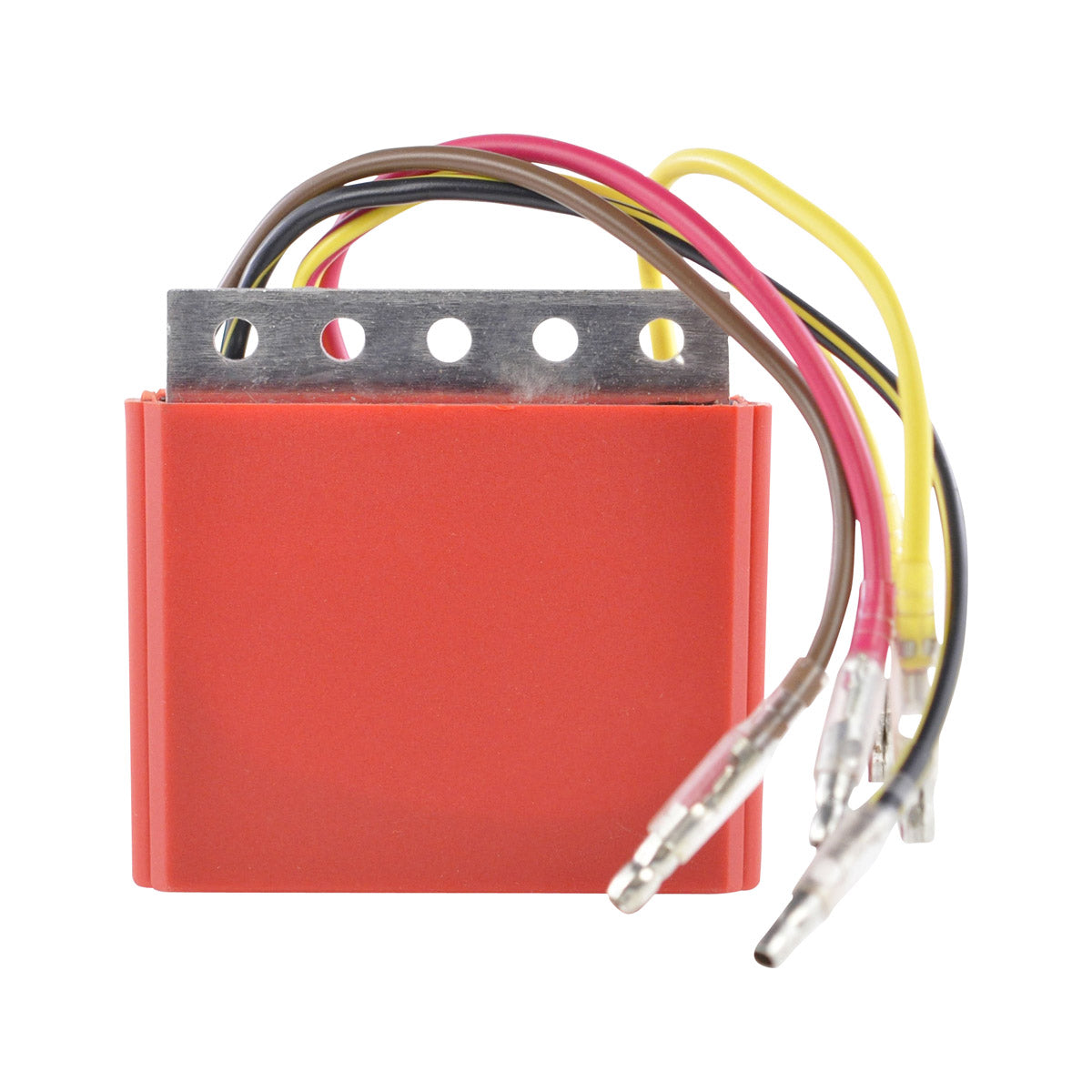

This is a brand new voltage regulator rectifier for Polaris utility quads built between 1998 and 2004, covering the Magnum 325, Ranger 500, Sportsman 400, Xpedition 325 and Xplorer 400. It is a direct replacement to your original unit: plug-and-play, direct fit, easy installation, no assembly required.
The regulator rectifier takes the alternating current from the stator, rectifies it into direct current and holds the charging voltage steady so the battery charges properly and the electrical system is not exposed to over-voltage. This unit is built with a higher grade of electric components than the original and has an improved heat sink and improved charging capability, so its quality exceeds the OEM equipment. Every unit is tested before shipment. Please note that Polaris machines of this period were fitted with either a three-wire or a five-wire regulator rectifier - this part is the five-wire version, so check your existing unit before ordering.
Key Features
- Brand new voltage regulator rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade electric components
- Improved heat sink and charging capabilities
- Quality exceeding OEM equipment

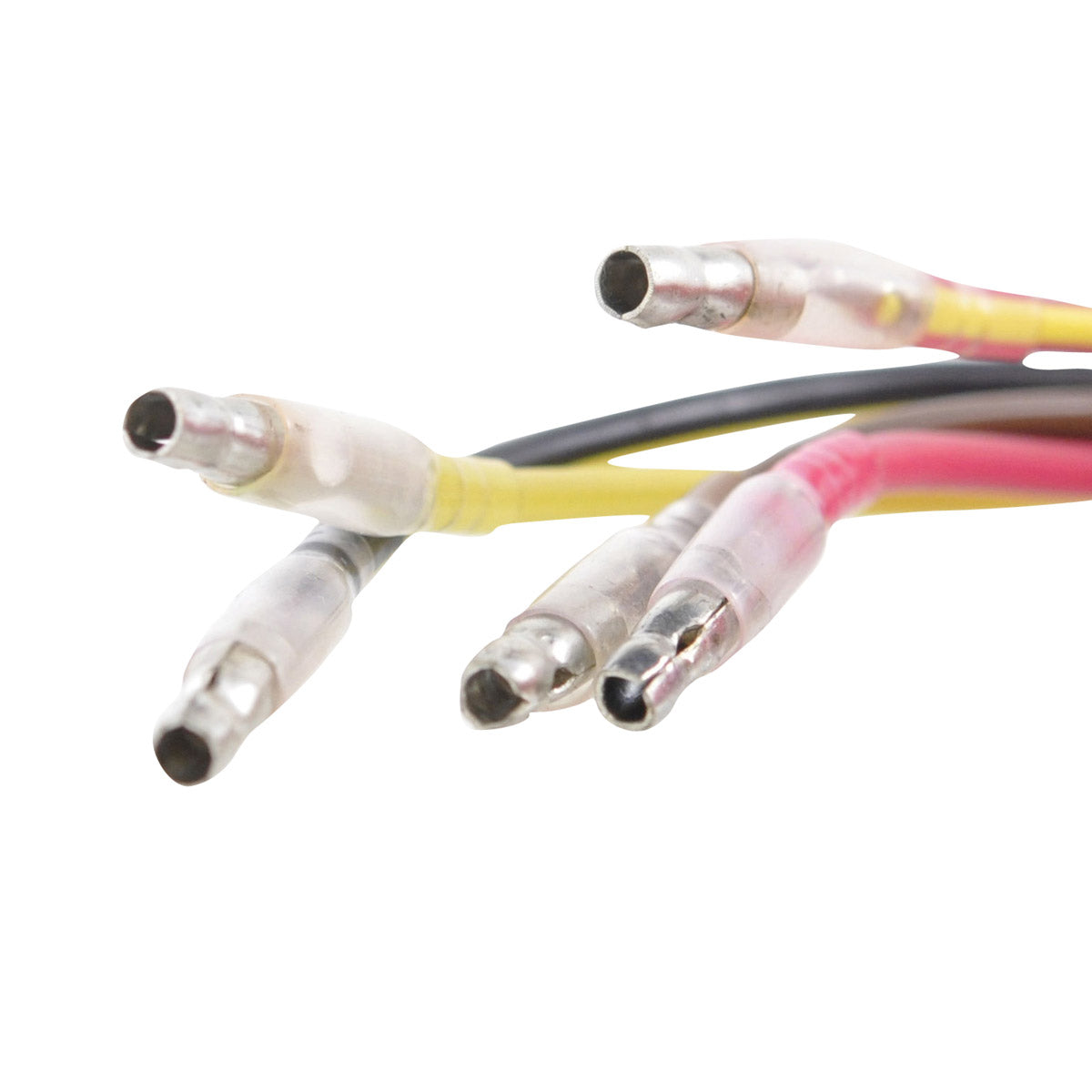

- Five-wire, five-pin configuration - check your original unit
- Slim 17 mm profile
- All products tested before shipment
- RMSTATOR part number RM30012
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RM30012 |
| Width | 76 mm |
| Length | 75 mm |

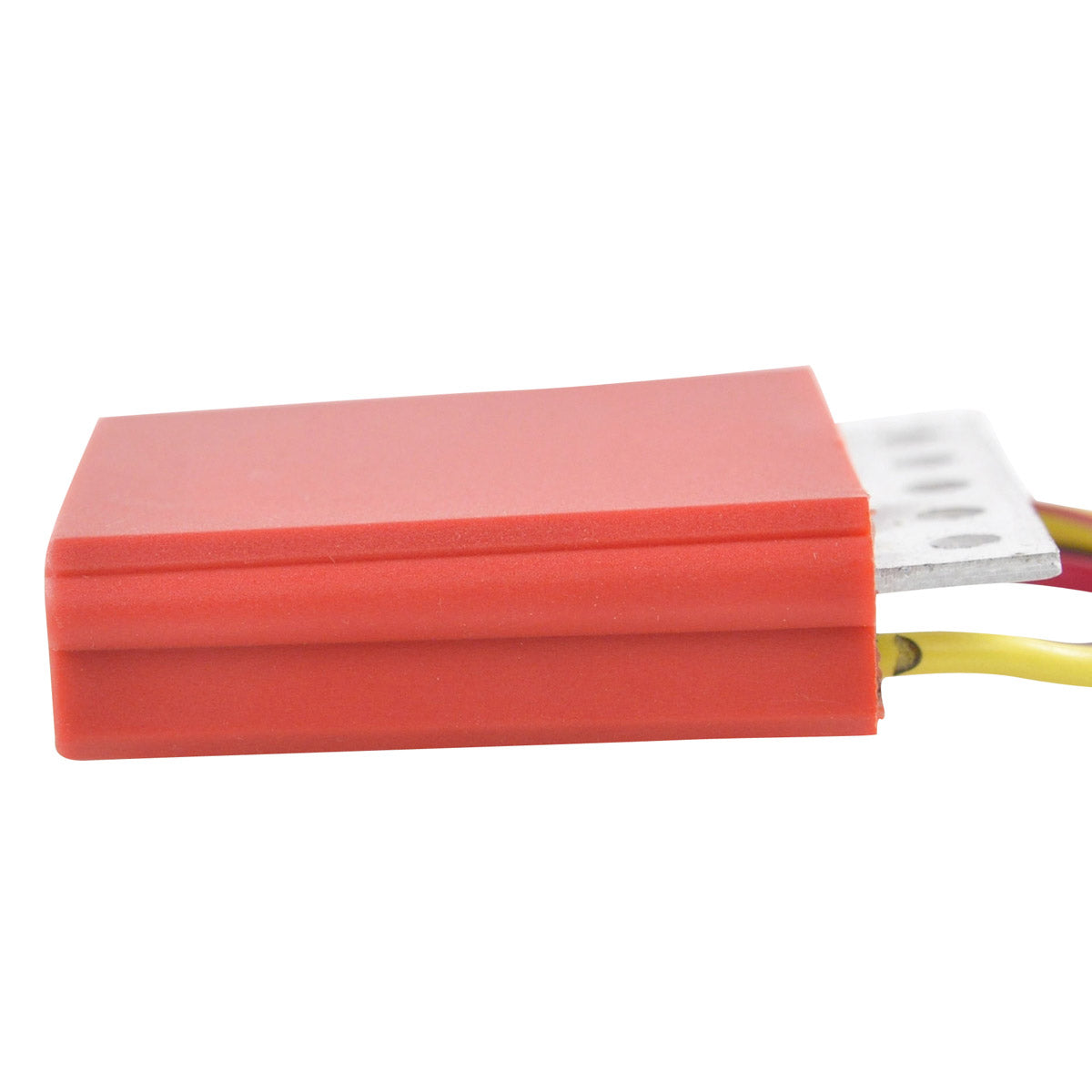

| Height | 17 mm |
| Wire Lengths | 120 mm and 150 mm |
| Fixation Hole Distance | 12 mm centre to centre |
| Number of Plugs | 5 |
| Number of Pins | 5 |
| Number of Wires | 5 |
| Minimum Charging Voltage | 14.5 V +/- 0.5 V |
| Maximum Charging Current | 25 A / 300 W |
| Open Circuit Voltage | Under 15 V |
| Operation Temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Polaris Magnum 325 | 1998-2004 |
| Polaris Ranger 500 | 1998-2004 |
| Polaris Sportsman 400 | 1998-2004 |
| Polaris Xpedition 325 | 1998-2004 |
| Polaris Xplorer 400 | 1998-2004 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 4060191 | Polaris |
| 4010182 | Polaris |
| 2205046 | Polaris |
Frequently Asked Questions
Will this fit without modification?
Yes, provided your machine uses the five-wire regulator. It is a direct fit for the original unit with the same mounting and connections, so no cutting, splicing or drilling is required.
How do I tell whether I need the three-wire or the five-wire version?
Count the wires leaving your existing regulator. Polaris models of this era were fitted with either a three-wire or a five-wire regulator rectifier. This part is the five-wire type; if your machine has the three-wire version you need RM30T06 instead.
What is included?
The voltage regulator rectifier unit with its 120 mm and 150 mm leads.
How do I know my old regulator has failed?
The usual signs are a battery that will not hold charge, charging voltage at the battery terminals that stays low or rises above 15 V with the engine running, a battery that boils or swells, and bulbs that blow repeatedly. Measure across the battery with the engine running and compare with the 14.5 V +/- 0.5 V figure in the specification table.
