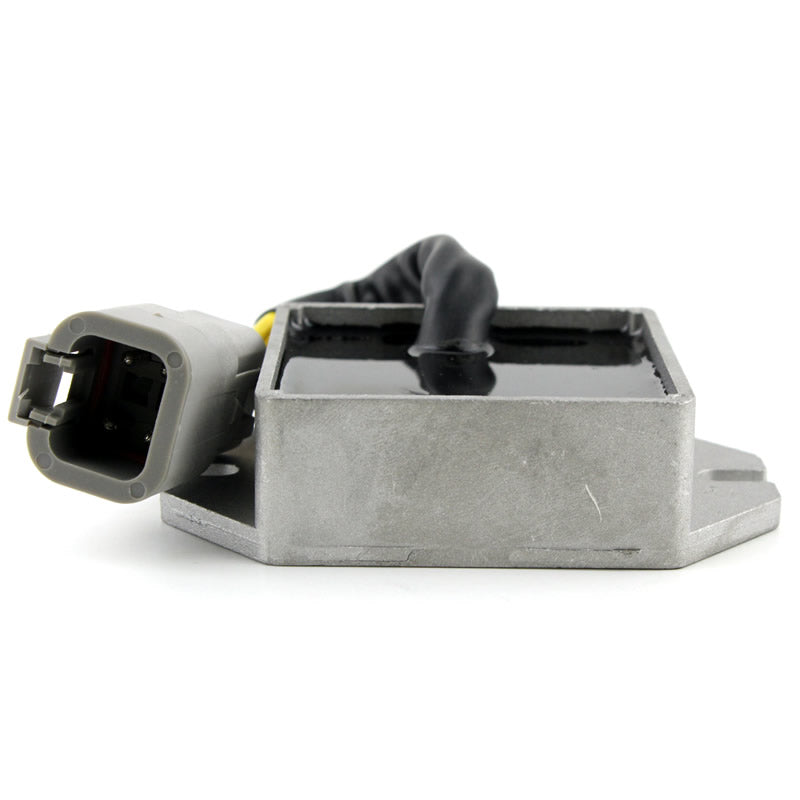

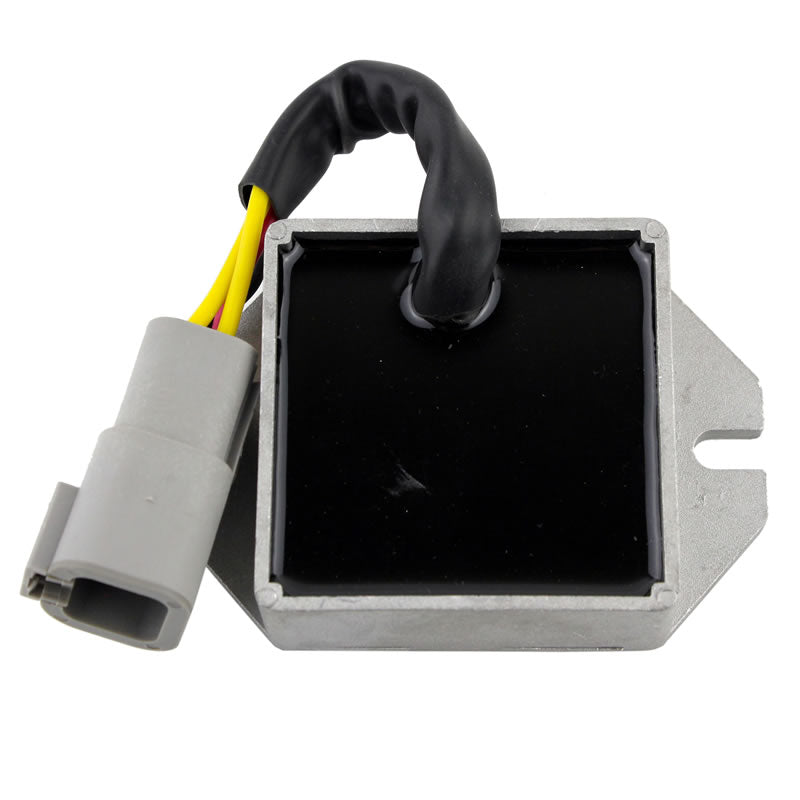

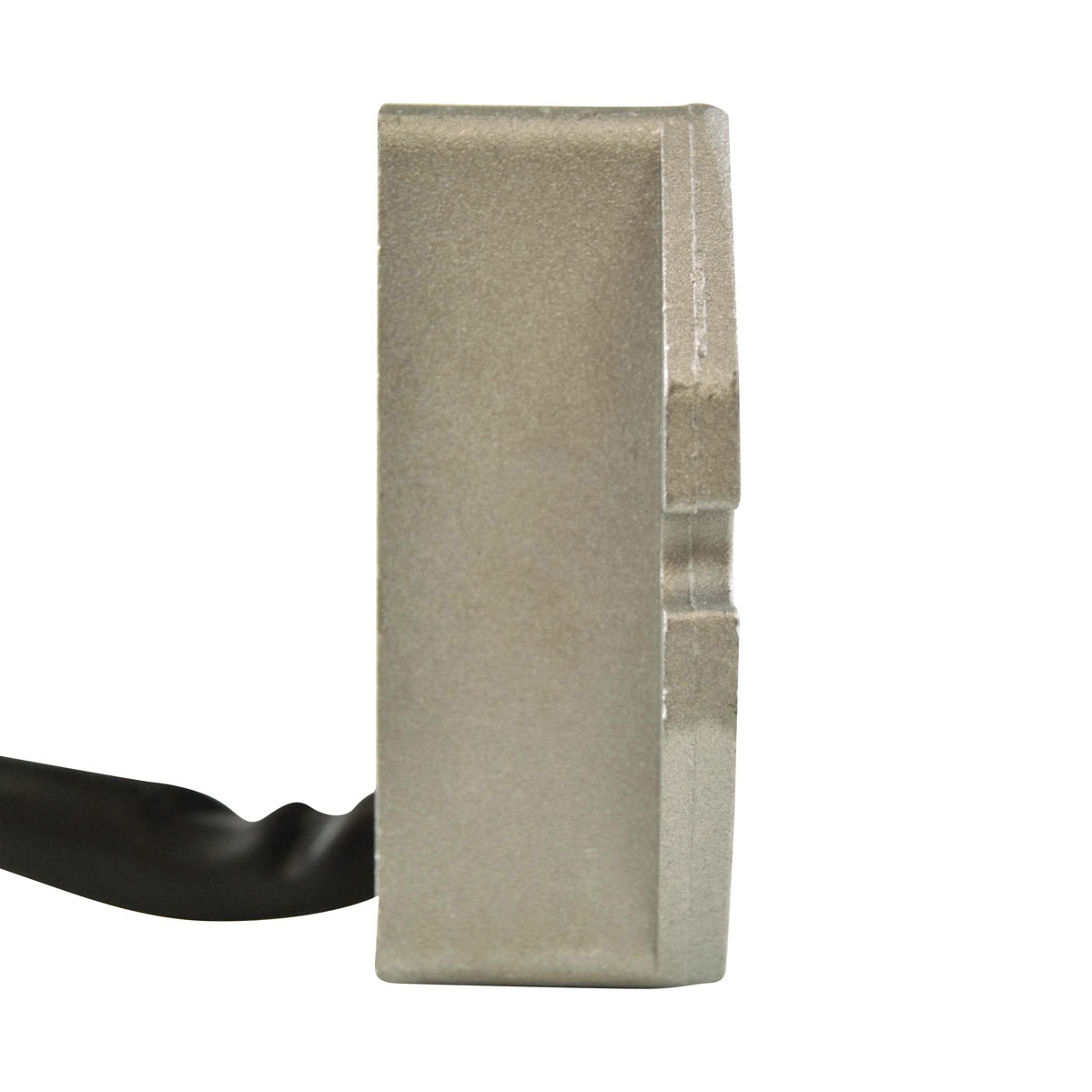

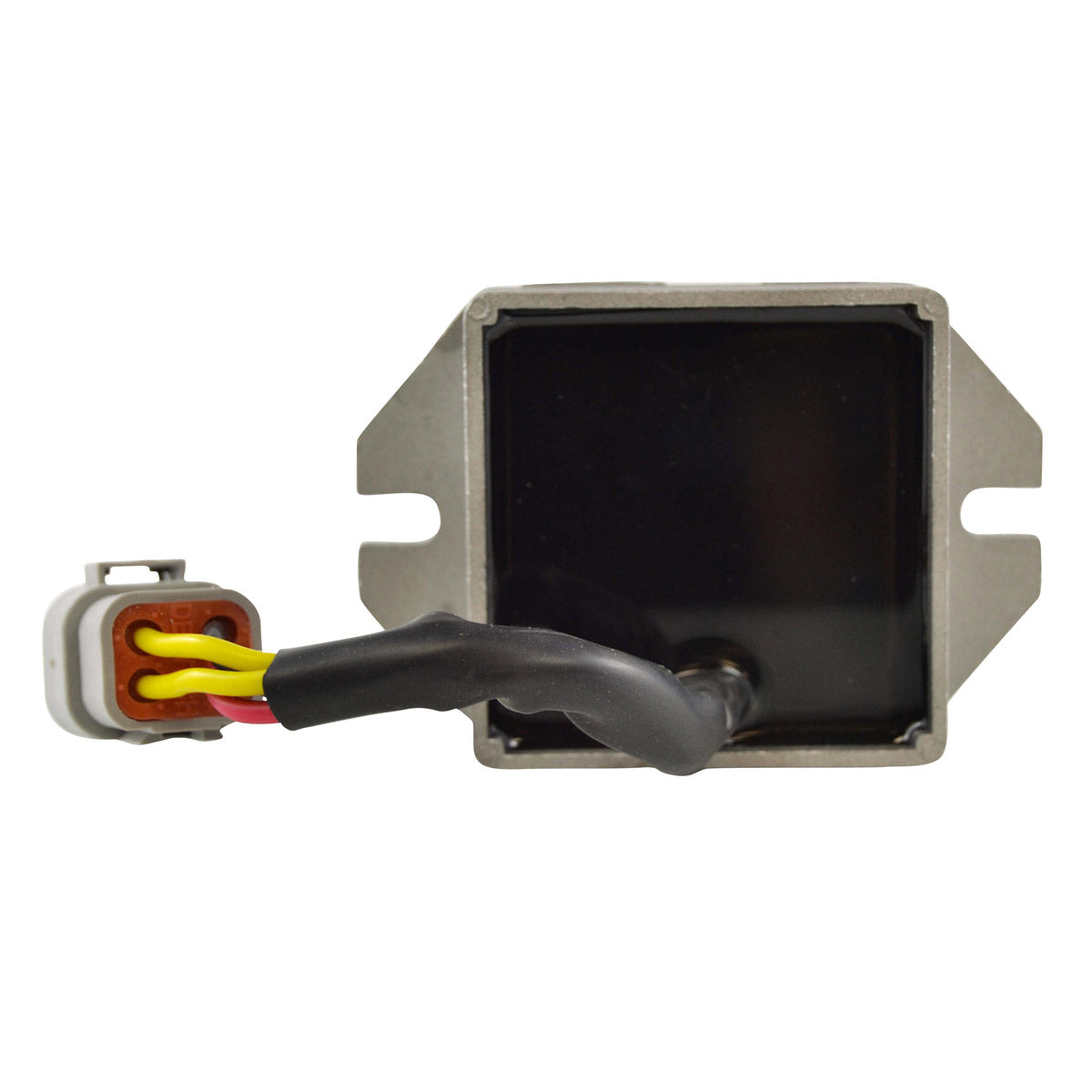

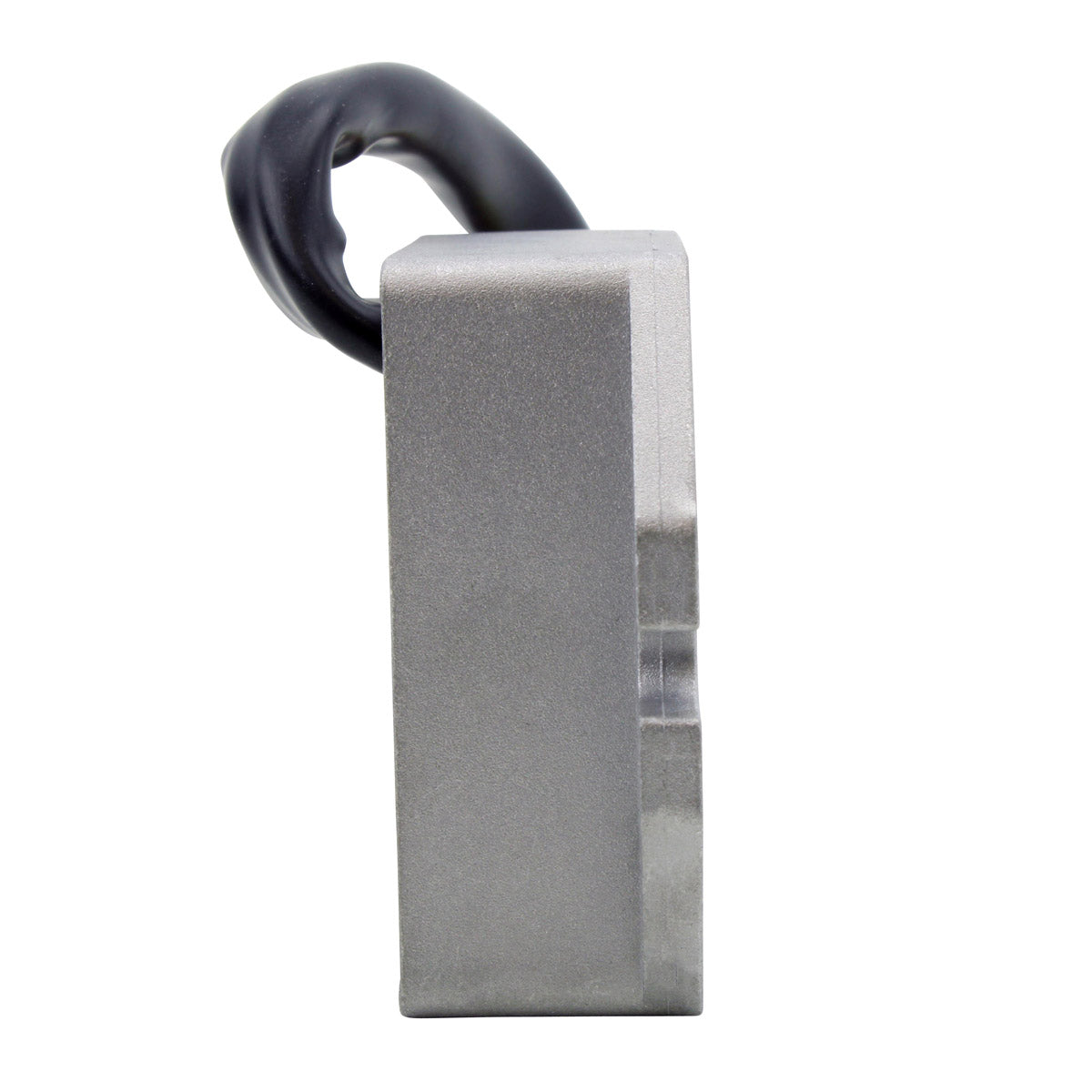

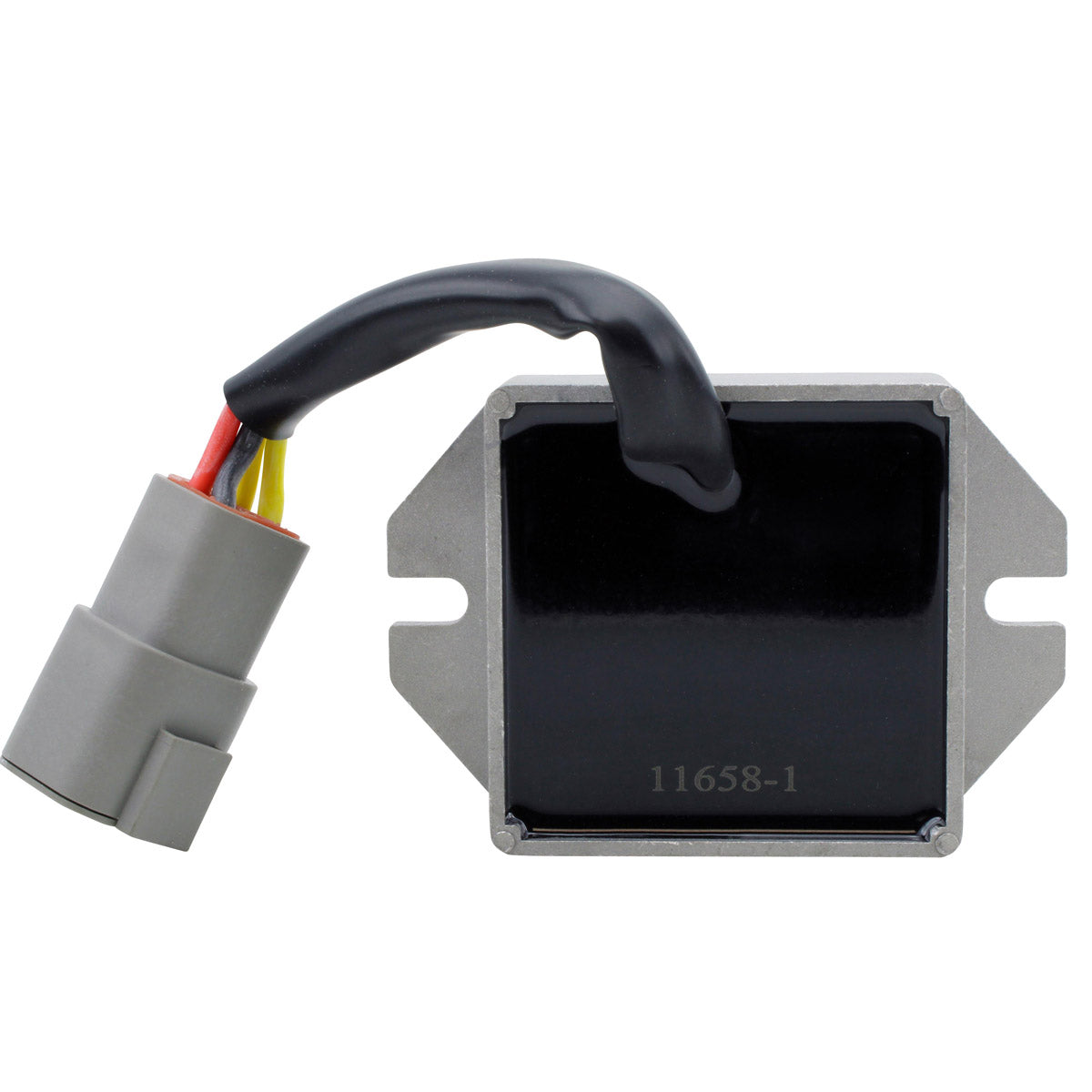

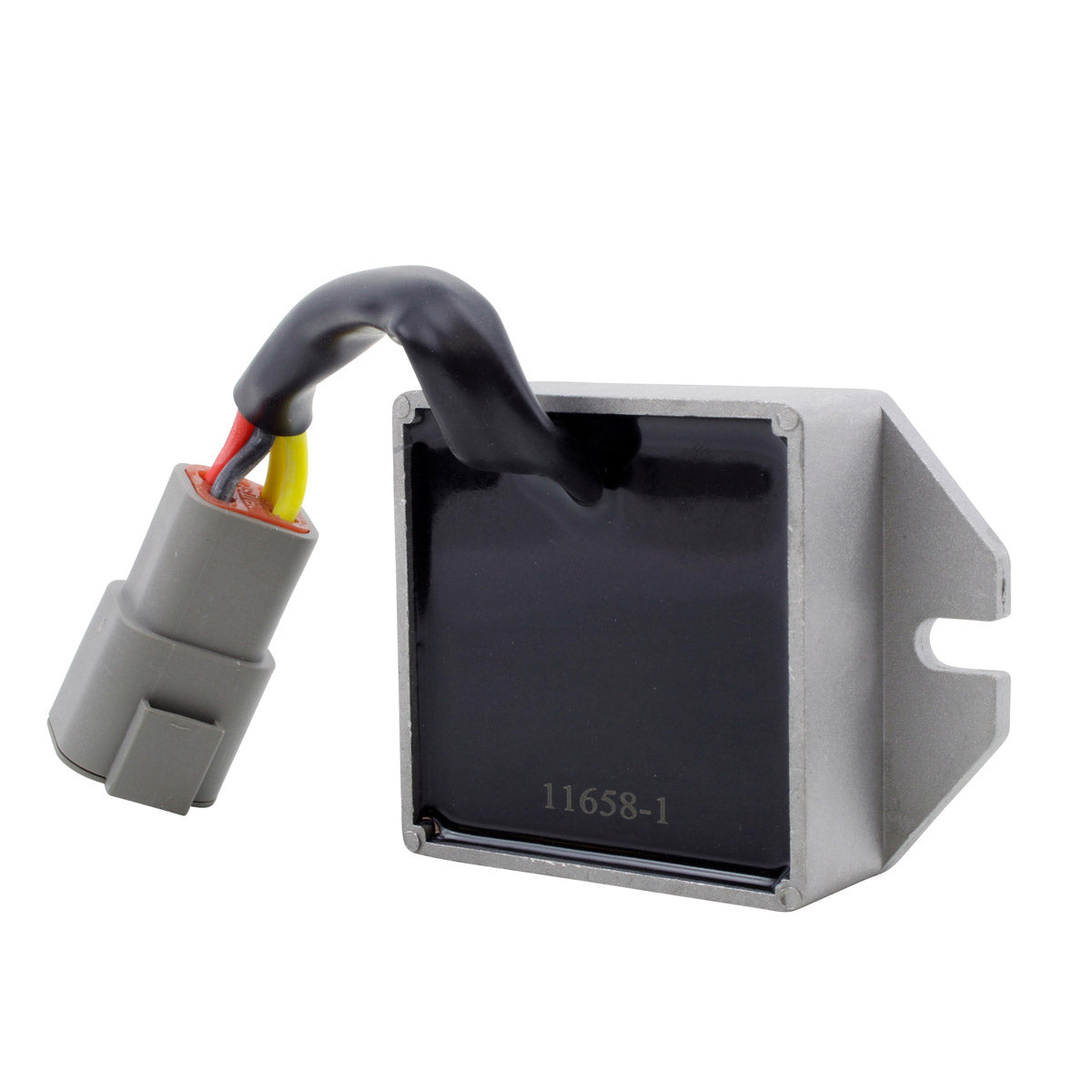

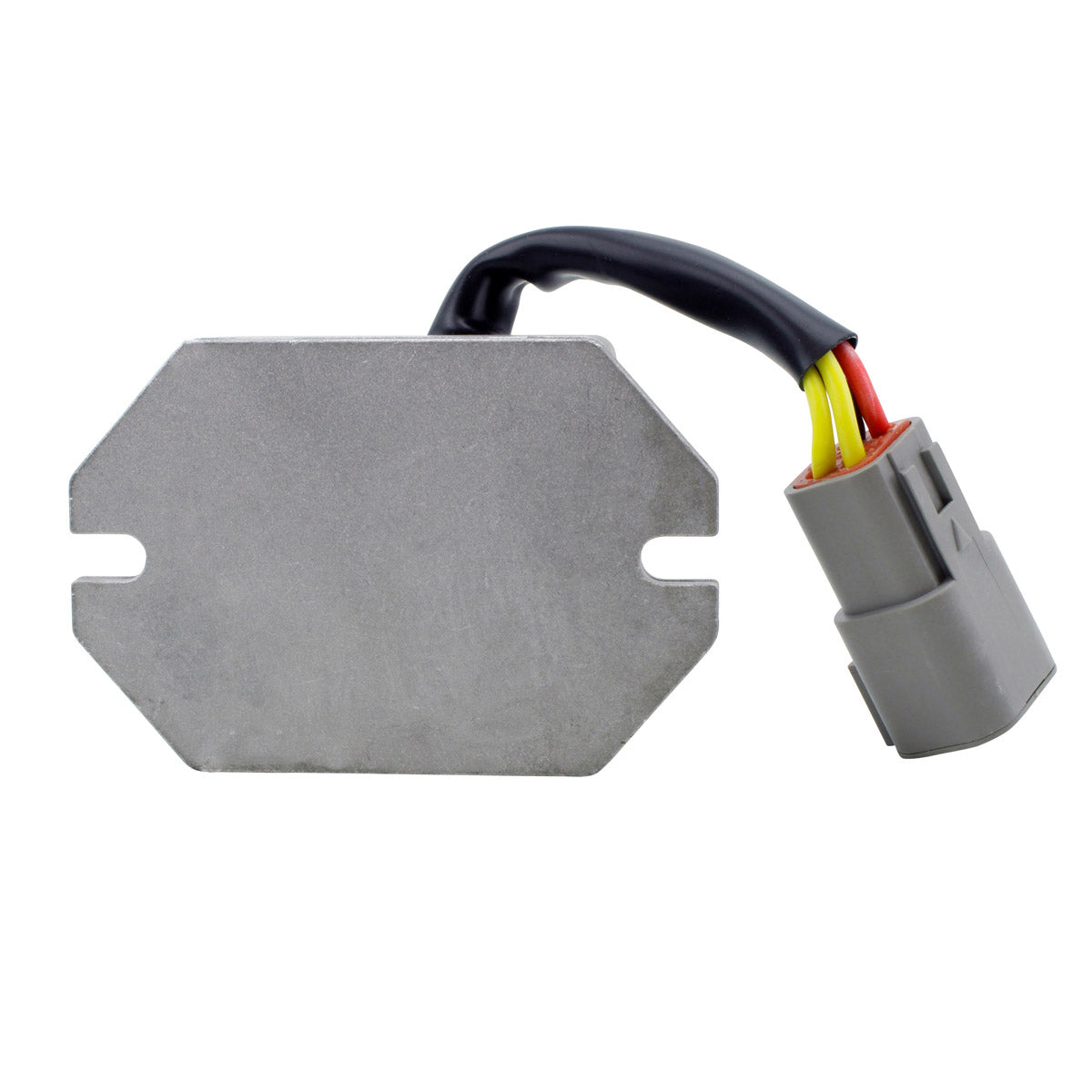

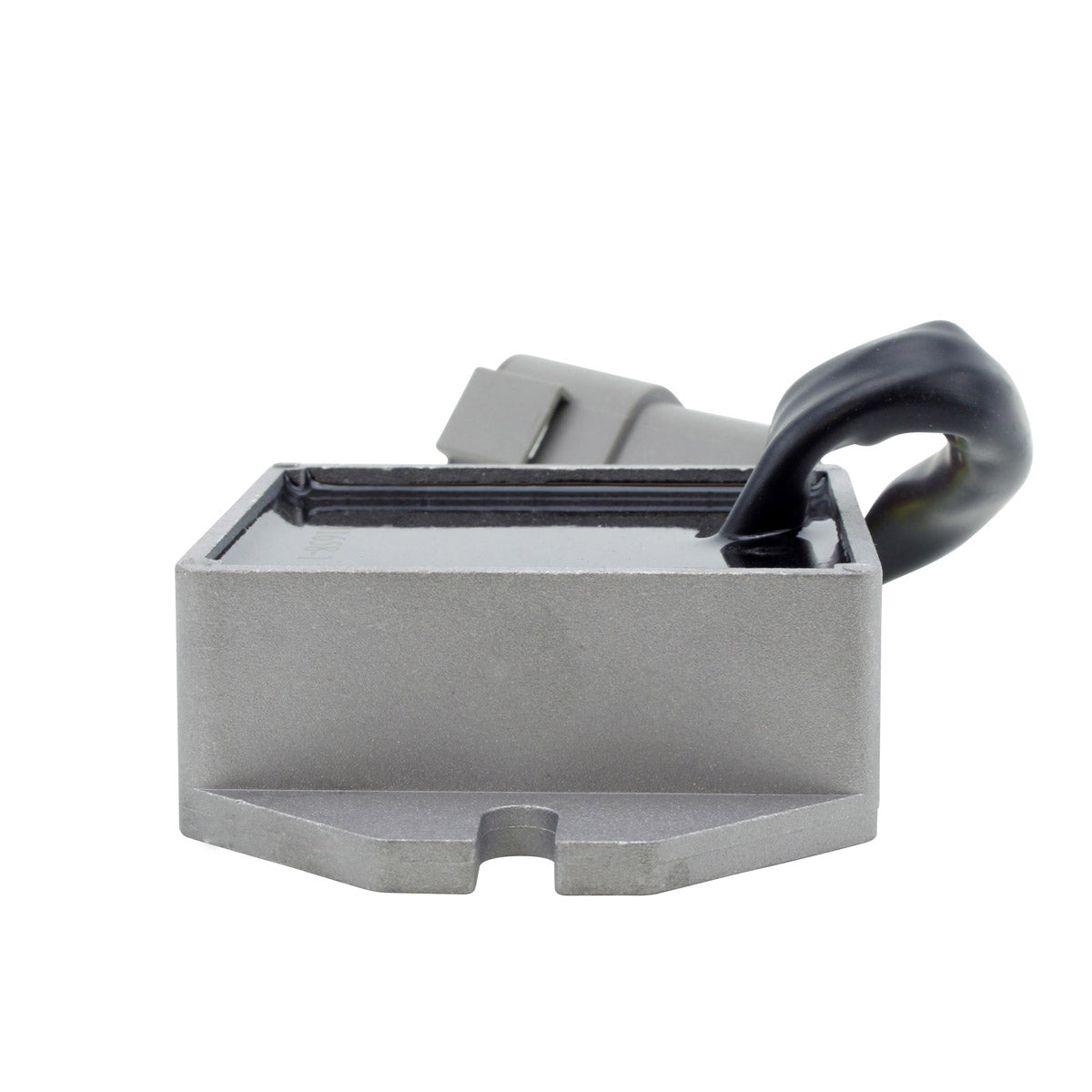

Charging Voltage Regulator RM30914 for Ski-Doo Skandic, GSX and GTX 550 and Lynx
Ski-Doo Skandic / GSX / GTX 550 and Lynx 6900 / ST 600, 2002-2011 - electric start models
This is a brand new charging voltage regulator rectifier, made as a direct replacement for the original unit fitted to electric start Ski-Doo Skandic, GSX and GTX 550 models and to Lynx 6900 and ST 600 machines from 2002 to 2011. Its job is to take the alternating current the stator generates and rectify it into direct current, then regulate that output so the battery receives a controlled charge instead of raw, unregulated voltage. Get this wrong and the results are obvious - a battery that is either permanently flat or boiling and swollen, headlights that surge with engine speed, repeatedly blown bulbs and electrical gremlins that appear only once the engine is running.
RM30914 is a plug-and-play, direct fit part. It uses the original four-pin plug and mounting holes, so no assembly, cutting or rewiring is needed. It is built with a higher grade of electrical components than the original and the quality exceeds the OEM equipment, and every unit is tested before it is shipped. Important: this part is compatible with electric start systems and replaces the charging regulator shown in the Battery diagram. If your machine has a manual starter, RM30373 is the correct part instead, and if you are looking for the headlight regulator, that is RM30912 - please check which of the three you actually need before ordering.
Key Features
- Brand new charging voltage regulator rectifier
- Direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- Quality exceeds the OEM equipment
- All products shipped are tested

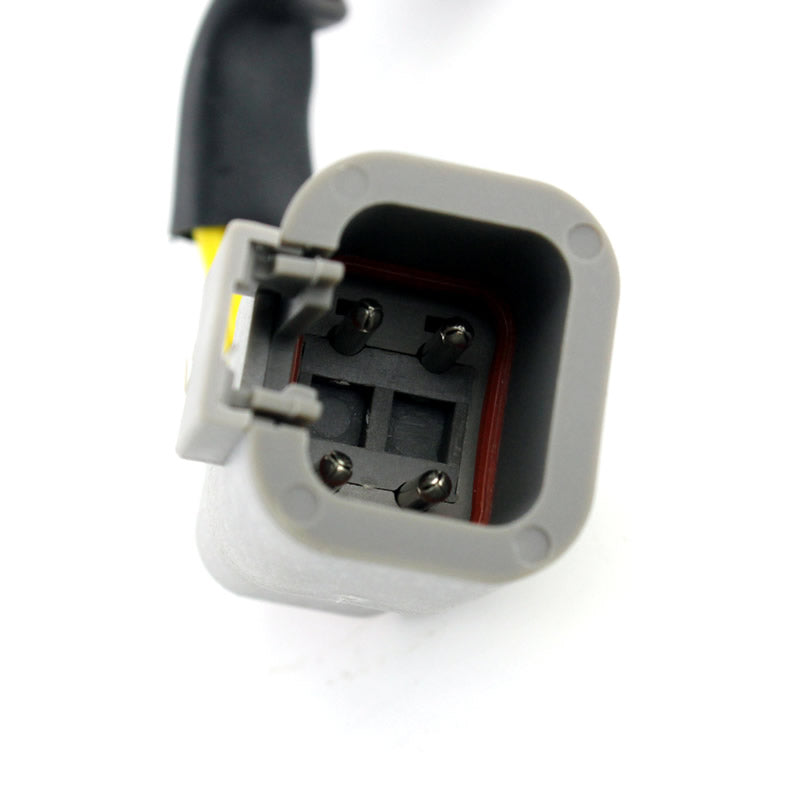

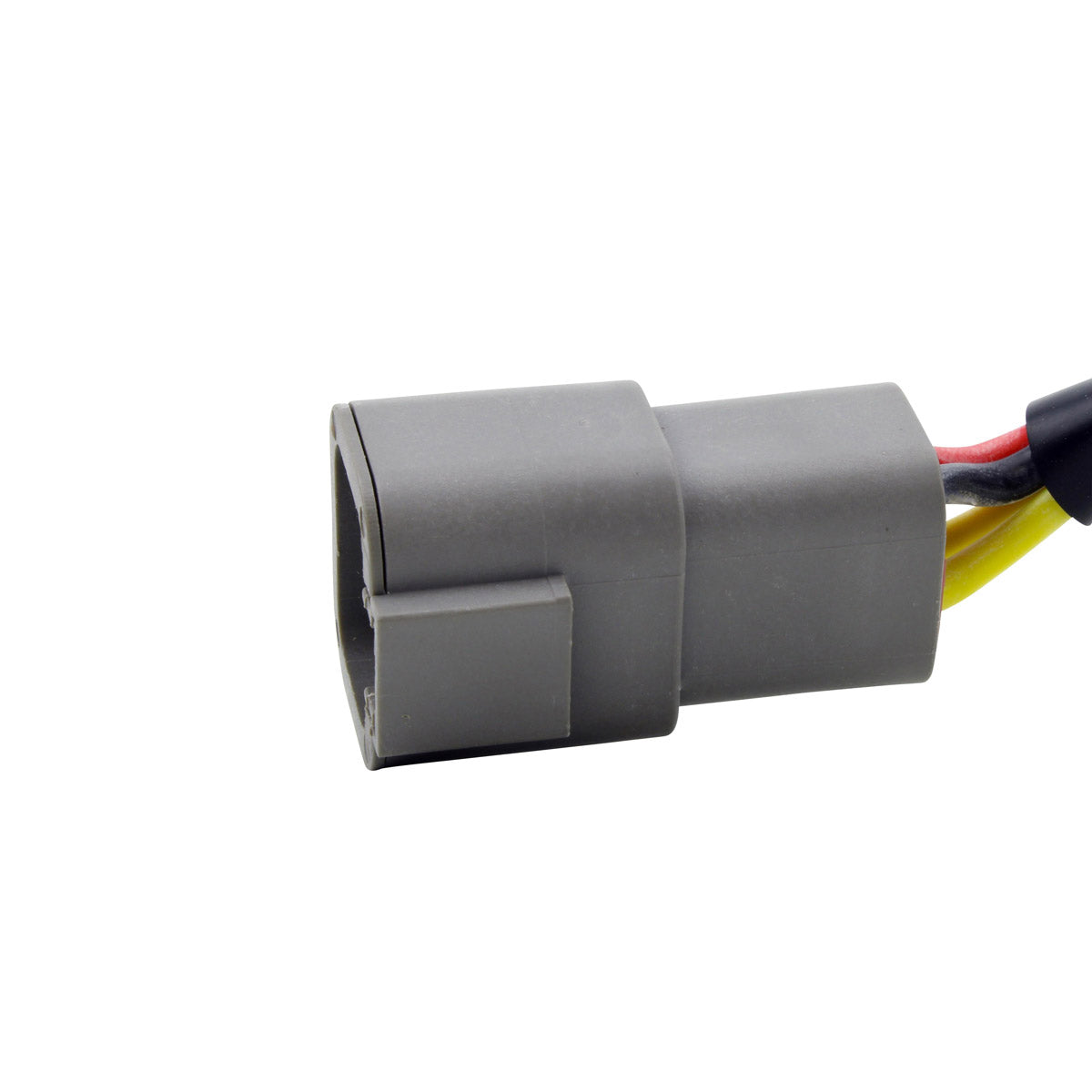

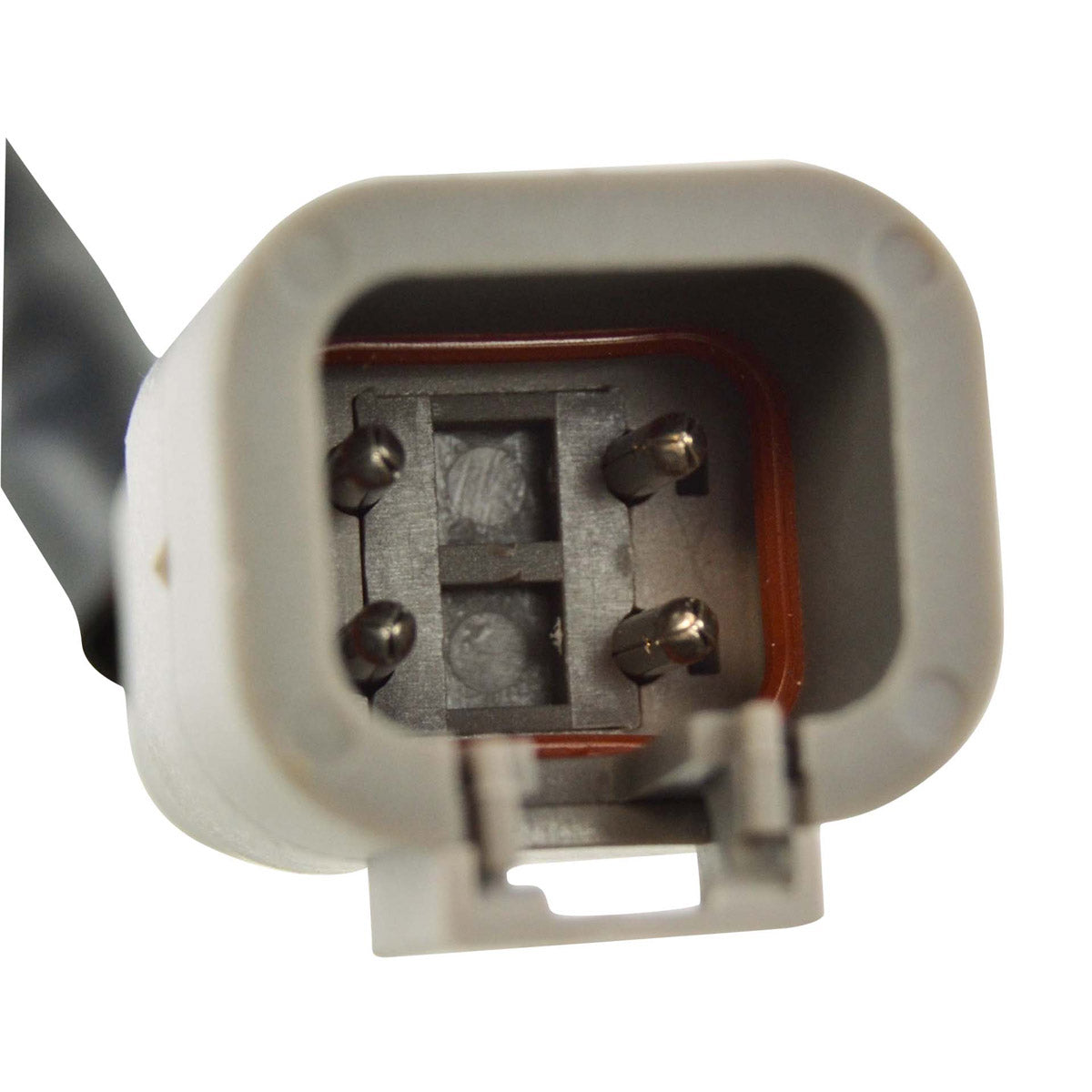

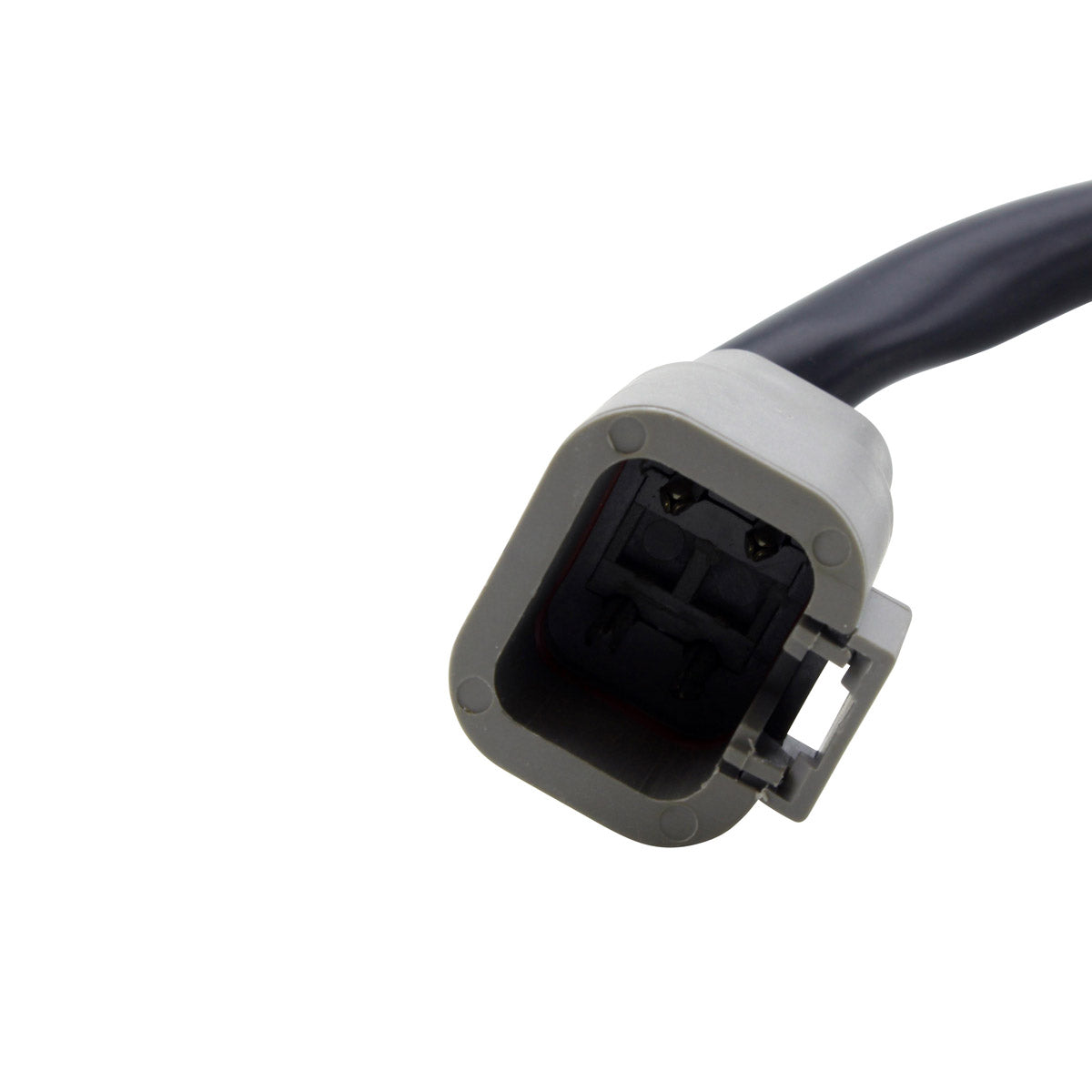

- Single 4-pin plug with 4 wires, 140 mm long

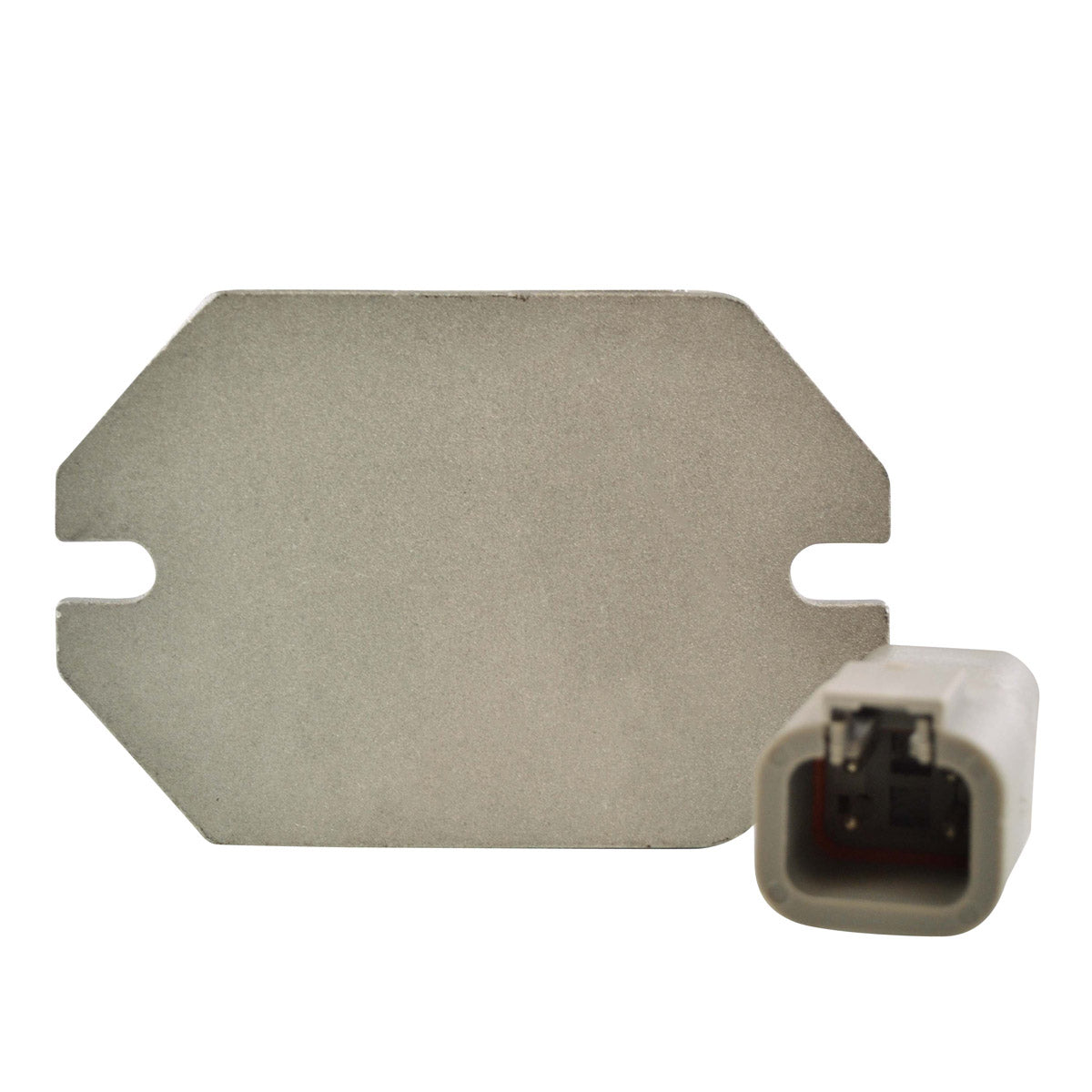

- Fixation holes 85 mm centre to centre
- Replaces the charging regulator from the Battery diagram
- For electric start systems - manual start uses RM30373
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30914 |
| Width | 65 mm |
| Length | 98 mm |
| Height | 25 mm |
| Fixation hole centre to centre | 85 mm |
| Wire length | 140 mm |
| Number of plugs | 1 |
| Number of pins | 4 |
| Number of wires | 4 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 25 A / 300 W |
| Open circuit voltage | Less than 15 V |
| Operation temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Ski-Doo Skandic 550 | 2002-2011 |
| Ski-Doo GSX 550 | 2002-2011 |
| Ski-Doo GTX 550 | 2002-2011 |
| Lynx 6900 | 2002-2011 |
| Lynx ST 600 | 2002-2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 515176189 | Ski-Doo / Lynx (BRP) |
| 515175939 | Ski-Doo / Lynx (BRP) |
| 515175656 | Ski-Doo / Lynx (BRP) |
Frequently Asked Questions
Will it fit without modifying the loom?
Yes. RM30914 is plug-and-play and a direct fit. It has one plug with 4 pins and 4 wires of 140 mm, and the fixation holes are 85 mm centre to centre, so it bolts and plugs straight into the original position. No assembly or wiring changes are required.
What is included?
One brand new charging voltage regulator rectifier, part number RM30914, complete with its wiring and 4-pin plug. Every unit is tested before dispatch.
Is this the charging regulator or the headlight regulator?
This is the charging regulator - the one shown in the Battery diagram, for electric start systems. If your machine has a manual starter you need RM30373, and if you are replacing the headlights regulator you need RM30912. Checking the diagram for your machine before ordering avoids fitting the wrong one of the three.
How do I know the old regulator has failed?
Typical symptoms are a battery that will not hold charge or one that is being overcharged and running hot, lights that vary in brightness with engine revs, and bulbs that keep failing. With a healthy unit you should see a minimum charging voltage of 14.5 V +/- 0.5 V, with open circuit voltage below 15 V. Anything well outside that band suggests the regulator is no longer controlling the stator output.
