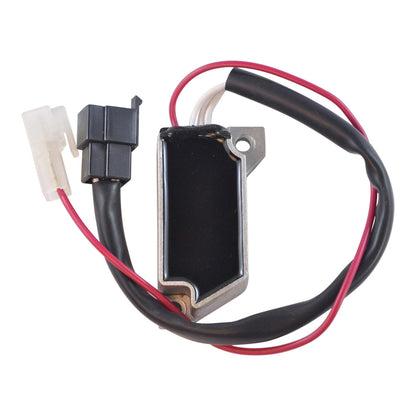

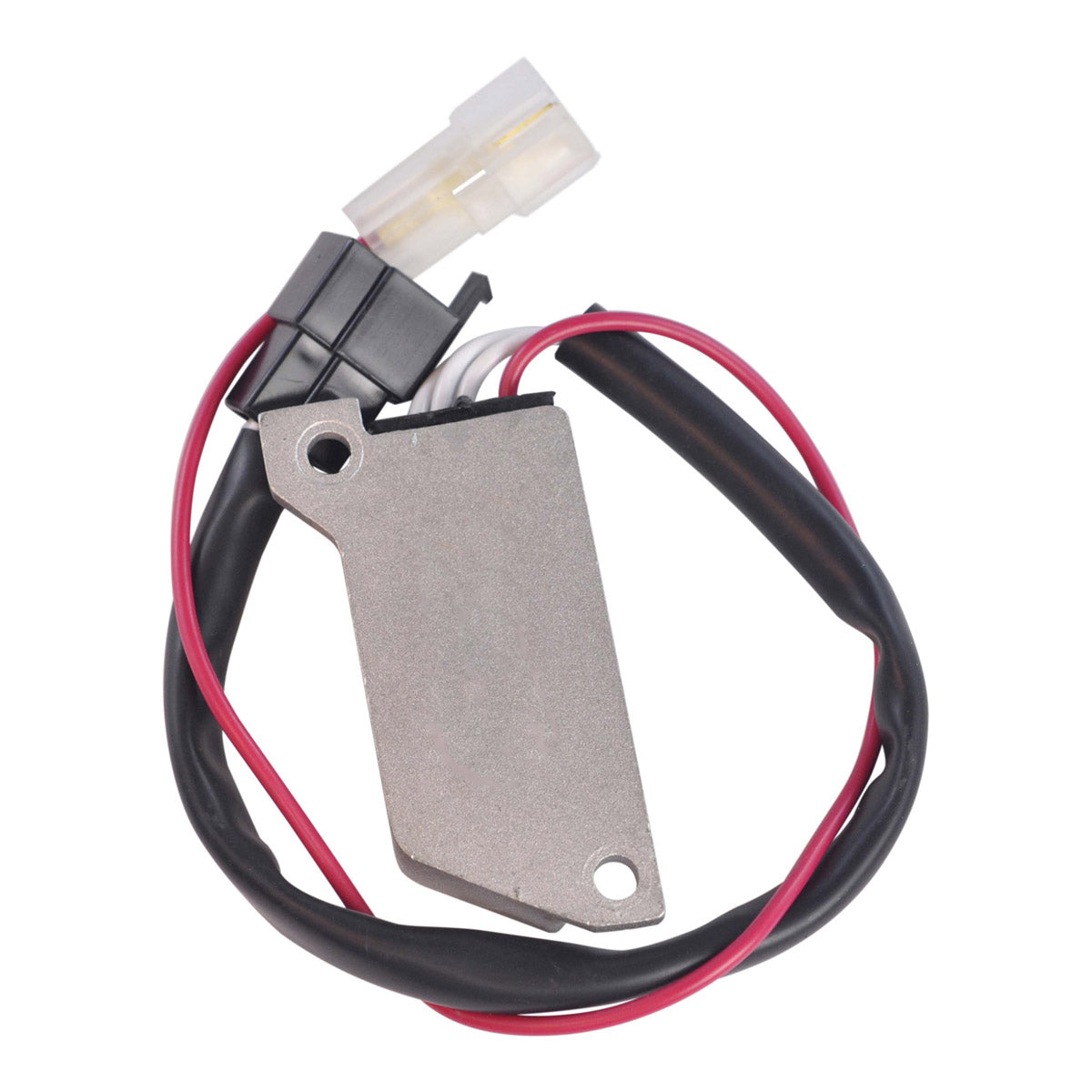

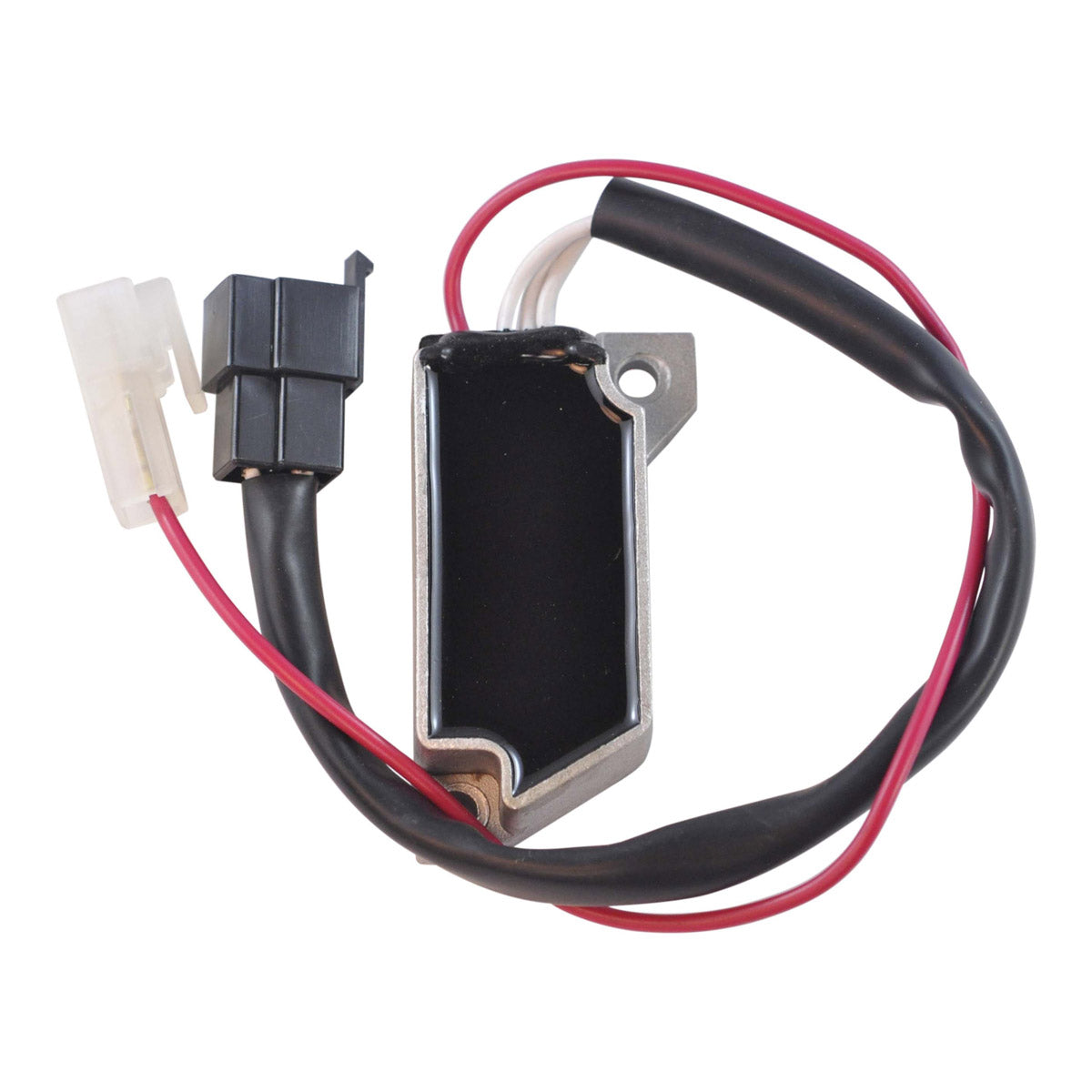

Voltage Regulator Rectifier RM30S01 for Yamaha
Yamaha VMX V-Max and XV Virago Special 535, 700, 750, 1000, 1100 and 1200 - 1984-1999
Brand new aftermarket voltage regulator rectifier, supplied as a direct replacement for the original unit fitted to the Yamaha VMX V-Max and the XV Virago and Virago Special range in 535, 700, 750, 1000, 1100 and 1200 cc from 1984 to 1999. It is a plug-and-play, direct fit part - no assembly is required and no modification to the standard wiring loom is needed. The unit is built with a higher grade of electrical components than the original, the quality exceeds the OEM equipment, and every unit is tested before it is shipped.
The regulator rectifier converts the alternating current produced by the stator into direct current, and then holds the charging voltage at a level that is safe for the battery and the rest of the electrical system. When the original unit fails the usual symptoms are a battery that will not hold charge, a battery that boils or gasses, dim or flickering lights, or a charging voltage that either never rises above resting battery voltage or climbs well past 15 volts. This unit delivers a minimum charging voltage of 14.5 V +/- 0.5 V and a maximum charging current of 25 A / 300 W, with open circuit voltage held below 15 V.
Key Features
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- Quality exceeds the OEM equipment
- All products shipped are tested

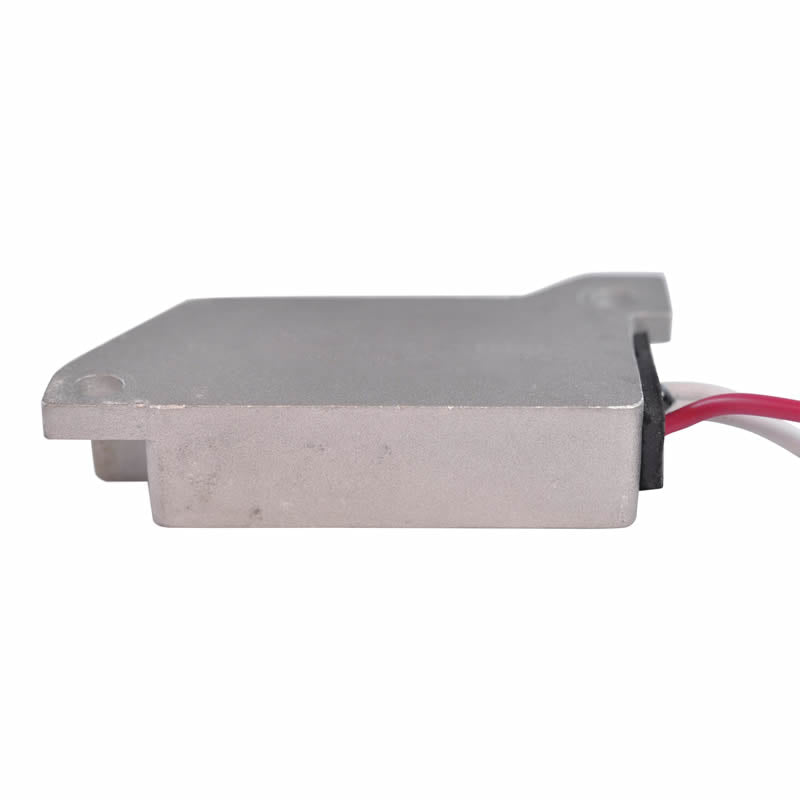

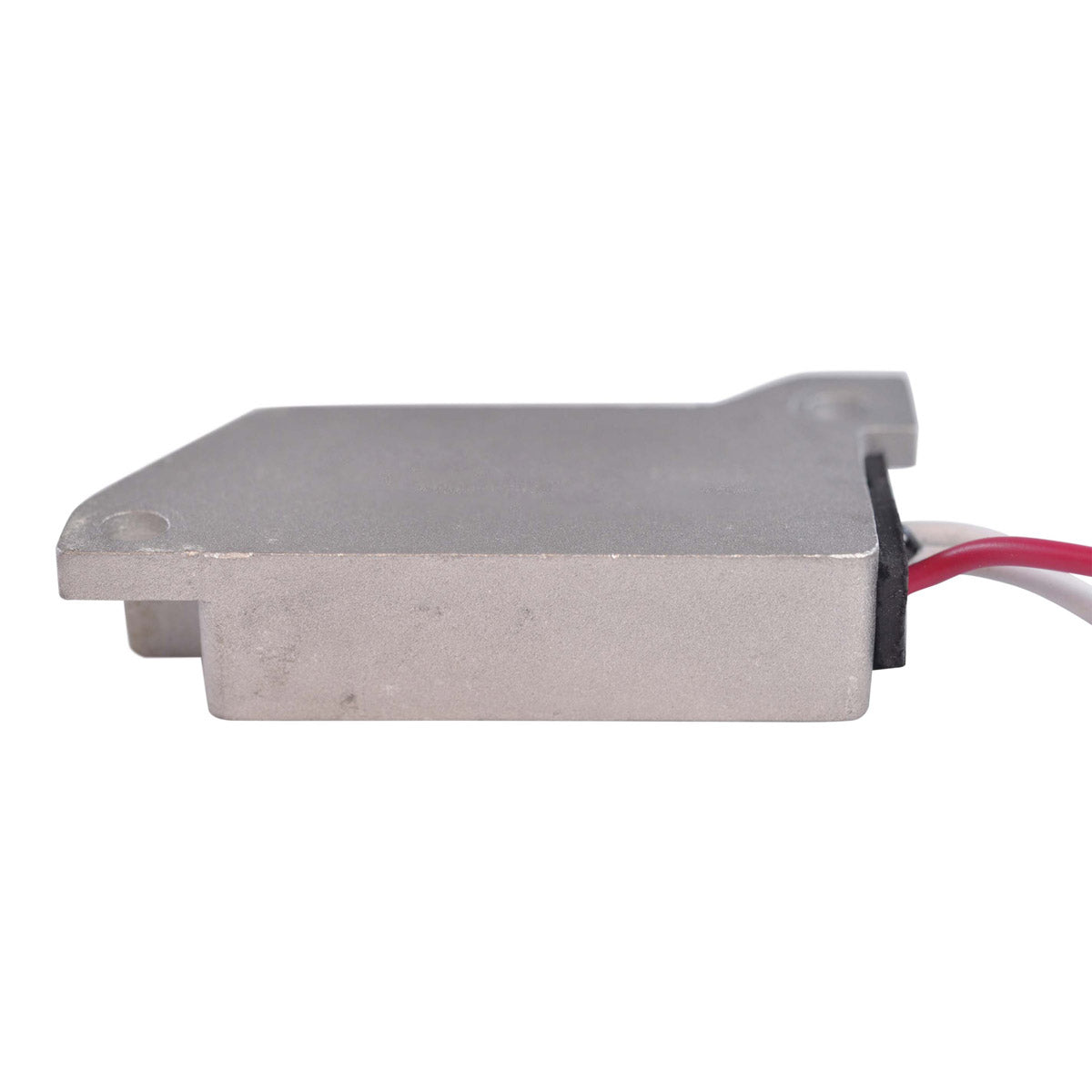

- Compact 34 mm by 70 mm by 15 mm body

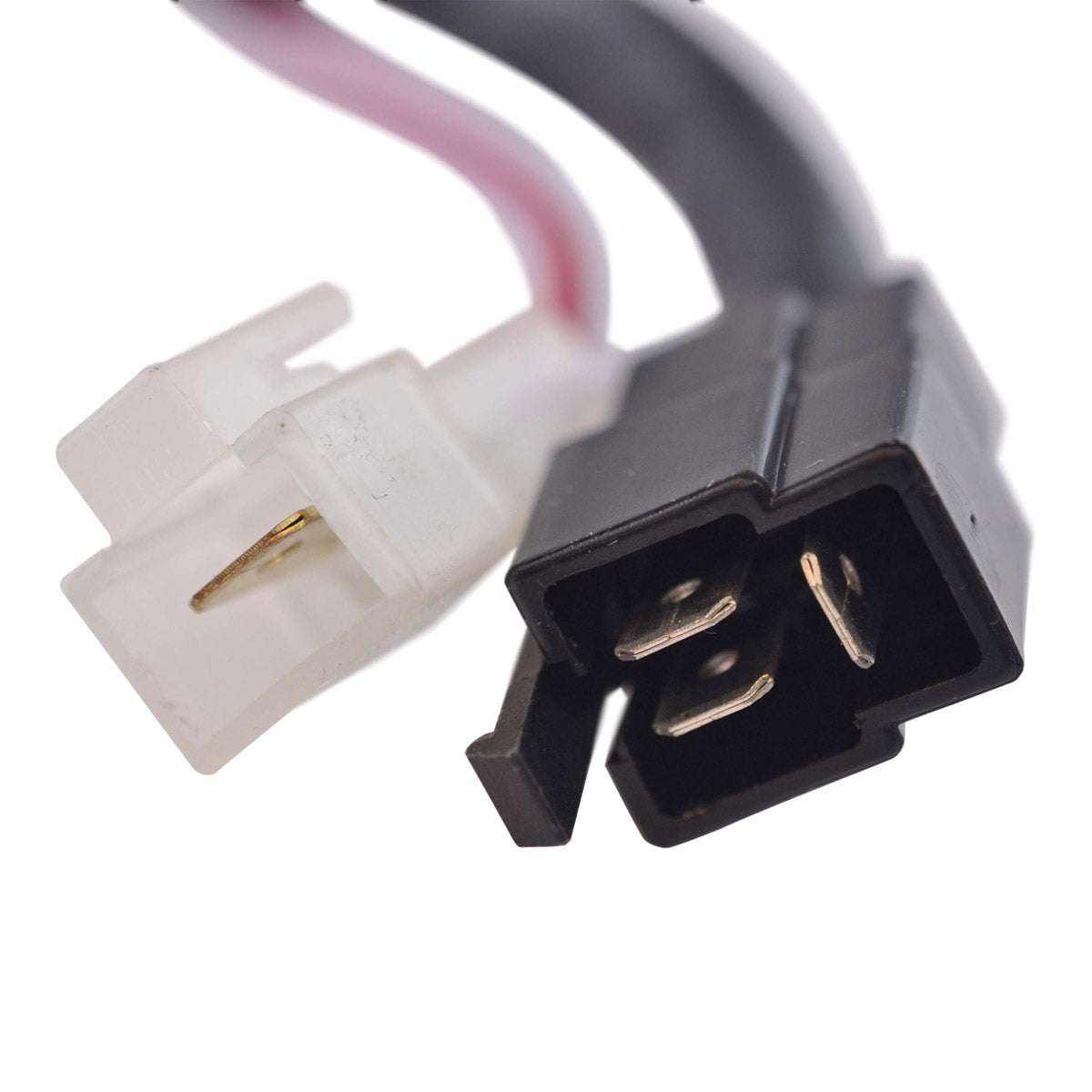

- Two plugs, 4 pins, 300 mm wire length
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30S01 |
| Width | 34 mm |
| Length | 70 mm |
| Height | 15 mm |
| Wire length | 300 mm |
| Fixation holes, centre to centre | 65 mm |
| Number of plugs | 2 |
| Number of pins | 4 |
| Number of wires | 4 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 25 A / 300 W |
| Open circuit voltage | Less than 15 V |
| Operating temperature | -20 °C to 85 °C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha VMX V-Max 1200 | 1984-1999 |
| Yamaha XV Virago 535 | 1984-1999 |
| Yamaha XV Virago Special 535 | 1984-1999 |
| Yamaha XV Virago 700 | 1984-1999 |
| Yamaha XV Virago 750 | 1984-1999 |
| Yamaha XV Virago 1000 | 1984-1999 |
| Yamaha XV Virago 1100 | 1984-1999 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3LP-81960-00-00 | Yamaha |
| 3LP-81960-01-00 | Yamaha |
| 42X-81960-A0-00 | Yamaha |
| 42X-81960-A1-00 | Yamaha |
Frequently Asked Questions
Do I need to modify the wiring to fit this unit?
No. This is a plug-and-play, direct fit replacement for the original unit and no assembly is required. It uses two plugs, 4 pins and 4 wires, with 300 mm of wire.
What is supplied?
One brand new aftermarket voltage regulator rectifier, part number RM30S01, tested before dispatch. No additional connectors or fitting hardware are listed with this part.
How do I tell whether my old regulator rectifier has failed?
Measure the voltage across the battery terminals with the engine running and warm. A healthy charging system should show around 14.5 V. A reading that stays at resting battery voltage suggests the unit is no longer charging, while a reading above 15 V suggests it is no longer regulating and is overcharging the battery.
Will it bolt into the original mounting position?
Yes. The body measures 34 mm by 70 mm by 15 mm and the two fixation holes are 65 mm apart centre to centre, matching the original mounting.
