Voltage Regulator Rectifier for Arctic Cat Sabercat 600 & 700 Carb / EFI 2004-2006
Voltage Regulator Rectifier for Arctic Cat Sabercat 600 & 700 Carb / EFI 2004-2006
SKU:RM30368
Free shipping over £150. Terms apply
Couldn't load pickup availability
Voltage Regulator Rectifier for Arctic Cat Sabercat
Sabercat 600 and 700, Carb and EFI, liquid cooled - 2004-2006 - Part RM30368
This is a brand new aftermarket voltage regulator rectifier for the Arctic Cat Sabercat 600 and 700, in both carburettor and EFI liquid cooled form, built between 2004 and 2006. It is supplied under RMSTATOR part number RM30368 and replaces Arctic Cat OEM number 0630-166.

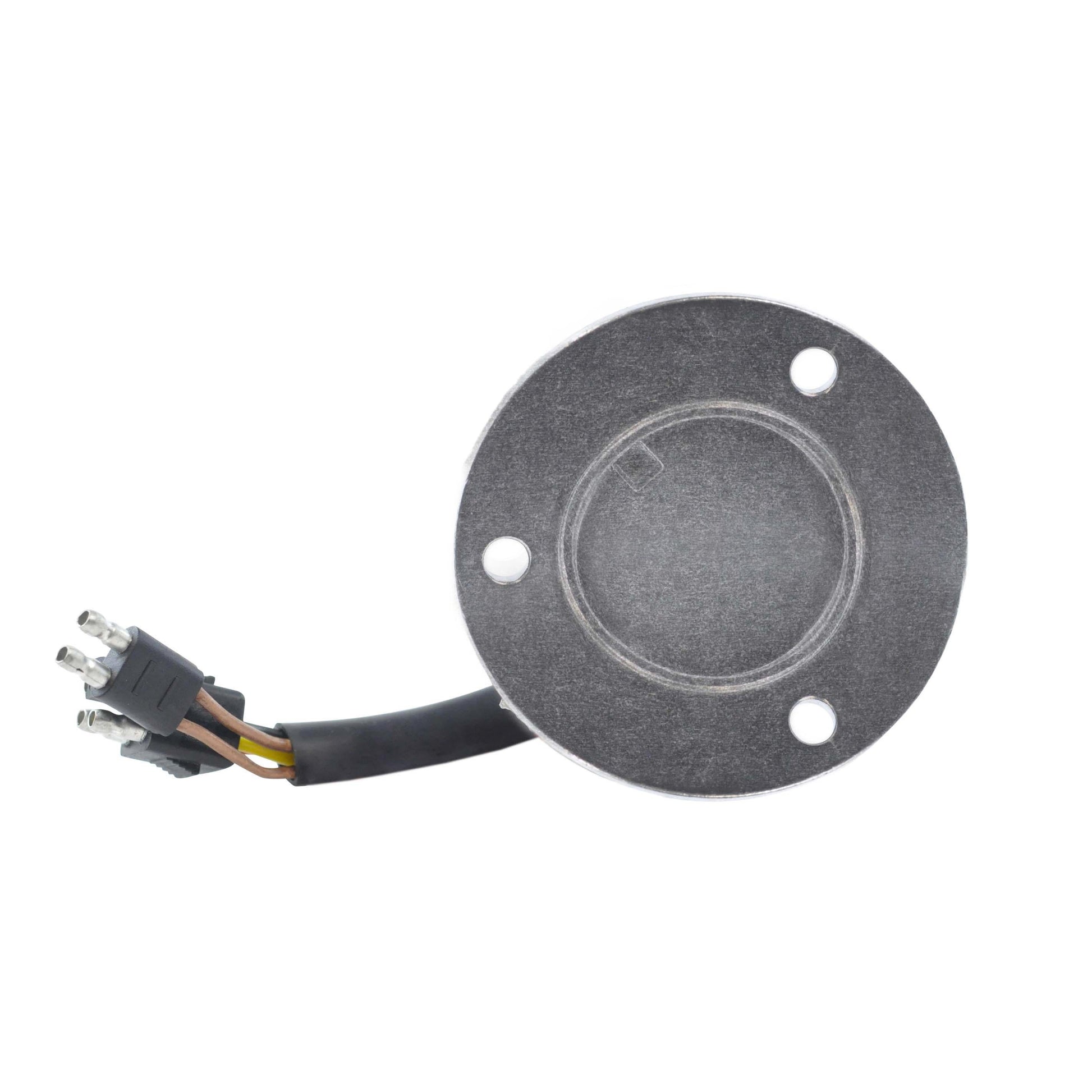

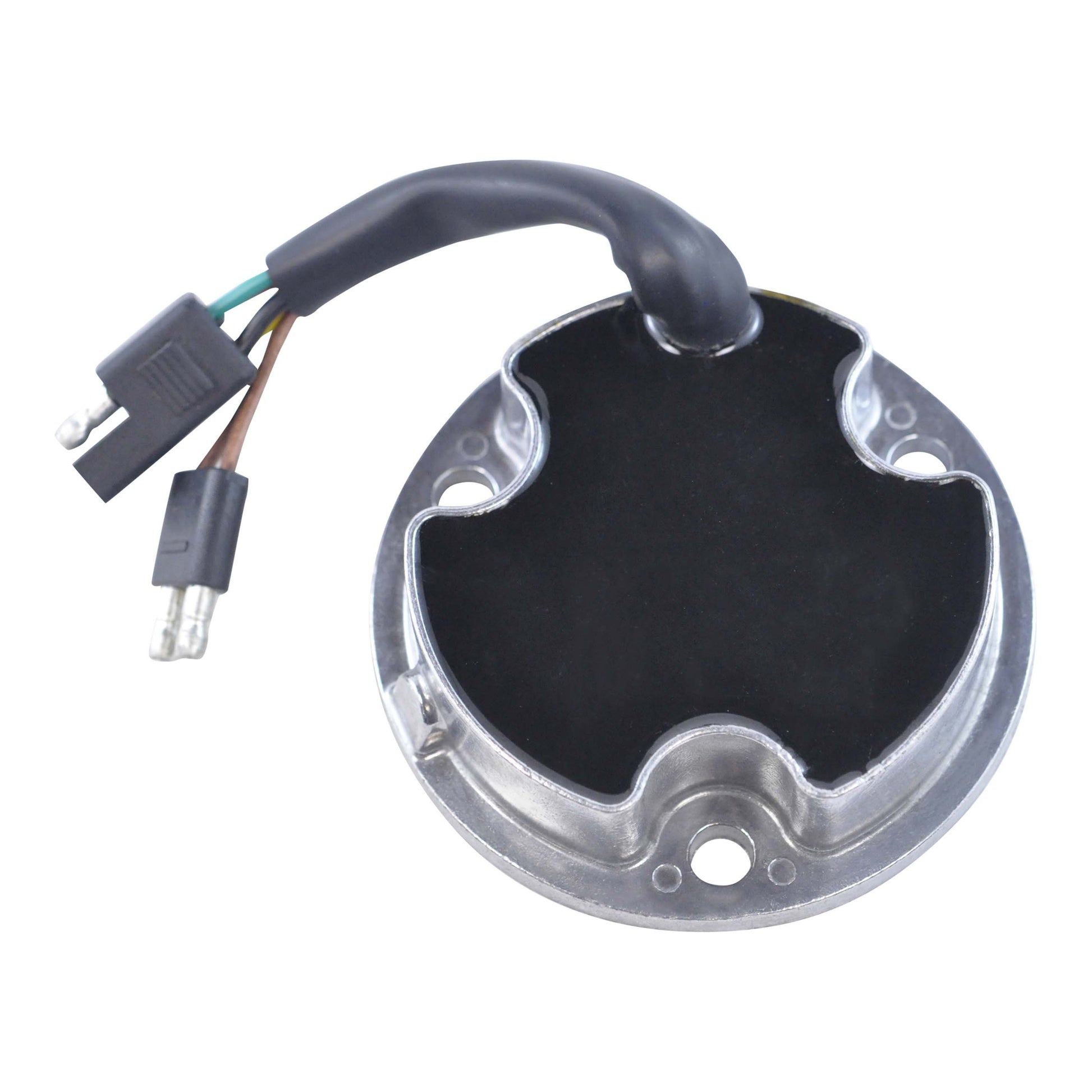

The unit is a direct replacement for the original regulator. It carries the same two plugs with six pins and six wires as the original, and the fixing holes are 65 mm apart centre to centre, so it bolts to the standard bracket and plugs into the existing loom. There is no assembly and no wiring work to do. A higher grade of electrical component is used throughout, the quality exceeds the original equipment specification, and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket voltage regulator rectifier
- Direct replacement for your original unit
- Plug and play, direct fit, easy installation
- No assembly required
- Higher grade of electrical components
- Quality exceeds the original equipment specification
- Regulated output of 14.5 V with a 35 A / 400 W maximum
- Fits both carburettor and EFI liquid cooled Sabercat models
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RM30368 |
| Width | 95 mm |
| Length | 95 mm |

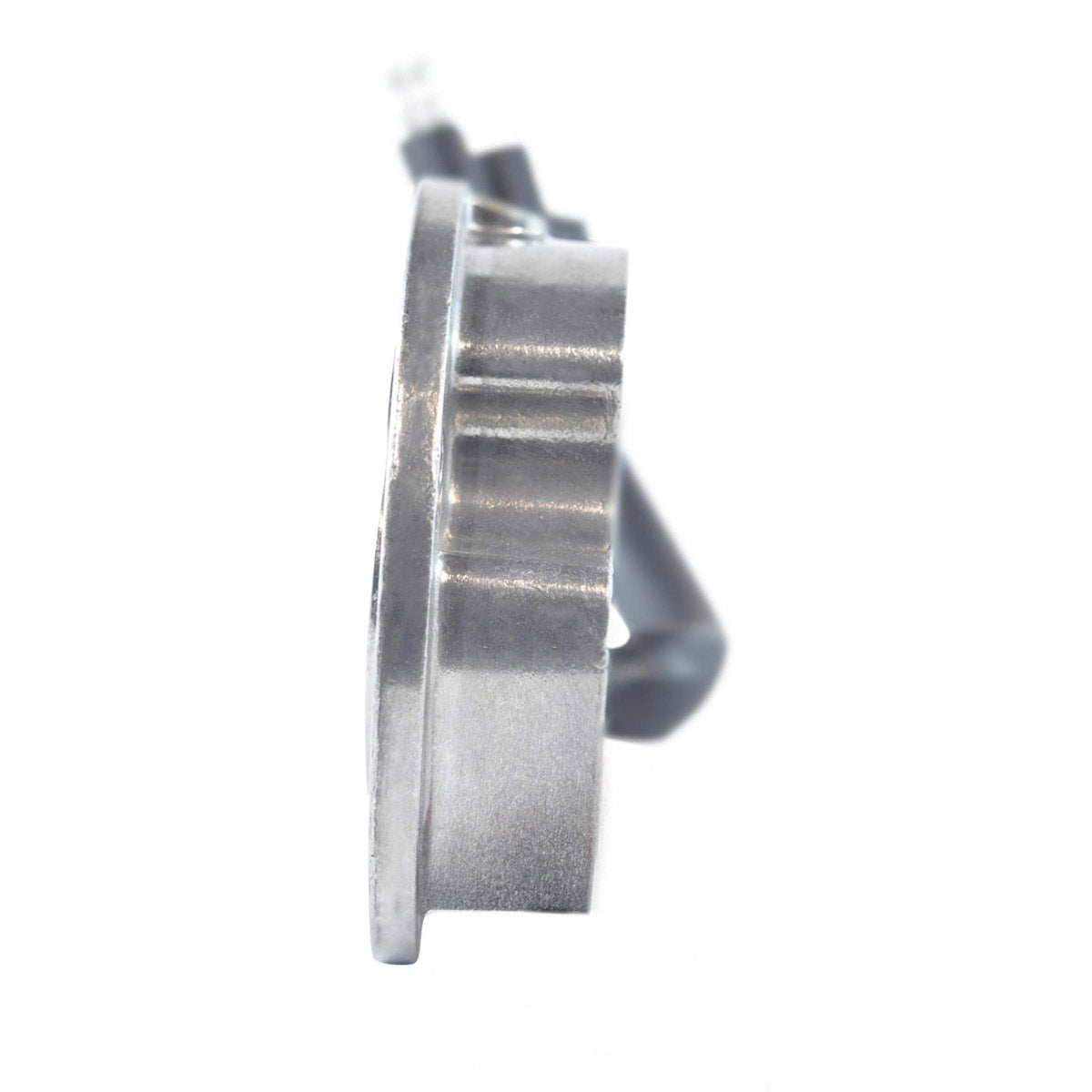

| Height | 26 mm |
| Wire Length | 115 mm |
| Fixing Holes, Centre to Centre | 65 mm |

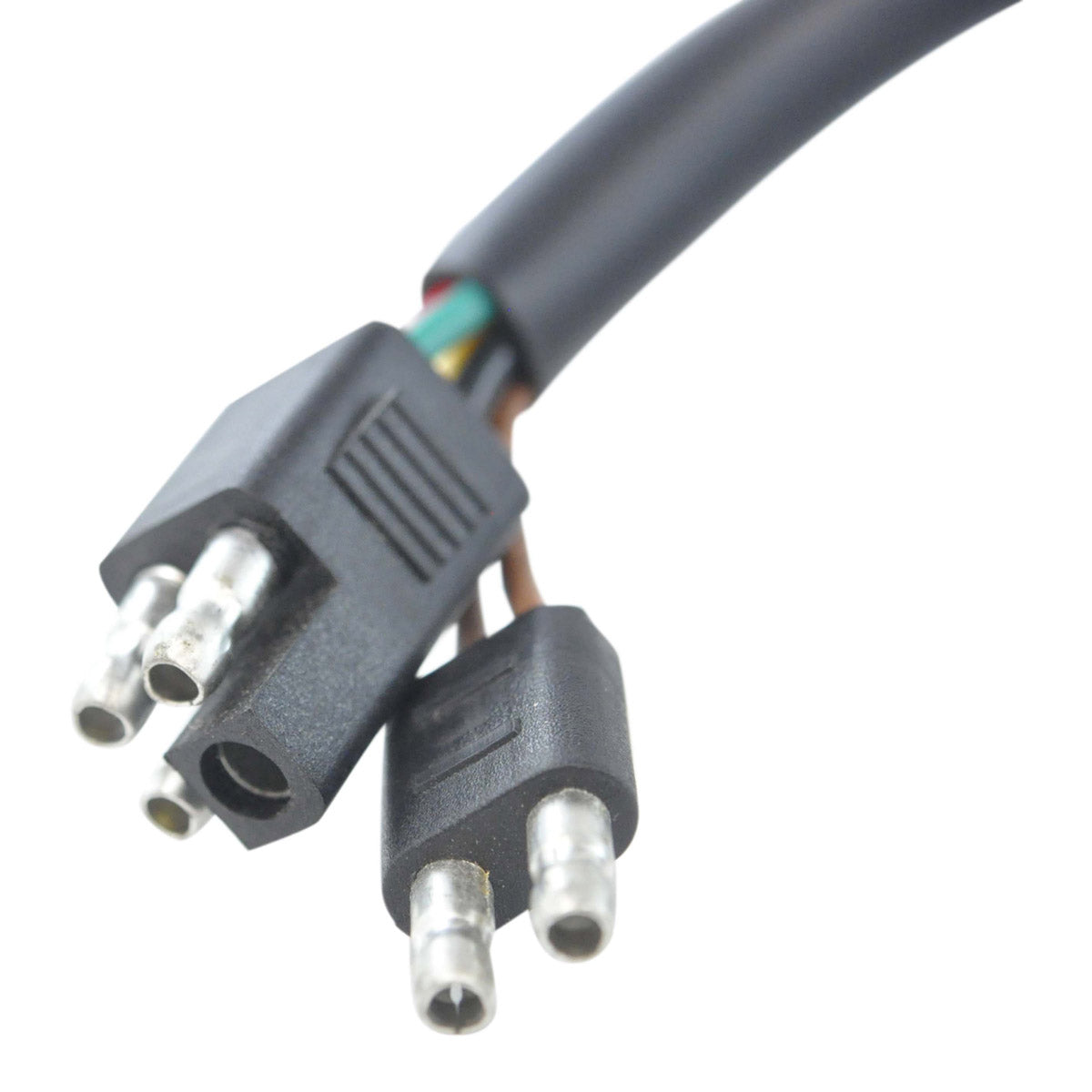

| Number of Plugs | 2 |
| Number of Pins | 6 |
| Number of Wires | 6 |
| Minimum Charging Voltage | 14.5 V +/- 0.5 V |
| Maximum Charging Current | 35 A / 400 W |
| Open Circuit Voltage | Under 15 V |
| Operating Temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat Sabercat 600 Carb / EFI liquid cooled | 2004-2006 |
| Arctic Cat Sabercat 700 Carb / EFI liquid cooled | 2004-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0630-166 | Arctic Cat |
Frequently Asked Questions
Will it fit without modification?
Yes. RM30368 is a direct replacement for the original regulator on the 2004-2006 Sabercat 600 and 700. It uses the same two plugs with six pins and six wires as the original, and the fixing holes are 65 mm apart centre to centre, so it bolts to the standard bracket and plugs into the existing loom. No cutting, splicing or re-pinning is required.
What is included?
One voltage regulator rectifier, RMSTATOR part number RM30368. The mounting hardware from your original unit is reused; no other parts are supplied.
How do I know my old regulator has failed?
Typical signs are a battery that will not hold charge, a battery that is gassing from being overcharged, headlights and gauges that surge and dim as the revs rise and fall, and a regulator that is far hotter than normal after a short run. With the engine running, a reading at the battery terminals well below 14 V or above 15 V normally points at the regulator rather than the stator.
Does it fit both the carburettor and the EFI Sabercat?
Yes. This part covers the Sabercat 600 and 700 in both carburettor and EFI liquid cooled form for 2004 to 2006, all under Arctic Cat number 0630-166. If the regulator you are removing carries a different number, or has a different plug arrangement to the two plug, six wire layout described above, contact us before ordering.
