Vehicle Fitment Guide

Model	Years
Cheetah 340/400/440/500	1973-1976
Cheetah 5000	1977-1978
Cross Country Cat (1976	1979
El Tigre 340/400/440	1973-1975
El Tigre 4000/5000/6000 (1976	1978-1984
El Tigre Z250/Z340/Z440	1975-1976
Jag 275/340	1976
Jag 3000	1975
Lynx 250 Twin	1975
Pantera 340/440	1975
Pantera 5000	1976-1979
Panther 340/440/500	1972-1976
Panther 4000/5000	1977-1979
Puma 400/440	1972-1973
Trailcat	1975

Frequently Asked Questions

How do I test a regulator rectifier?

Measure battery voltage with the engine running: below about 13.5V means undercharging, above about 15V means the regulator has failed open and is overcharging. Check the stator output first so you do not replace the wrong part.

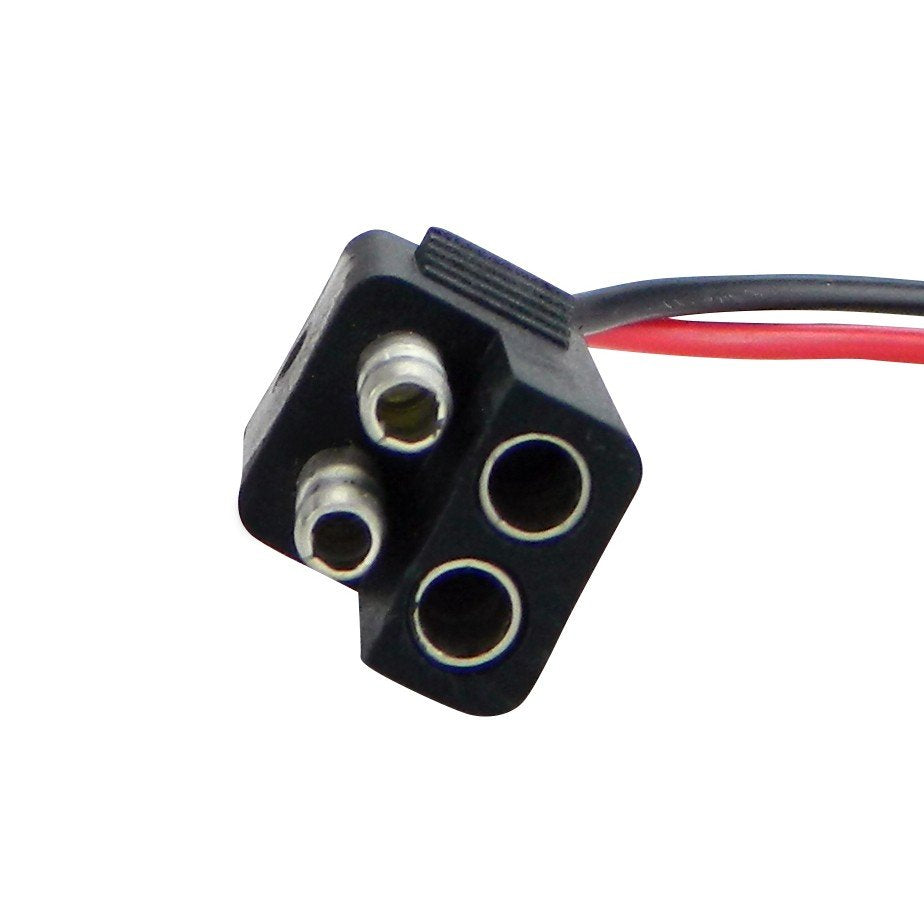

Does it come with the connector?

It is supplied with the original style connector on the models listed. Check the images against your existing unit.

Why do these fail so often?

Heat. They dissipate excess charging current as heat, so a blocked cooling fin area, a corroded earth or a weak battery all shorten their life. Mount it where it gets airflow.

Will a failed regulator damage anything else?

Yes - overcharging cooks batteries and blows bulbs, and a shorted regulator can take the stator with it. Fit the replacement promptly.
