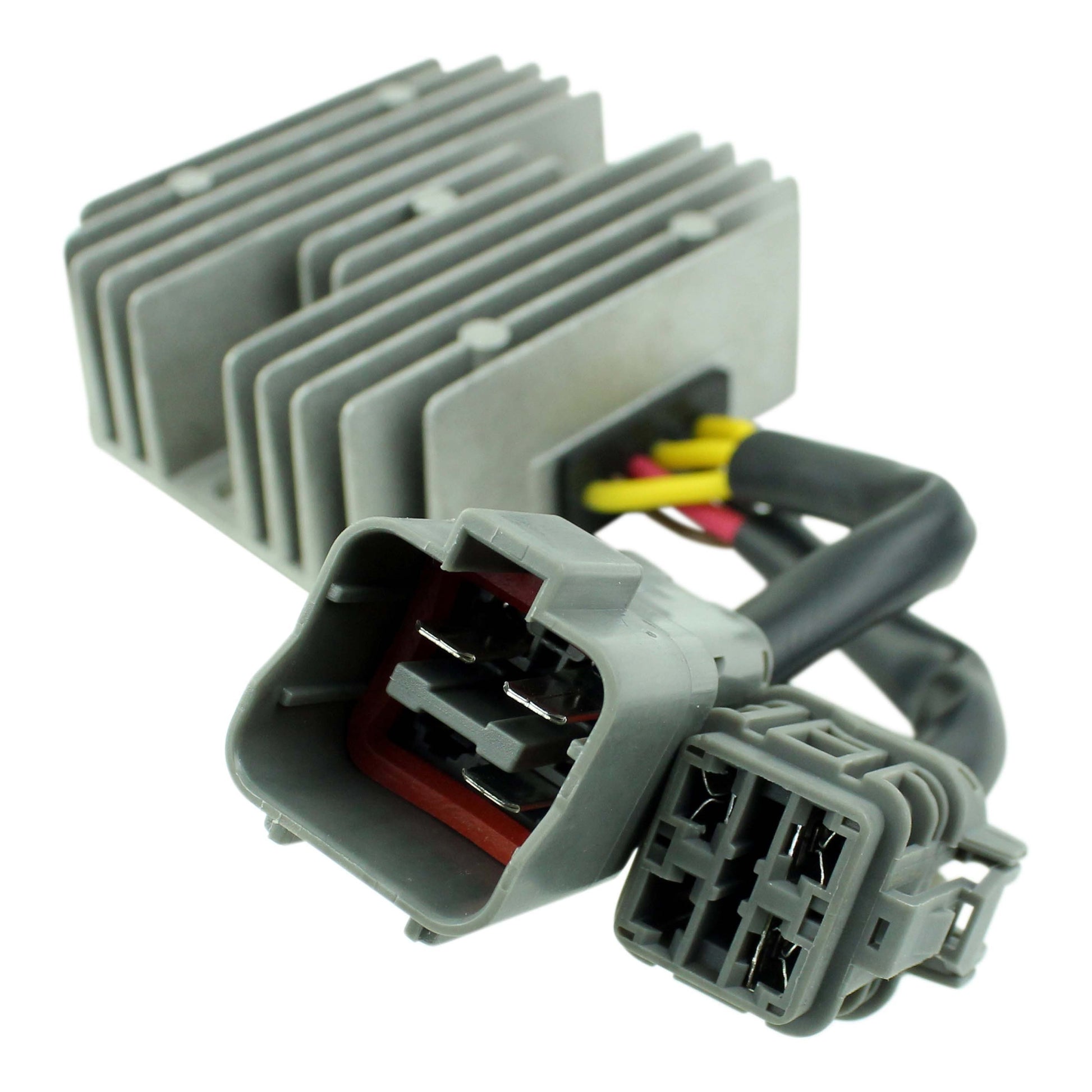

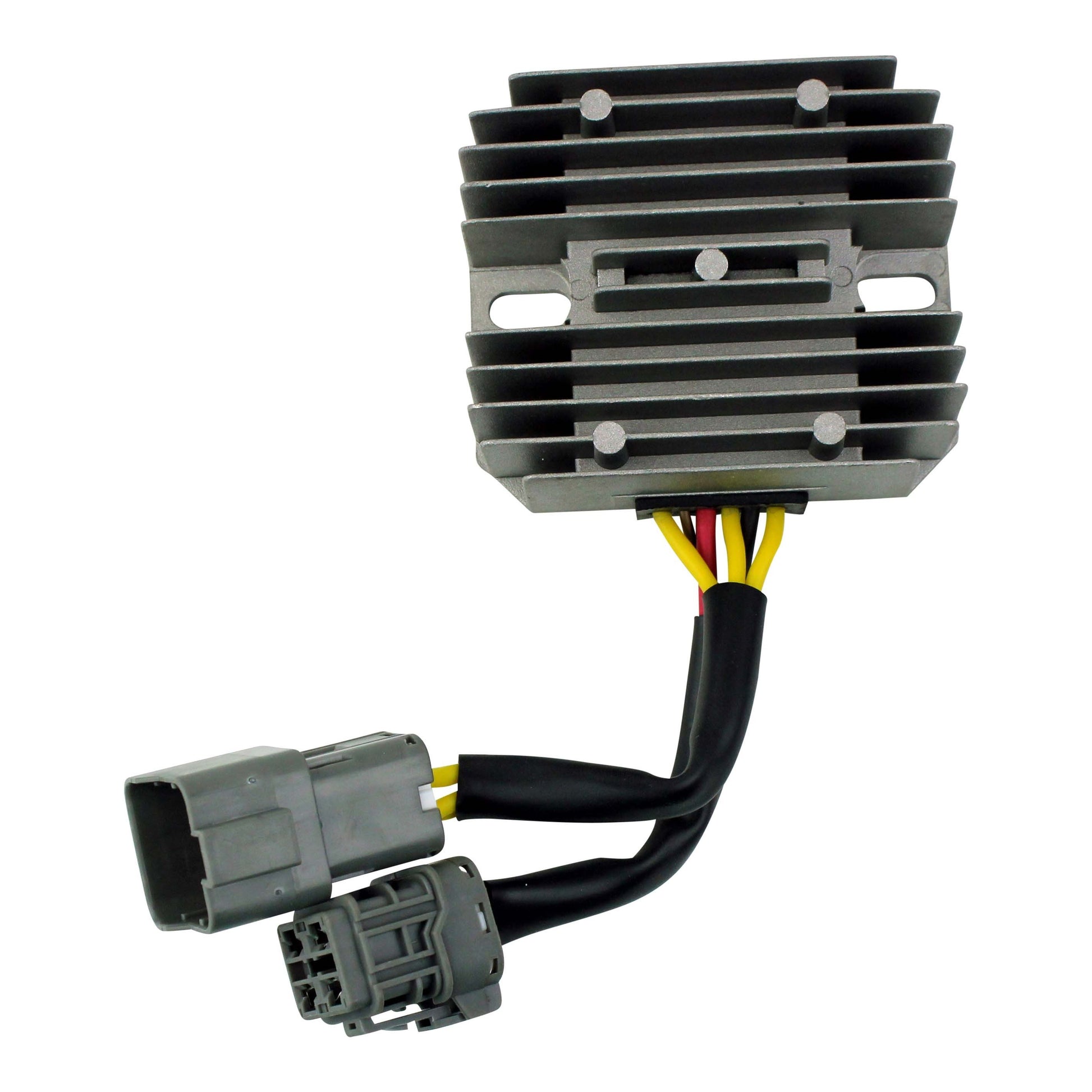

Regulator Rectifier for Arctic Cat 350, 400, 425 & 450 2008-2023
Fits Arctic Cat 350-450 ATVs, Kymco MXU/UXC/UXV 500 & Textron Alterra 450 (2007-2023)
This regulator rectifier is a direct-fit replacement for a wide range of Arctic Cat ATV and UTV models, plus corresponding Kymco and Textron applications that share the same charging system. It is built to OEM specifications to restore correct charging voltage and protect the battery and electrical system from overcharging.
The unit measures 32 mm wide by 93 mm long by 80 mm high with fixation holes 80 mm apart, and uses a 2-plug, 6-pin connector layout matching the original equipment.
Key Features
- Direct OEM fit and finish, no modification required
- 2 plugs, 6 pins
- Dimensions: 32mm W x 93mm L x 80mm H
- Covers multiple Arctic Cat, Kymco and Textron applications
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Width | 32 mm |
| Length | 93 mm |
| Height | 80 mm |
| Fixation Holes Center to Center | 80 mm |
| Wires Length | 115 mm |
| Number of Plugs | 2 |
| Number of Pins | 6 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Arctic Cat 350 CR | 2011-2012 |
| Arctic Cat 366 | 2008-2011 |
| Arctic Cat 400 Automatic | 2013-2015 |
| Arctic Cat 400 CR EFI L/C | 2013-2015 |
| Arctic Cat 425 CR | 2011-2012 |
| Arctic Cat 450 CR | 2013-2015 |
| Arctic Cat Alterra 400 | 2016-2017 |
| Arctic Cat Alterra 450 | 2016-2023 |
| Arctic Cat Alterra 500 | 2017-2018 |
| Arctic Cat Prowler 500 | 2017-2022 |
| Arctic Cat XC 450 | 2011-2017 |
| Kymco MXU 500 | 2007-2016 |
| Kymco UXC 500 | 2014 |
| Kymco UXV 500 | 2009-2016 |
| Textron Alterra 450 | 2018-2019 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3306-413 | OEM |
| 3323-208 | OEM |
| 3306-517 | OEM |
| 31600-LDB5-E00 | OEM |
Frequently Asked Questions
Will this regulator rectifier fit without modification?
Yes. This unit is a direct OEM-fit replacement and connects using the factory 2-plug, 6-pin connector layout, no cutting or splicing required.
What's included?
One regulator rectifier, ready to fit directly in place of the original unit.
How can I tell my regulator rectifier has failed?
Common signs include a battery that won't hold charge, dim or flickering lights, or a battery that overheats and boils dry from overcharging.
Does this fit both Arctic Cat and Kymco models?
Yes, this unit covers the shared charging system fitted across the Arctic Cat, Kymco and Textron models listed above.
