Voltage Regulator Rectifier for Arctic Cat 650 V-Twin 4x4 FIS 2004-2006
Arctic Cat 650 V-Twin 4x4 FIS, Limited Edition and SE - 2004 to 2006

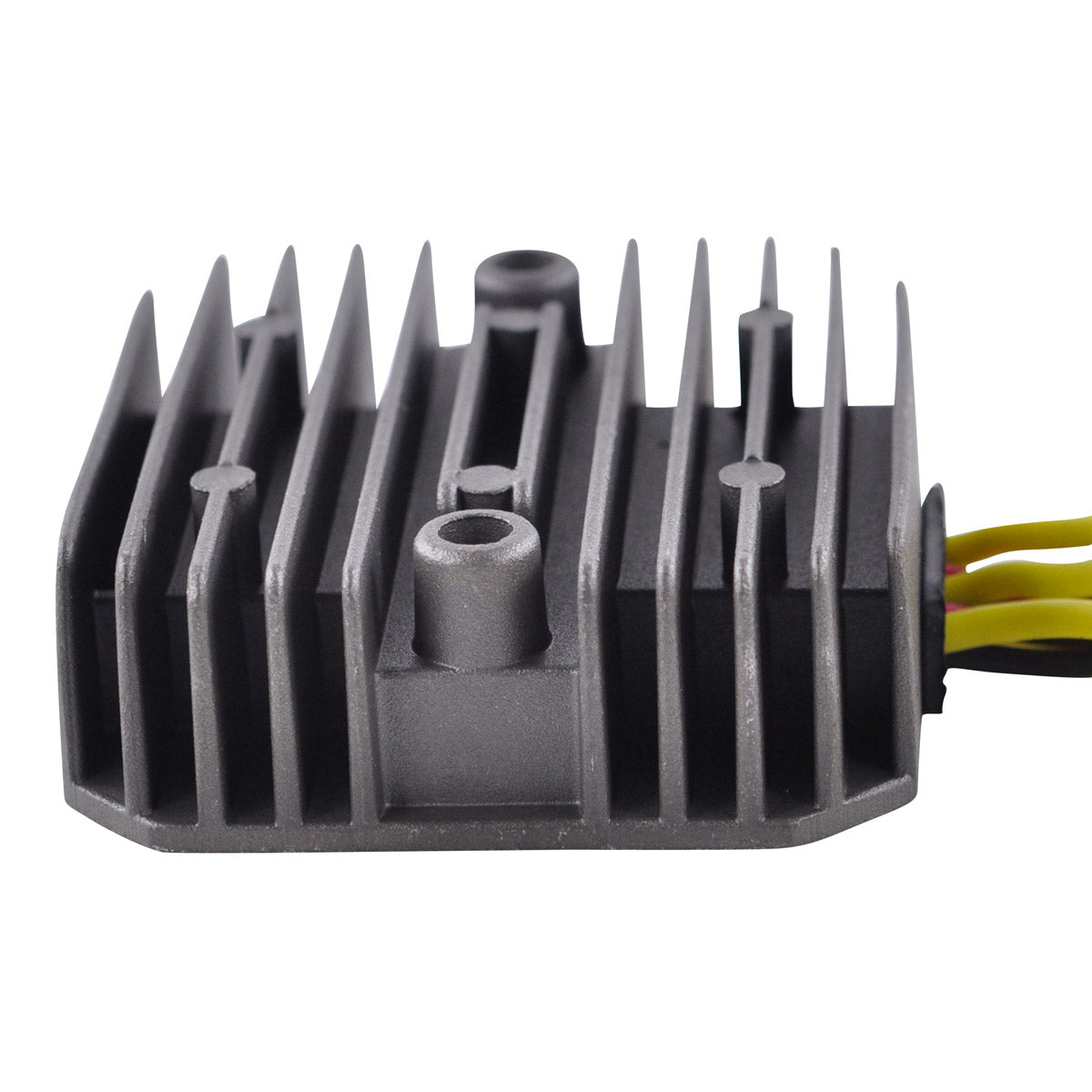

A brand new aftermarket voltage regulator rectifier for the Arctic Cat 650 V-Twin, supplied as a direct replacement for the original unit. It is plug-and-play and direct fit with no assembly required.

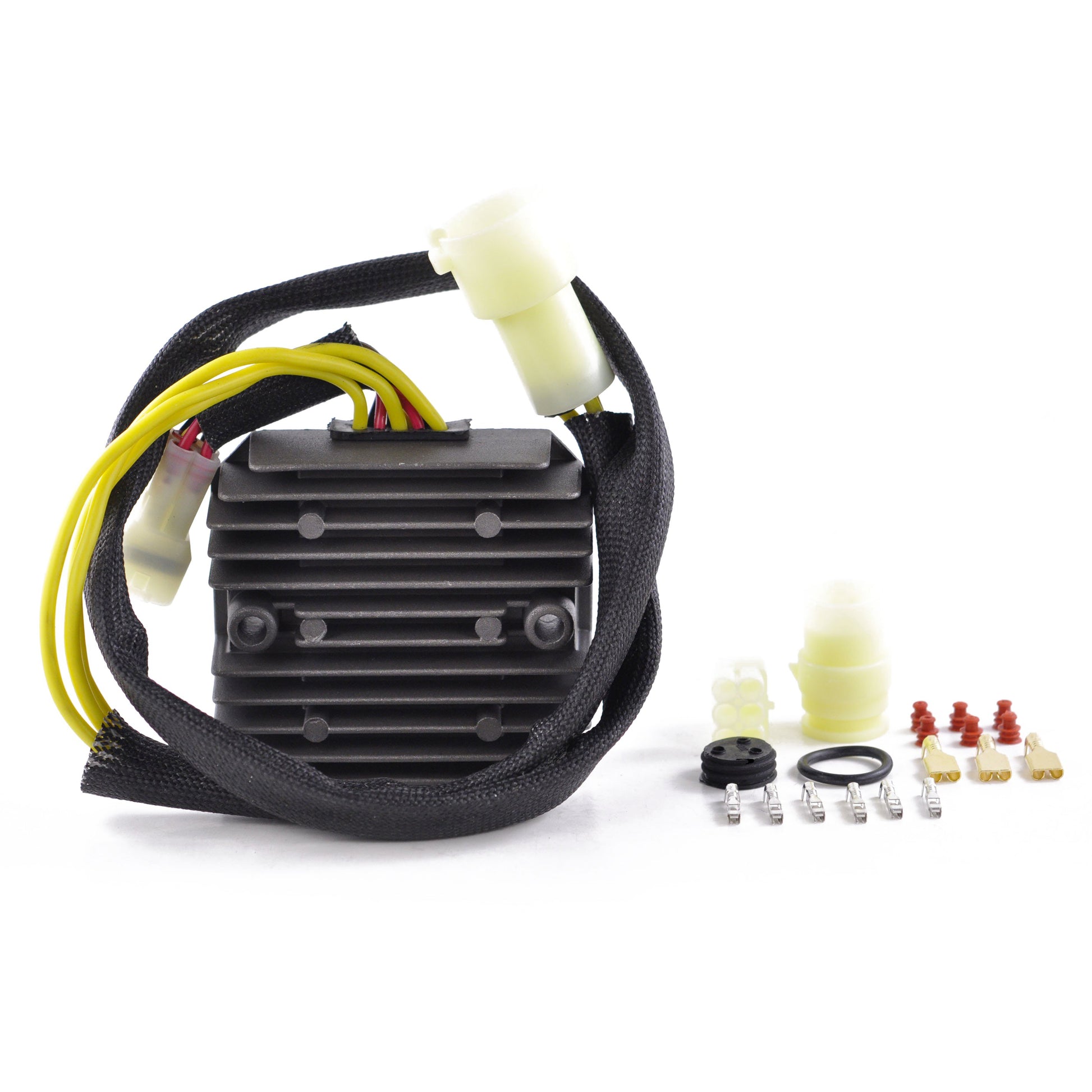

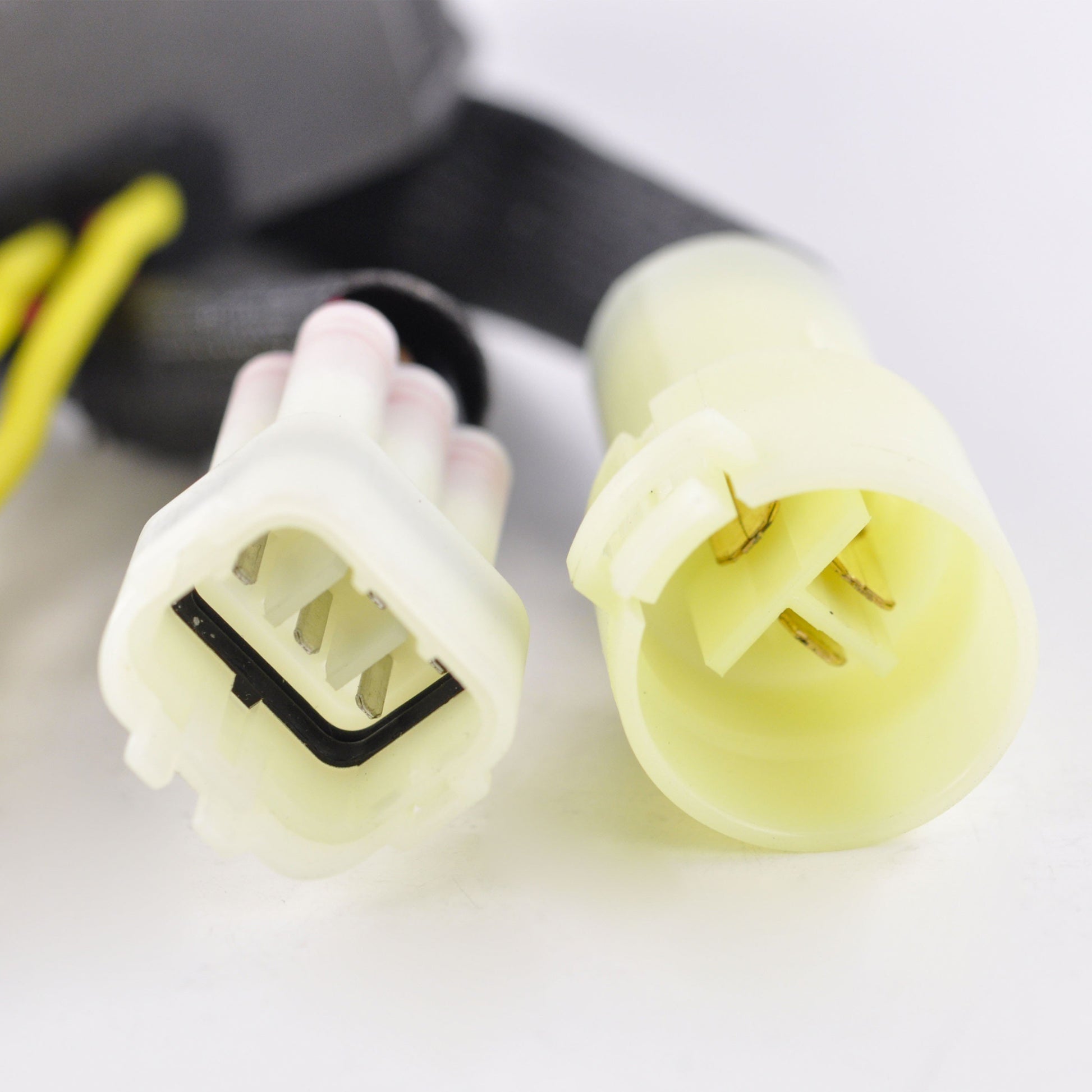

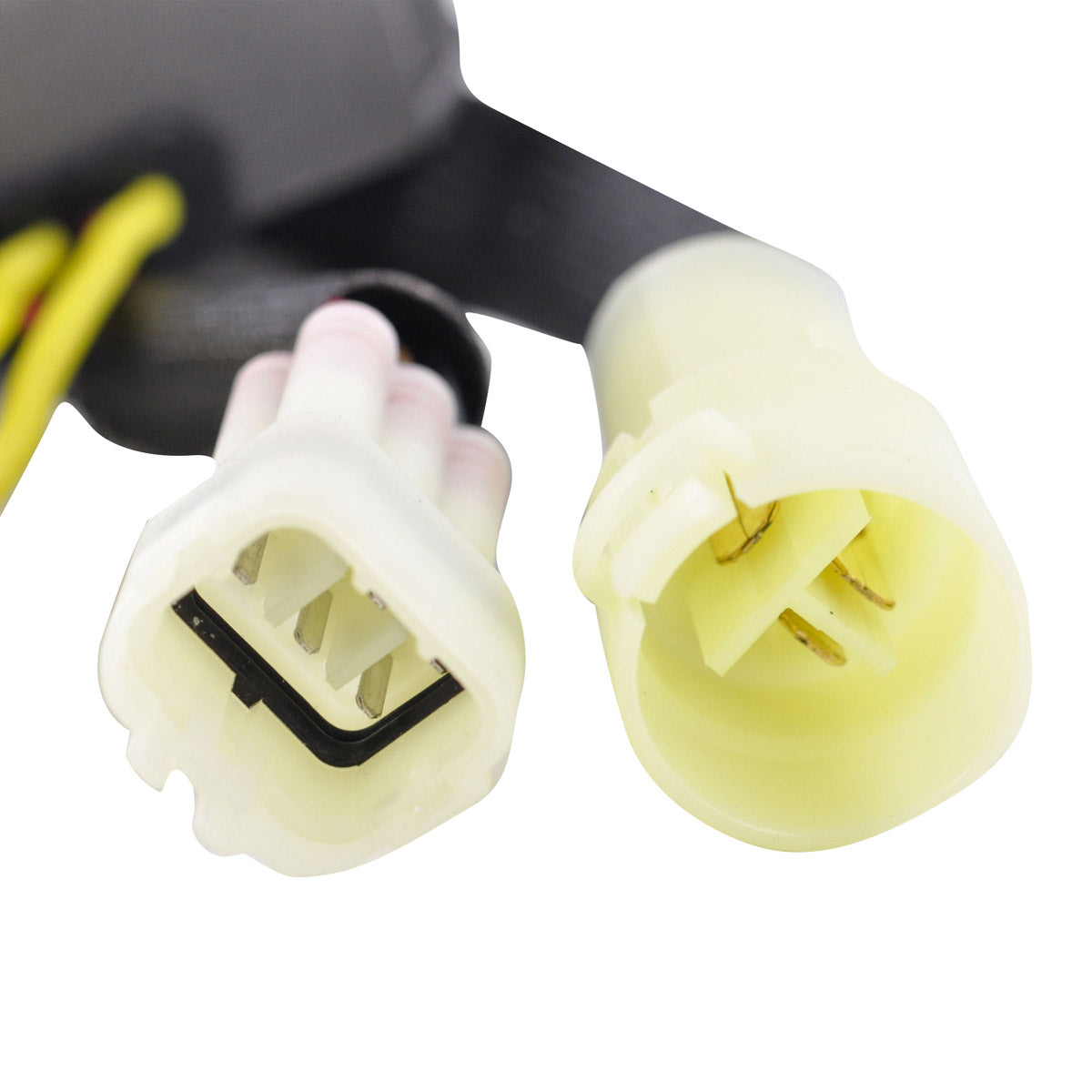

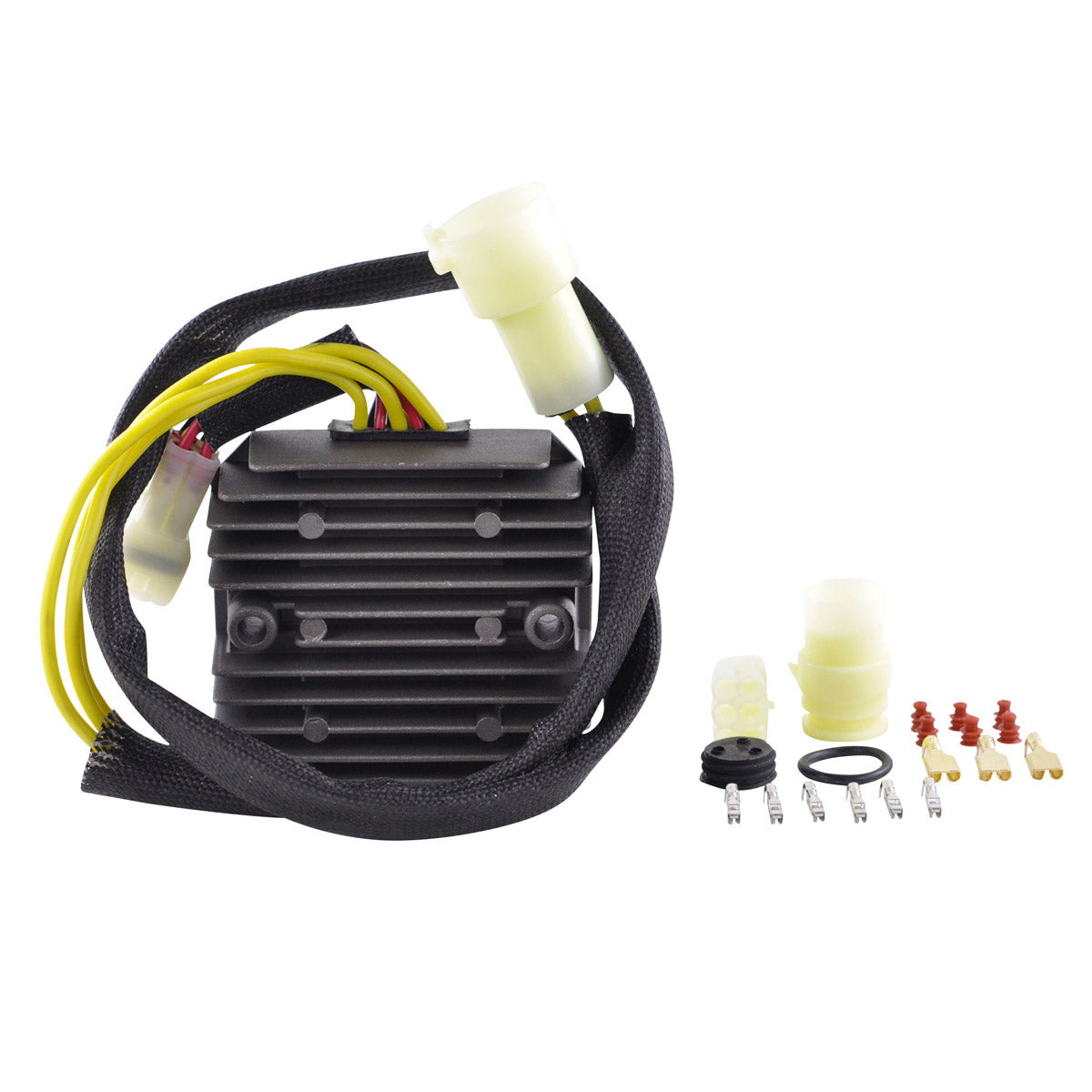

This is a nine-pin, nine-wire unit across two plugs, rated at 50 A / 500 W and holding a minimum charging voltage of 14.5 V +/- 0.5 V. RMSTATOR builds it with a higher grade of electrical components, states the quality exceeds the OEM equipment, and tests every unit before shipping. The opposite connector for the main harness side is included in the package.
Key Features
- Direct replacement for the original unit - no modification required
- Plug-and-play, direct fit, no assembly required
- Higher grade of electrical components
- Quality exceeds the OEM equipment
- Every unit is tested before shipping

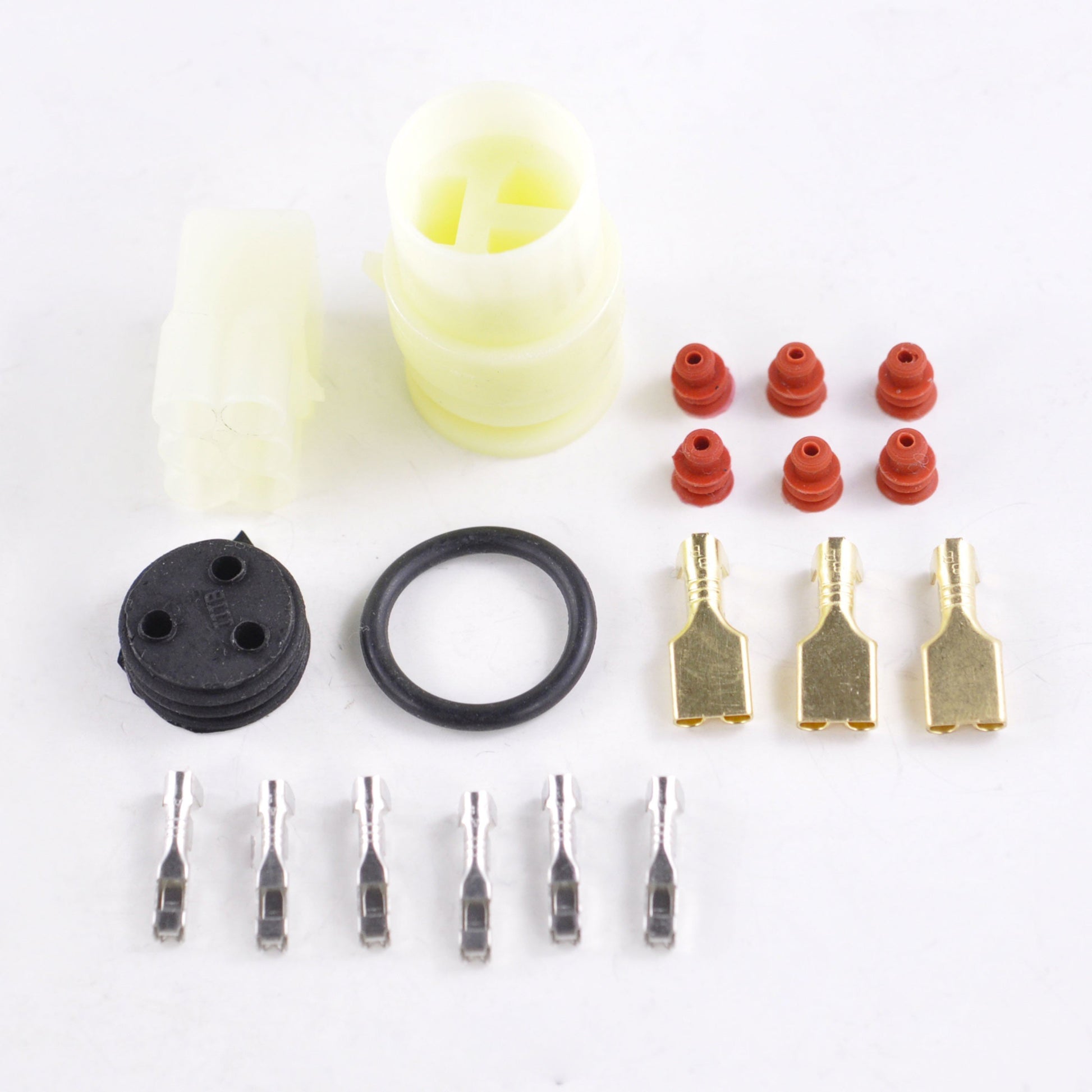

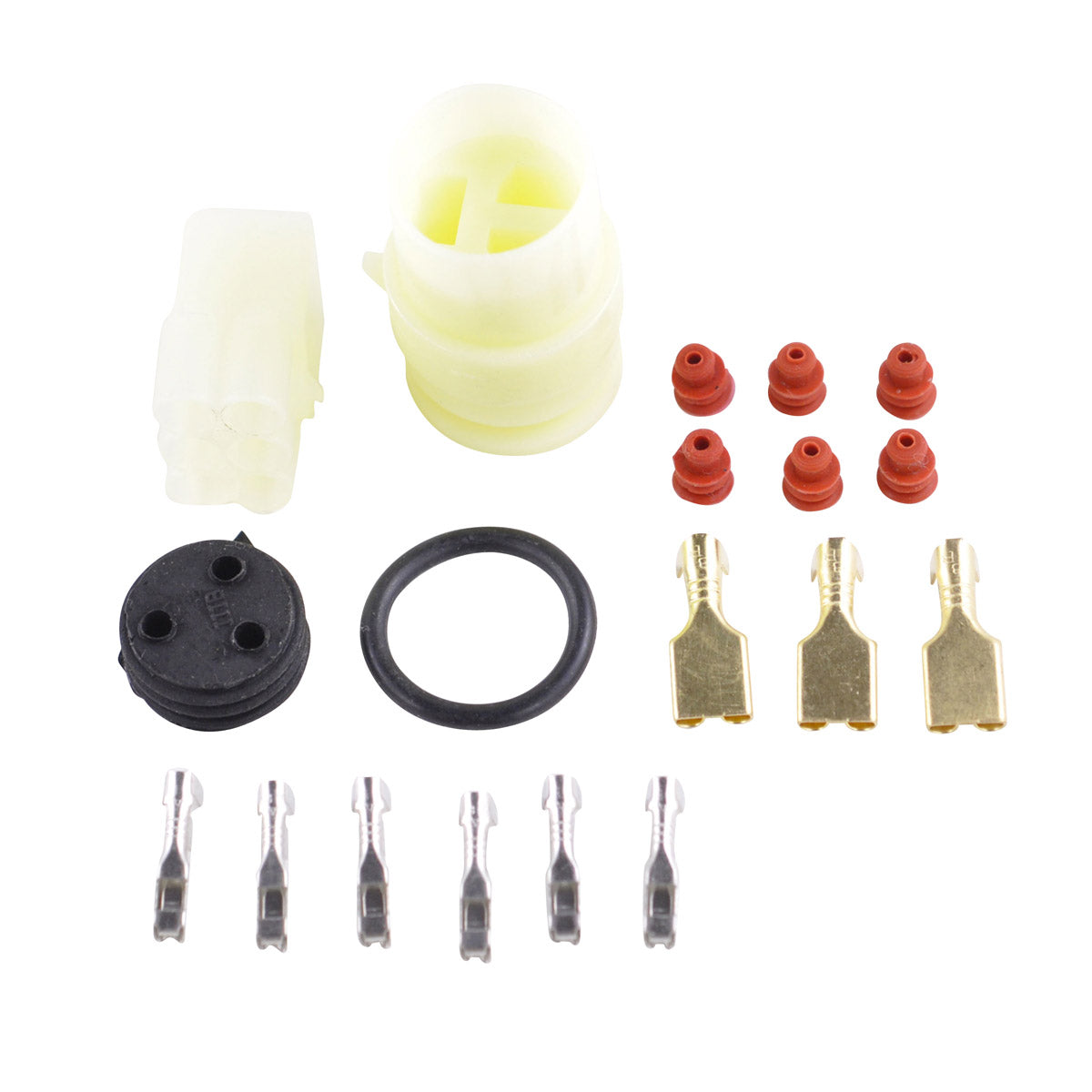

- Opposite connector for the main harness side included
- Rated to 50 A / 500 W maximum charging current
- Wire lengths of 110 mm and 850 mm for flexible routing
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | RM30385 |
| Component | Voltage Regulator Rectifier |
| Width | 90 mm |
| Length | 80 mm |
| Height | 28 mm |
| Wire lengths | 110 mm and 850 mm |
| Fixation holes, centre to centre | 68 mm |
| Number of plugs | 2 |
| Number of pins | 9 |
| Number of wires | 9 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Under 15 V |
| Operating temperature range | -20 C to 85 C |
| Condition | New aftermarket |
| Warranty | 12 months |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat 650 V-Twin 4x4 FIS | 2004-2006 |
| Arctic Cat 650 V-Twin Limited Edition | 2004-2006 |
| Arctic Cat 650 V-Twin SE | 2004-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0430-035 | Arctic Cat |
| 0430-046 | Arctic Cat |
Frequently Asked Questions
Will this fit without modification?
Yes, on the Arctic Cat 650 V-Twin between 2004 and 2006. It is a direct replacement for the original unit with two plugs, nine pins and nine wires, and 68 mm between the fixing holes. It mounts and connects using the existing hardware and harness.
What is included?
The regulator rectifier plus the opposite connector for the main harness side. That spare connector is worth fitting if the original harness plug shows corrosion or heat damage, which is a common cause of repeat charging faults on these quads.
How do I tell my old regulator rectifier has failed?
Measure across the battery with the engine running and warm. The charging system should hold around 14.5 V +/- 0.5 V. If the voltage never rises above rest the battery is not charging, and if it goes past 15 V the regulator has failed open. Overcharging destroys batteries and bulbs quickly. Test the stator output as well before deciding which part to change.
Which OEM numbers does it replace?
It cross references Arctic Cat 0430-035 and 0430-046. If either number appears on the unit currently on your machine, this is the right replacement.
