Voltage Regulator for Arctic Cat DVX 50 / 90, Alterra 90 and Kawasaki KFX 50 / 90 2006-2025
Voltage Regulator for Arctic Cat DVX 50 / 90, Alterra 90 and Kawasaki KFX 50 / 90 2006-2025
SKU:RMS020-103480
Free shipping over £150. Terms apply
Couldn't load pickup availability
Voltage Regulator for Arctic Cat DVX 50 / 90, Alterra 90 and Kawasaki KFX 50 / 90 2006-2025
Arctic Cat DVX 50 and 90 Utility, Alterra 90 and Kawasaki KFX 50 / 90 - 2006 to 2025
A brand new aftermarket voltage regulator rectifier covering the Arctic Cat DVX 50 and 90 Utility, the Alterra 90 and the Kawasaki KFX 50 and 90. It is a direct replacement for the original unit, plug-and-play and direct fit, with no assembly required.

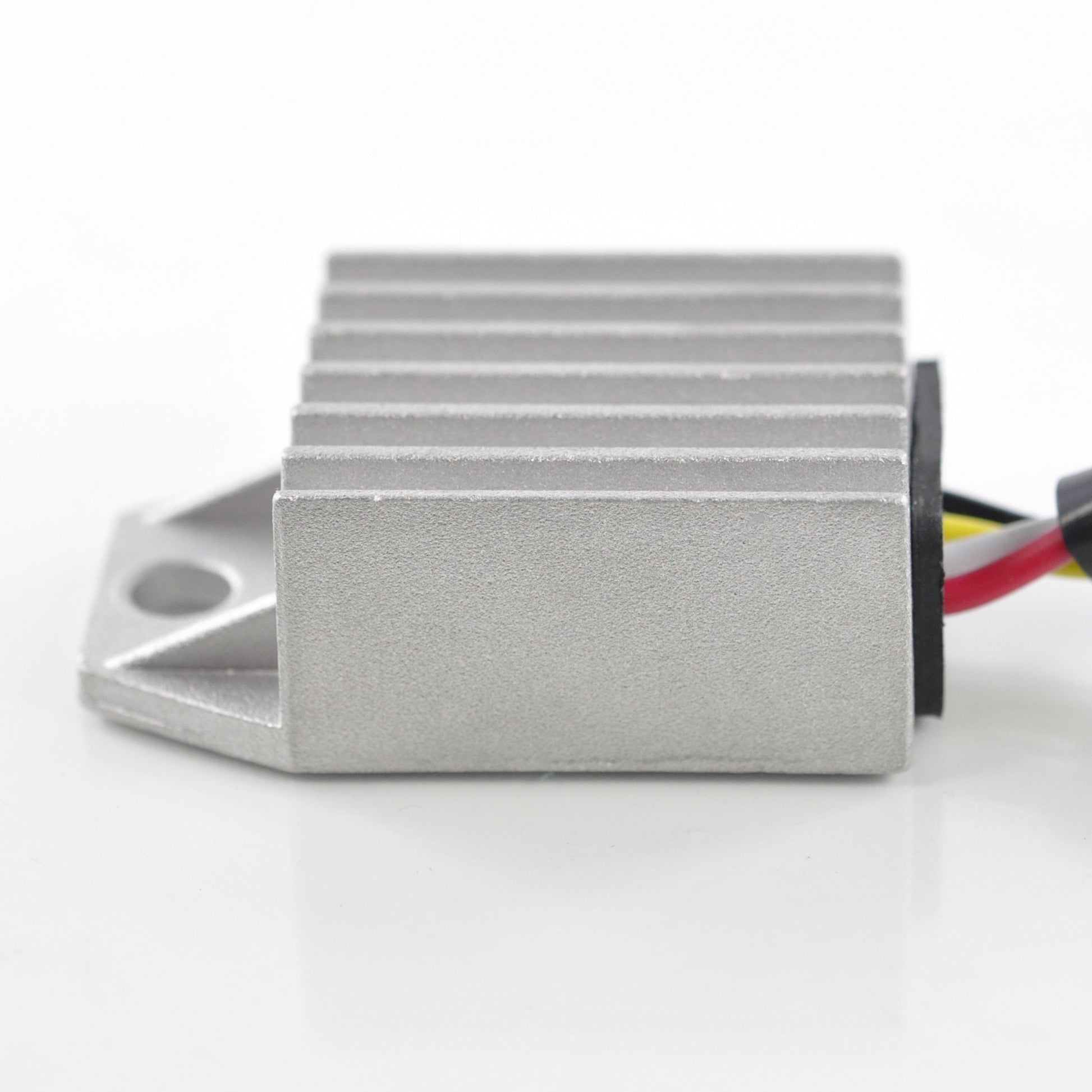

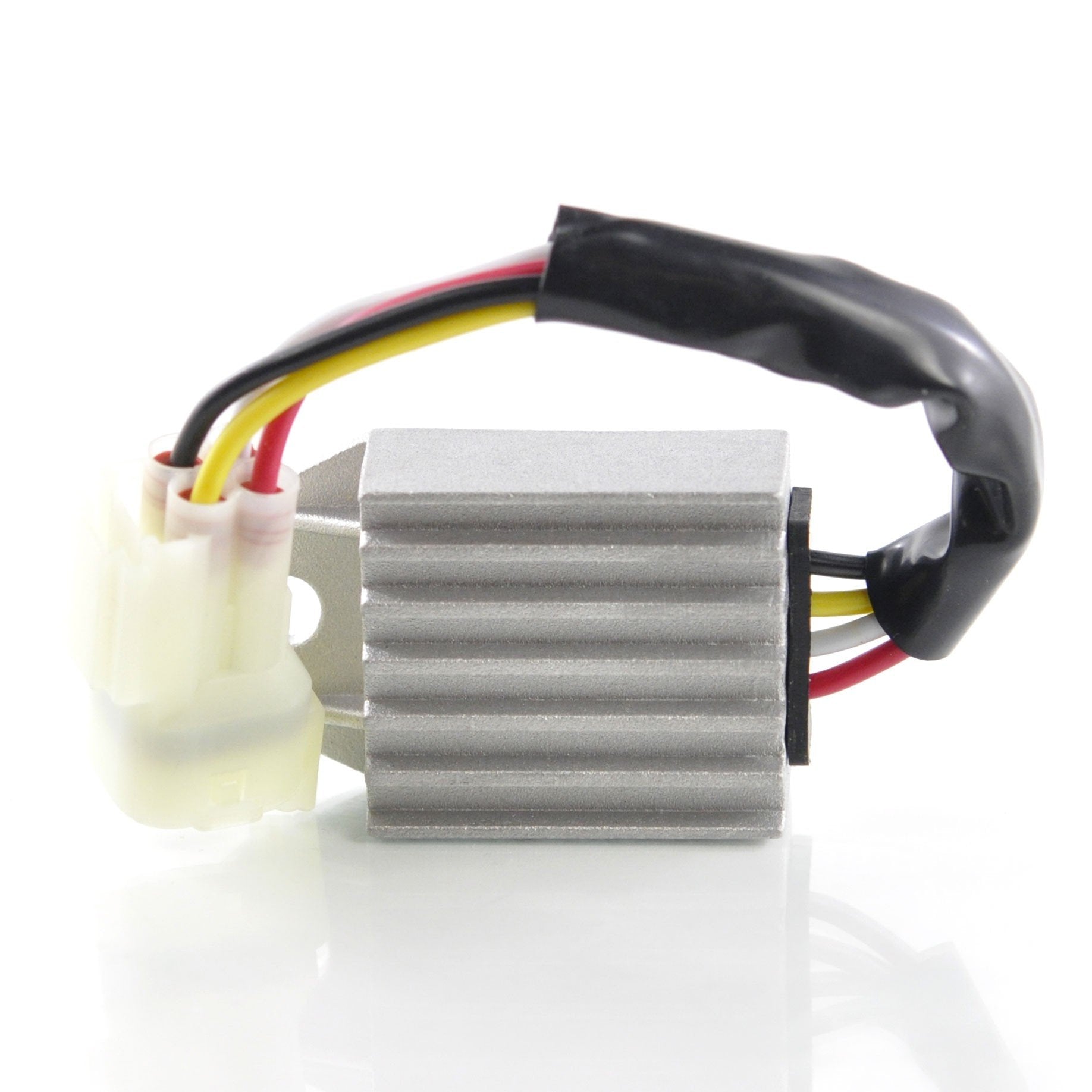

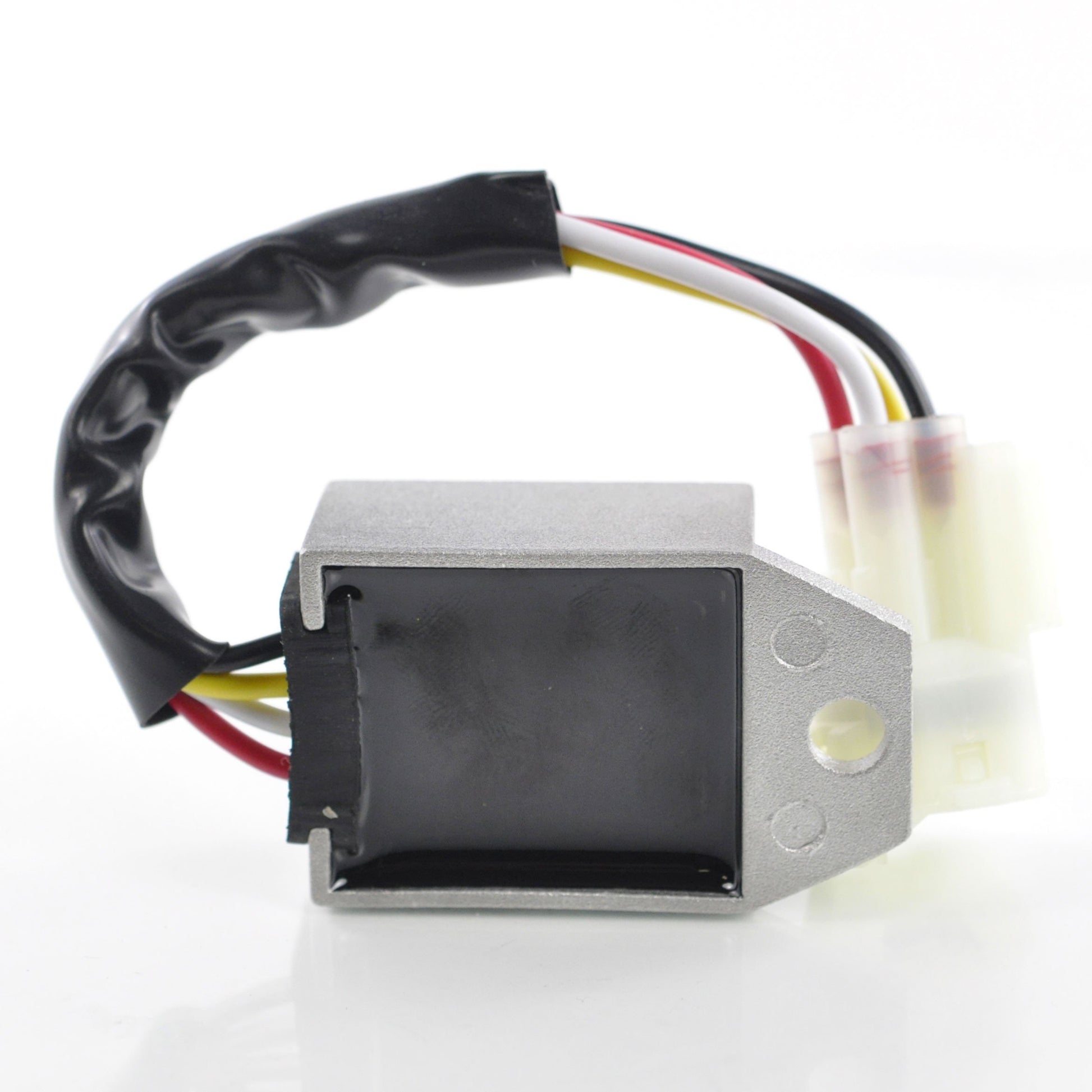

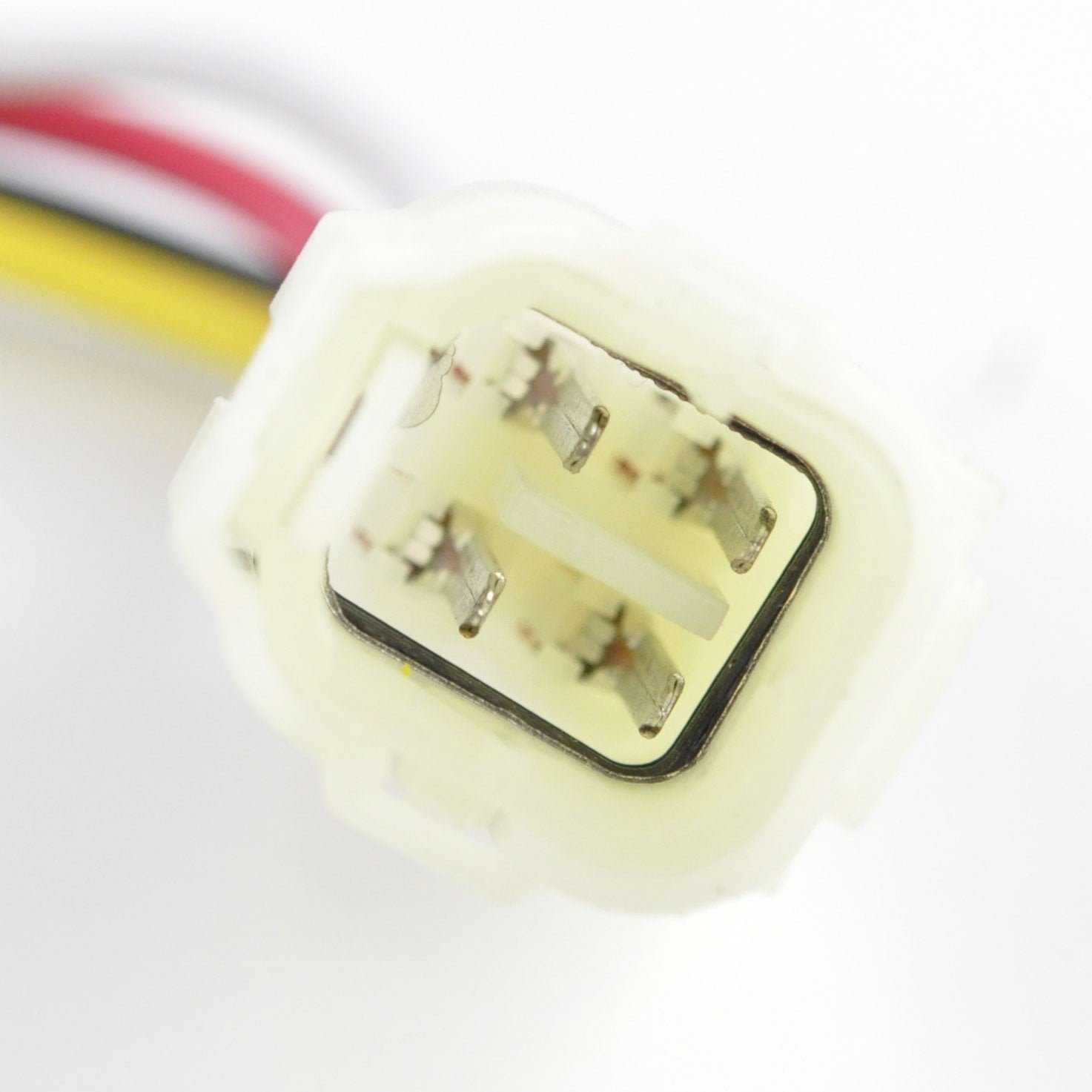

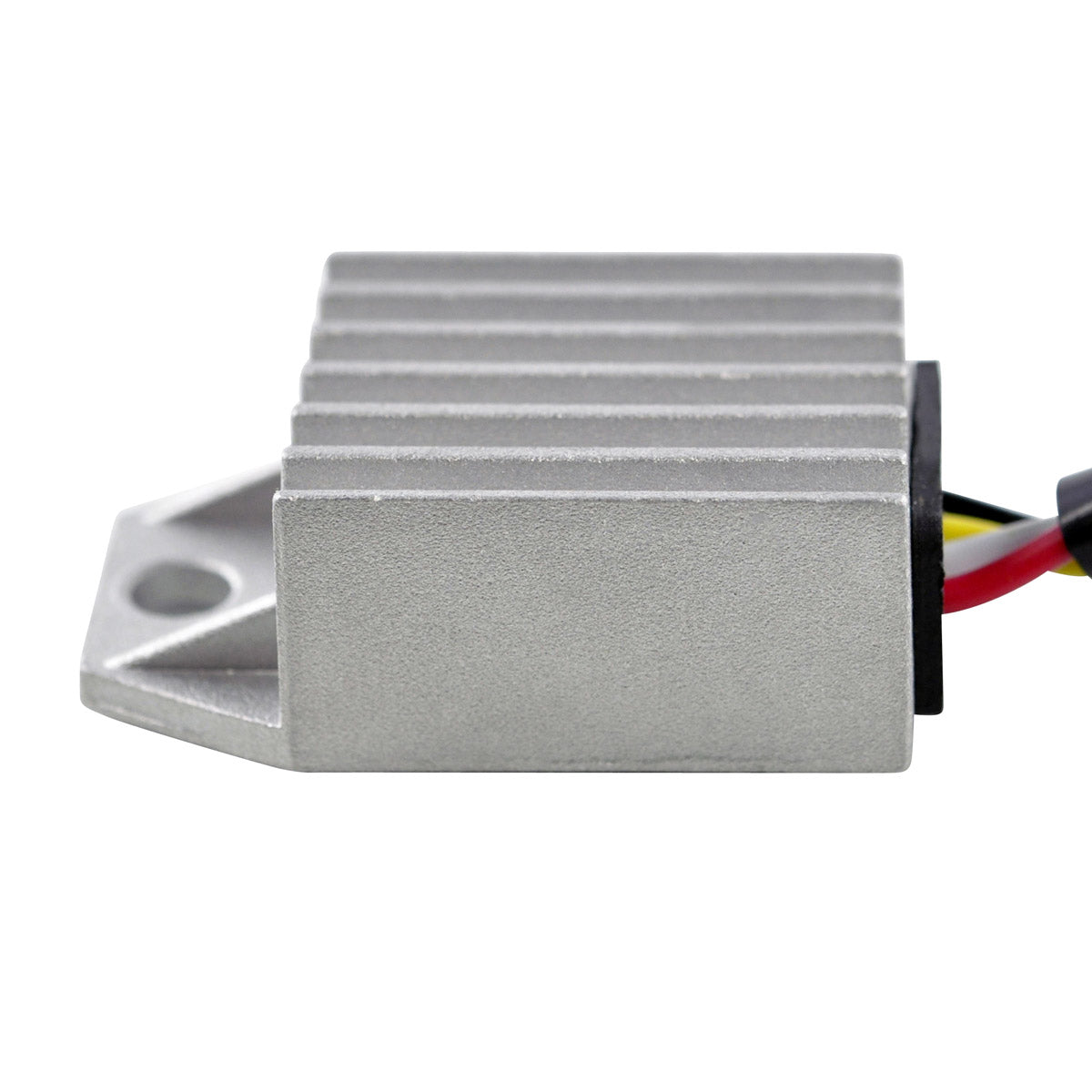

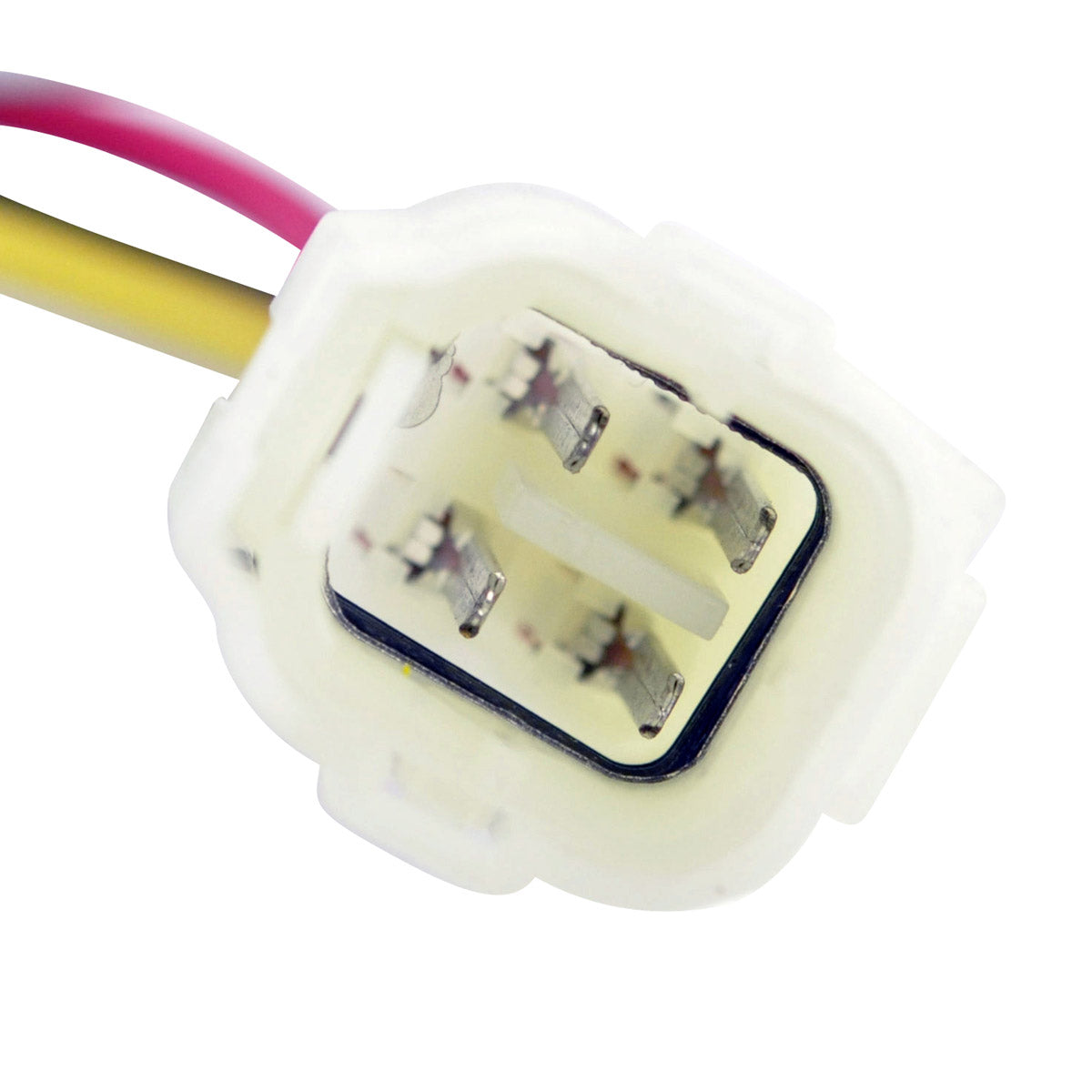

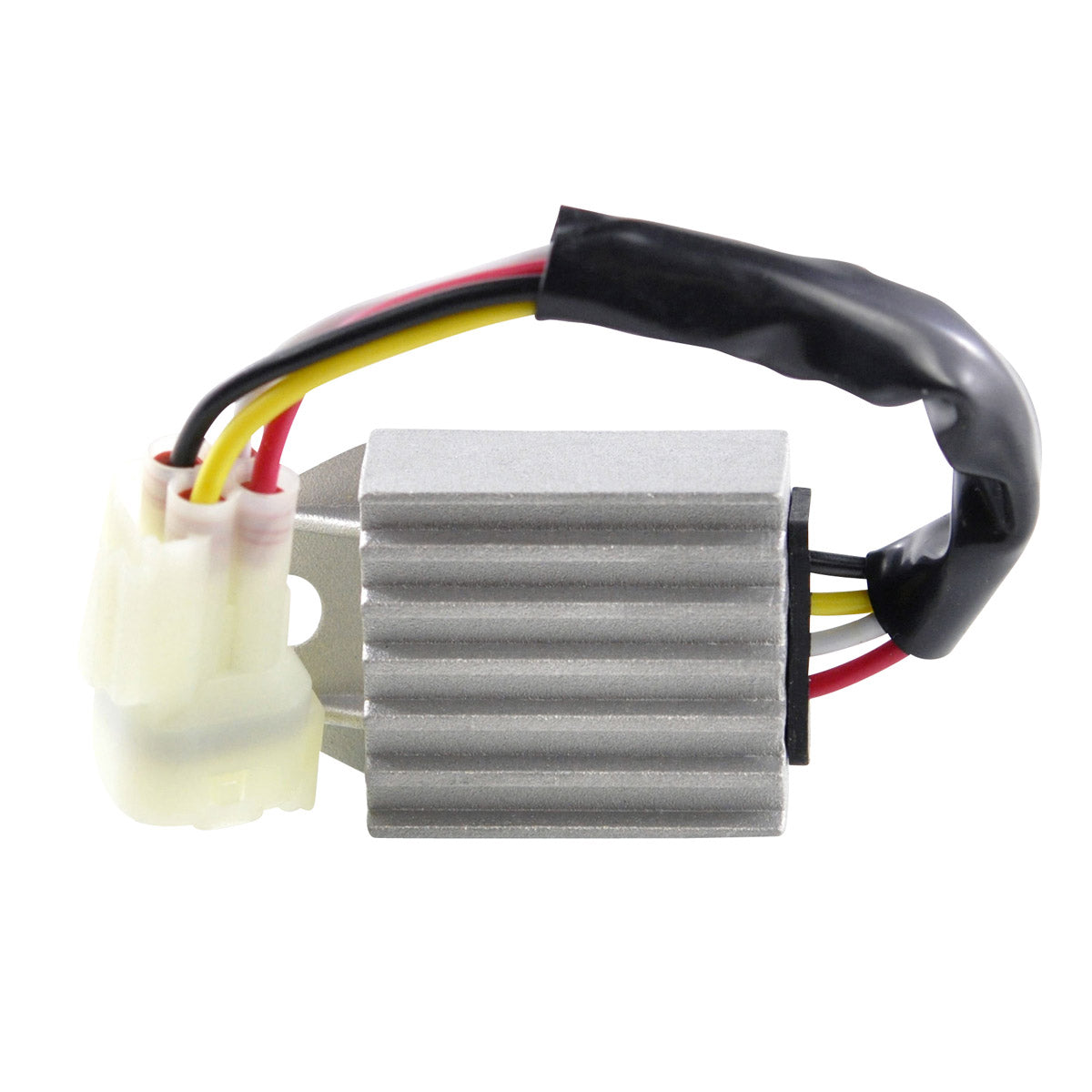

This is a compact single-plug, four-pin, four-wire regulator rated at 20 A / 150 W, holding a minimum charging voltage of 14.5 V +/- 0.5 V. RMSTATOR builds it with a higher grade of electrical components and states that the quality exceeds the OEM equipment. The opposite connector for the main harness side is included in the package.
Key Features
- Direct replacement for the original unit - no modification required
- Plug-and-play, direct fit, no assembly required
- Higher grade of electrical components
- Quality exceeds the OEM equipment
- Opposite connector for the main harness side included
- Compact 36 x 58 x 22 mm body with 122 mm wire length
- Rated to 20 A / 150 W maximum charging current
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | RMS020-103480 |
| Component | Voltage Regulator Rectifier |
| Width | 36 mm |
| Length | 58 mm |
| Height | 22 mm |
| Wire length | 122 mm |
| Number of plugs | 1 |
| Number of pins | 4 |
| Number of wires | 4 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 20 A / 150 W |
| Open circuit voltage | Under 15 V |
| Operating temperature range | -20 C to 85 C |
| Condition | New aftermarket |
| Warranty | 12 months |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat DVX 50 | 2006-2025 |
| Arctic Cat DVX 90 Utility | 2006-2025 |
| Arctic Cat Alterra 90 | 2006-2025 |
| Kawasaki KFX 50 | 2006-2025 |
| Kawasaki KFX 90 | 2006-2025 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3303-132 | Arctic Cat |
| 21066-Y001 | Kawasaki |
Frequently Asked Questions
Will this fit without modification?
Yes, on the models listed. It is a direct replacement for the original unit with a single four-pin plug and four wires, so it connects straight to the existing harness. Because the same regulator is used across Arctic Cat and Kawasaki youth machines, match the OEM number on your existing unit against the cross reference table if you want to be certain.
What is included?
The voltage regulator plus the opposite connector for the main harness side. No other accessories are listed.
How do I tell my old regulator has failed?
With the engine running, battery voltage should be pulled up towards 14.5 V +/- 0.5 V. If it stays at resting voltage the machine is not charging and will eventually not start; if it rises above 15 V the regulator is overcharging, which will ruin the battery and blow bulbs. On small machines like these a flat battery every few rides is the usual first symptom.
Why do the Arctic Cat and Kawasaki versions share a part?
The DVX, Alterra and KFX youth quads use the same basic single-phase charging system and the same four-pin connector, which is why one regulator carries both the Arctic Cat 3303-132 and Kawasaki 21066-Y001 numbers.
