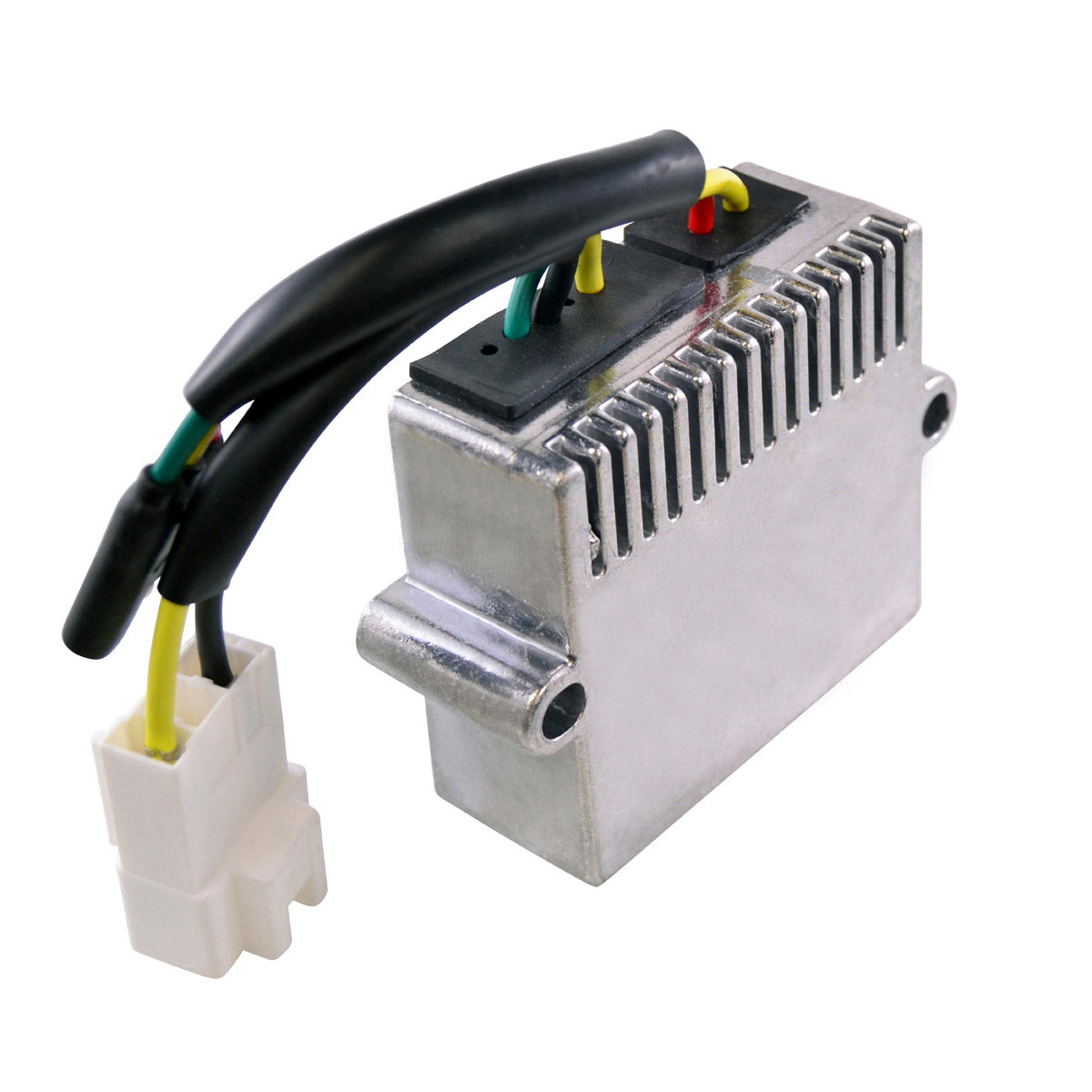

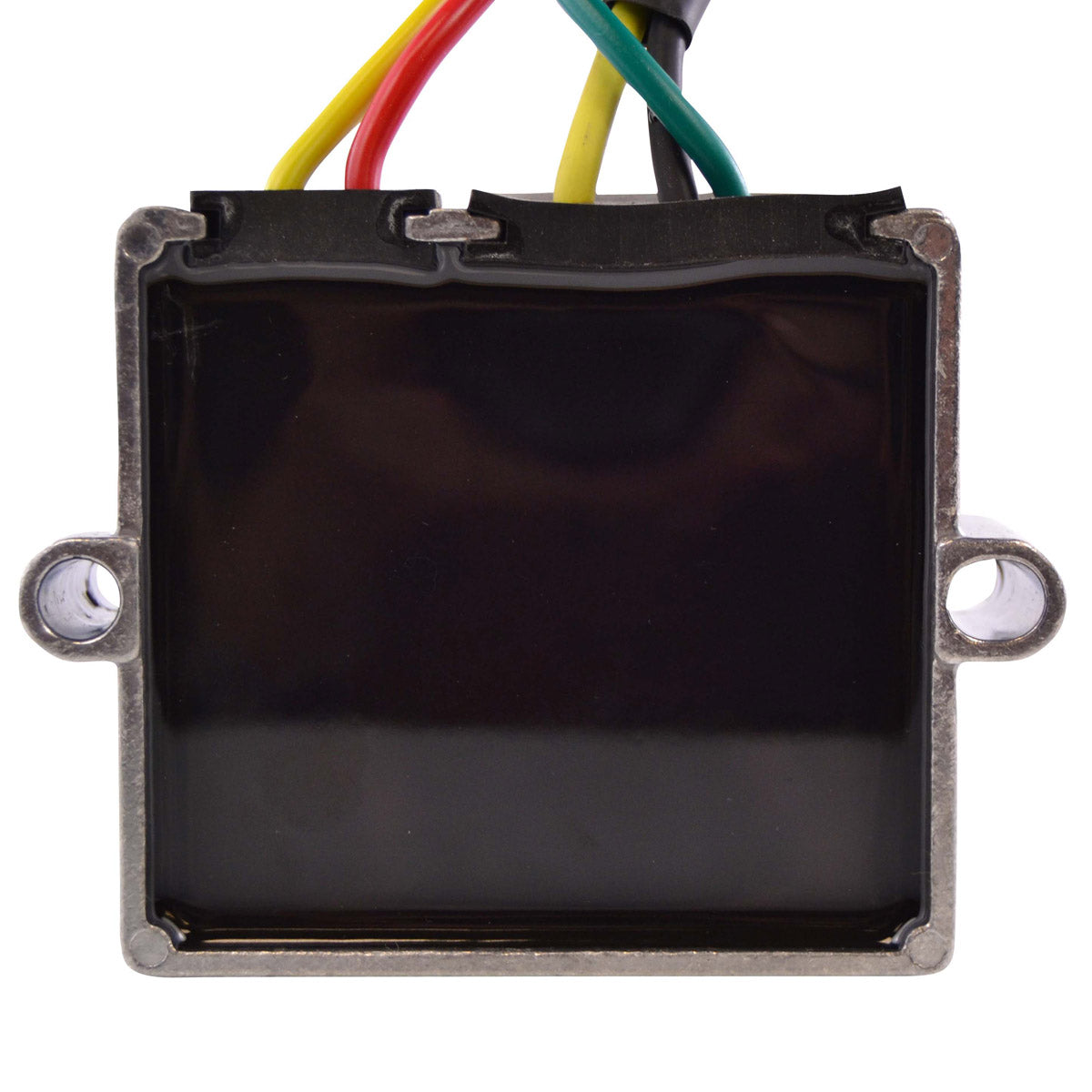

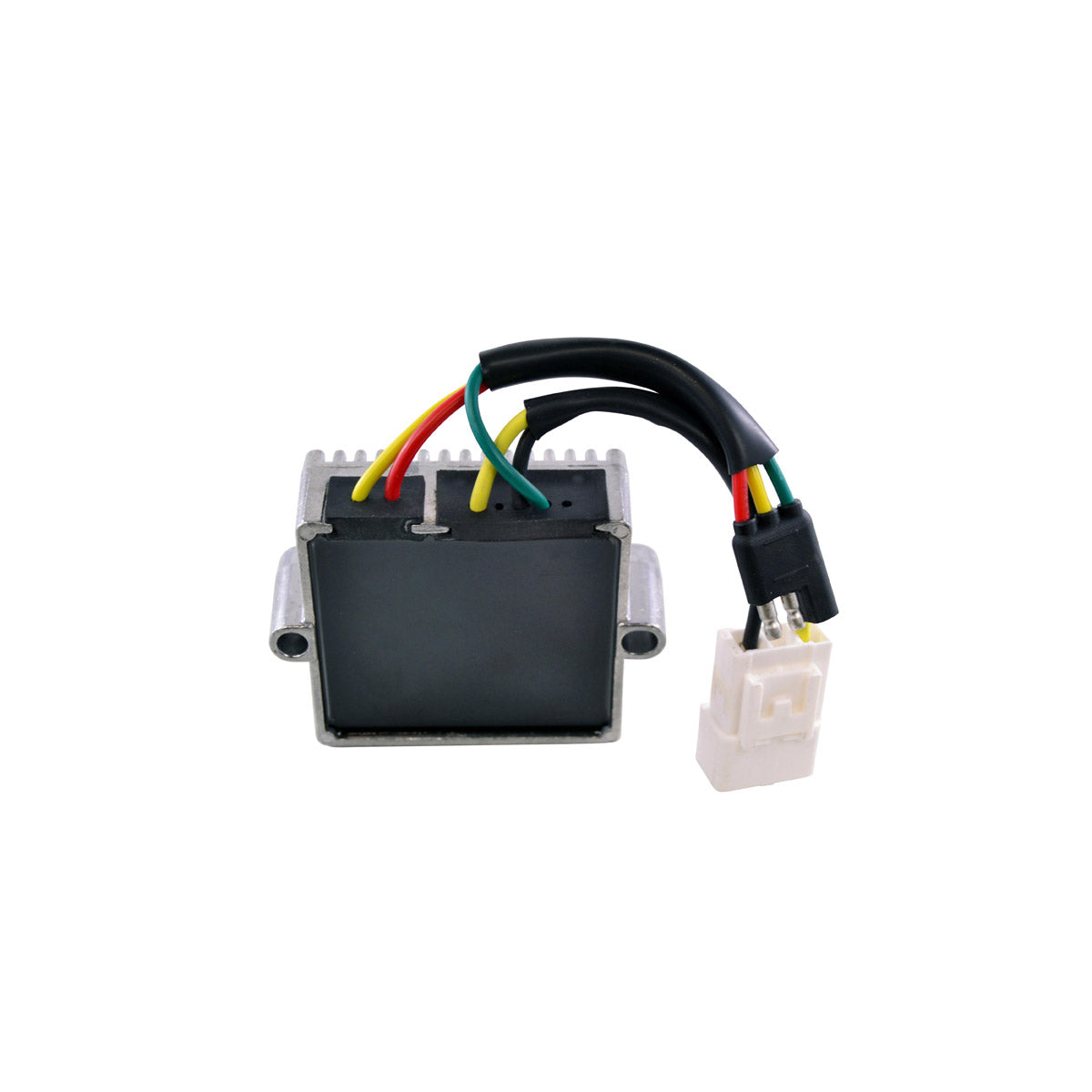

Voltage Regulator Rectifier for Arctic Cat
F8 Firecat 800, M 8000, T 500, XF 8000 and ZR 8000 - 2008-2017 - Part RM30366
This is a brand new aftermarket voltage regulator rectifier for Arctic Cat snowmobiles built between 2008 and 2017, covering the F8 Firecat 800, the M 8000, the T 500, the XF 8000 and the ZR 8000. It is supplied under RMSTATOR part number RM30366 and cross references to Arctic Cat OEM numbers 0630-322 and 0630-242.

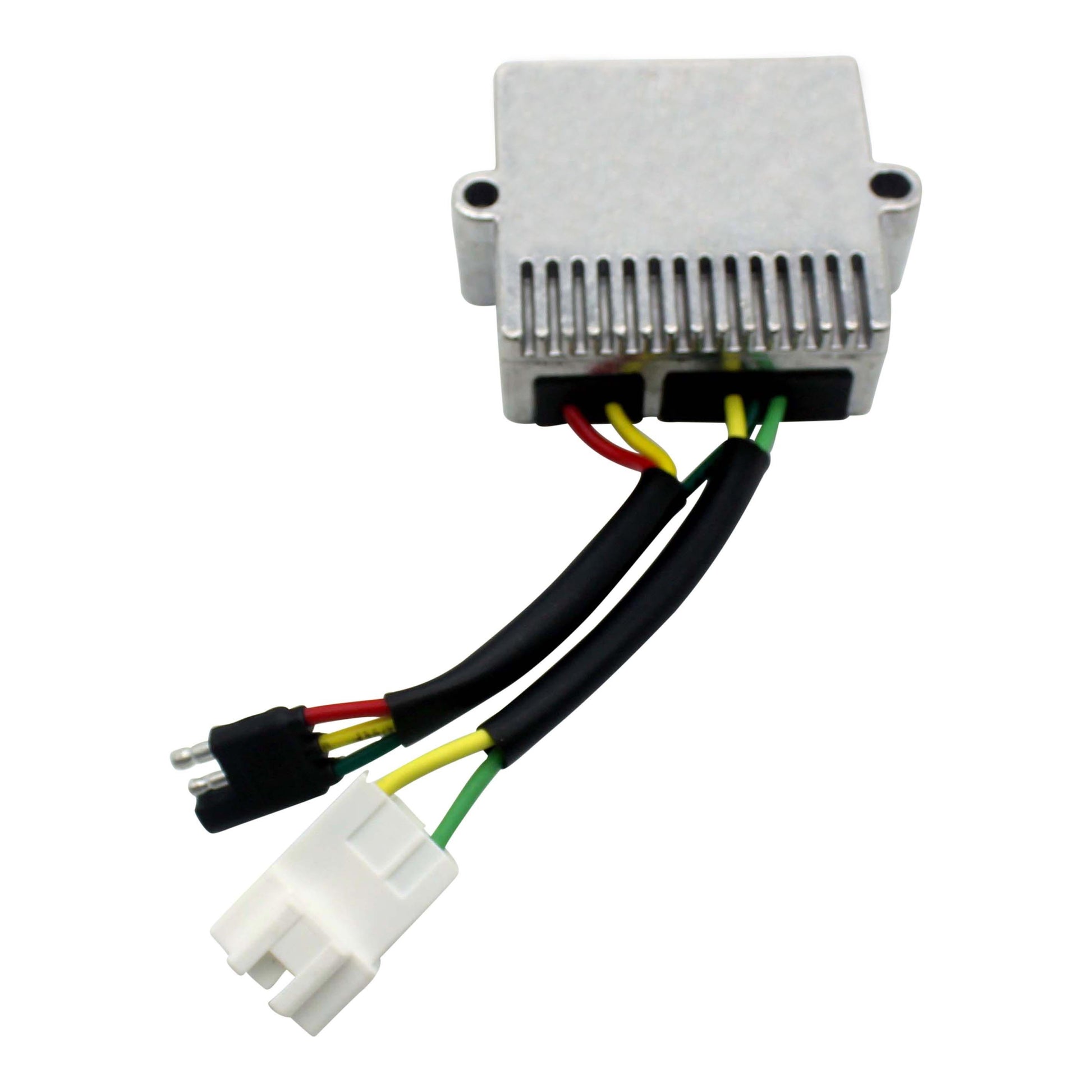

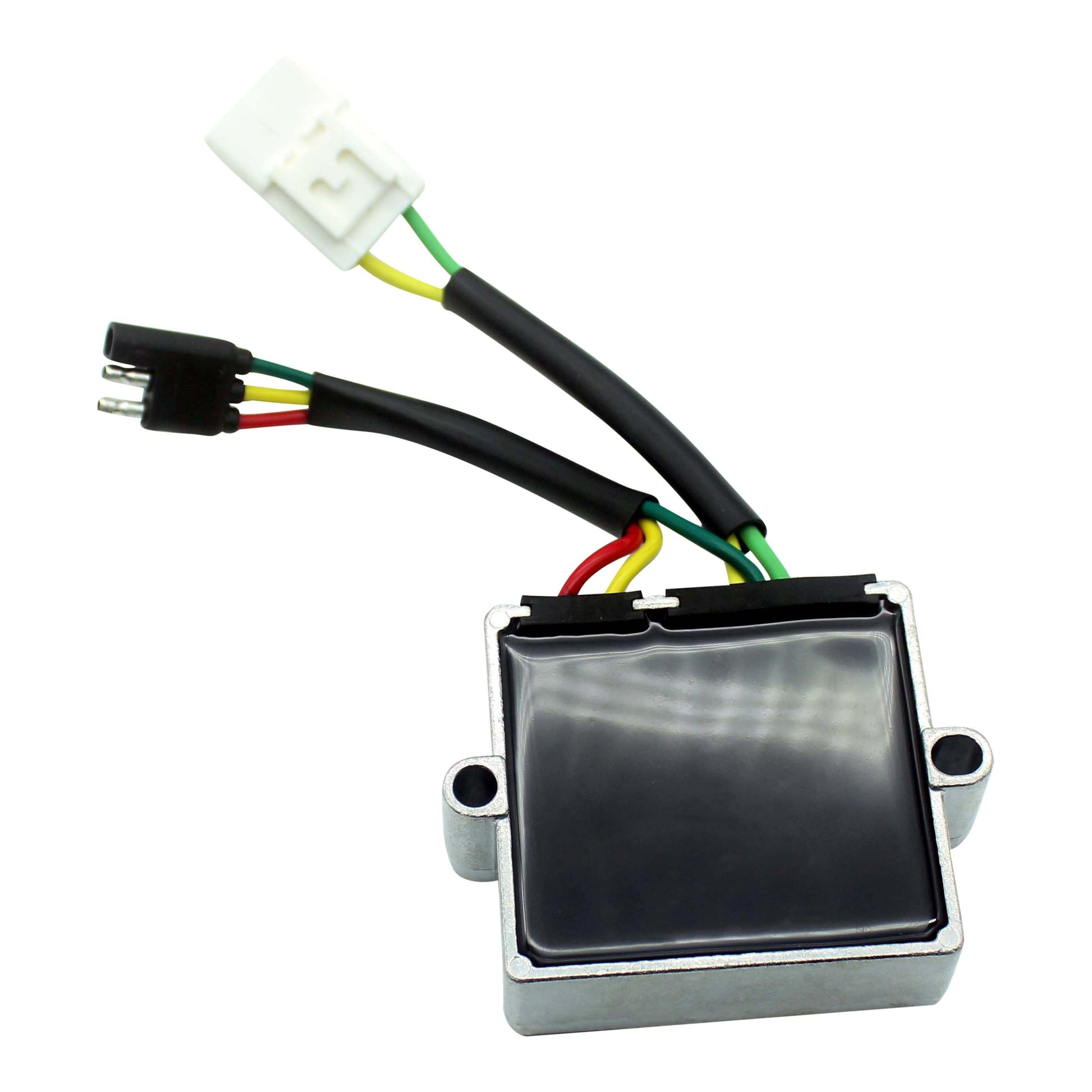

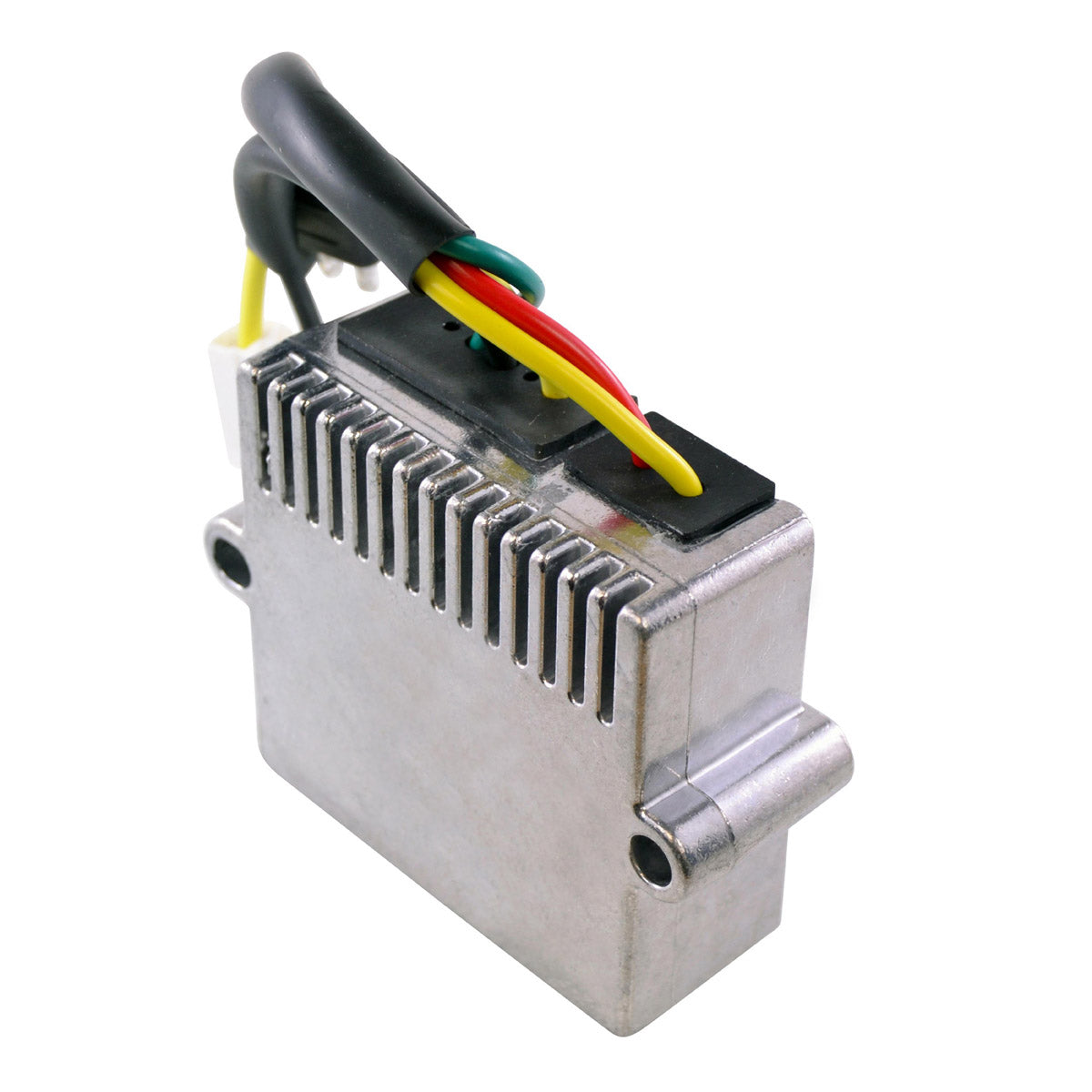

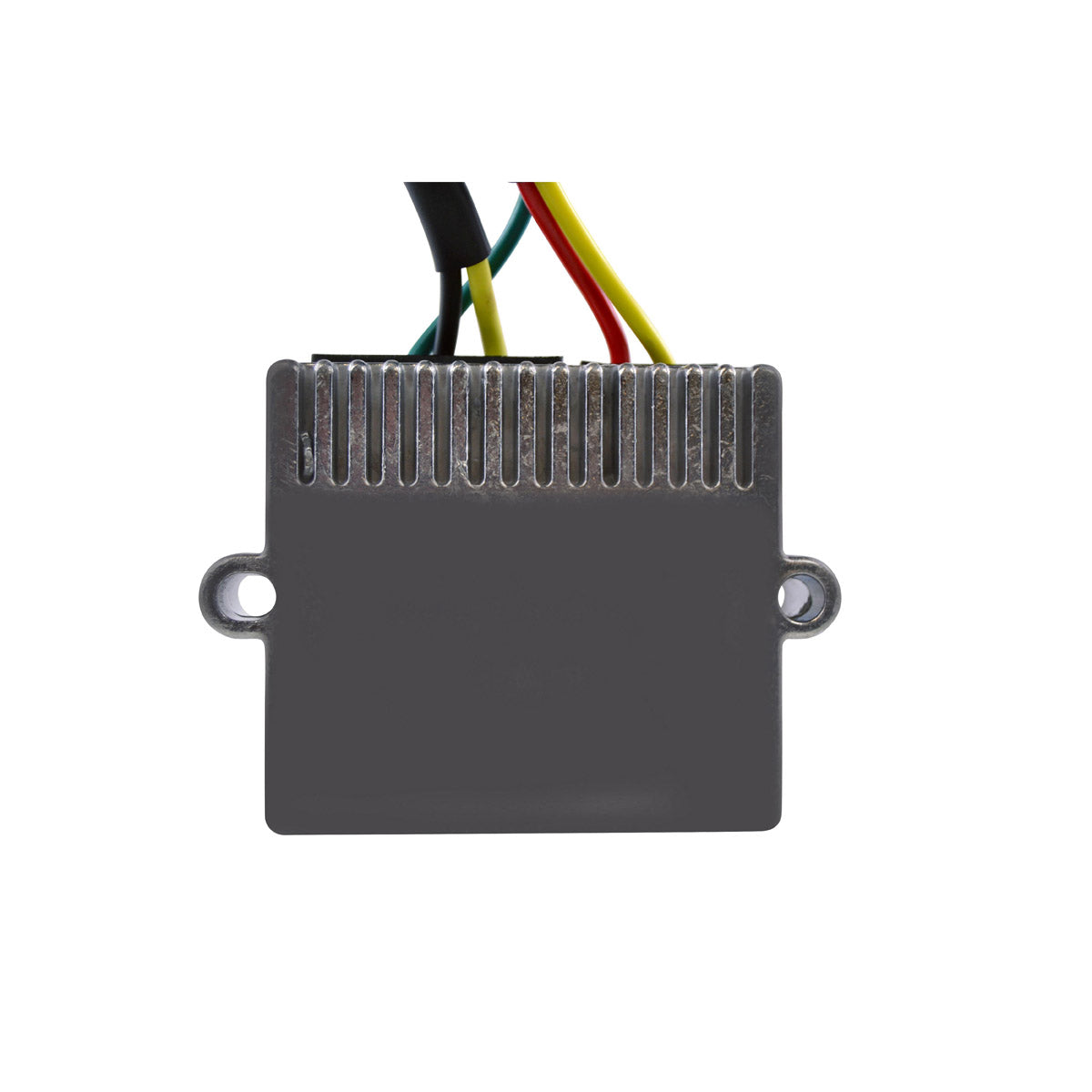

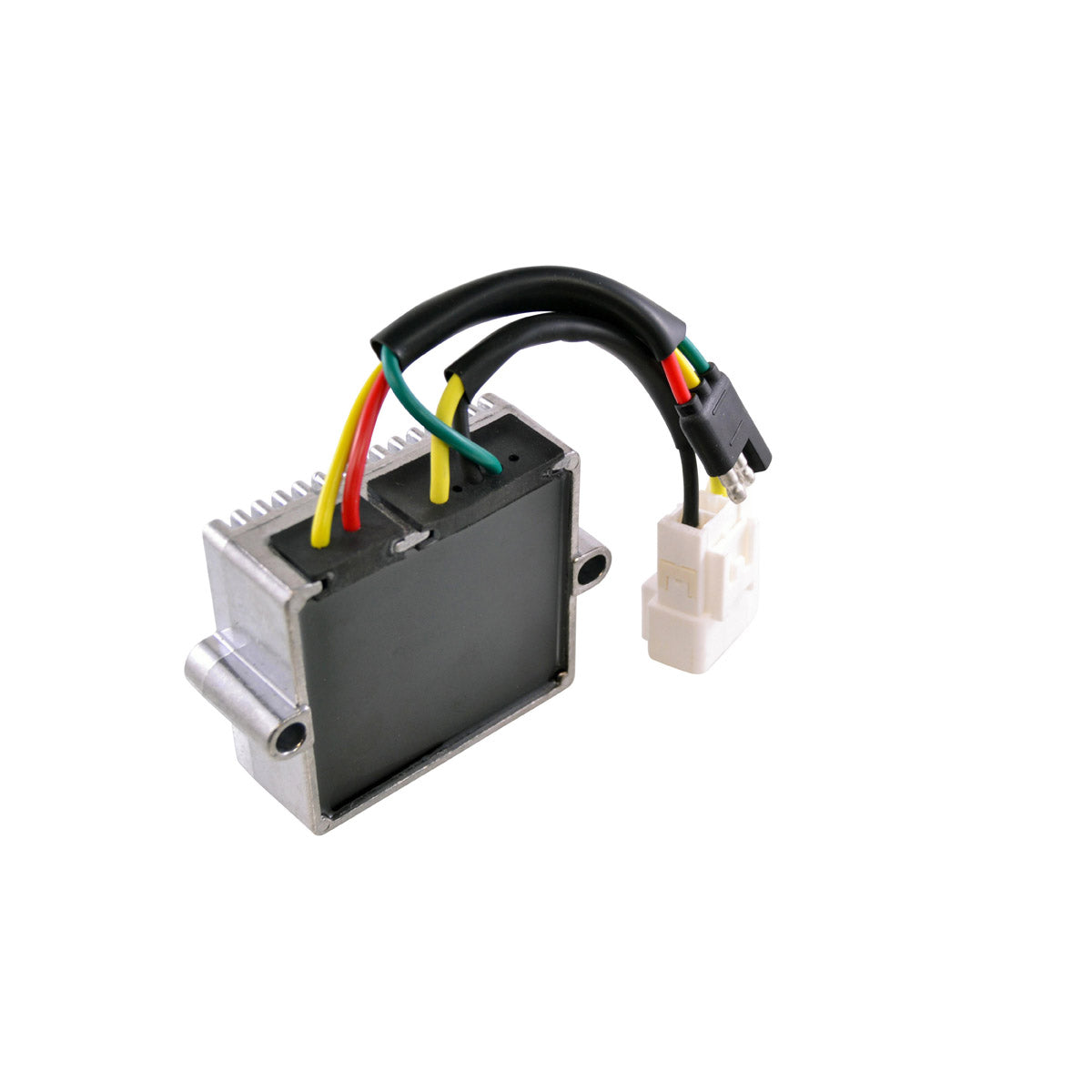

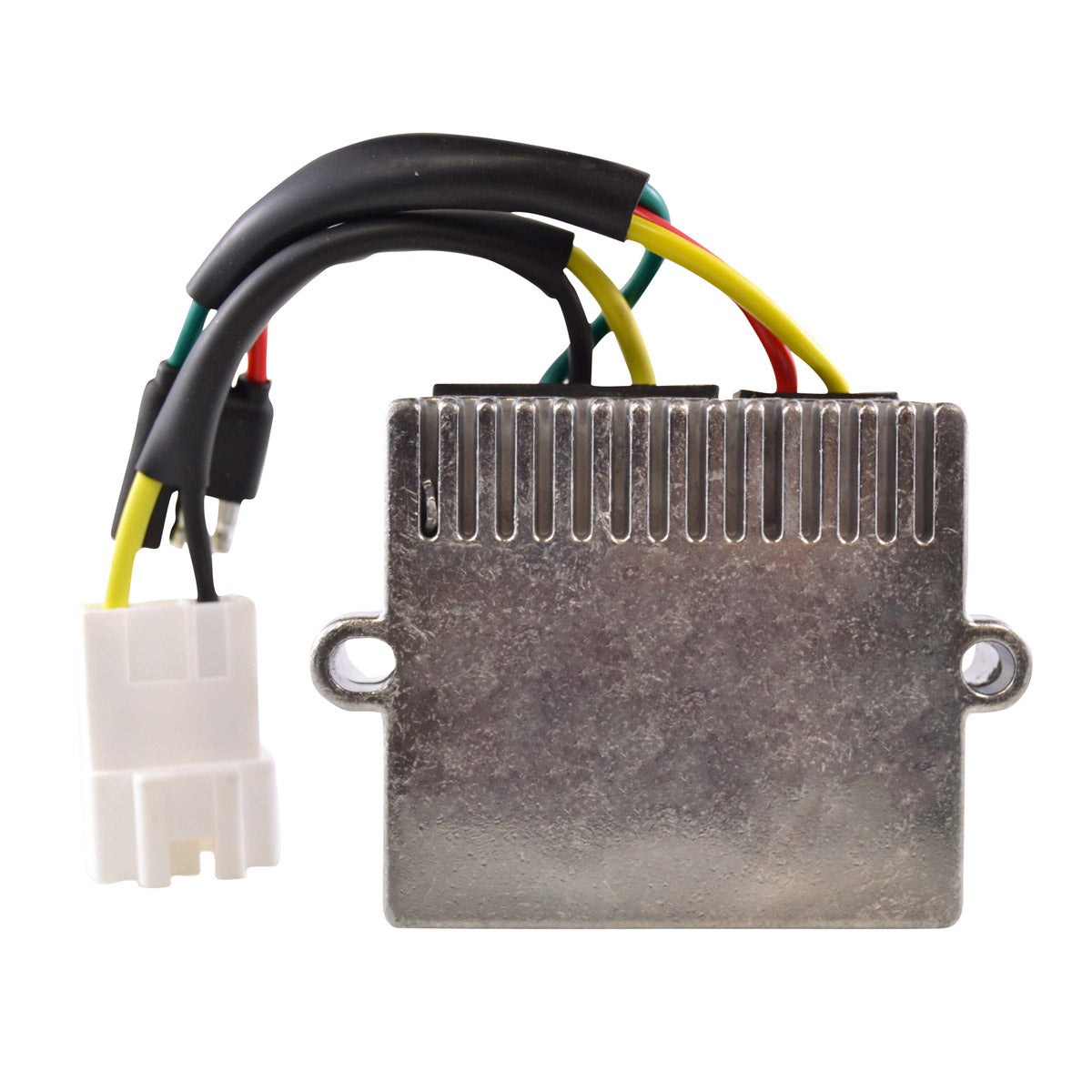

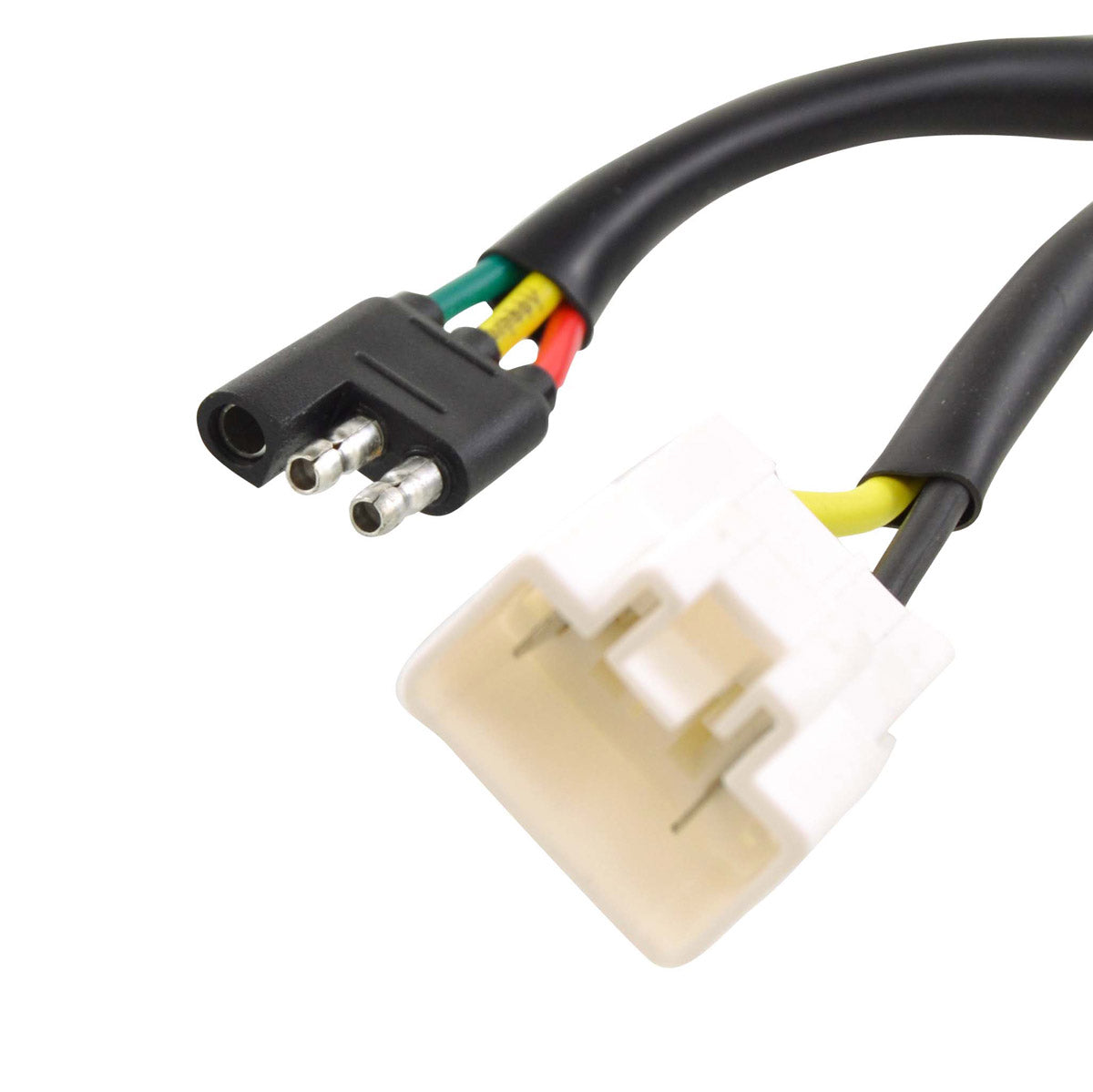

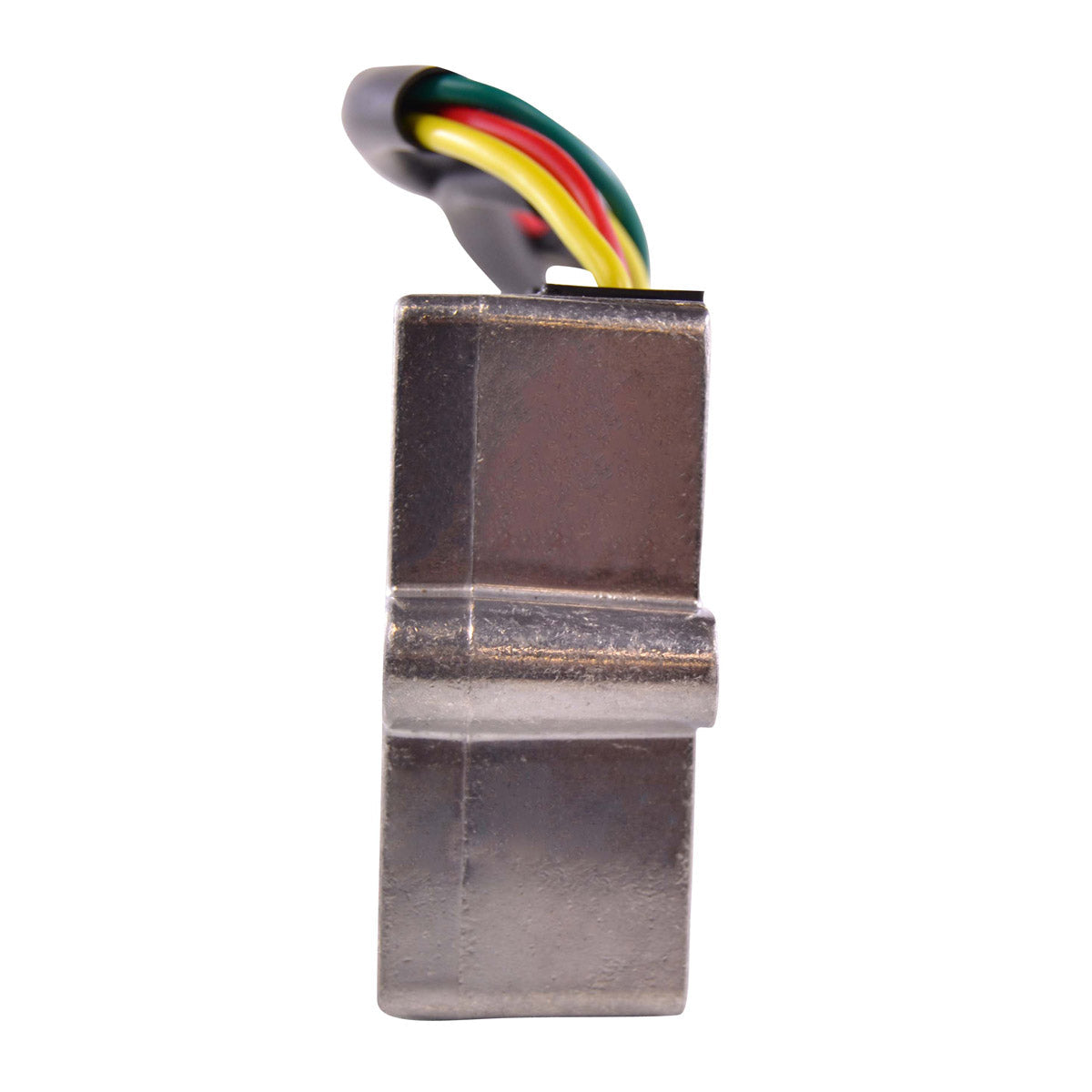

It is a direct replacement for the original unit, with the same two plugs, five pins and five wires and the same 95 mm fixing hole spacing, so it mounts on the standard bracket and plugs into the existing loom. There is no assembly to do and no wiring to change. A higher grade of electrical component is used throughout, the quality exceeds the original equipment specification, and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket voltage regulator rectifier
- Direct replacement for your original unit
- Plug and play, direct fit, easy installation
- No assembly required
- Higher grade of electrical components
- Quality exceeds the original equipment specification
- Regulated output of 14.5 V with a 50 A / 500 W maximum
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RM30366 |
| Width | 81 mm |
| Length | 87 mm |
| Height | 35 mm |
| Wire Lengths | 100 mm and 120 mm |
| Fixing Holes, Centre to Centre | 95 mm |
| Number of Plugs | 2 |
| Number of Pins | 5 |
| Number of Wires | 5 |
| Minimum Charging Voltage | 14.5 V +/- 0.5 V |
| Maximum Charging Current | 50 A / 500 W |
| Open Circuit Voltage | Under 15 V |
| Operating Temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat F8 Firecat 800 | 2008-2017 |
| Arctic Cat M 8000 | 2008-2017 |
| Arctic Cat T 500 | 2008-2017 |
| Arctic Cat XF 8000 | 2008-2017 |
| Arctic Cat ZR 8000 | 2008-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0630-322 | Arctic Cat |
| 0630-242 | Arctic Cat |
Frequently Asked Questions
Will it fit without modification?
Yes. RM30366 is a direct replacement for the original regulator on the listed Arctic Cat models. It has the same two plugs, five pins and five wires as the original and the fixing holes are 95 mm apart centre to centre, so it bolts to the standard bracket and plugs into the existing loom. No cutting, splicing or re-pinning is required.
What is included?
One voltage regulator rectifier, RMSTATOR part number RM30366. The mounting hardware from your original unit is reused; no other parts are supplied.
How do I know my old regulator has failed?
Look for a battery that will not hold charge, a battery that is gassing because it is being overcharged, lights and gauges that surge and dim with engine speed, and a regulator that runs far hotter than normal. With the engine running, a reading at the battery terminals well below 14 V or above 15 V usually points at the regulator rather than the stator.
How do I confirm this is the right regulator for my sled?
Check the number on the regulator you are removing: 0630-322 or 0630-242 confirms this part. Also check the physical match - two plugs, five wires, 95 mm between the mounting hole centres and an 81 mm by 87 mm body. Arctic Cat used more than one regulator across this period, so those checks are more reliable than model year alone.
