Voltage Regulator Rectifier with Sensor for Arctic Cat Firecat F5 F6 F7 & Sabercat 2003-2006
Voltage Regulator Rectifier with Sensor for Arctic Cat Firecat F5 F6 F7 & Sabercat 2003-2006
SKU:RM30363
Free shipping over £150. Terms apply
Couldn't load pickup availability

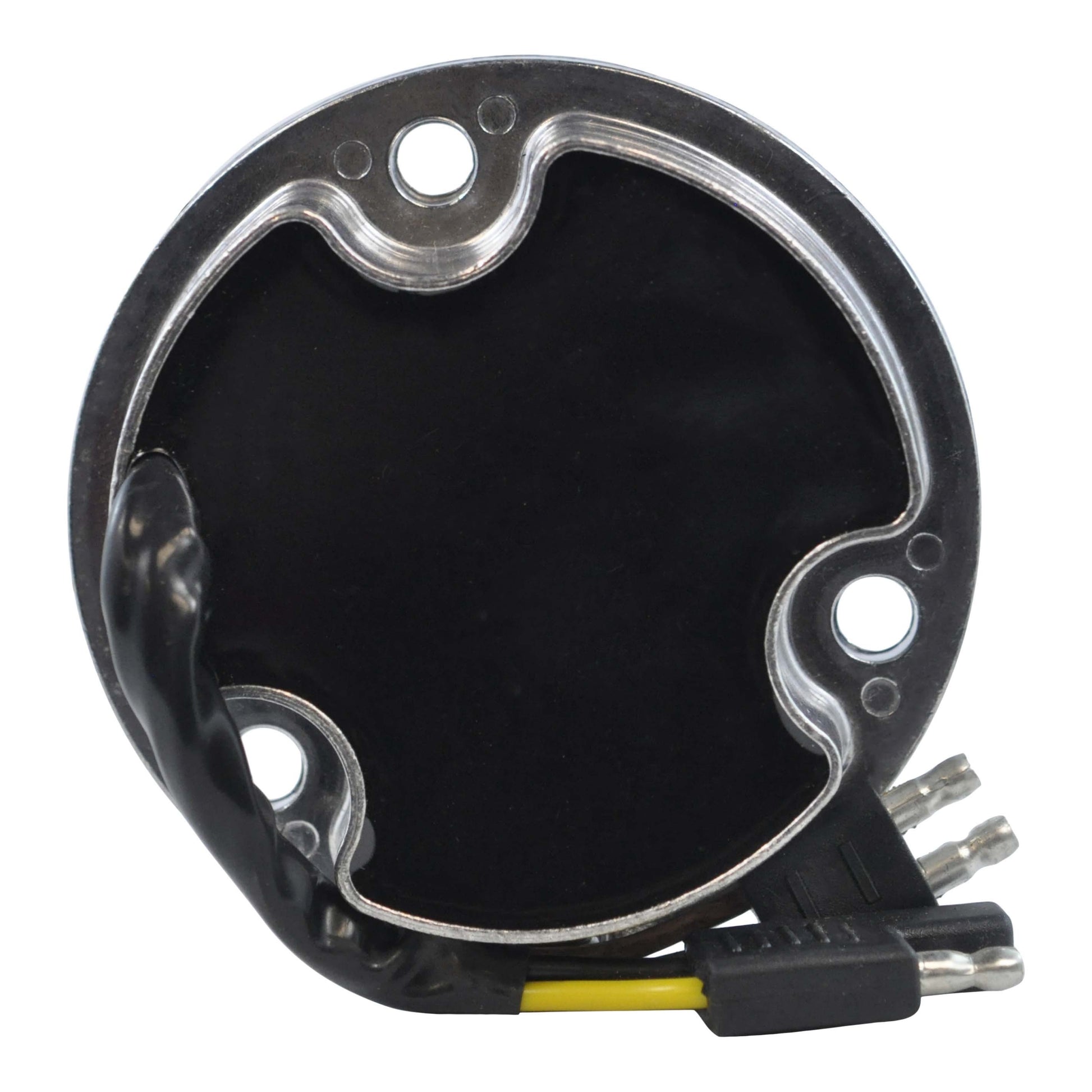

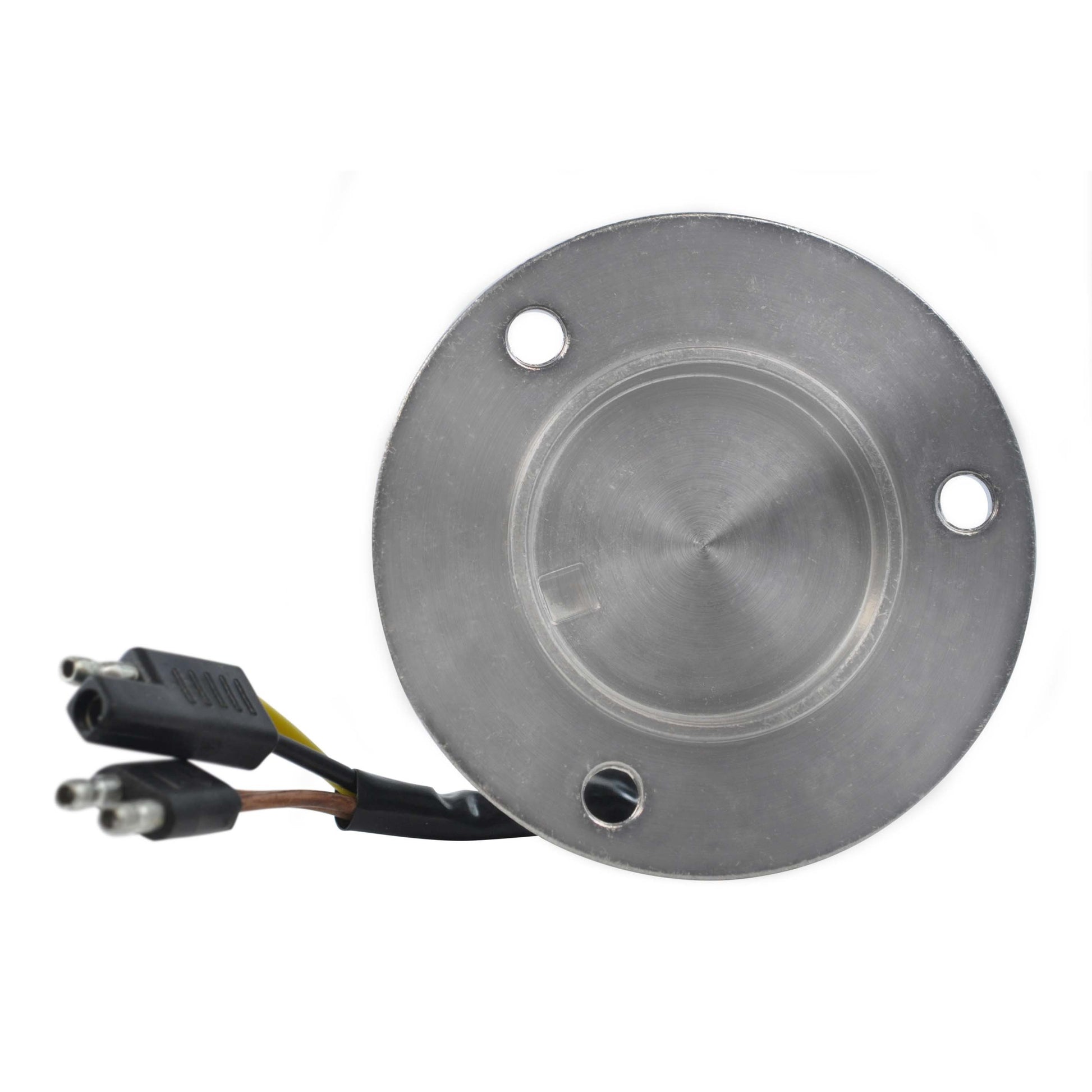

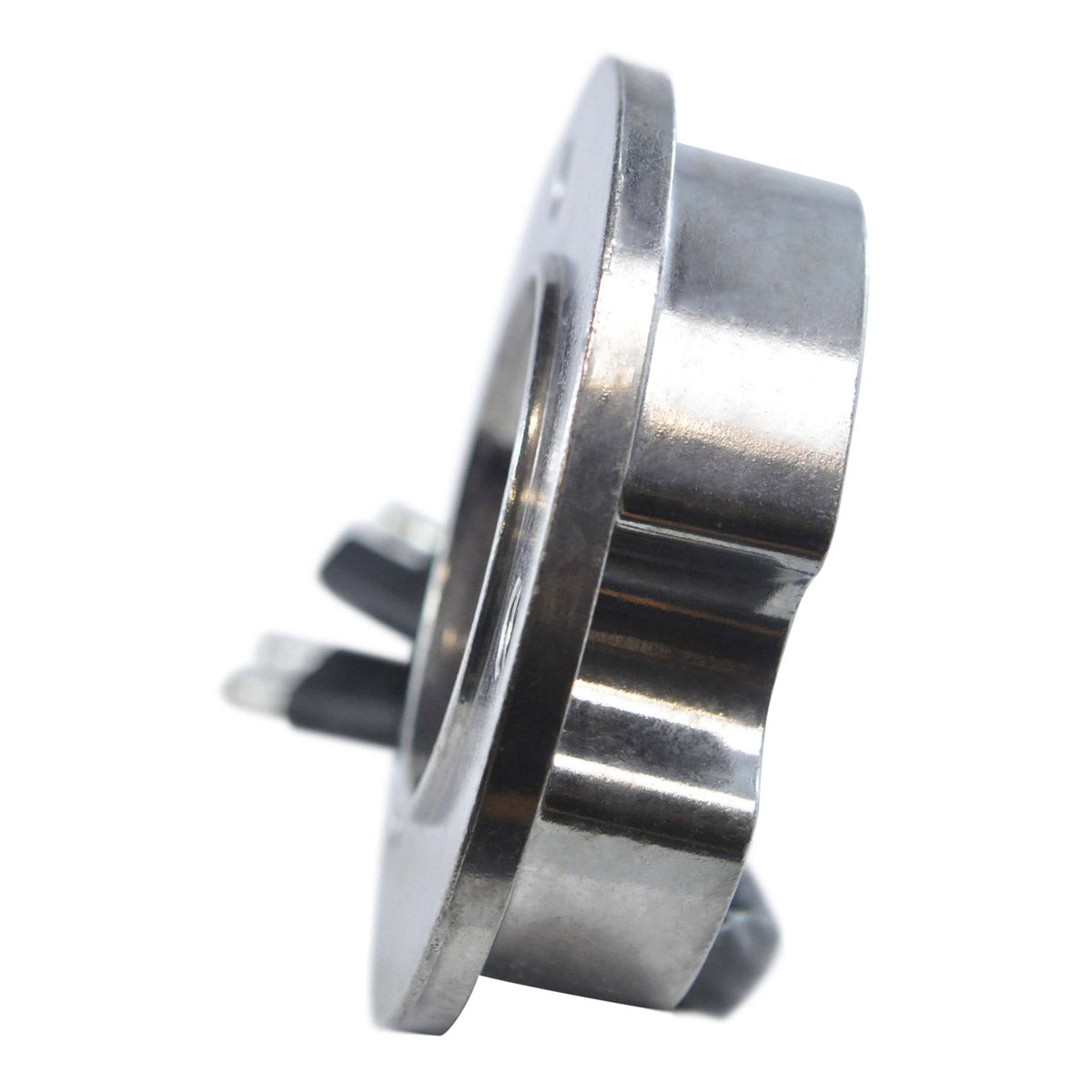

Voltage Regulator Rectifier with Sensor for Arctic Cat
440 Sno Pro, Firecat F5 F6 F7 500 600 700 and Sabercat - 2003-2006 - Part RM30363
This is a brand new aftermarket voltage regulator rectifier with sensor for Arctic Cat snowmobiles built between 2003 and 2006, covering the 440 Sno Pro, the F5, F6 and F7 Firecat 500, 600 and 700, and the Sabercat. It is supplied under RMSTATOR part number RM30363 and cross references to Arctic Cat OEM numbers 0630-170 and 0630-156.

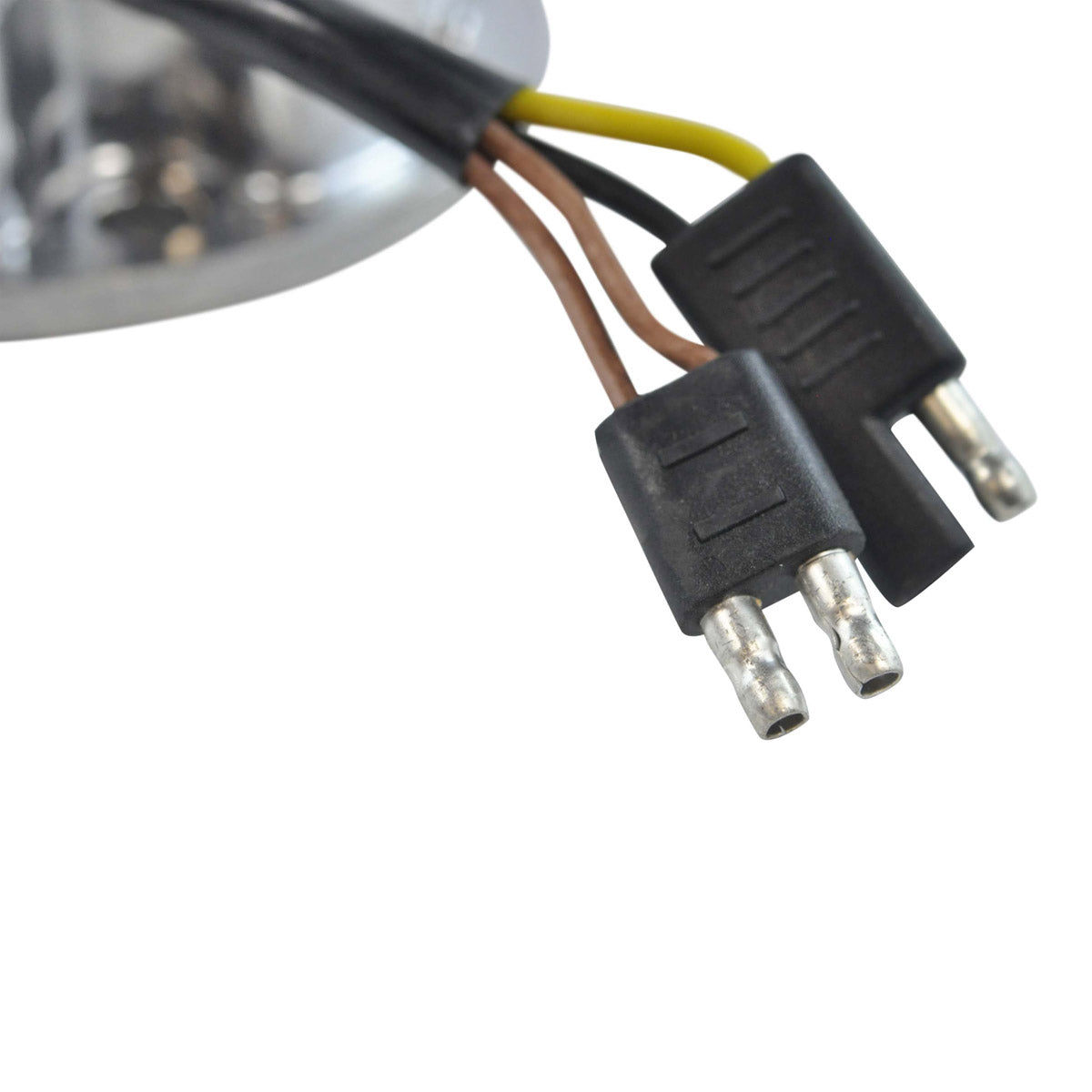

The unit is a direct replacement for the original regulator, complete with the sensor lead, so nothing has to be transferred from the old part. It uses the same two plugs and four wires as the original and the fixing holes are 65 mm apart centre to centre, so it mounts on the standard bracket and plugs into the existing loom. No assembly and no wiring changes are needed. A higher grade of electrical component is used throughout, and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket voltage regulator rectifier with sensor
- Direct replacement for your original unit
- Plug and play, direct fit, easy installation
- No assembly required
- Higher grade of electrical components
- Quality exceeds the original equipment specification
- Regulated output of 14.5 V with a 35 A / 400 W maximum
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RM30363 |
| Type | Voltage regulator rectifier with sensor |
| Width | 95 mm |
| Length | 95 mm |
| Height | 27 mm |
| Wire Length | 120 mm |
| Fixing Holes, Centre to Centre | 65 mm |
| Number of Plugs | 2 |
| Number of Pins | 2 |
| Number of Wires | 4 |
| Minimum Charging Voltage | 14.5 V +/- 0.5 V |
| Maximum Charging Current | 35 A / 400 W |
| Open Circuit Voltage | Under 15 V |
| Operating Temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat 440 Sno Pro | 2003-2006 |
| Arctic Cat Firecat F5 500 | 2003-2006 |
| Arctic Cat Firecat F6 600 | 2003-2006 |
| Arctic Cat Firecat F7 700 | 2003-2006 |
| Arctic Cat Sabercat | 2003-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0630-170 | Arctic Cat |
| 0630-156 | Arctic Cat |
Frequently Asked Questions
Will it fit without modification?
Yes. RM30363 is a direct replacement for the original regulator on the listed 2003-2006 Arctic Cat models. It has the same two plugs and four wires as the original and the fixing holes are 65 mm apart centre to centre, so it bolts to the standard bracket and plugs into the existing loom. No cutting, splicing or re-pinning is required.
What is included?
One voltage regulator rectifier with its sensor lead, RMSTATOR part number RM30363. The mounting hardware from your original unit is reused; no other parts are supplied.
How do I know my old regulator has failed?
Typical signs are a battery that will not hold charge, a battery that is gassing from overcharging, headlights and gauges that surge and dim with engine speed, and a regulator that runs much hotter than normal. With the engine running, a reading at the battery terminals well below 14 V or above 15 V normally points at the regulator rather than the stator.
What does the sensor on this regulator do?
This version is supplied as a regulator rectifier with sensor, the same configuration Arctic Cat fitted as standard under part numbers 0630-170 and 0630-156. The sensor lead is part of the unit and is not transferred from the old regulator, so make sure the part you are replacing has the same two plug arrangement before ordering.
