High Output Regulator Rectifier for Arctic Cat, Triumph and Suzuki
Arctic Cat 400 and 500 1996-1999 - Triumph Bonneville and Speedmaster 900 2000-2022 - Suzuki GSXR 750 1996-2005 - RMSTATOR part RM30405

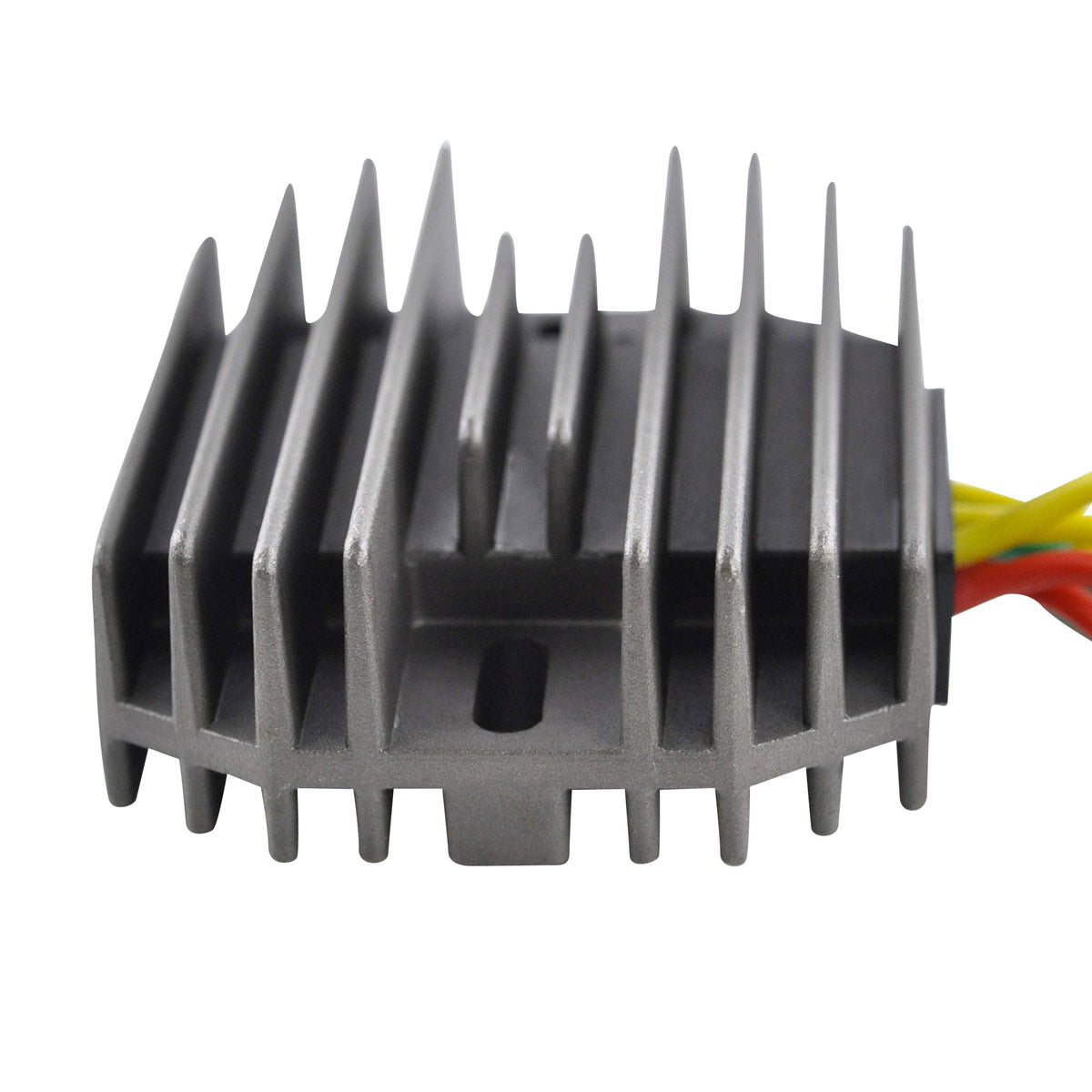

This is a brand new voltage regulator rectifier rated at 50 A, or 500 W, which makes it one of the higher output units in the range. It rectifies the alternating current produced by the stator into direct current and regulates the result so the battery and the electrical system see a controlled 14.5 V rather than raw alternator output. The larger 80 mm by 115 mm body and 80 mm mounting spacing reflect the heavier duty rating.
The part is a direct replacement for the original unit - plug-and-play, direct fit, easy installation. It is built with higher grade electrical components and an improved heat sink, and every unit is tested before shipping. Please note one exception from the manufacturer: the 1996 and early 1997 454 Bearcat 4x4 uses a different plug and will need the harness modified before this regulator can be fitted.
Key Features
- High output rating of 50 A / 500 W
- Direct replacement for the original unit - plug-and-play, direct fit, easy installation
- Improved heat sink capability
- Higher grade of electrical components

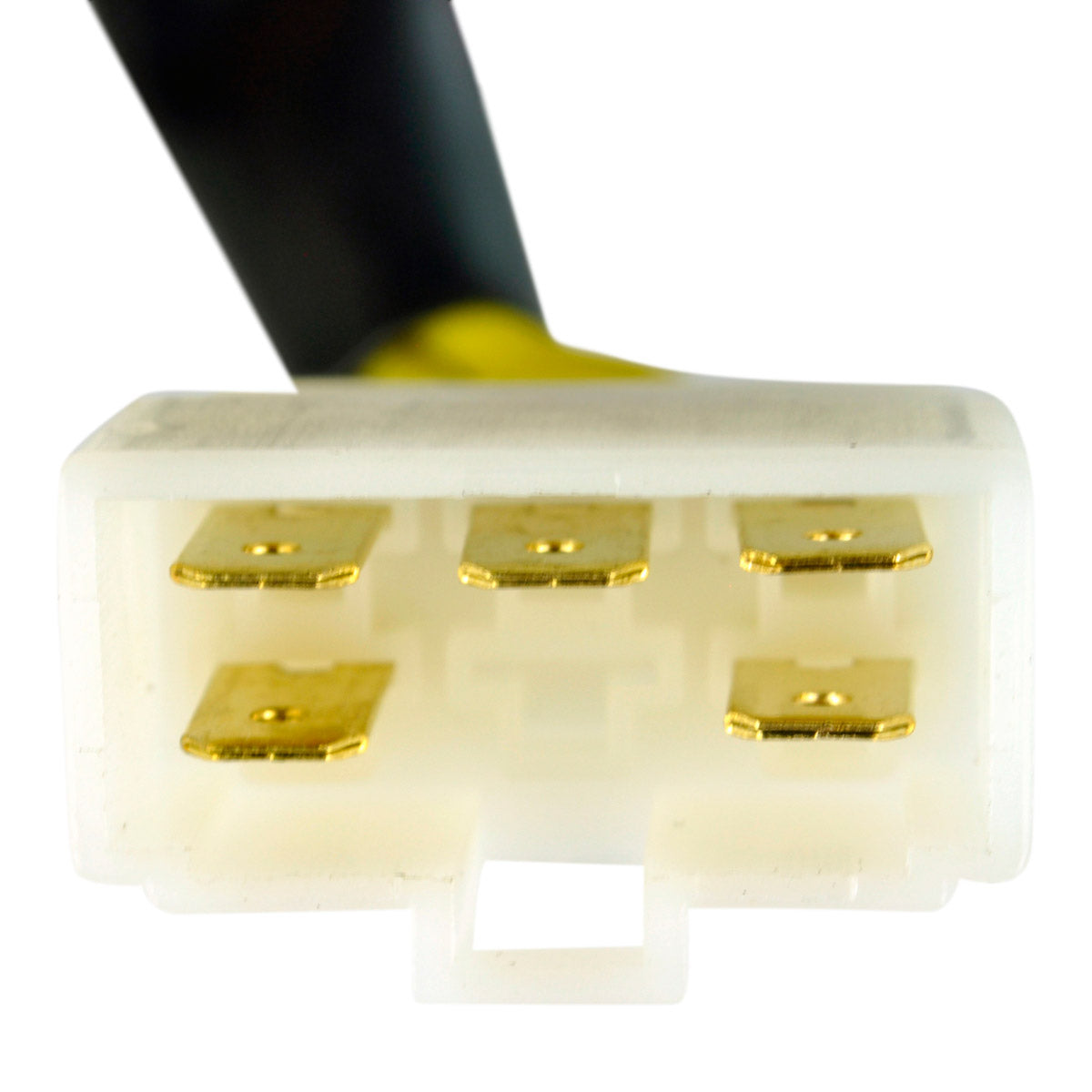

- Five wires, five pins, single plug on a 235 mm lead
- All units tested before shipping
- Note: 1996 and early 1997 454 Bearcat 4x4 has a different plug and requires harness modification
Technical Specs
| Specification | Detail |
|---|---|
| Manufacturer Part Number | RM30405 |
| Width | 80 mm |
| Length | 115 mm |
| Height | 54 mm |
| Wire Length | 235 mm |
| Fixation Holes Centre to Centre | 80 mm |
| Number of Plugs | 1 |
| Number of Pins | 5 |
| Number of Wires | 5 |
| Minimum Charging Voltage | 14.5 V +/- 0.5 V |
| Maximum Charging Current | 50 A / 500 W |
| Open Circuit Voltage | Under 15 V |
| Operation Temperature Range | -20 C to 85 C |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Arctic Cat 400 | 1996-1999 |
| Arctic Cat 500 | 1996-1999 |
| Triumph Bonneville 900 | 2000-2022 |
| Triumph Speedmaster 900 | 2000-2022 |
| Suzuki GSXR 750 | 1996-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3430-016 | Arctic Cat |
| 3430-037 | Arctic Cat |
| 3430-072 | Arctic Cat |
| T1300888 | Triumph |
| T1300889 | Triumph |
| T1300890 | Triumph |
| T1300819 | Triumph |
| 32800-33E00 | Suzuki |
| 32800-33E10 | Suzuki |
| 32800-33E20 | Suzuki |
| 32800-33E21 | Suzuki |
| 32800-44D10 | Suzuki |
| 32800-44D11 | Suzuki |
Frequently Asked Questions
Does it fit without modification?
On the listed models it is a plug-and-play direct fit needing no assembly or wiring changes, with 80 mm centre to centre mounting holes. The one documented exception is the 1996 and early 1997 454 Bearcat 4x4, which uses a different plug and needs the harness modified first.
What do I receive?

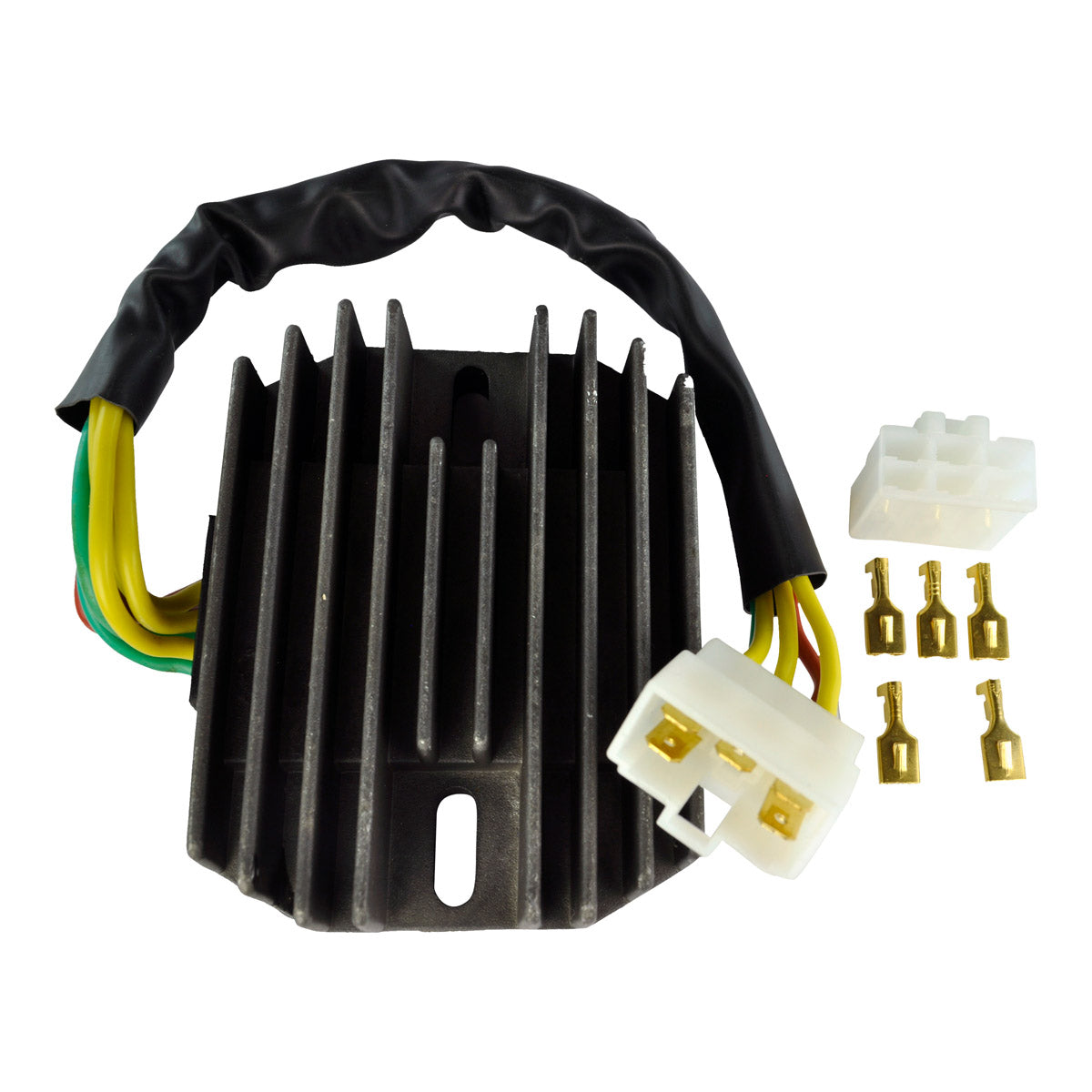

The regulator rectifier unit with five wires terminating in a single five-pin plug on a 235 mm lead. Every unit is tested before it is shipped.
How do I tell my old unit has failed?
With the engine running, check the voltage at the battery terminals. This regulator holds around 14.5 V. If the figure never climbs above resting battery voltage the unit is not charging; if it goes past 15 V the unit is not regulating and the battery will be damaged.
Is 50 A more than my machine needs?
The 50 A / 500 W rating is a ceiling, not a fixed output. The regulator only passes what the charging system and the loads on it actually draw, so the extra headroom simply means the unit runs cooler and with more margin than a lower rated part.
