Regulator Rectifier for Arctic Cat Snowmobiles 2009-2017, Part Code
New aftermarket replacement part

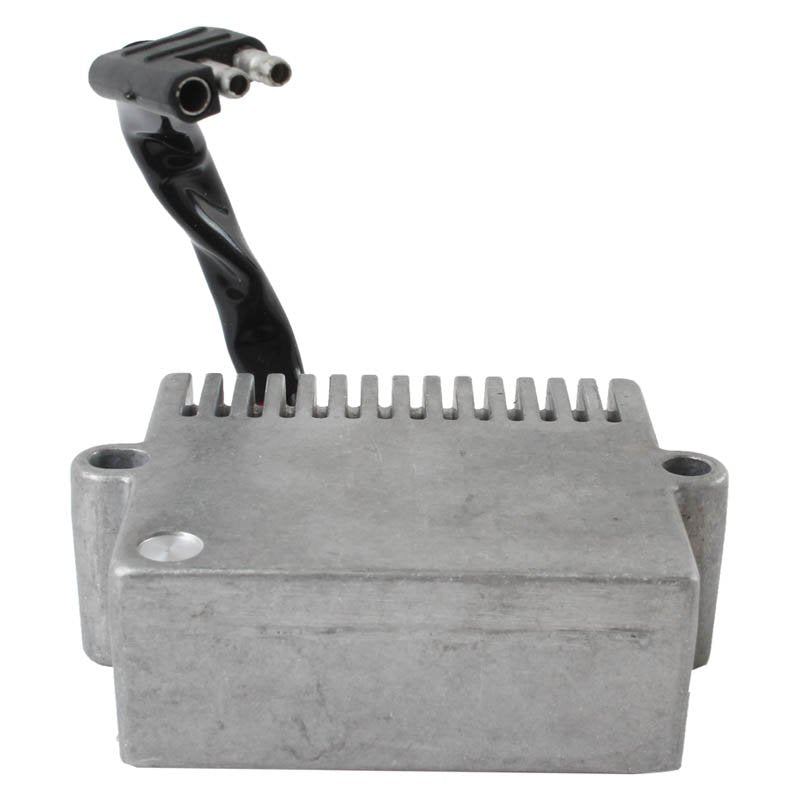

Regulator Rectifier for Arctic Cat Snowmobiles 2009-2017, Part Code 230-22143 - a new aftermarket regulator / rectifier, supplied ready to fit.
The regulator/rectifier converts AC from the stator into regulated DC. When it fails you get boiling batteries and blown bulbs from overcharging, or a flat battery from no charge at all.
Key Features
- 100% new aftermarket unit - not a remanufactured core
- Direct-fit replacement, no modification required on listed applications
- Built to meet or exceed the original equipment specification
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | 230-22143 |
| Component | Regulator / Rectifier |
| Condition | New aftermarket |
| Warranty | 12 months |
Vehicle Fitment Guide
| Model | Years |
|---|---|
| 500 Sno Pro | 2010-2014 |
| Bearcat 2000 XTE | 2015-2016 |
| Bearcat 570 and Bearcat 570 XTE CF8/CFR8/CFR1000 | 2009-2014 |
| F800 LXR, Sno Pro, Sno Pro LTD, Sno Pro RR, THSE | 2012-2013 |
| M1000 and M1000 Sno Pro | 2009-2011 |
| M6000 LTD ES | 2016 |
| M8 series including HCR, LE Sno Pro, Sno Pro LTD | 2009-2011 |
| M800 series including HCR, Sno Pro, Sno Pro LTD | 2012-2013 |
Frequently Asked Questions
How do I test a regulator rectifier?
Measure battery voltage with the engine running: below about 13.5V means undercharging, above about 15V means the regulator has failed open and is overcharging. Check the stator output first so you do not replace the wrong part.
Does it come with the connector?
It is supplied with the original style connector on the models listed. Check the images against your existing unit.
Why do these fail so often?
Heat. They dissipate excess charging current as heat, so a blocked cooling fin area, a corroded earth or a weak battery all shorten their life. Mount it where it gets airflow.
Will a failed regulator damage anything else?
Yes - overcharging cooks batteries and blows bulbs, and a shorted regulator can take the stator with it. Fit the replacement promptly.
