Voltage Regulator for Sea-Doo 780 & 951 GTX 1998-2006 and Can-Am DS 650 2000-2002
Voltage Regulator for Sea-Doo 780 & 951 GTX 1998-2006 and Can-Am DS 650 2000-2002
SKU:RM30Y05
Free shipping over £150. Terms apply
Couldn't load pickup availability

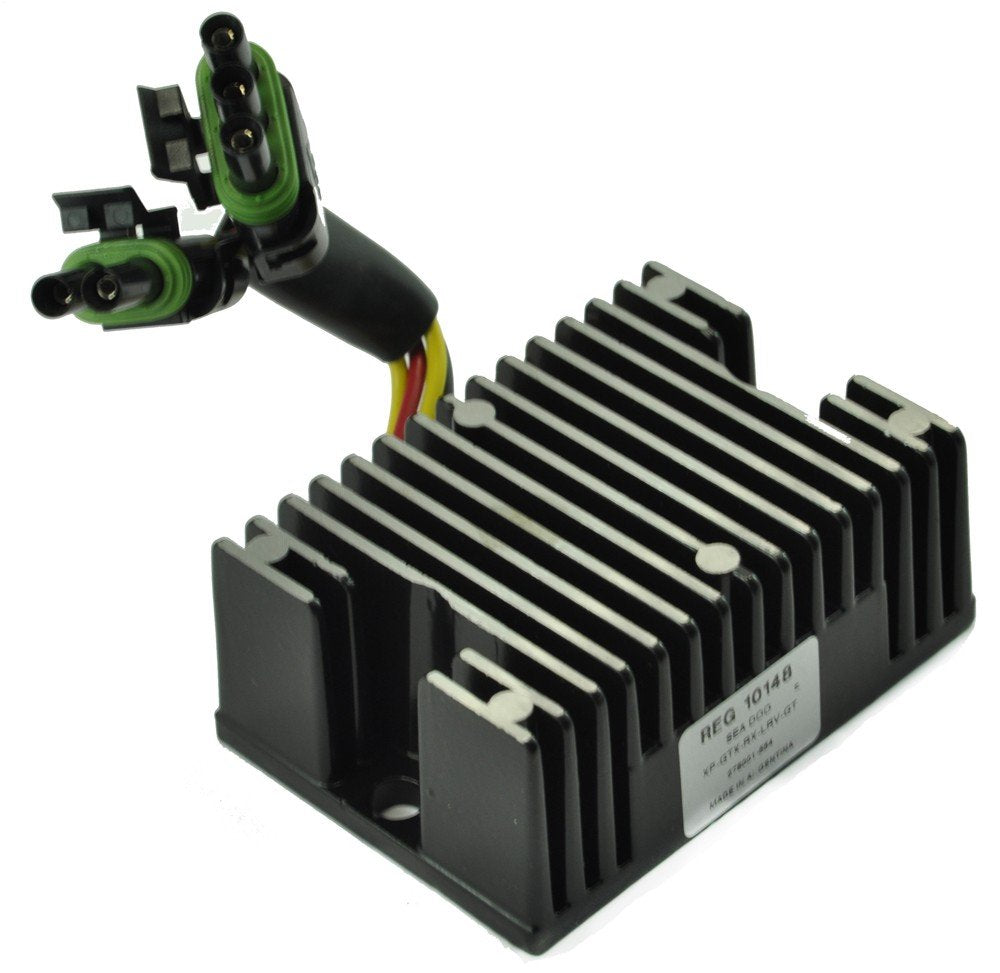

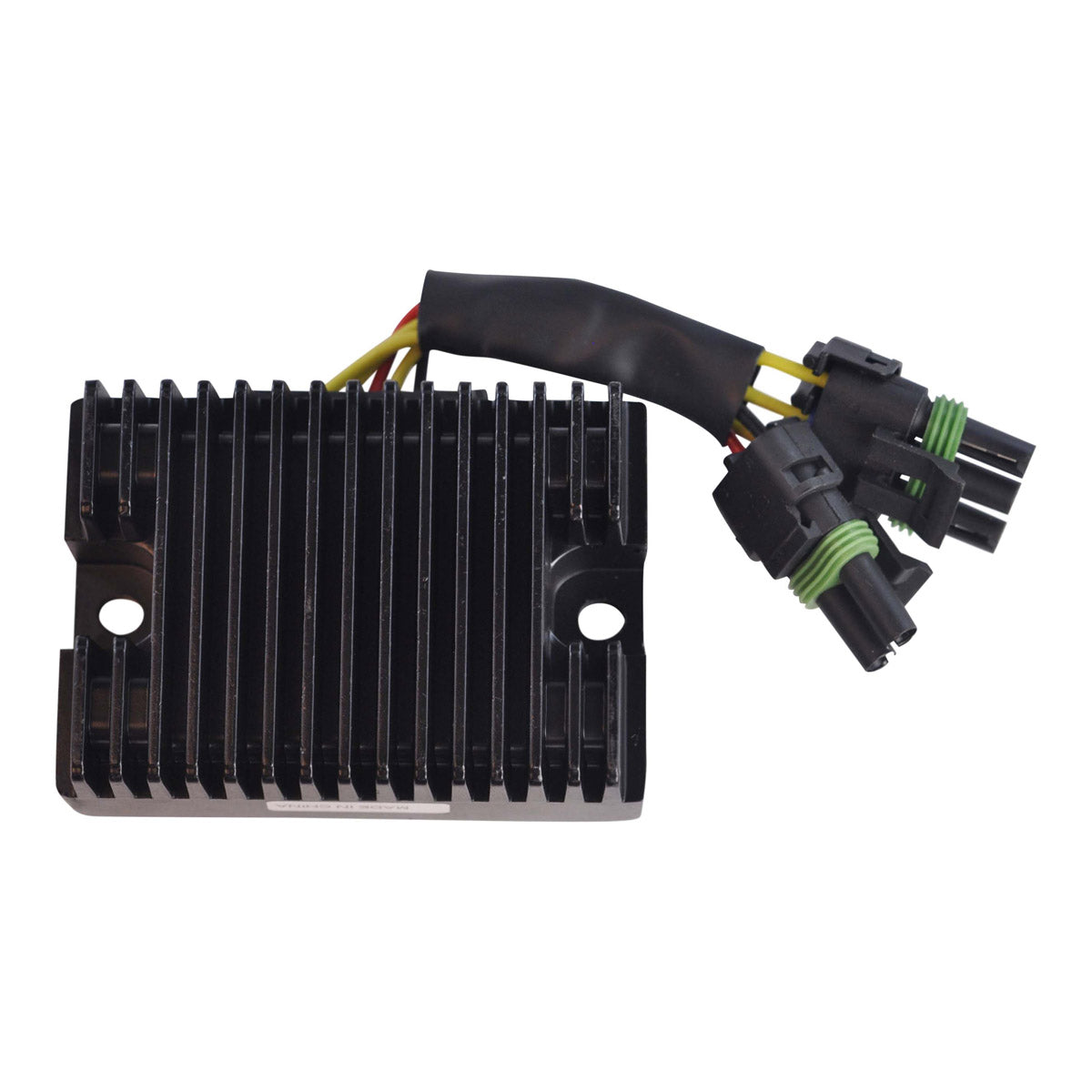

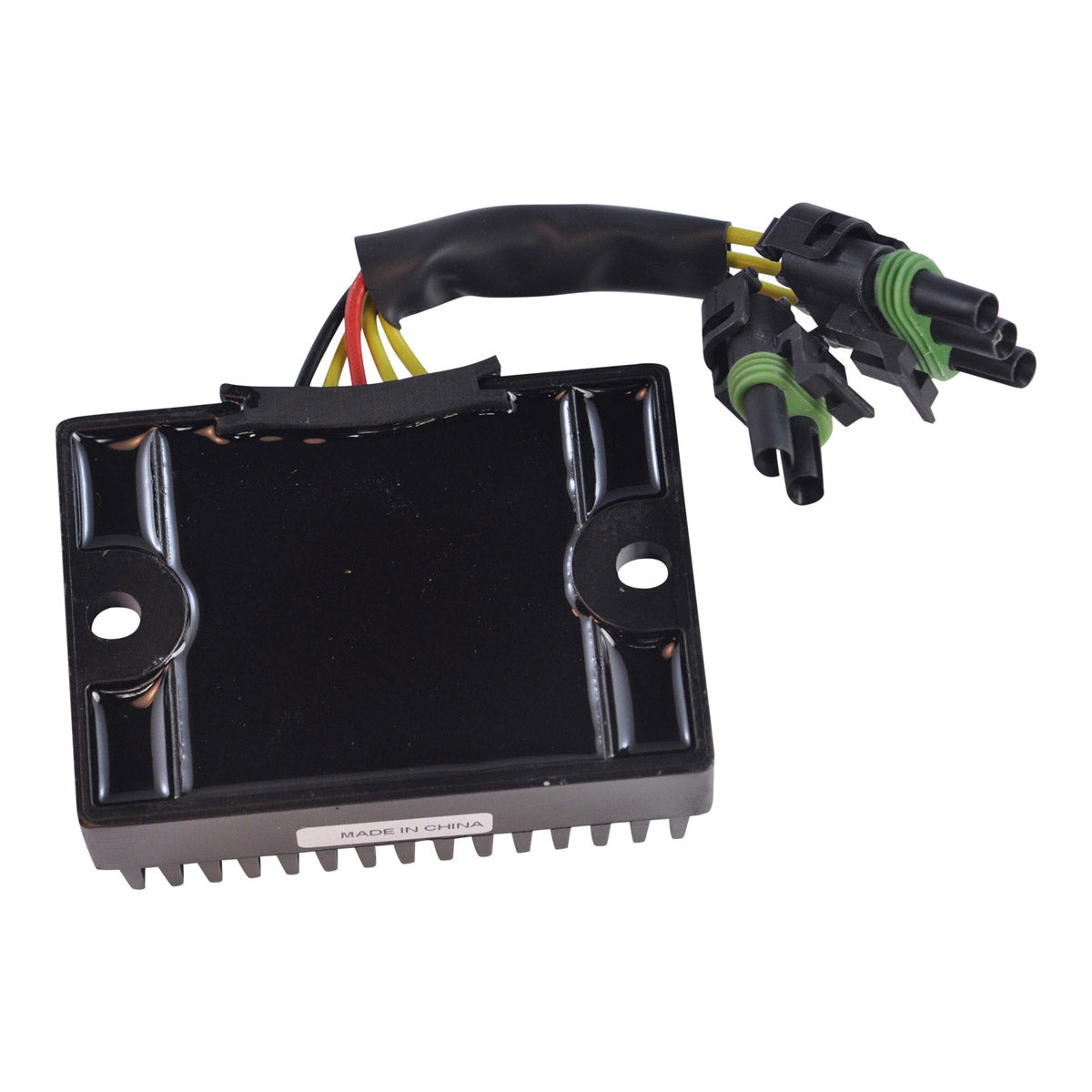

Voltage Regulator Rectifier RM30Y05 for Sea-Doo and Can-Am
Sea-Doo 780 GTX and GSX, 951 GTX and RX 1998-2006 - Can-Am DS 650 2000-2002
Brand new voltage regulator rectifier, supplied as a direct replacement to your original unit on the Sea-Doo 780 GTX and GSX, the Sea-Doo 951 GTX and RX, and the Can-Am DS 650. It is plug-and-play, direct fit and easy to install, with no assembly required, so the two existing plugs connect straight to the new unit and the loom does not need to be cut or spliced.

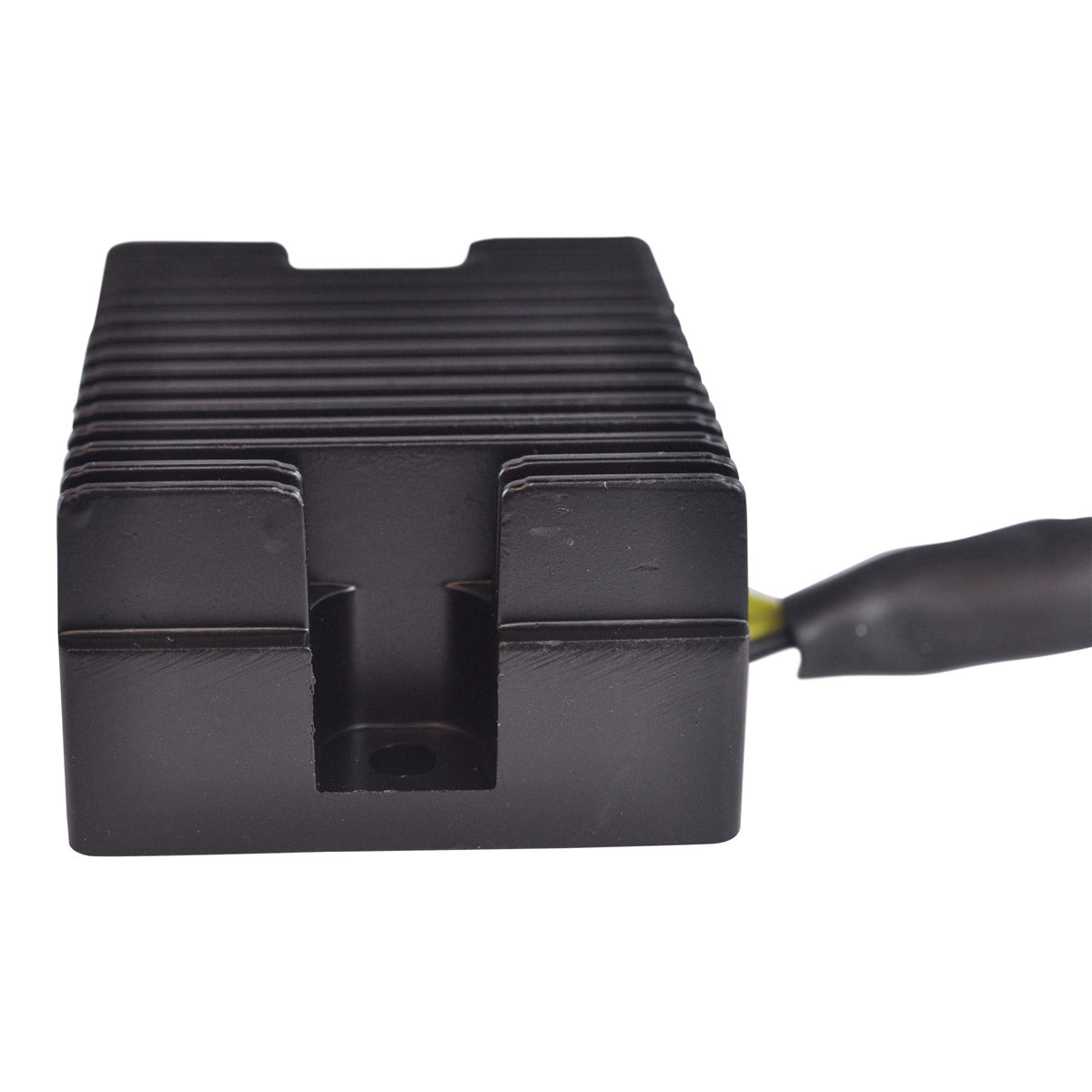

The unit is built with a higher grade of electric components than the original and has an improved heat sink and improved charging capabilities, so the quality exceeds the OEM equipment. All products shipped are tested. It holds a minimum charging voltage of 14.5 V +/- 0.5 V, carries a maximum charging current of 50 A / 500 W, keeps open circuit voltage below 15 V and operates across -20°C to 85°C, which matters on a personal watercraft where the unit sits in a hot, damp engine bay. It replaces OEM part numbers 278001241 and 278001554.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- Improved heat sink and charging capabilities
- Quality exceeds the OEM equipment
- All products shipped are tested
- Rated to 50 A / 500 W maximum charging current

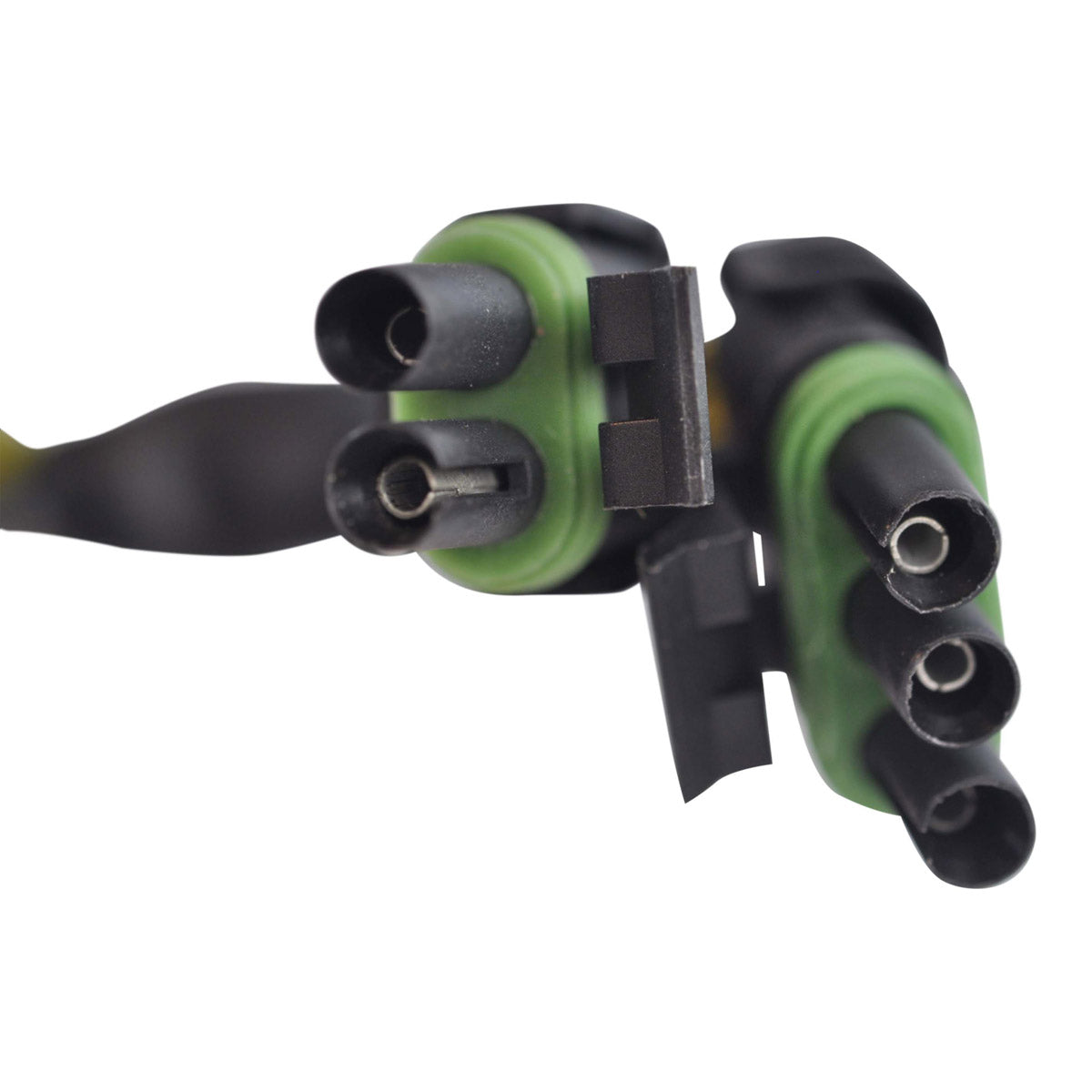

- Two plugs, 5 pins, 110 mm wires, 80 mm fixing centres
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30Y05 |
| Type | Voltage regulator rectifier |
| Width | 70 mm |
| Length | 96 mm |
| Height | 37 mm |
| Fixation holes centre to centre | 80 mm |
| Wires length | 110 mm |
| Number of plugs | 2 |
| Number of pins | 5 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | < 15 V |
| Operation temperature | -20°C to 85°C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Sea-Doo 780 GTX | 1998-2006 |
| Sea-Doo 780 GSX | 1998-2006 |
| Sea-Doo 951 GTX | 1998-2006 |
| Sea-Doo 951 RX | 1998-2006 |
| Can-Am DS 650 | 2000-2002 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 278001241 | Sea-Doo / Can-Am (BRP) |
| 278001554 | Sea-Doo / Can-Am (BRP) |
Frequently Asked Questions
Does this fit without modification?
Yes. It is a direct replacement to your original unit, plug-and-play and direct fit with no assembly required. It has two plugs with five pins in total on 110 mm wires, and the mounting holes are 80 mm apart centre to centre. Confirm your original unit carries number 278001241 or 278001554 before ordering.
What is included?
The voltage regulator rectifier unit with its fitted wiring and plugs. All products shipped are tested.
How do I know my old regulator has failed?
With the engine running, the charging system should hold 14.5 V +/- 0.5 V at the battery. A battery that never charges, or one that gasses and boils because the voltage climbs past the 15 V open circuit figure, points to the regulator rectifier. On a watercraft, check the connectors for salt corrosion at the same time, as a high resistance joint will overheat the new unit.
Does the same part cover both the Sea-Doo craft and the Can-Am DS 650?
Yes. Both share the same regulator rectifier, listed under BRP numbers 278001241 and 278001554, which is why one unit covers the Sea-Doo 780 and 951 models as well as the DS 650 quad.
