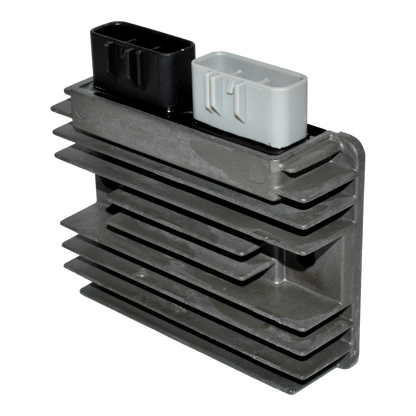

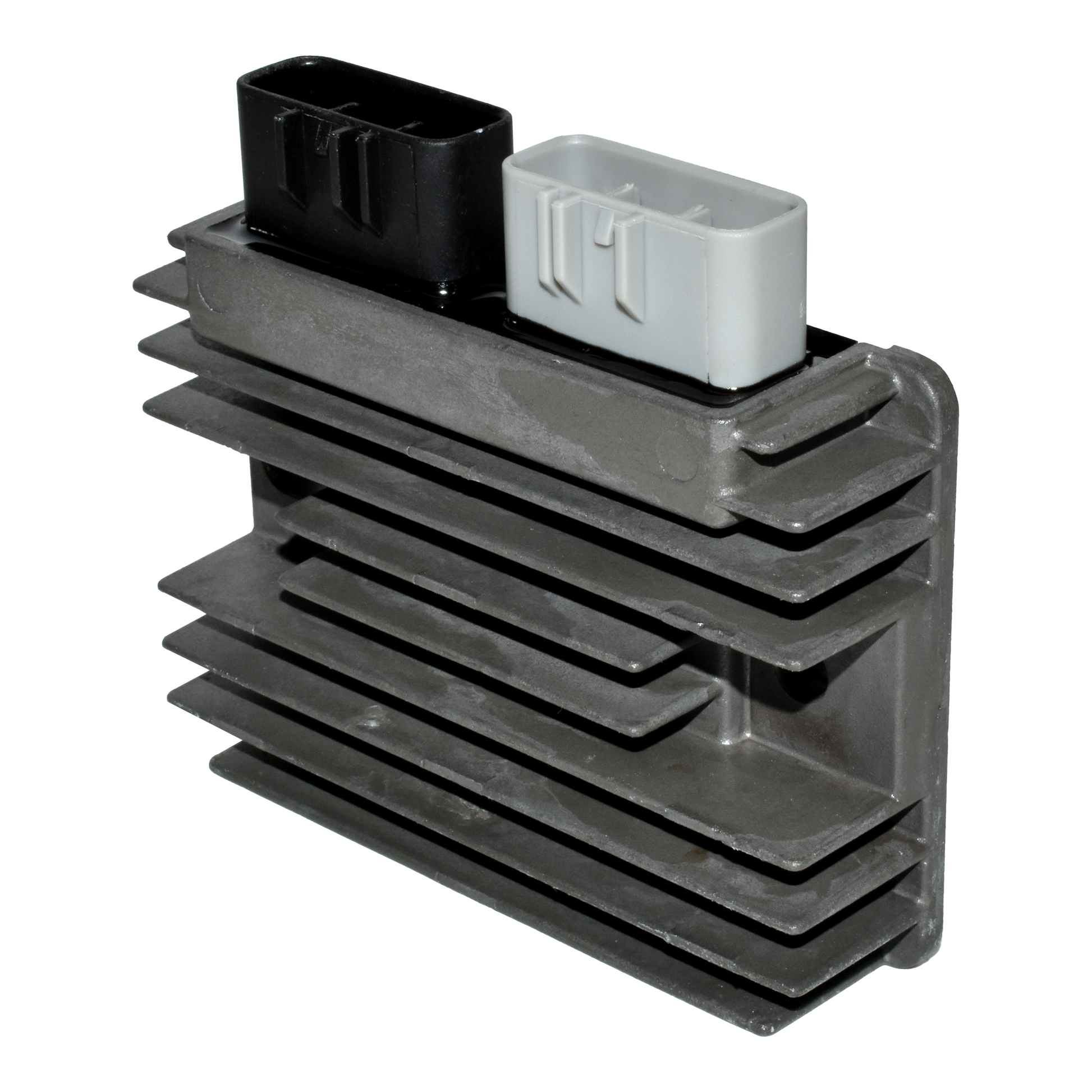

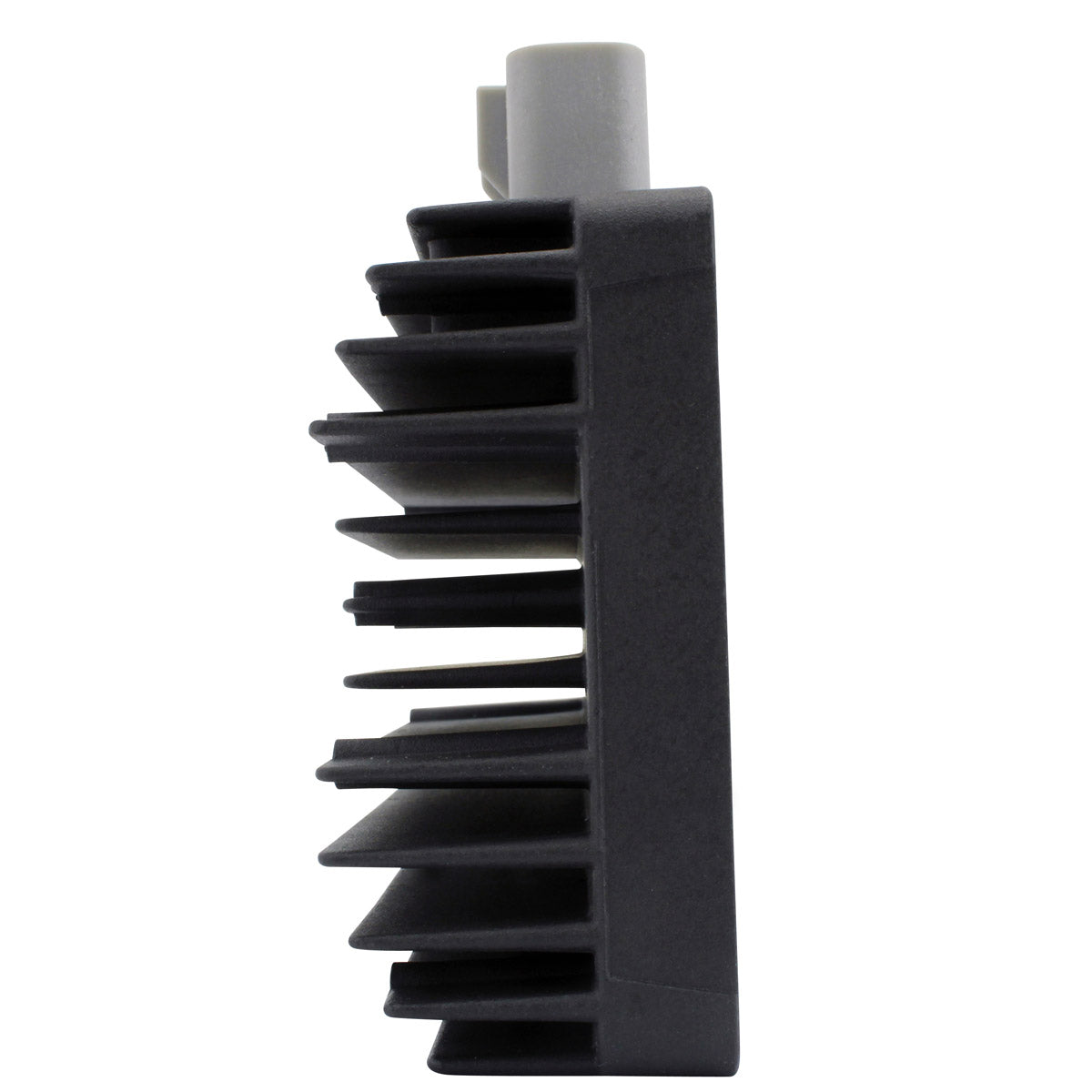

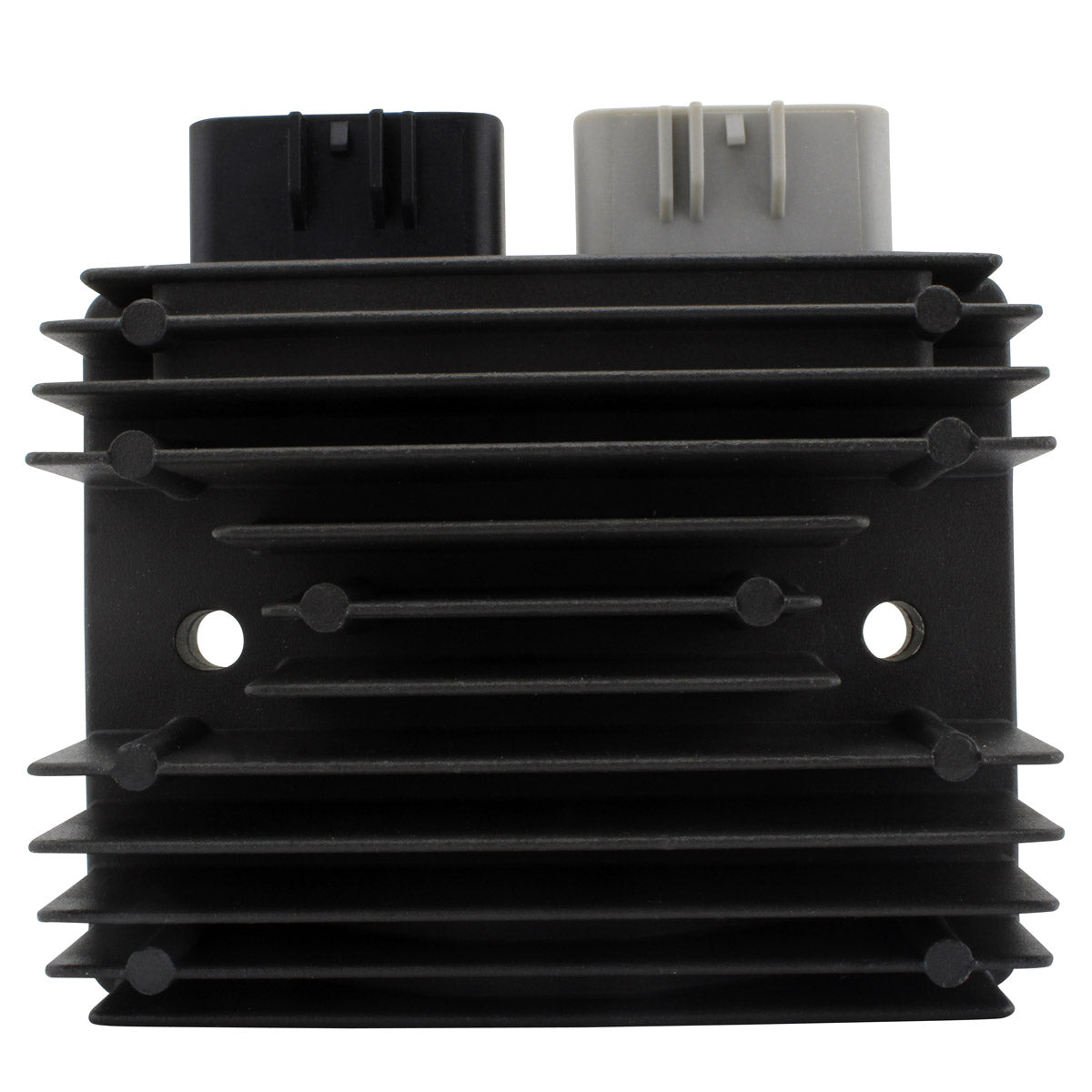

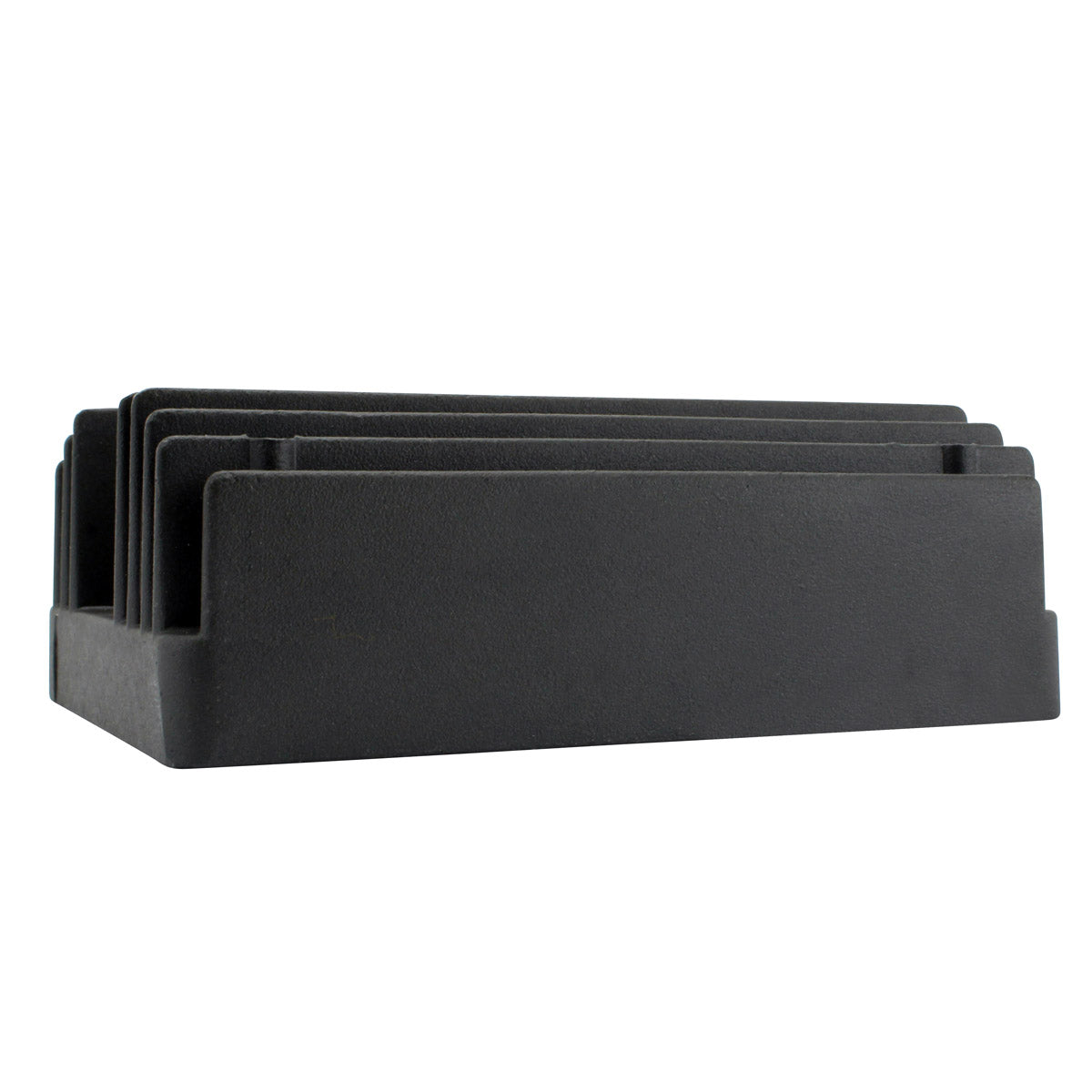

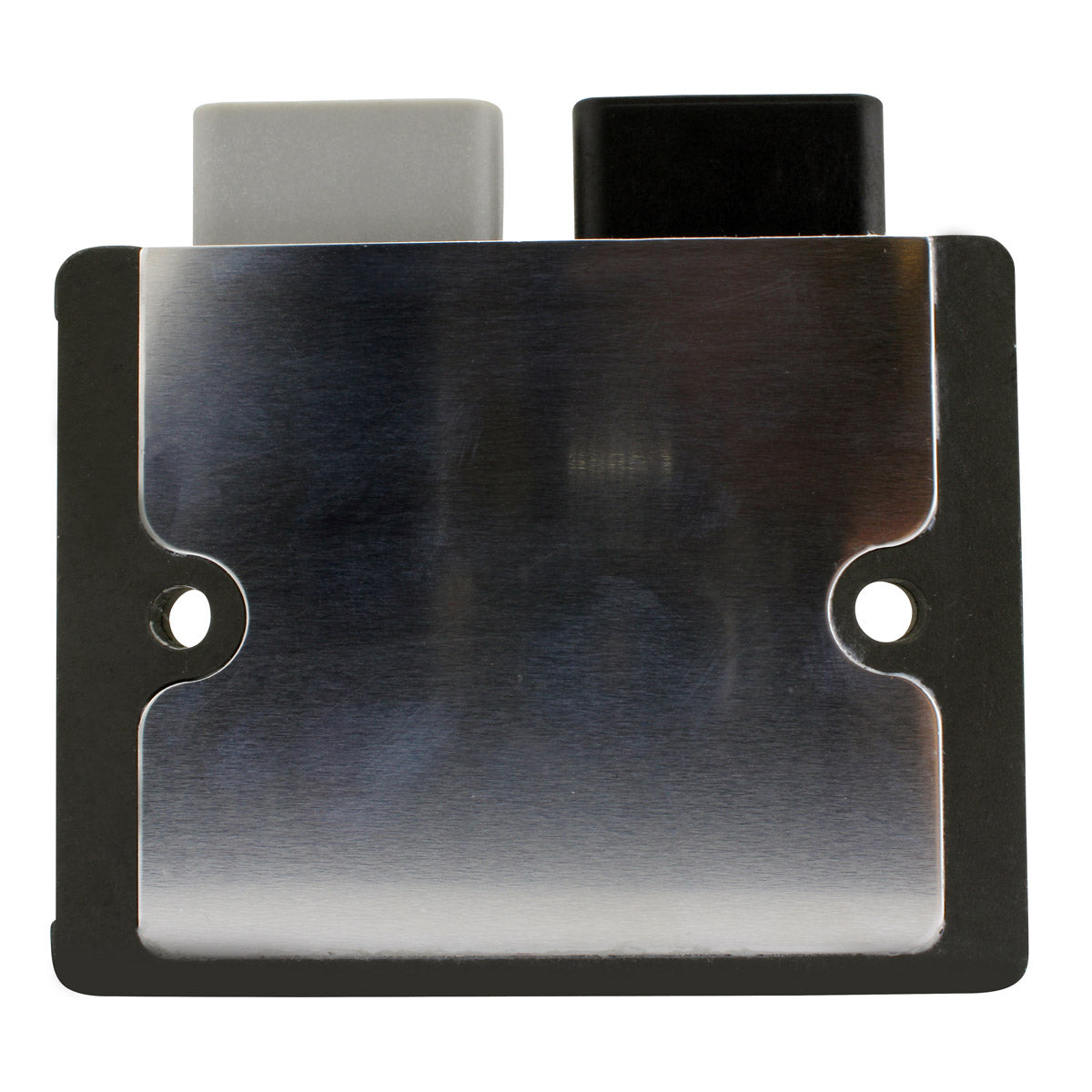

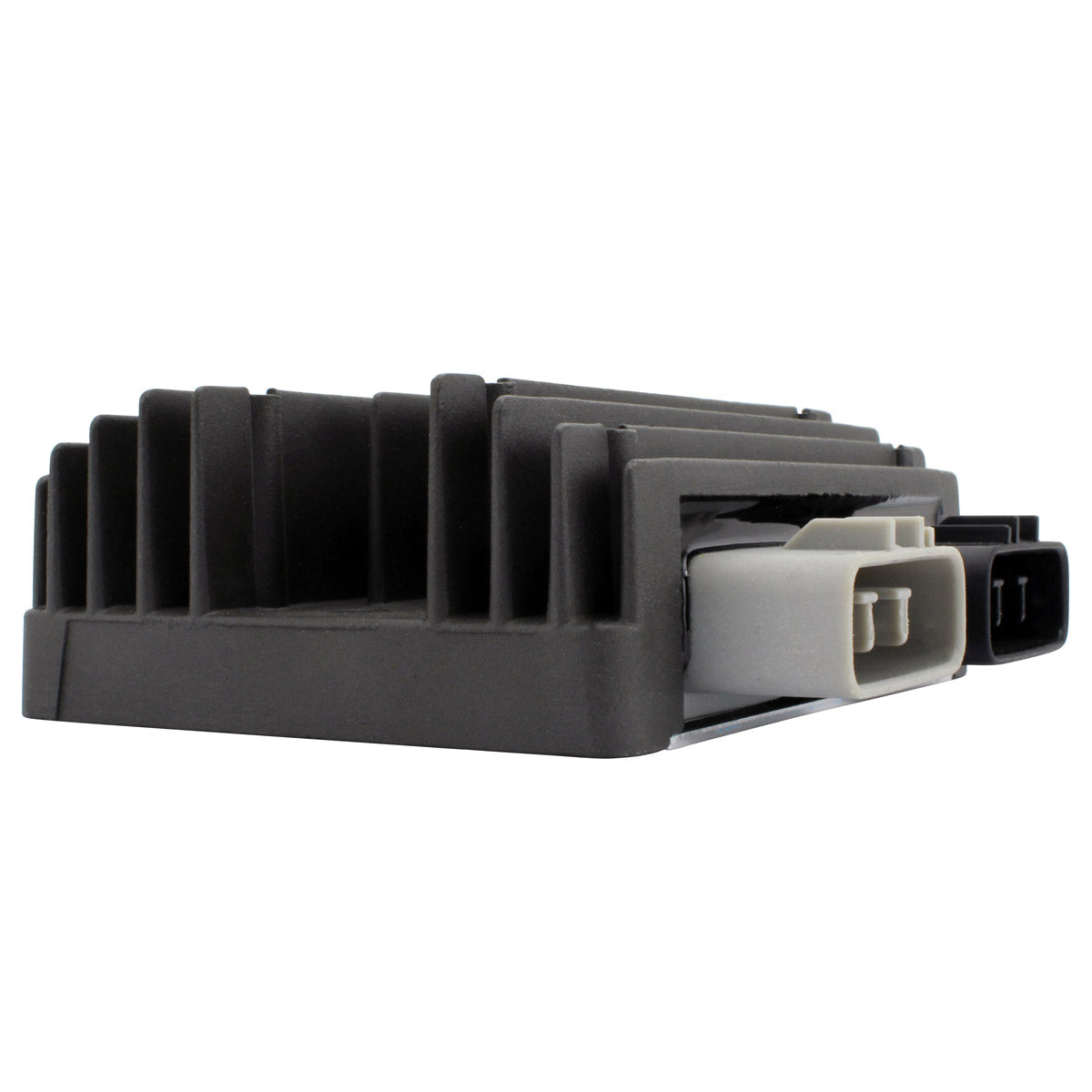

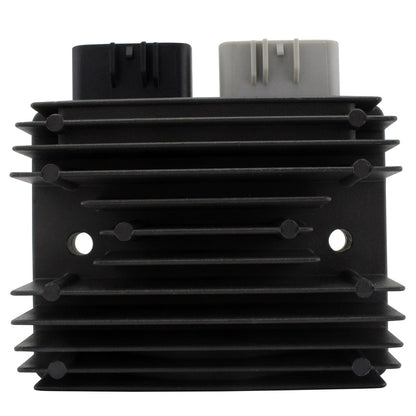

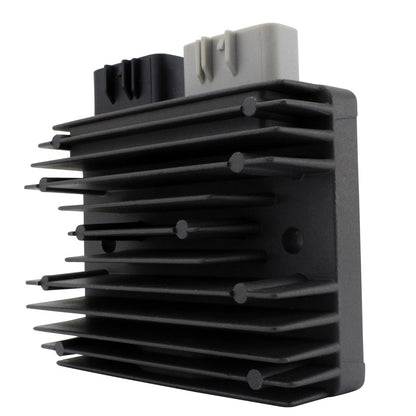

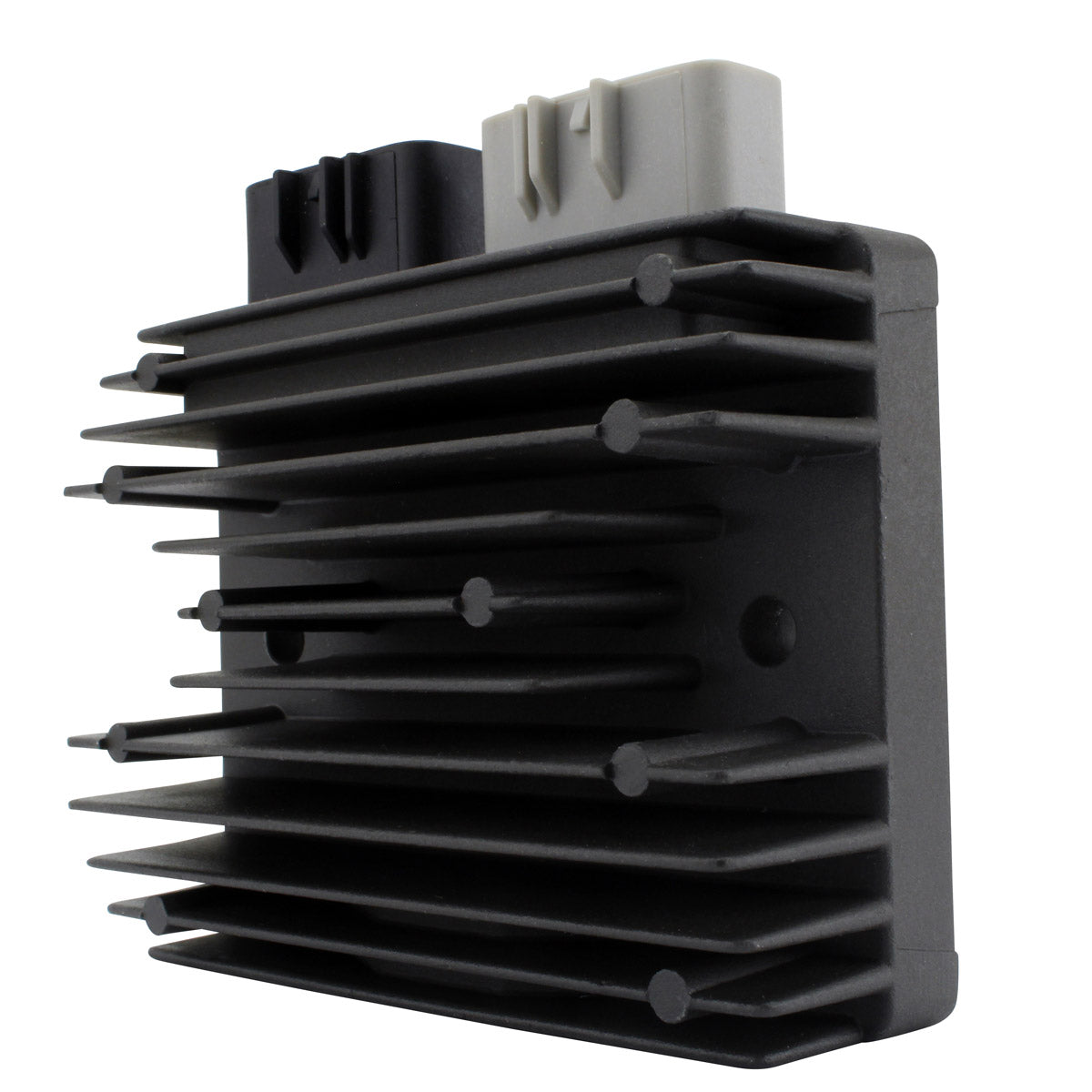

This is a brand new aftermarket voltage regulator rectifier covering the Can-Am Ryker 600 and 900 ACE from 2019 to 2022 and the Honda CB 1000 R and CMX 300 from 2018 to 2022. It is a direct replacement for the original unit: the body measures 94 mm long by 77 mm wide by 28 mm deep, the two mounting holes sit 80 mm apart centre to centre, and the part carries two plugs with five pins in total, matching the factory arrangement. Fitting is plug-and-play with no assembly required.

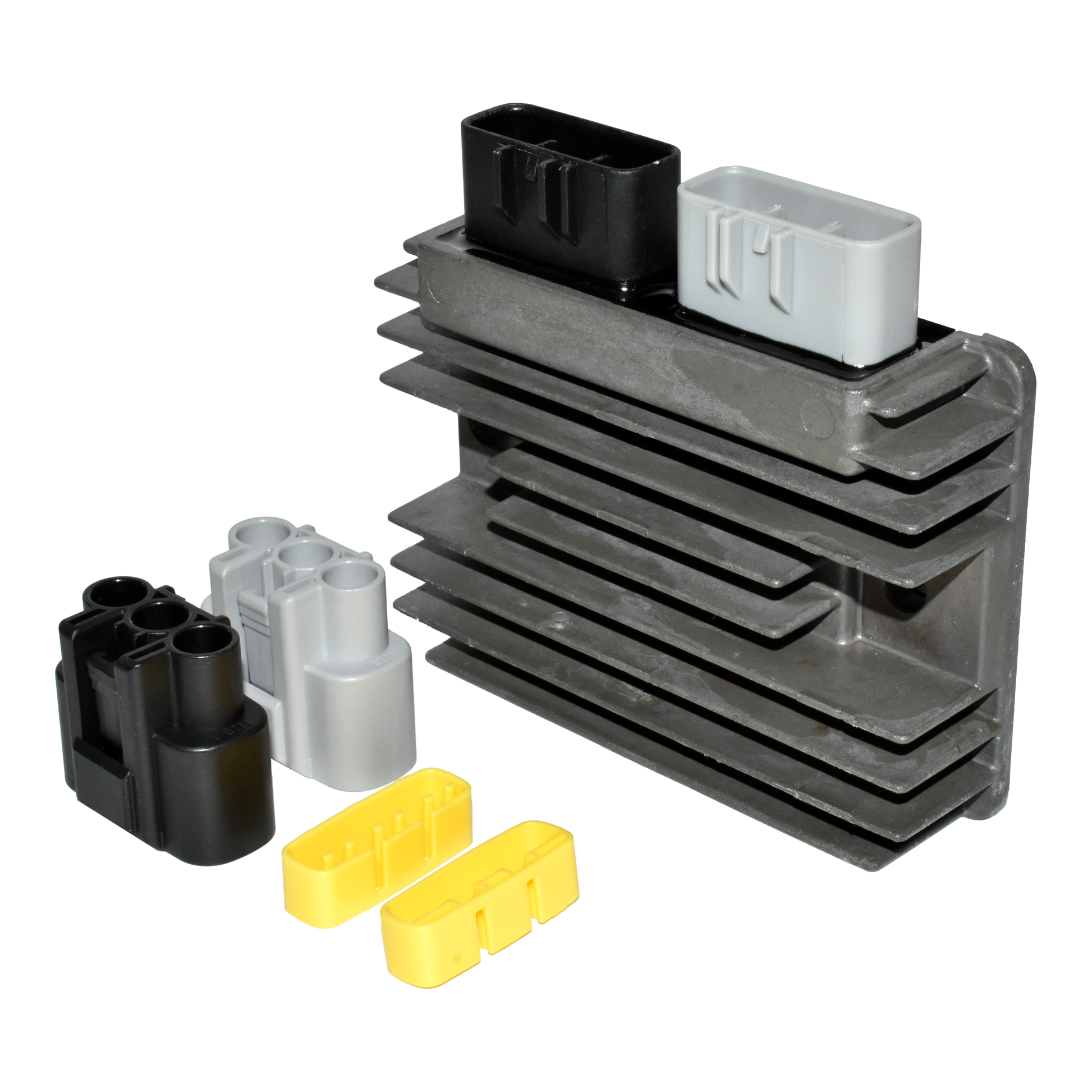

A regulator rectifier converts the alternating current from the stator into direct current and then holds the output at a level the battery and the electronics can live with. It is a component that spends its life managing heat, and it is a frequent failure point. RMSTATOR supply the opposite connector - the main harness side half of the plug - in the box, because these connectors are often found melted, corroded or defective, and they identify a bad connector as a major cause of repeat electrical faults. The unit is built with a higher grade of electrical components than the original equipment and every one is tested before it ships.
Key Features
- Brand new aftermarket unit, not a rebuilt core
- Direct replacement for Can-Am 710006002 and Honda 31600-MKJ-D01
- Matching main harness side connector supplied in the box

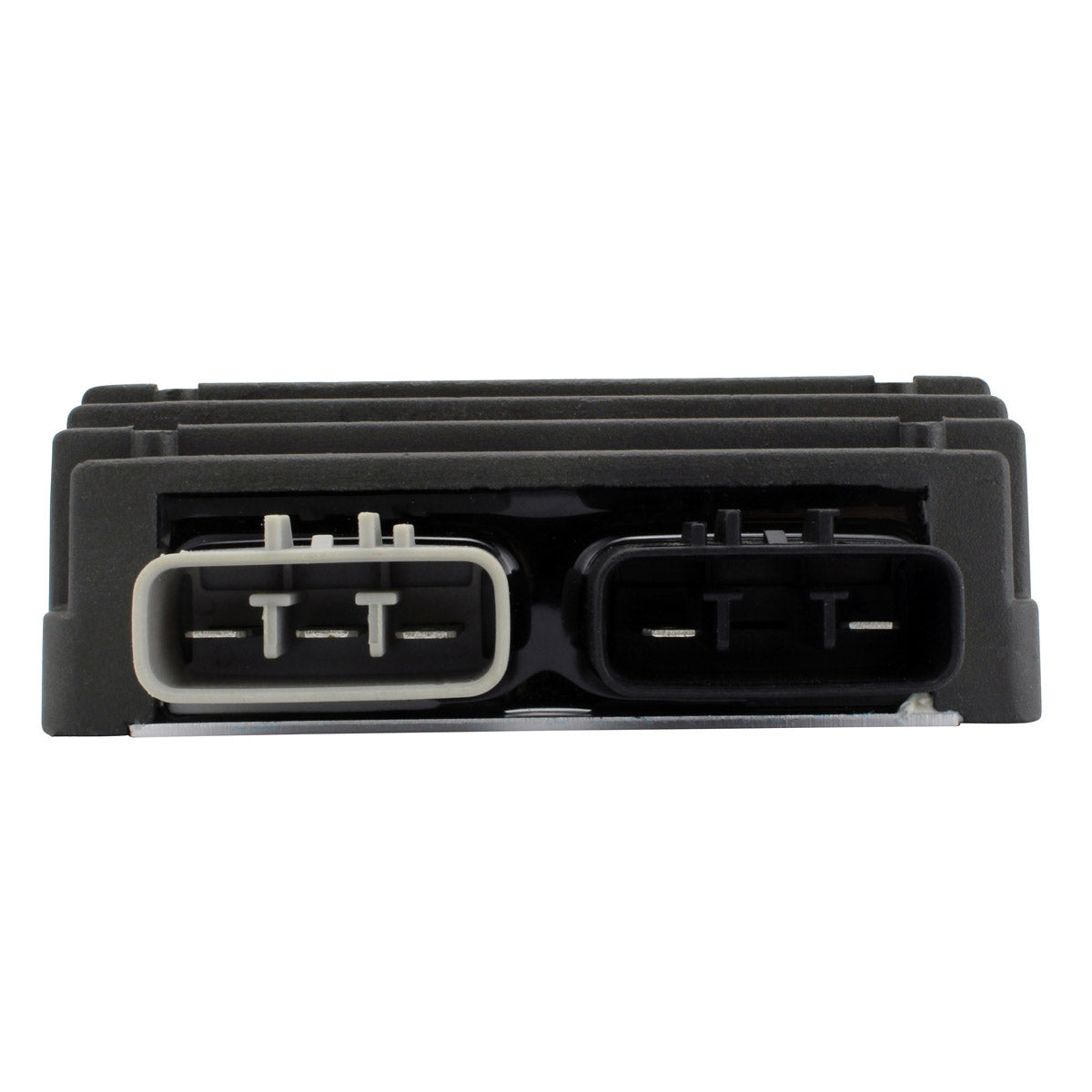

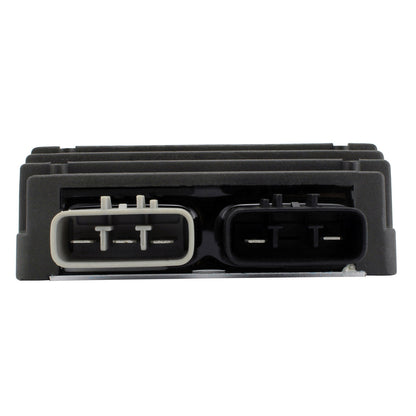

- Plug-and-play - two plugs, five pins, no wiring changes
- 80 mm fixation hole spacing as per the original
- Higher grade electrical components than the original equipment
- Regulated output of 14.5 V +/- 0.5 V, rated to 50 A / 500 W
- Every unit individually tested before dispatch
Technical Specs
| Specification |
Detail |
| Part number |
RMS020-107296 |
| Width |
77 mm |
| Length |
94 mm |
| Height |
28 mm |
| Fixation hole spacing (centre to centre) |
80 mm |
| Number of plugs |
2 |
| Number of pins |
5 |
| Minimum charging voltage |
14.5 V +/- 0.5 V |
| Maximum charging current |
50 A / 500 W |
| Open circuit voltage |
Less than 15 V |
| Operating temperature |
-20°C to 85°C |
Vehicle Fitment Guide
| Make & Model |
Years |
| Can-Am Ryker 600 ACE |
2019-2022 |
| Can-Am Ryker 900 ACE |
2019-2022 |
| Honda CB 1000 R |
2018-2022 |
| Honda CMX 300 |
2018-2022 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 710006002 |
Can-Am |
| 31600-MKJ-D01 |
Honda |
| RMS020-107296 |
RMSTATOR |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a direct fit, plug-and-play replacement. The two plugs, the five pins and the 80 mm mounting hole spacing all match the original unit, so no cutting, splicing or assembly is required before fitting.

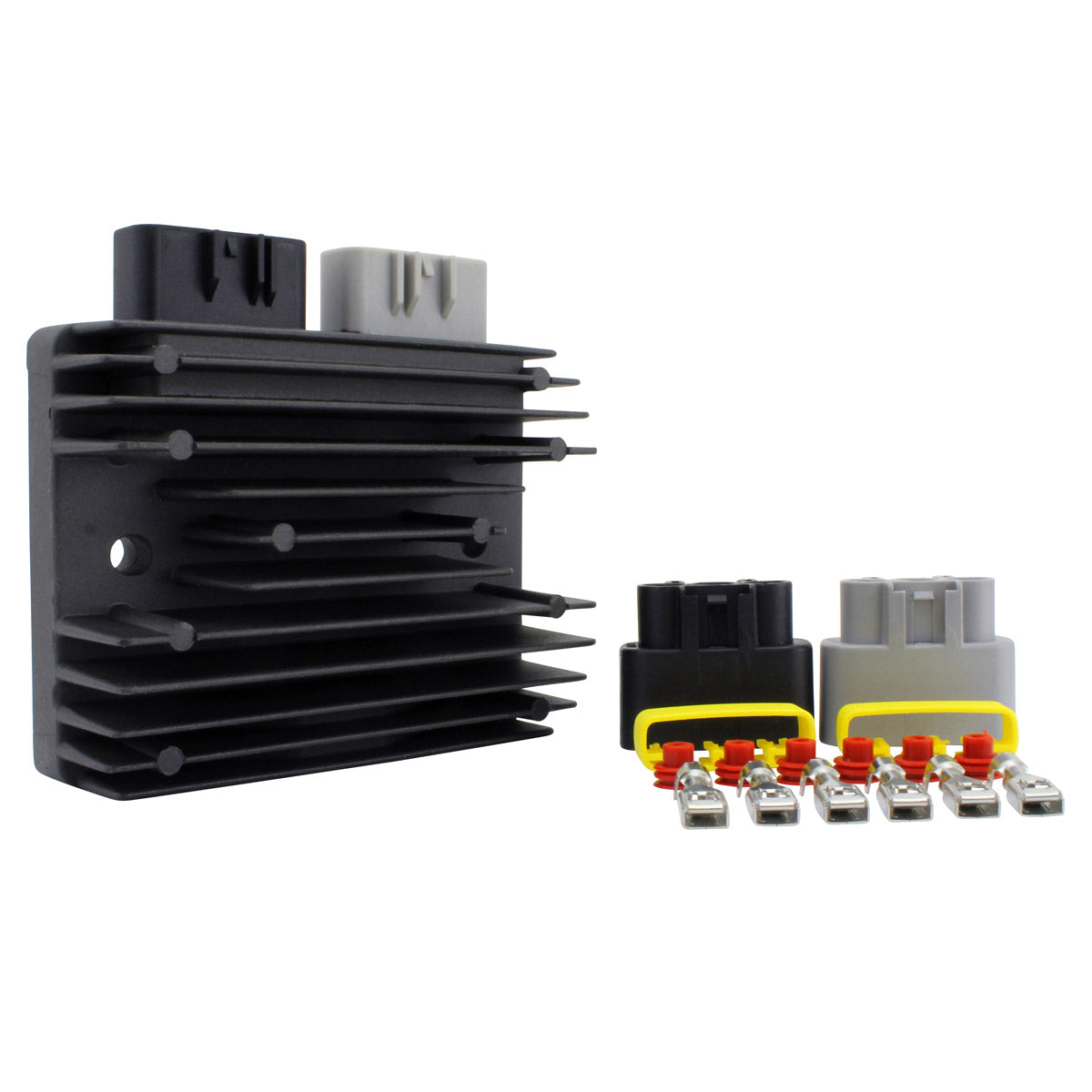

What is included?

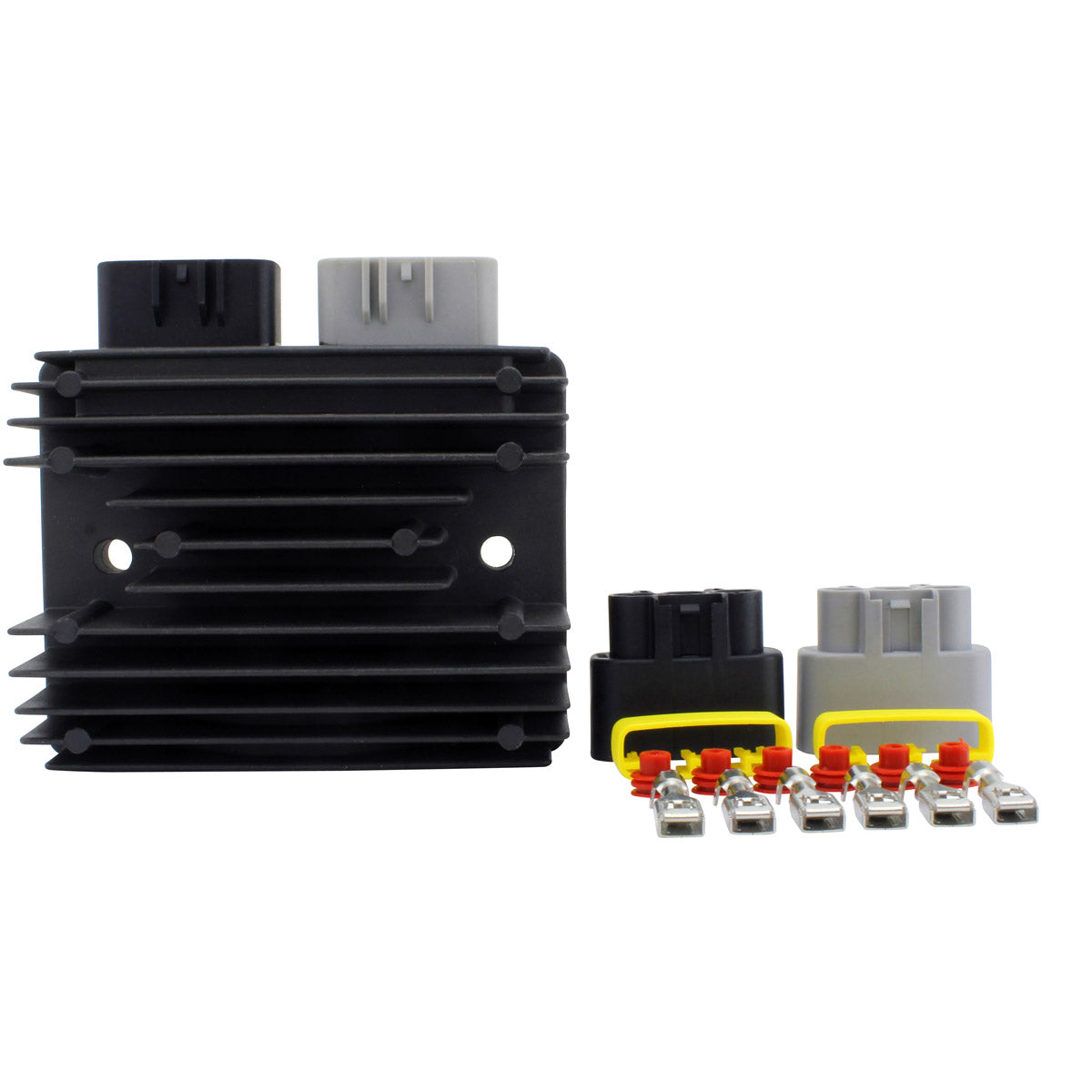

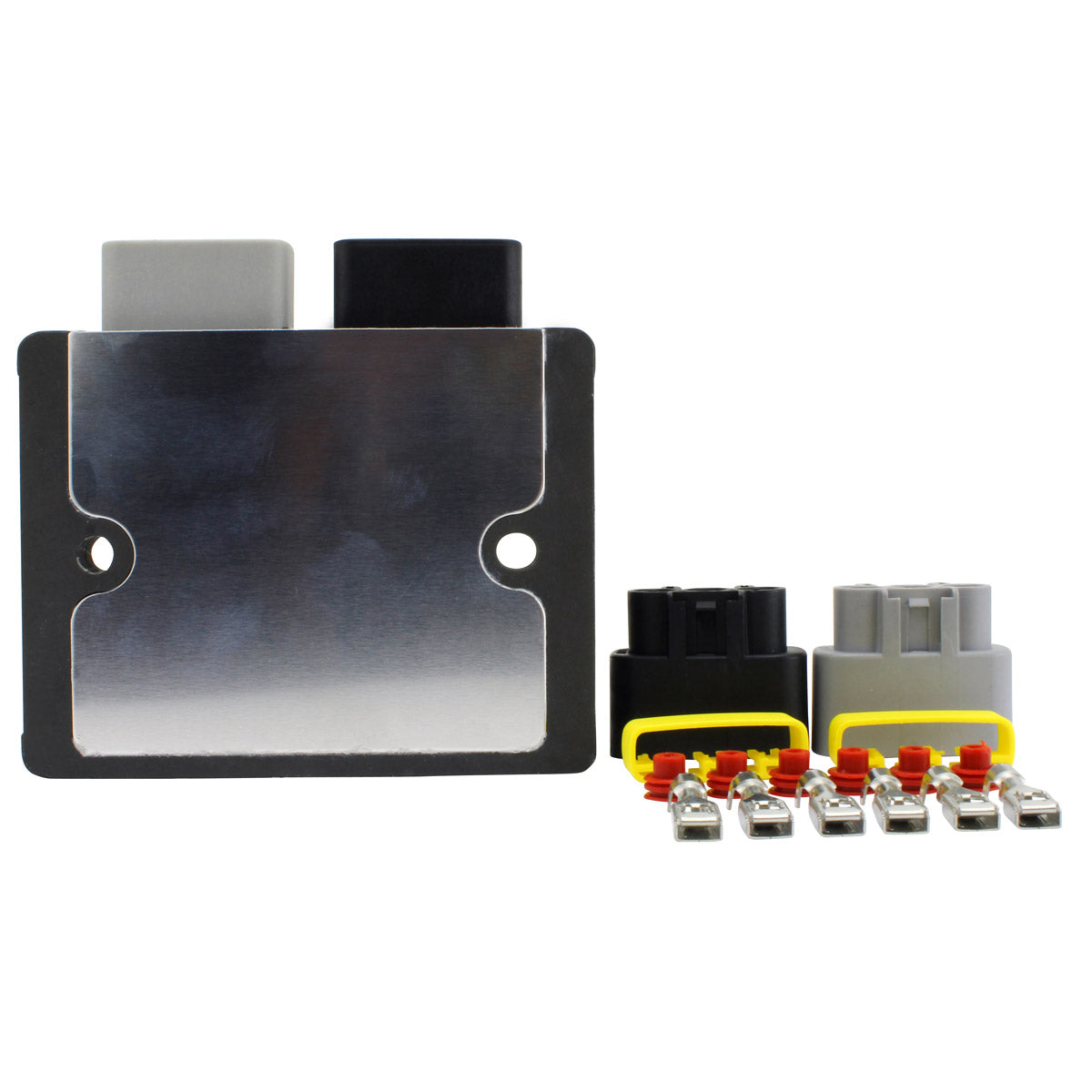

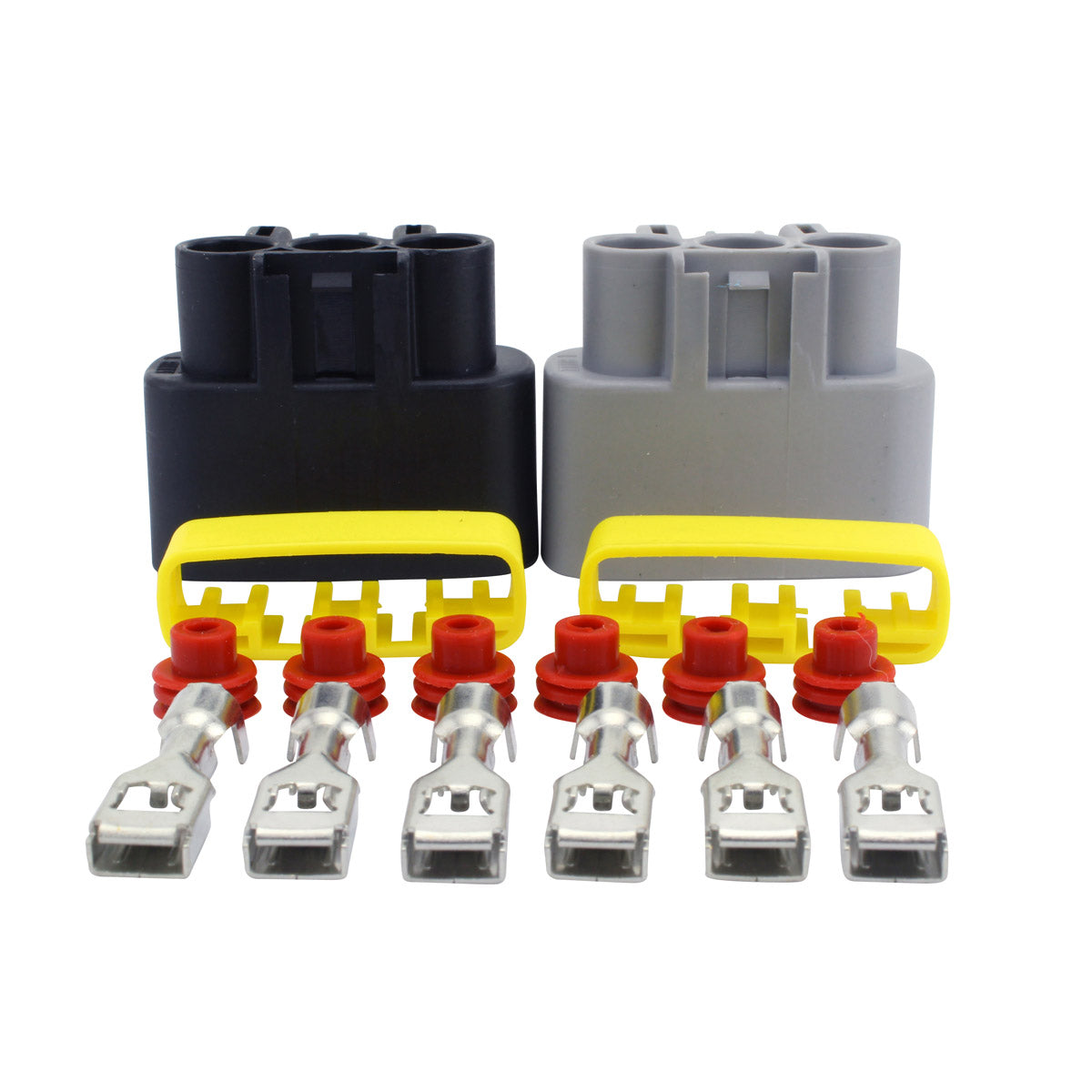

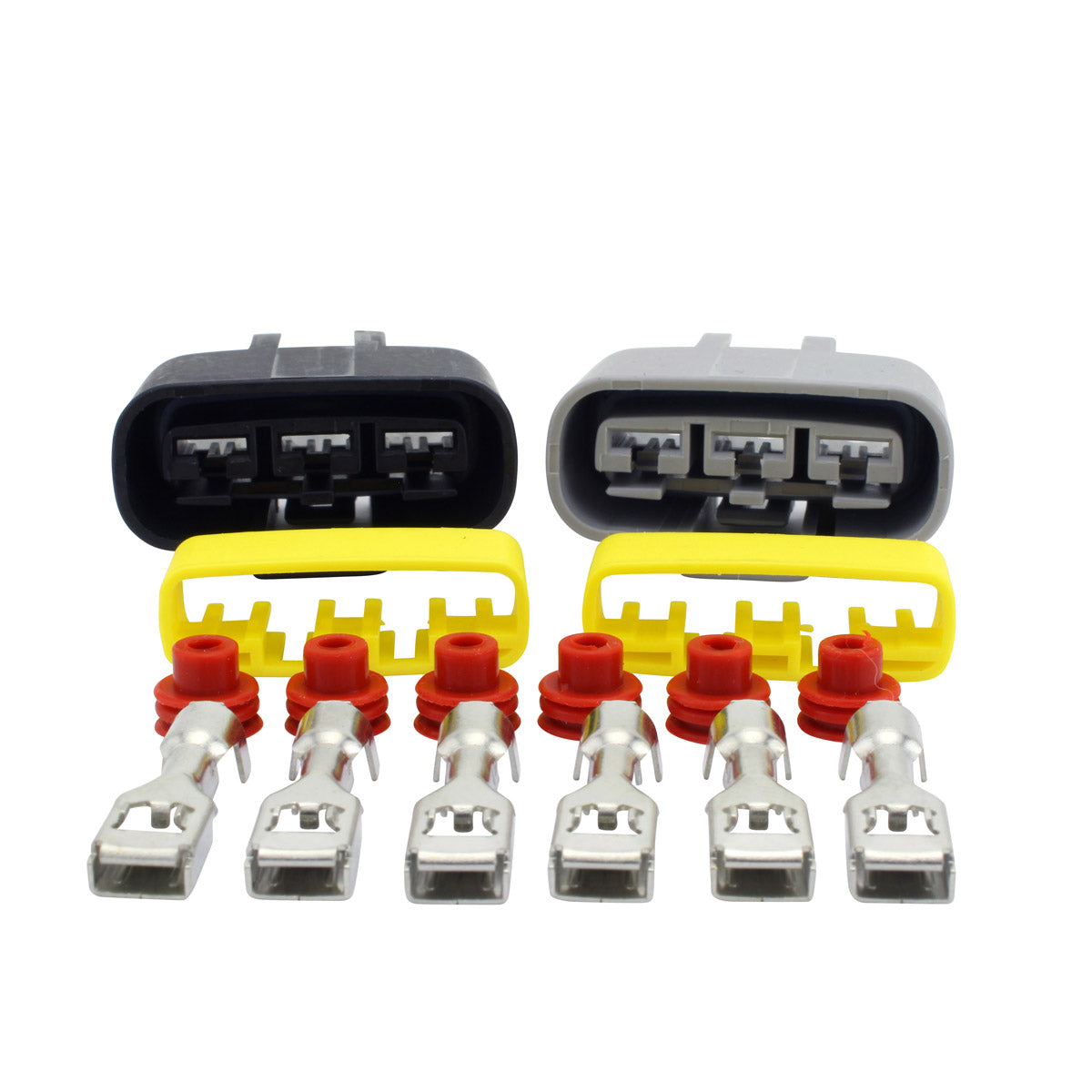

The voltage regulator and the opposite connector, which is the main harness side half of the plug. RMSTATOR include it because these connectors are frequently melted, corroded or defective and are a major cause of repetitive electrical issues.
How do I know the old regulator has failed?
Measure the voltage across the battery terminals with the engine running and compare it with the regulated 14.5 V +/- 0.5 V in the specification table. A reading that stays at resting battery voltage indicates the unit is no longer charging; a reading above 15 V indicates it is no longer regulating and is overcharging the battery. A battery that repeatedly goes flat, blown bulbs and heat damage at the connector are the usual symptoms.
Why does one part cover both a Can-Am and a Honda?
The Can-Am Ryker uses a Rotax ACE engine whose charging circuit shares the same regulator specification as the Honda applications listed, which is why Can-Am 710006002 and Honda 31600-MKJ-D01 cross reference to the same RMSTATOR part. Confirm the number on your original unit against those two before ordering.
