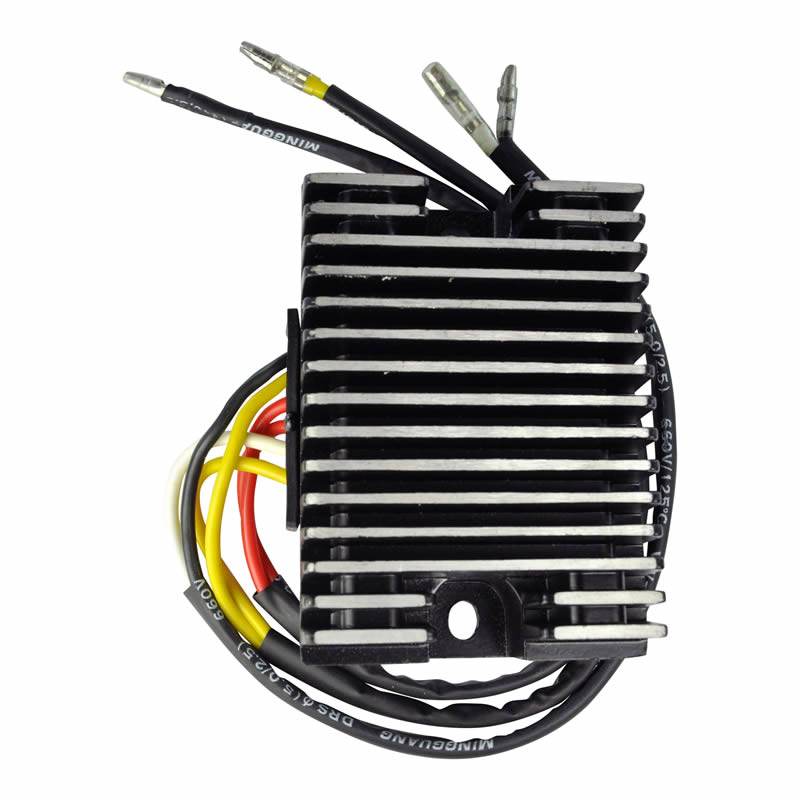

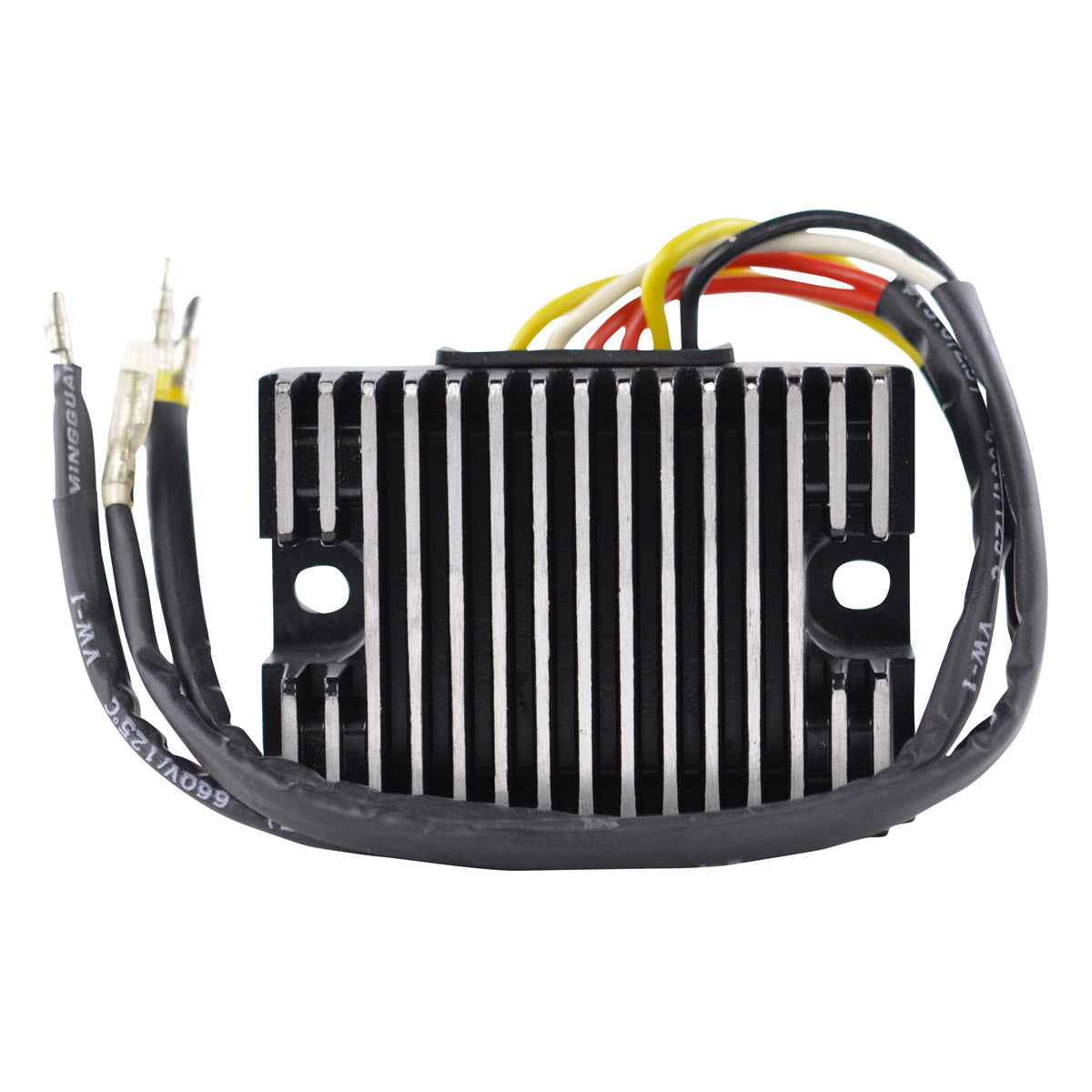

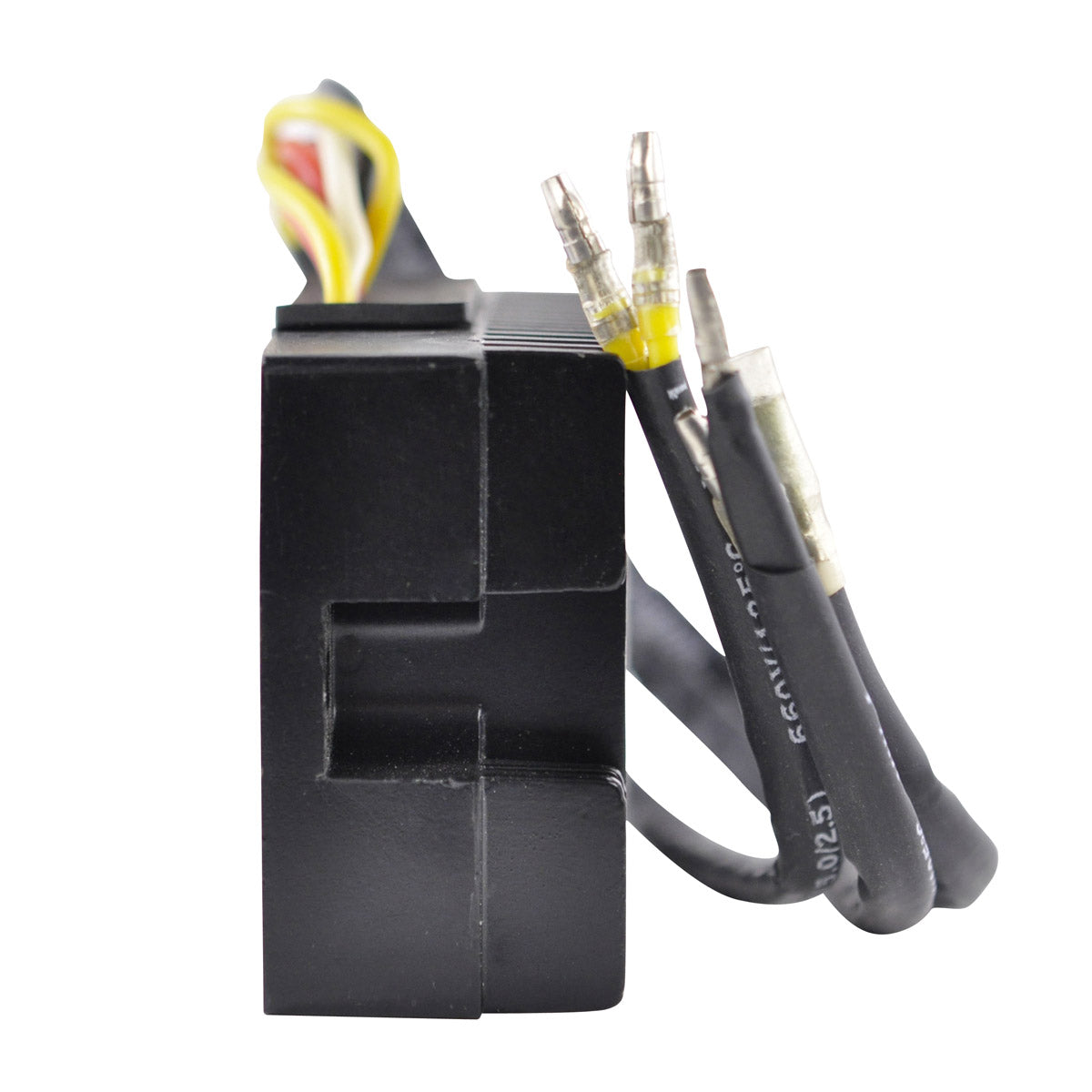

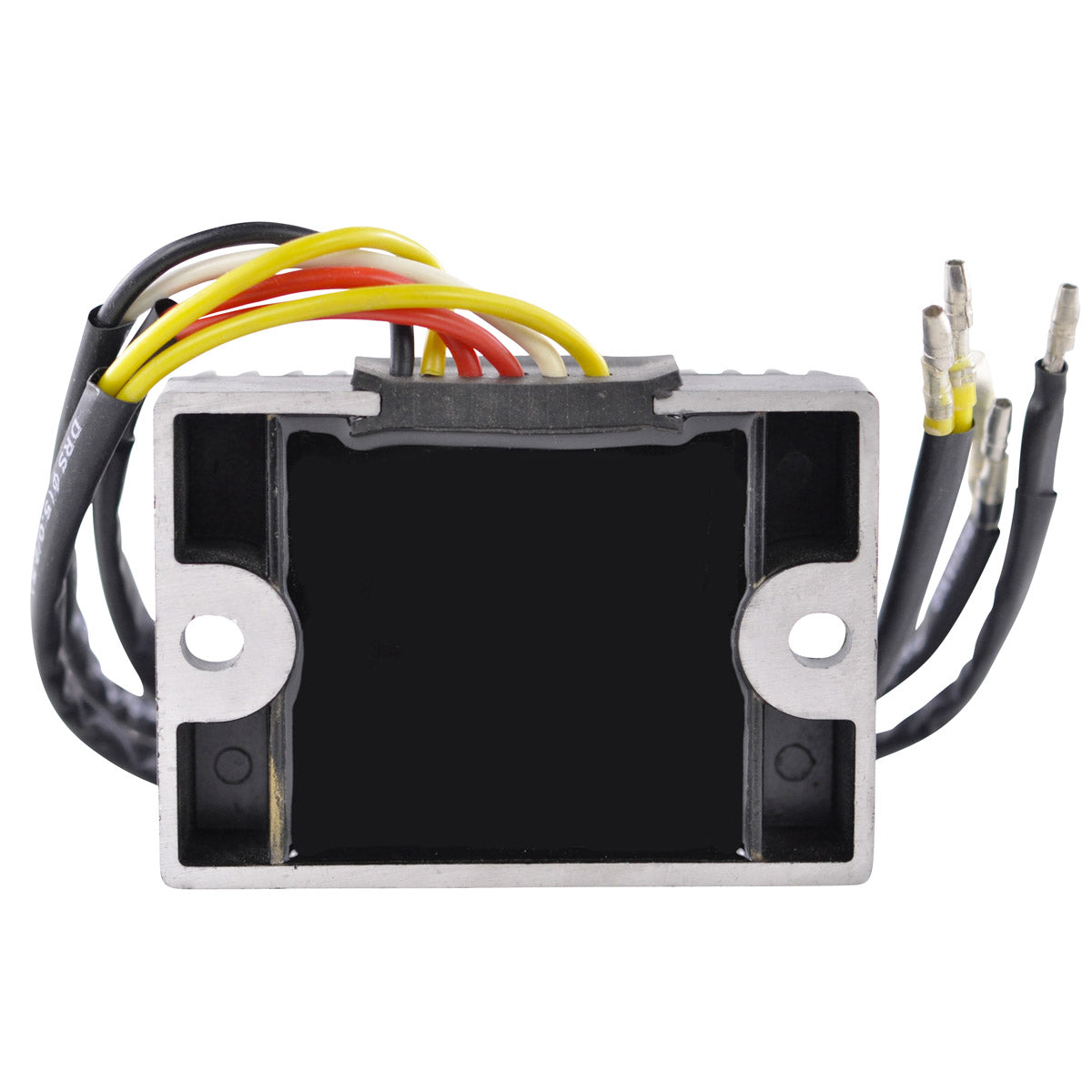

Voltage Regulator Rectifier 50A - RM30017
Ducati 916, Monster 900, SuperSport 750 and 900, Laverda Ghost 650 - 1986-1998
The RM30017 is a brand new voltage regulator rectifier for the 1986-1998 Ducati range, covering the 916, the Monster 900 and the SuperSport 750 and 900, as well as the Laverda Ghost 650. This regulator is used on many various Ducati models of the period. It is a direct replacement for the original unit - plug-and-play, direct fit, with no assembly required. The quality exceeds the OEM equipment, the heat sink and charging capabilities are improved on the original, and a higher grade of electrical component is used throughout.
The unit is rated at a maximum charging current of 50 A / 500 W with a minimum charging voltage of 14.5 V plus or minus 0.5 V, open circuit voltage held below 15 V, and an operating range of -20 C to 85 C. It measures 103 mm wide by 68 mm long by 37 mm high, mounts on 90 mm hole centres, and carries six pins on six wires of 280 mm. The wiring is colour coded in the usual way for this application: the yellow wires are the stator AC input, the red wire is battery positive, the black wire is the keyswitch 12 V feed, and the white wire drives the charge warning indicator light on the dash. Every unit is tested before it is shipped.
Key Features
- Brand new unit, a direct replacement for the original
- Plug-and-play, direct fit, no assembly required
- Quality that exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade electrical components throughout
- Maximum charging current of 50 A / 500 W
- Minimum charging voltage of 14.5 V +/- 0.5 V

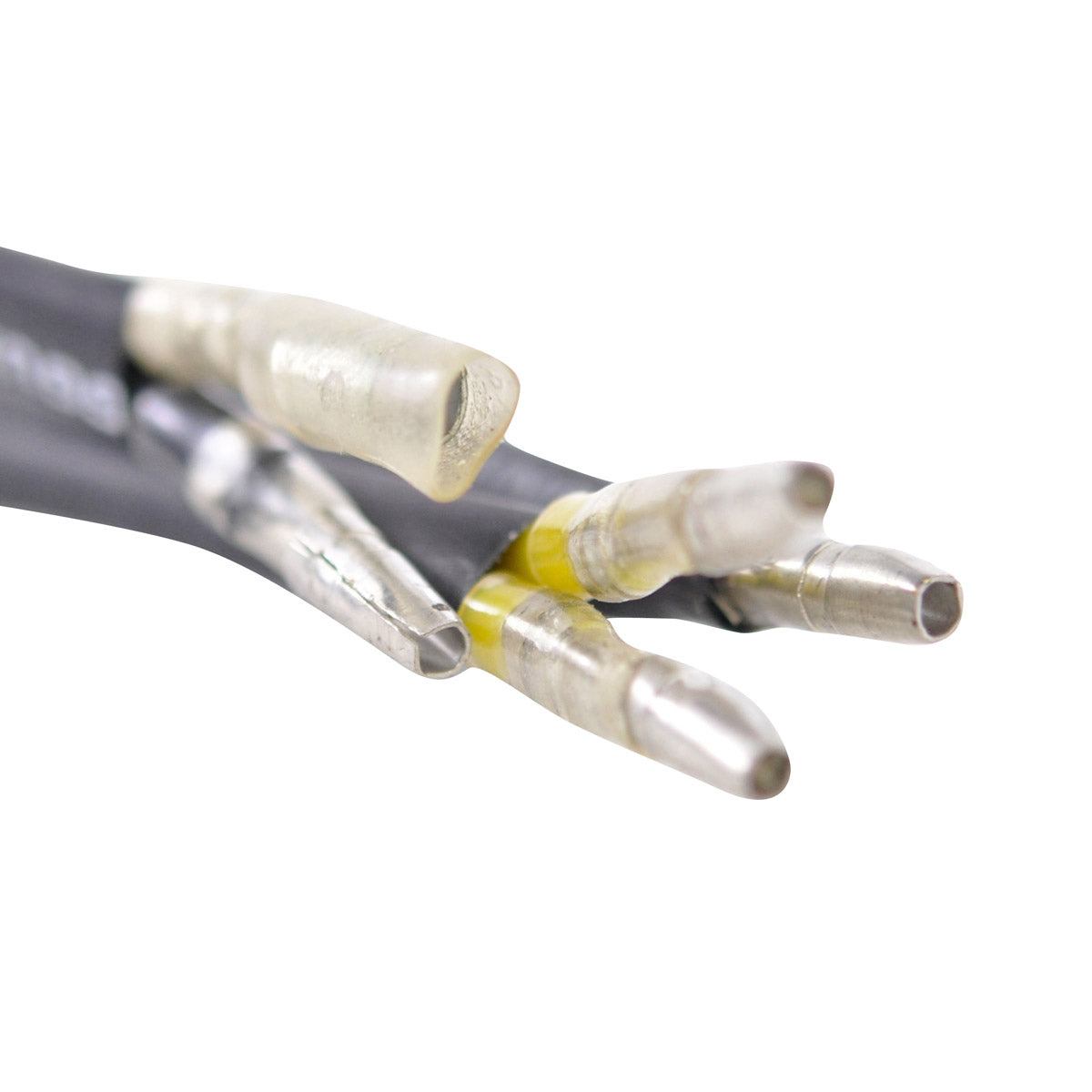

- Six wires of 280 mm carrying six pins
- Colour coded wiring including a white charge warning light output
- Every unit is tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30017 |
| Width | 103 mm |
| Length | 68 mm |
| Height | 37 mm |
| Wire length | 280 mm |
| Fixation holes, centre to centre | 90 mm |
| Number of plugs | 5 |
| Number of pins | 6 |
| Number of wires | 6 |
| Yellow wires | Stator AC in |
| Red wire | Battery positive |
| Black wire | Keyswitch +12 V |
| White wire | Charge warning dash indicator light |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Below 15 V |
| Operating temperature | -20 C to 85 C |
Vehicle Fitment Guide
The years shown are the overall model year span served by this regulator. This regulator is used on many various Ducati models, so please confirm your own machine against the OEM part number cross reference below before ordering.
| Make & Model | Years |
|---|---|
| Ducati 916 | 1986-1998 |
| Ducati Monster 900 | 1986-1998 |
| Ducati SuperSport 750 | 1986-1998 |
| Ducati SuperSport 900 | 1986-1998 |
| Laverda Ghost 650 | 1986-1998 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 54040091A | OEM cross reference |
| 54040081A | OEM cross reference |
| 54040131A | OEM cross reference |
| 54040011A | OEM cross reference |
| 54010161A | OEM cross reference |
| 69920821B | OEM cross reference |
| 69920831B | OEM cross reference |
| 69920841A | OEM cross reference |
| 080546758 | OEM cross reference |
| 037038500 | OEM cross reference |
Frequently Asked Questions
Does this fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original and needs no assembly. Check the 90 mm fixation hole spacing and the six-wire, six-pin layout against your existing unit if you want to be certain before ordering.
What do the wire colours do?
The yellow wires carry the AC input from the stator. The red wire is battery positive. The black wire is the keyswitch 12 V feed. The white wire drives the charge warning indicator light on the dash. That white wire is why this unit can restore a dash warning lamp that stopped working when the original regulator failed.
What is included?
The voltage regulator rectifier unit, tested before dispatch. No assembly is required and it is supplied ready to fit.
How do I know my old regulator has failed?
With the engine running, measure across the battery terminals. A healthy system should reach a minimum charging voltage of 14.5 V plus or minus 0.5 V and hold below roughly 15 V. A reading stuck at resting battery voltage points to a failed rectifier section; a reading well above 15 V points to failed regulation and will destroy the battery. On these models the charge warning light on the dash, fed by the white wire, is often the first thing to give the fault away.
