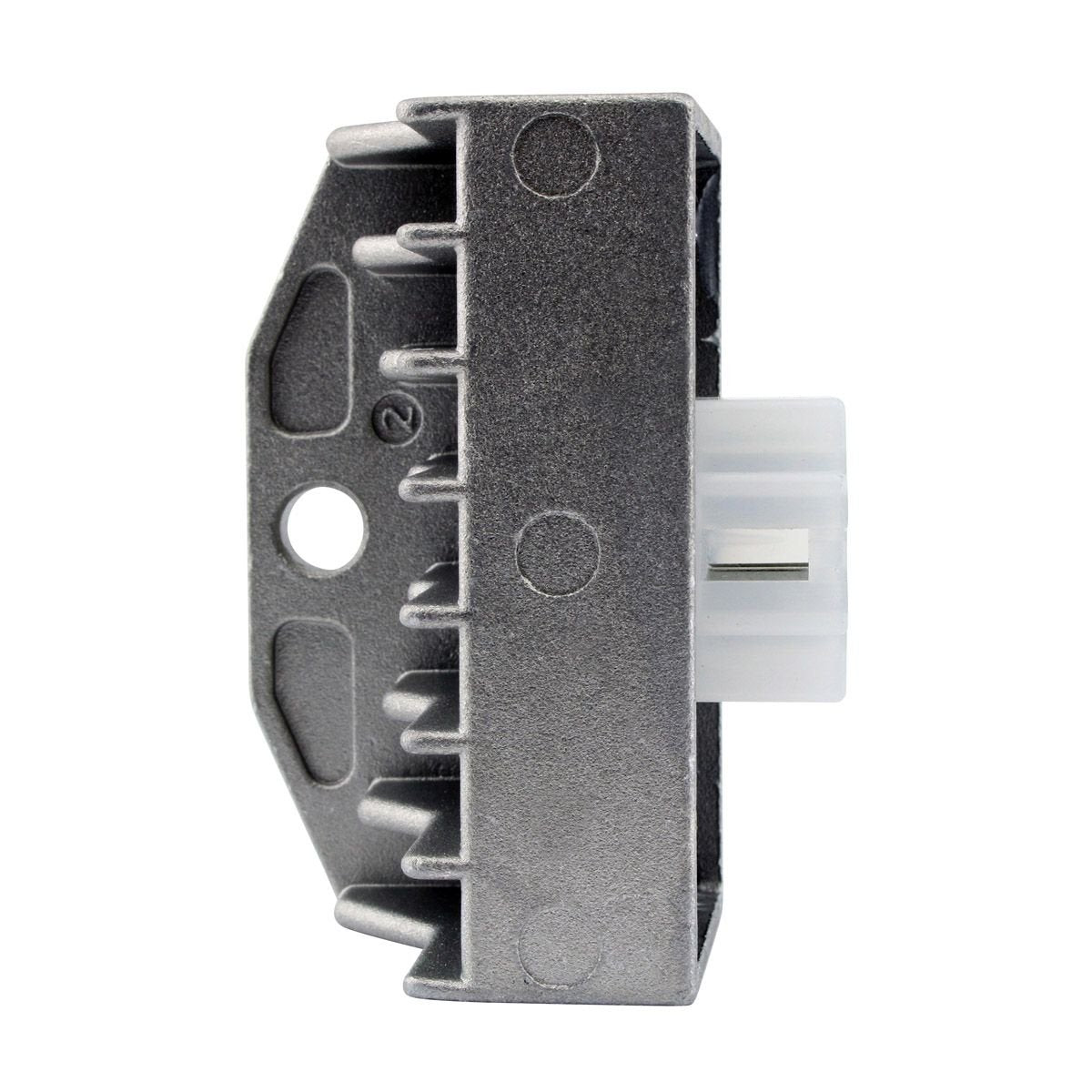

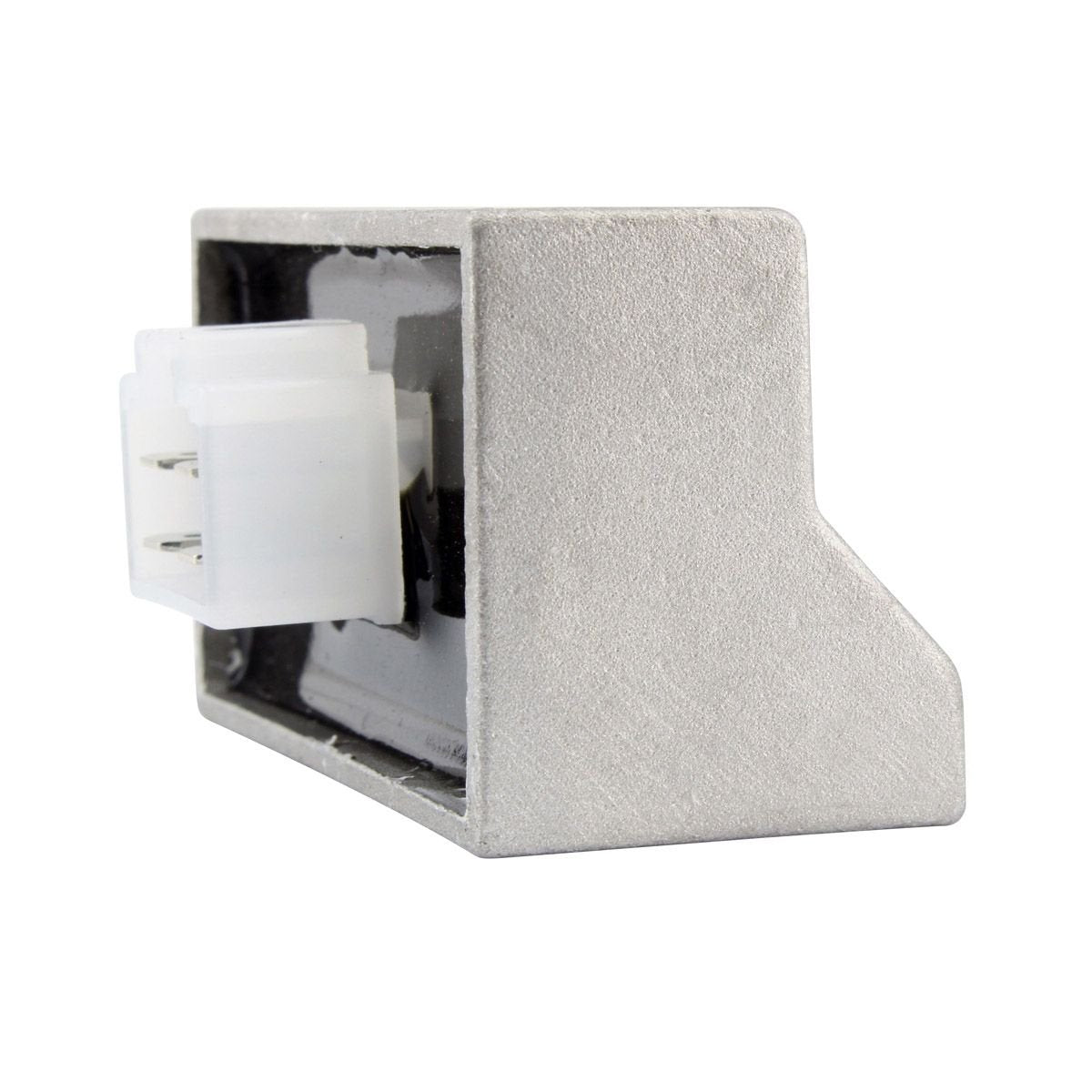

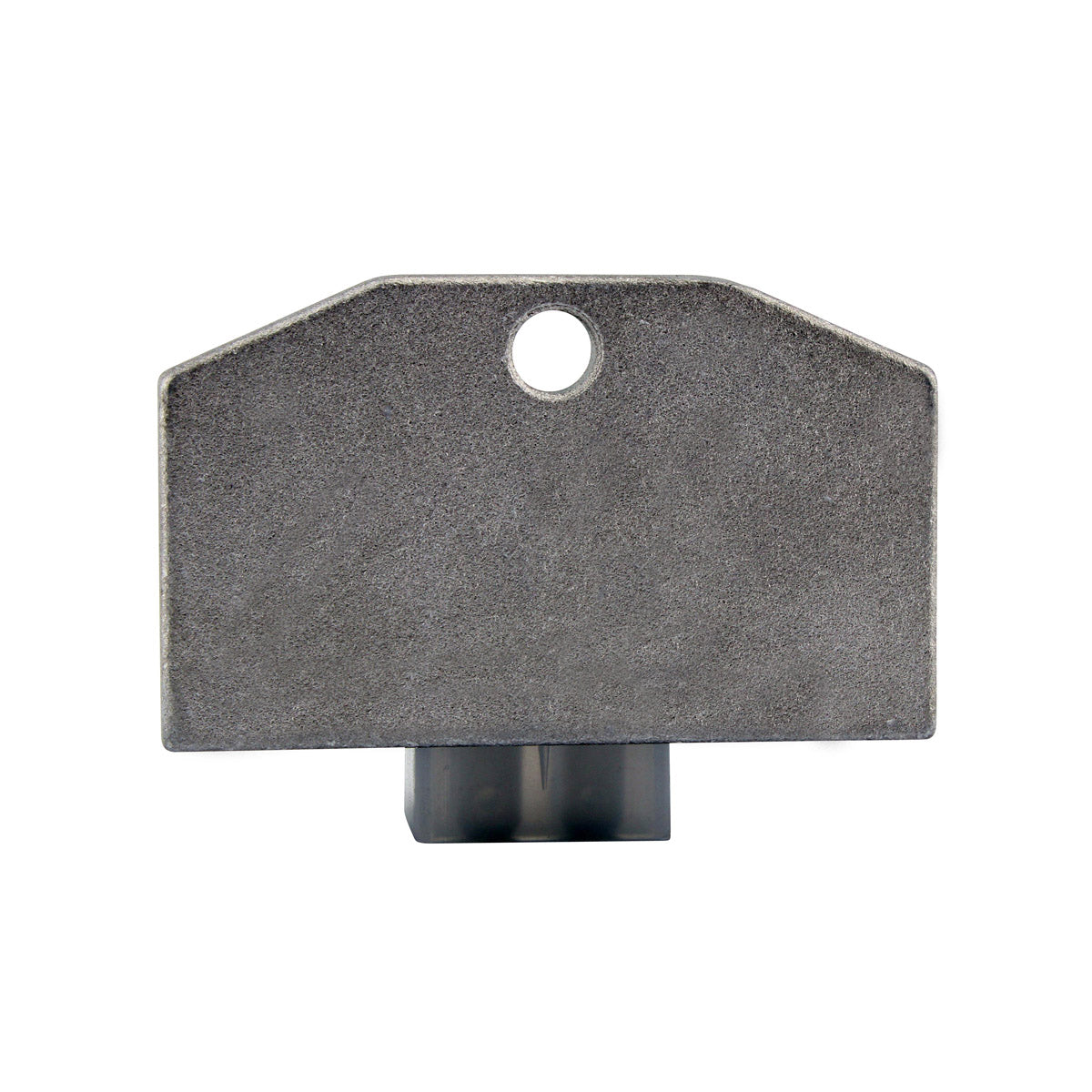

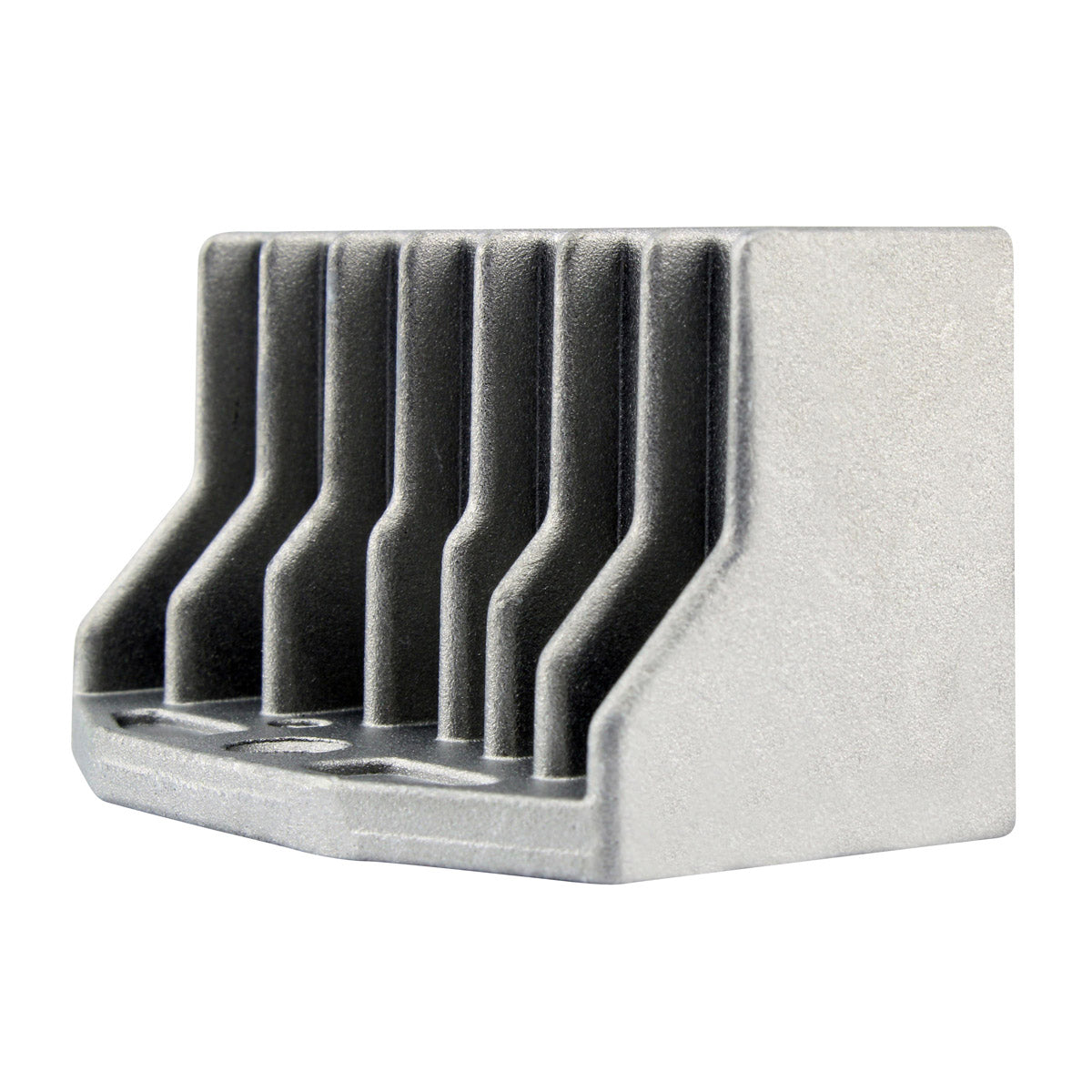

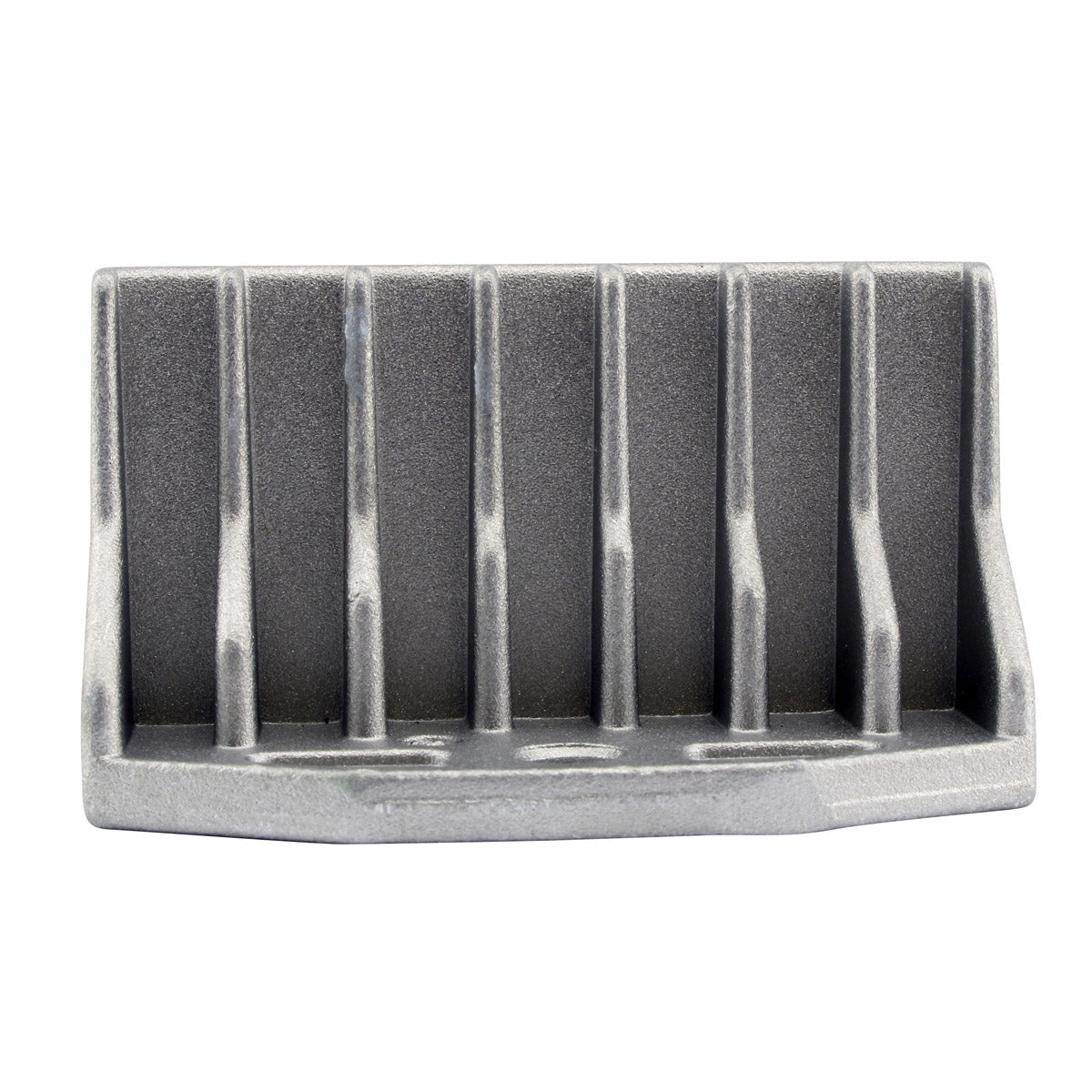

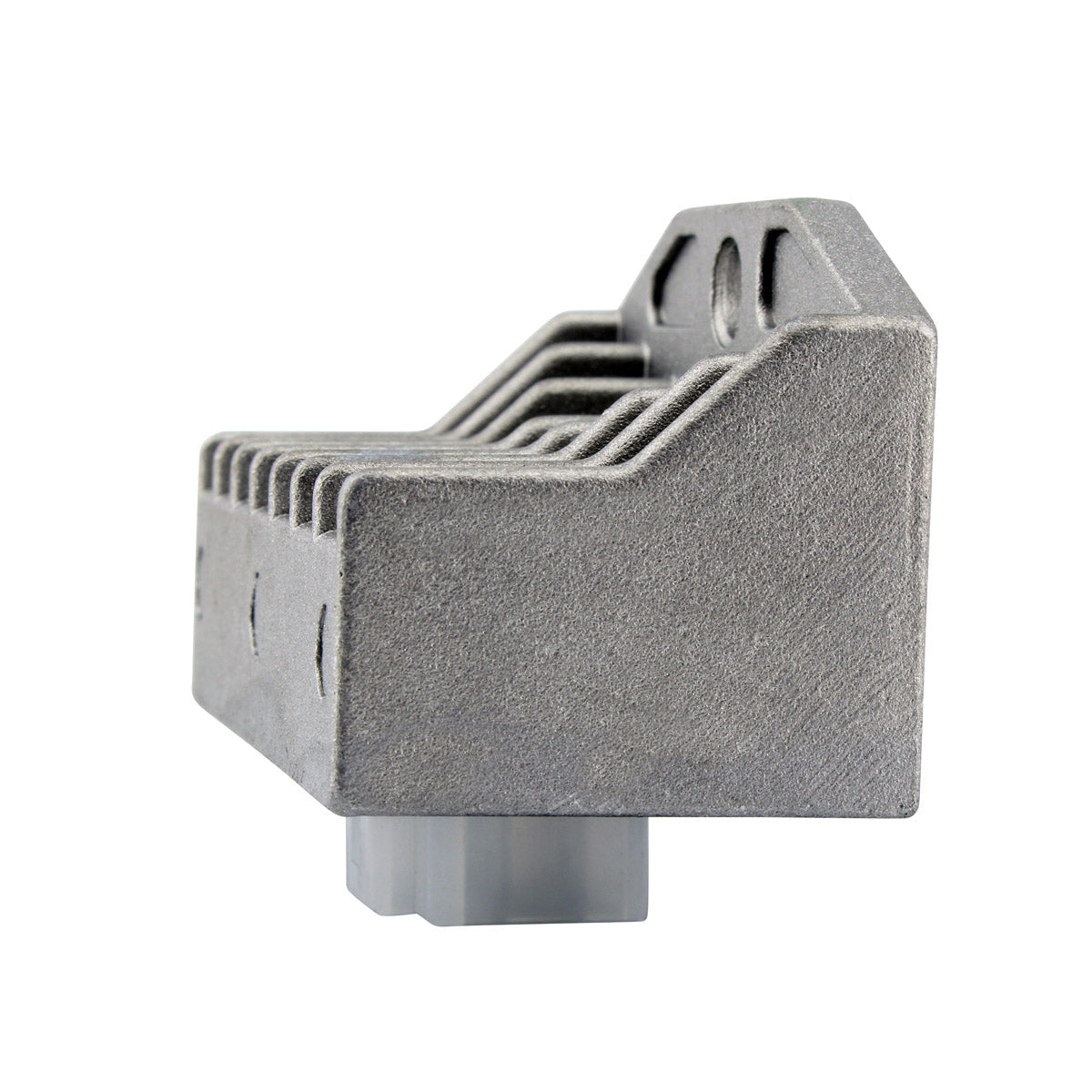

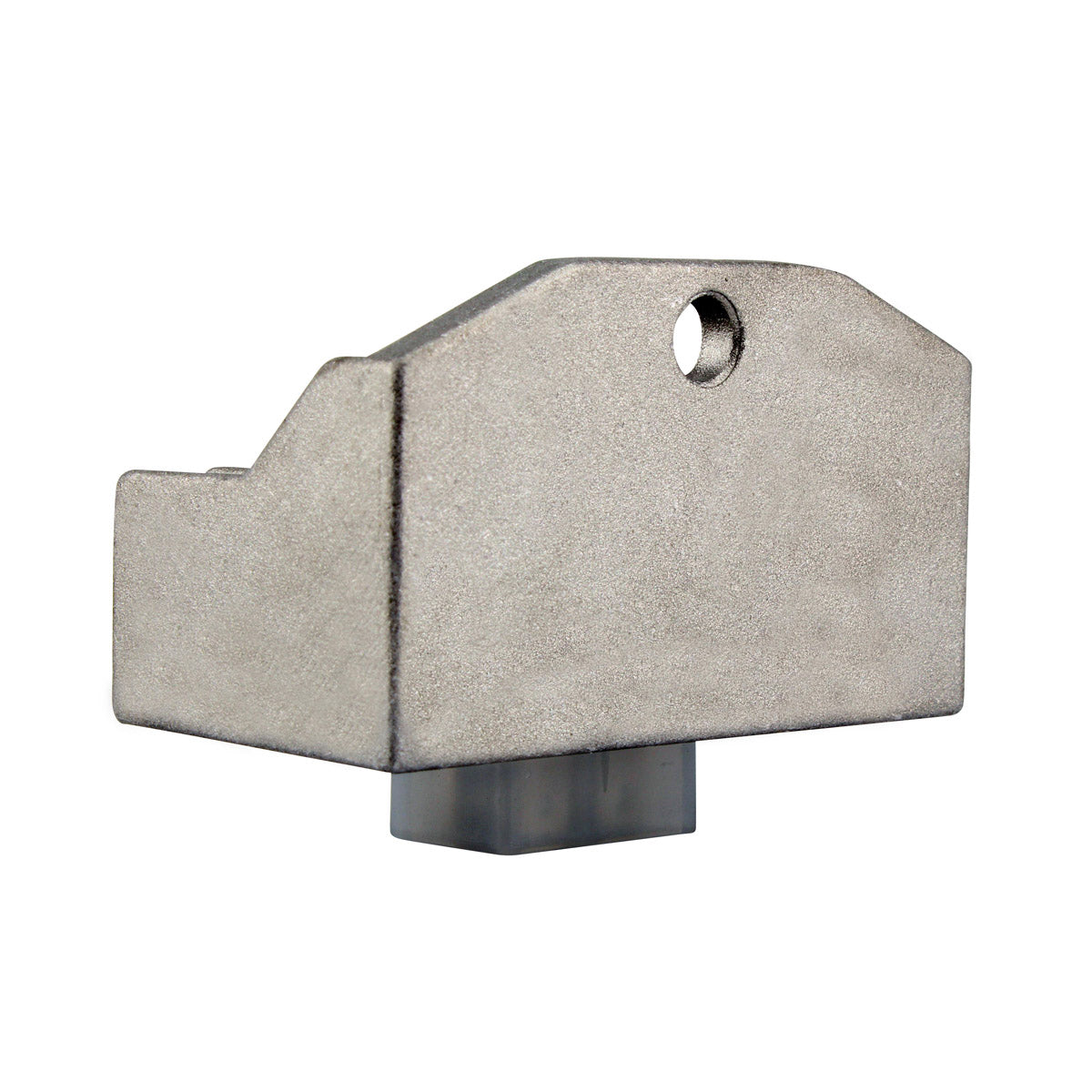

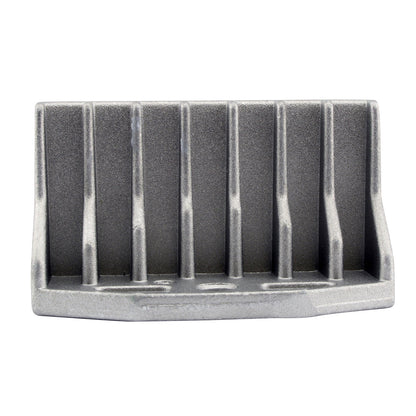

A brand new aftermarket voltage regulator rectifier for the Honda CBF 125, supplied as a direct replacement for your original unit. It is plug-and-play, direct fit and easy to install with no assembly required. Higher grade electrical components are used throughout, the quality exceeds the OEM equipment, and all products shipped are tested.
This unit also ships with the opposite connector, the main harness side. RMSTATOR includes it because these connectors are often melted, corroded or defective and are a major cause of repetitive electrical issues. Replacing the regulator alone while leaving a damaged connector in place is one of the most common reasons a new part appears to fail soon after fitting, so having the mating half in the box lets you renew both ends at once.
Key Features
- Direct replacement for Honda OEM 31600-KSP-861

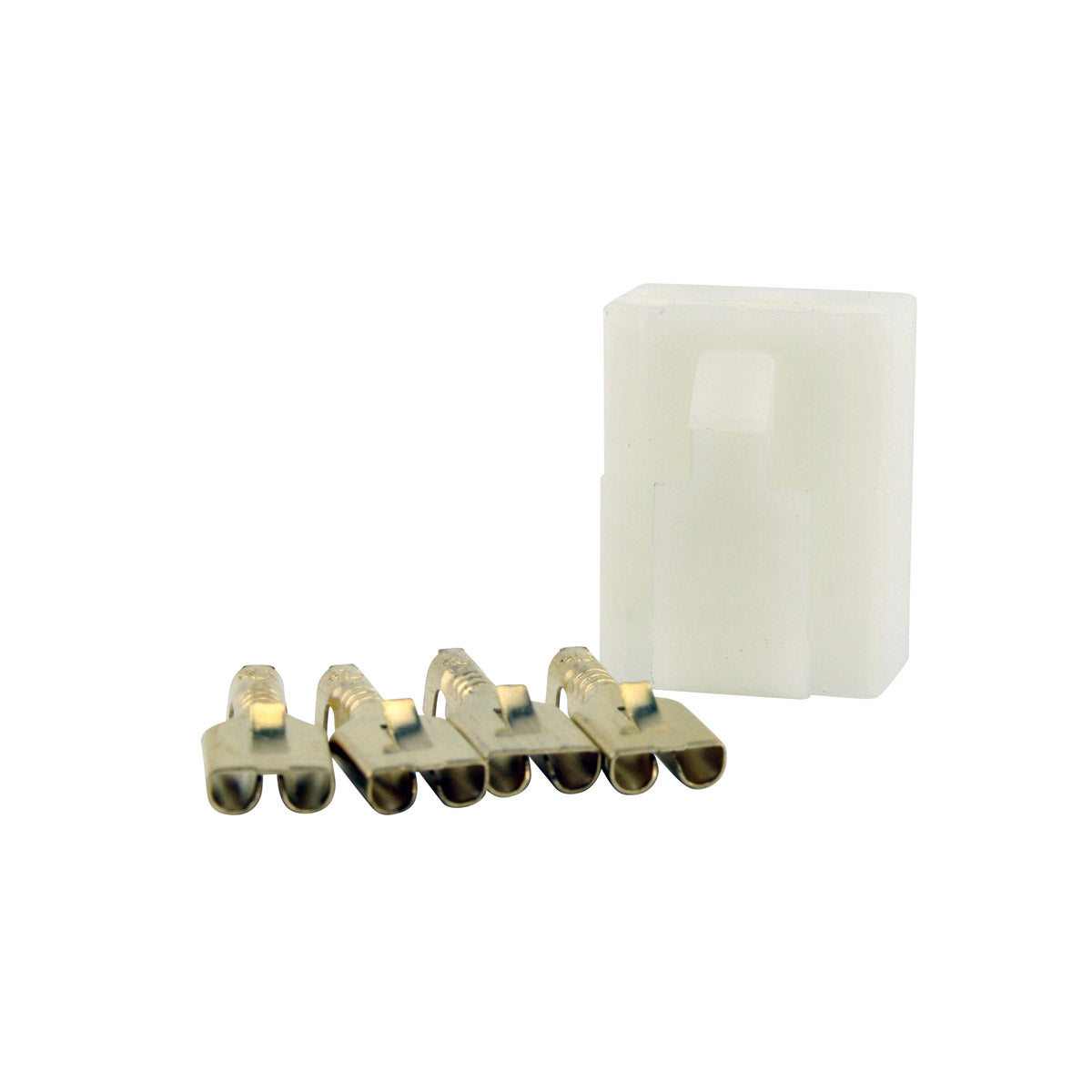

- Opposite connector, main harness side, supplied in the box

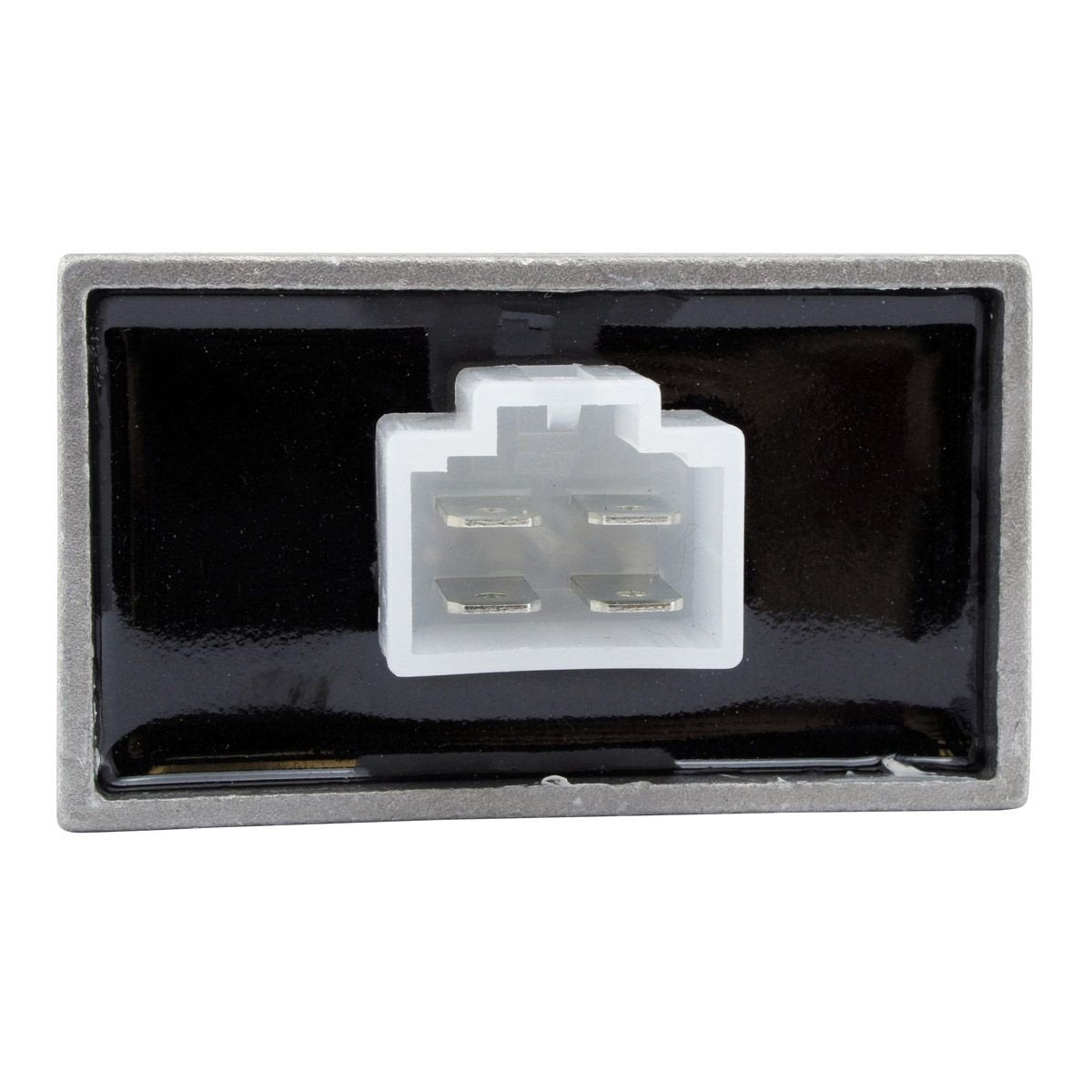

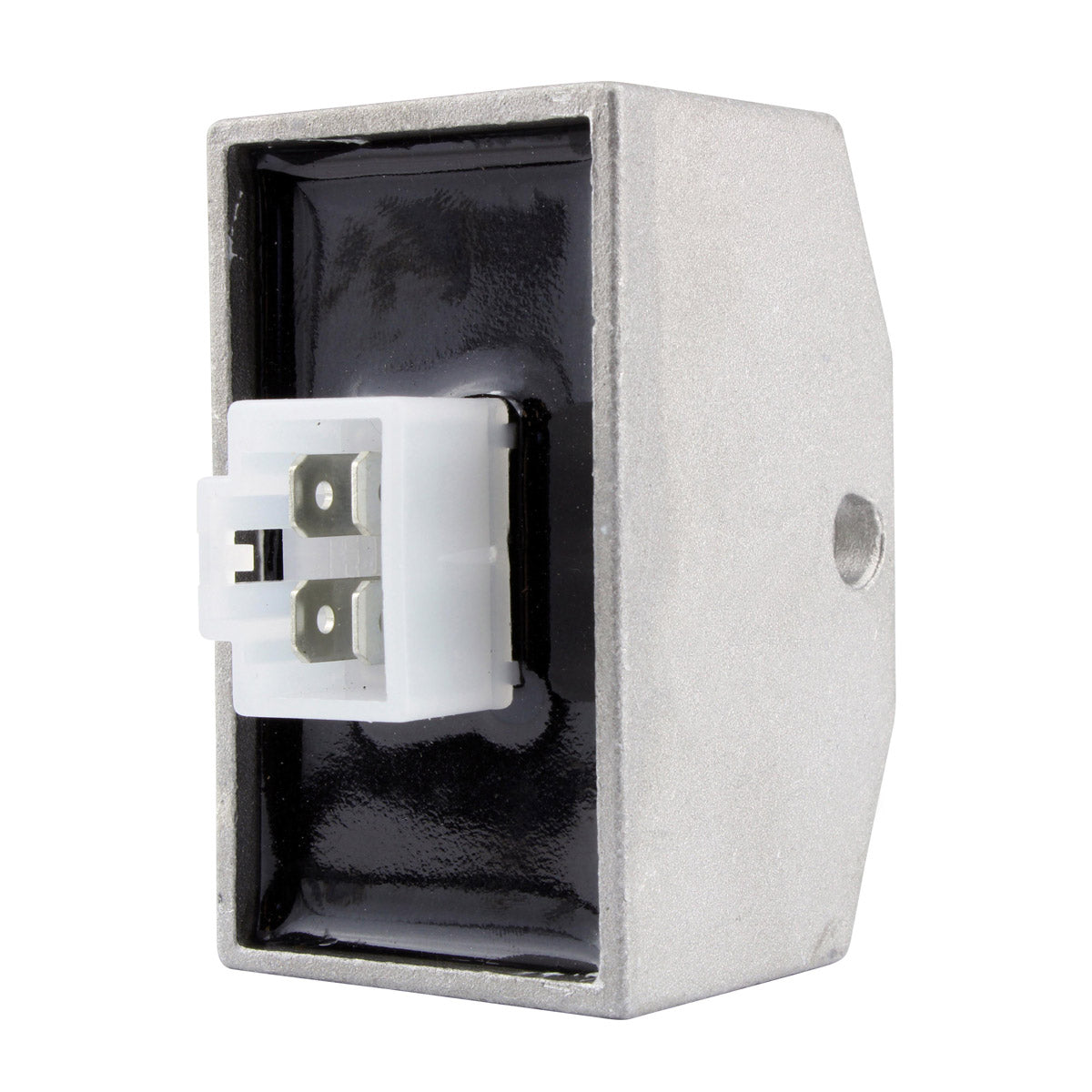

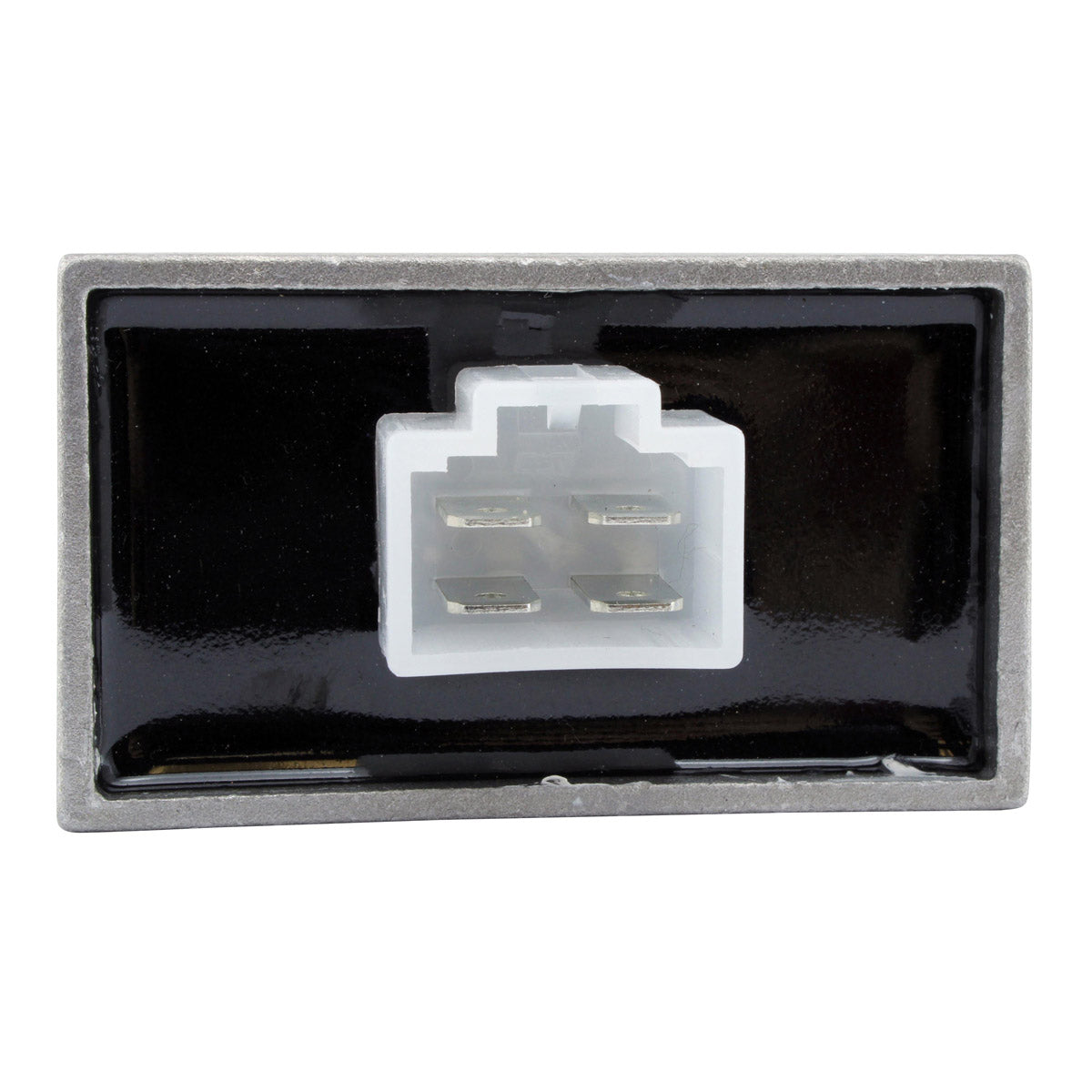

- Compact 4-pin single plug design, 38 x 65 x 40 mm
- Higher grade electrical components, quality exceeding OEM equipment
- Rated to 50 A / 500 W maximum charging current
- Plug-and-play, no assembly required, every unit tested before shipping
Technical Specs
| Specification |
Detail |
| Width |
38 mm |
| Length |
65 mm |
| Height |
40 mm |
| Number of plugs |
1 |
| Number of pins |
4 |
| Minimum charging voltage |
14.5 V +/- 0.5 V |
| Maximum charging current |
50 A / 500 W |
| Open circuit voltage |
Under 15 V |
| Operating temperature |
-20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Honda CBF 125 |
2009-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31600-KSP-861 |
Honda |
Frequently Asked Questions
Will this fit my CBF 125 without modification?
Yes. It is a direct fit, plug-and-play replacement for Honda OEM 31600-KSP-861 on the 2009-2013 CBF 125, using the same single 4-pin plug. No assembly and no wiring changes are required.
What is included in the box?

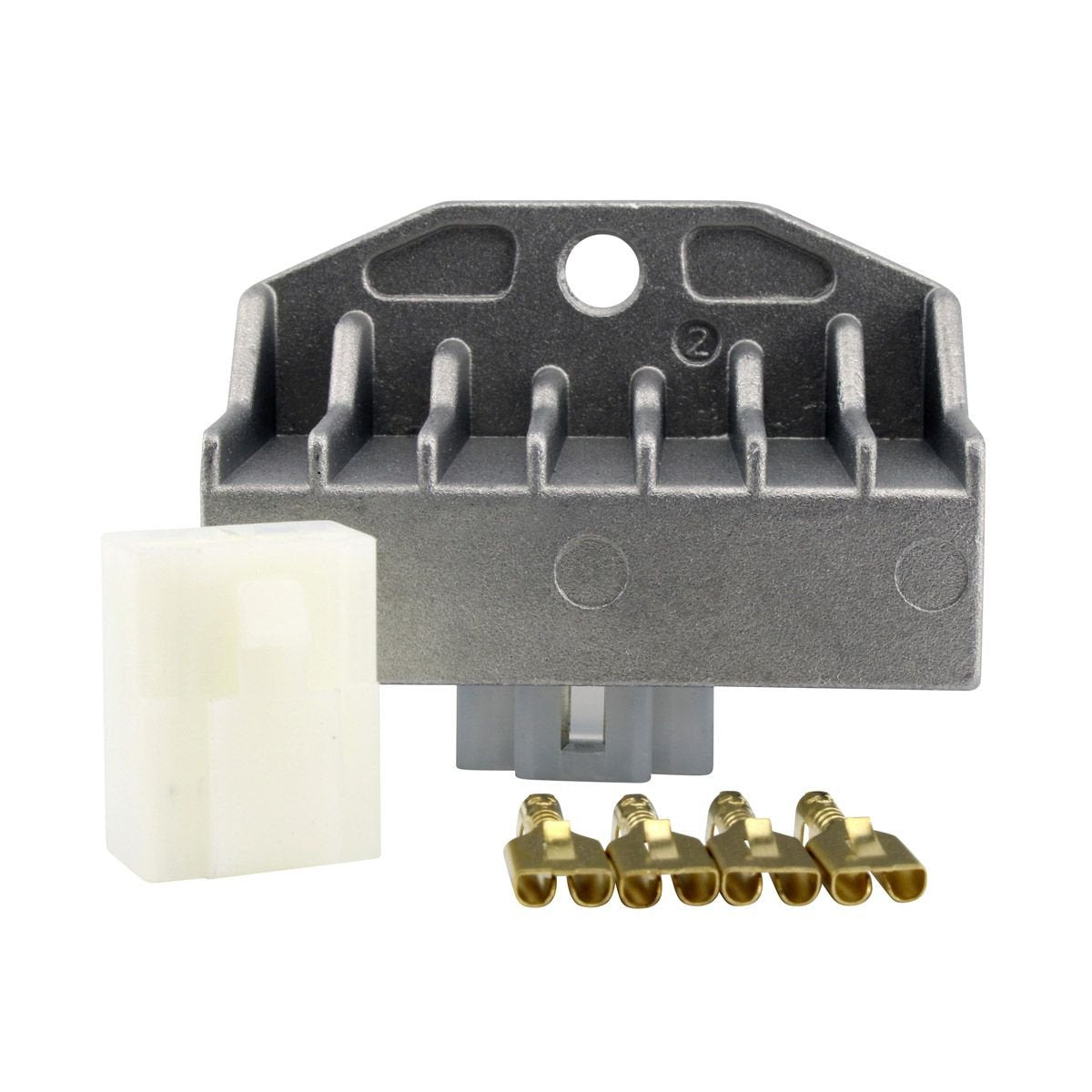

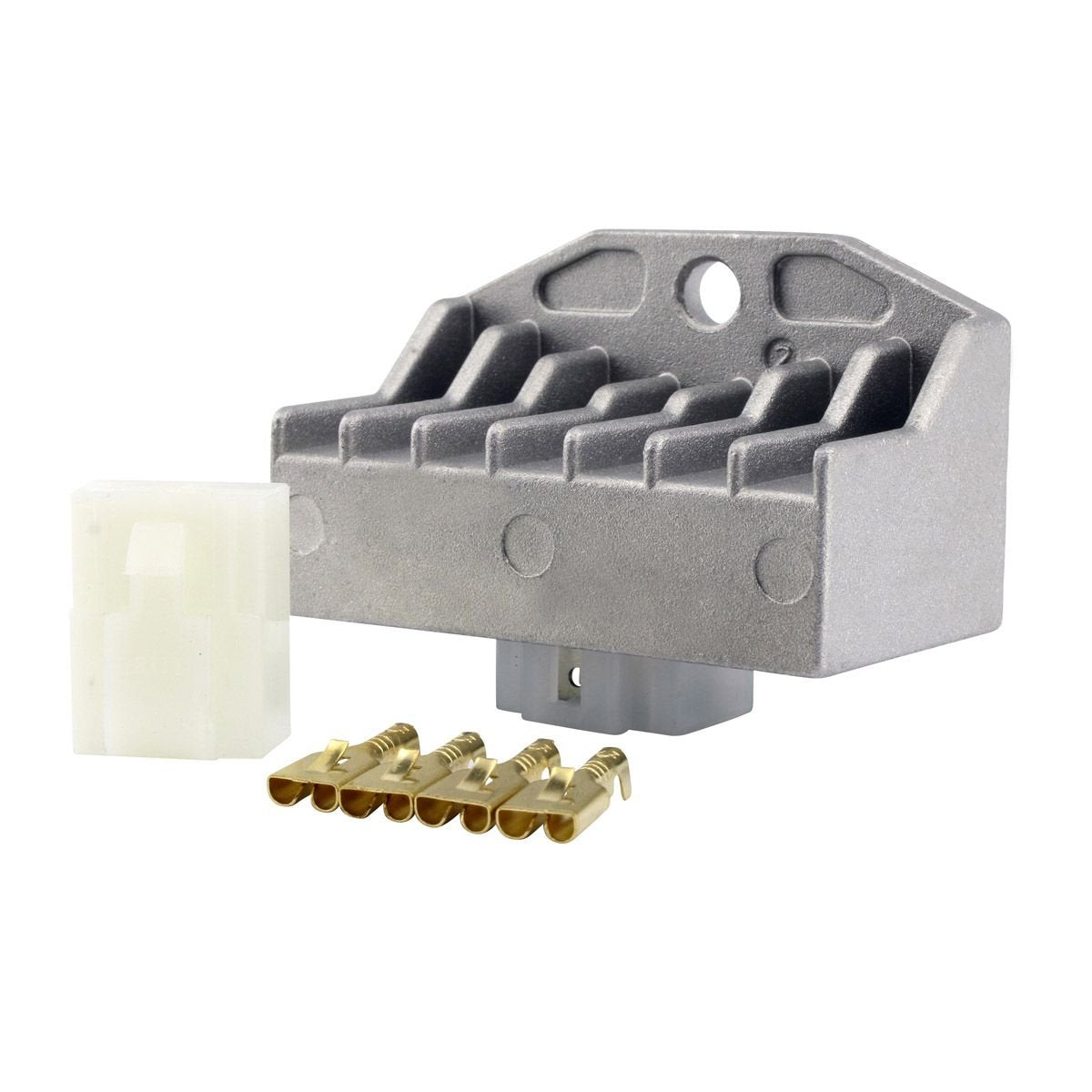

The voltage regulator rectifier unit and the opposite connector for the main harness side. The second connector is included because the original harness plug is frequently melted or corroded by the time the regulator itself gives up.
How do I know my old regulator has failed?
Start the engine and measure across the battery terminals. A healthy charging system should reach at least 14.5 V +/- 0.5 V. If the voltage stays at battery resting level nothing is being charged; if it rises well beyond 15 V the regulator is overcharging. Browned or melted pins in the four-way plug are a further sign.
Do I have to fit the supplied connector?
Not necessarily. If your existing harness plug is clean, undamaged and makes a firm connection you can reuse it. If there is any browning, corrosion or a loose pin, fit the supplied connector at the same time, otherwise the fault will return.
