Voltage Regulator for Arctic Cat EXT 580, Honda RVT 1000, KTM 690 & Suzuki GV 1200 1983-2024
Voltage Regulator for Arctic Cat EXT 580, Honda RVT 1000, KTM 690 & Suzuki GV 1200 1983-2024
SKU:RM30T10
Free shipping over £150. Terms apply
Couldn't load pickup availability
Voltage Regulator for Arctic Cat, Honda, KTM and Suzuki
Arctic Cat EXT 580, Honda RVT 1000, KTM 690 Enduro and Suzuki GV 1200, 1983-2024 - part number RM30T10

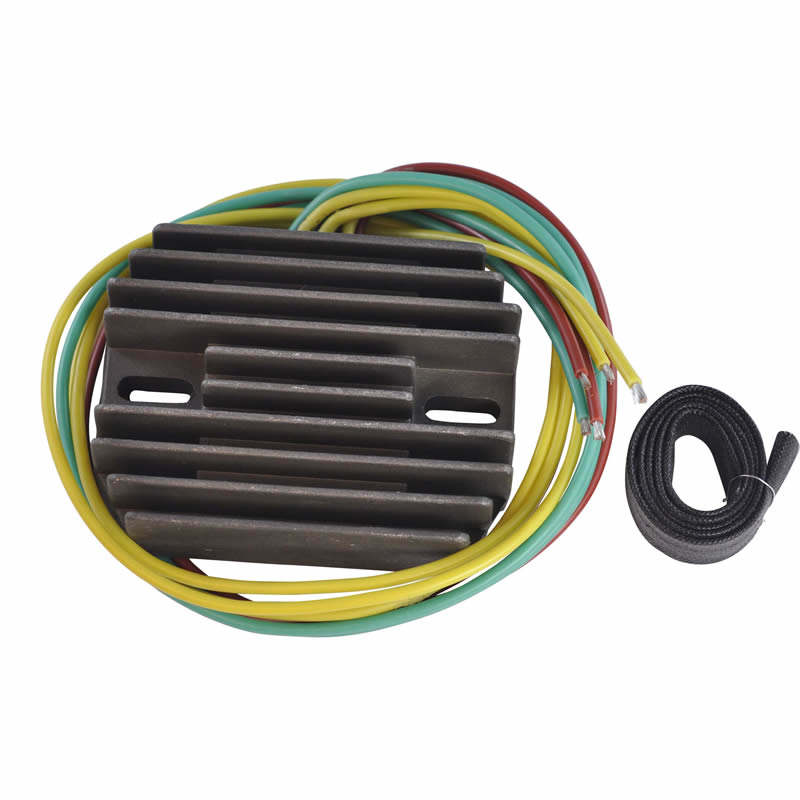

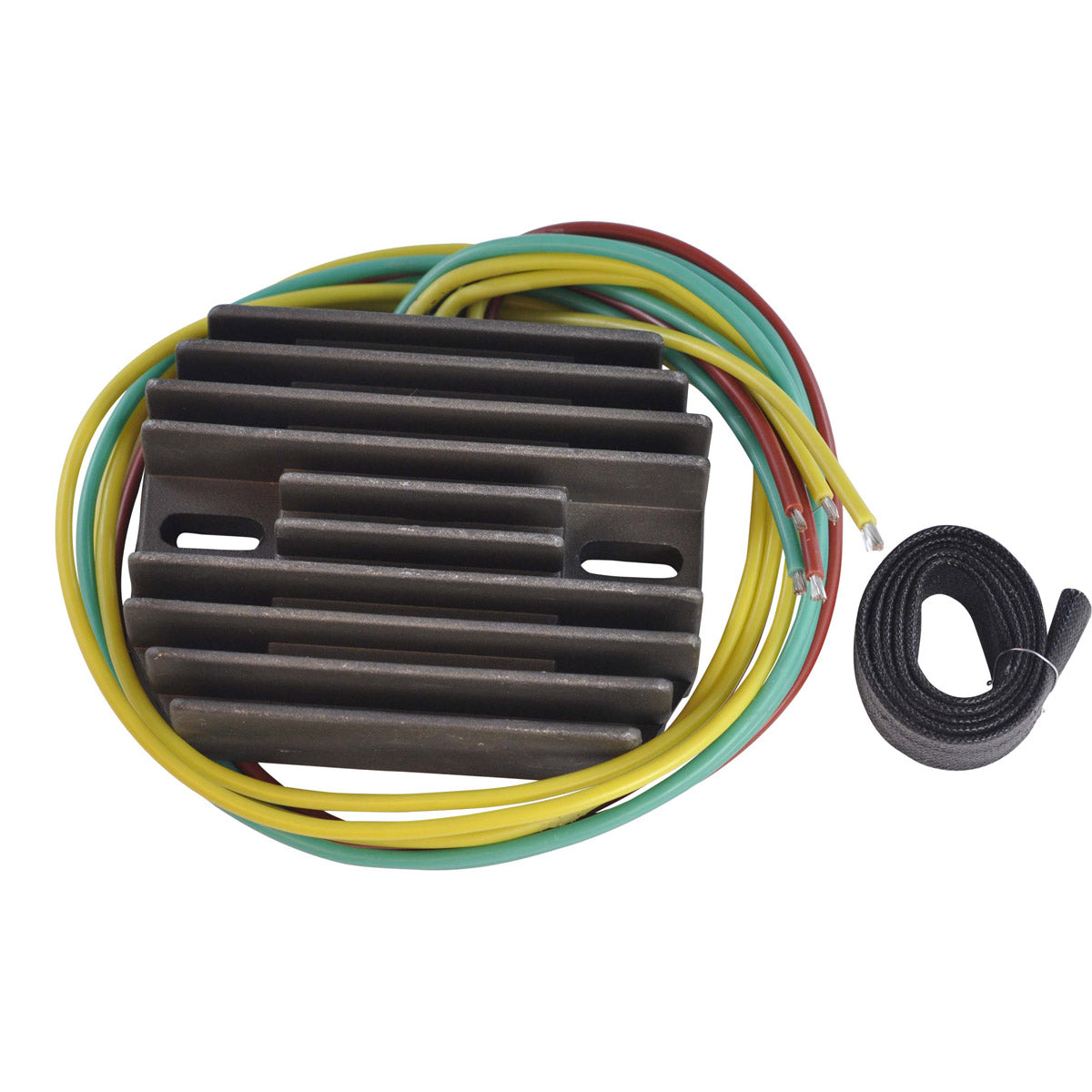

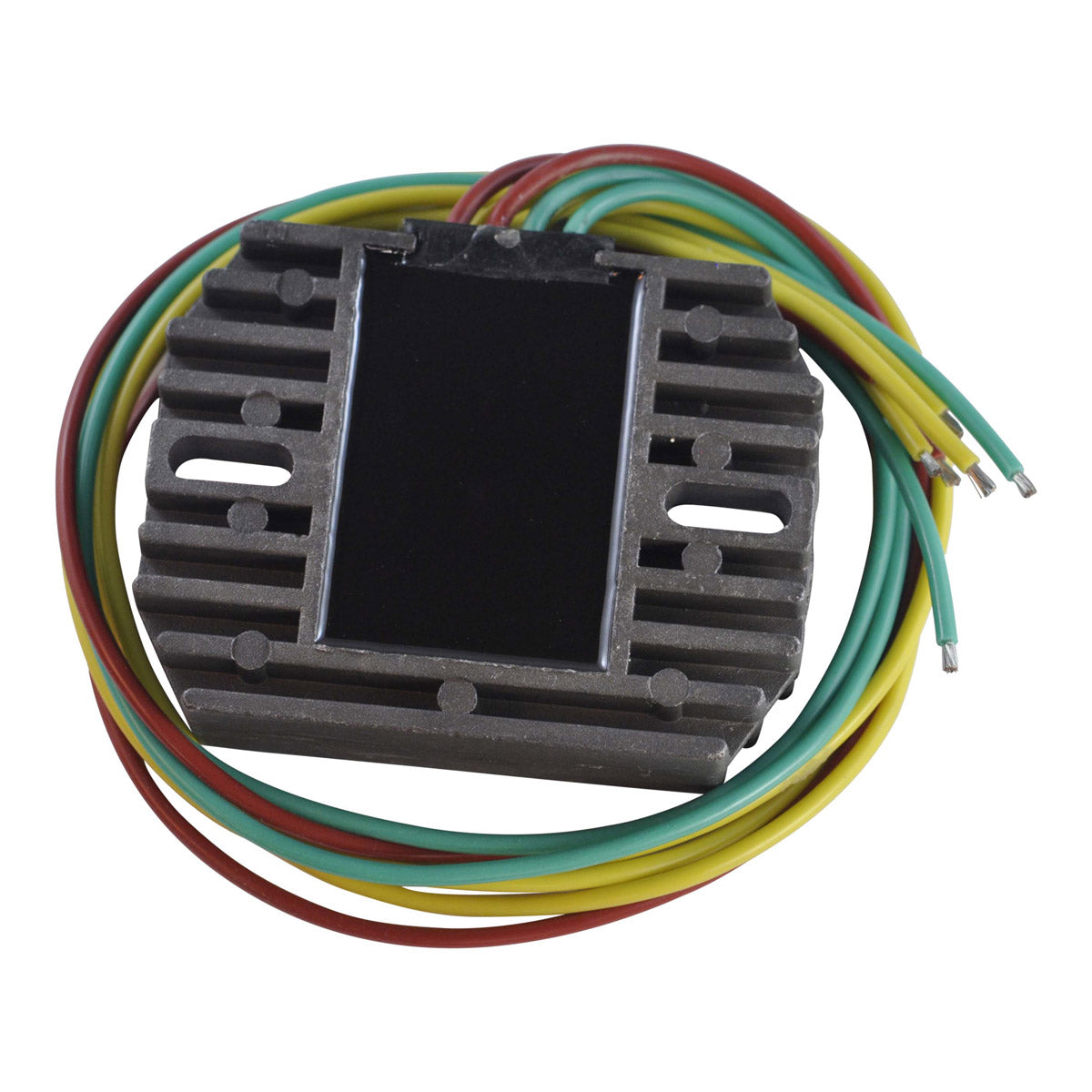

This is a brand new voltage regulator rectifier covering a broad spread of machines - the Arctic Cat EXT 580, the Honda RVT 1000, the KTM 690 Enduro and the Suzuki GV 1200. It arrives with 500 mm of bare lead on seven wires and no plug fitted, which is deliberate: you must re-install your original connector onto the new unit. Once that connector is in place the part becomes plug-and-play, a direct fit and easy to install, with no assembly required.

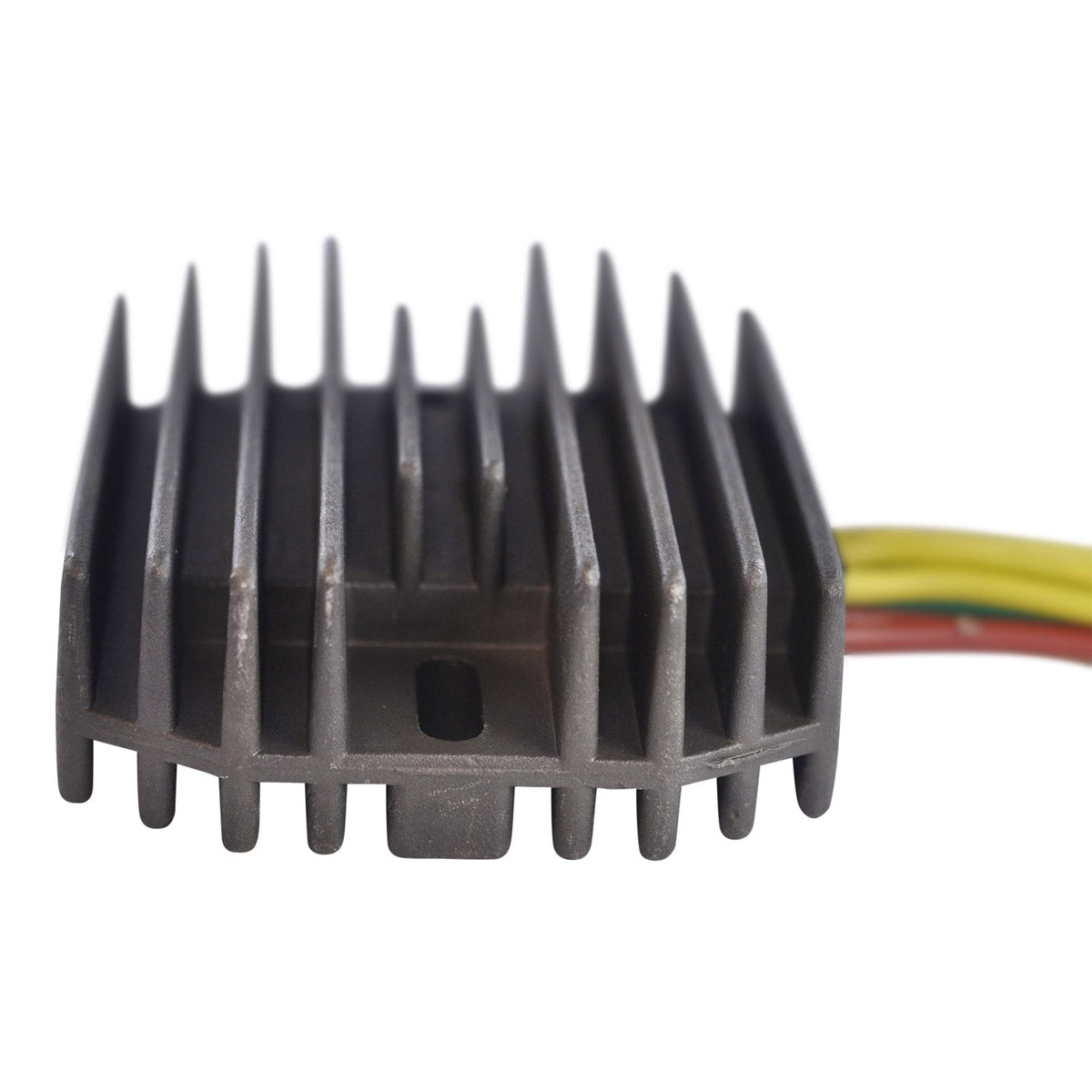

The heat sink and the charging capability are both improved over the original, and a higher grade of electrical component is used throughout, so the quality exceeds the OEM equipment. Every unit is tested before it is shipped. The generous 500 mm lead length also gives you the option of siting the regulator where it gets more airflow than the factory position allowed, which is worth considering if the original unit cooked itself.
Key Features
- Brand new voltage regulator rectifier
- Covers Arctic Cat, Honda, KTM and Suzuki applications
- Supplied without a plug - re-install your original connector
- Plug-and-play, direct fit and easy to install once the connector is fitted
- No assembly required
- Improved heat sink and improved charging capability
- Higher grade of electrical components, quality exceeds the OEM equipment
- 500 mm of wire on seven leads
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30T10 |
| Type | Voltage regulator rectifier |
| Width | 80 mm |
| Length | 104 mm |
| Height | 31 mm |
| Fixation holes, centre to centre | 76 mm |
| Wire length | 500 mm |
| Number of plugs | 0 - refit your original connector |
| Number of pins | 7 |
| Number of wires | 7 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Less than 15 V |
| Operating temperature | -20 to 85 degrees C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat EXT 580 | 1983-2024 |
| Honda RVT 1000 | 1983-2024 |
| KTM 690 Enduro | 1983-2024 |
| Suzuki GV 1200 | 1983-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 62511034100 | KTM |
| 62511034000 | KTM |
| 31600-MB4-018 | Honda |
| 31600-MB4-008 | Honda |
| 31600-MG8-008 | Honda |
| 31600-MN0-008 | Honda |
| 31600-MBG-306 | Honda |
| 31600-MBG-D00 | Honda |
| 31600-MBG-D01 | Honda |
| 31600-MAT-E01 | Honda |
| 31600-MCF-003 | Honda |
| 31600-MCF-D30 | Honda |
| 32800-05A00 | Suzuki |
| 3005-057 | Arctic Cat |
| 21066-025 | Brand not specified on the manufacturer listing |
Frequently Asked Questions
Does this fit without modification?
Almost. The one job you must do is re-install your original connector onto the new unit, because this regulator is supplied with bare leads and no plug. Once that connector is fitted it is plug-and-play, a direct fit, and easy to install, with no other assembly required. The fixation holes are 76 mm centre to centre.
What is included?
The voltage regulator rectifier with 500 mm of wire on seven leads. No connector is supplied with this part - your original one is re-used.
How do I know my old regulator has failed?
Measure the voltage across the battery with the engine running. A healthy system holds around 14.5 V. A reading stuck at resting battery voltage points to a unit that has stopped charging, while a reading above 15 V points to one that has stopped regulating and is overcharging the battery. A regulator body that is scorched, swollen or too hot to touch has usually already gone.
This part covers four different makes - how do I confirm it is right for mine?
Use the OEM number rather than the model name. Read the number on the unit you are removing and check it against the cross reference table above. That is the most reliable confirmation on a part with coverage this wide.
