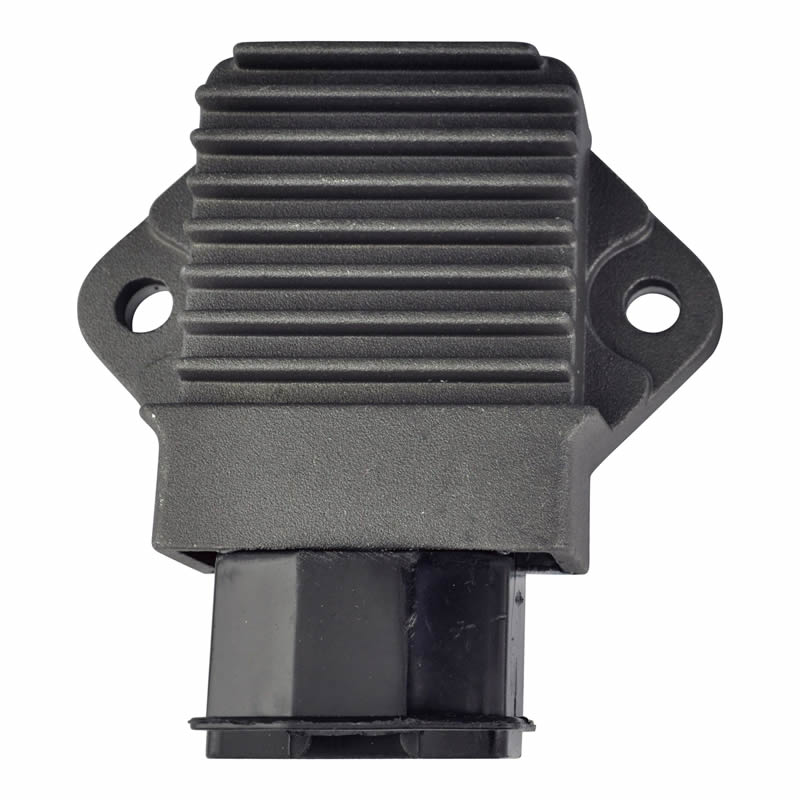

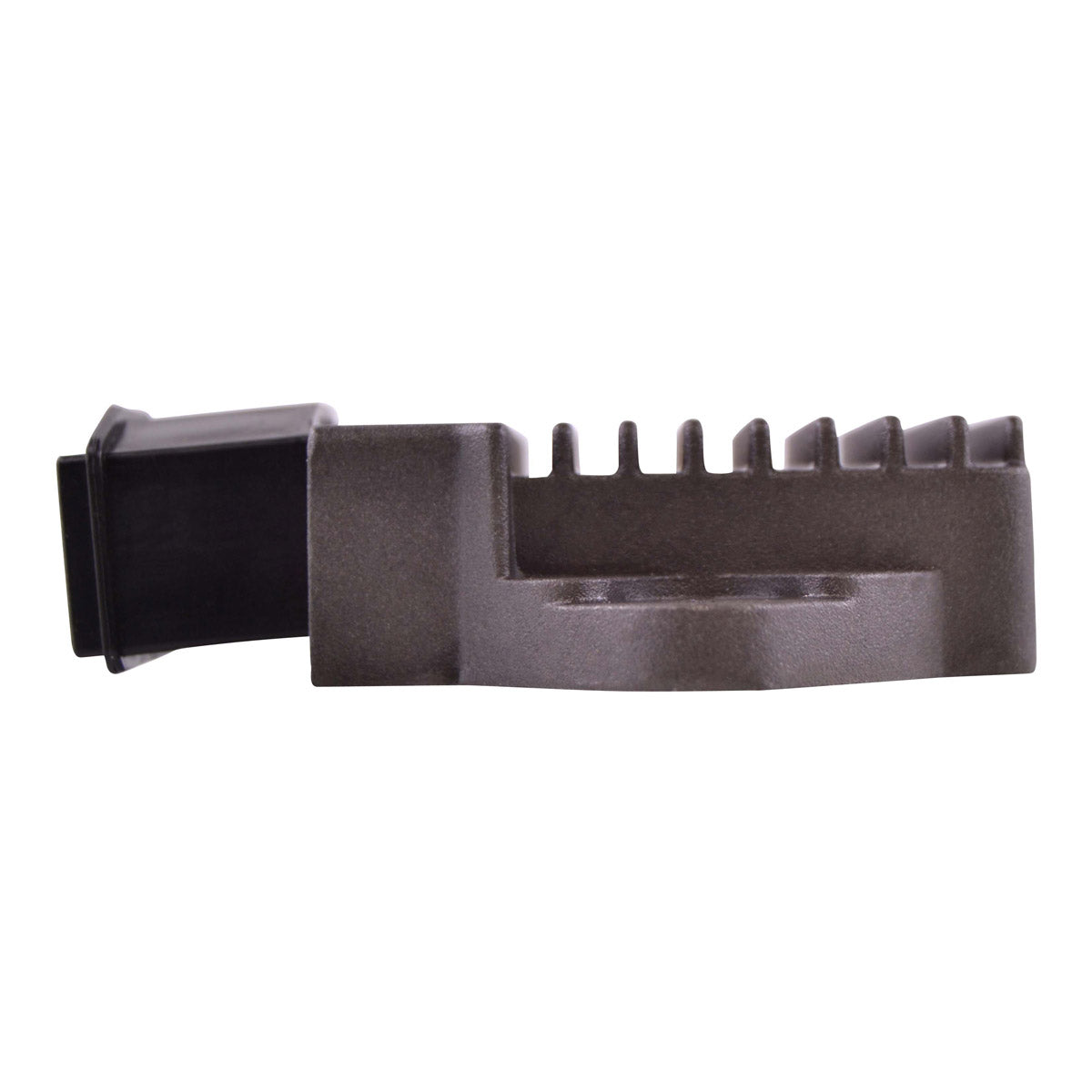

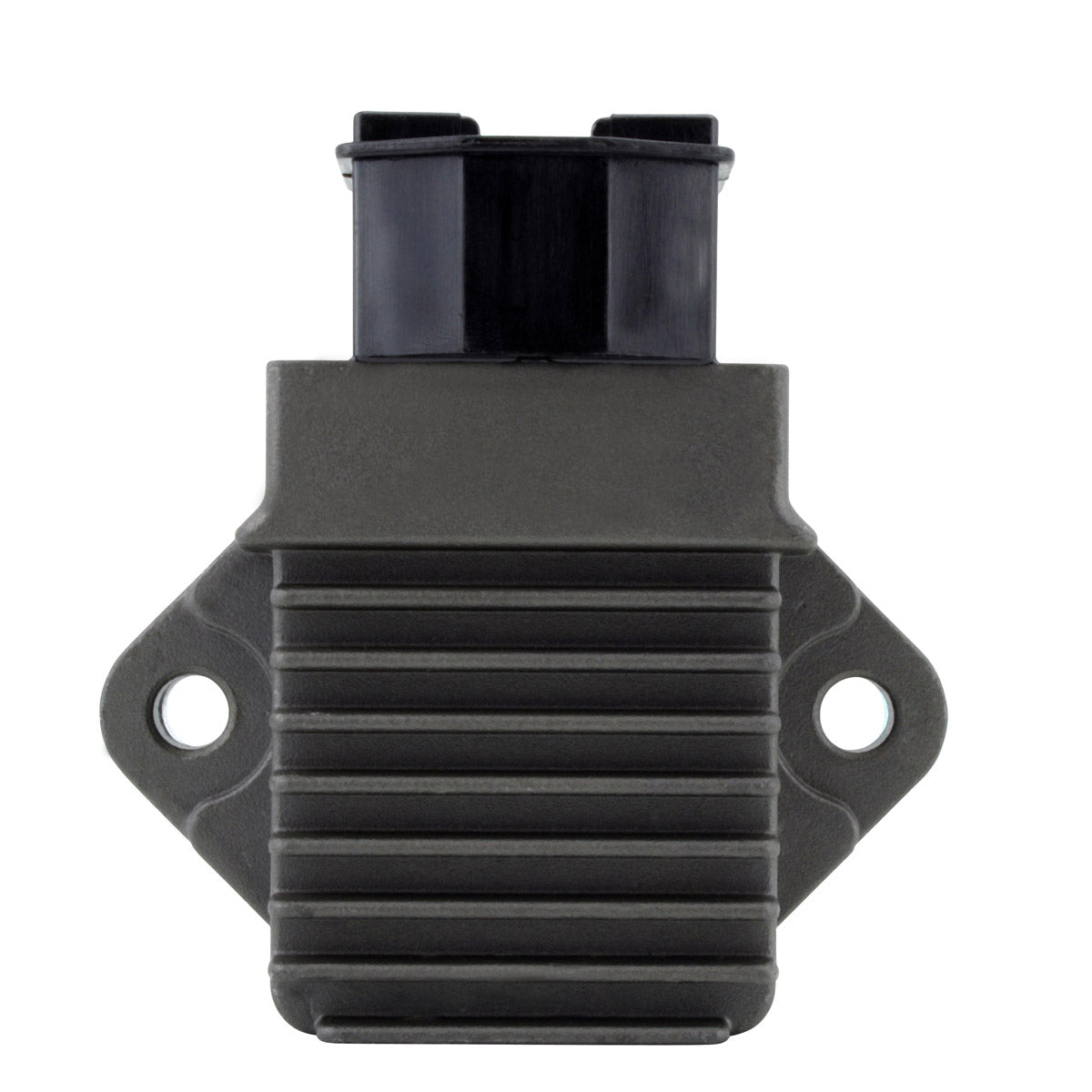

Regulator Rectifier for Aprilia, Honda and Husqvarna
Aprilia RXV 4.5, Honda CBR 600 and CBR 900, Husqvarna TXC 250, 1999-2013 - part number RM30902

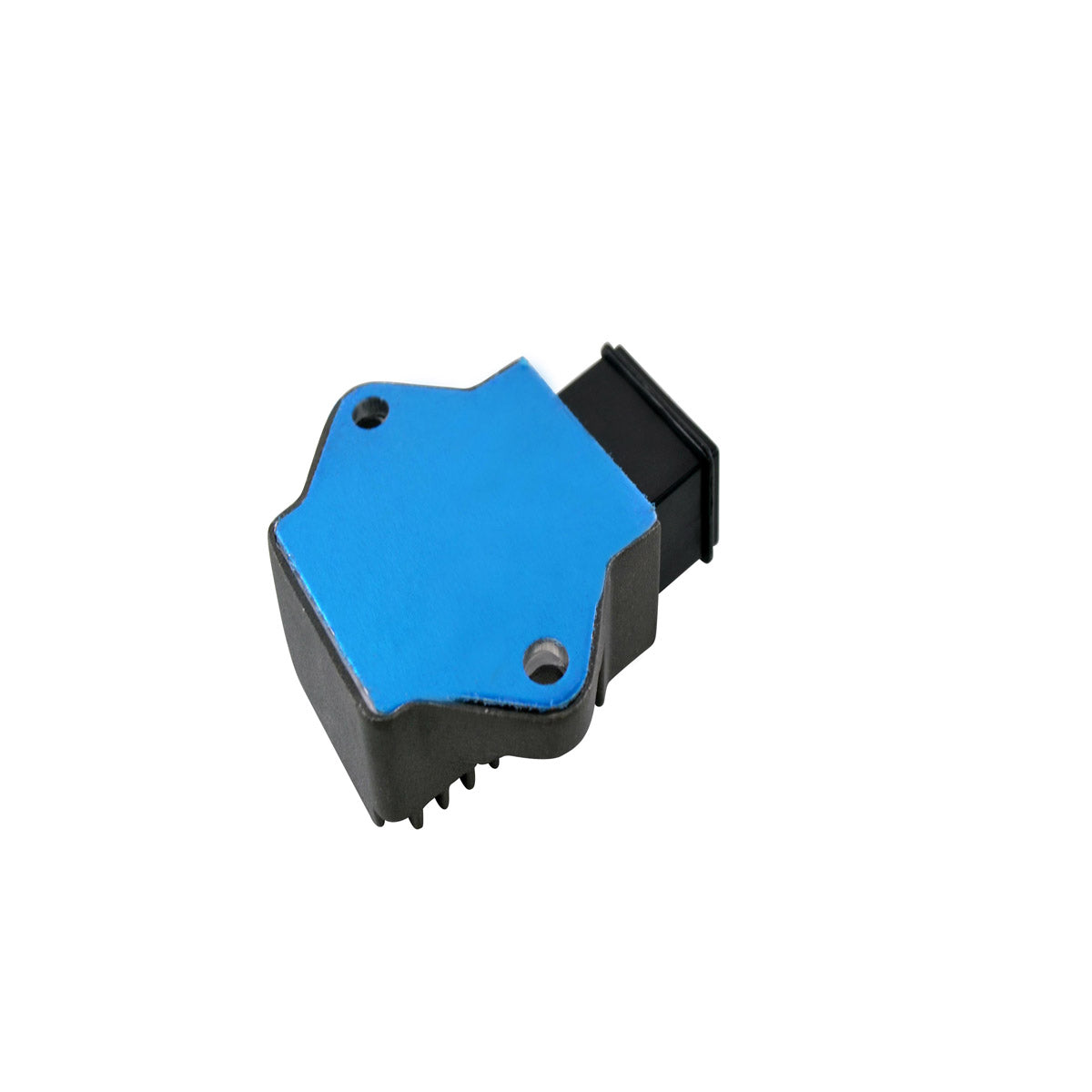

This is a brand new aftermarket voltage regulator rectifier, supplied as a direct replacement for the original unit fitted to the Aprilia RXV 4.5, the Honda CBR 600 and CBR 900, and the Husqvarna TXC 250. It is plug-and-play and a direct fit, so installation is straightforward and no assembly is required. Every unit is tested before it is shipped.
A higher grade of electrical component is used throughout, and the quality exceeds the OEM equipment. The opposite connector for the main harness side is included as standard, because that connector is so often melted, corroded or defective by the time a regulator is replaced, and a tired connector is a major cause of repeat electrical faults. All of the item pictures are accurate - if you are in any doubt, compare the item shown against the original part on your machine before ordering.
Key Features
- Brand new aftermarket voltage regulator rectifier
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electrical components
- Quality exceeds the OEM equipment

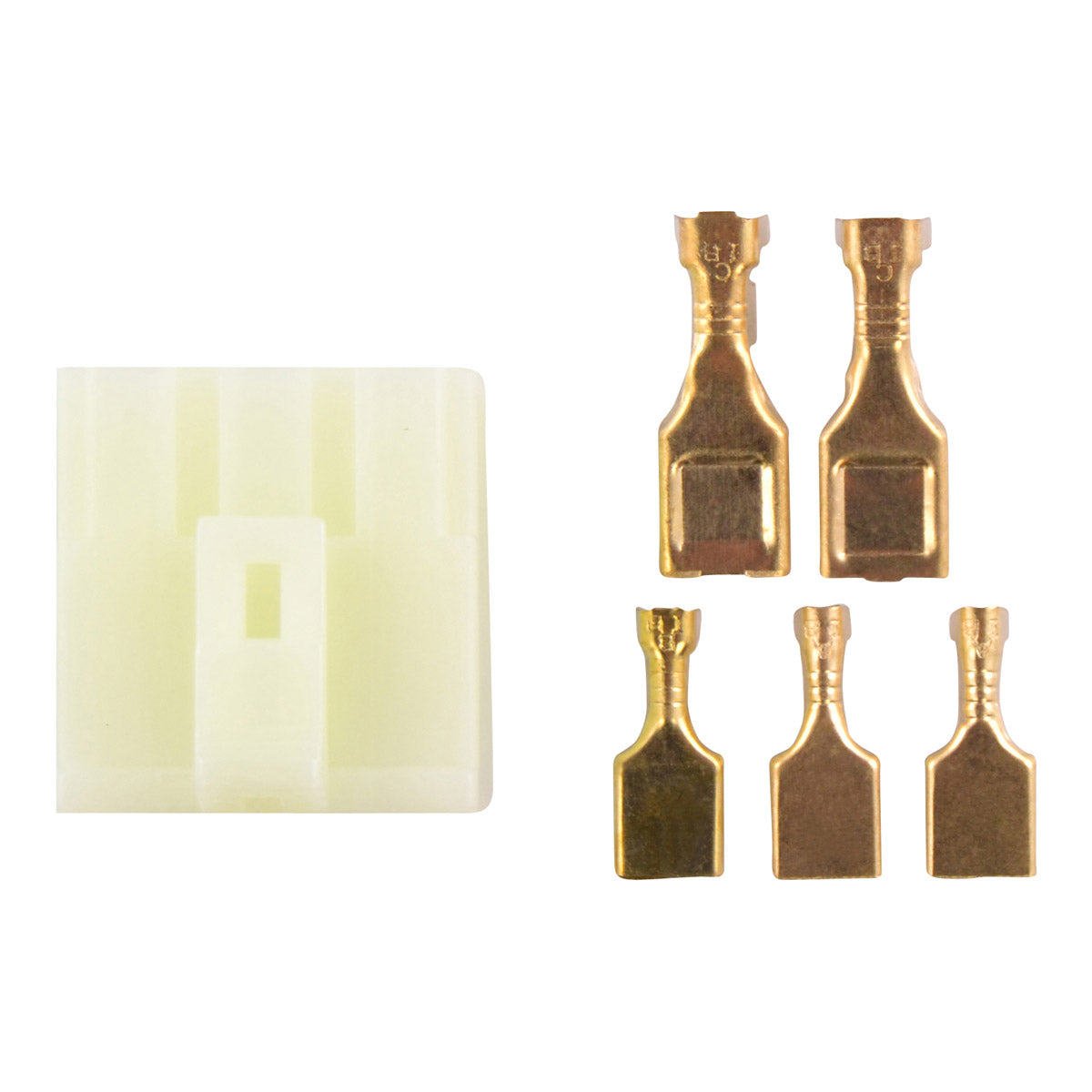

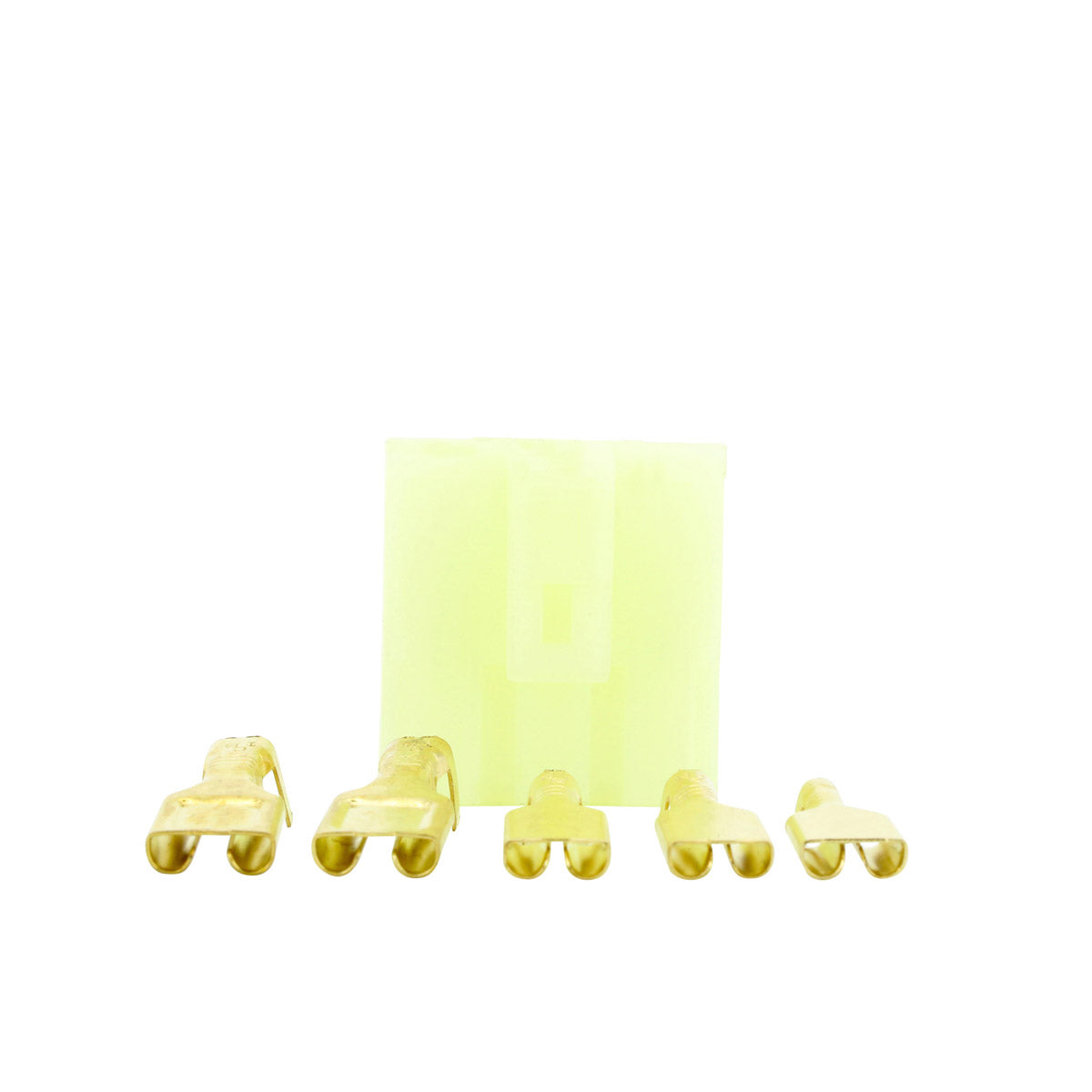

- Opposite connector for the main harness side included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM30902 |
| Type |
Voltage regulator rectifier |
| Width |
44 mm |
| Length |
83 mm |
| Height |
21 mm |

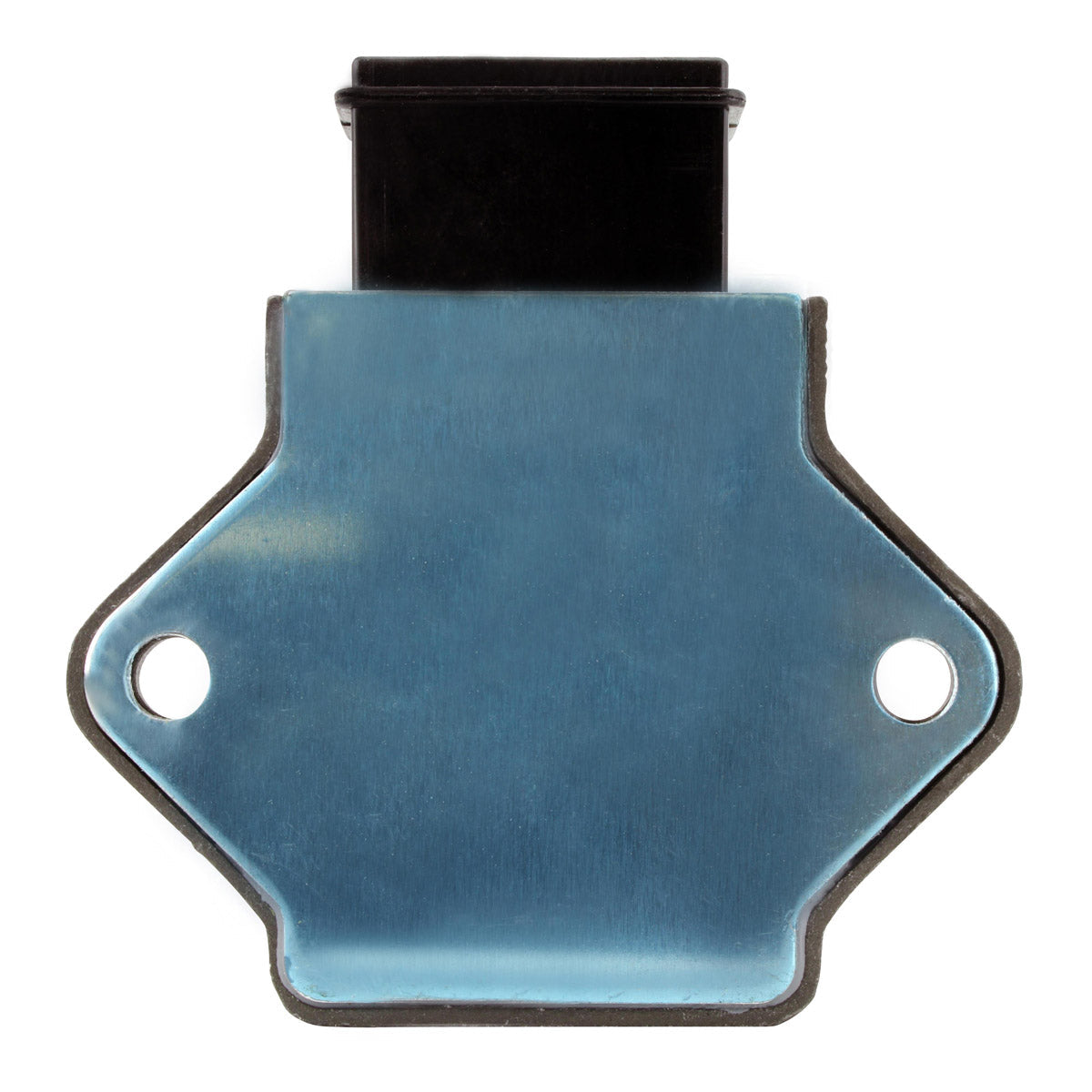

| Fixation holes, centre to centre |
60 mm |

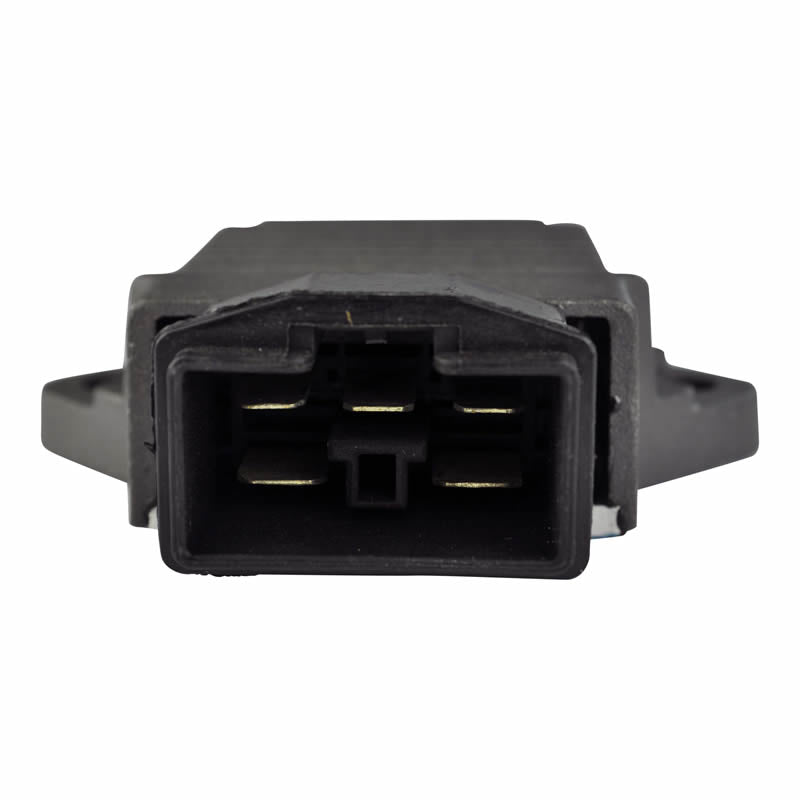

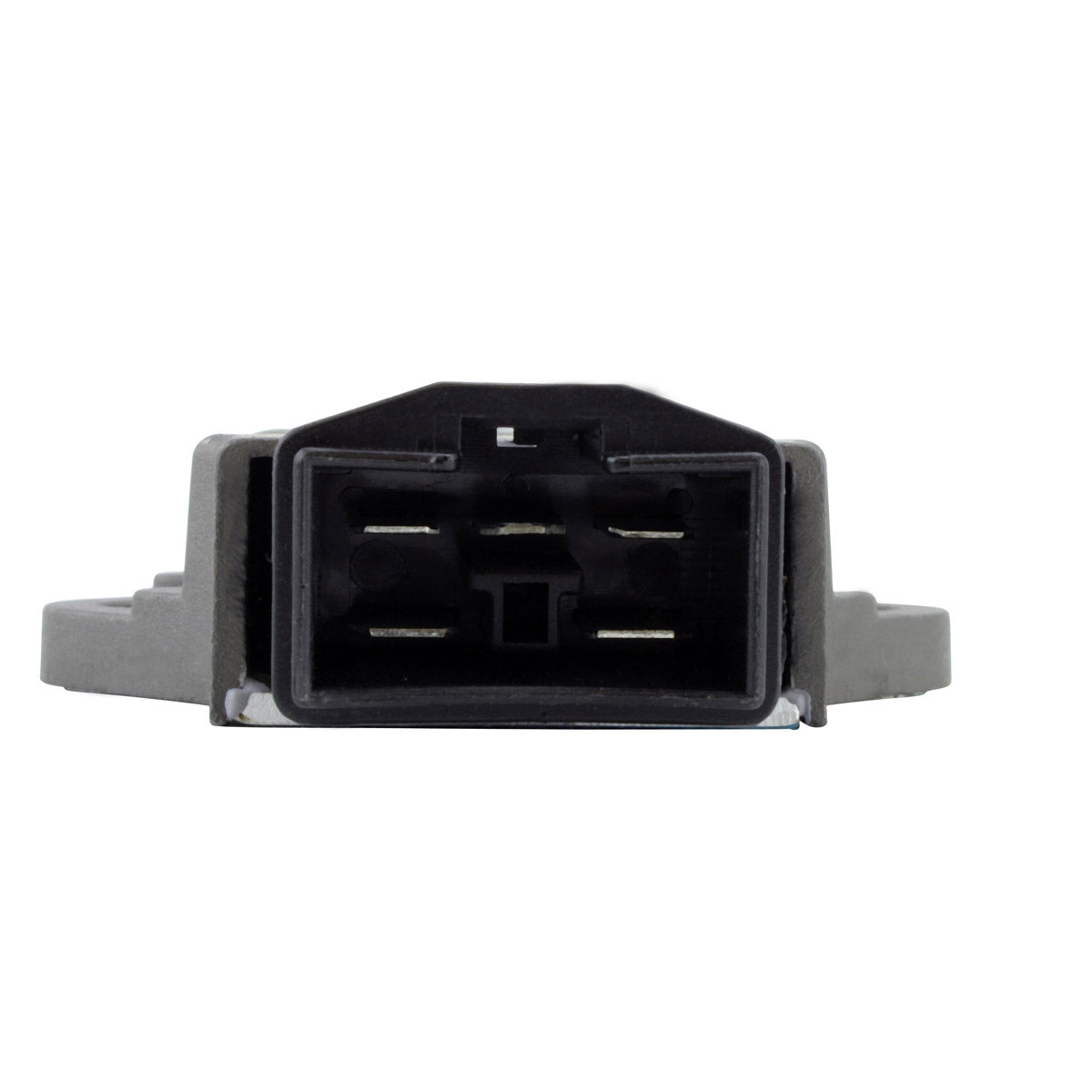

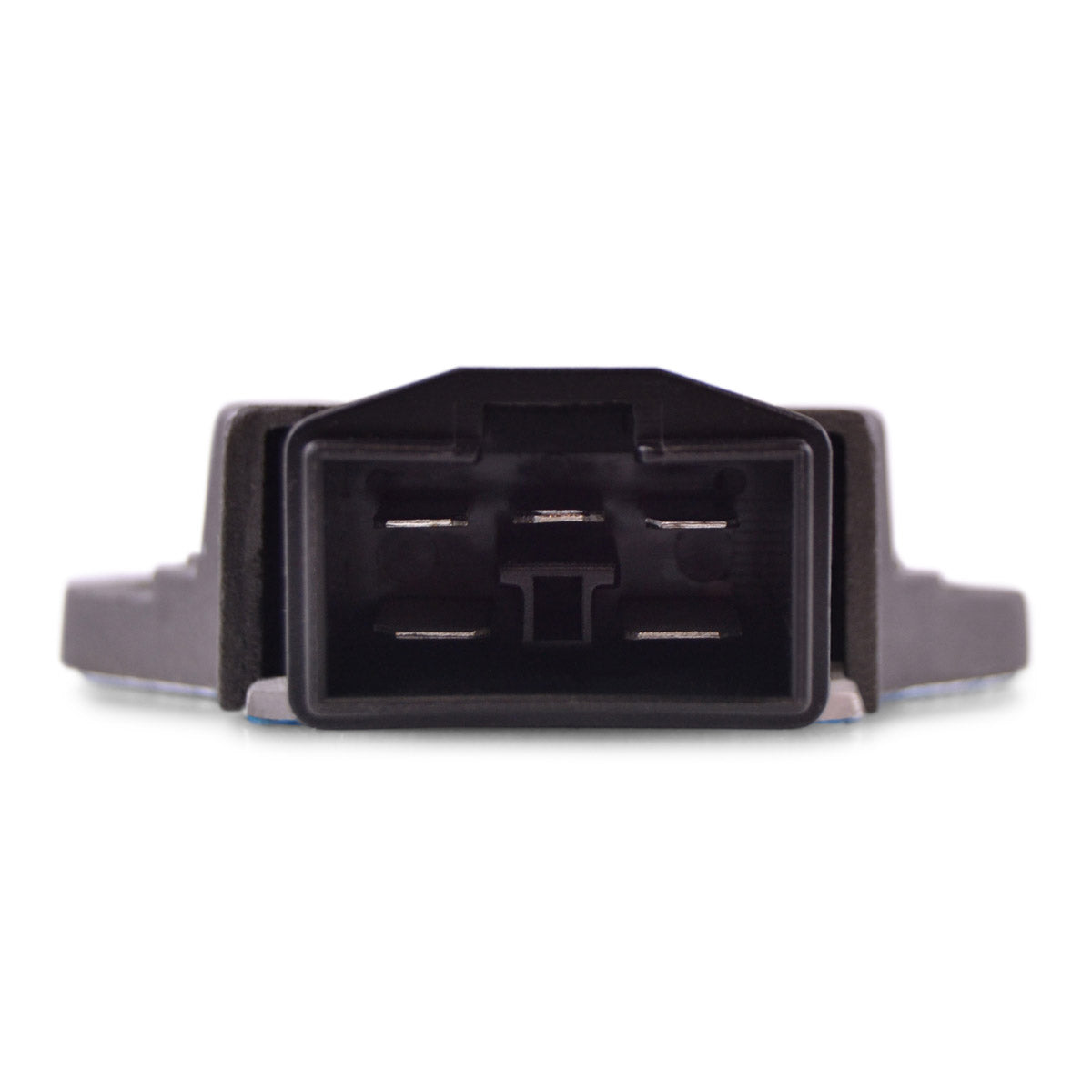

| Number of plugs |
1 |
| Number of pins |
5 |
| Minimum charging voltage |
14.5 V +/- 0.5 V |
| Maximum charging current |
35 A / 400 W |
| Open circuit voltage |
Less than 15 V |
| Operating temperature |
-20 to 85 degrees C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Aprilia RXV 4.5 |
1999-2013 |
| Honda CBR 600 |
1999-2013 |
| Honda CBR 900 |
1999-2013 |
| Husqvarna TXC 250 |
1999-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31600-MV4-000 |
Honda |
| 31600-MV4-010 |
Honda |
| 31600-KBG-008 |
Honda |
| 31600-KGB-901 |
Honda |
| 31600-KPJ-670 |
Honda |
| 31600-KBR-000 |
Honda |
| 31600-KBR-010 |
Honda |
| 31600-KY2-700 |
Honda |
| 31600-KY2-701 |
Honda |
| 31600-KY2-702 |
Honda |
| 31600-KY2-703 |
Honda |
| 31600-MR8-601 |
Honda |
| AP9100424 |
Aprilia |
| 8000B0563 |
Husqvarna |
Frequently Asked Questions
Does this fit without modification?
Yes. It is a direct replacement for the original unit, plug-and-play and a direct fit, with no assembly required. The mounting holes are 60 mm centre to centre and the unit has a single plug with five pins.
What is included?

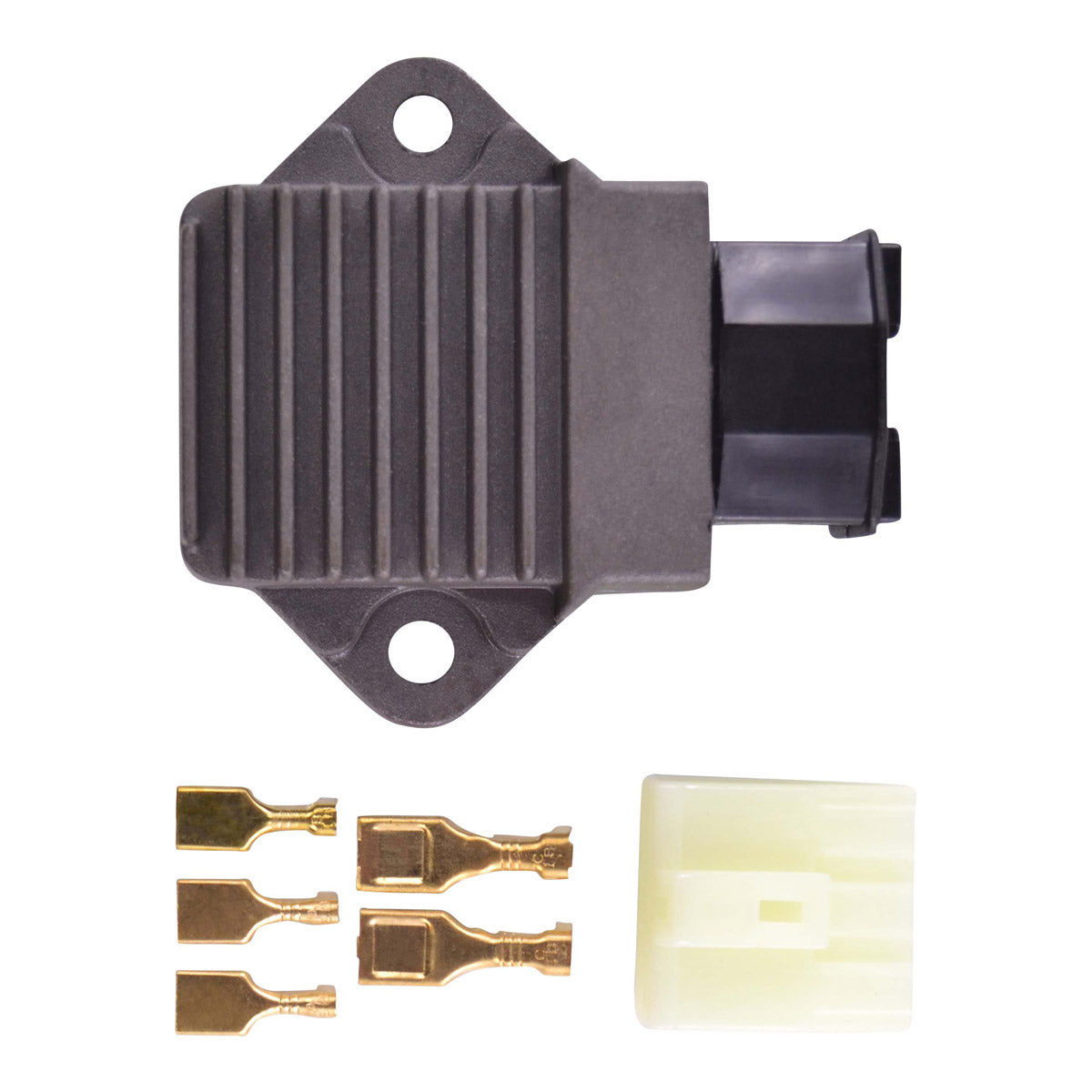

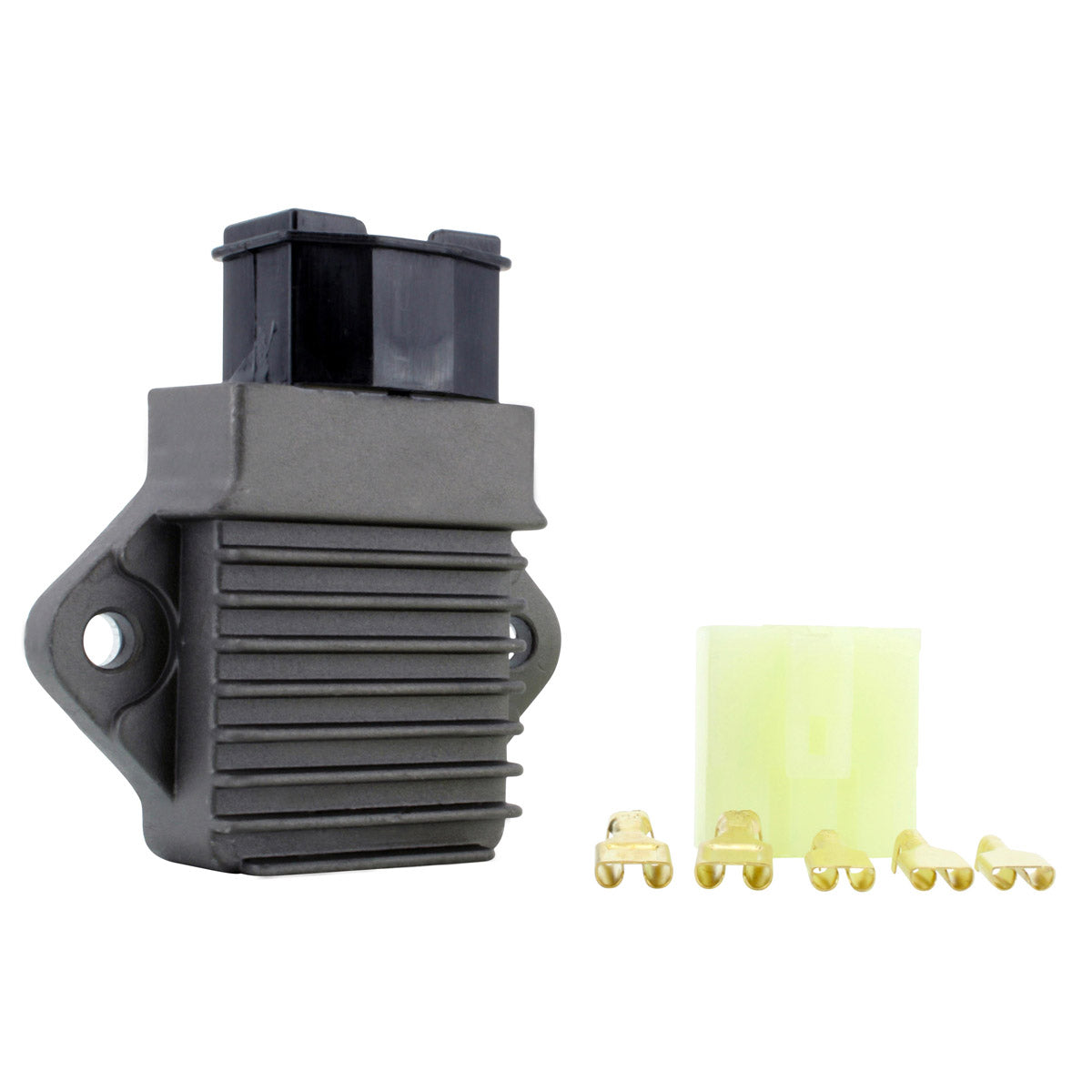

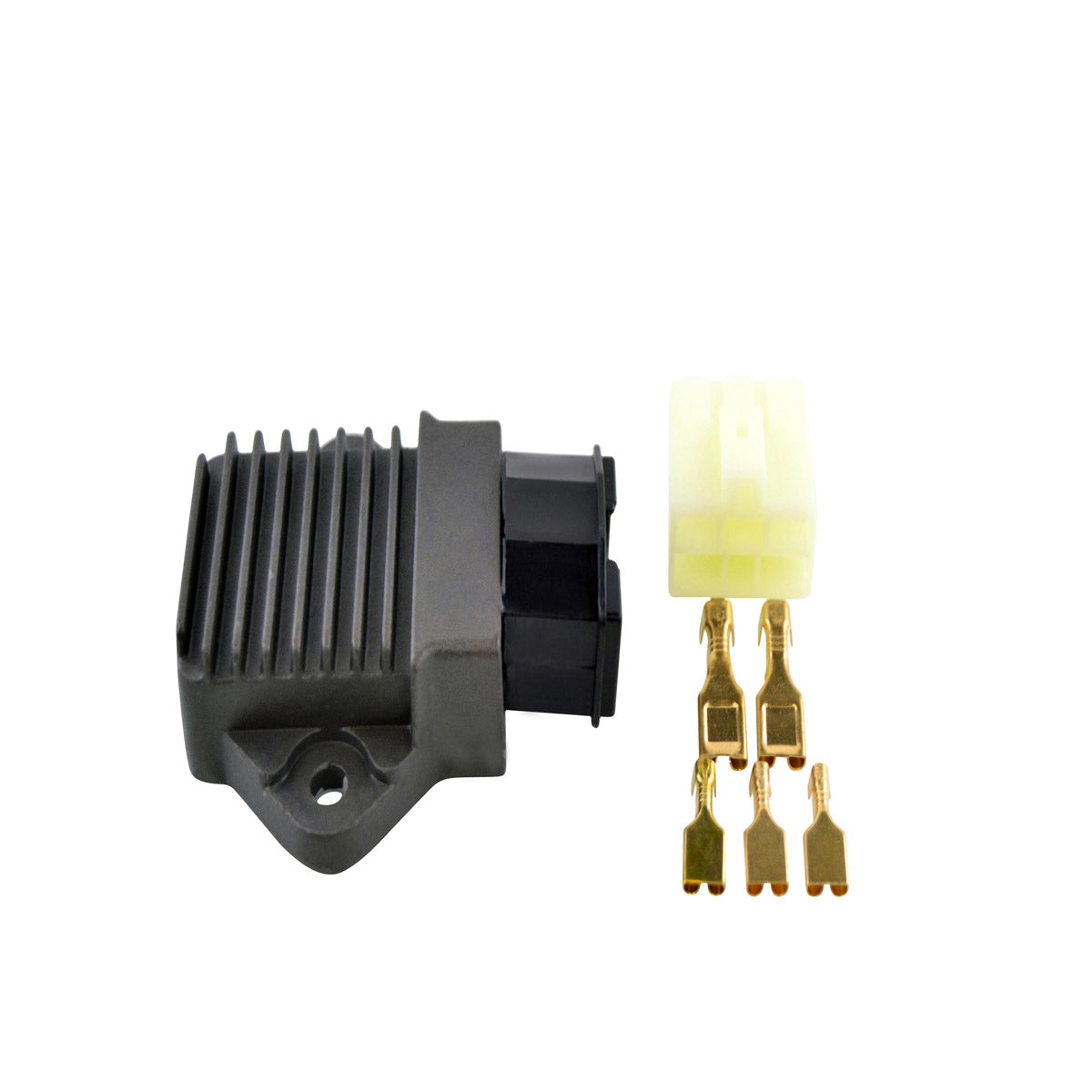

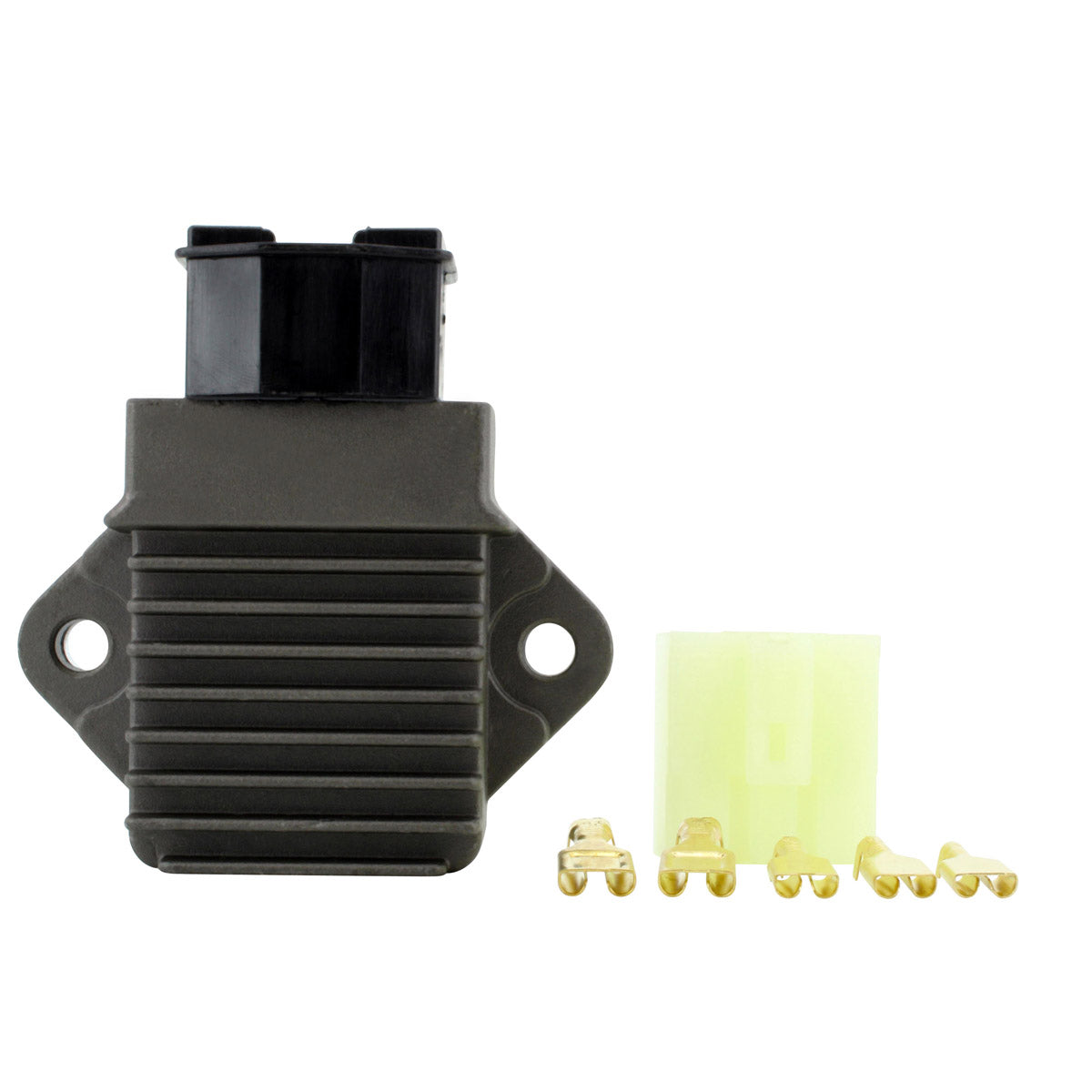

The regulator rectifier and the opposite connector for the main harness side, so that a melted or corroded harness plug can be renewed at the same time.
How do I know my old regulator has failed?
With the engine running, measure the voltage across the battery terminals. Around 14.5 V is healthy. If the reading sits at resting battery voltage the unit has stopped charging, and if it climbs past 15 V the unit has stopped regulating and is overcharging. Corroded or discoloured connector pins are another reliable sign.
How can I be sure it is the right part for my bike?
Check the OEM number stamped or printed on your original unit against the cross reference table above. This part covers a wide spread of Aprilia, Honda and Husqvarna numbers, and the OEM number is the most reliable way to confirm a match.
