Voltage Regulator for Honda
CB 600, CBR 1100, NSS 250, VFR 750 Interceptor & VT 750 Shadow - 1990-2007 - Part RM30B01
This is a brand new aftermarket voltage regulator rectifier, supplied as a direct replacement for the original unit fitted to the Honda CB 600, CBR 1100, NSS 250, VFR 750 Interceptor and VT 750 Shadow across model years 1990 to 2007. It is plug-and-play and a direct fit, mounting on the original fixings at 65 mm centre to centre and connecting through the original single five-pin plug, so it goes on without assembly and without any change to the wiring.

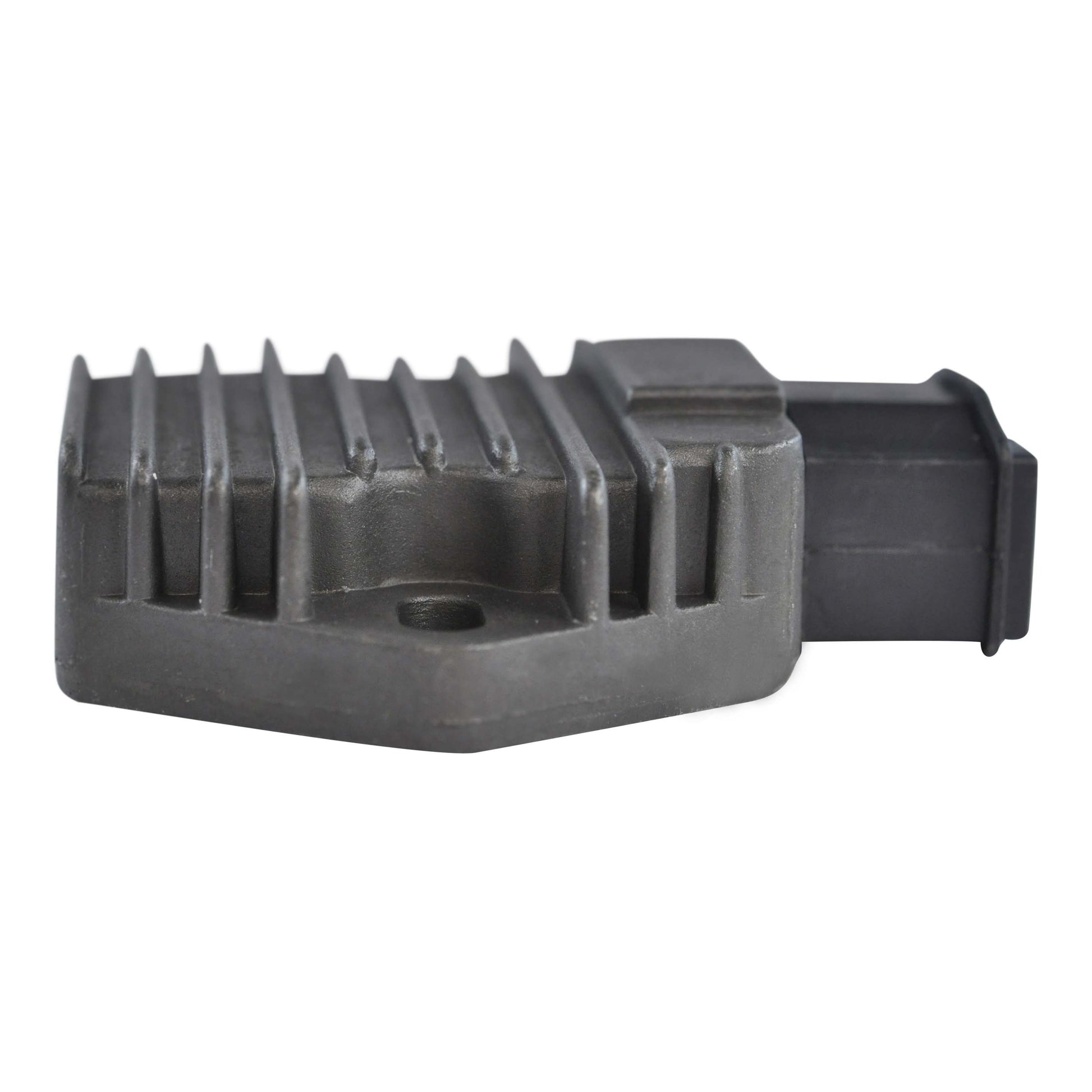

The unit measures 85 mm by 85 mm by 25 mm and carries an improved heat sink with improved charging capabilities, built with a higher grade of electric components, so the quality exceeds the OEM equipment it replaces. It regulates to a minimum charging voltage of 14.5 V plus or minus 0.5 V at up to 35 A or 400 W, and keeps the open circuit voltage under 15 V. All products shipped are tested. This regulator covers a wide spread of Honda OEM numbers, which are listed in full below.
Key Features
- Brand new aftermarket voltage regulator rectifier
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- Improved heat sink and charging capabilities
- Quality exceeds the OEM equipment
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Width | 85 mm |
| Length | 85 mm |
| Height | 25 mm |
| Fixation holes, centre to centre | 65 mm |
| Number of plugs | 1 |
| Number of pins | 5 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 35 A / 400 W |
| Open circuit voltage | Under 15 V |
| Operation temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda CB 600 | 1990-2007 |
| Honda CBR 1100 | 1990-2007 |
| Honda NSS 250 | 1990-2007 |
| Honda VFR 750 Interceptor | 1990-2007 |
| Honda VT 750 Shadow | 1990-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31600-MY7-305 | Honda |
| 31600-MY7-600 | Honda |
| 31600-MR7-008 | Honda |
| 31600-MR7-018 | Honda |
| 31600-MR7-028 | Honda |
| 31600-MT4-008 | Honda |
| 31600-KFG-860 | Honda |
| 31600-KFG-861 | Honda |
| 31600-KFG-862 | Honda |
| RM30B01 | RMSTATOR (this part) |
Frequently Asked Questions
Does it fit without modification?

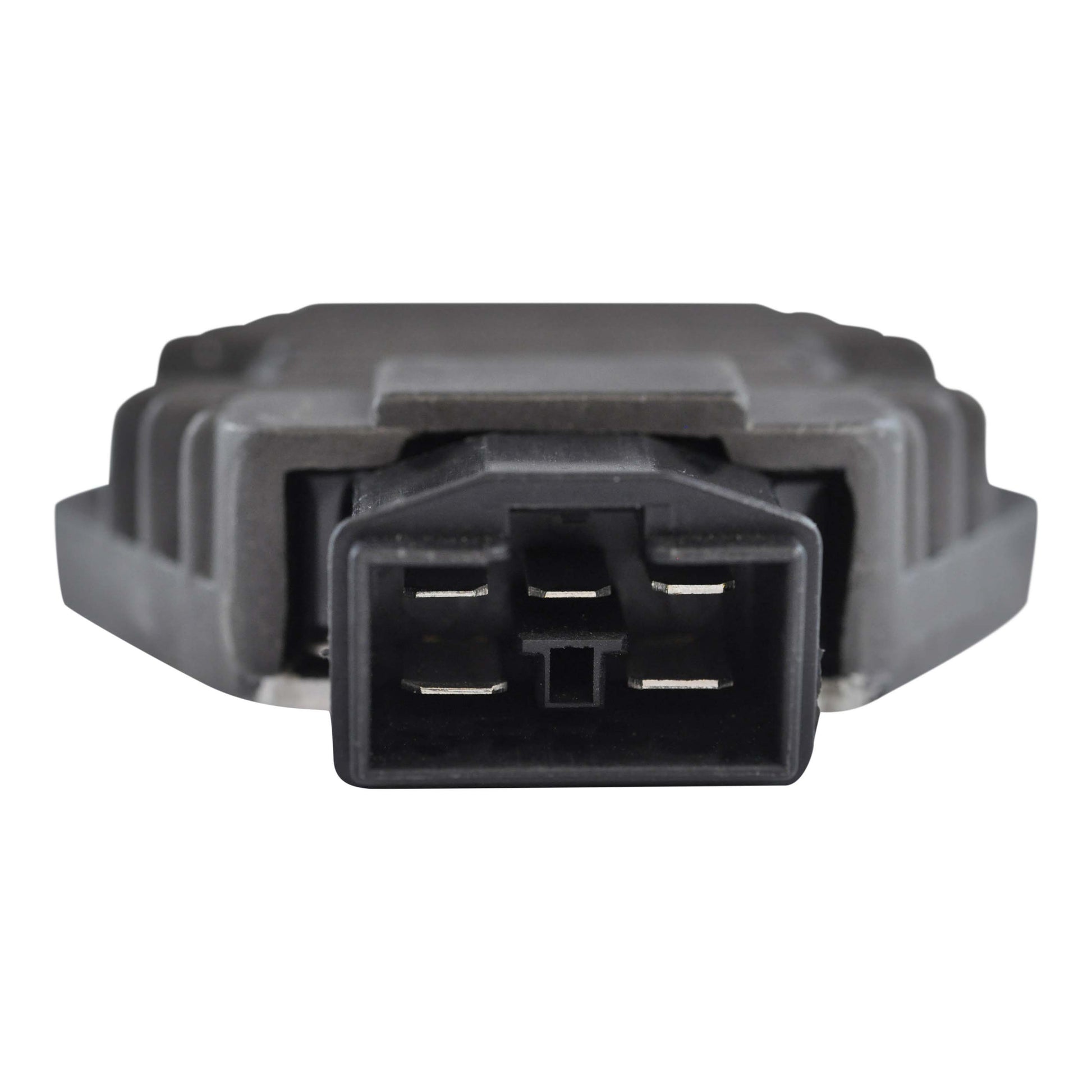

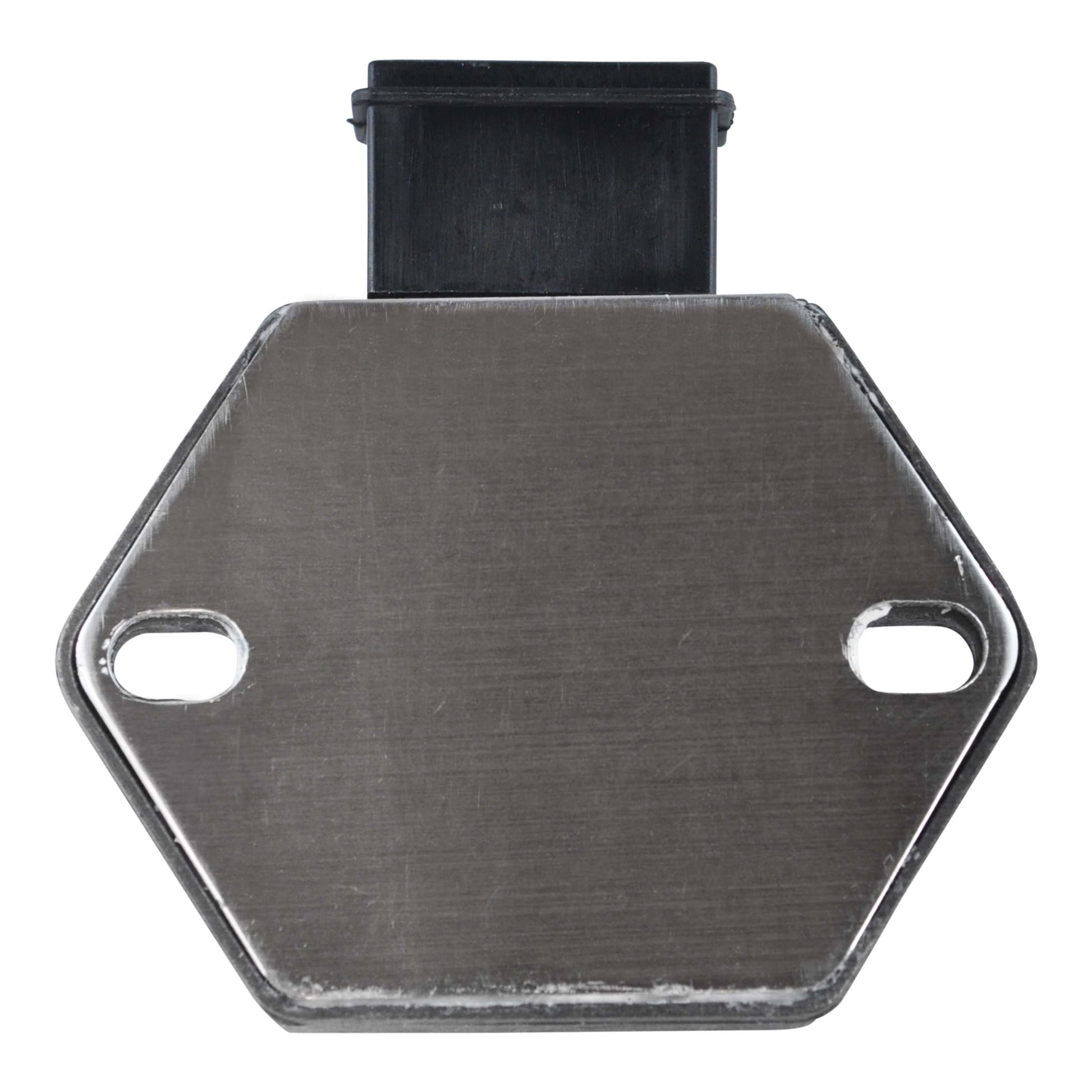

Yes. The mounting holes are 65 mm centre to centre and the connection is a single five-pin plug, both matching the original. It is plug-and-play and direct fit, with no assembly required.
What is included?

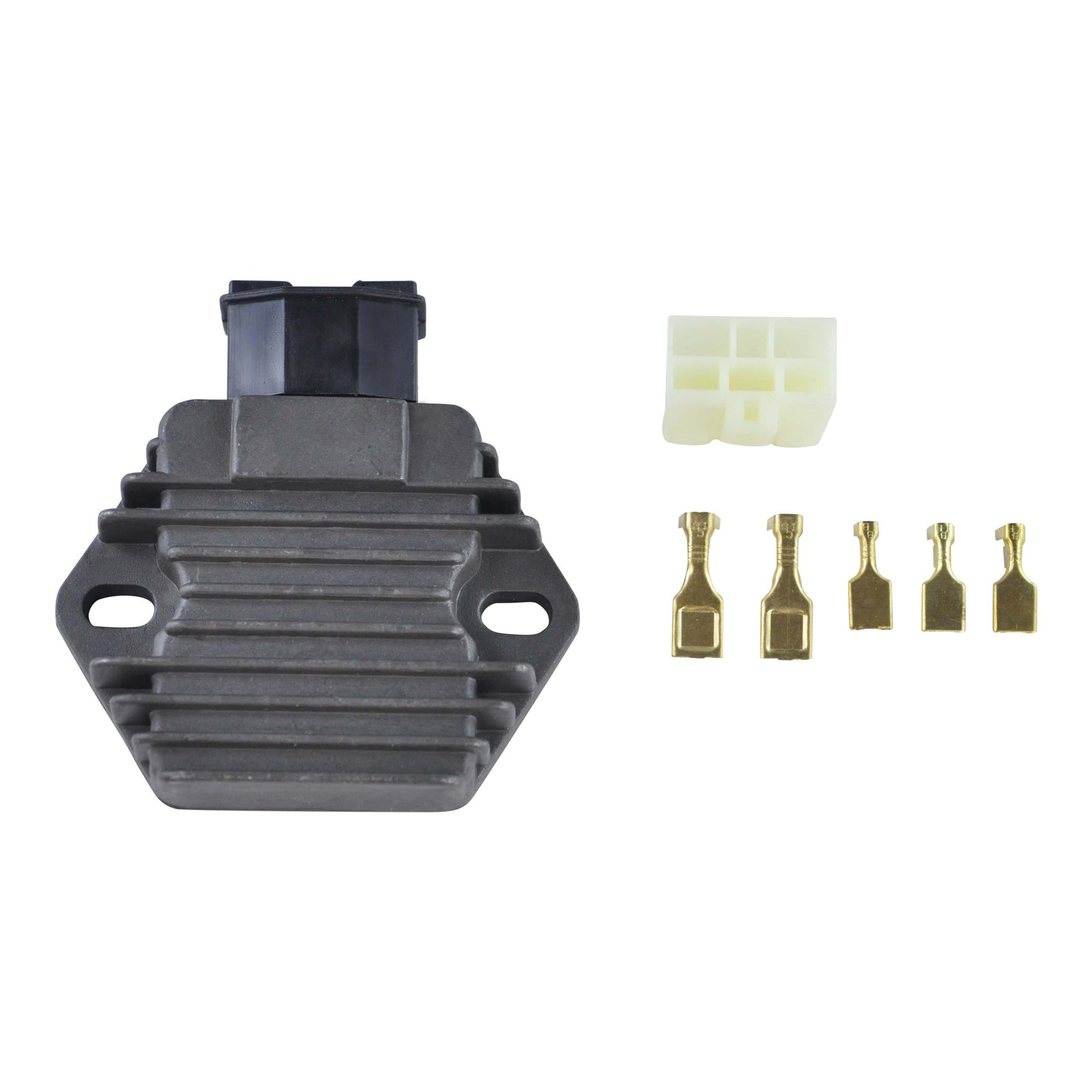

One voltage regulator rectifier with its single five-pin connector. Mounting hardware is not supplied, as the original bolts and bracket are reused.
How do I tell whether my old regulator has failed?
Measure the voltage across the battery with the engine running and warm. It should reach at least 14.5 V plus or minus 0.5 V without exceeding 15 V. Anything much below that will leave the battery flat within a few rides; anything above it will boil the battery and take out bulbs. Melted or discoloured pins in the regulator plug are another common sign.
My bike is not listed by name - can I still use the cross reference?
Yes. This unit covers nine Honda OEM numbers in the 31600 series, listed above. If the number moulded into your original regulator appears in that table, this is the correct replacement regardless of which model it came off.
