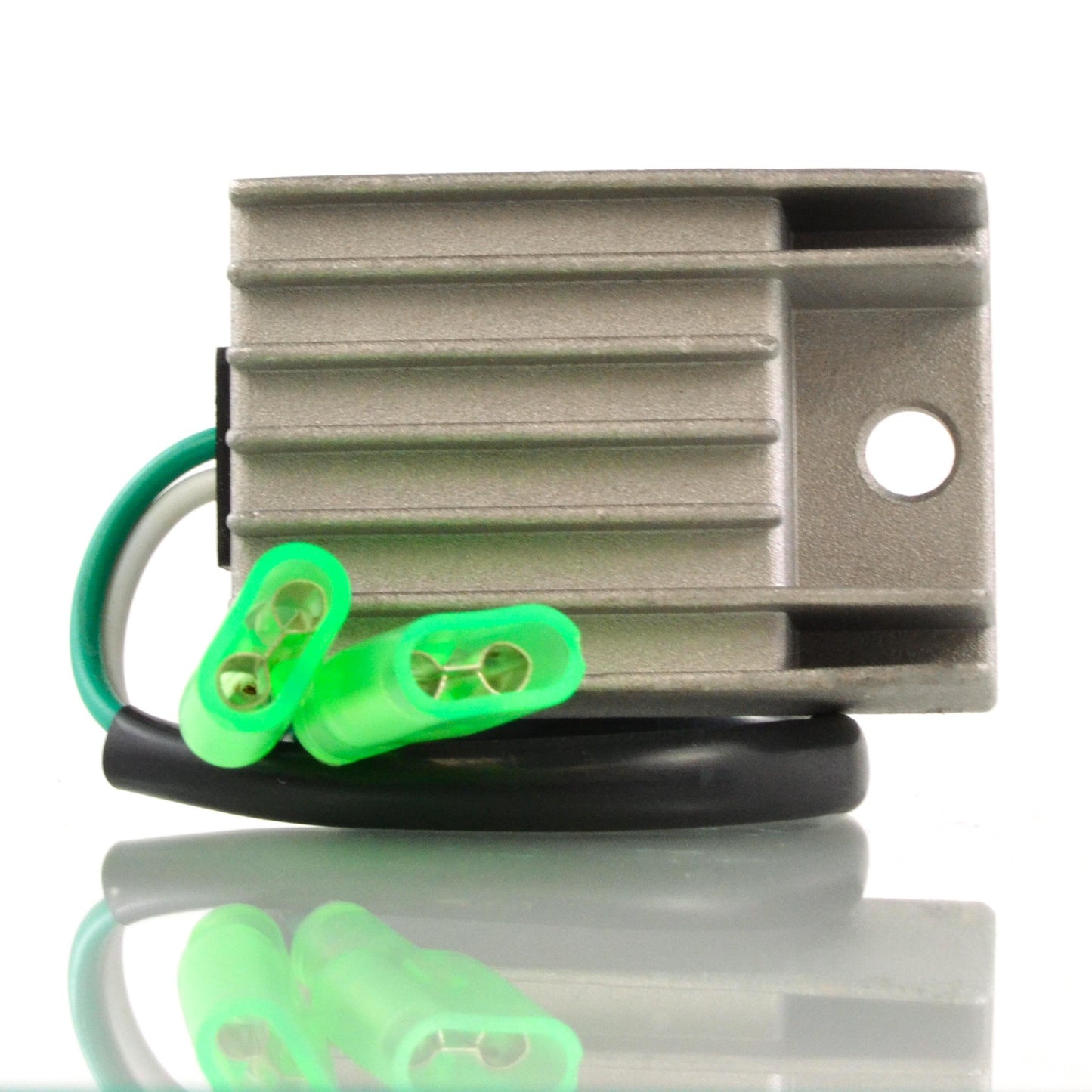

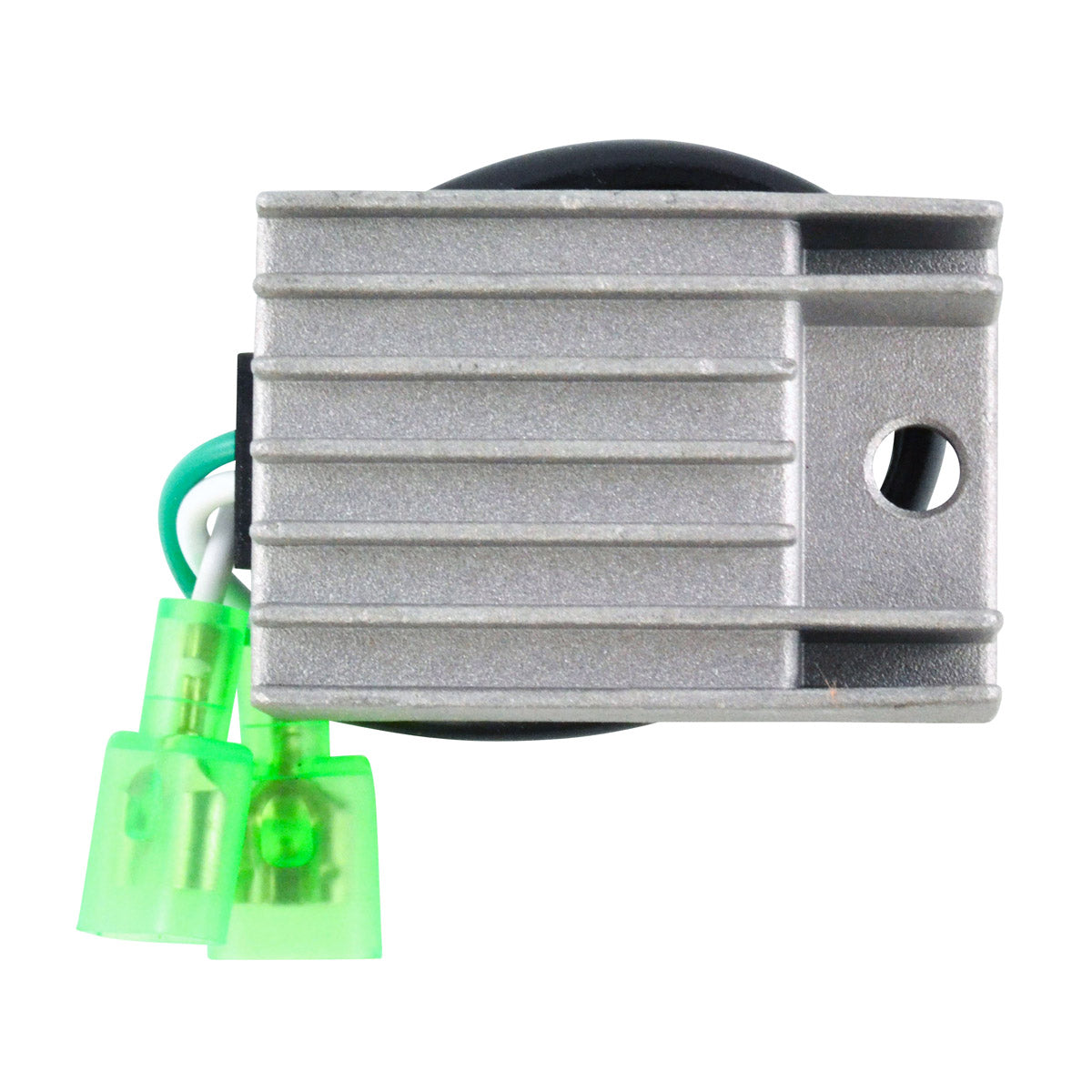

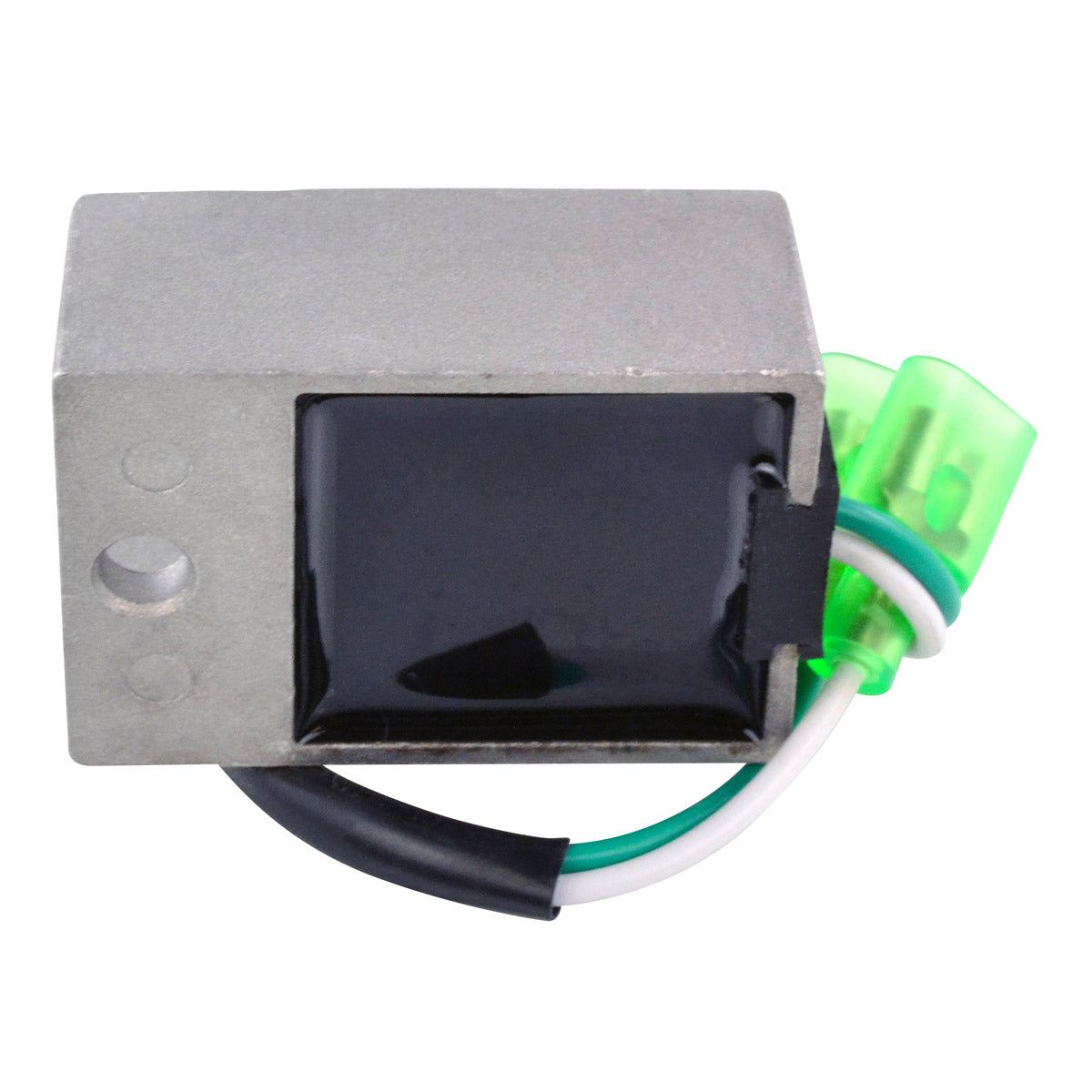

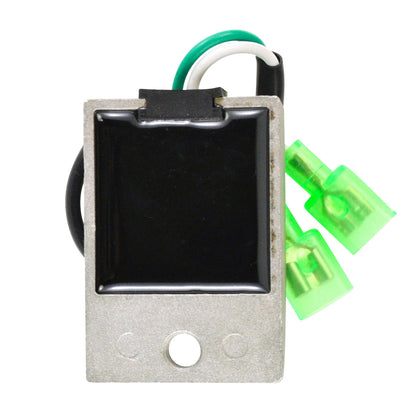

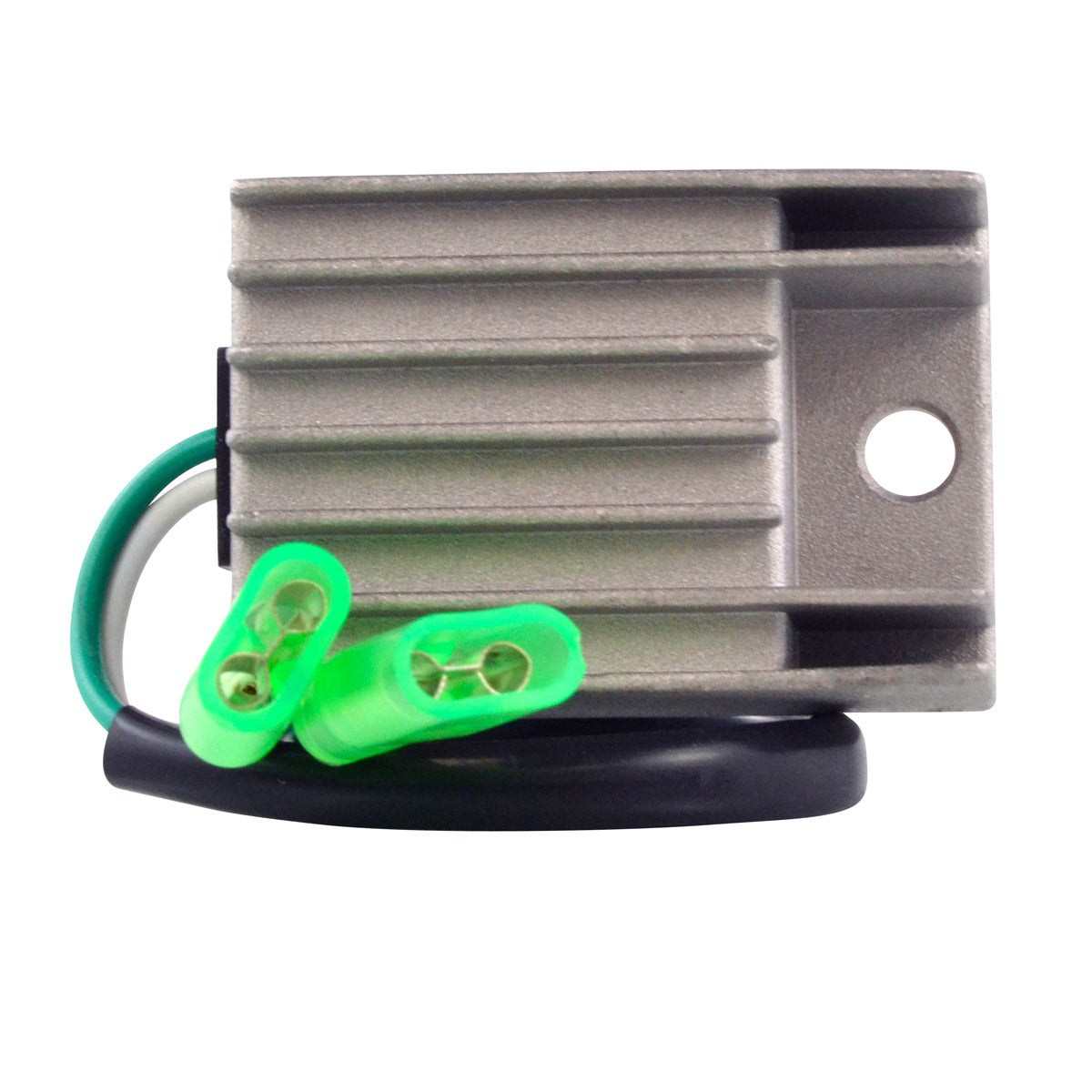

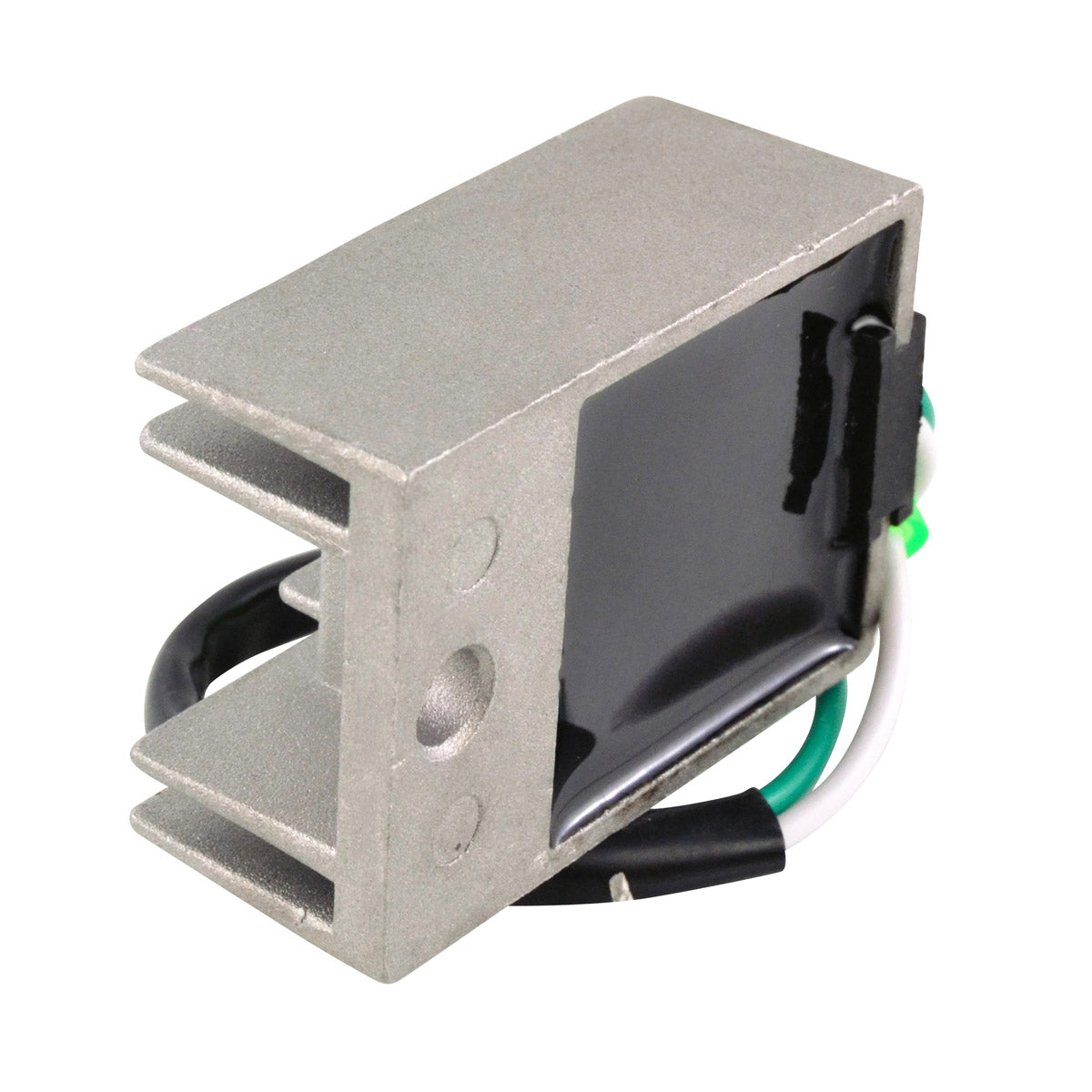

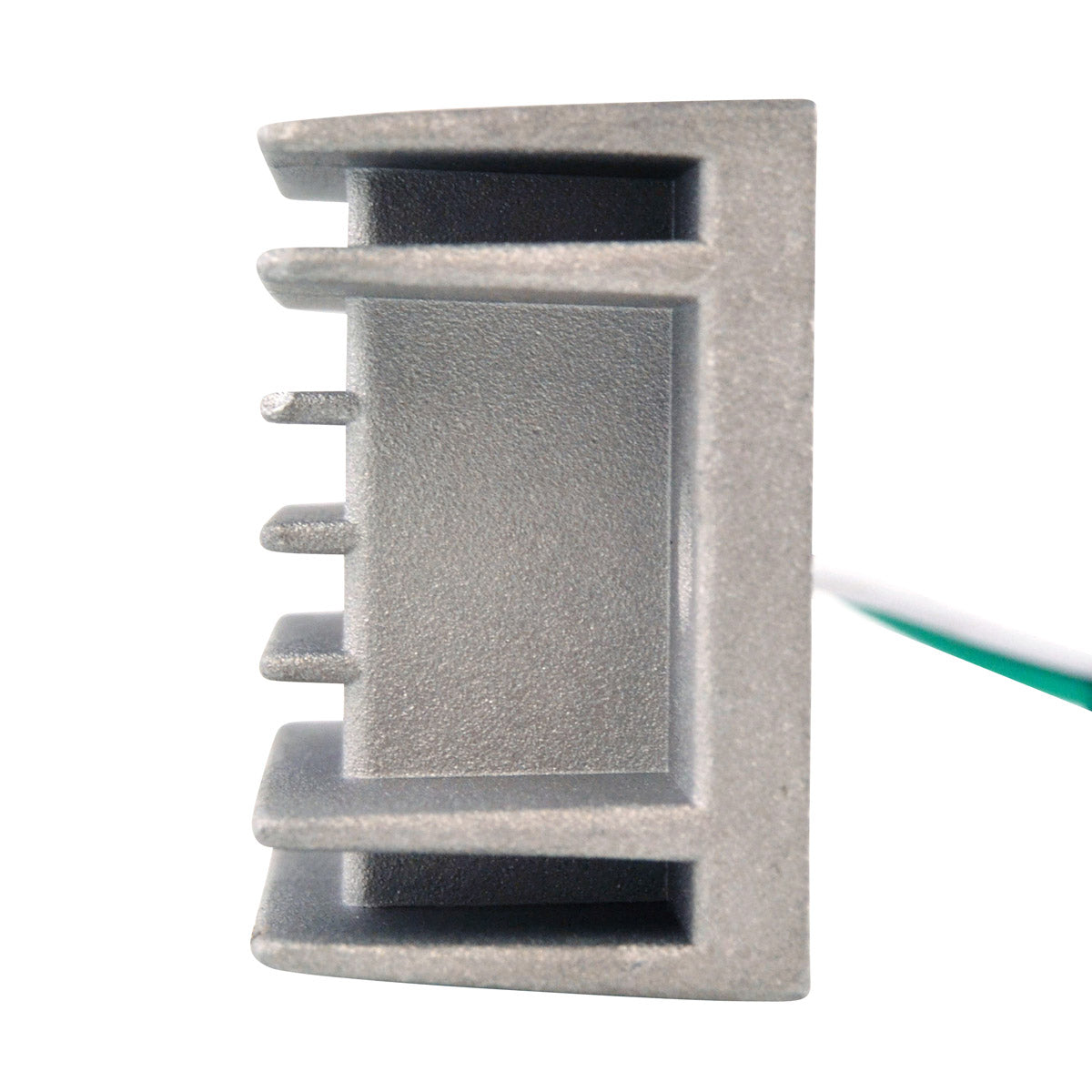

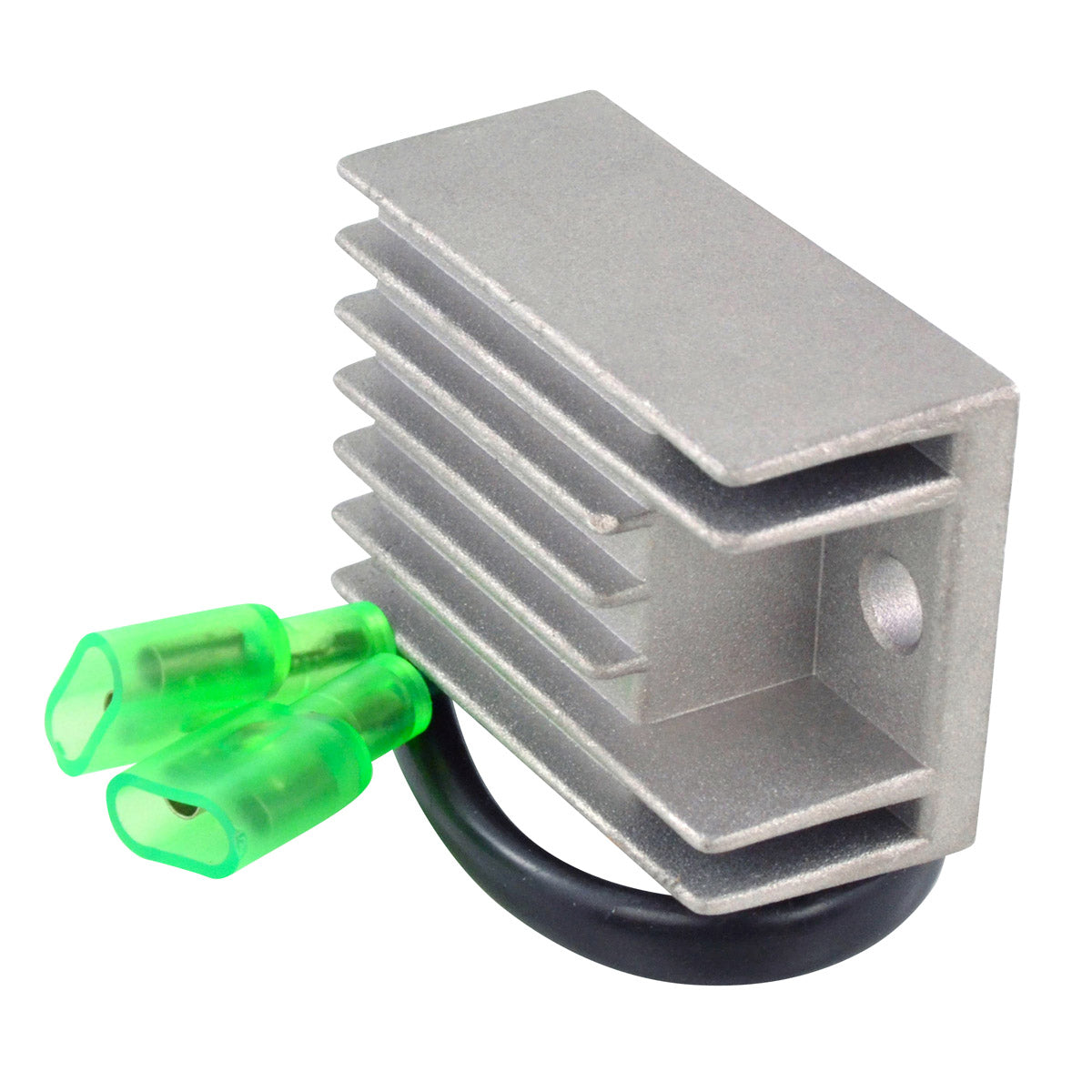

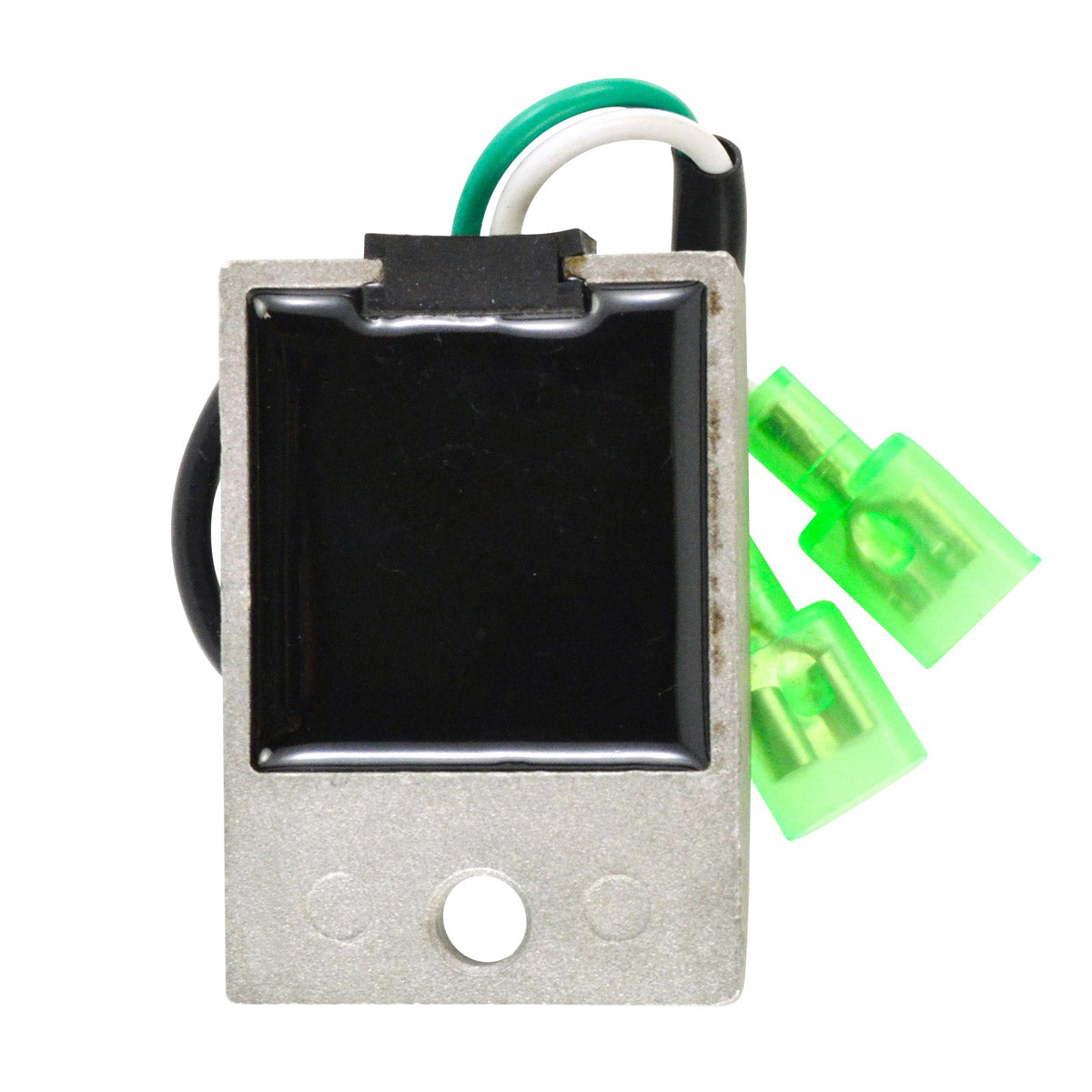

Brand new aftermarket voltage regulator rectifier for the Honda XR 600 R and XR 650 R. It is a direct replacement for your original unit, so it is plug-and-play, a direct fit and easy to install. No assembly is required before fitting.
The unit is built with a higher grade of electrical components and the quality exceeds the OEM equipment it replaces. All products shipped are tested. The item pictures are accurate, so if you are in any doubt, compare the unit shown against your original part and against OEM number 31400-MN1-680 before ordering.
Key Features
- Direct replacement for the original Honda unit
- Plug-and-play, direct fit, easy installation
- No assembly required before fitting
- Higher grade of electrical components
- Quality exceeds the OEM equipment

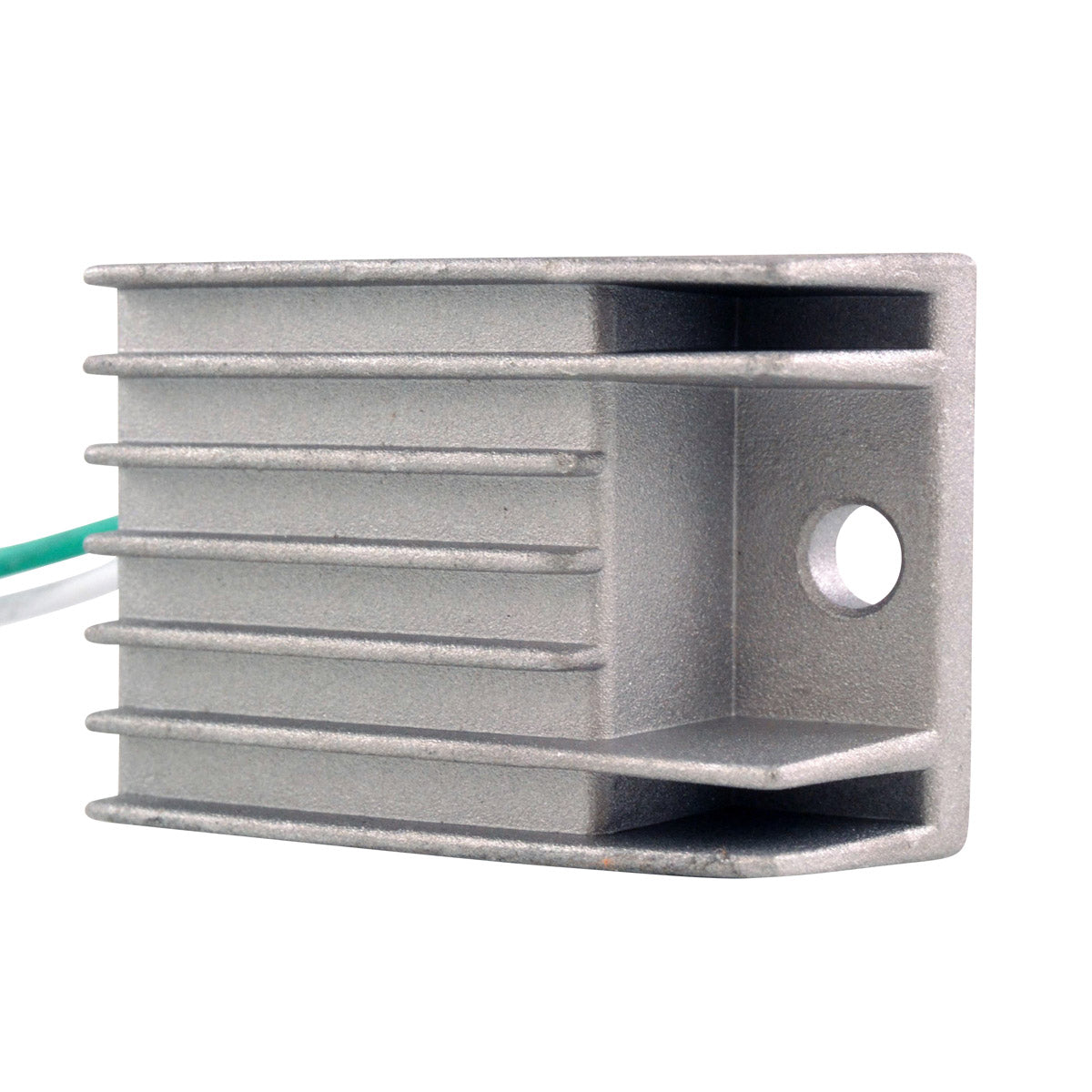

- Compact 52 mm by 33 mm body with two plugs and two wires
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RMS020-103301 |
| Width |
33 mm |
| Length |
52 mm |
| Height |
25 mm |
| Number of plugs |
2 |
| Number of pins |
2 |
| Number of wires |
2 |
| Minimum charging voltage |
14.5 V +/- 0.5 V |
| Maximum charging current |
50 A / 500 W |
| Open circuit voltage |
15 V |
| Operating temperature |
-20 C to 85 C |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda XR 600 R |
1991-2000 |
| Honda XR 650 R |
2000-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31400-MN1-680 |
Honda |
Frequently Asked Questions
Do I need to modify anything to fit this?
No. This is a direct replacement for the original unit. It is plug-and-play and a direct fit, with two plugs and two wires, and no assembly is required before installation.
What is included?
You receive the voltage regulator rectifier itself, tested before shipping. The unit measures 52 mm long by 33 mm wide by 25 mm high.
How do I know my old regulator rectifier has failed?
Common signs are a battery that will not stay charged, lights that dim or brighten with engine speed, or a charging voltage at the battery that never settles at around 14.5 V. A regulator body that is discoloured or that runs extremely hot is another indicator. Check your reading against the 14.5 V +/- 0.5 V minimum charging voltage of this unit.
How can I confirm this is the right part for my XR?

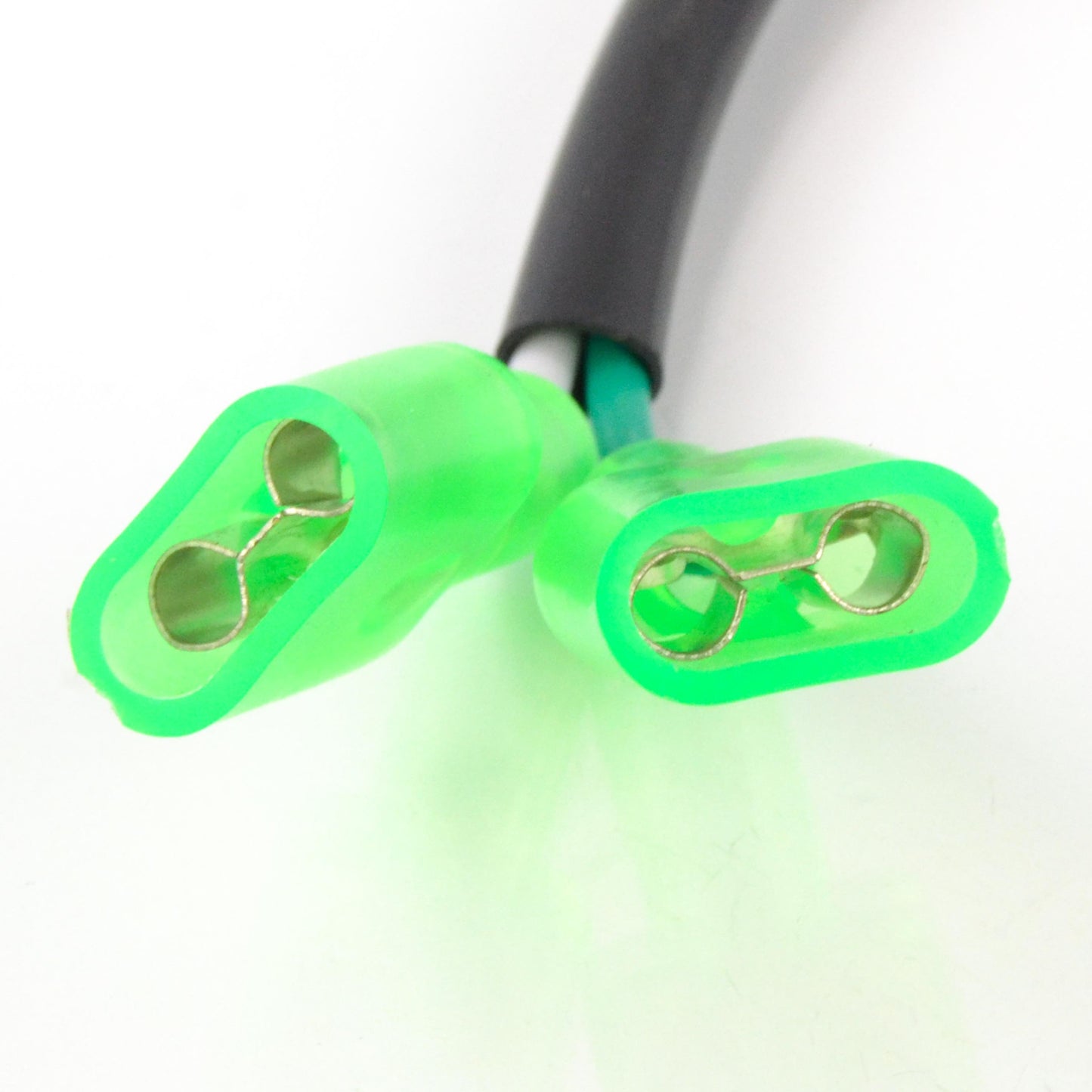

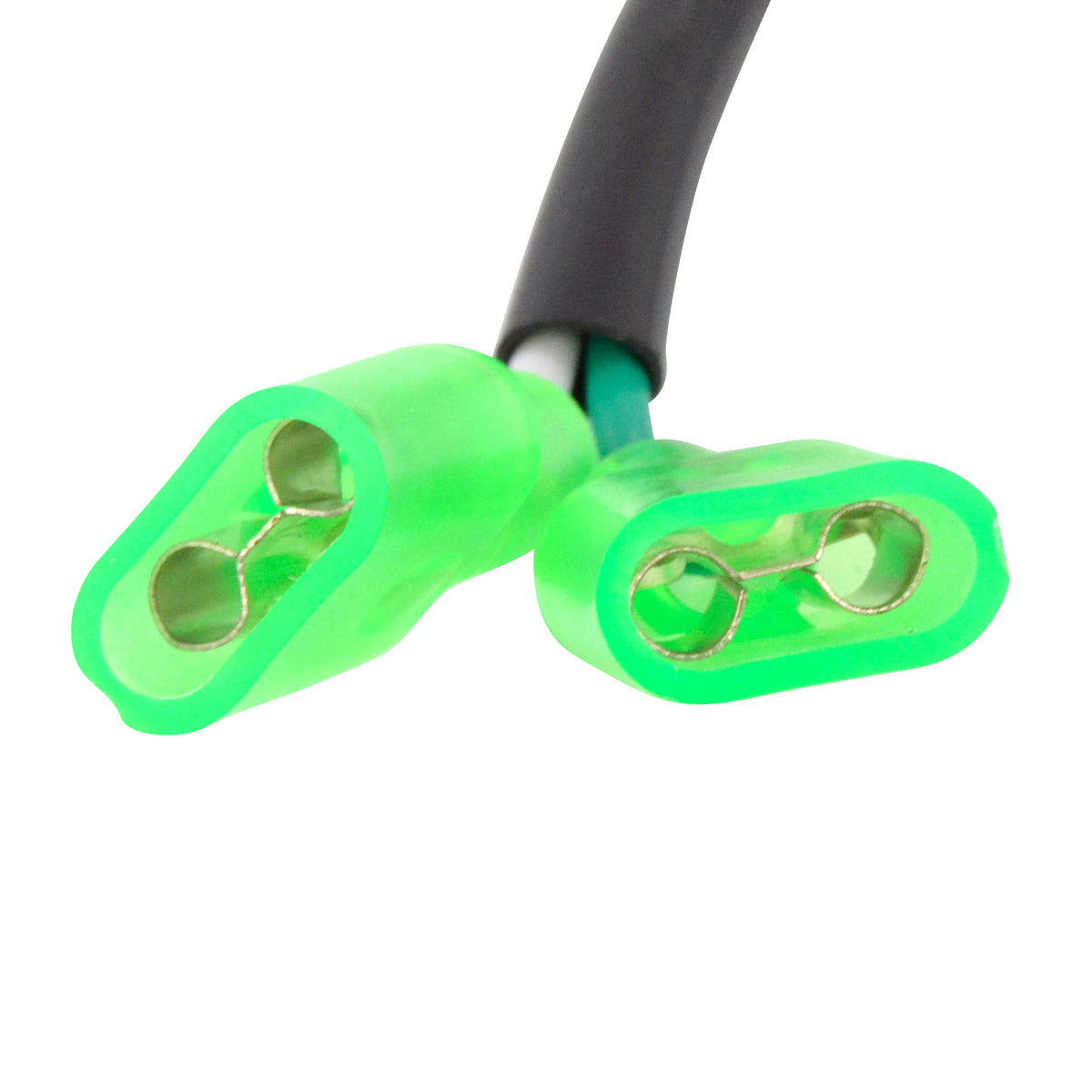

Check the OEM number on your original unit against 31400-MN1-680, and confirm your machine is an XR 600 R from 1991 to 2000 or an XR 650 R from 2000 to 2007. The item pictures are accurate, so you can also compare the connector and body shape directly against your original part.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
