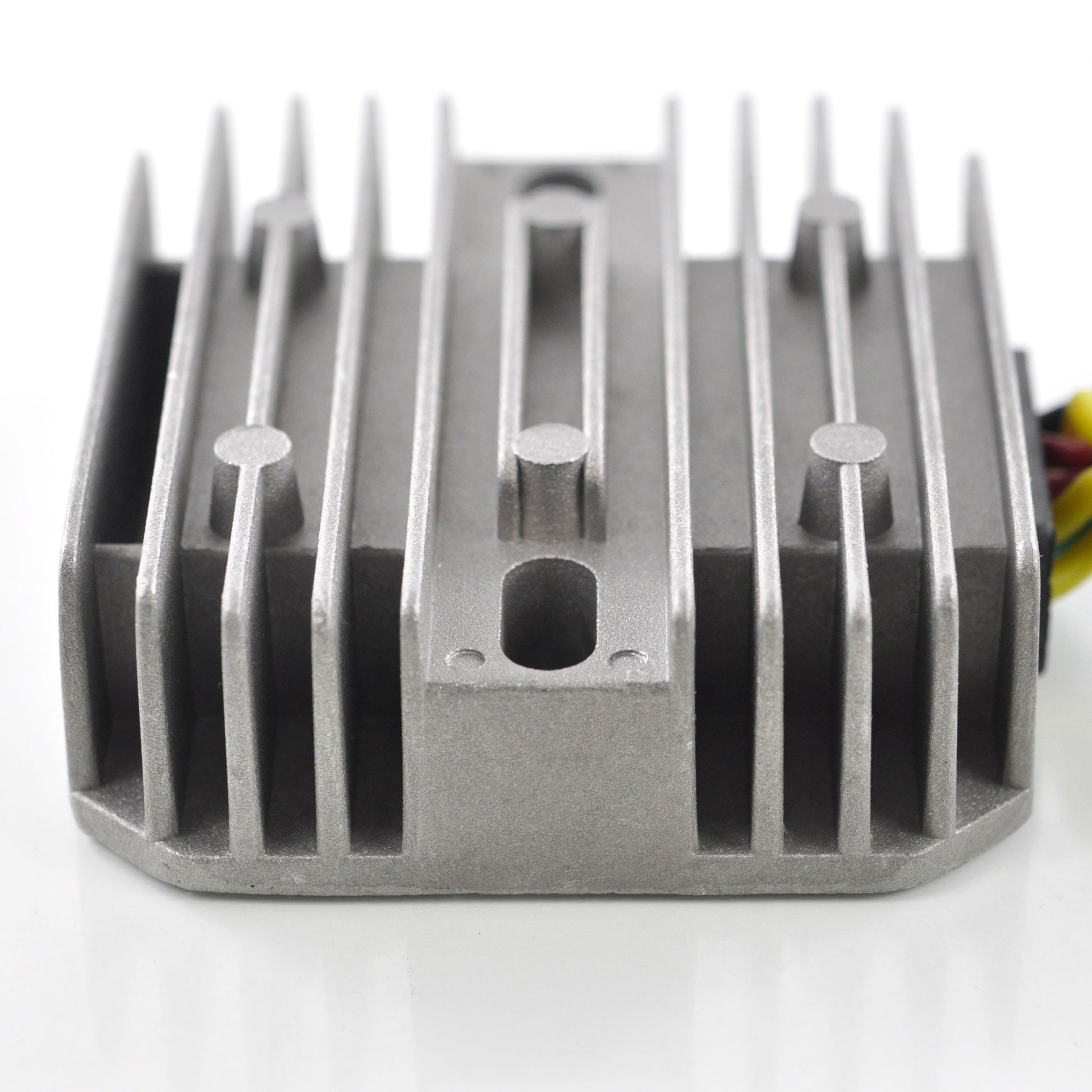

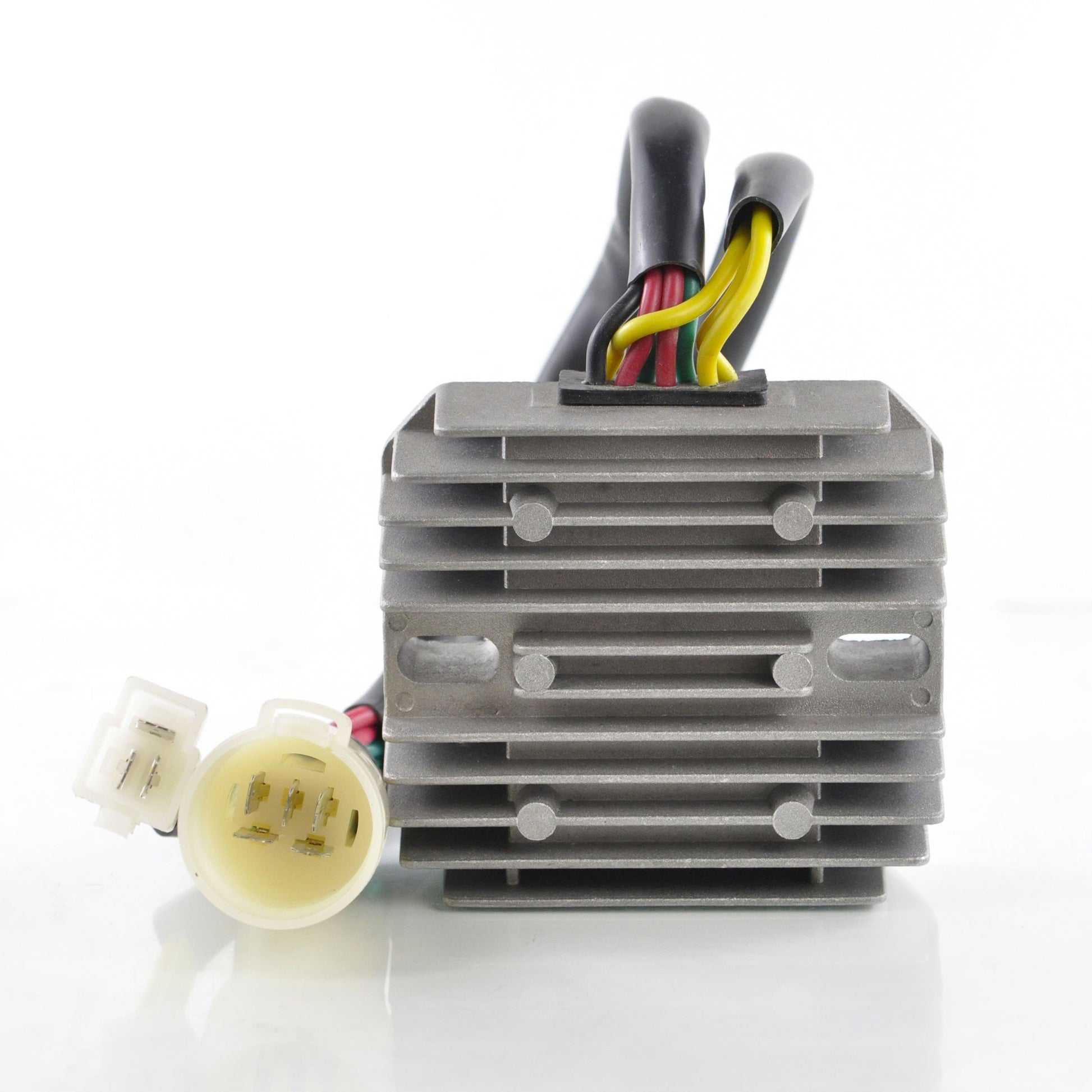

Regulator Rectifier for Honda XRV 750 Africa Twin 1990-1991
Fits Honda XRV 750 Africa Twin (1990-1991)
This regulator rectifier is a direct replacement for the charging system on the Honda XRV 750 Africa Twin (1990-1991), built to OEM specifications for a precise fit and function on your original wiring harness.

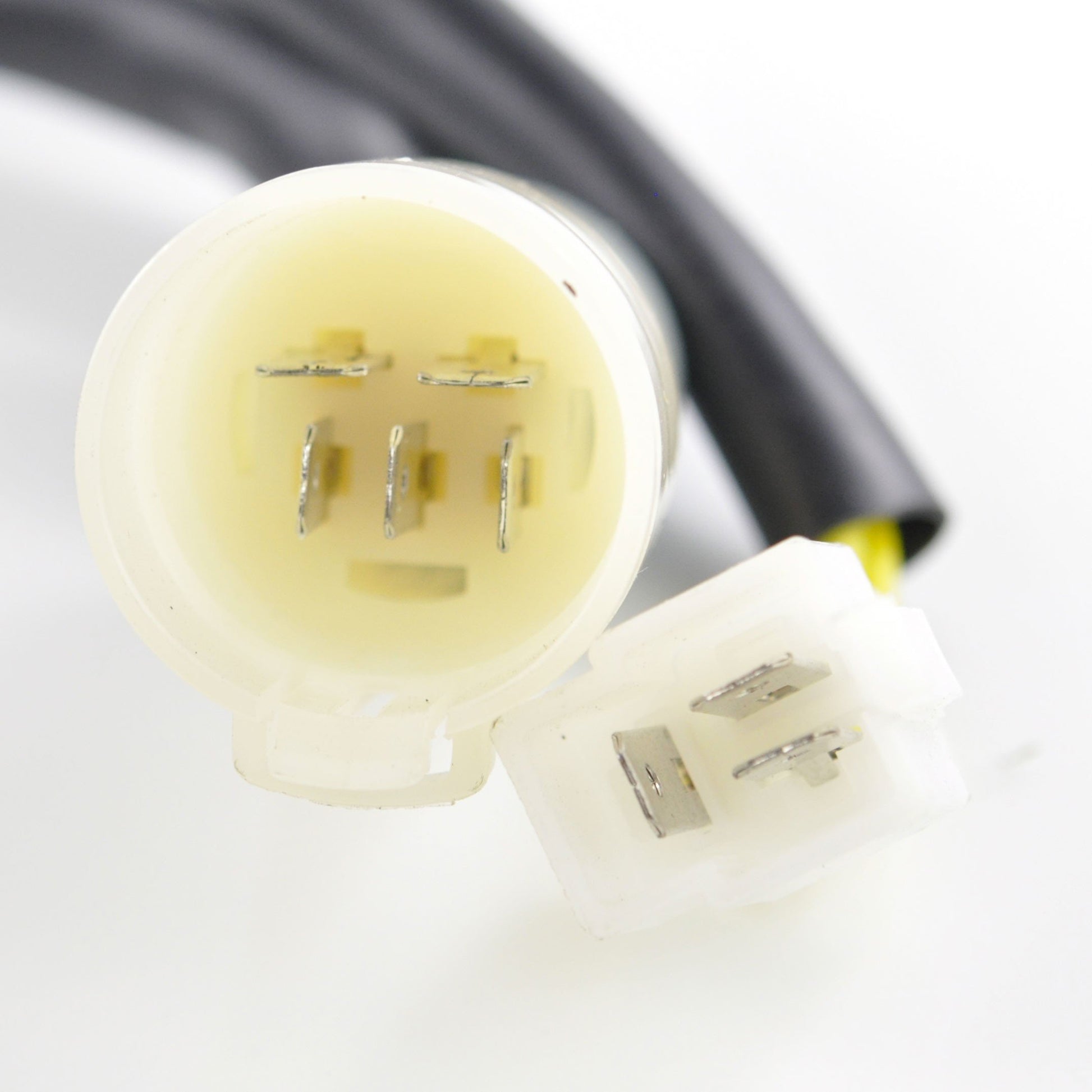

It uses an 8-wire, 2-plug, 8-pin connector configuration matching the original unit, and is rated for a minimum charging voltage of 14.5V (+/- 0.5V) with a maximum charging current of 50A (500W) and an open circuit voltage of 15V.
Key Features
- Direct OEM fit and finish for the Honda XRV 750 Africa Twin
- 8-wire, 2-plug, 8-pin harness configuration matching the original unit
- Maximum charging current of 50A (500W)
- Operating temperature range of -20C to 85C
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Width | 83 mm |
| Length | 90 mm |
| Height | 29 mm |
| Wire Length | 300 mm |
| Fixation Holes (centre to centre) | 67 mm |
| Number of Plugs | 2 |
| Number of Pins | 8 |
| Number of Wires | 8 |
| Minimum Charging Voltage | 14.5V +/- 0.5V |
| Maximum Charging Current | 50A (500W) |
| Open Circuit Voltage | 15V |
| Operating Temperature | -20C to 85C |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Honda XRV 750 Africa Twin | 1990-1991 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31600-MV1-003 | Honda |
Frequently Asked Questions
Will this fit my bike without modification?
Yes, this unit is built to OEM specifications for the Honda XRV 750 Africa Twin (1990-1991) and connects using the original mounting holes and plugs, no modification needed.
What is included in the box?
You receive one regulator rectifier unit, ready to connect to your existing wiring harness.
How can I tell my old regulator rectifier has failed?
Common symptoms include a battery that will not hold charge, dim or flickering lights, a battery that overcharges and boils dry, or no reading from the charging circuit at the battery terminals.
Will this fit other Africa Twin model years?
This part is listed specifically for the 1990-1991 XRV 750 Africa Twin. Please check OEM part number 31600-MV1-003 against your original unit before ordering if your bike is a different year.
