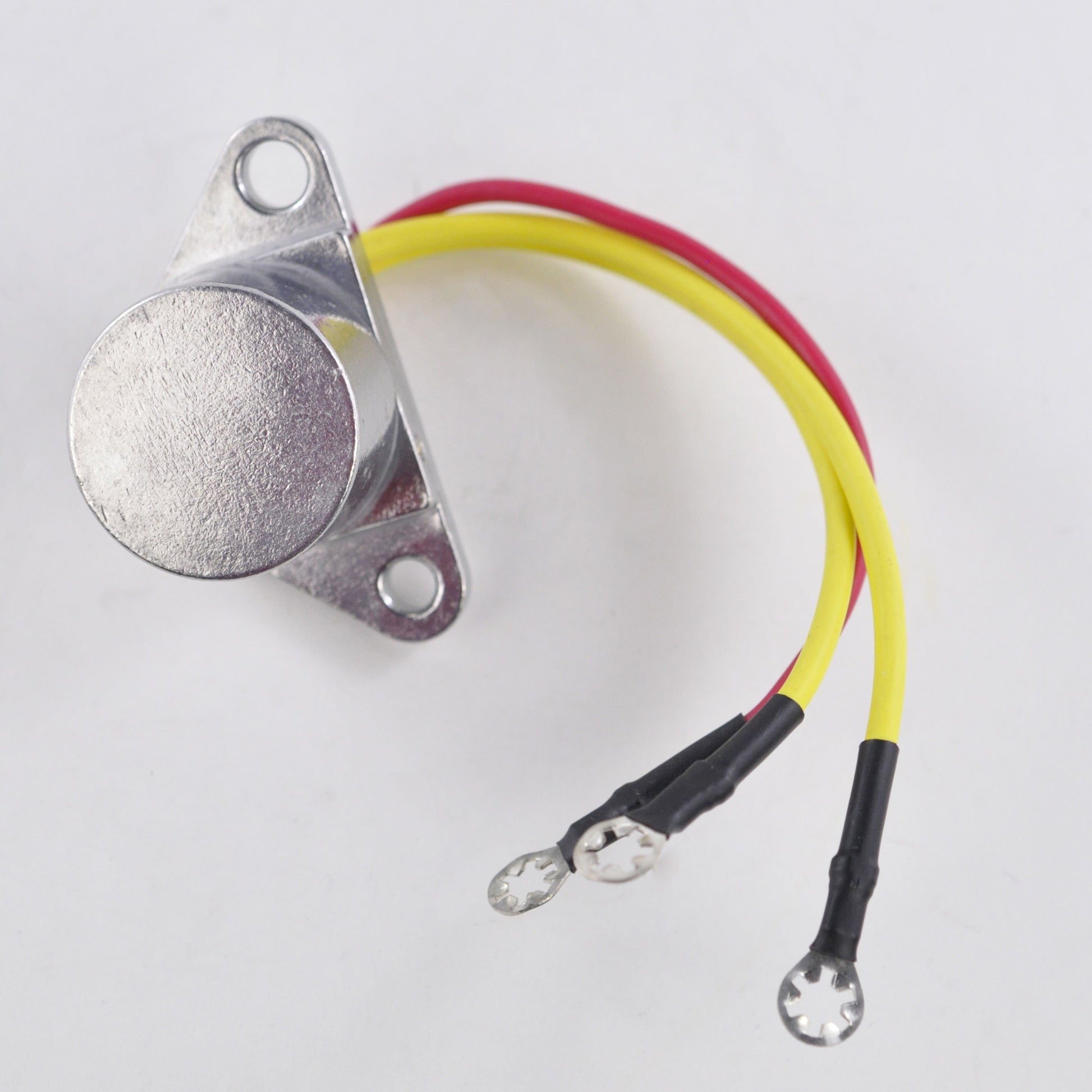

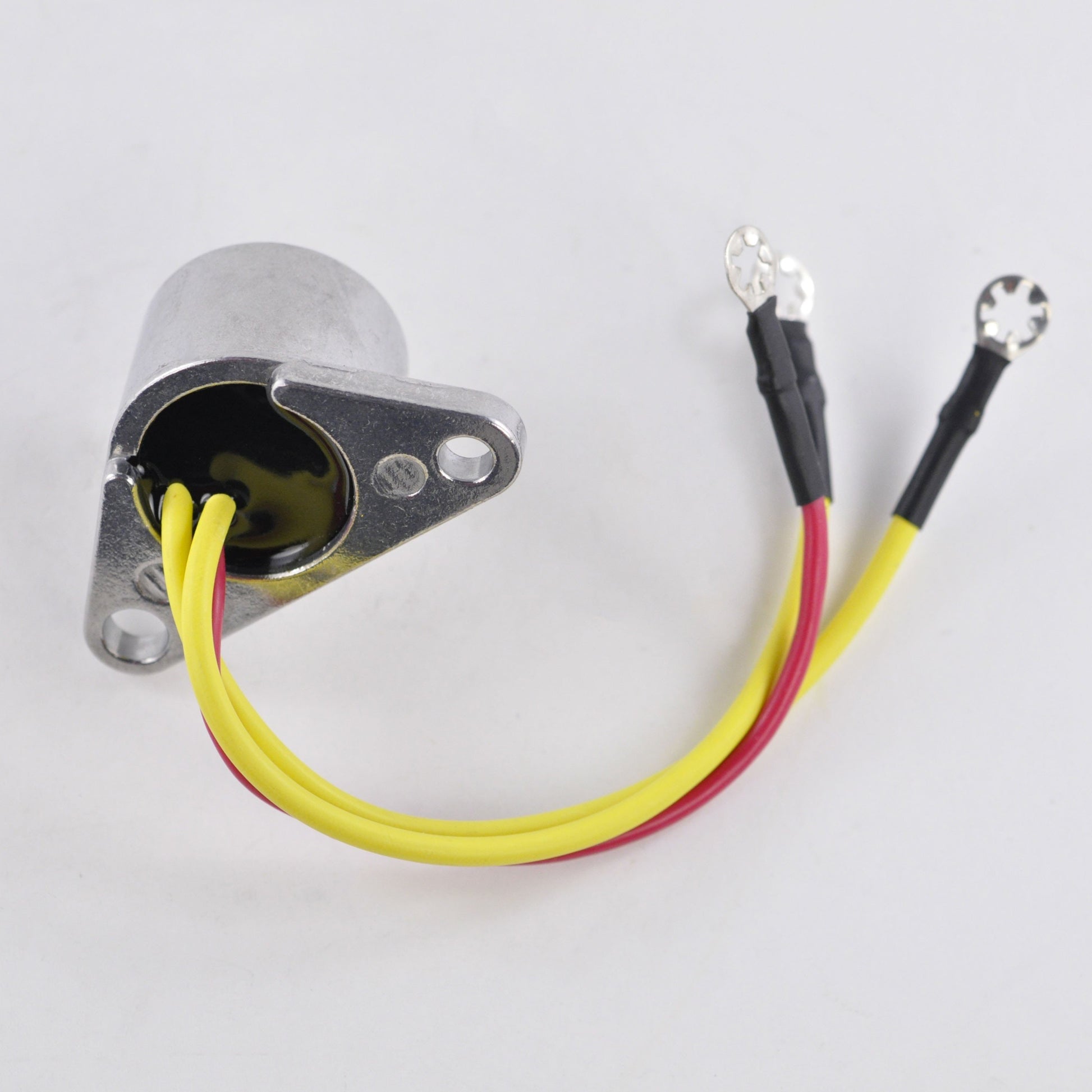

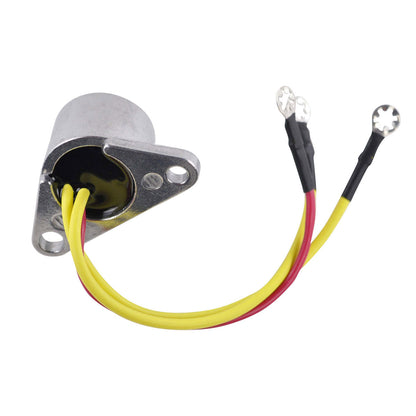

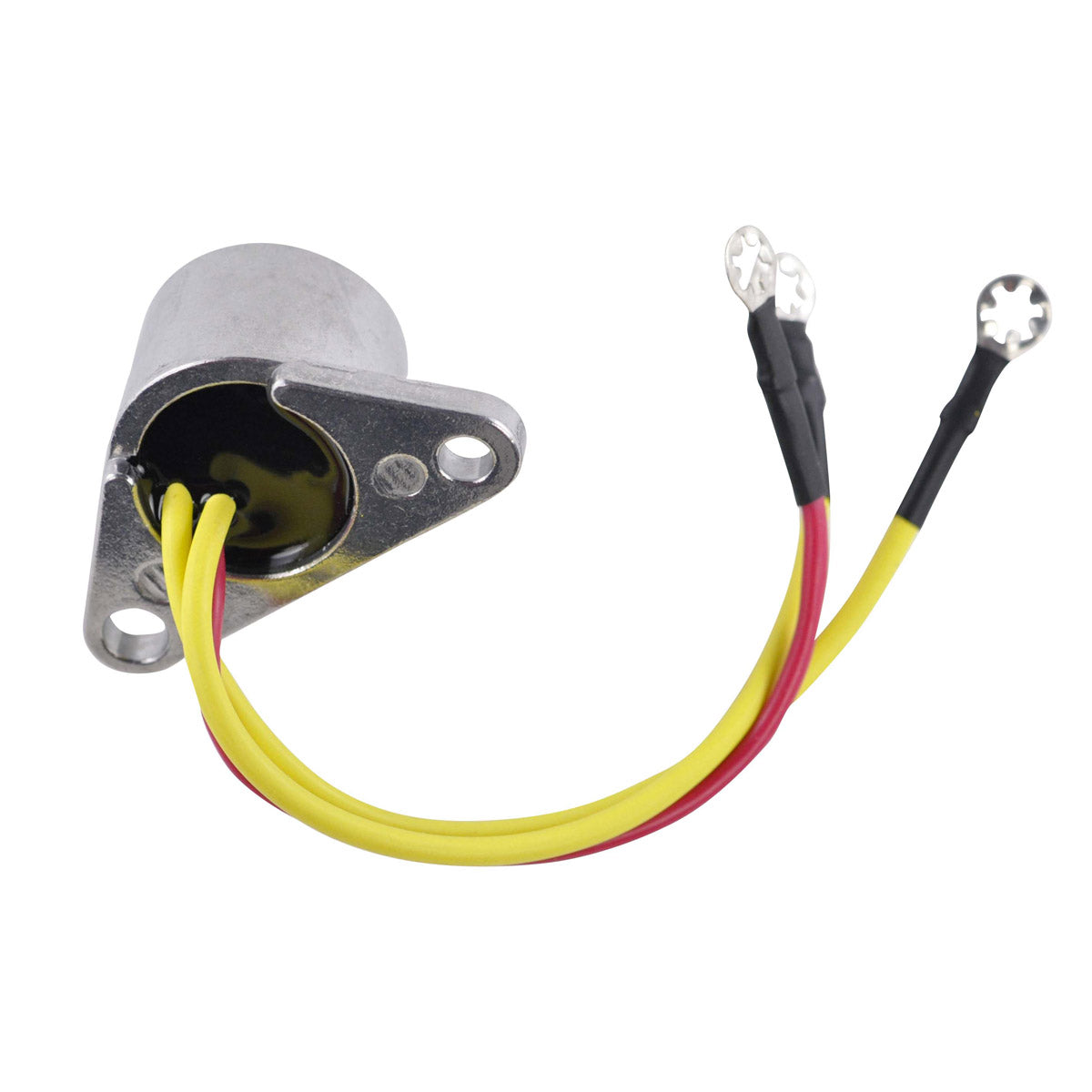

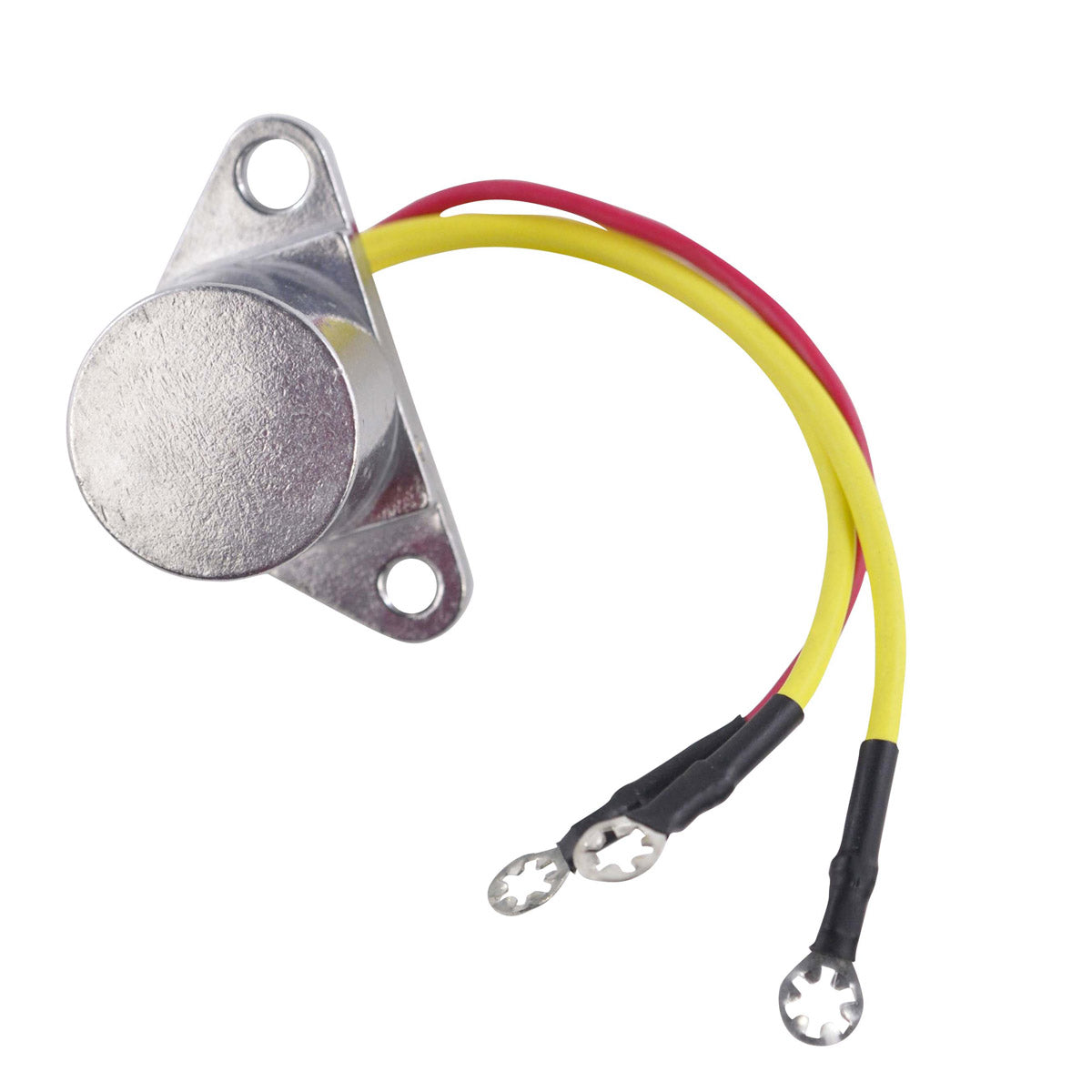

Regulator Rectifier RM30434 for Johnson and Evinrude Outboard
3-wire unit for 10-235 HP models - 1980-2001
Brand new voltage regulator for Johnson and Evinrude outboard engines from 10 HP up to 235 HP, covering models built between 1980 and 2001. This is the 3-wire version of the regulator rectifier. It is a plug-and-play unit, direct fit and easy to install, so the original three connections transfer straight across without any cutting, splicing or rewiring of the engine harness.
The unit is built with a higher grade of electric components than the original and the quality exceeds the OEM equipment. All products are tested before shipment. In service it maintains a minimum charging voltage of 14.5 V +/- 0.5 V, will pass a maximum charging current of 20 A / 150 W, holds open circuit voltage below 15 V and operates over a temperature range of -20°C to 85°C. The compact 34 x 62 x 28 mm case mounts on 49 mm centres with wire lengths of 127 mm and 131 mm. It replaces OEM part numbers 580765 and 580795.
Key Features
- Brand new voltage regulator, 3-wire configuration
- Plug-and-play unit, direct fit, easy to install
- Higher grade of electric components
- Quality exceeds the OEM equipment
- All products tested before shipment

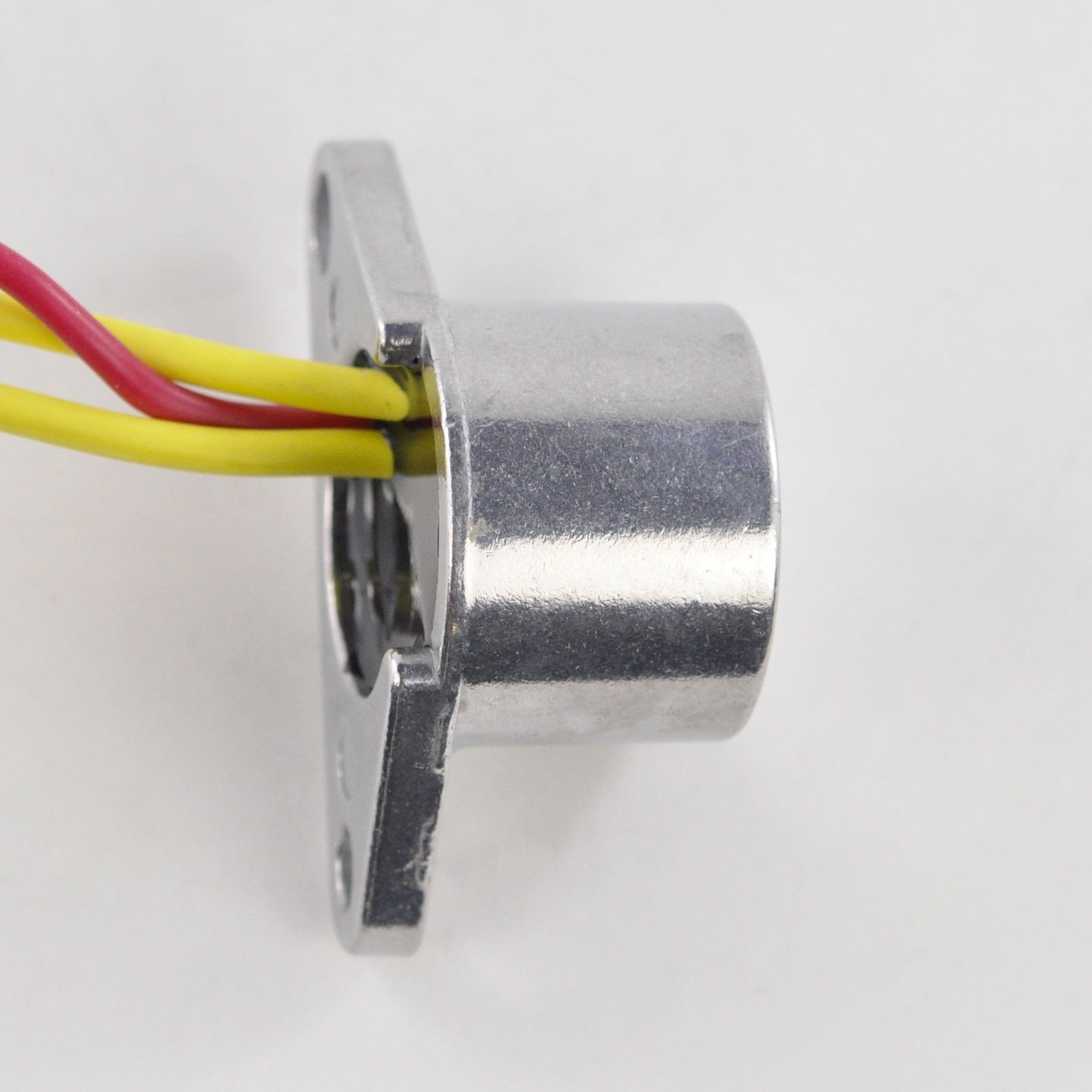

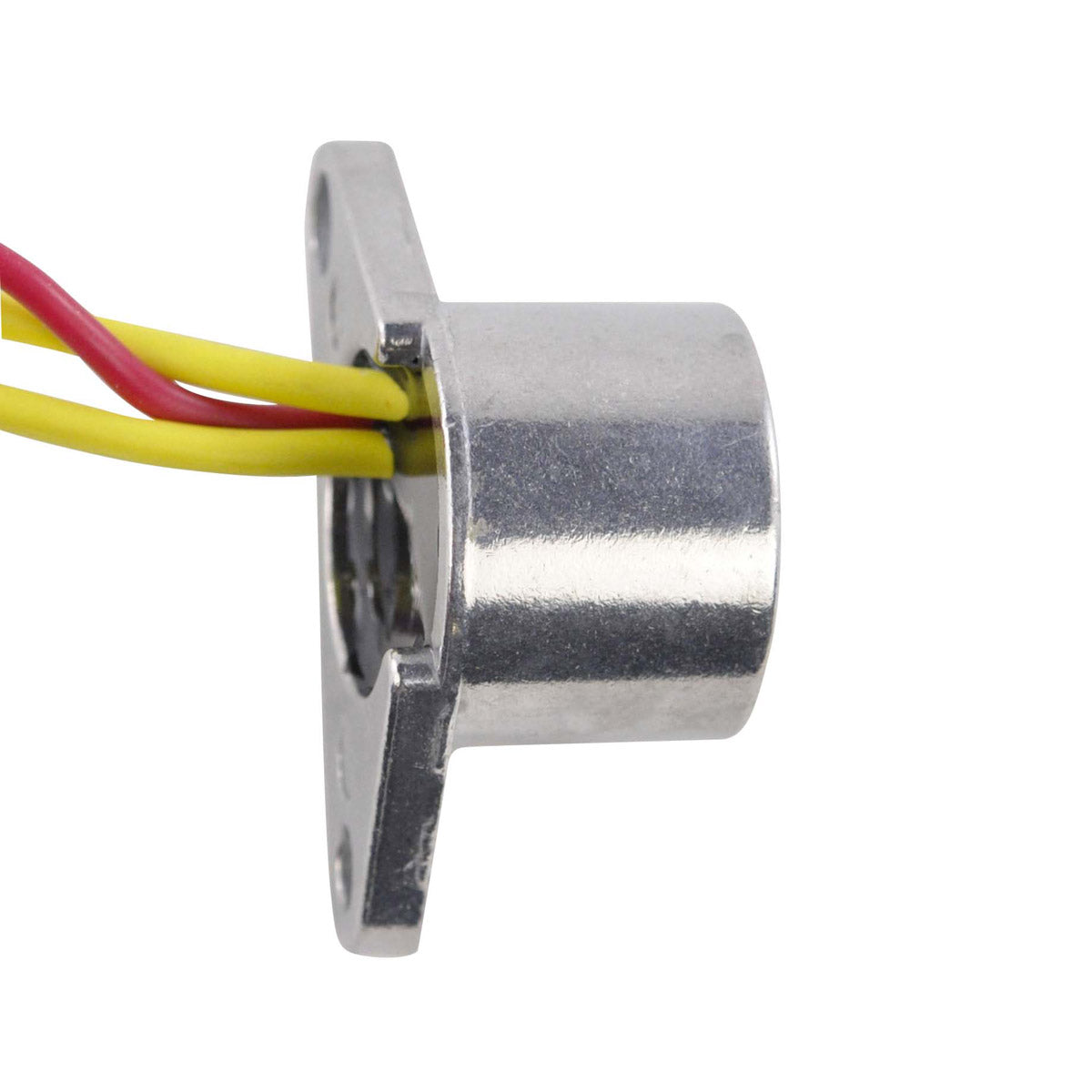

- Compact 34 x 62 x 28 mm case
- 49 mm mounting hole spacing centre to centre

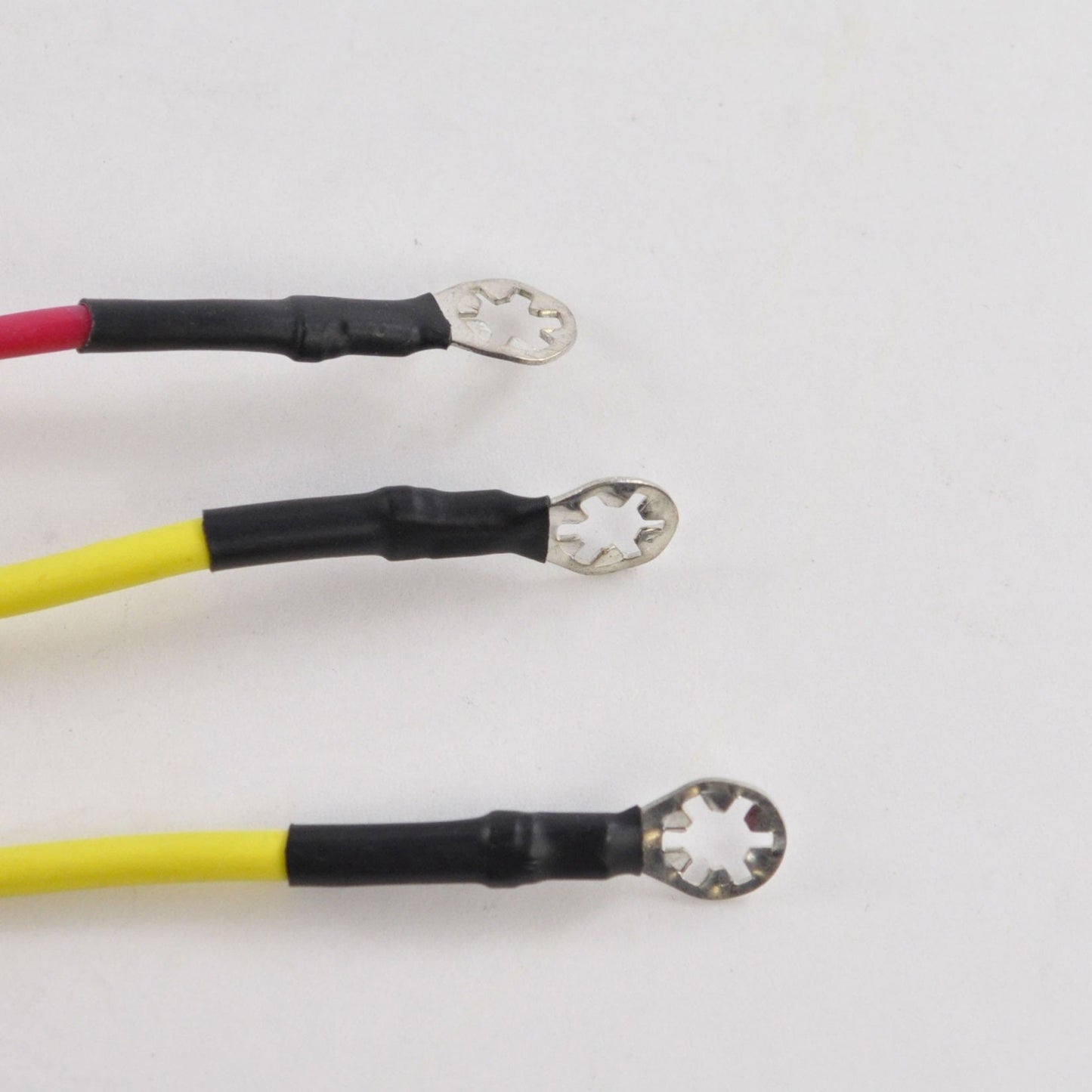

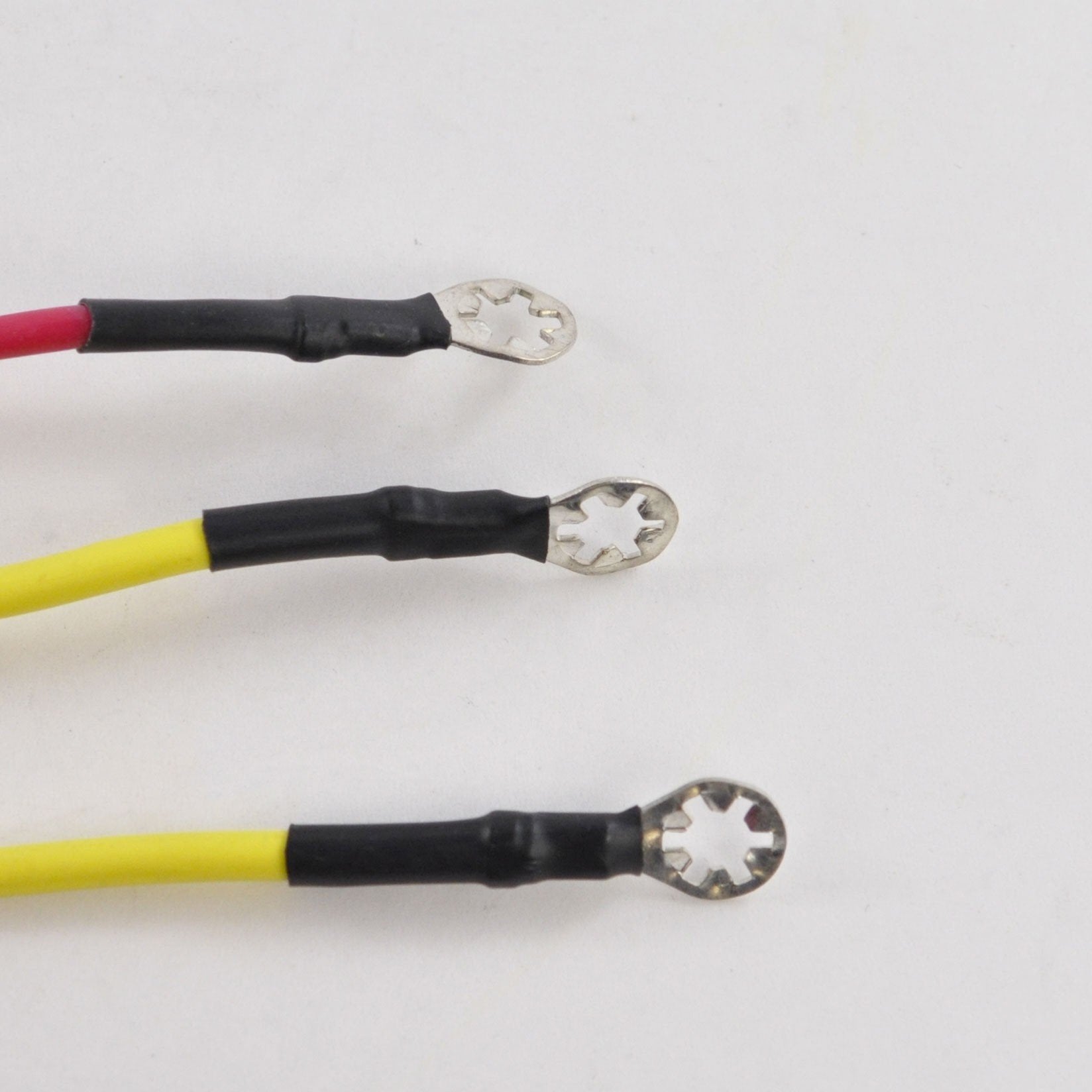

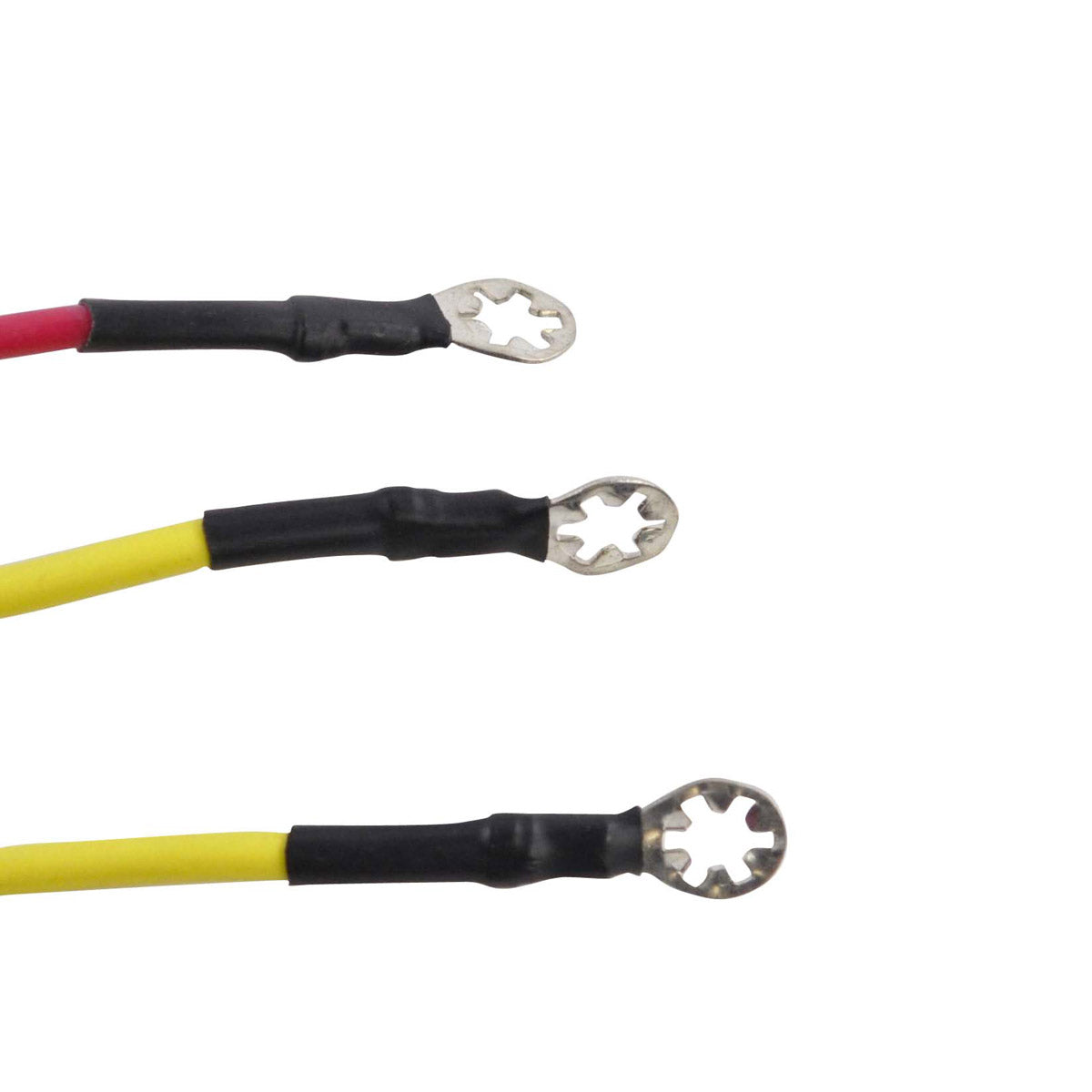

- Wire lengths of 127 mm and 131 mm
- Rated at 20 A / 150 W maximum charging current
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30434 |
| Type | Regulator rectifier, 3 wires |
| Width | 34 mm |
| Length | 62 mm |
| Height | 28 mm |
| Fixation holes centre to centre | 49 mm |
| Wire lengths | 127 mm & 131 mm |
| Number of plugs | 3 |
| Number of pins | 3 |
| Number of wires | 3 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 20 A / 150 W |
| Open circuit voltage | < 15 V |
| Operation temperature | -20°C to 85°C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Johnson Outboard 10-235 HP models | 1980-2001 |
| Evinrude Outboard 10-235 HP models | 1980-2001 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 580765 | Johnson / Evinrude |
| 580795 | Johnson / Evinrude |
Frequently Asked Questions
Does this fit without modification?
Yes. It is a plug-and-play unit and a direct fit. It has three wires of 127 mm and 131 mm on three plugs with three pins, and the mounting holes are 49 mm apart centre to centre. Confirm your original unit carries number 580765 or 580795 before ordering, as Johnson and Evinrude used more than one regulator design across this period.
What is included?
The regulator rectifier unit with its fitted wiring and plugs. Every unit is tested before shipment.
How do I know my old regulator has failed?
With the engine running, a healthy system reads 14.5 V +/- 0.5 V at the battery. A battery that stays flat after a run, or one that gasses because the voltage passes the 15 V open circuit limit, points at the regulator rectifier. Salt corroded terminals in the same circuit will produce similar symptoms, so clean and test the connections before replacing the unit.
Is this the 3-wire regulator?
Yes. This is the 3-wire version, with three wires on three separate plugs and a maximum charging current of 20 A / 150 W. Count the wires leaving your existing unit before ordering, since other Johnson and Evinrude regulators of the same era use a different wire count.
