Regulator Rectifier for Kawasaki 750 SS 1991-1998
Regulator Rectifier for Kawasaki 750 SS 1991-1998
SKU:RM30Y08
Free shipping over £150. Terms apply
Couldn't load pickup availability

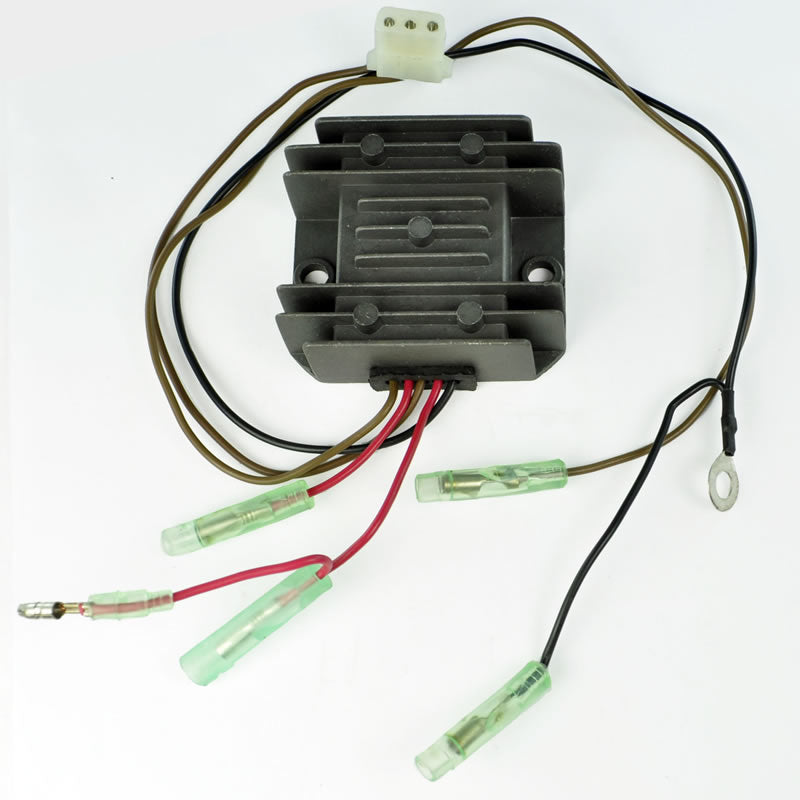

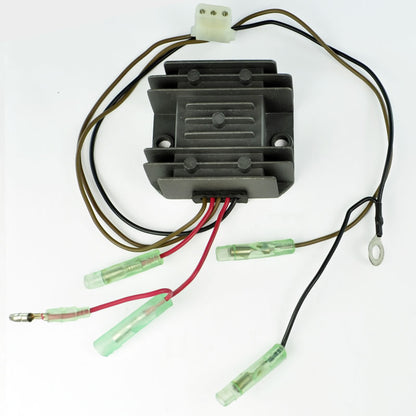

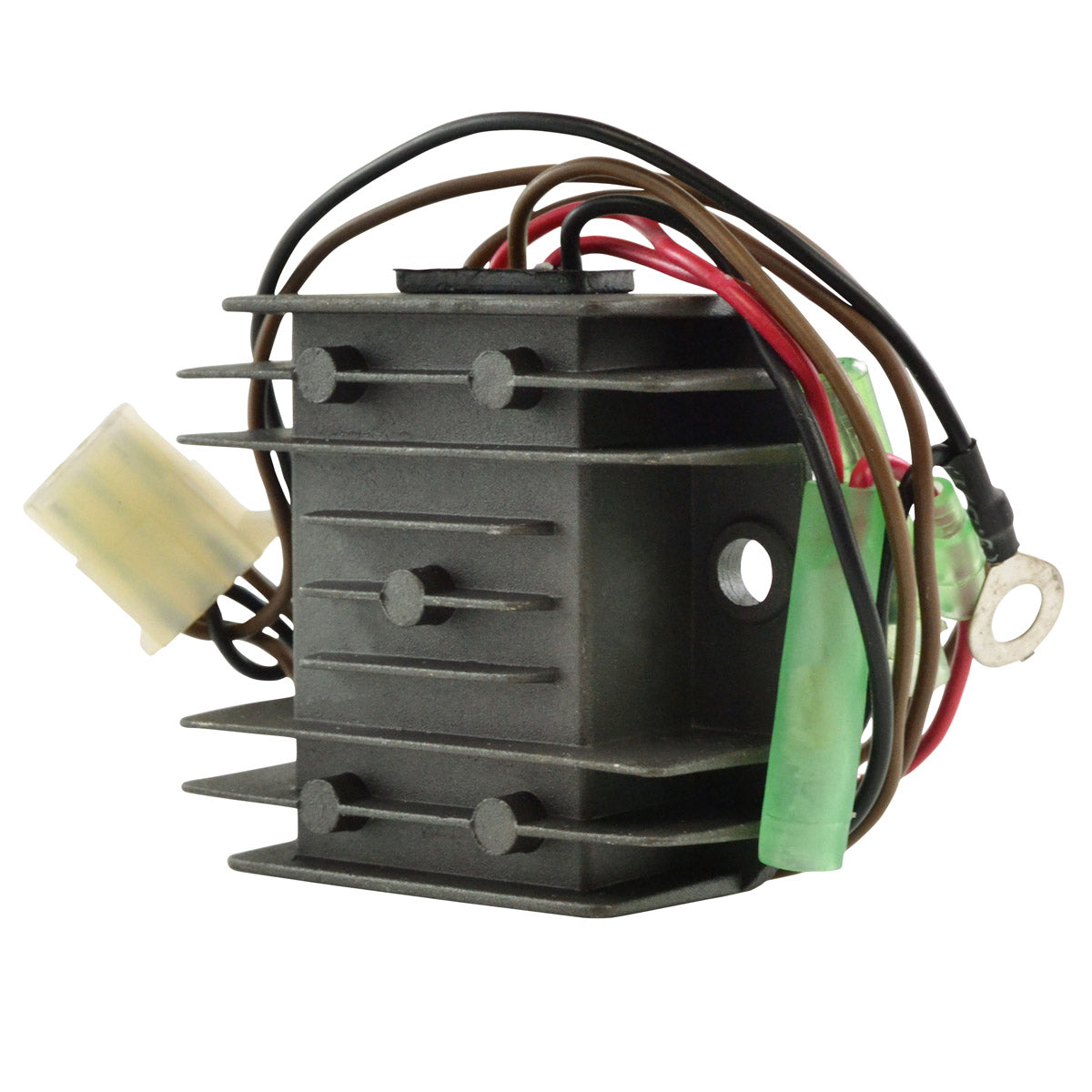

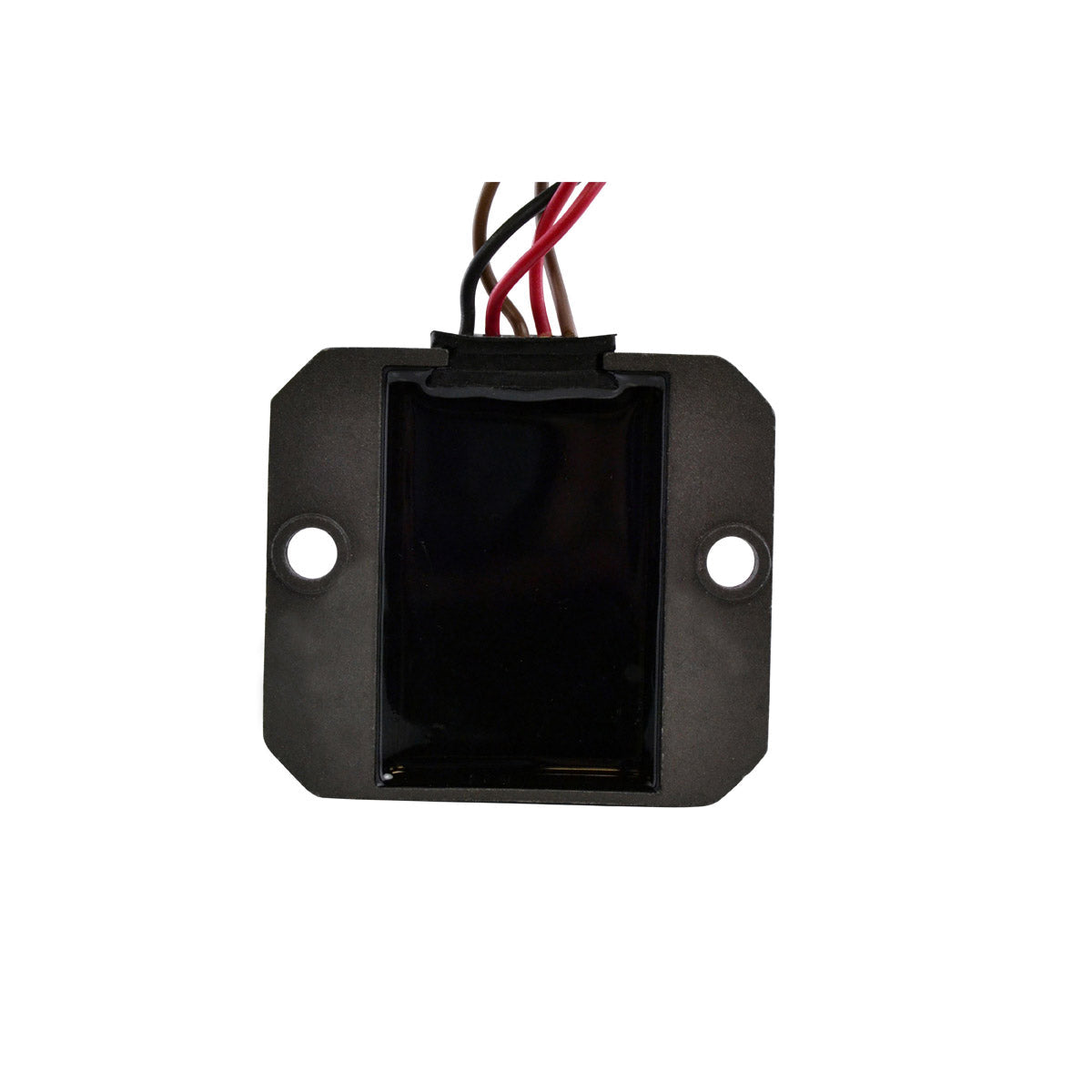

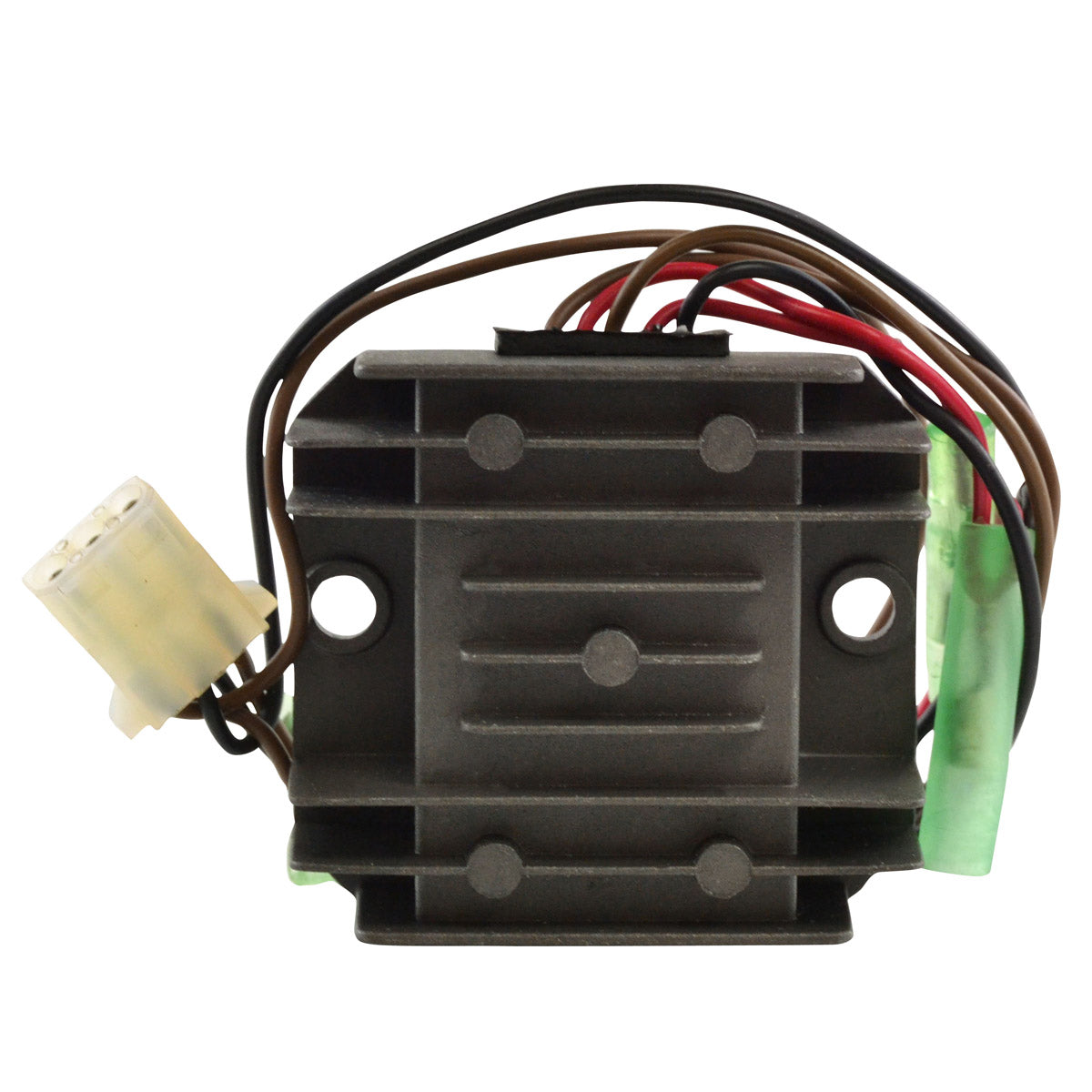

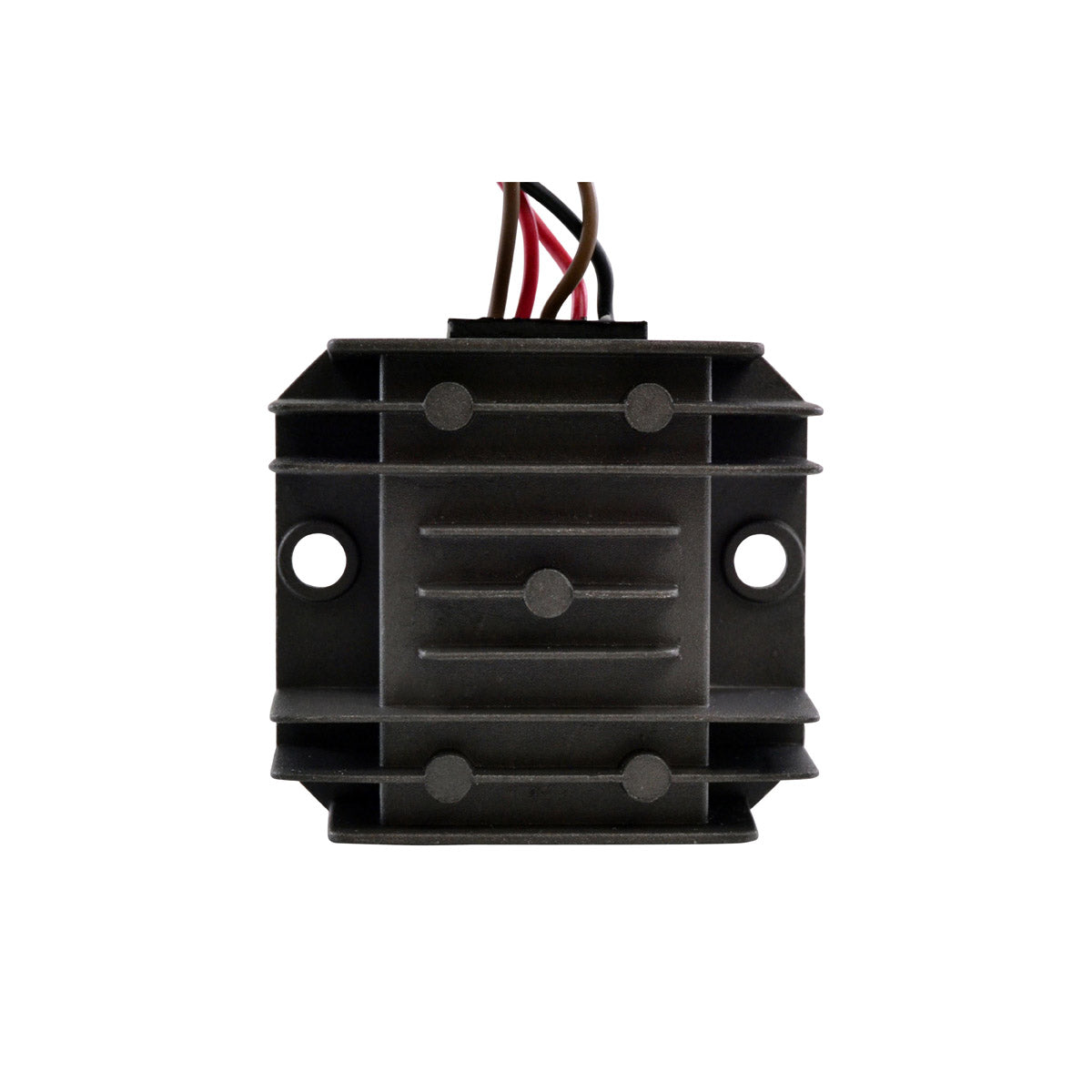

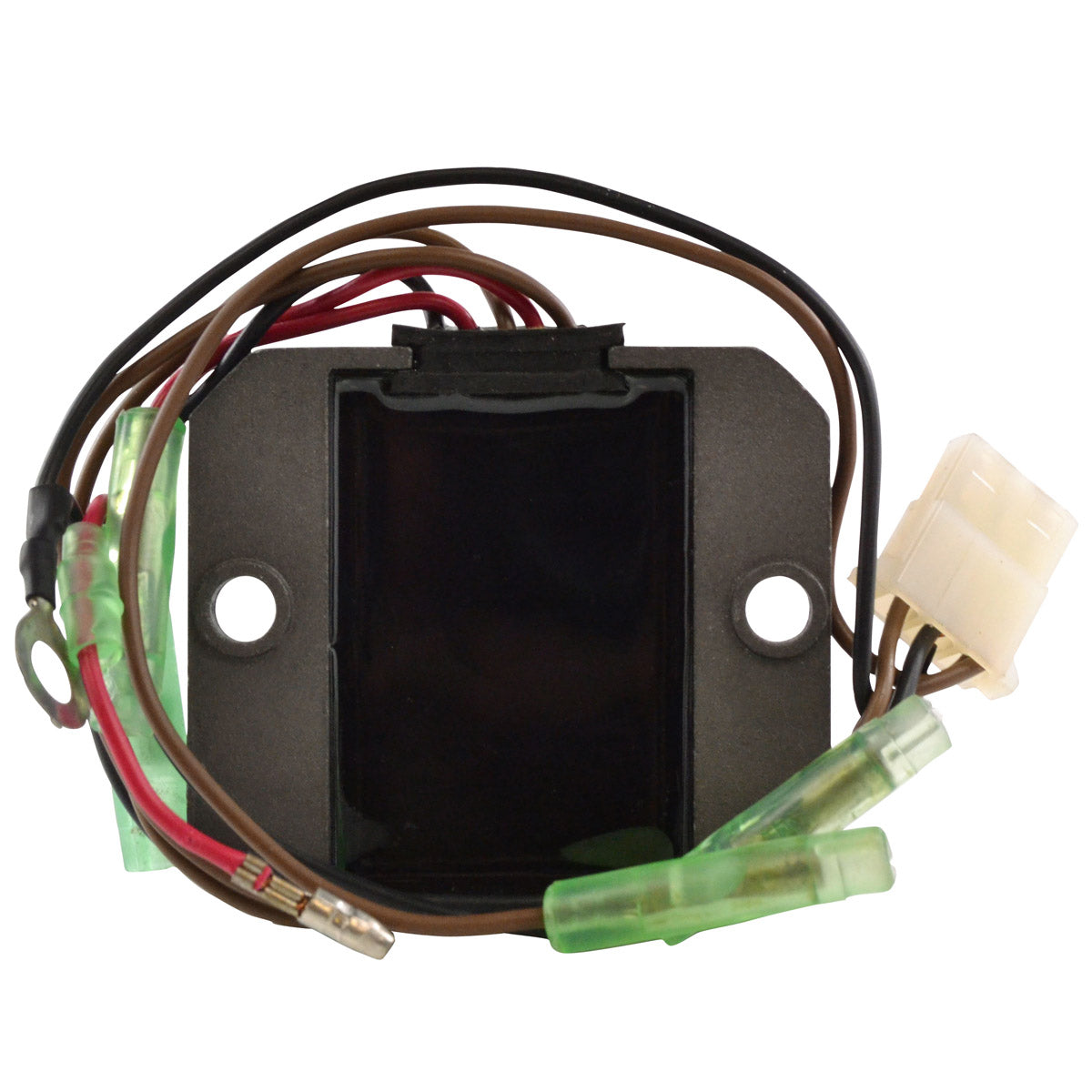

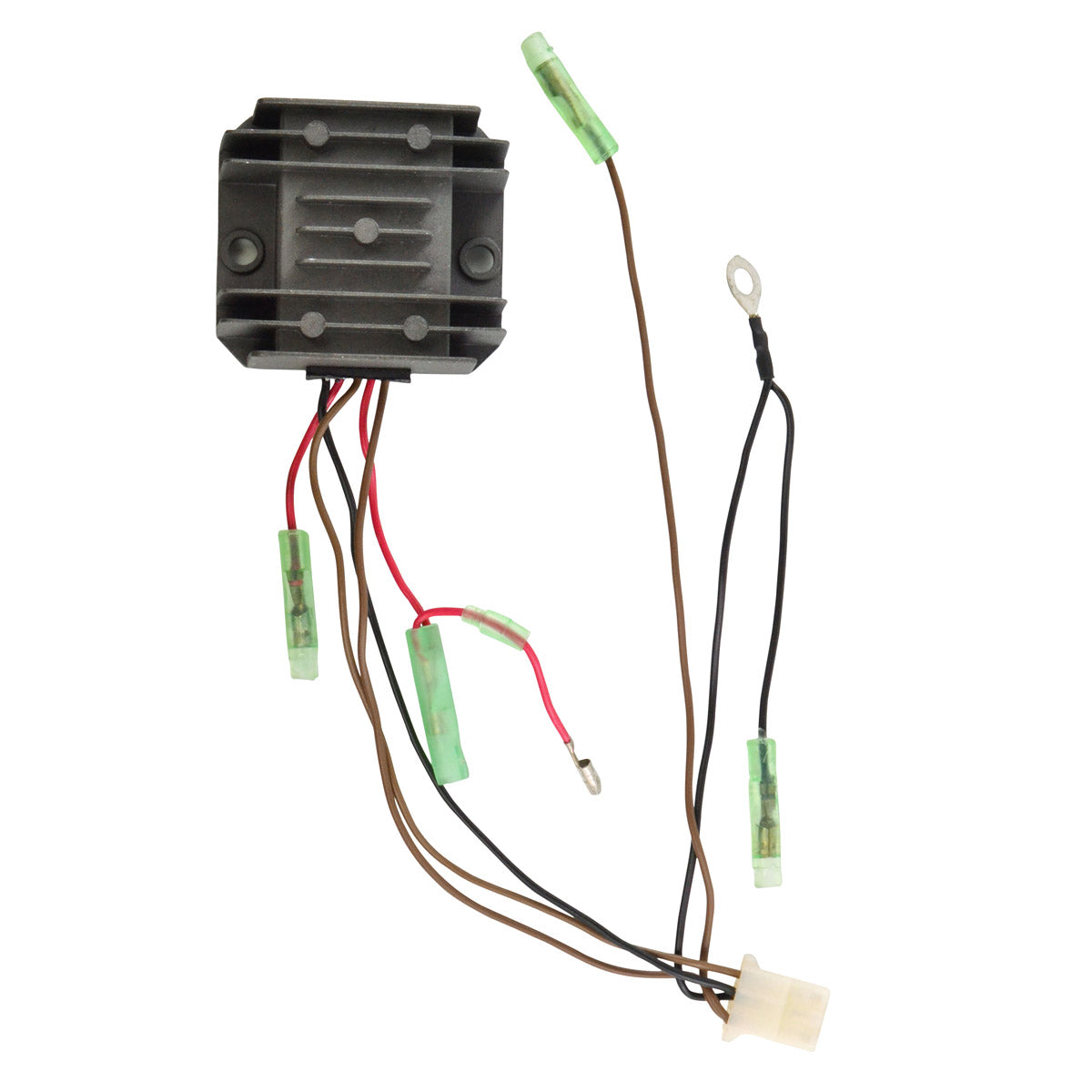

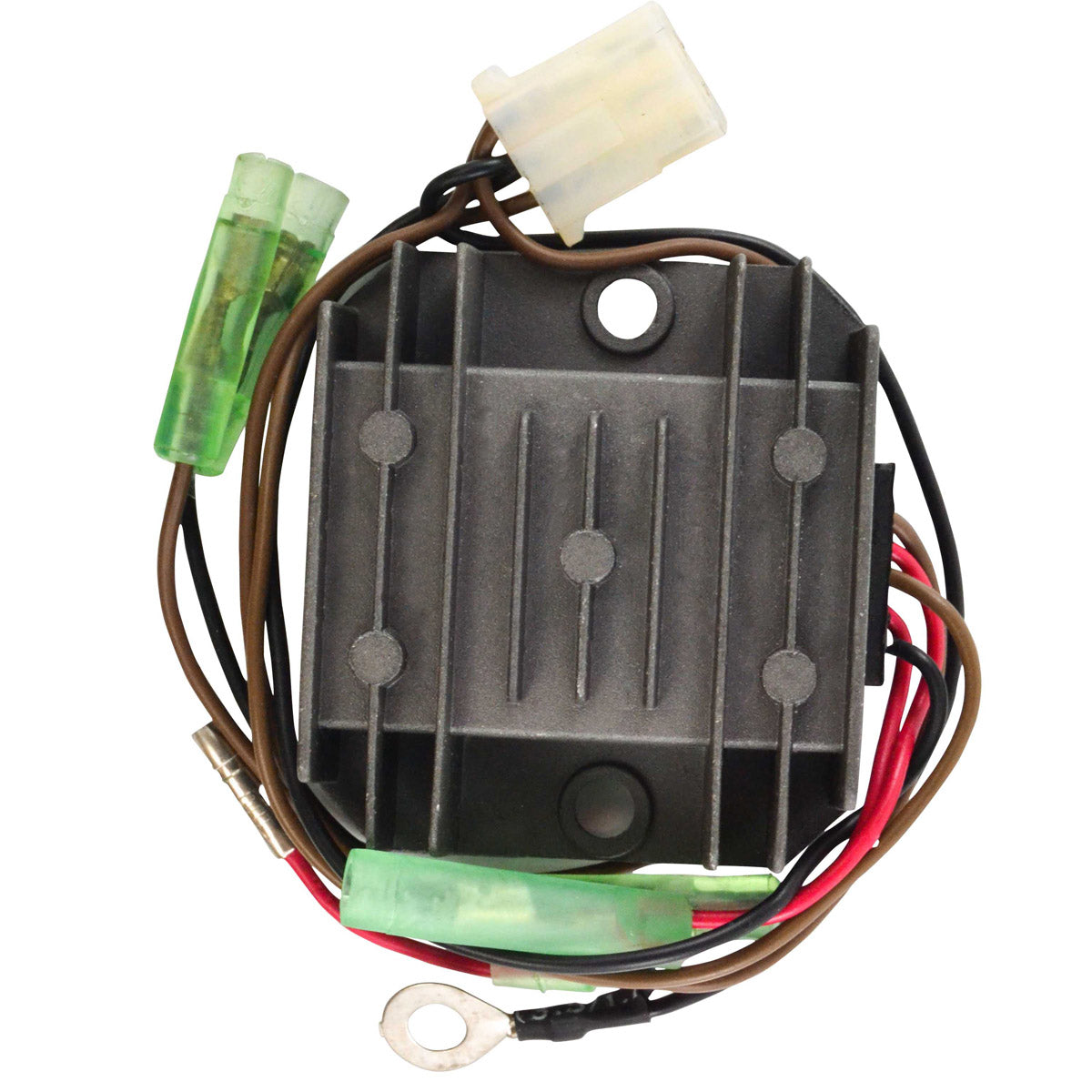

Voltage Regulator Rectifier RM30Y08 for Kawasaki
Kawasaki 750 SS, ST, STS, STX, XIR and XI - 1991-1998
AC voltage regulator rectifier, supplied as a direct replacement for the original unit fitted to the Kawasaki 750 SS, ST, STS, STX, XIR and XI personal watercraft from 1991 to 1998. It is a plug-and-play, direct fit part - no assembly is required and no modification to the standard wiring loom is needed. The unit is built with a higher grade of electrical components than the original and uses an improved heat sink for better thermal performance and charging capability. The quality exceeds the OEM equipment, and every unit is tested before it is shipped.
This is an AC regulator rectifier, which controls the output of the charging coils and holds the electrical system at a safe voltage. On a personal watercraft the unit works in a hot, damp engine bay and is a common failure point. When it fails the usual symptoms are a battery that will not hold charge between outings, a battery that boils or gasses, or a charging voltage that either never rises above resting battery voltage or climbs well past 15 volts. This unit delivers a minimum charging voltage of 14.5 V +/- 0.5 V and a maximum charging current of 25 A / 300 W, with open circuit voltage held below 15 V and an operating range of -20 to 85 degrees Celsius.
Key Features
- AC regulator rectifier
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- No assembly required

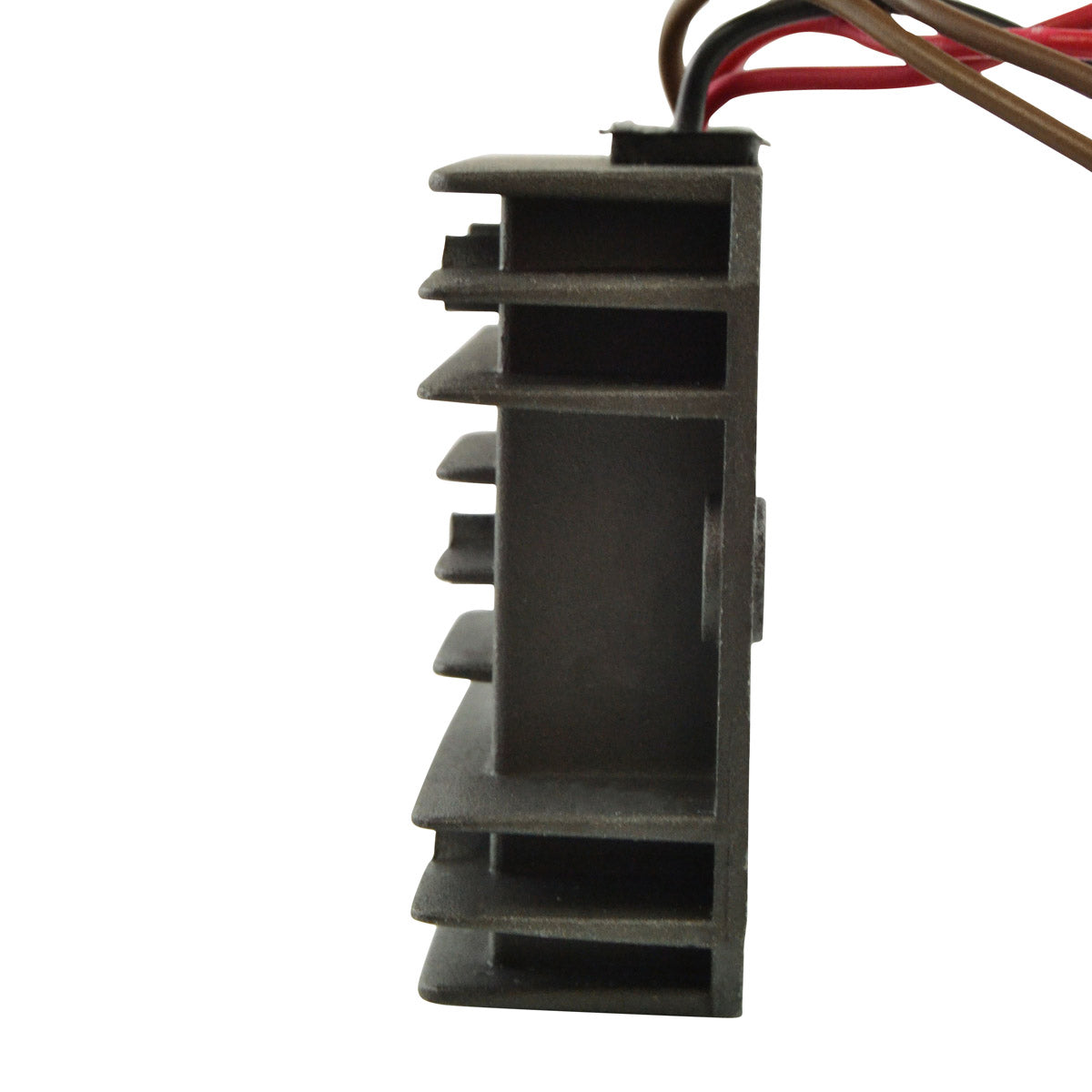

- Improved heat sink and charging capabilities
- Higher grade of electric components
- Quality exceeds the OEM equipment
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30Y08 |
| Width | 60 mm |
| Length | 66 mm |
| Height | 24 mm |
| Wires length | 160 mm and 200 mm |
| Fixation holes, centre to centre | 55 mm |
| Number of plugs | 1 |
| Number of pins | 6 |
| Number of wires | 6 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 25 A / 300 W |
| Open circuit voltage | Less than 15 V |
| Operating temperature | -20 °C to 85 °C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki 750 SS | 1991-1998 |
| Kawasaki 750 ST | 1991-1998 |
| Kawasaki 750 STS | 1991-1998 |
| Kawasaki 750 STX | 1991-1998 |
| Kawasaki 750 XIR | 1991-1998 |
| Kawasaki 750 XI | 1991-1998 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21066-3711 | Kawasaki |
Frequently Asked Questions
Do I need to modify the wiring to fit this unit?
No. This is a plug-and-play, direct fit replacement for the original unit and no assembly is required. It uses a single plug with 6 pins and 6 wires.
What is supplied?
One brand new aftermarket AC voltage regulator rectifier, part number RM30Y08, tested before dispatch. No additional connectors or fitting hardware are listed with this part.
How do I tell whether my old regulator rectifier has failed?
Measure the voltage across the battery terminals with the engine running. A healthy charging system should show around 14.5 V. A reading that stays at resting battery voltage suggests the unit is no longer charging, while a reading above 15 V suggests it is no longer regulating and is overcharging the battery.
Why are there two different wire lengths?

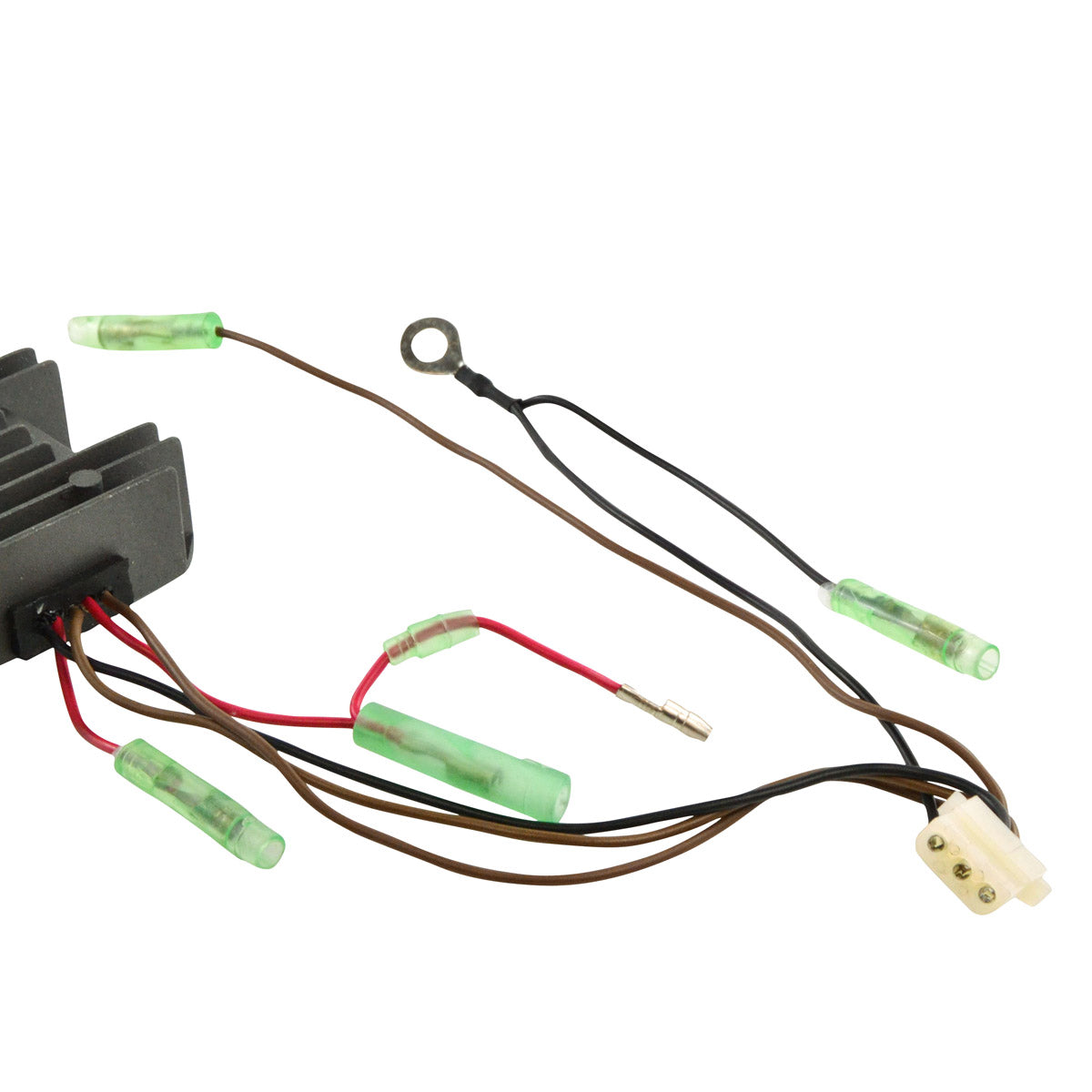

The harness on this unit uses wires of 160 mm and 200 mm so that each lead reaches its own connection point on the loom without being stretched or looped. This matches the original layout on these craft.
