Voltage Regulator Rectifier for Kawasaki KFX 700, KLF 300, KVF 400 & Suzuki LTV 700 1999-2013
Voltage Regulator Rectifier for Kawasaki KFX 700, KLF 300, KVF 400 & Suzuki LTV 700 1999-2013
SKU:RM30W02
Free shipping over £150. Terms apply
Couldn't load pickup availability

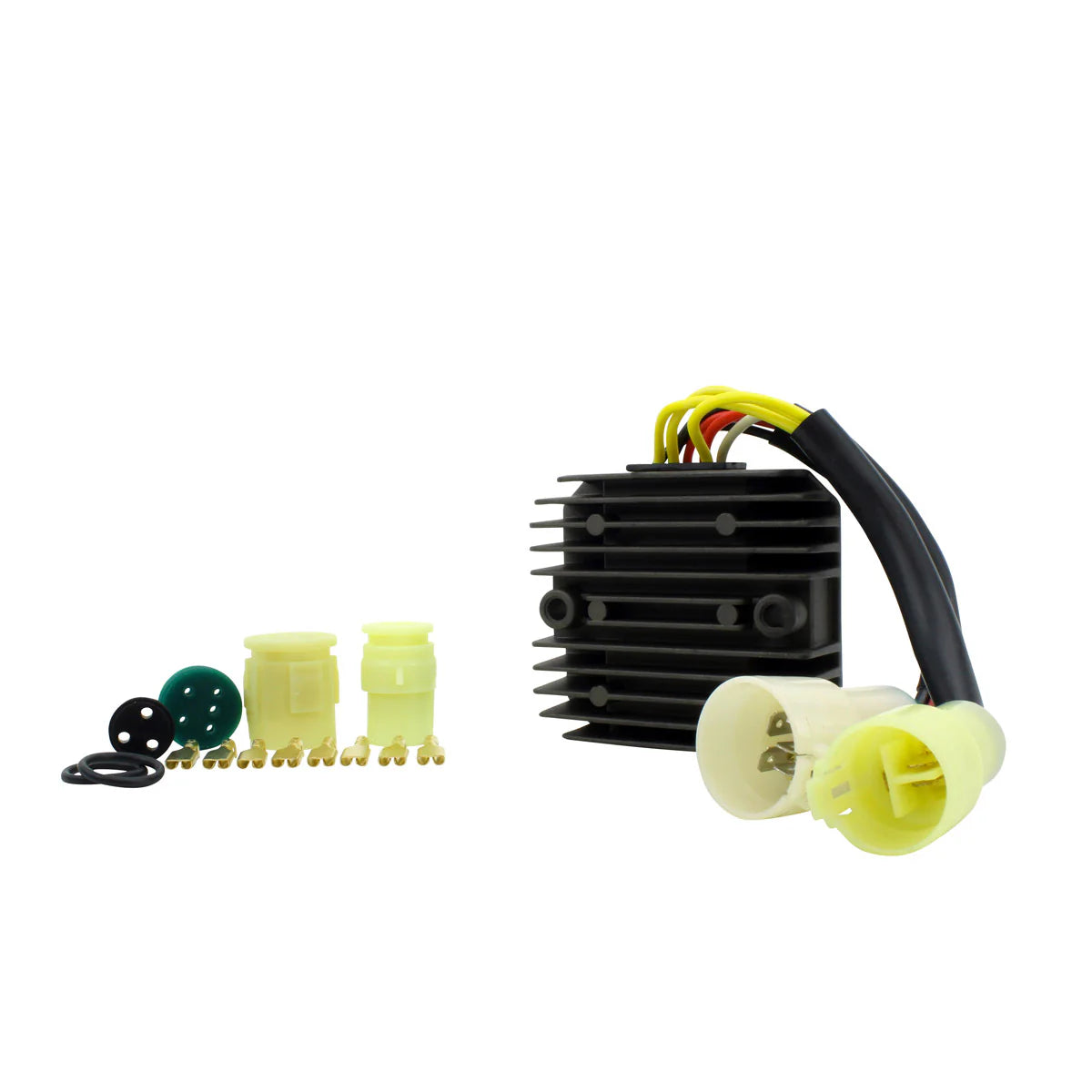

Voltage Regulator Rectifier for Kawasaki KFX, KLF and KVF and Suzuki LTV
Kawasaki KFX 700, KLF 300, KVF 300 360 400 650 700 and Suzuki LTV 700 - 1999 to 2013 - RMSTATOR RM30W02

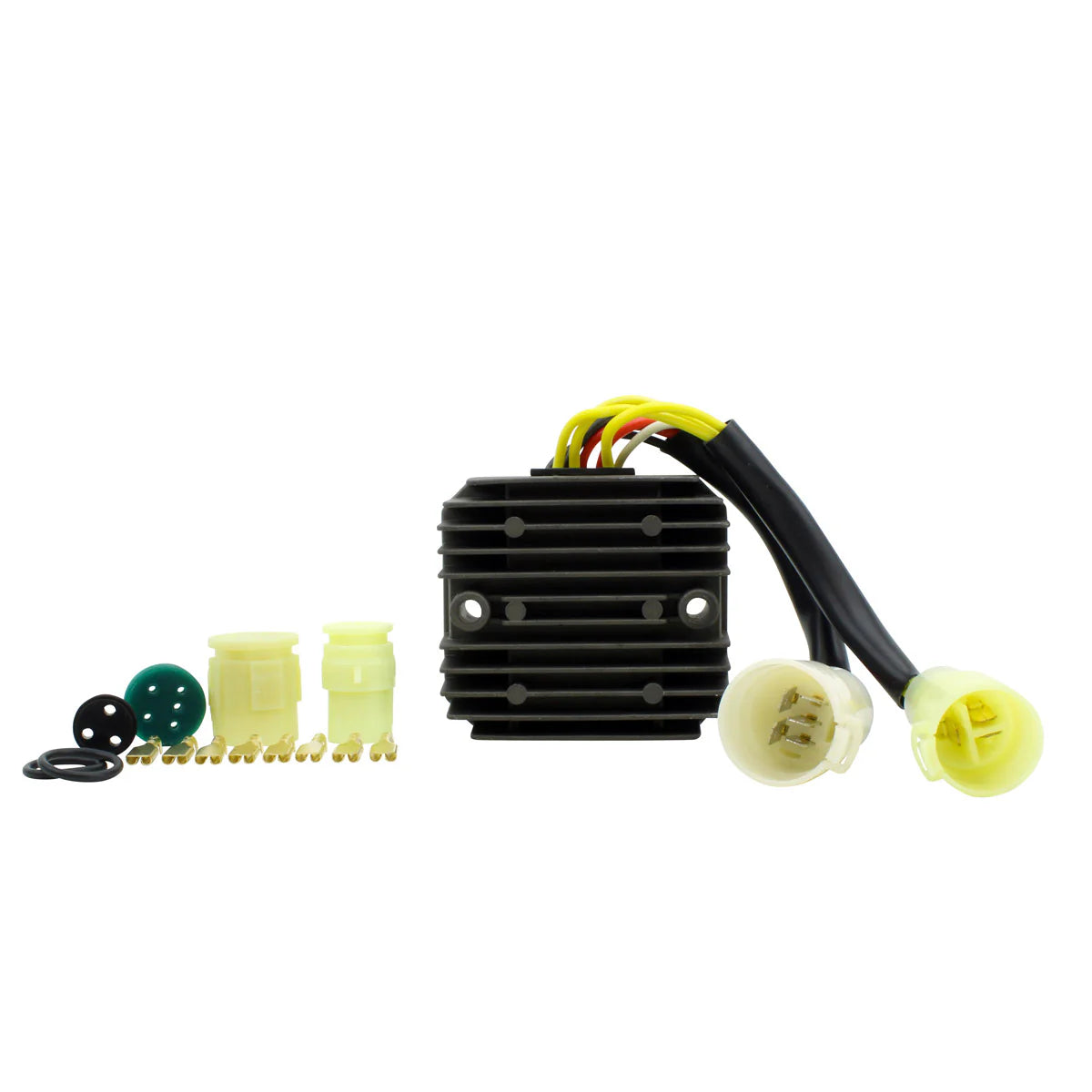

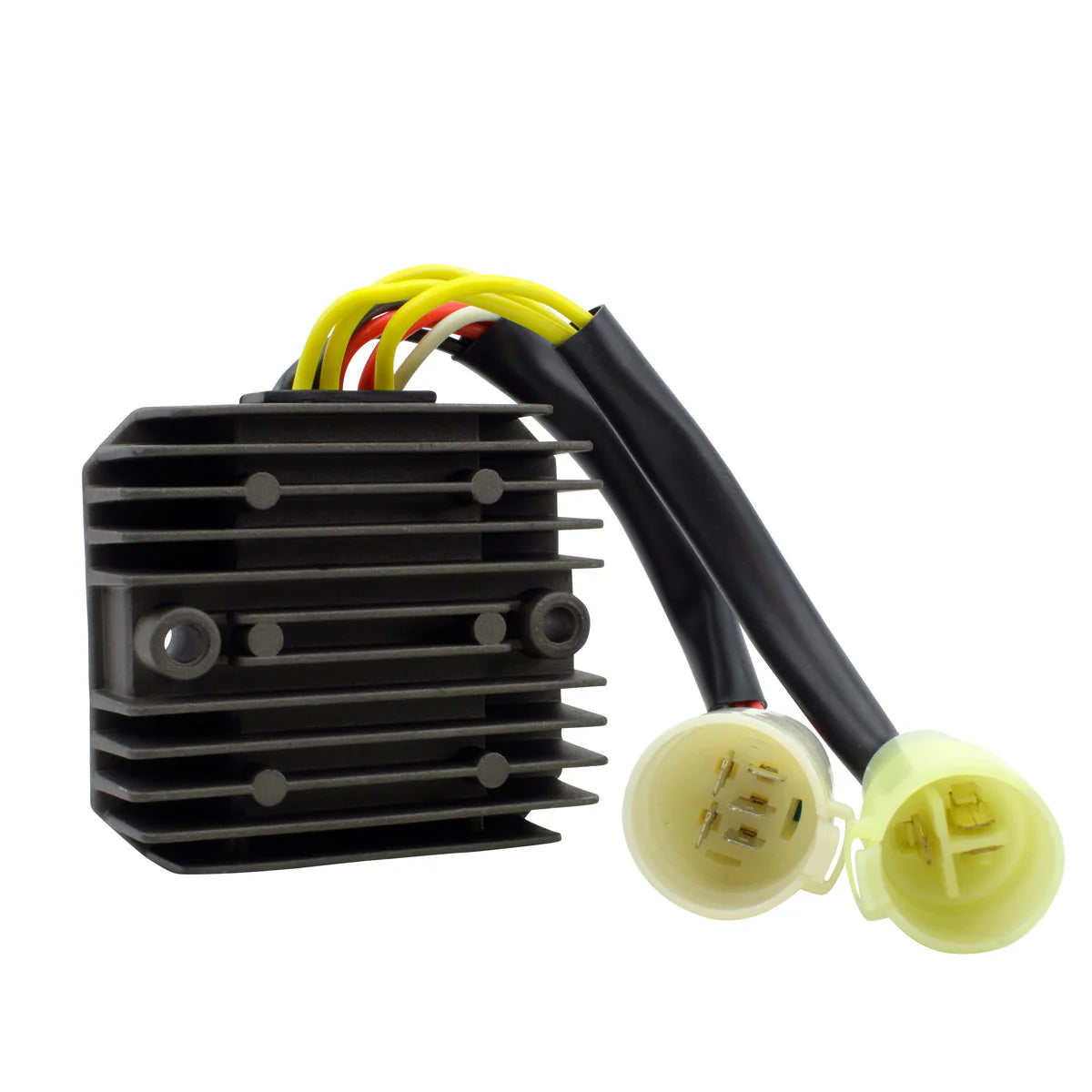

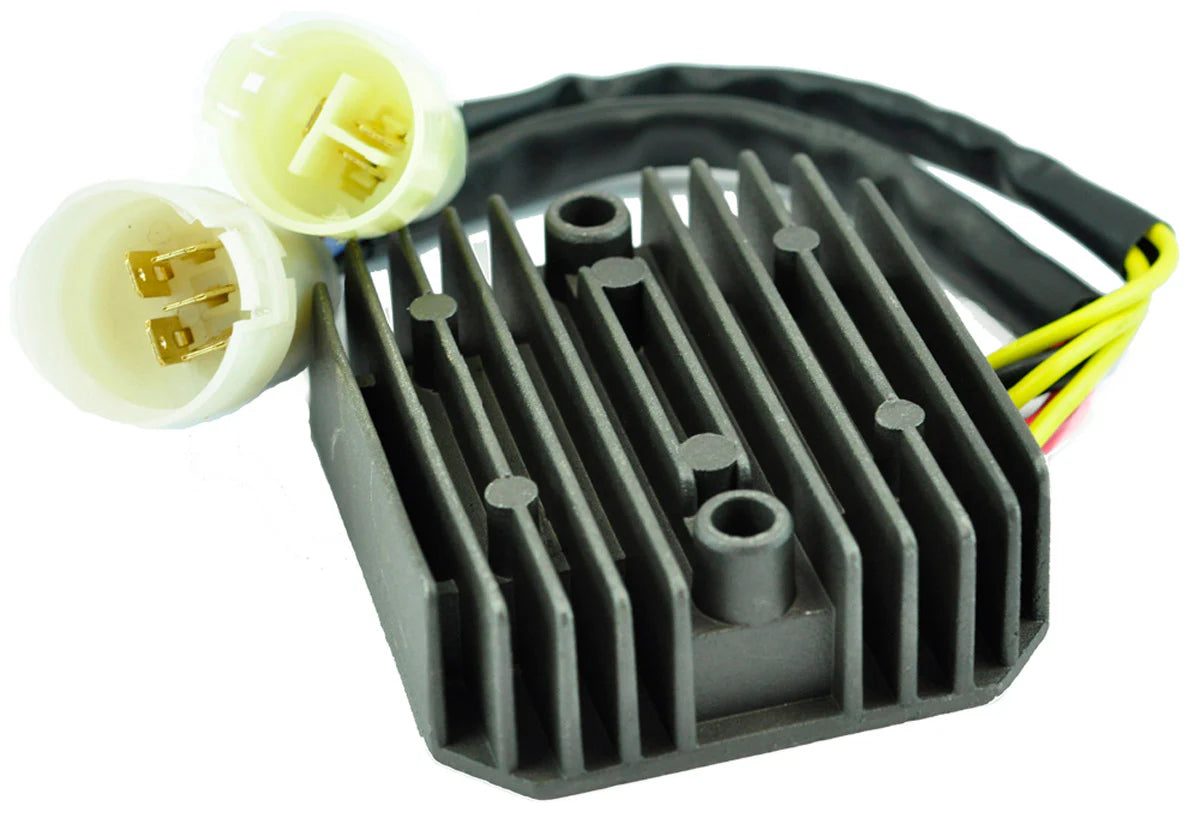

This is a brand new voltage regulator rectifier covering the Kawasaki KFX 700, KLF 300 and the KVF 300, 360, 400, 650 and 700 Prairie and Brute Force family, along with the Suzuki LTV 700, from 1999 through to 2013. It carries RMSTATOR part number RM30W02 and is a direct replacement to your original unit. Fitment is plug and play and direct fit, with the same two plug, eight pin arrangement as the factory part, so no assembly and no wiring changes are required.
The regulator rectifier takes the alternating current the stator produces and converts it into the direct current the battery and electrical system run on, then holds that output at a controlled level. This unit is built with a higher grade of electrical components than the original, with an improved heat sink and improved charging capability, and the quality exceeds the OEM equipment it replaces. It is rated for a substantial 50 A / 500 W maximum charging current. All units are tested before they are shipped, and orders are dispatched from the UK.
Key Features
- Brand new voltage regulator rectifier
- Direct replacement to your original unit
- Plug and play, direct fit, easy installation
- No assembly required
- Higher grade of electrical components

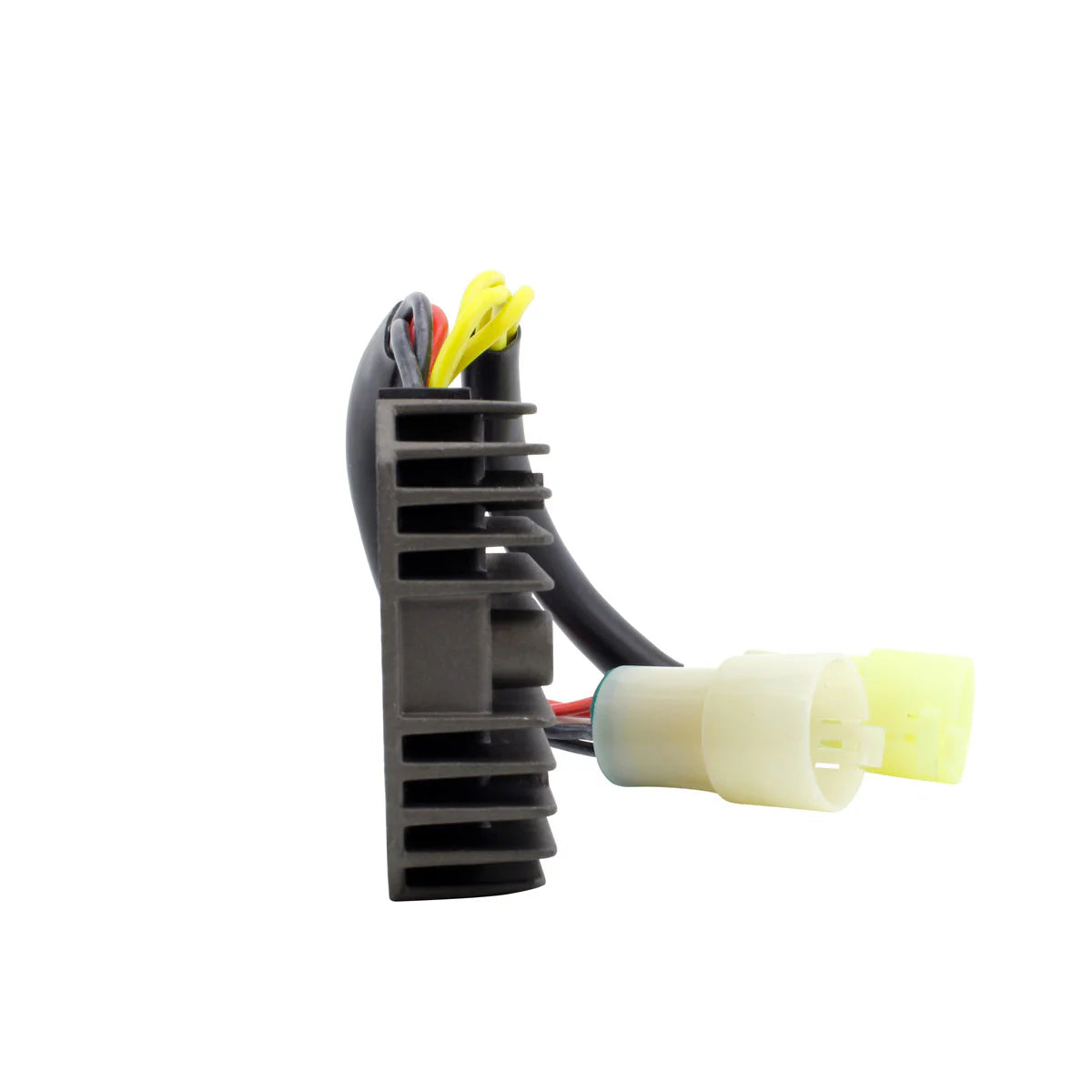

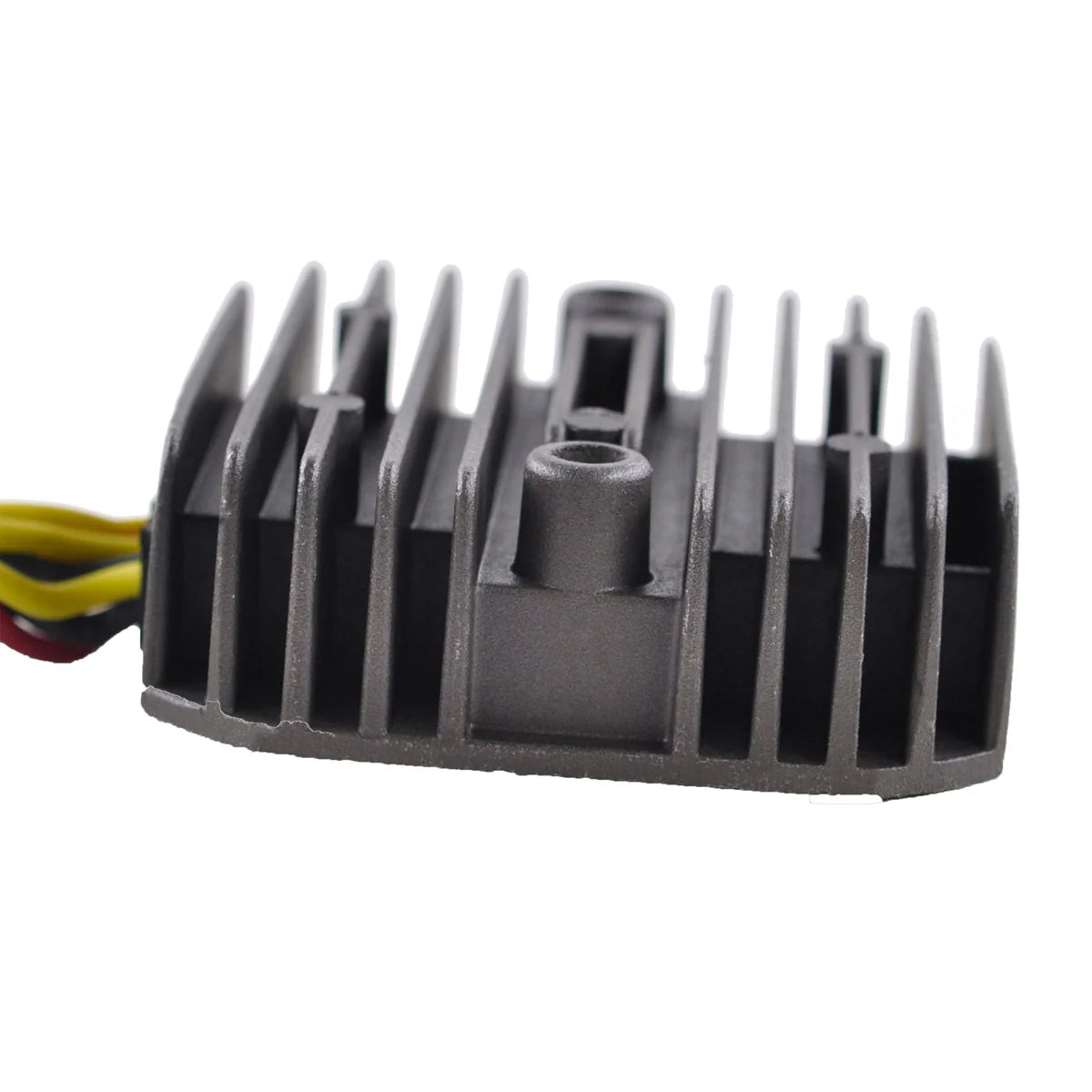

- Improved heat sink
- Improved charging capability
- Quality exceeds the OEM equipment

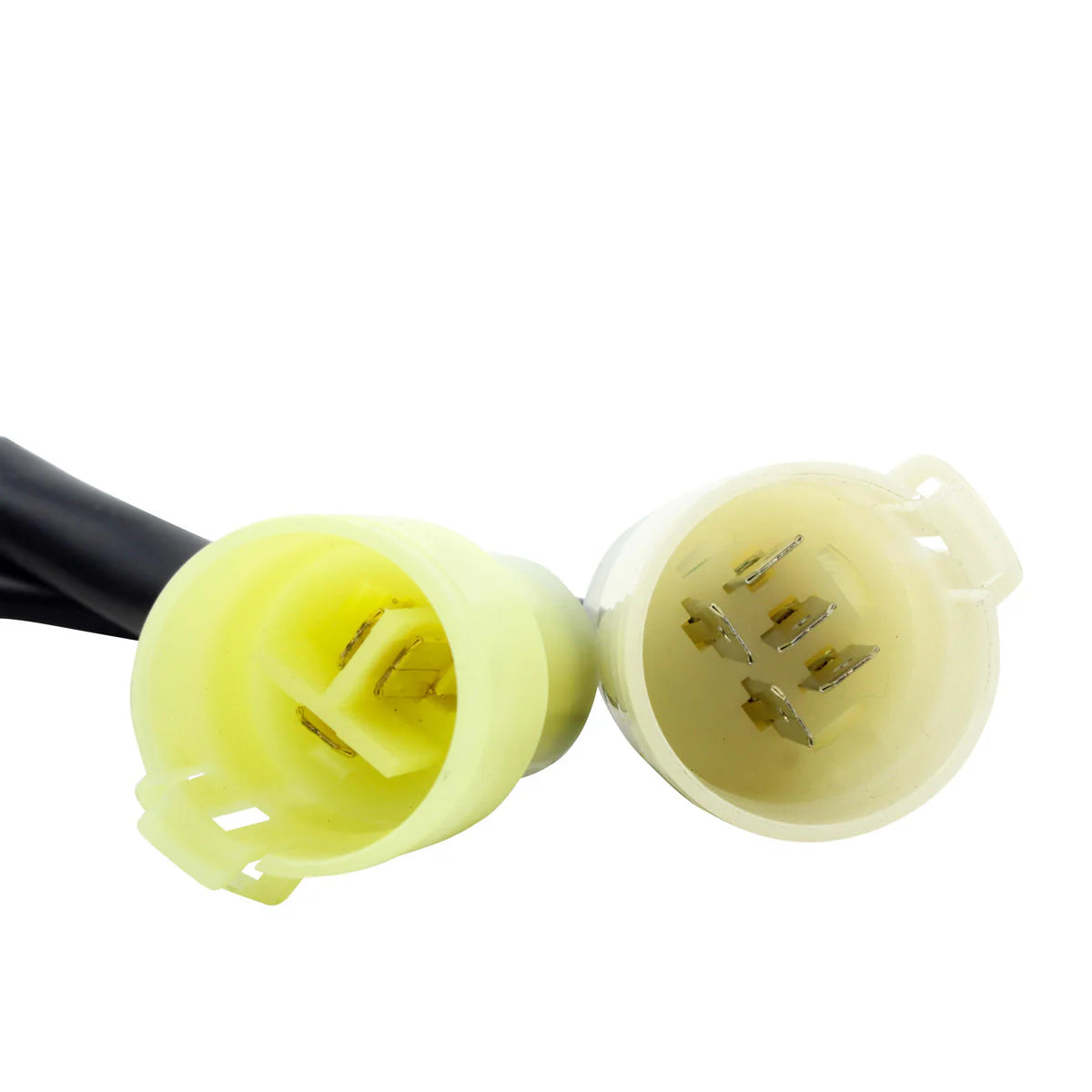

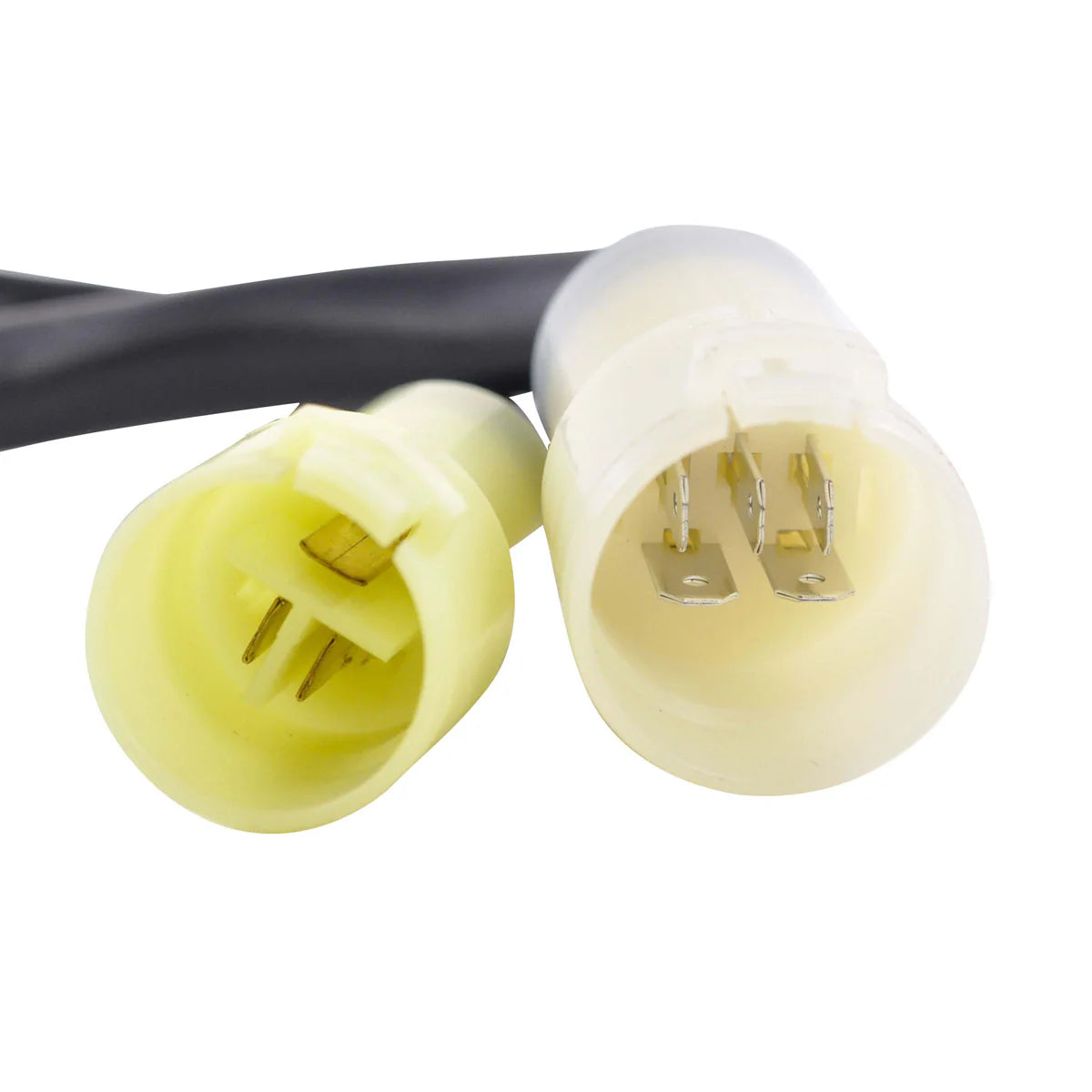

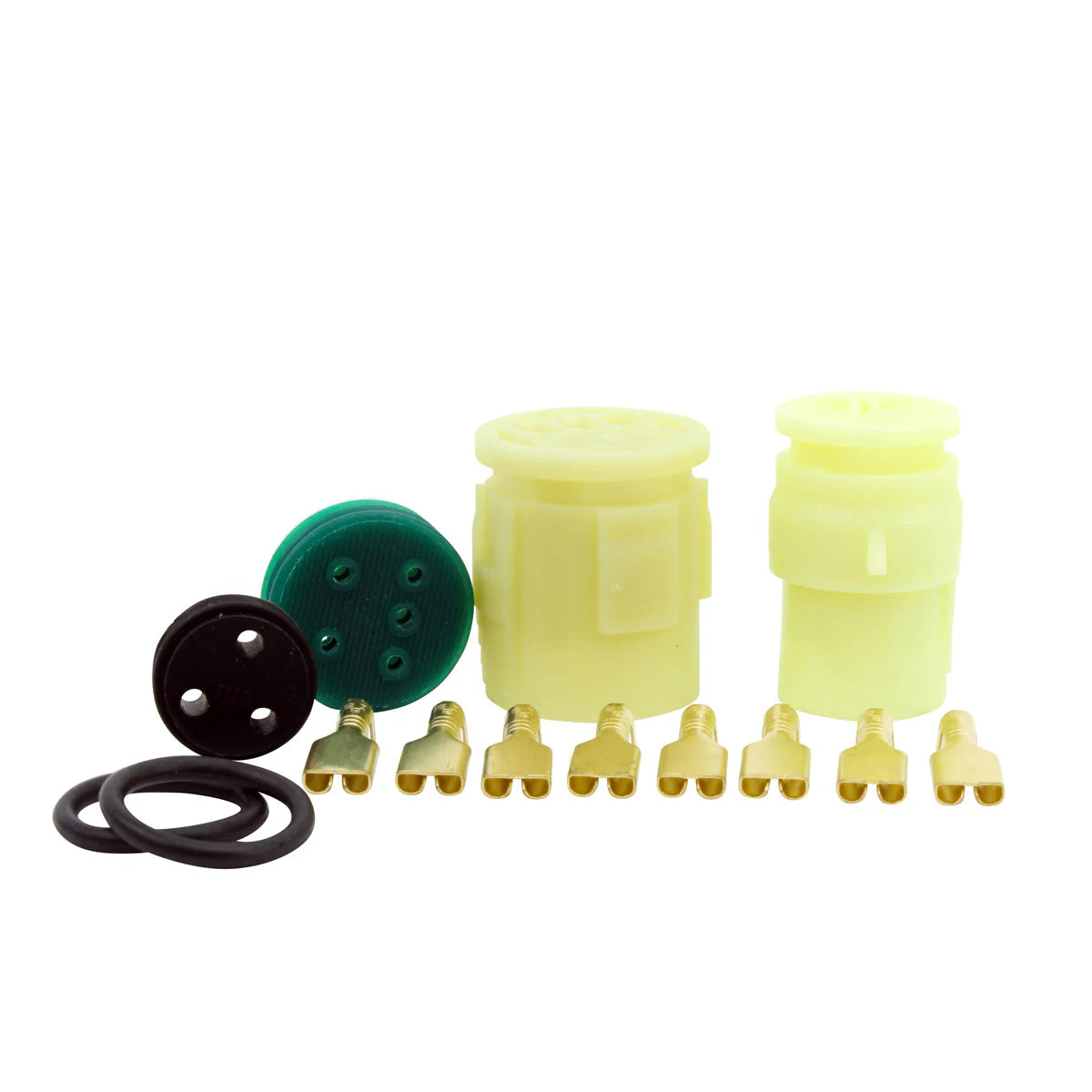

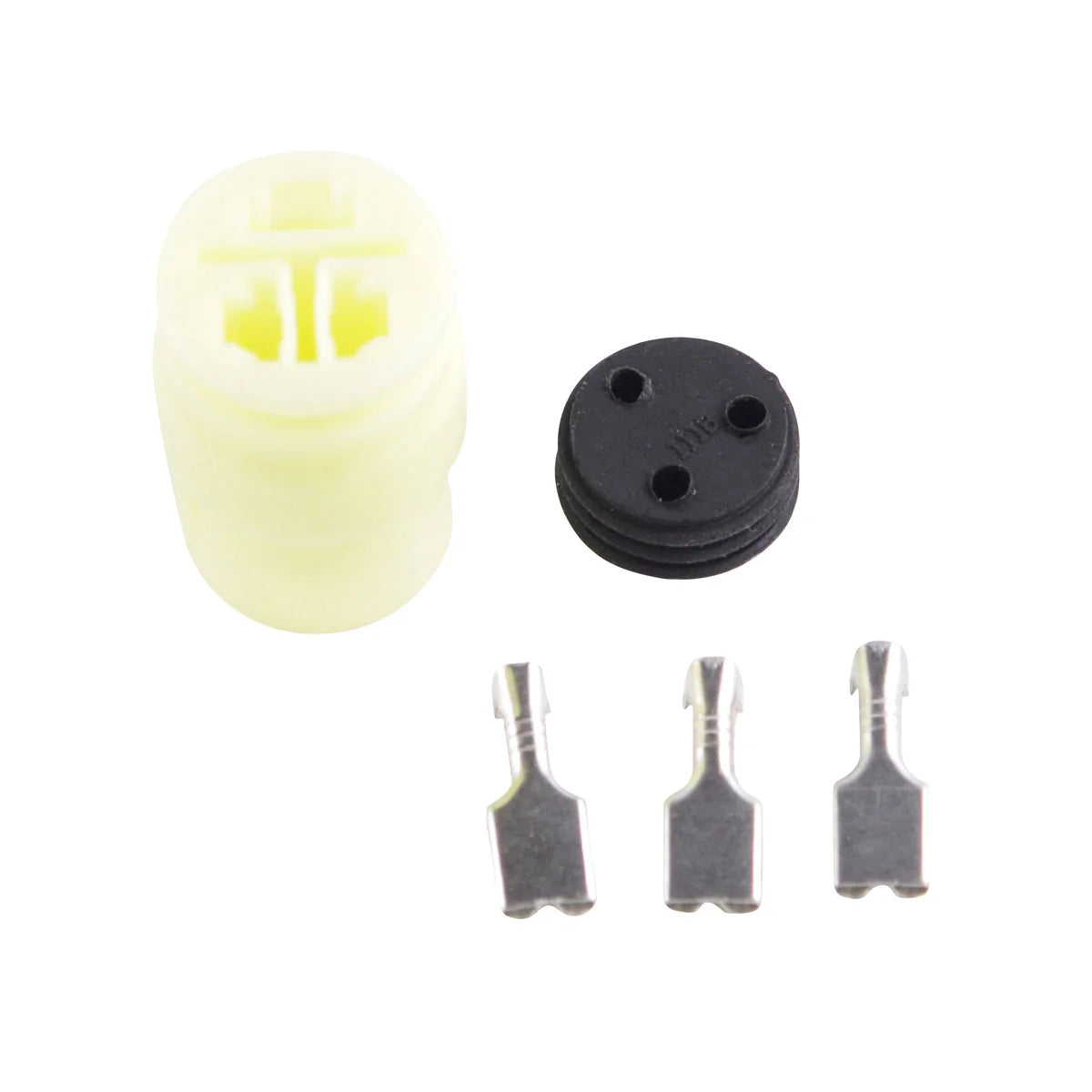

- Two plug, eight pin design as fitted at the factory
- Long 200 mm wiring for an easy reach to the harness
- Rated to 50 A / 500 W maximum charging current
- Tested before shipment
- RMSTATOR part number RM30W02
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RM30W02 |
| Width | 80 mm |
| Length | 90 mm |
| Height | 28 mm |
| Fixation Holes Centre to Centre | 70 mm |
| Wires Length | 200 mm |
| Number of Plugs | 2 |
| Number of Pins | 8 |
| Minimum Charging Voltage | 14.5 V +/- 0.5 V |
| Maximum Charging Current | 50 A / 500 W |
| Open Circuit Voltage | < 15 V |
| Operation Temperature | -20°C to 85°C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki KFX 700 | 1999-2013 |
| Kawasaki KLF 300 | 1999-2013 |
| Kawasaki KVF 300 | 1999-2013 |
| Kawasaki KVF 360 | 1999-2013 |
| Kawasaki KVF 400 | 1999-2013 |
| Kawasaki KVF 650 | 1999-2013 |
| Kawasaki KVF 700 | 1999-2013 |
| Suzuki LTV 700 | 1999-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21066-1112 | Kawasaki |
| 21066-0047 | Kawasaki |
| K2106-61112 | Kawasaki |
| K2106-60047 | Kawasaki |
| RM30W02 | RMSTATOR |
Frequently Asked Questions
Will this fit my quad without modification?
Yes. It is a direct fit, plug and play replacement using the original two plug, eight pin arrangement, so no assembly or wiring modification is needed. This part covers a wide spread of Kawasaki and Suzuki models over fourteen model years, so the safest check is to match the number on your existing regulator to one of the OEM numbers in the cross reference table.
What is included?
The voltage regulator rectifier itself, with 200 mm of wiring and its two plugs, ready to connect to the standard harness. No additional hardware is listed for this item, so keep the original mounting bolts.
How do I tell whether my old regulator rectifier has failed?
Check the charging voltage at the battery with the engine running. A working system should be holding about 14.5 V +/- 0.5 V. If it sits at battery voltage the unit is not charging, and if it climbs well above 15 V it is no longer regulating and will destroy the battery. Batteries that go flat overnight, headlights that brighten sharply with revs, and a regulator body that is scorching hot after a short ride are all typical failure symptoms.
Will the mounting holes line up?

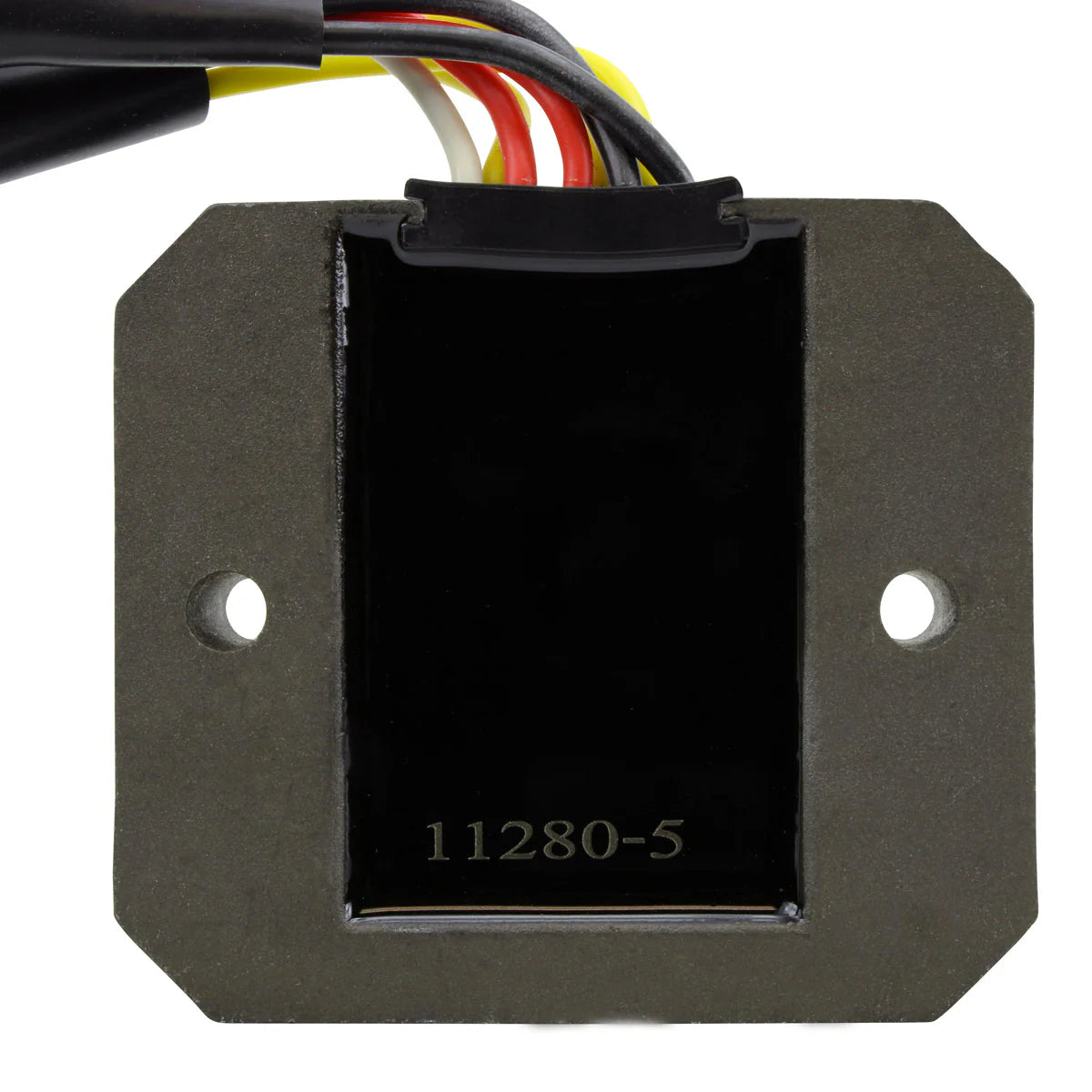

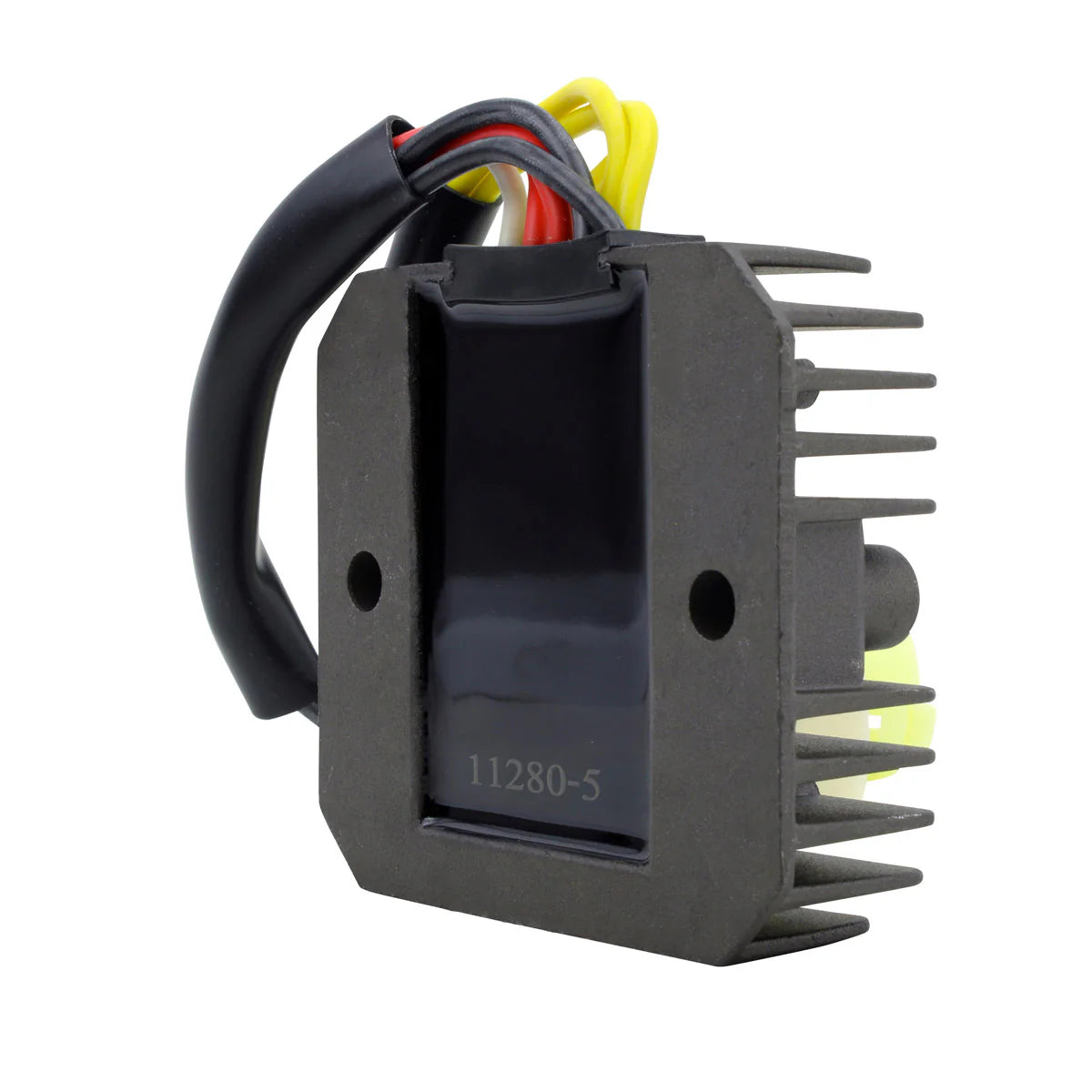

The fixation holes are 70 mm apart centre to centre, and the body measures 80 mm wide by 90 mm long by 28 mm high, matching the original mounting position. If you are unsure, measure the hole spacing on the unit you are removing before ordering.
