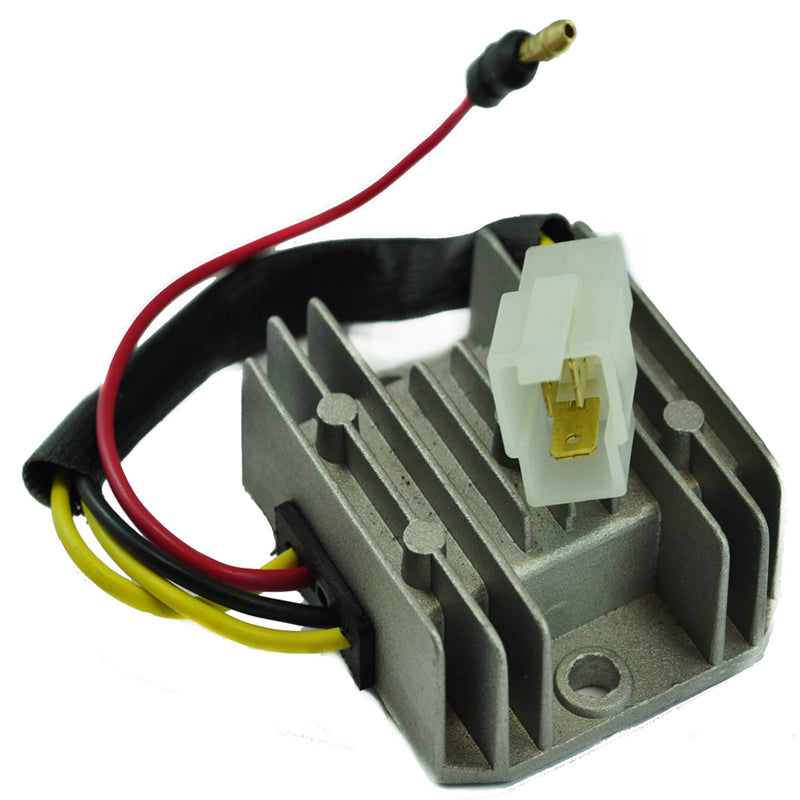

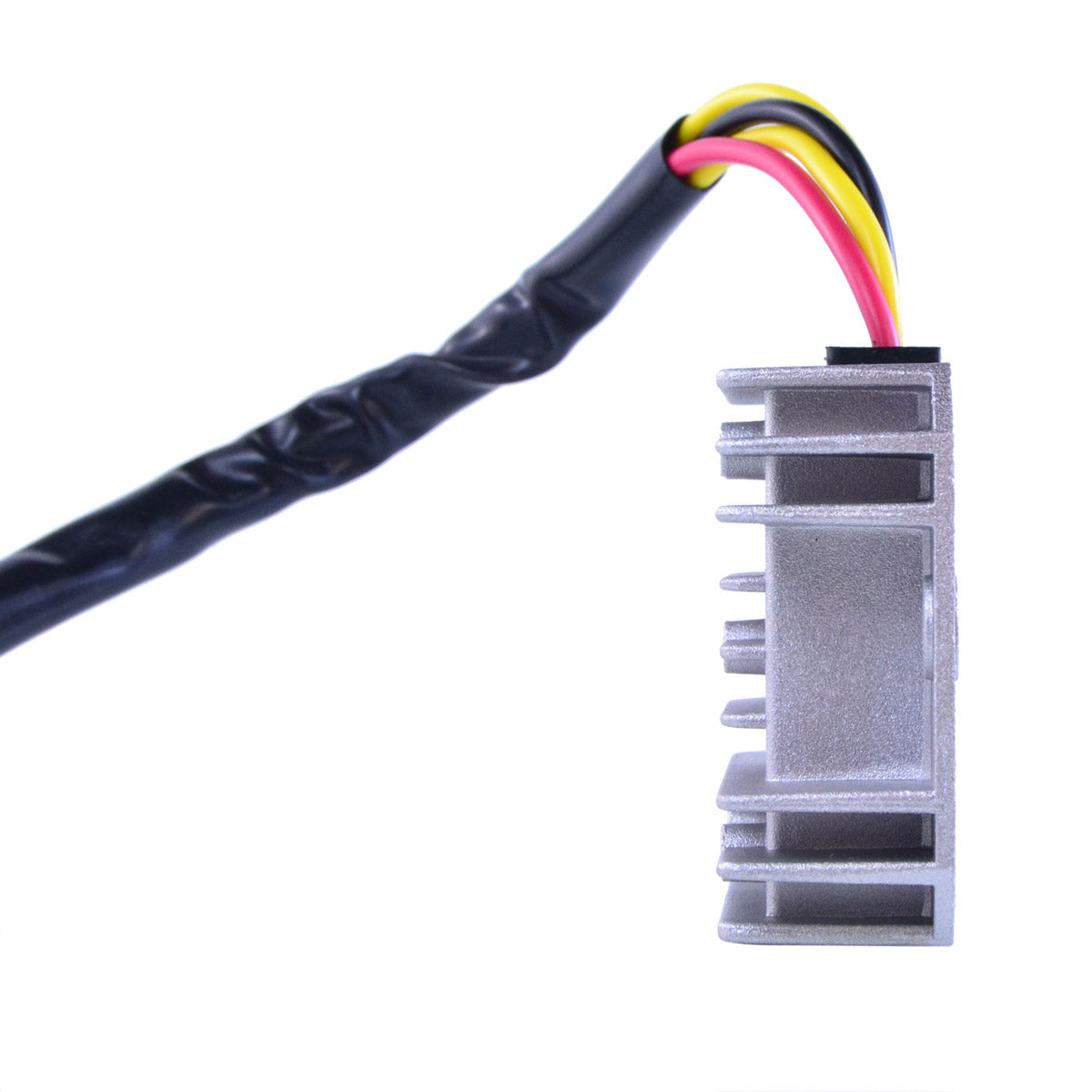

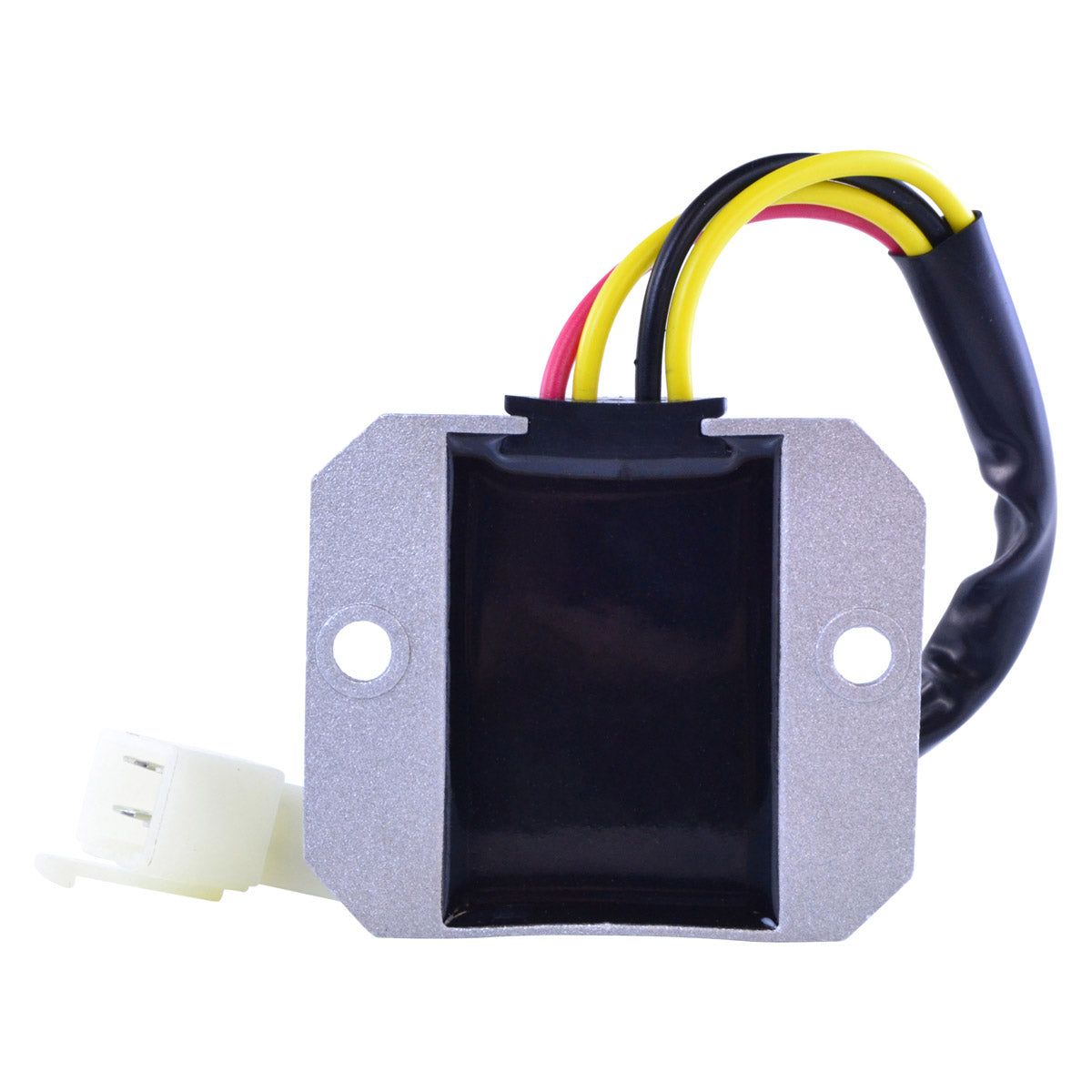

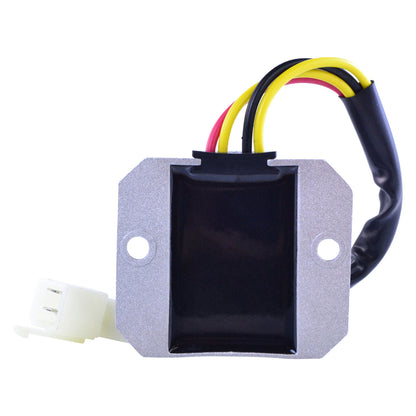

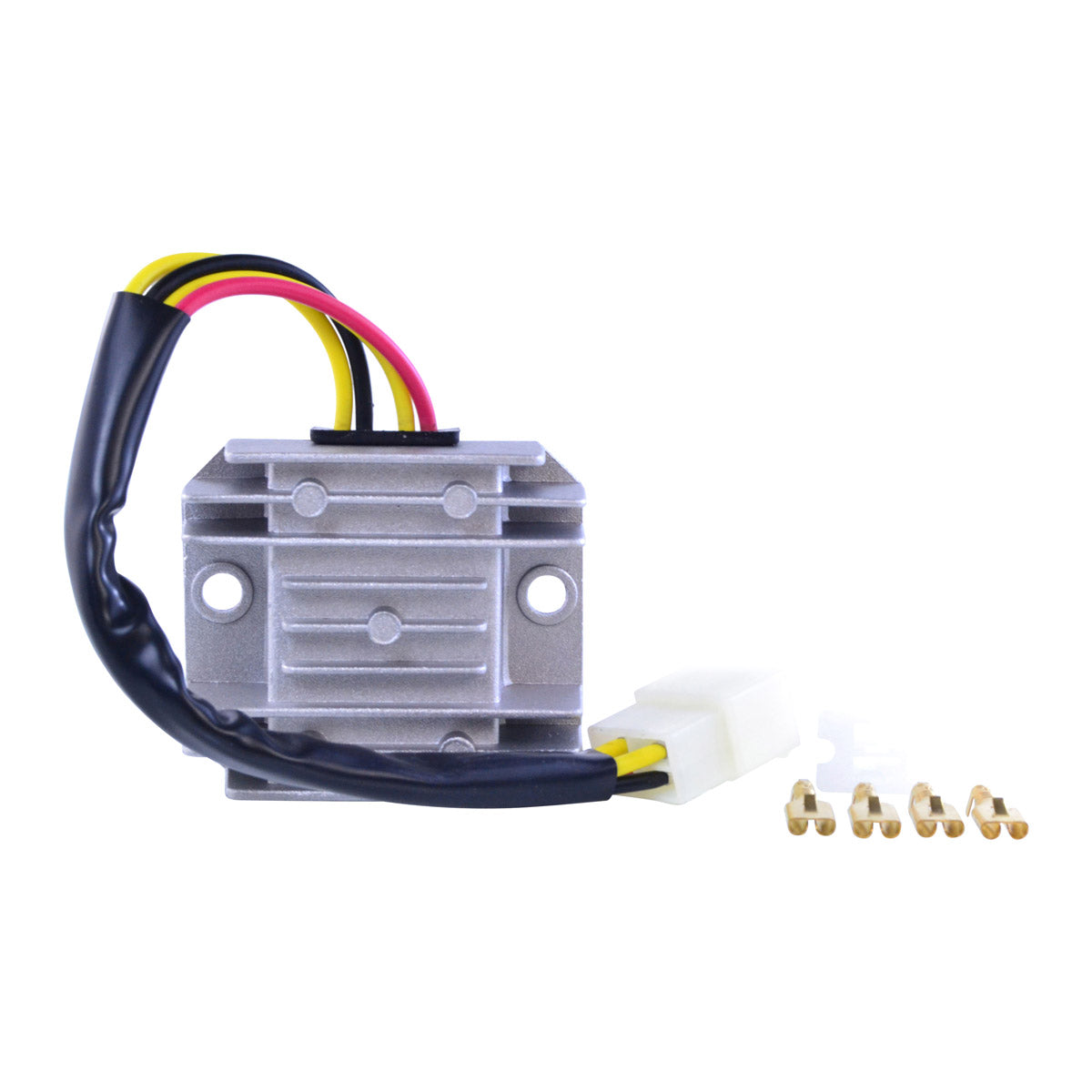

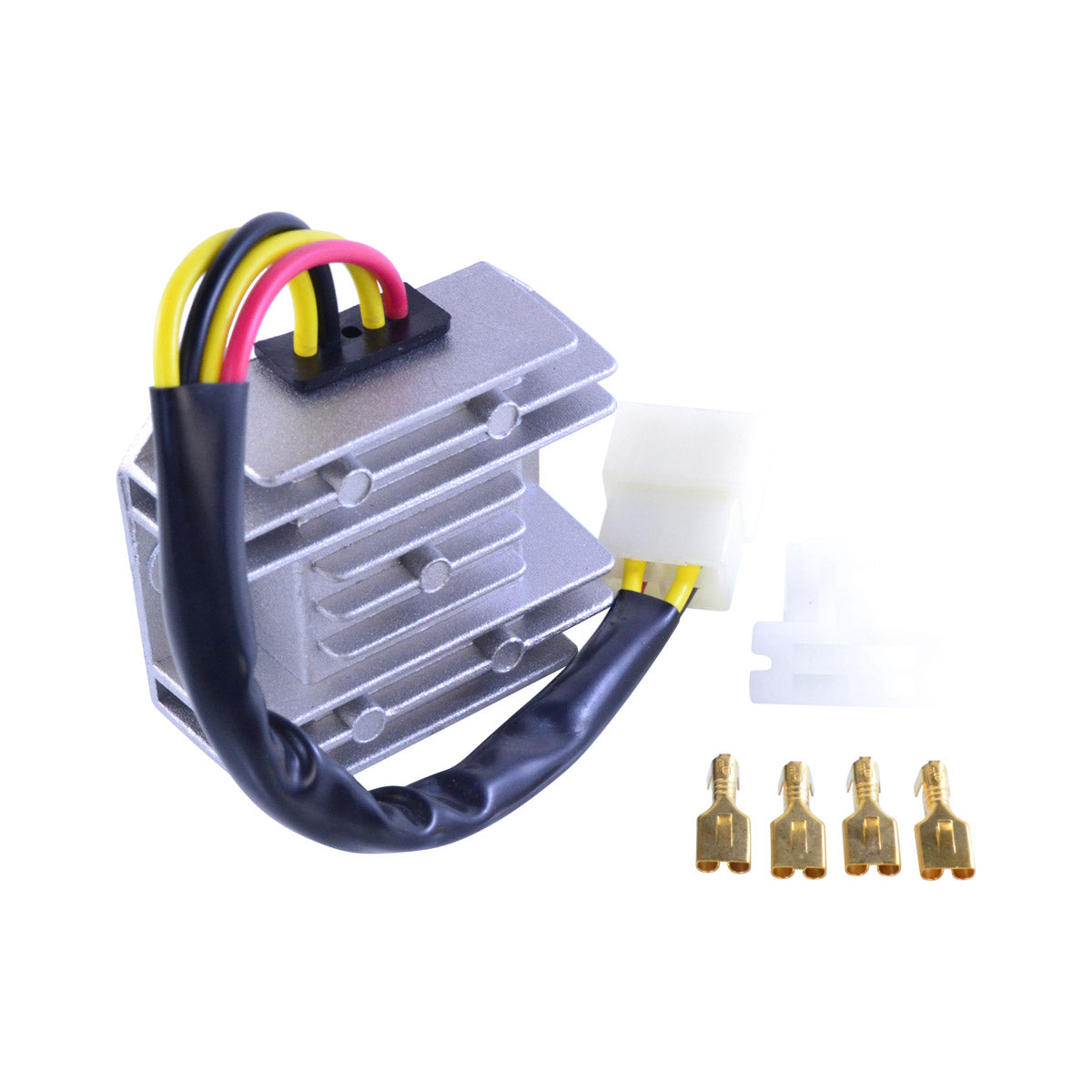

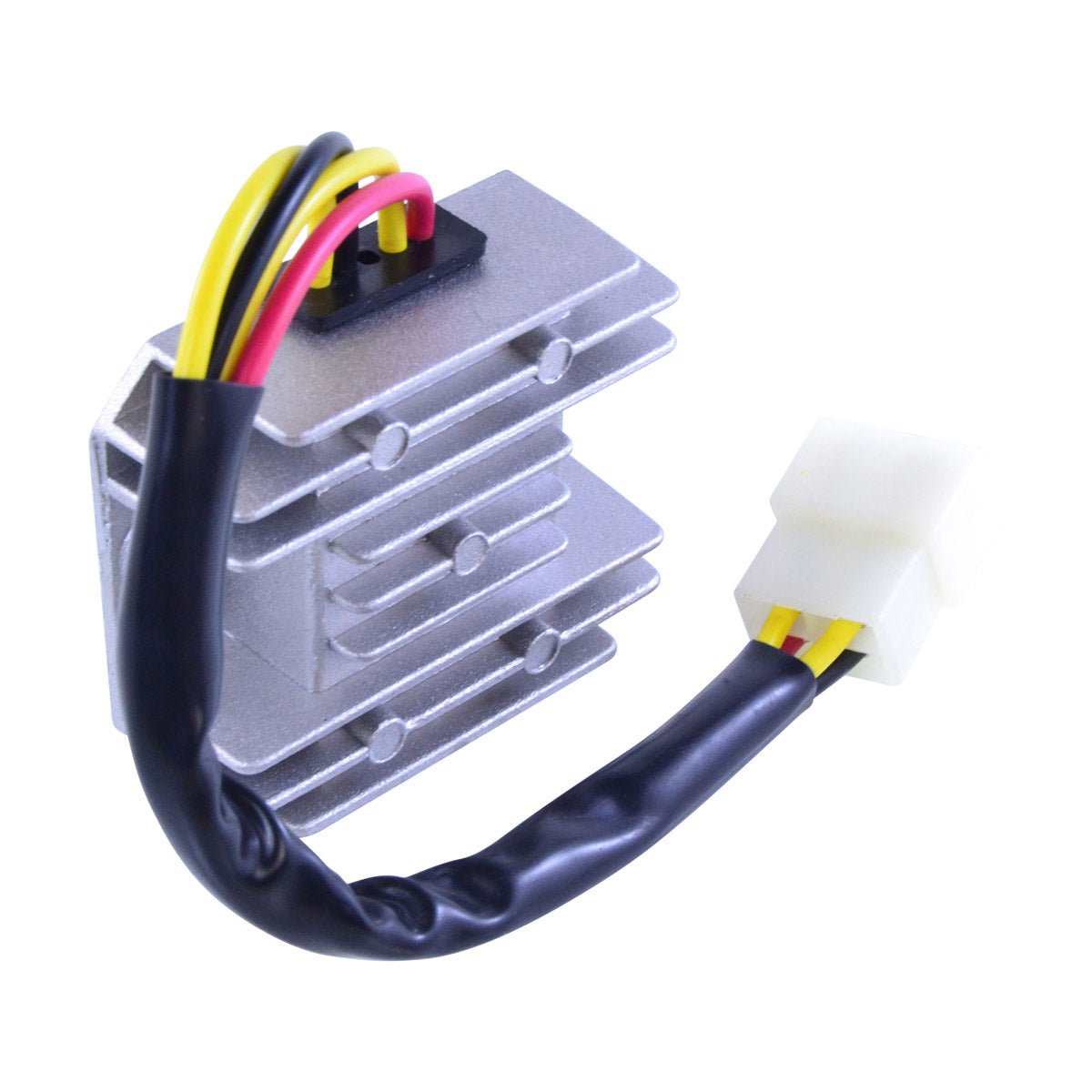

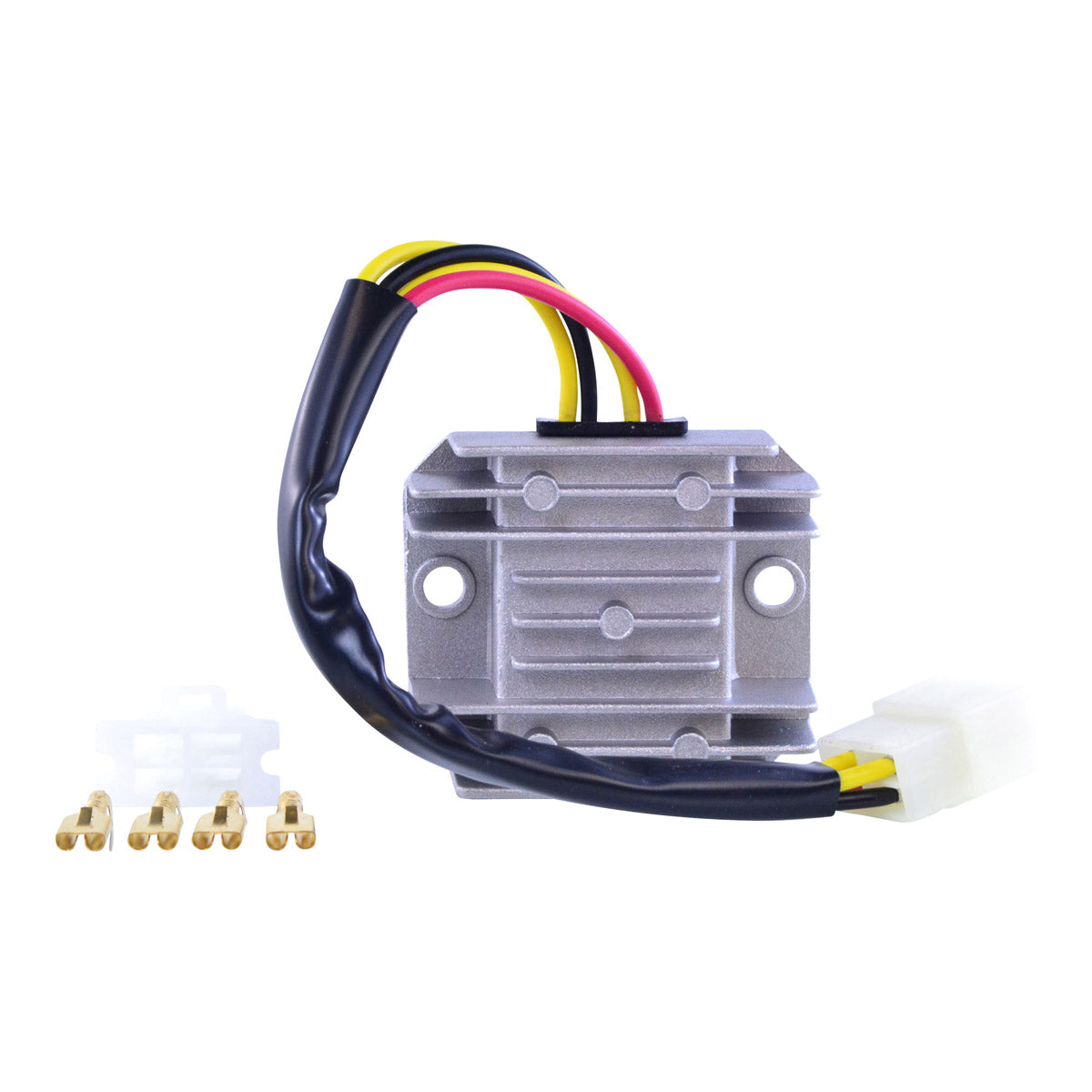

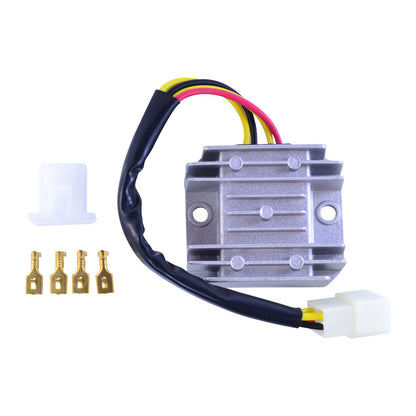

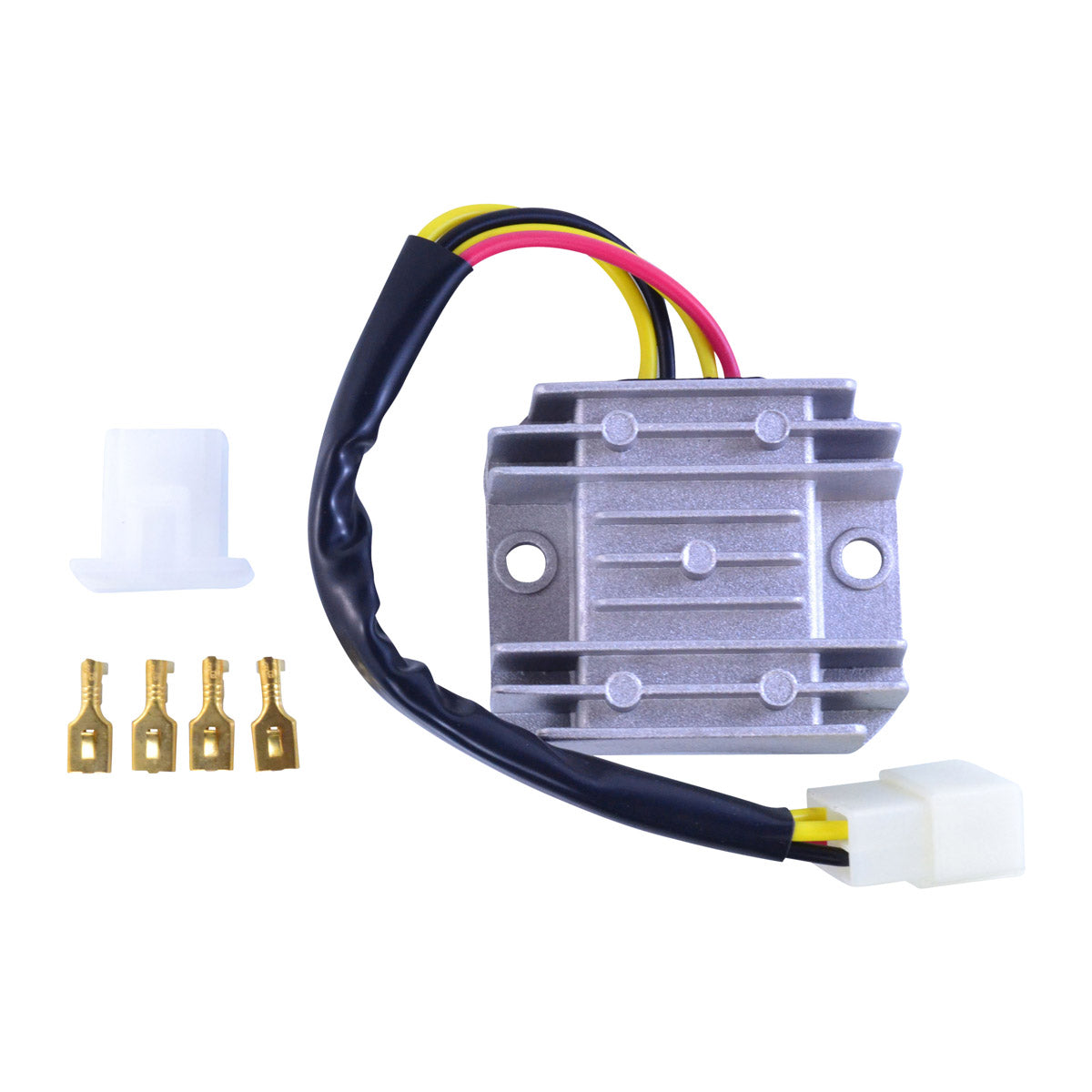

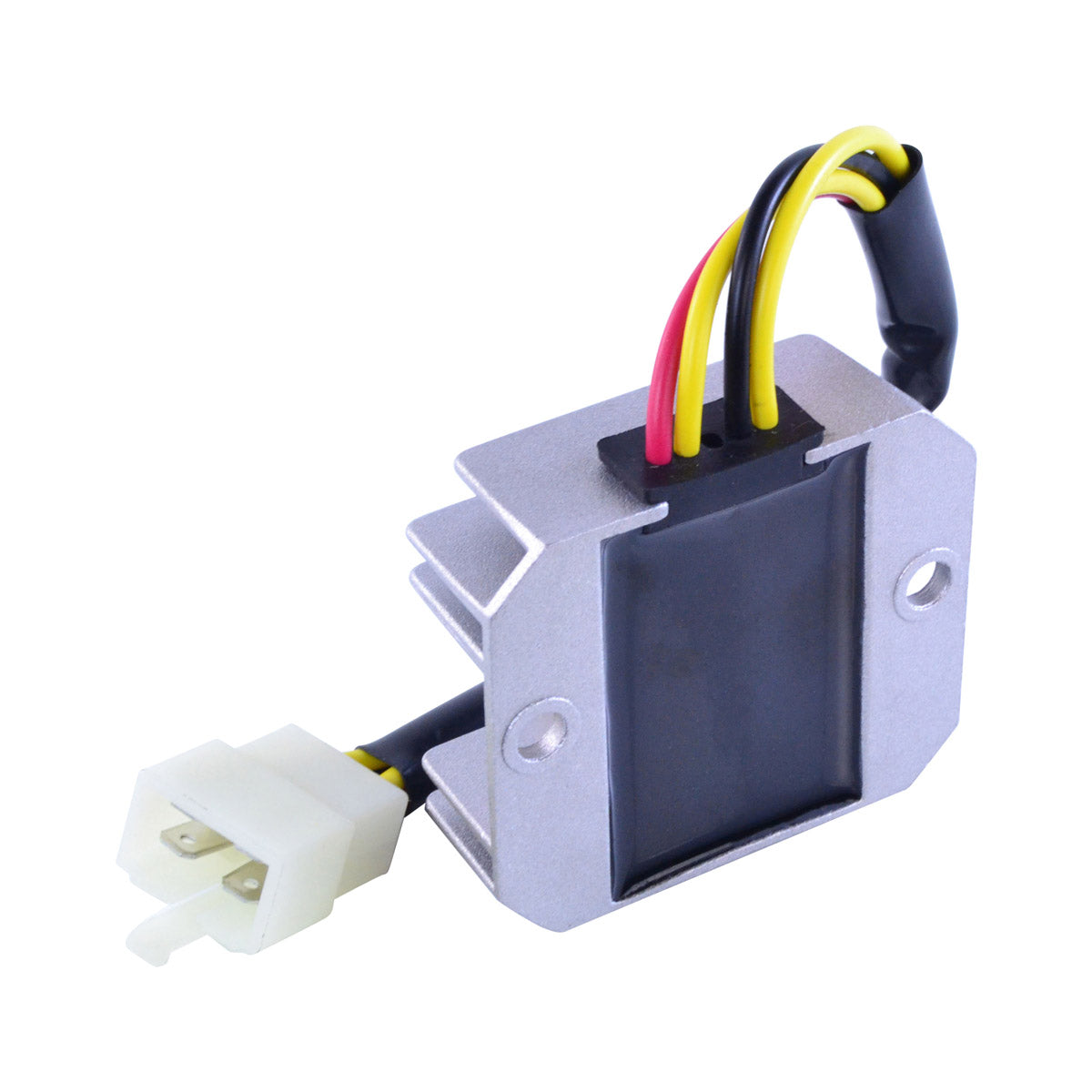

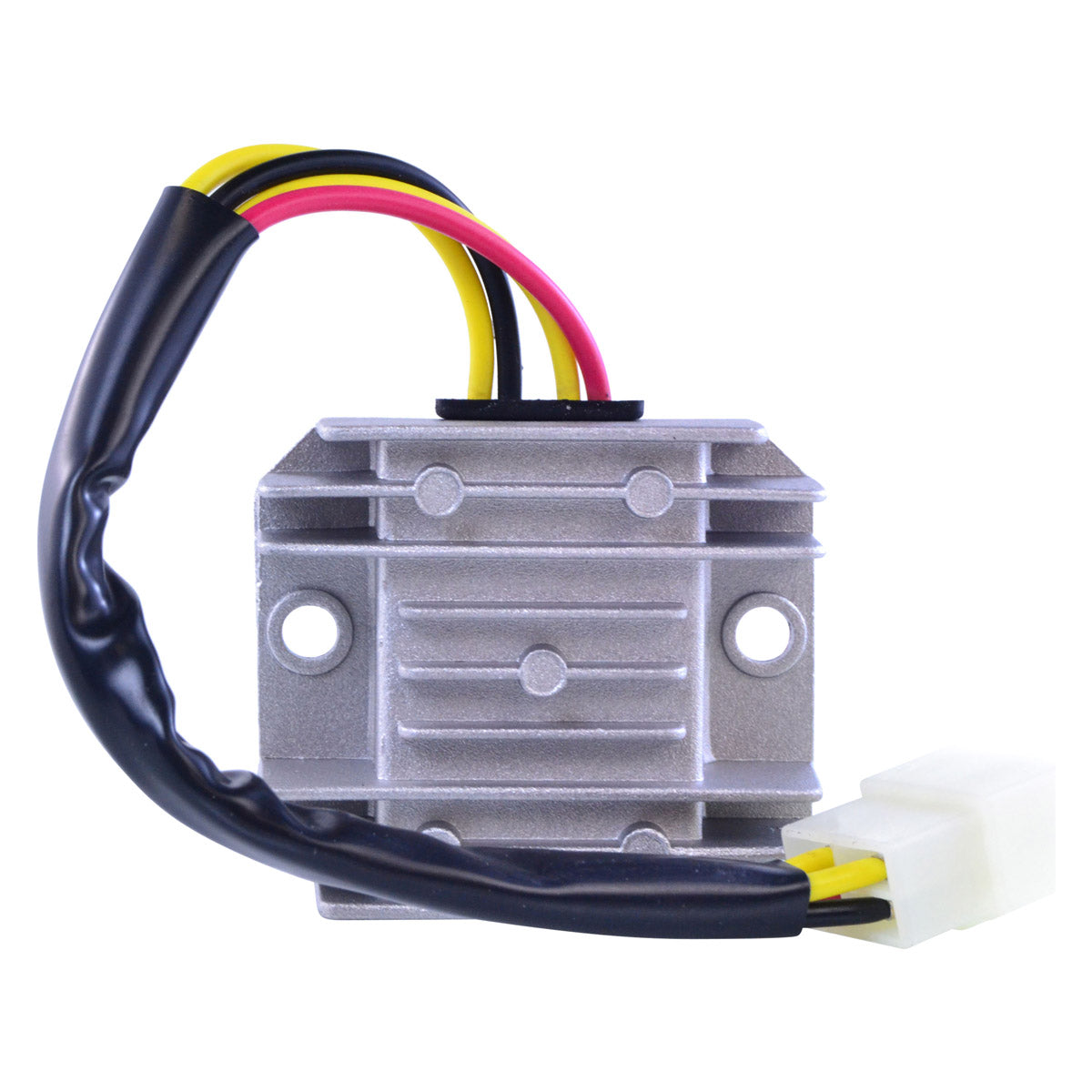

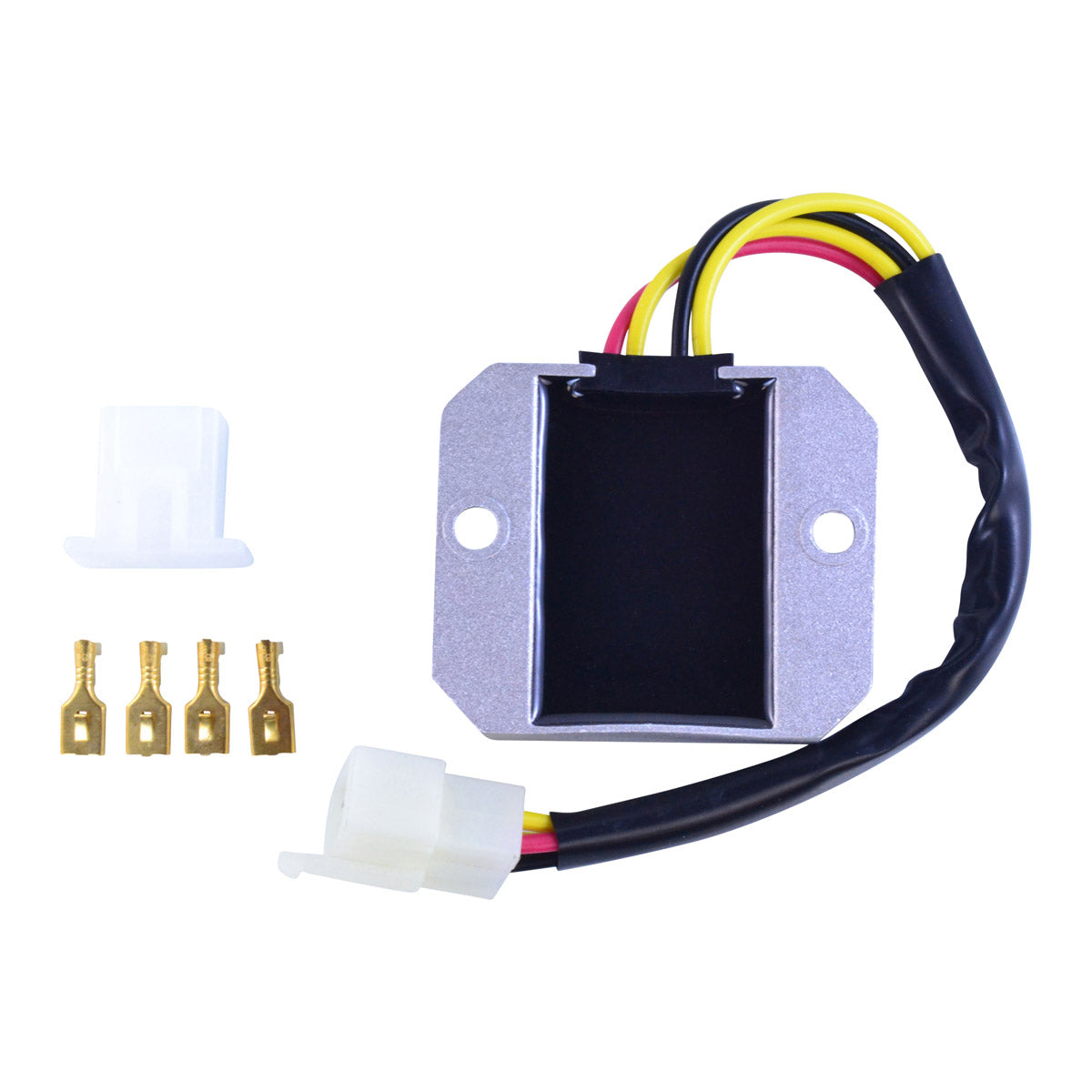

This is a brand new voltage regulator rectifier supplied as a direct replacement for the original Kawasaki unit. It is plug-and-play and fits directly in place of the part it replaces, so there is no assembly work before fitting.
RMSTATOR build this regulator with a higher grade of electric components, an improved heat sink and charging capability that exceeds the original equipment, and every unit is tested before it ships. Their design also eliminates the brown wire used on the original circuit. The unit measures 22 mm wide by 65 mm long by 56 mm high, has 200 mm of wire, 55 mm between the fixation hole centres, and runs four wires into two plugs carrying four pins in total.
Key Features
- Direct replacement for the original Kawasaki unit
- Plug-and-play, direct fit, easy installation, no assembly required
- Improved heat sink and charging capability over OEM
- Higher grade of electric components
- RMSTATOR design eliminates the brown wire

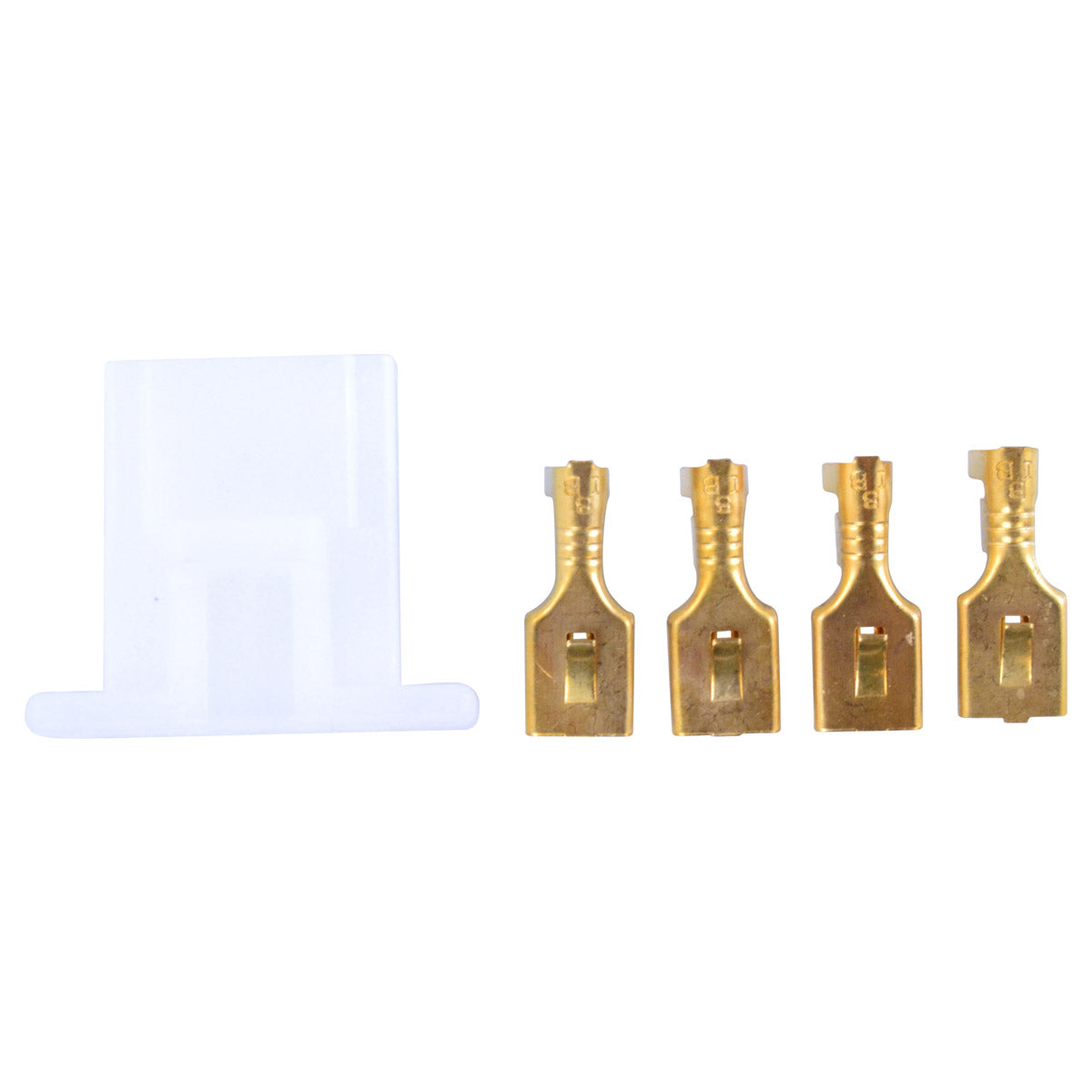

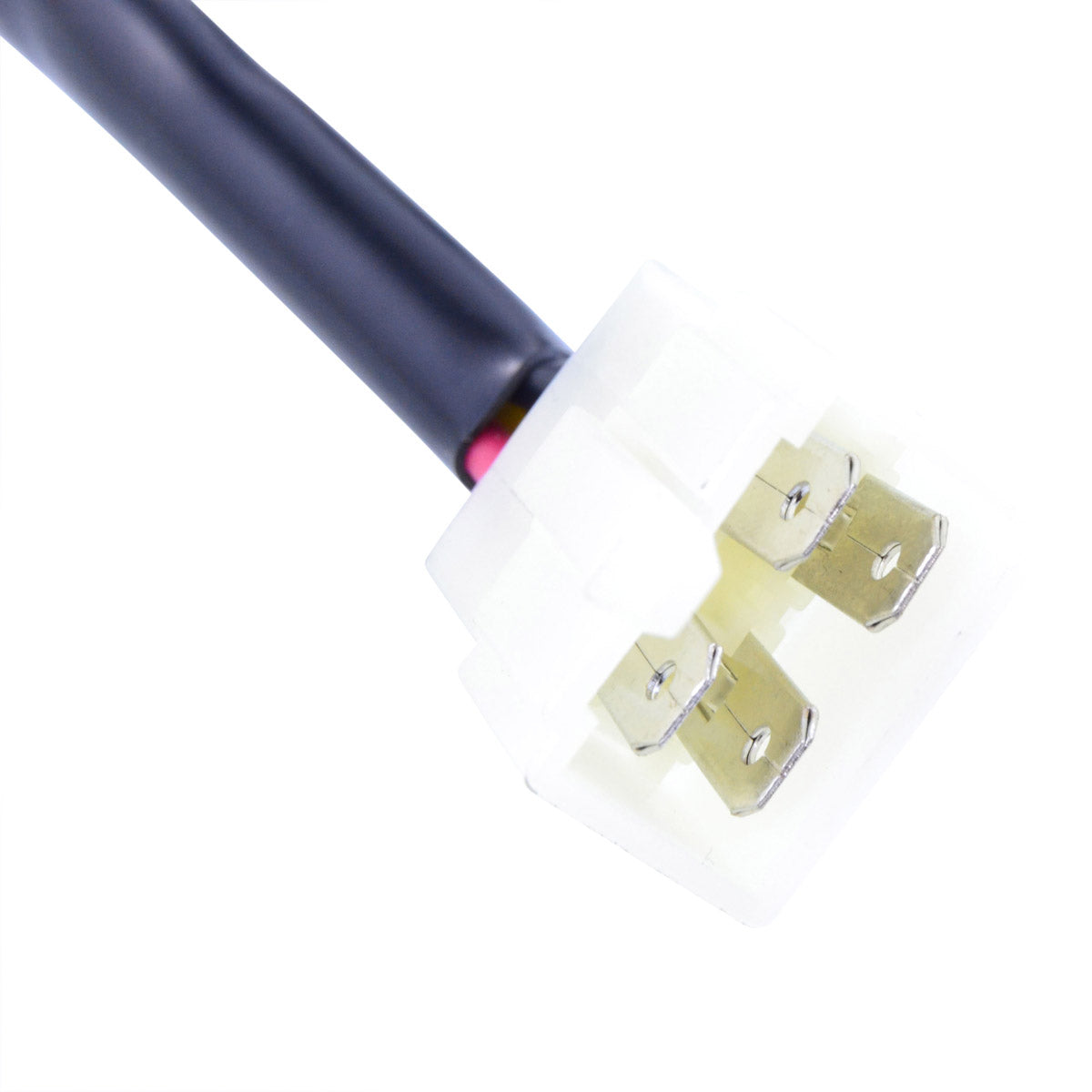

- Two plugs, four wires, four pins, 200 mm wire length
- Rated to 25 A / 300 W maximum charging current
- Every unit is tested before shipping
Technical Specs
| Specification |
Detail |
| Width |
22 mm |
| Length |
65 mm |
| Height |
56 mm |
| Wire length |
200 mm |
| Distance between fixation holes (centre to centre) |
55 mm |
| Number of plugs |
2 |
| Number of pins |
4 |
| Number of wires |
4 |
| Minimum charging voltage |
14.5 V +/- 0.5 V |
| Maximum charging current |
25 A / 300 W |
| Open circuit voltage |
< 15 V |
| Operation temperature |
-20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kawasaki KZ 200 |
1978-1982 |
| Kawasaki KZ 305 |
1978-1982 |
| Kawasaki KZ 400 |
1978-1982 |
| Kawasaki KZ 650 |
1978-1982 |
| Kawasaki KZ 750 |
1978-1982 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21061-025 |
Kawasaki |
| 21061-030 |
Kawasaki |
| 21061-016 |
Kawasaki |
| 21061-020 |
Kawasaki |
| 21066-1013 |
Kawasaki |
| 21066-1029 |
Kawasaki |
| 21066-029 |
Kawasaki |
Frequently Asked Questions
Will this fit without modifying the wiring?
Yes. It is a direct fit, plug-and-play replacement for the original regulator rectifier on these KZ models, using two plugs and four wires as standard. Note that the RMSTATOR design eliminates the brown wire that the original circuit used, so do not expect a like-for-like wire count with an old unit that still has it.
What is included?
The voltage regulator rectifier with 200 mm of wire and its two plugs. RMSTATOR do not list additional hardware in the box for this part.
How do I know my old regulator has failed?
The common symptoms on these bikes are a battery that will not stay charged, headlight brightness that rises and falls with engine speed, or a regulator running hot enough to discolour. A healthy system with this unit fitted holds a minimum charging voltage of 14.5 V +/- 0.5 V and an open circuit voltage below 15 V.
What happened to the brown wire?
The RMSTATOR design for this application does away with the brown wire found on the original circuit. That is intentional and is part of how the unit is built - it does not indicate a wrong part.
