Voltage Regulator Rectifier for Kawasaki Ninja, Vulcan and Eliminator
Kawasaki Ninja, Eliminator, Vulcan, Zephyr and Bayou - 1984-2023

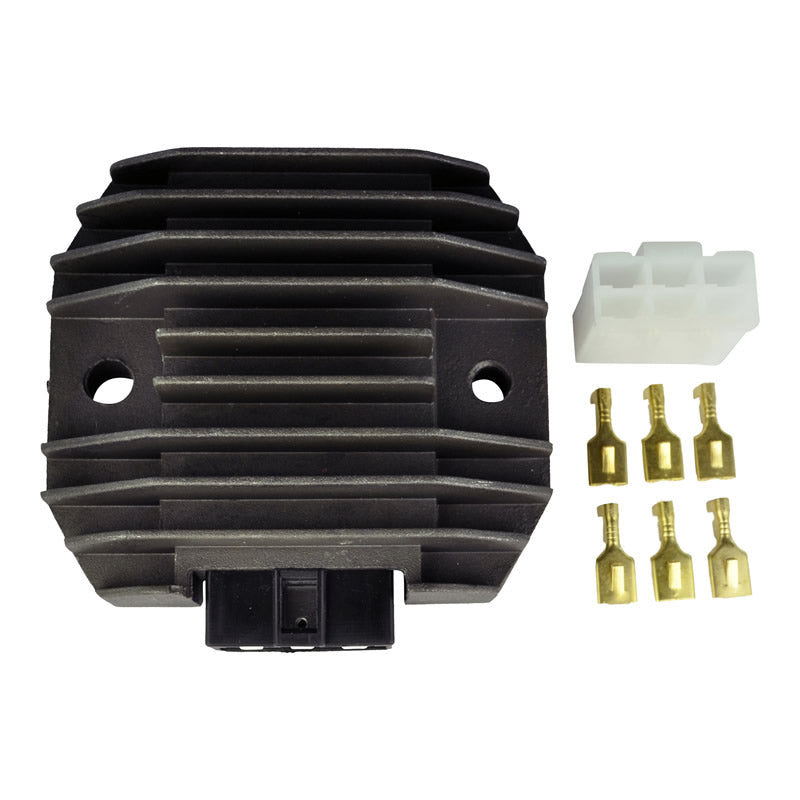

This is a new replacement voltage regulator rectifier covering a broad span of Kawasaki models - Ninja, Eliminator, Vulcan, Zephyr and Bayou - built between 1984 and 2023. It is a direct replacement for the original unit and installs plug-and-play, using the same single six-pin plug and the same 70 mm mounting hole spacing as the factory part.
The unit rectifies the alternating current coming from the stator into direct current and regulates the charging voltage so the battery receives a controlled charge and the electrical system is not exposed to spikes. Compared with the original equipment it offers an improved heat sink and improved charging capability, and it is built from a higher grade of components than the part it replaces - which matters, because heat is what finishes off most factory regulators. It is rated at 35 A / 400 W maximum charging current. The opposite connector for the main harness side is supplied with the unit, so a melted or corroded harness plug can be renewed at the same time.
Key Features
- New replacement unit, direct fit to the original mounting
- Plug-and-play installation, no assembly required
- Improved heat sink and improved charging capability
- Higher grade of components than the original equipment
- Rated at 35 A / 400 W maximum charging current
- Single plug with six pins
- 70 mm mounting hole spacing, centre to centre
- Opposite connector for the main harness side included
- RMSTATOR part number RM30001
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RM30001 |
| Width | 79 mm |
| Length | 89 mm |
| Height | 27 mm |
| Mounting Hole Spacing | 70 mm centre to centre |
| Number of Plugs | 1 |
| Number of Pins | 6 |
| Minimum Charging Voltage | 14.5 V +/- 0.5 V |
| Maximum Charging Current | 35 A / 400 W |
| Open Circuit Voltage | Under 15 V |
| Operating Temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki Ninja | 1984-2023 |
| Kawasaki Eliminator | 1984-2023 |
| Kawasaki Vulcan | 1984-2023 |
| Kawasaki Zephyr | 1984-2023 |
| Kawasaki Bayou | 1984-2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21066-1055 | Kawasaki |
| 21066-1101 | Kawasaki |
| 201171-1282 | Kawasaki |
Frequently Asked Questions
Will this fit without modification?
Yes, on the models it covers. It uses the same single six-pin plug and the same 70 mm mounting hole spacing as the original, so it is a plug-and-play replacement with no cutting, splicing or drilling.
What is included?
The regulator rectifier unit and the opposite connector for the main harness side.
How do I know my old regulator has failed?
A battery that will not hold charge, charging voltage at the battery that stays low or rises above 15 V with the engine running, a battery that boils or swells, and bulbs that blow repeatedly are the common signs. Measure across the battery terminals with the engine running and compare with the 14.5 V +/- 0.5 V figure above.
This part covers a lot of Kawasaki models - how do I confirm it is right for mine?
Check the OEM number stamped on your original unit against 21066-1055, 21066-1101 or 201171-1282, and confirm that it has a single six-pin plug with 70 mm between the mounting holes. Kawasaki used several regulator designs over this period, so the part number on the old unit is the reliable check.
