Voltage Regulator for KTM XC-W, EXC-F & Husqvarna FE, TE
KTM 150 and 300 XC-W, 350 and 450 EXC-F, Husqvarna FE 250, FE 350 and TE 300i 2017-2023 - Replaces 79611034000

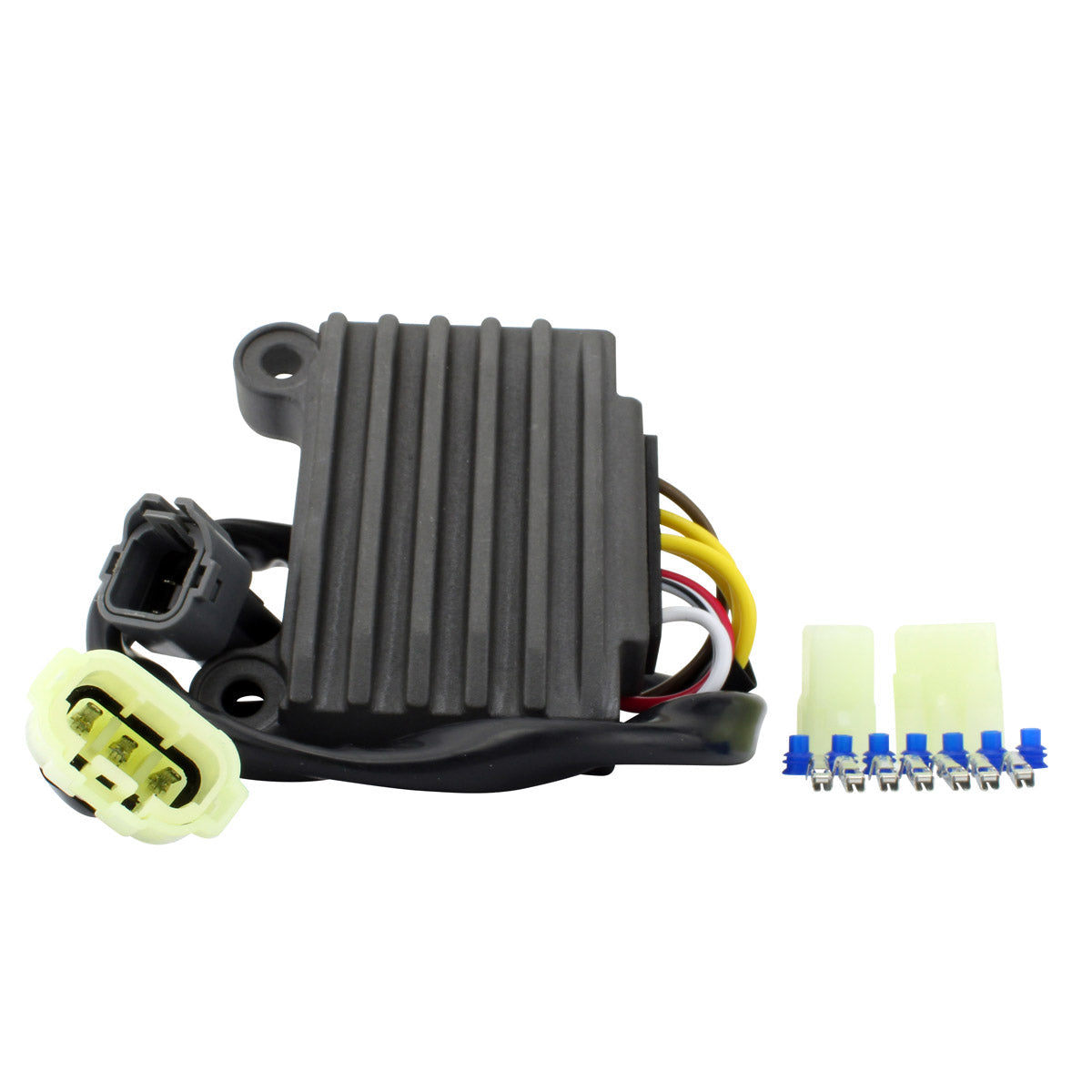

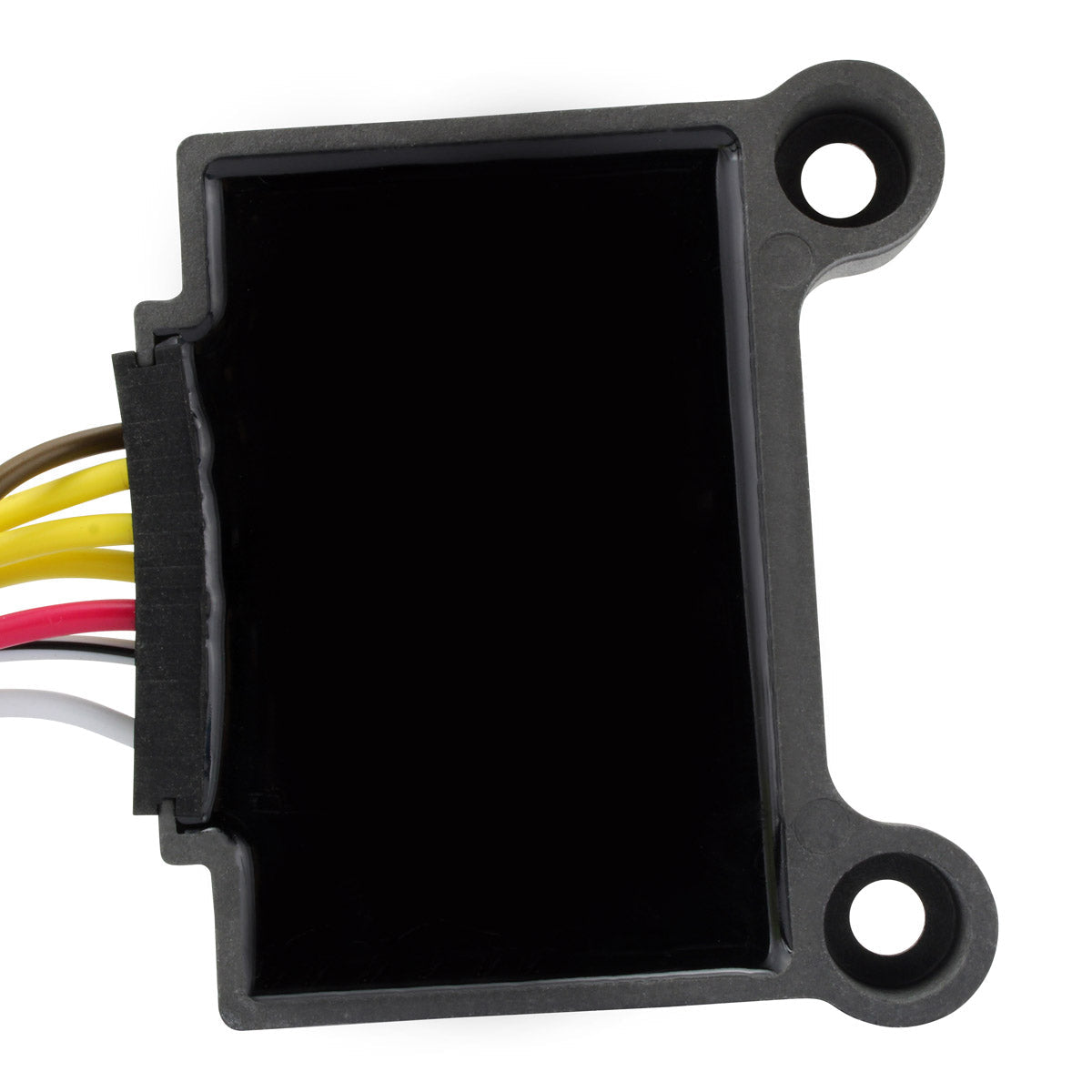

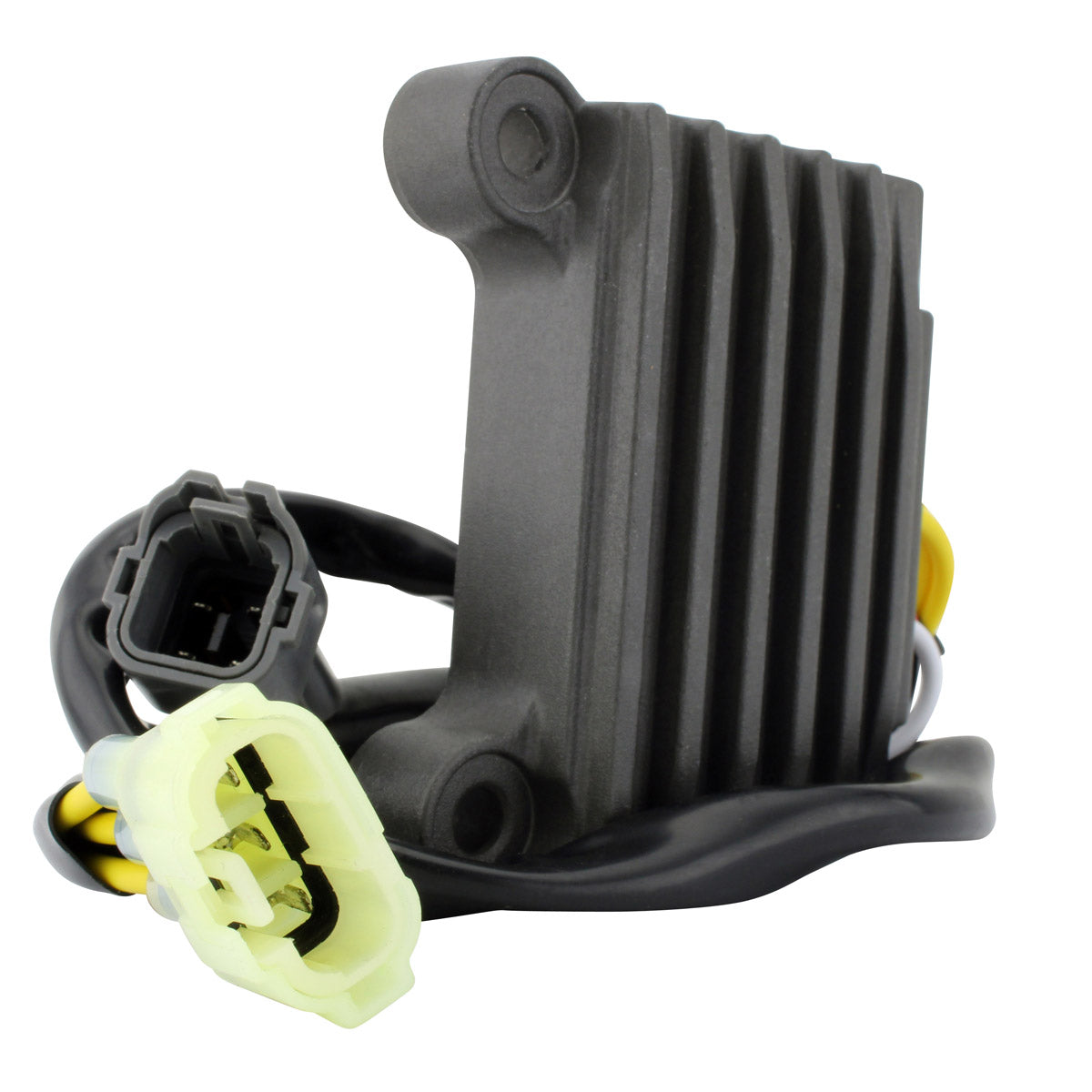

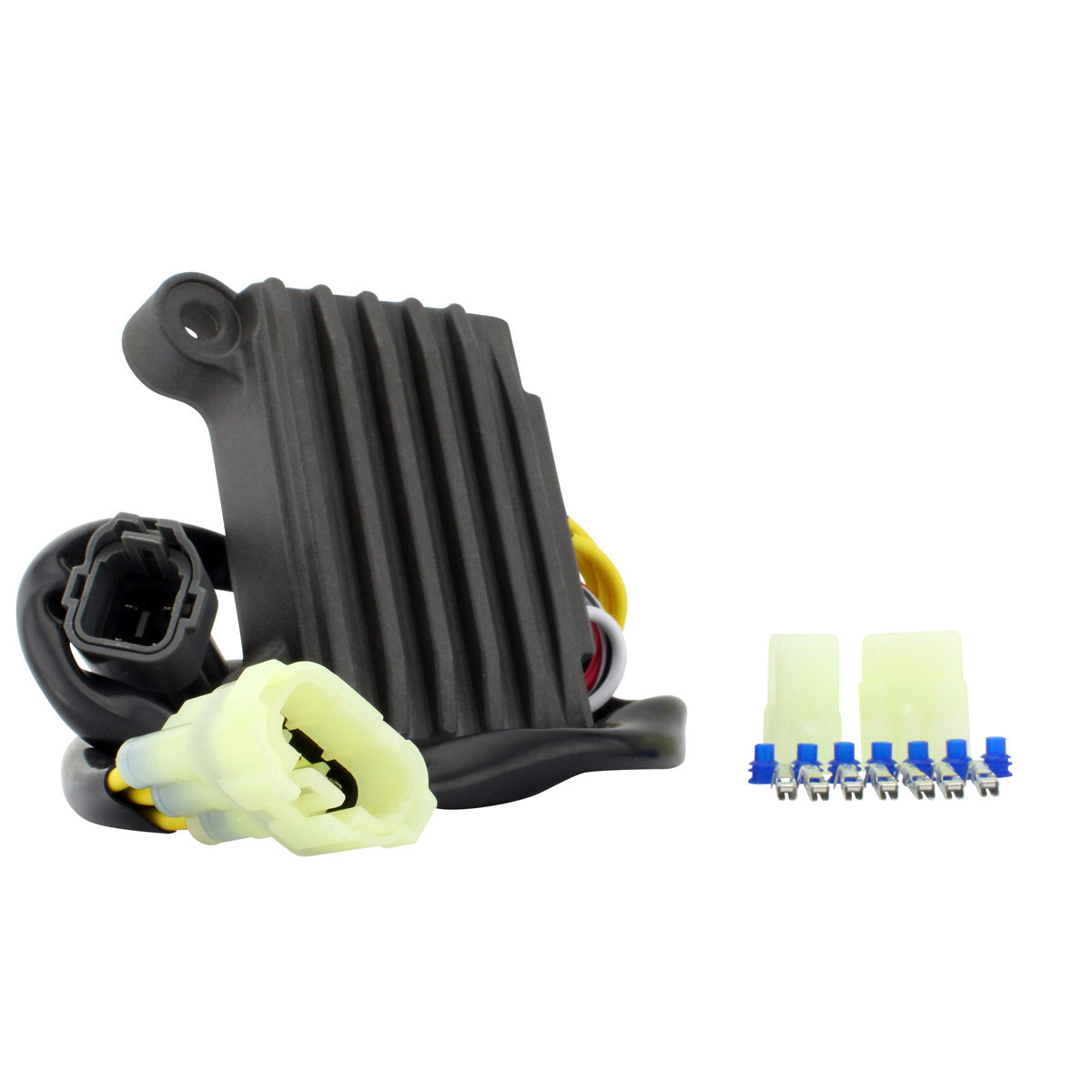

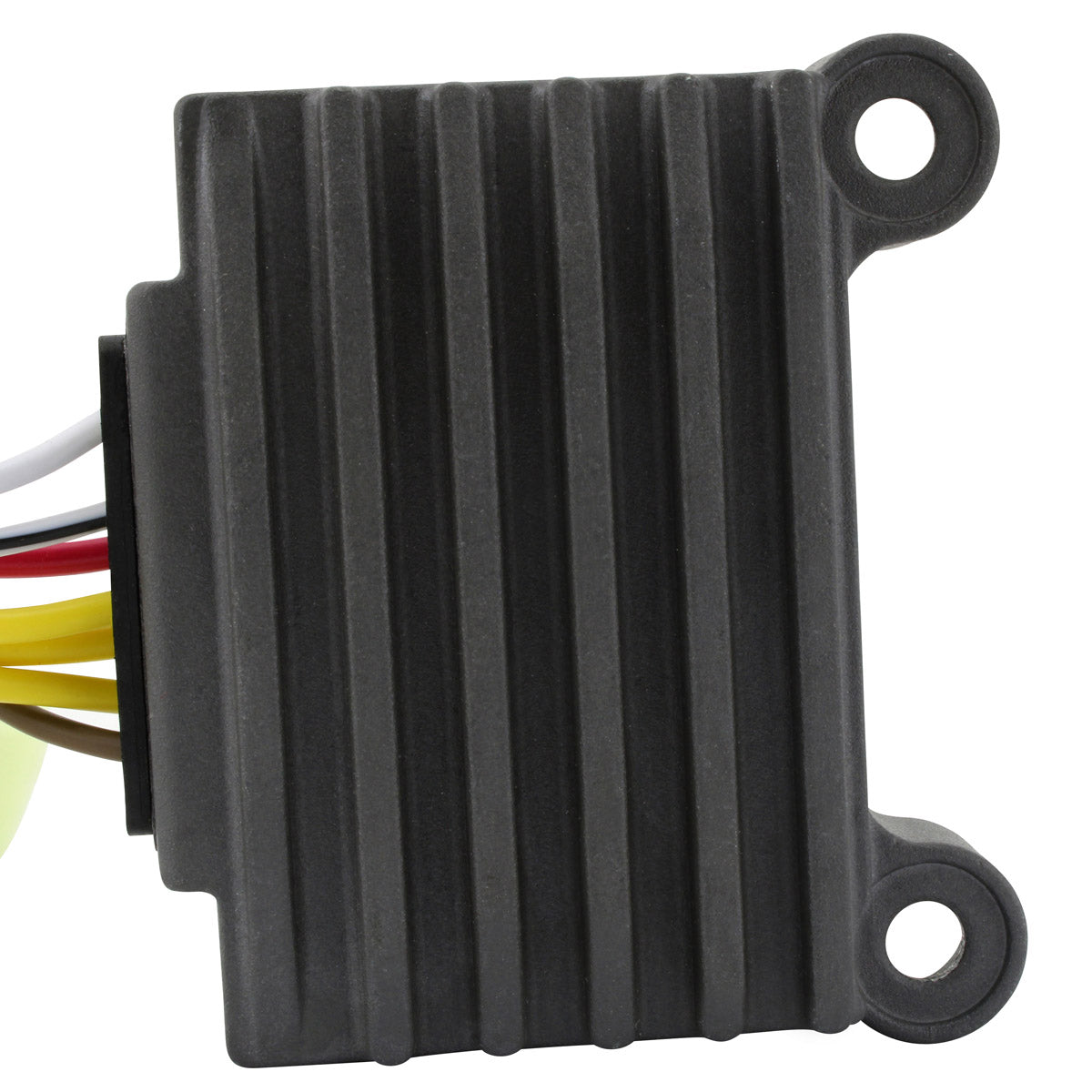

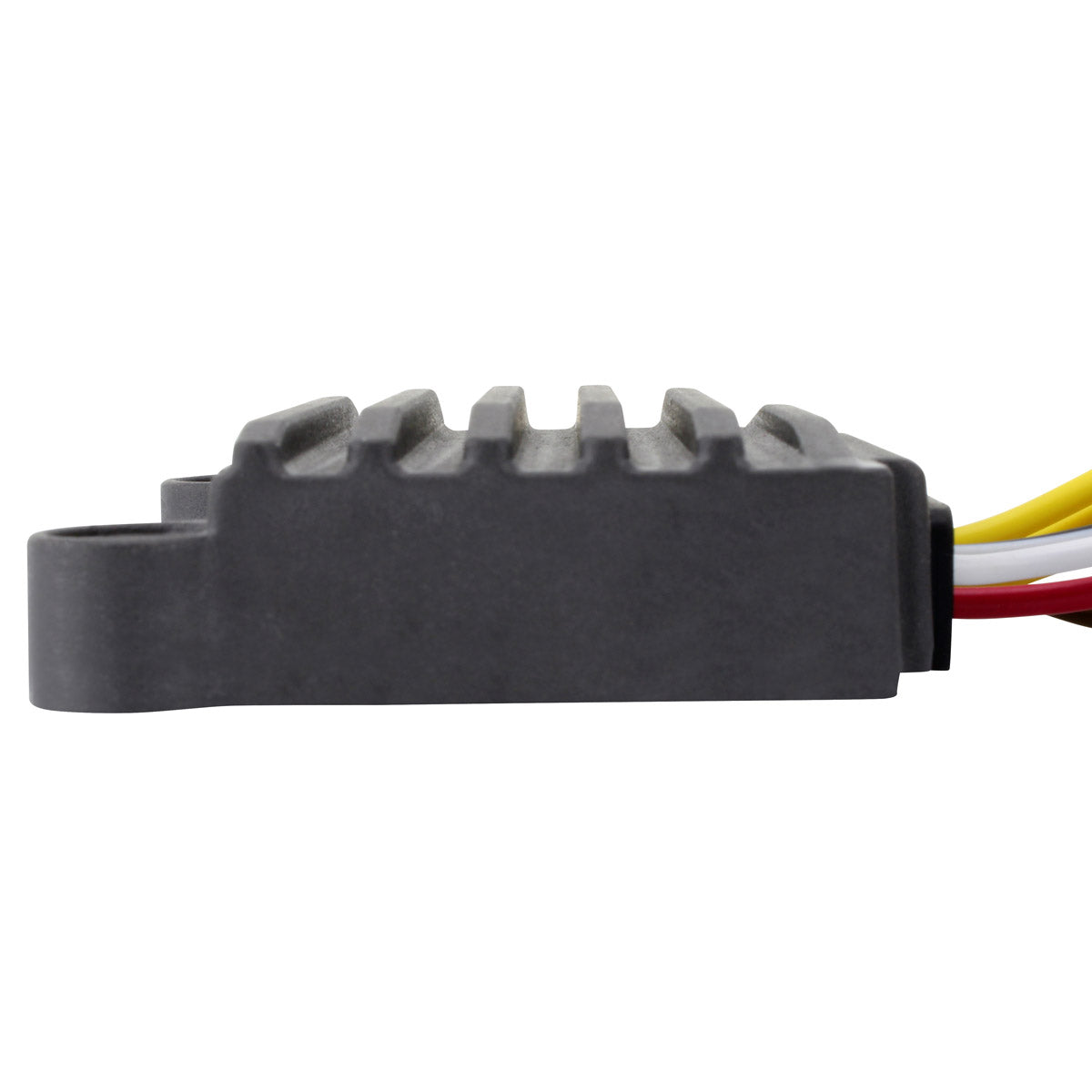

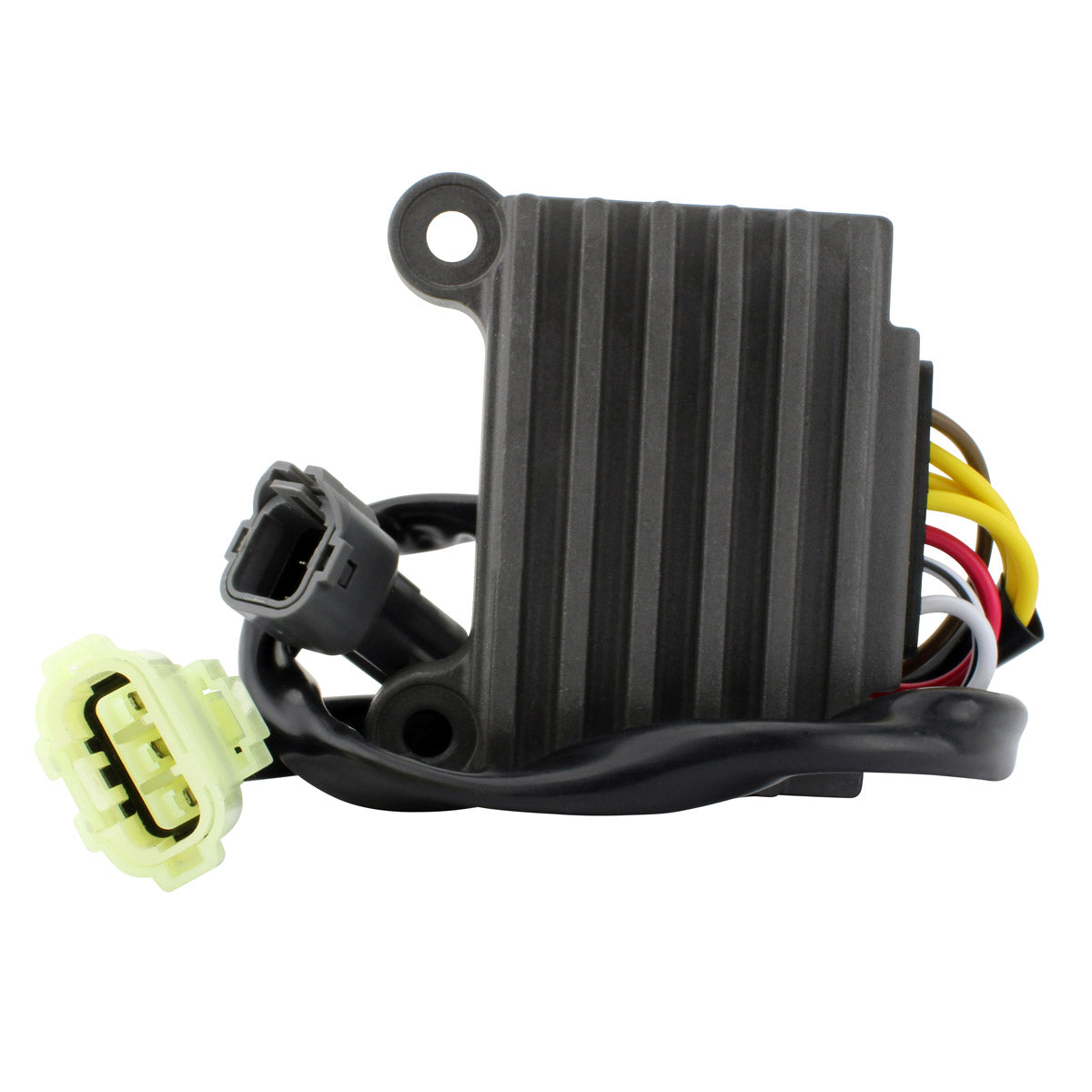

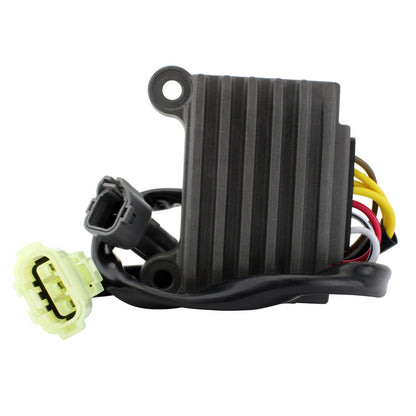

This is a brand new aftermarket voltage regulator rectifier for the KTM 150 and 300 XC-W two-strokes, the 350 and 450 EXC-F four-strokes, and their Husqvarna counterparts, the FE 250, FE 350 and TE 300i. It is a direct replacement for the original unit and requires no modification: the body measures 80 mm long by 74 mm wide by 22 mm deep, the two mounting holes are 68 mm apart centre to centre, and the part carries two plugs with seven pins and seven wires on leads of 220 mm and 440 mm, matching the factory layout.

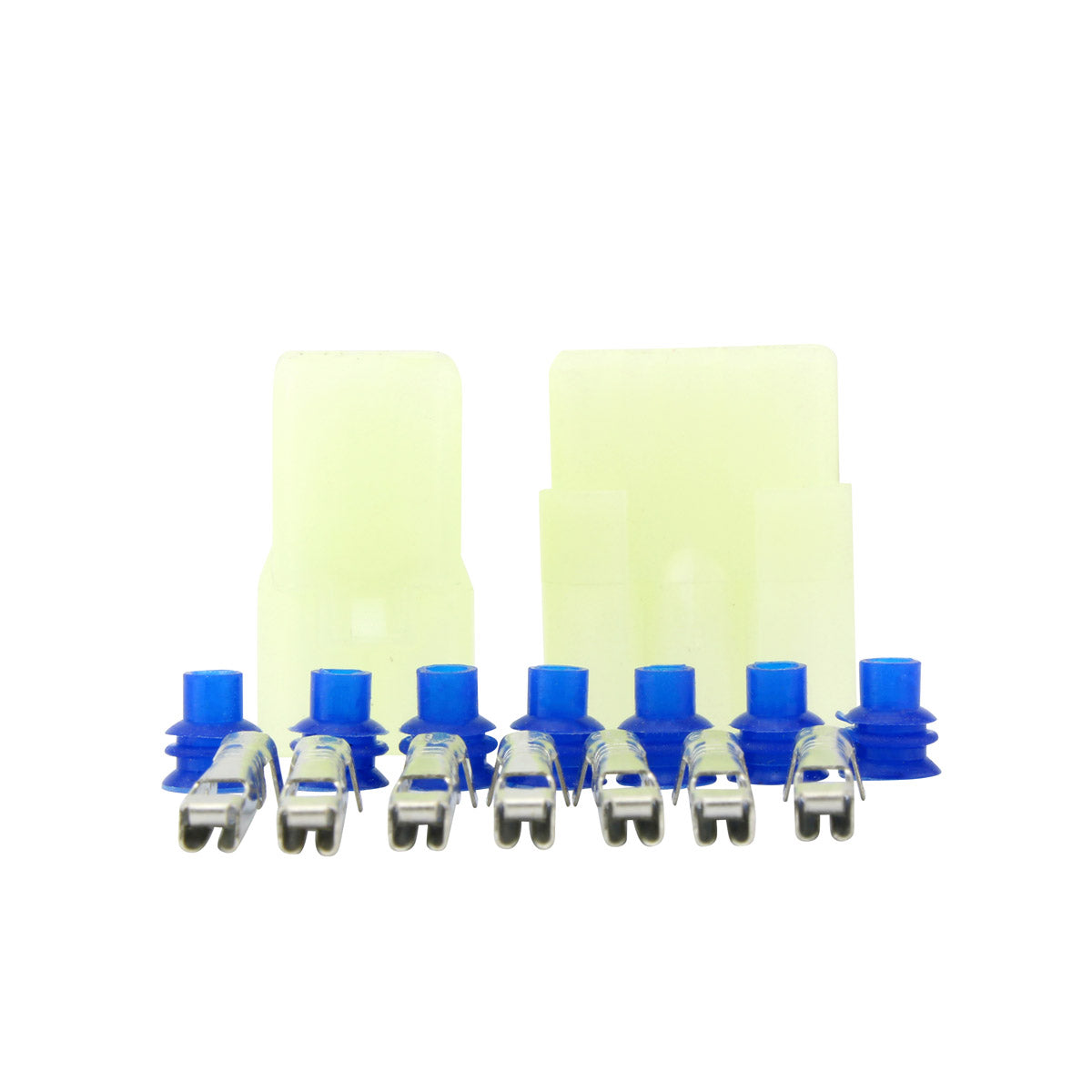

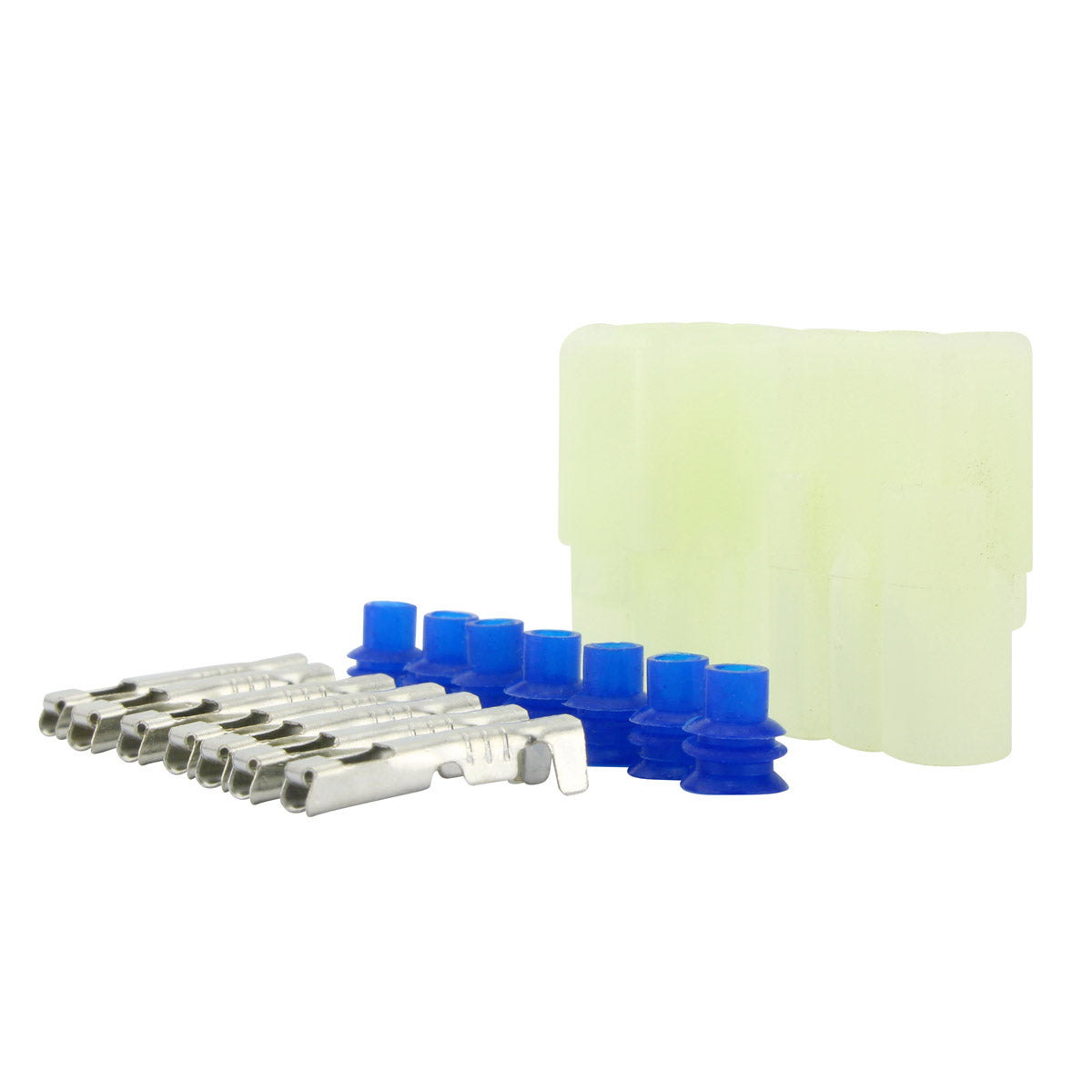

The opposite connector - the main harness side half of the plug - is supplied in the box. RMSTATOR include it because on these models that connector is very often melted, corroded or defective by the time the regulator itself fails, and they identify it as a major cause of repetitive electrical issues. A joint with high resistance runs hot and takes the new regulator with it, so replacing both halves at once is the durable repair. The unit is built with a higher grade of electrical components than the original equipment and is tested before it is shipped.
Key Features
- Brand new aftermarket unit, not a rebuilt core
- Direct replacement for KTM and Husqvarna part 79611034000
- Matching main harness side connector supplied in the box
- Plug-and-play - two plugs, seven pins, seven wires
- Twin leads of 220 mm and 440 mm as per the original
- Higher grade electrical components than the original equipment
- Regulated output of 14.5 V +/- 0.5 V, rated to 50 A / 500 W
- Every unit individually tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS020-107290 |
| Width | 74 mm |
| Length | 80 mm |
| Height | 22 mm |
| Wire length 1 | 220 mm |
| Wire length 2 | 440 mm |

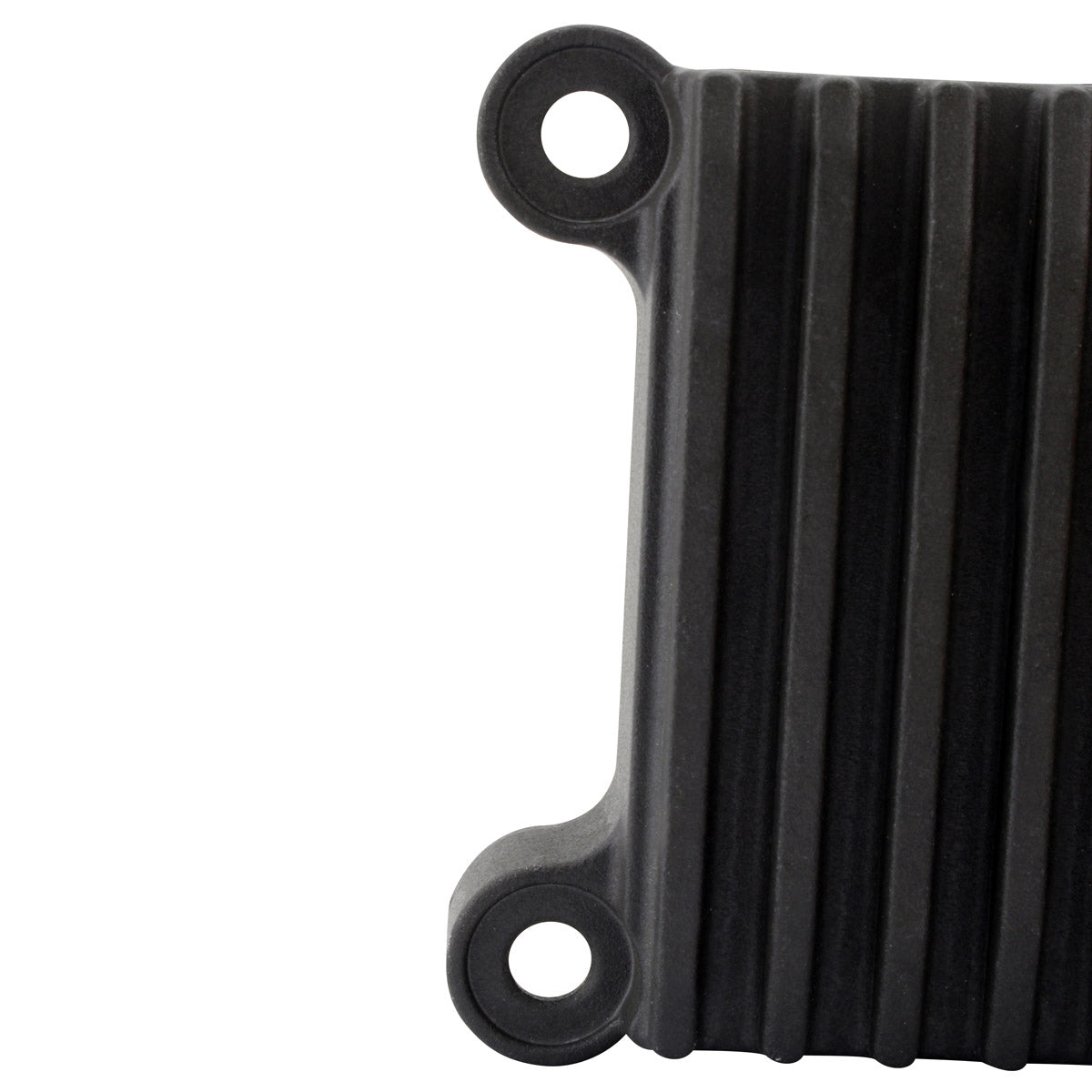

| Fixation hole spacing (centre to centre) | 68 mm |

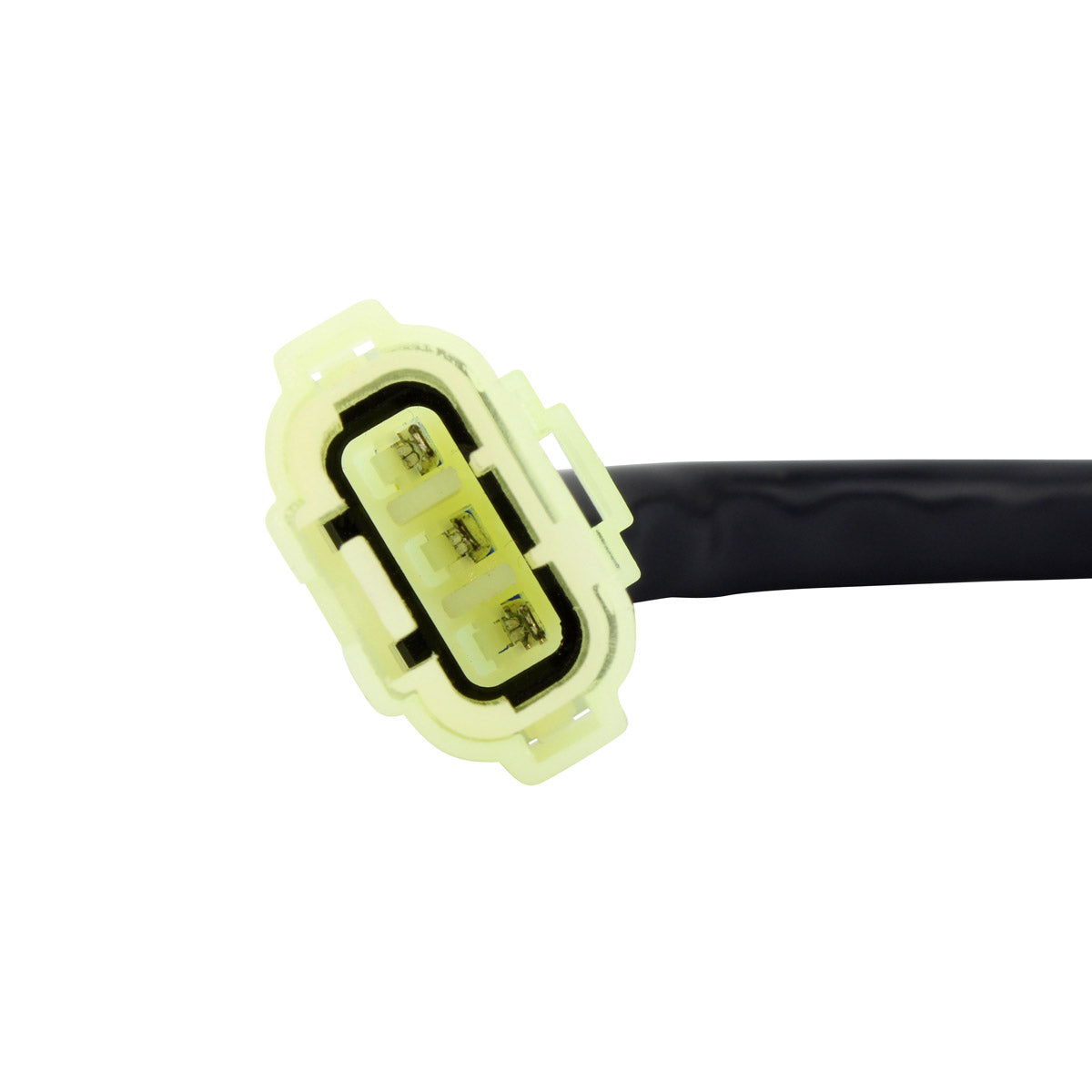

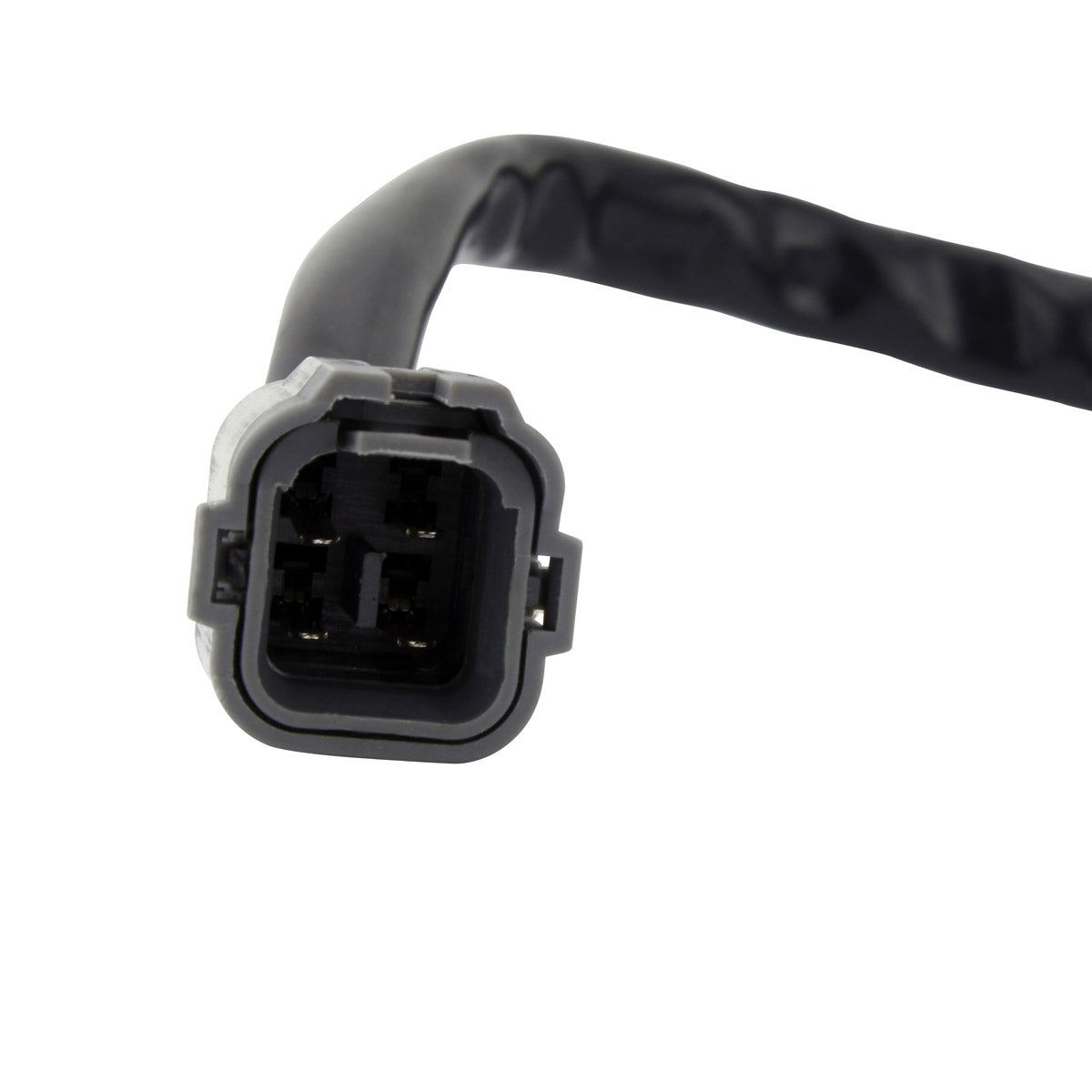

| Number of plugs | 2 |
| Number of pins | 7 |
| Number of wires | 7 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Less than 15 V |
| Operating temperature | -20°C to 85°C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| KTM 150 XC-W | 2017-2023 |
| KTM 300 XC-W | 2017-2023 |
| KTM 350 EXC-F | 2017-2023 |
| KTM 450 EXC-F | 2017-2023 |
| Husqvarna FE 250 | 2017-2023 |
| Husqvarna FE 350 | 2017-2023 |
| Husqvarna TE 300i | 2017-2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 79611034000 | KTM / Husqvarna |
| RMS020-107290 | RMSTATOR |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct fit, plug-and-play replacement. The two plugs, the seven wires on 220 mm and 440 mm leads and the 68 mm mounting hole spacing all match the original unit, so no cutting, splicing or assembly is needed.
What is in the box?
The voltage regulator itself plus the opposite connector, the main harness side half of the plug. RMSTATOR supply it because these connectors are frequently melted, corroded or defective and are a major cause of repeat electrical faults.
How do I tell that my regulator has failed?
Take a voltage reading across the battery terminals with the engine running and compare it with the regulated 14.5 V +/- 0.5 V listed above. A reading that never rises above resting battery voltage means the unit has stopped charging; one above 15 V means it has stopped regulating and is overcharging. Flat or swollen batteries, blown bulbs and heat damage around the connector all point to the same fault.
Why does this unit have seven wires and two plugs?
This generation of KTM and Husqvarna enduro machines runs a charging circuit and additional feeds through the same regulator, which is why the OEM part 79611034000 uses two plugs, seven pins and two different lead lengths. The replacement mirrors that arrangement exactly so the standard harness plugs straight in.
