Voltage Regulator Rectifier for Polaris Phoenix 200 & Sawtooth 200 2005-2024
Voltage Regulator Rectifier for Polaris Phoenix 200 & Sawtooth 200 2005-2024
SKU:RM30009
Free shipping over £150. Terms apply
Couldn't load pickup availability
Voltage Regulator Rectifier for Polaris Phoenix 200 and Sawtooth 200
Polaris Sawtooth 200 and Phoenix 200 - 2005-2024
This is a brand new voltage regulator rectifier for the Polaris Sawtooth 200 and Phoenix 200, covering model years 2005 to 2024. It is a direct replacement to your original unit and installs plug-and-play - direct fit, easy installation, no assembly required.
The regulator rectifier converts the alternating current generated by the stator into direct current and controls the charging voltage, so the battery is charged correctly and the electrical system is shielded from voltage spikes. This RMSTATOR unit has an improved heat sink and improved charging capability, and uses a higher grade of electric components, so the quality exceeds the OEM equipment it replaces. It is rated at 50 A / 500 W maximum charging current, which is a generous margin for a 200 class machine. All products are tested before shipping, and the opposite connector for the main harness side is supplied with the unit so a tired harness plug can be renewed at the same time.
Key Features
- Brand new voltage regulator rectifier, not refurbished
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required

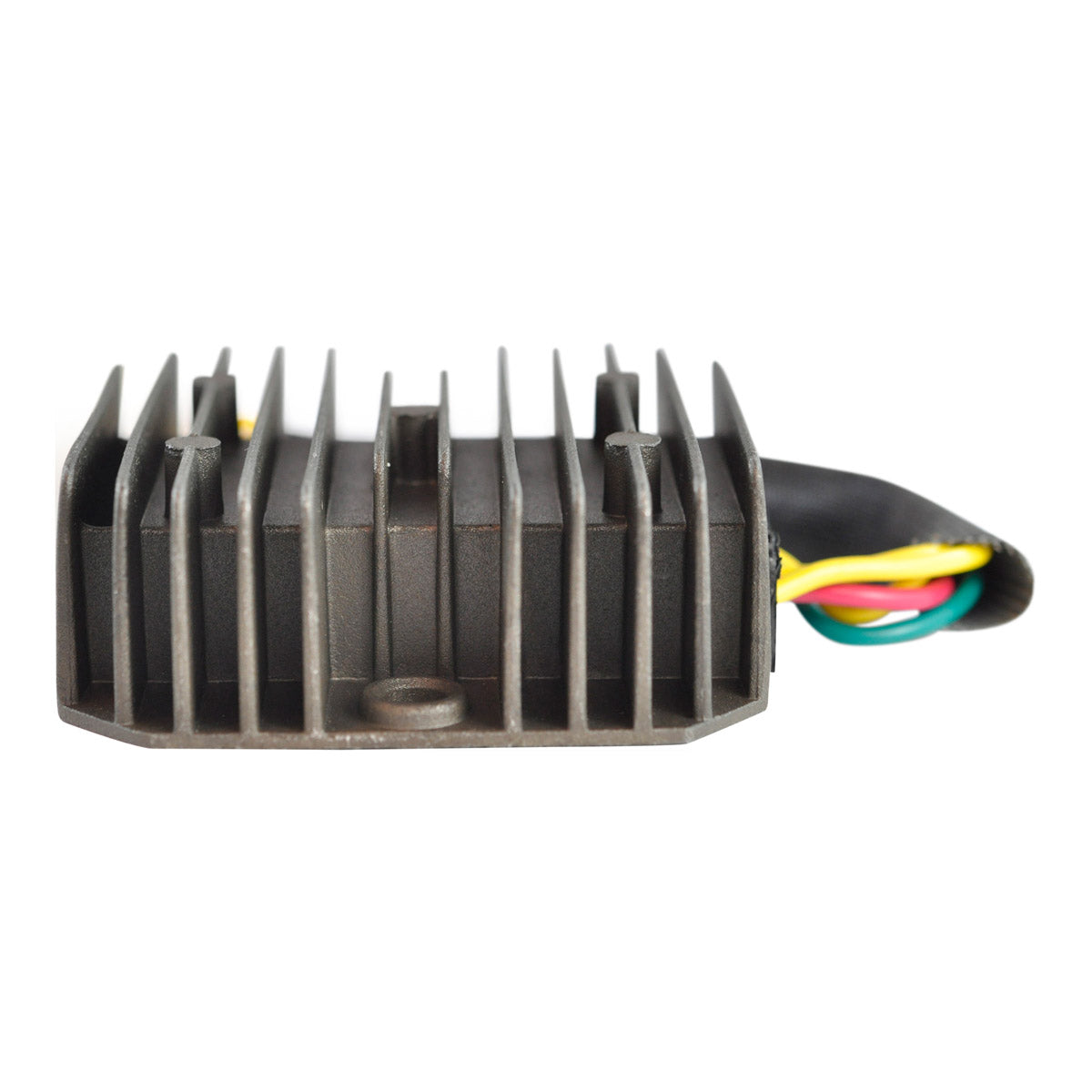

- Improved heat sink and charging capabilities
- Higher grade of electric components - quality exceeds the OEM equipment
- Rated at 50 A / 500 W maximum charging current

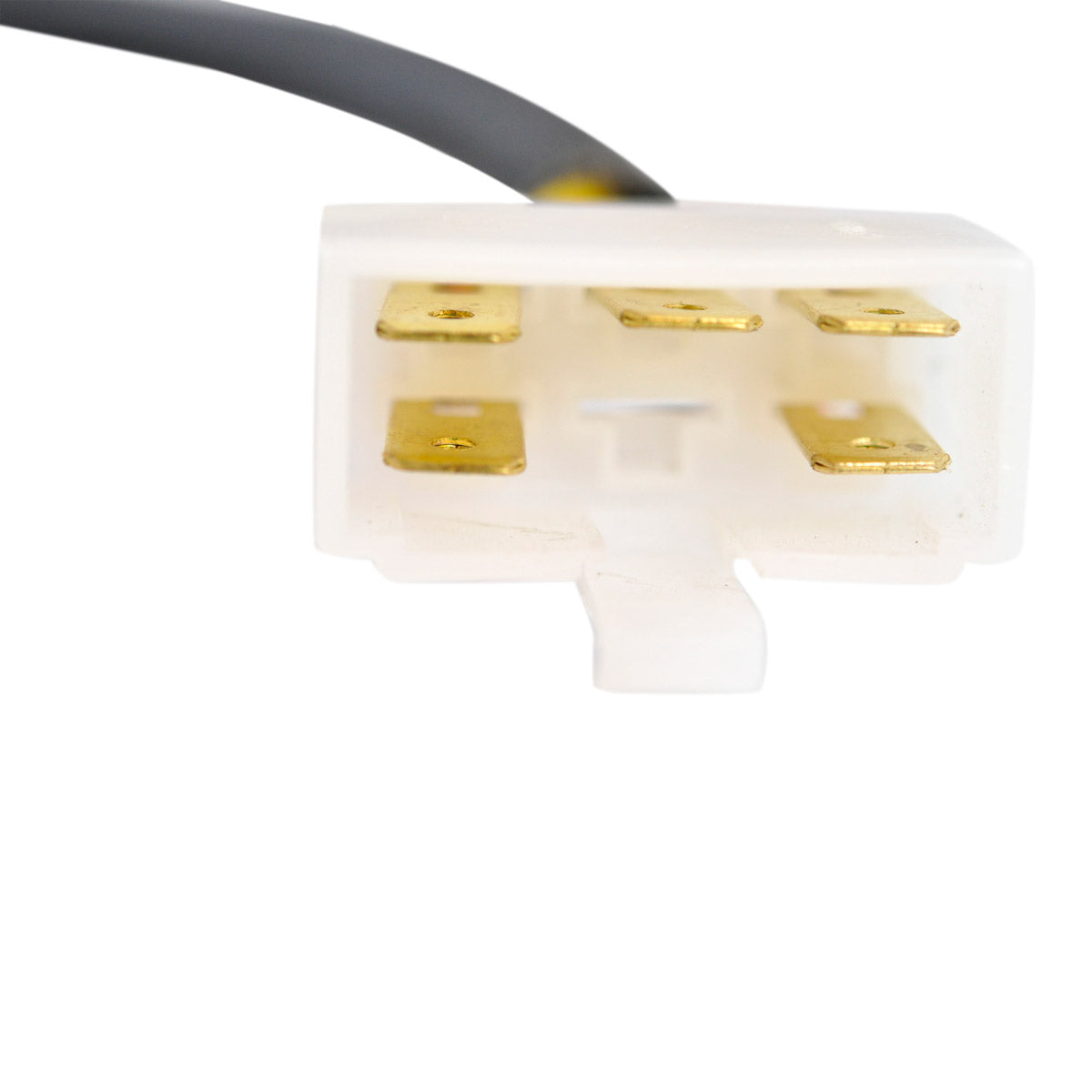

- Single five-pin plug, five wires, 165 mm long

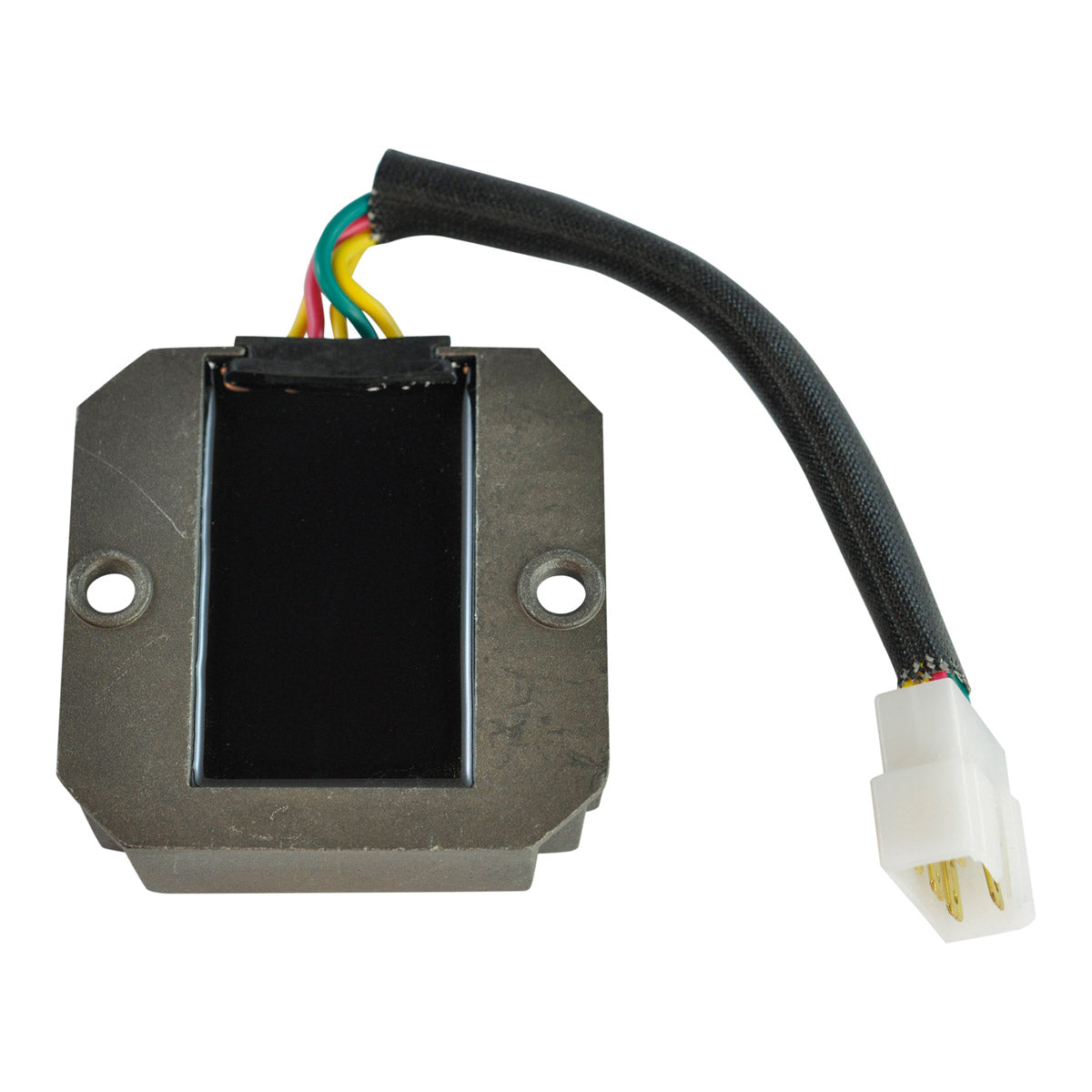

- 65 mm fixation hole spacing, centre to centre

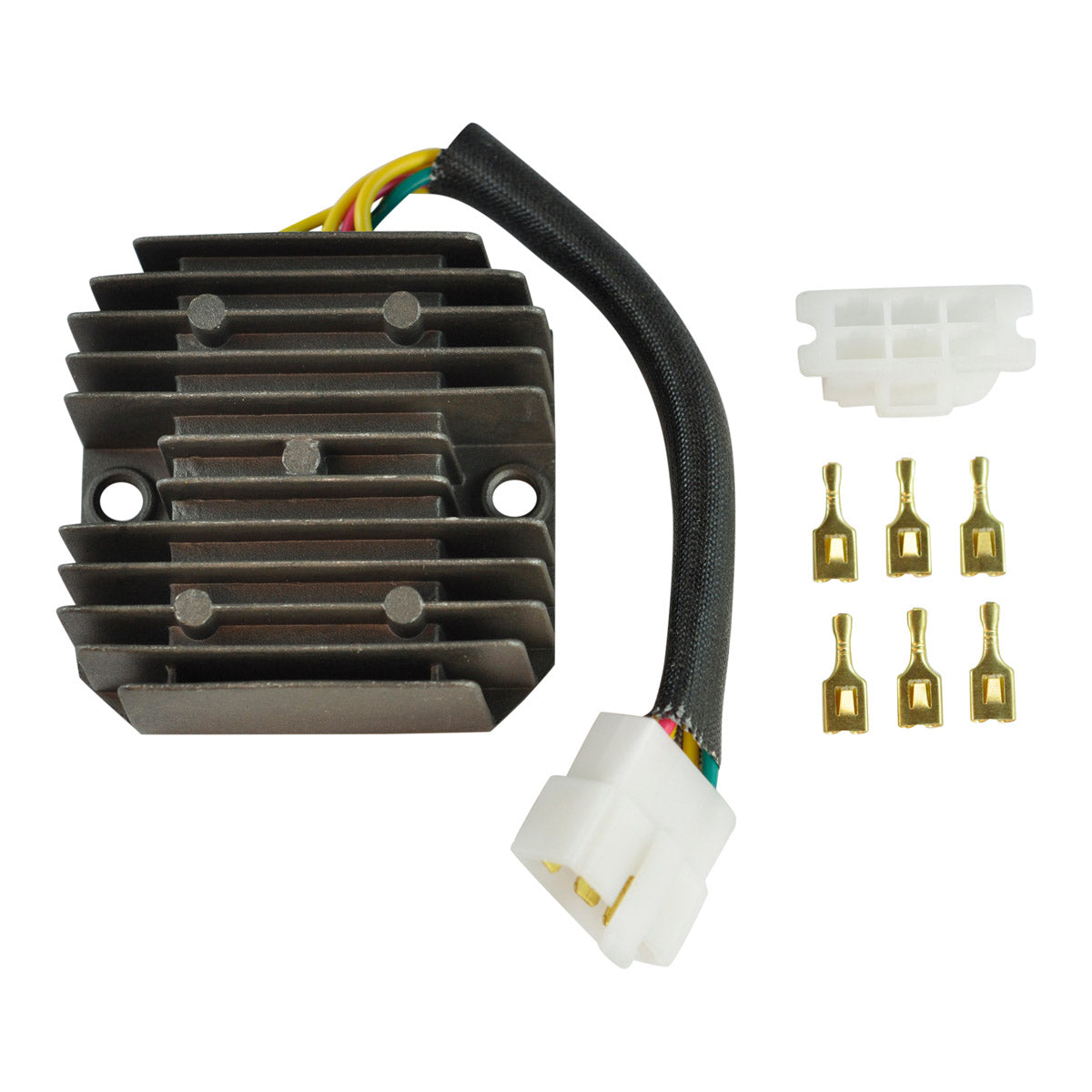

- Opposite connector (main harness side) included
- All products tested before shipping
- RMSTATOR part number RM30009
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RM30009 |
| Width | 80 mm |
| Length | 82 mm |
| Height | 30 mm |
| Wire Length | 165 mm |
| Fixation Hole Distance | 65 mm centre to centre |
| Number of Plugs | 1 |
| Number of Pins | 5 |
| Number of Wires | 5 |
| Minimum Charging Voltage | 14.5 V +/- 0.5 V |
| Maximum Charging Current | 50 A / 500 W |
| Open Circuit Voltage | Under 15 V |
| Operation Temperature | -20 C to 85 C |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Polaris Sawtooth 200 | 2005-2024 |
| Polaris Phoenix 200 | 2005-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0452760 | Polaris |
| 0453025 | Polaris |
| 0453375 | Polaris |
| 0454998 | Polaris |
| 0455311 | Polaris |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct replacement for the original regulator rectifier on the Sawtooth 200 and Phoenix 200, with the same single five-pin plug and 65 mm mounting hole spacing. Installation is plug-and-play with no assembly, cutting or drilling.
What is included?
The regulator rectifier unit and the opposite connector for the main harness side.
How do I know my old regulator has failed?
A battery that keeps going flat, charging voltage at the battery terminals that stays low or climbs above 15 V with the engine running, a battery that boils or swells, and bulbs that blow repeatedly all point at the regulator. Measure across the battery with the engine running and compare with the 14.5 V +/- 0.5 V figure in the table above.
Is a 50 A unit too powerful for a 200 class quad?
No. The 50 A / 500 W figure is the maximum the unit can handle, not what it forces into the system. The regulator only passes the current the machine actually draws, so the extra headroom simply means it runs cooler and lasts longer.
