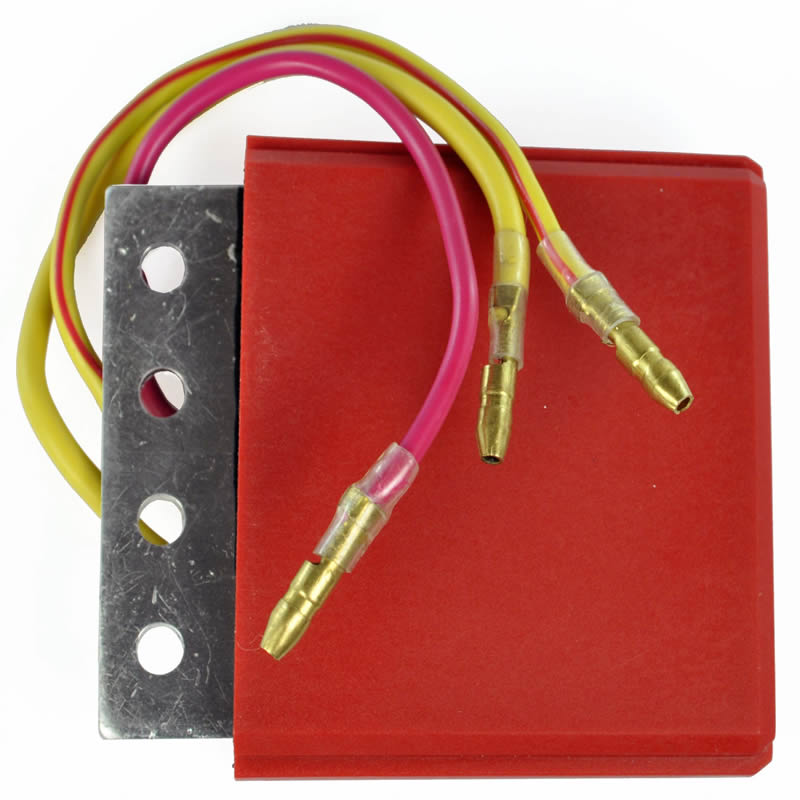

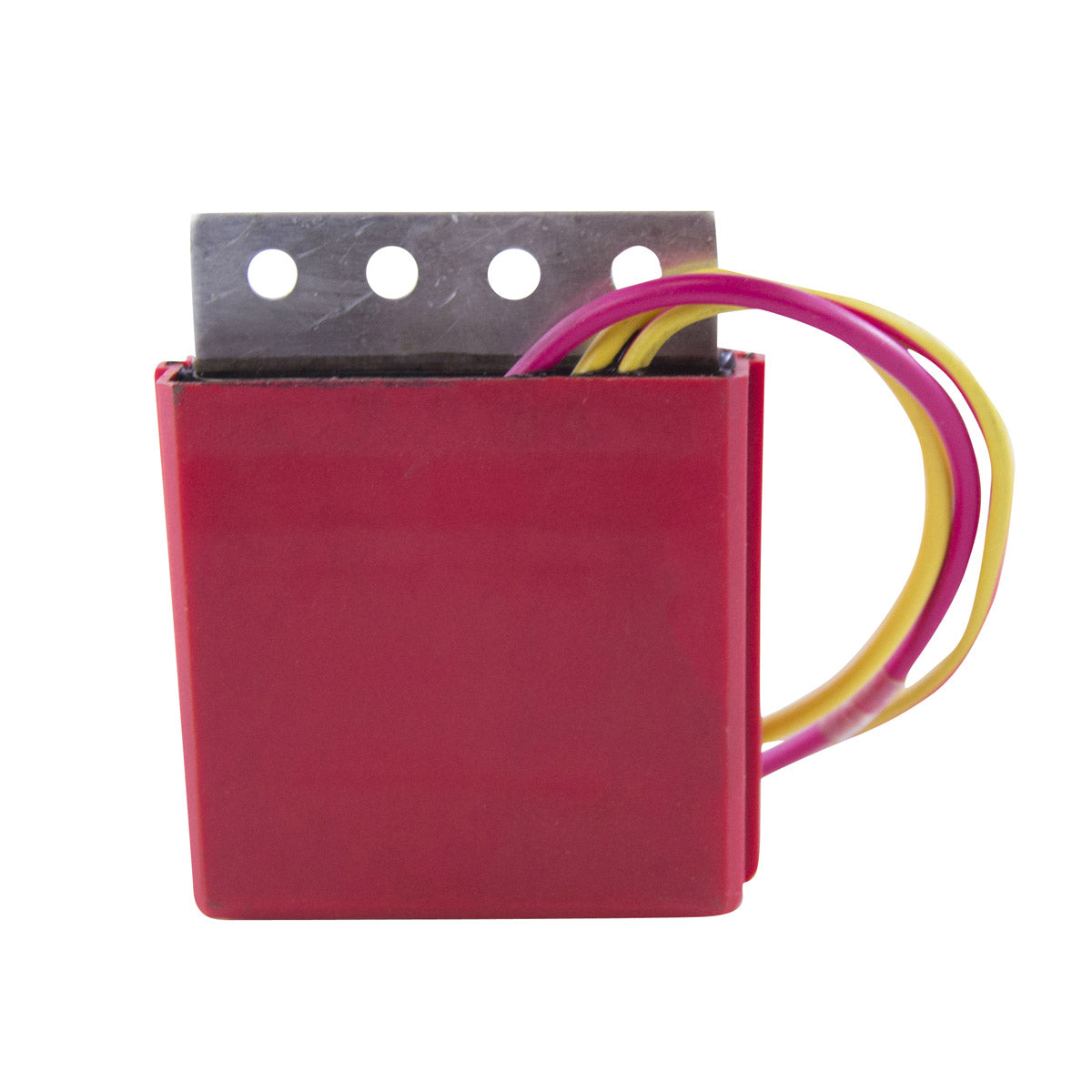

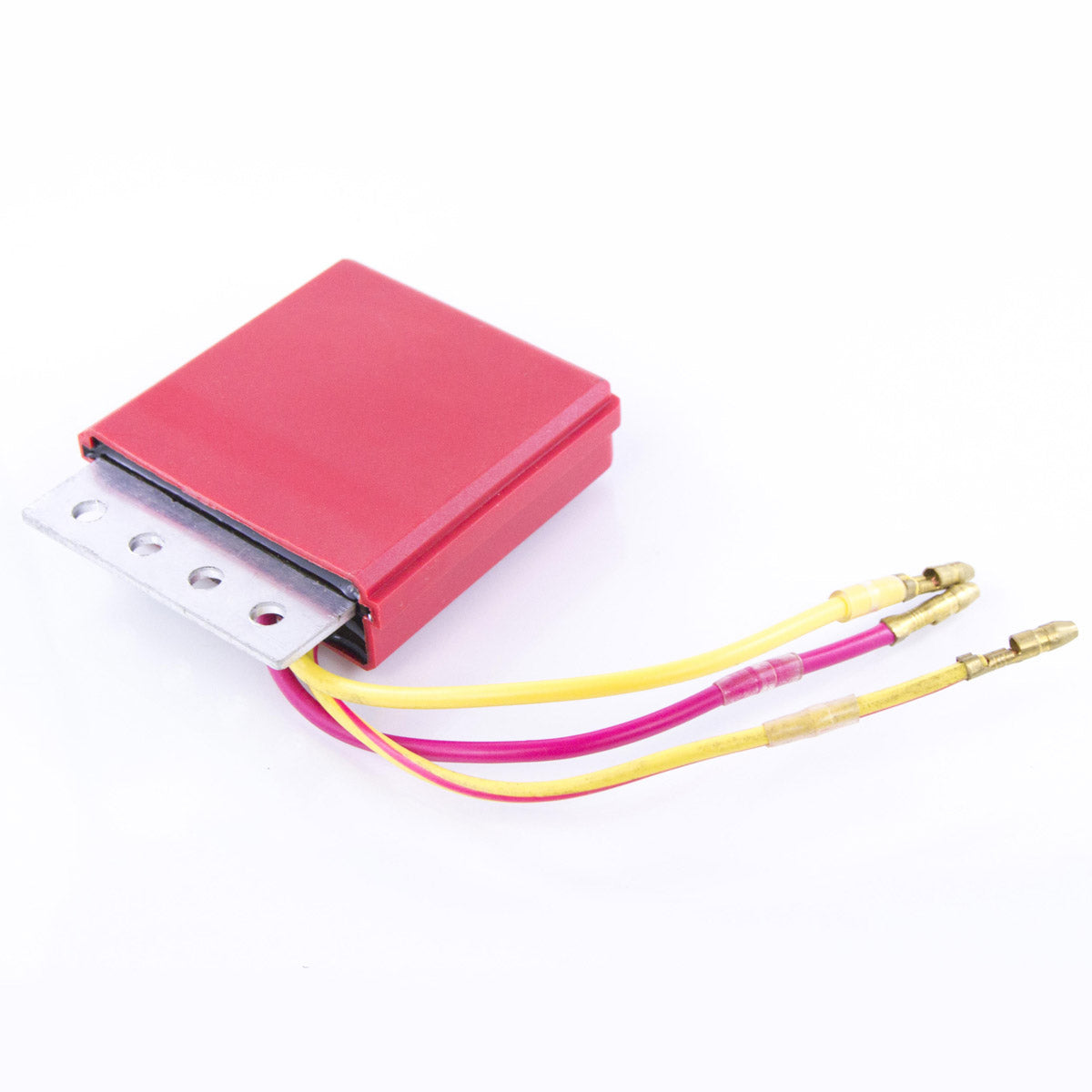

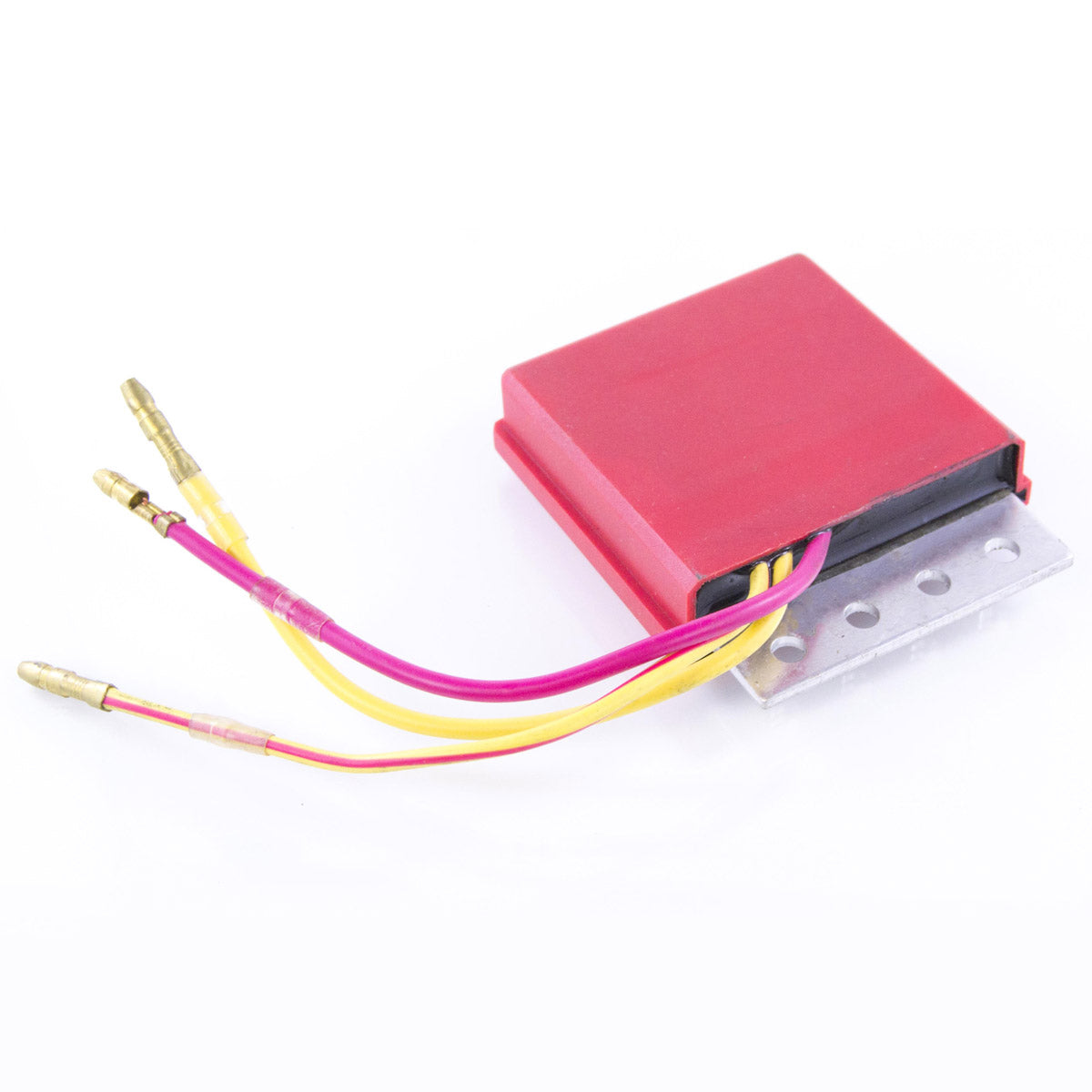

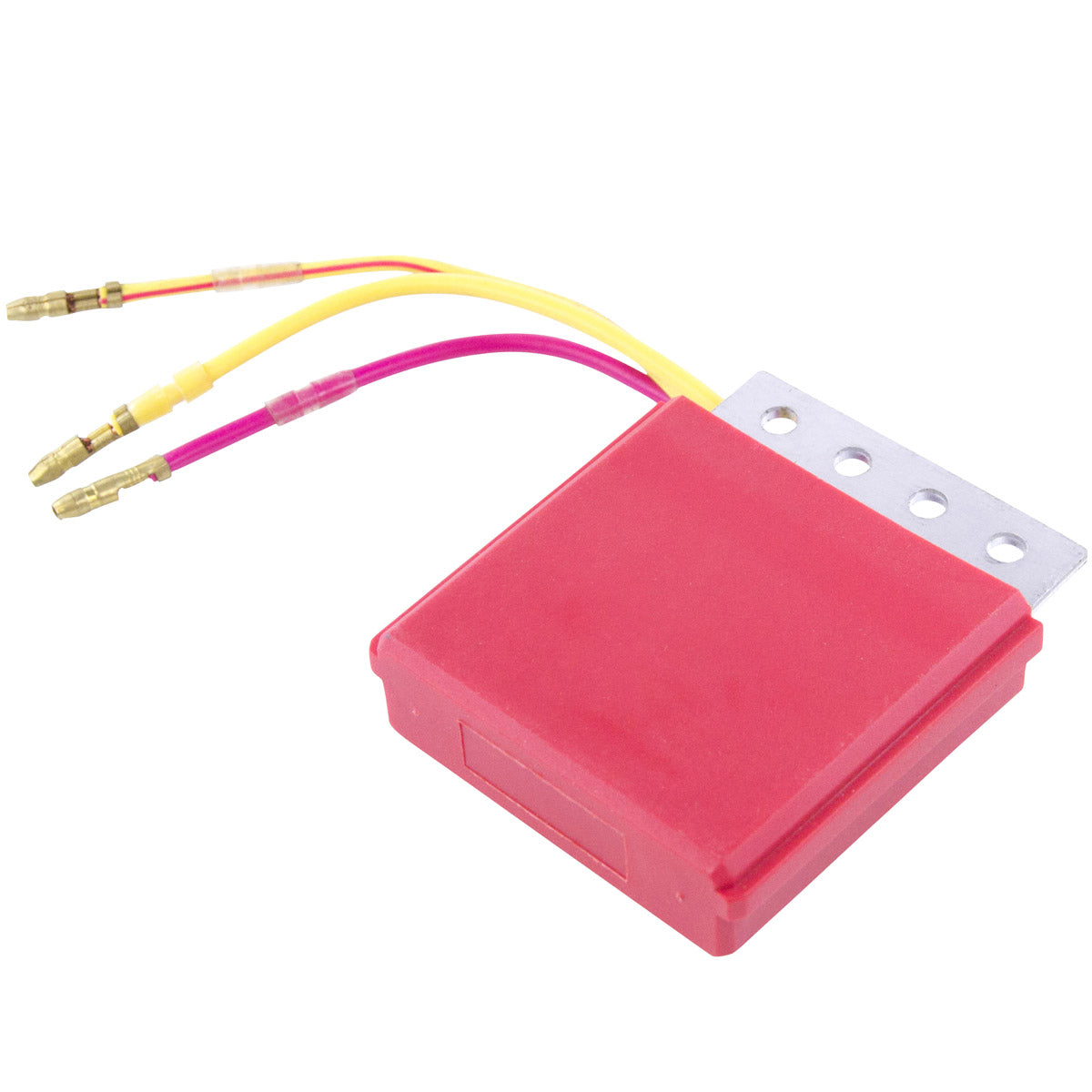

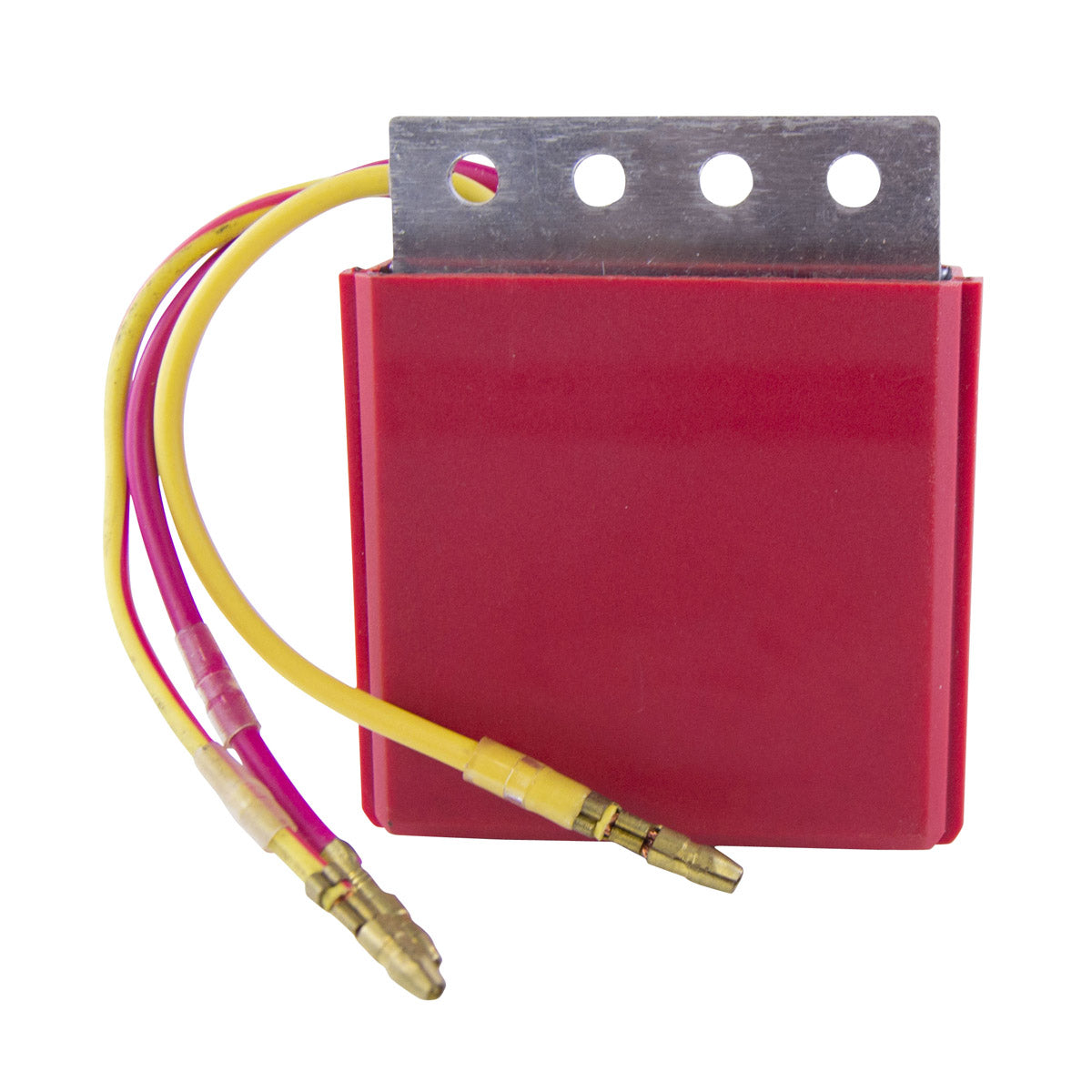

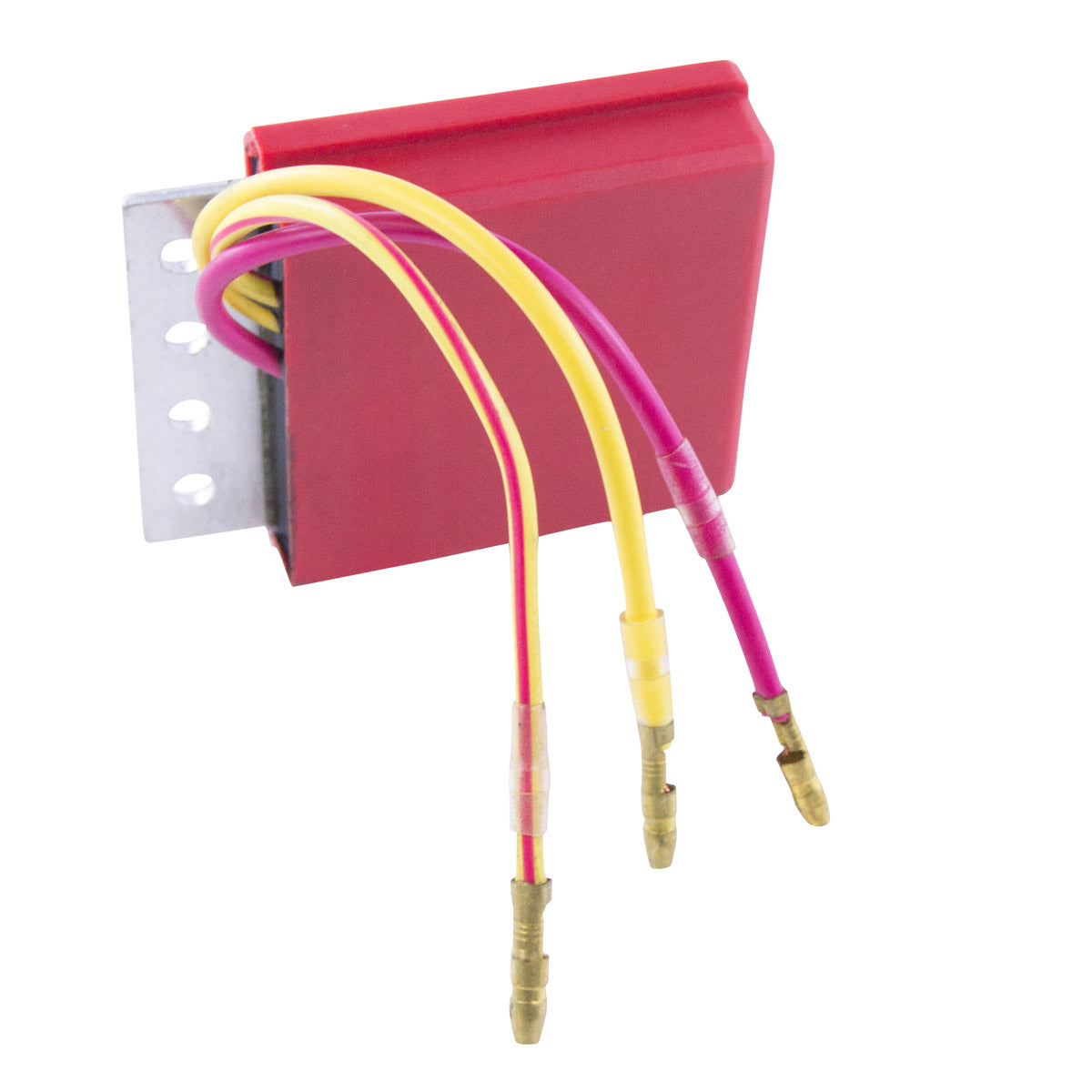

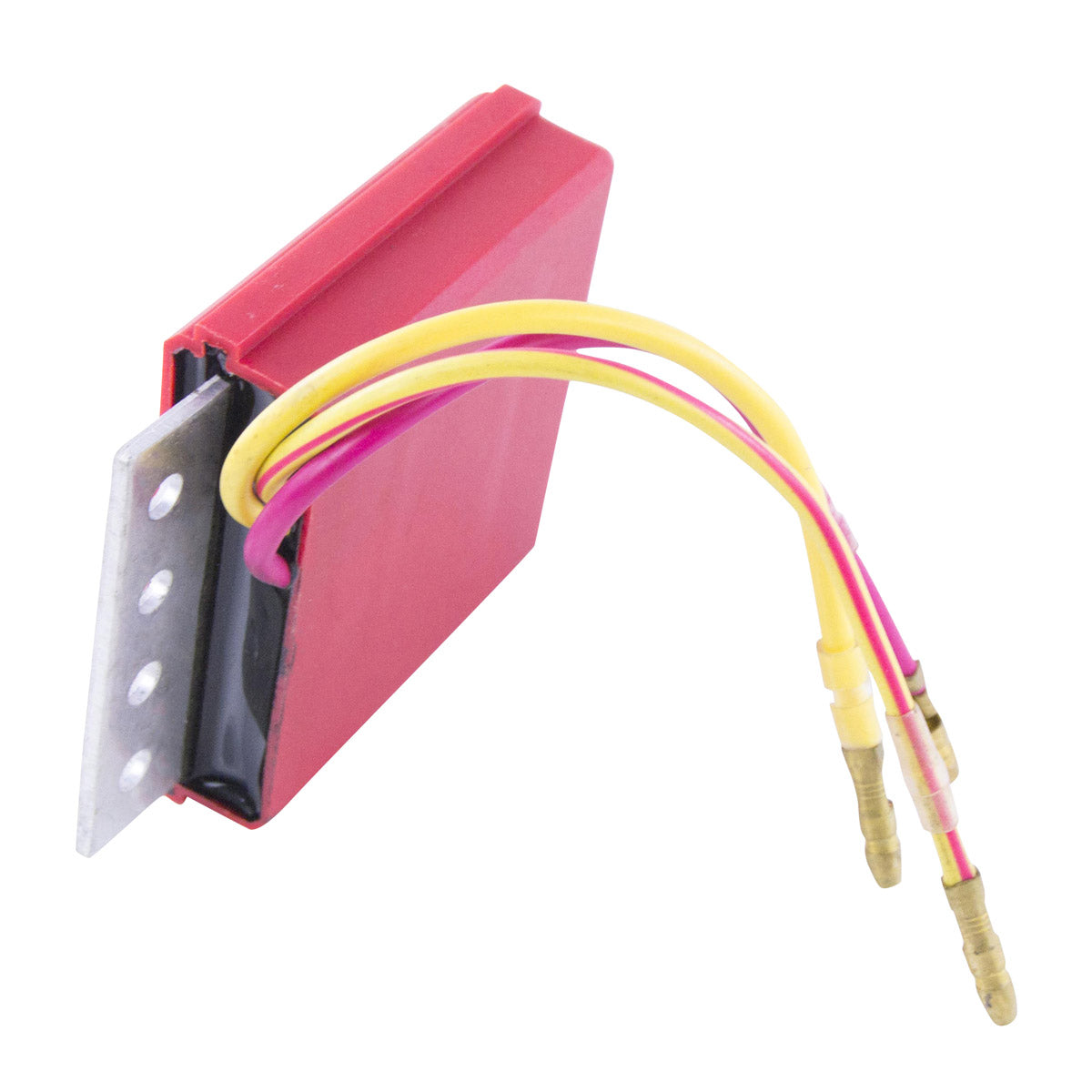

The RM30014 is a brand new aftermarket voltage regulator rectifier built as a direct replacement for the original unit fitted to the Polaris Scrambler, Sport, Trail Blazer and Xplorer between 1999 and 2003. It is plug-and-play and a direct fit, so installation is easy, nothing needs to be cut or spliced, and no assembly is required.

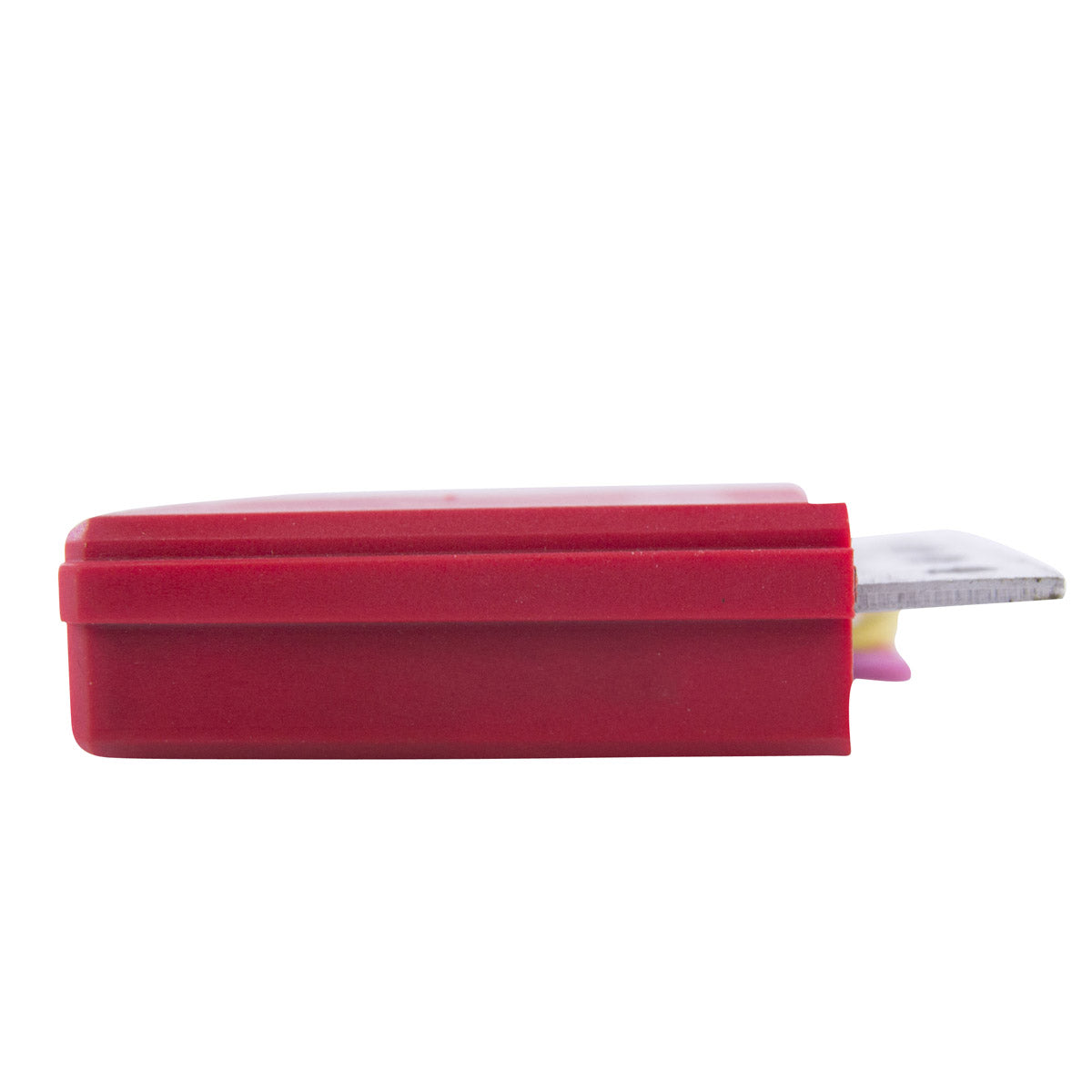

A higher grade of electrical components is used throughout, so the quality exceeds the OEM equipment it replaces, and every product shipped is tested first. The RM30014 is a compact three wire, three plug unit measuring 60 mm wide, 76 mm long and 19 mm high, with lead lengths of 132 mm and 140 mm. It is rated to a maximum charging current of 25 A / 300 W and a minimum charging voltage of 14.5 V plus or minus 0.5 V, and it cross references to Polaris part number 4060208. If you are in any doubt about fitment, compare the unit and its connectors against your original part before installing.
Key Features
- Brand new aftermarket voltage regulator rectifier
- Direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electrical components
- Quality exceeds the OEM equipment
- Compact three wire, three plug design
- Rated at 25 A / 300 W maximum charging current
- Operates from -20 C to 85 C
- All products tested before shipping
Technical Specs
| Specification |
Detail |
| Part number |
RM30014 |
| Width |
60 mm |
| Length |
76 mm |
| Height |
19 mm |
| Wire lengths |
132 mm and 140 mm |
| Number of plugs |
3 |
| Number of pins |
3 |
| Number of wires |
3 |
| Minimum charging voltage |
14.5 V +/- 0.5 V |
| Maximum charging current |
25 A / 300 W |
| Open circuit voltage |
Under 15 V |
| Operating temperature |
-20 C to 85 C |
Vehicle Fitment Guide
| Make & Model |
Years |
| Polaris Scrambler |
1999-2003 |
| Polaris Sport |
1999-2003 |
| Polaris Trail Blazer |
1999-2003 |
| Polaris Xplorer |
1999-2003 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 4060208 |
Polaris |
Frequently Asked Questions
Does this fit without modification?
Yes. The RM30014 is a direct replacement for the original unit on the listed Polaris models. It is plug-and-play and a direct fit, no assembly is required, and the three plugs connect to the existing harness as the original did.
What is included?

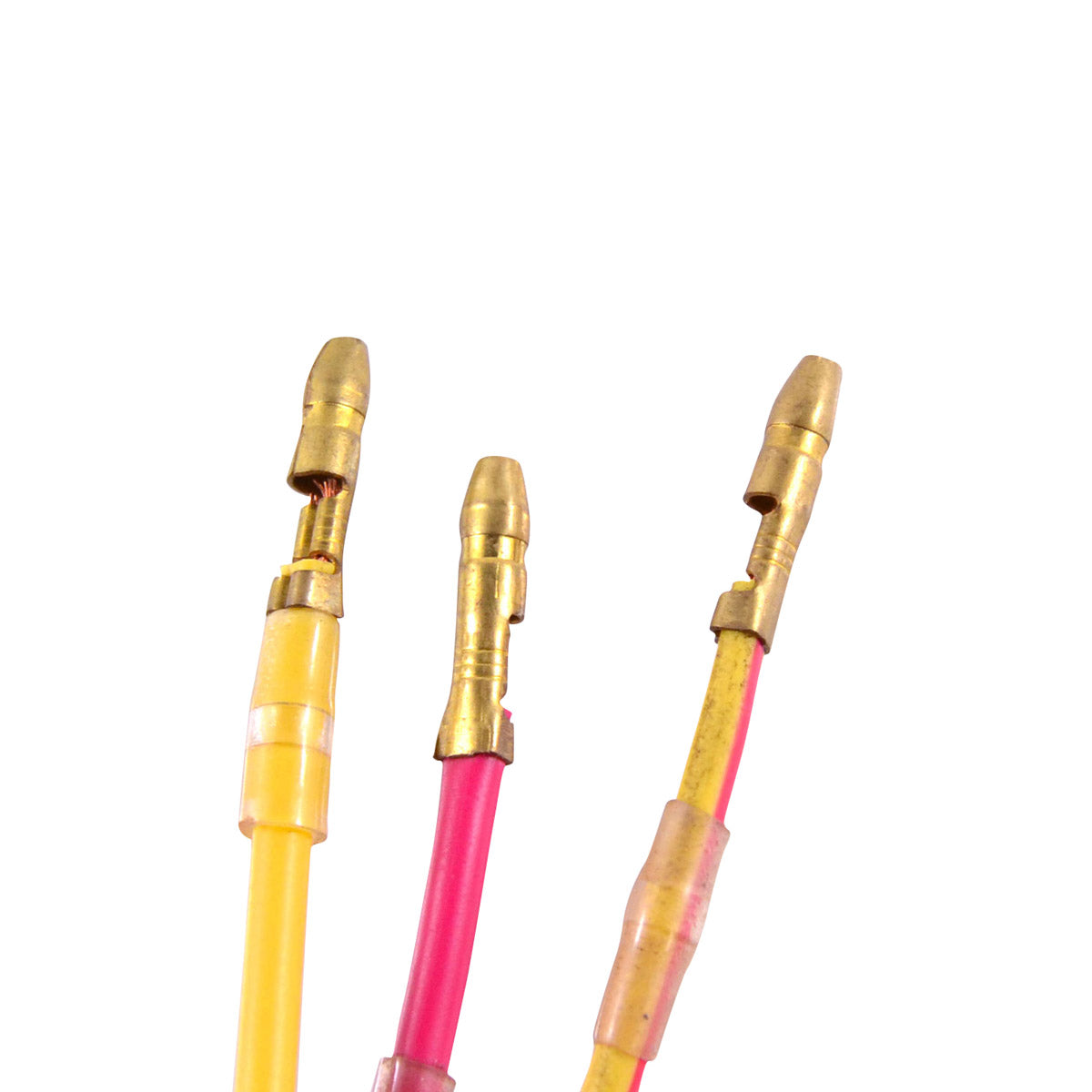

One RM30014 voltage regulator rectifier with its three wires and three plugs already fitted, in 132 mm and 140 mm lead lengths, tested and ready to install.
How do I tell my old regulator rectifier has failed?
The usual signs are a battery that keeps going flat or will not hold charge, charging voltage at the battery that never reaches around 14.5 V, an over-charged battery that boils or swells, lights that dim or flicker with engine speed, and a regulator body that becomes far too hot to touch. Burnt, melted or corroded terminals in the plugs point the same way.
How can I be sure this is the right part for my quad?
Check the number on your existing unit against Polaris reference 4060208, and confirm the physical match: three wires, three plugs, a 60 by 76 by 19 mm body and lead lengths of 132 mm and 140 mm. If in doubt, compare the new unit against your original part before fitting it.
