Voltage Regulator Rectifier for Polaris Snowmobiles - Manual Start
Manual start 340, 400, 440, 500, 550, 600, 700 and 800 - 2000-2015
This is a brand new voltage regulator rectifier for manual start Polaris snowmobiles built between 2000 and 2015, covering the 340, 400, 440, 500, 550, 600, 700 and 800 engines. It is a direct replacement to your original unit and offers plug-and-play, direct fit, easy installation with no assembly required.

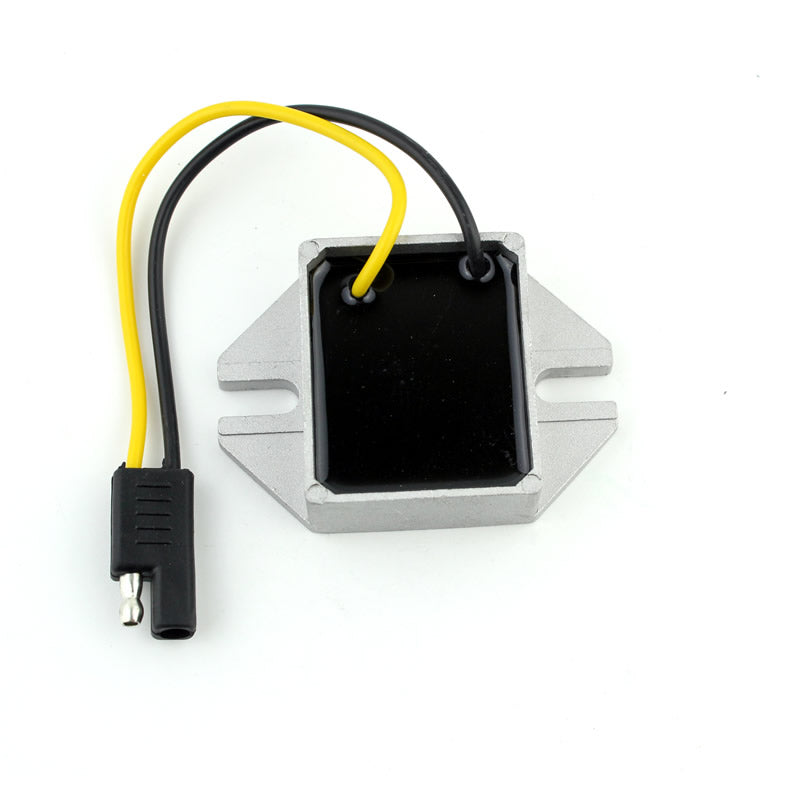

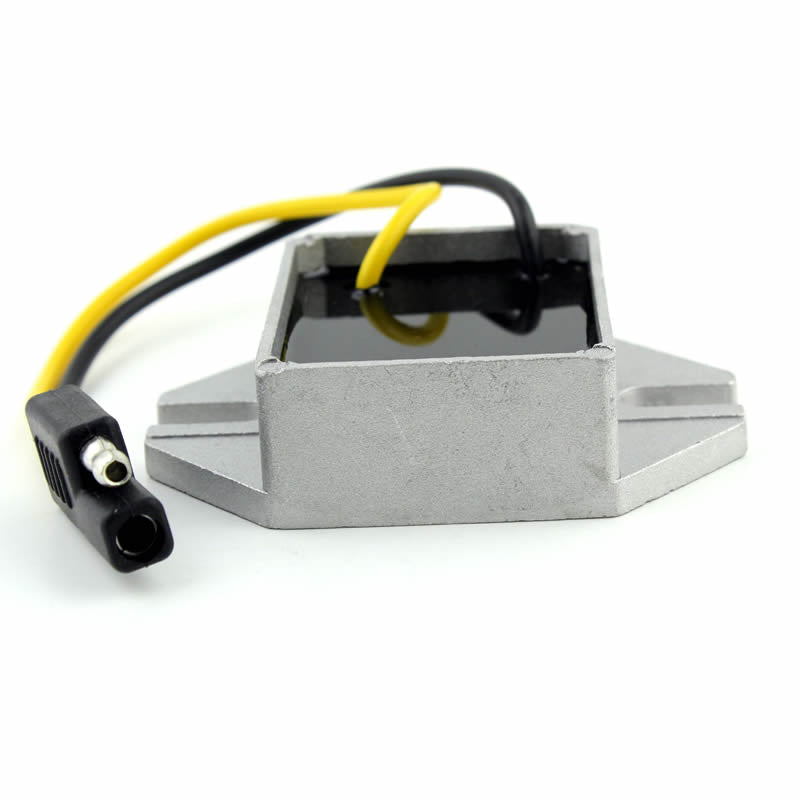

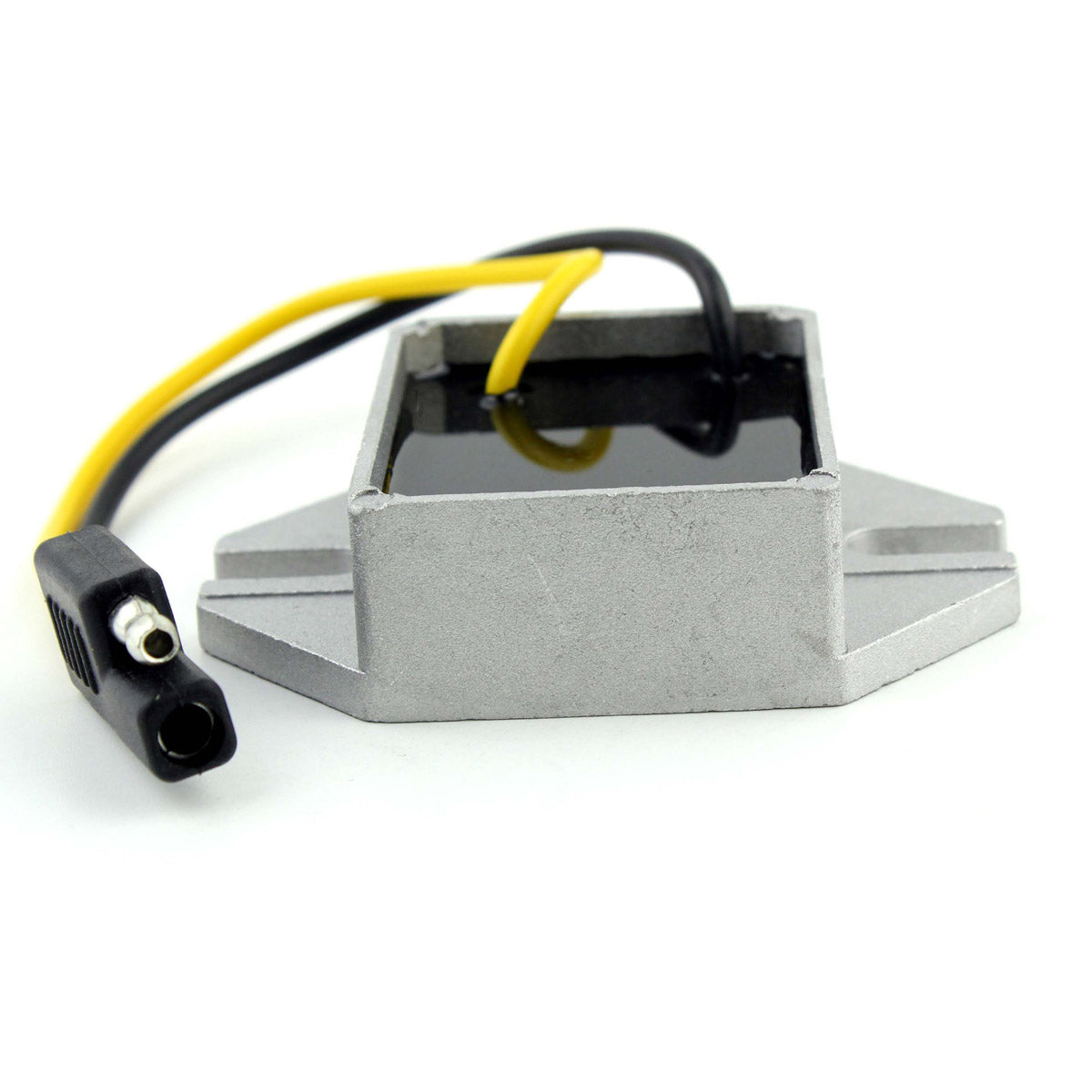

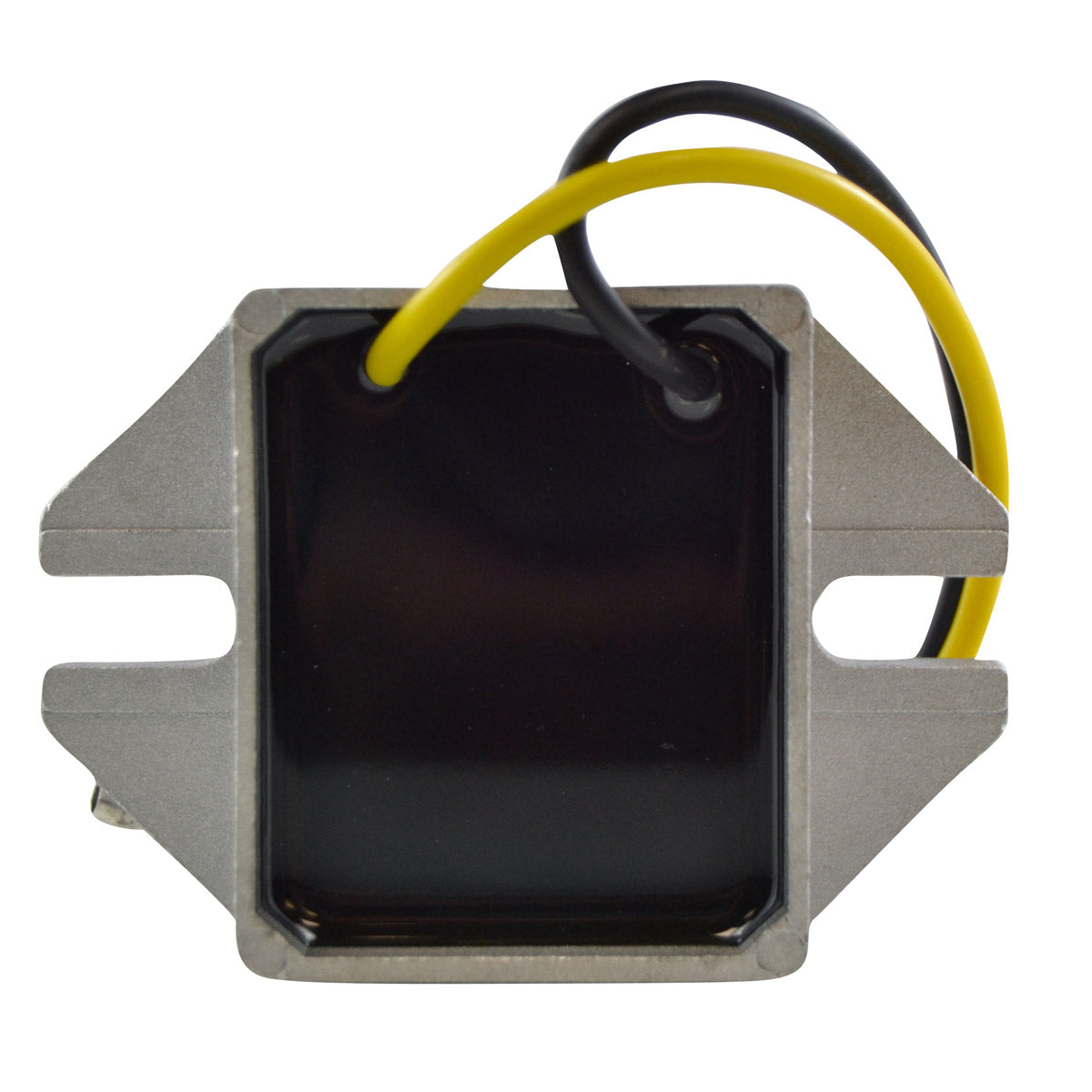

On a manual start sled the stator produces alternating current that has to be rectified and regulated before it can charge the battery or feed the lighting and accessory circuits. This unit does exactly that, holding the charging voltage steady at 14.5 V +/- 0.5 V and keeping open circuit voltage under 15 V so nothing downstream is over-volted. It is built with a higher grade of electric components than the original, and its quality exceeds the OEM equipment it replaces - useful on a machine that sees repeated cold starts and heavy vibration. It is a compact two-wire, two-pin unit with a single plug and 185 mm leads, mounting on 65 mm hole centres. All products shipped are tested.
Key Features
- Brand new voltage regulator rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- Quality exceeds the OEM equipment

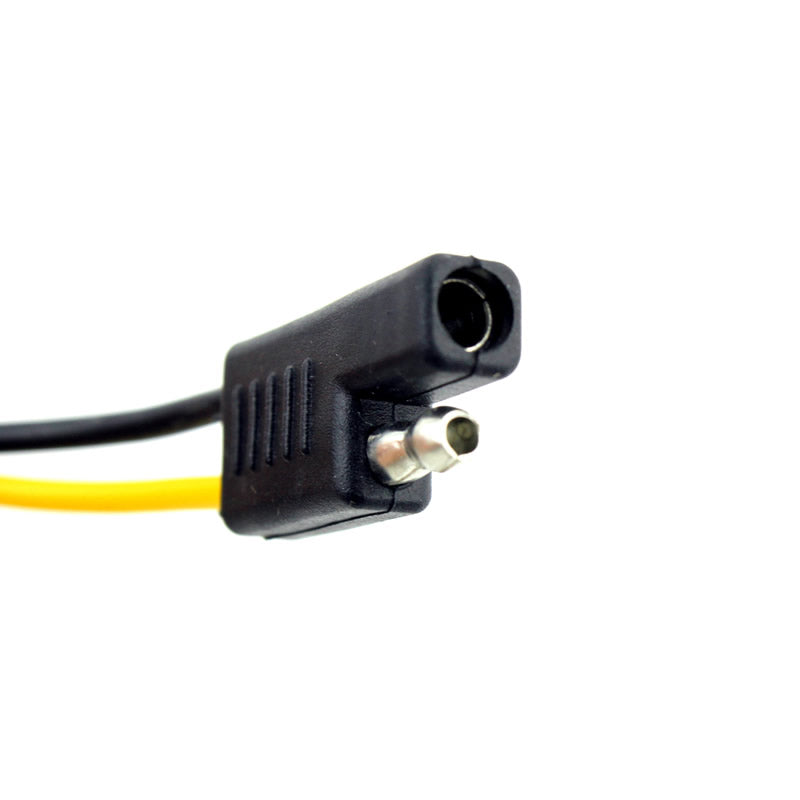

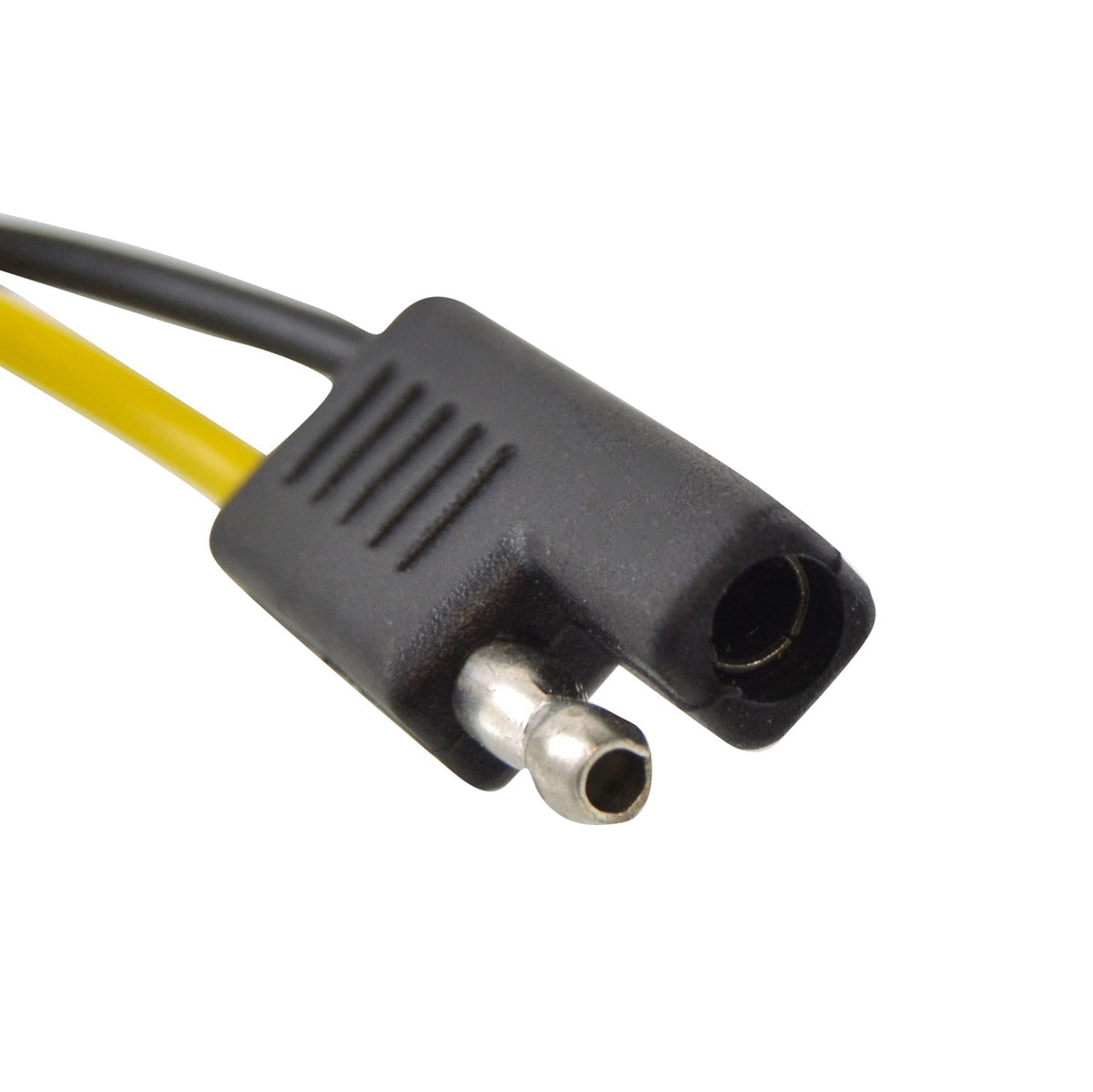

- Two-wire, two-pin single plug configuration

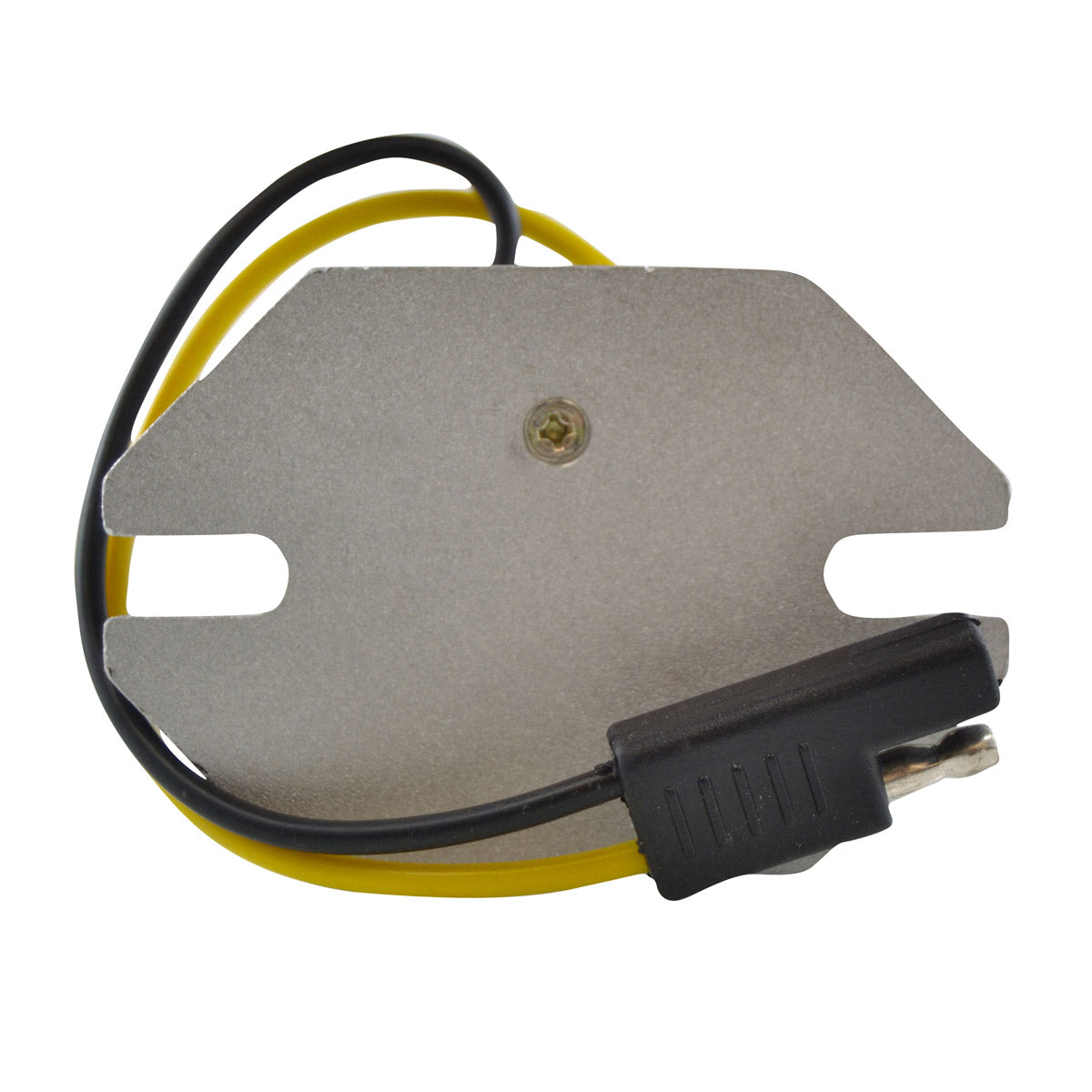

- 185 mm leads, 65 mm mounting hole centres
- For manual start models only
- All products shipped are tested
- RMSTATOR part number RM30028
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RM30028 |
| Width | 55 mm |
| Length | 81 mm |
| Height | 23 mm |
| Wire Length | 185 mm |
| Distance Between Fixation Holes | 65 mm centre to centre |
| Number of Plugs | 1 |
| Number of Pins | 2 |
| Number of Wires | 2 |
| Minimum Charging Voltage | 14.5 V +/- 0.5 V |
| Maximum Charging Current | 25 A / 300 W |
| Open Circuit Voltage | Under 15 V |
| Operating Temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Polaris Snowmobile 340 - manual start | 2000-2015 |
| Polaris Snowmobile 400 - manual start | 2000-2015 |
| Polaris Snowmobile 440 - manual start | 2000-2015 |
| Polaris Snowmobile 500 - manual start | 2000-2015 |
| Polaris Snowmobile 550 - manual start | 2000-2015 |
| Polaris Snowmobile 600 - manual start | 2000-2015 |
| Polaris Snowmobile 700 - manual start | 2000-2015 |
| Polaris Snowmobile 800 - manual start | 2000-2015 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 4010301 | Polaris |
| 4010793 | Polaris |
Frequently Asked Questions
Will this fit without modification?
Yes, on manual start models. It is a direct replacement for the original unit with the same single two-pin plug and 65 mm mounting hole centres, so no cutting, splicing or drilling is needed.
Does it fit electric start sleds?
This part is listed for manual start models. If your sled has electric start, check the wire count and the OEM number on your original regulator before ordering, as a different unit is normally required.
What is included?
The voltage regulator rectifier unit with its single plug and 185 mm two-wire lead.
How do I know my old regulator has failed?
Common signs are lights that dim, flicker or blow repeatedly, a battery that will not hold charge on machines fitted with one, and charging voltage that sits well away from 14.5 V +/- 0.5 V with the engine running. Cross-check the OEM number 4010301 or 4010793 on the old unit when ordering.
