Voltage Regulator for Sea-Doo 1500 GTX 4-TEC, 215 RXP and Speedster 200
Sea-Doo 1500 GTX 4-TEC, 215 RXP and Speedster 200, 2002-2007 - part number RM30Y06

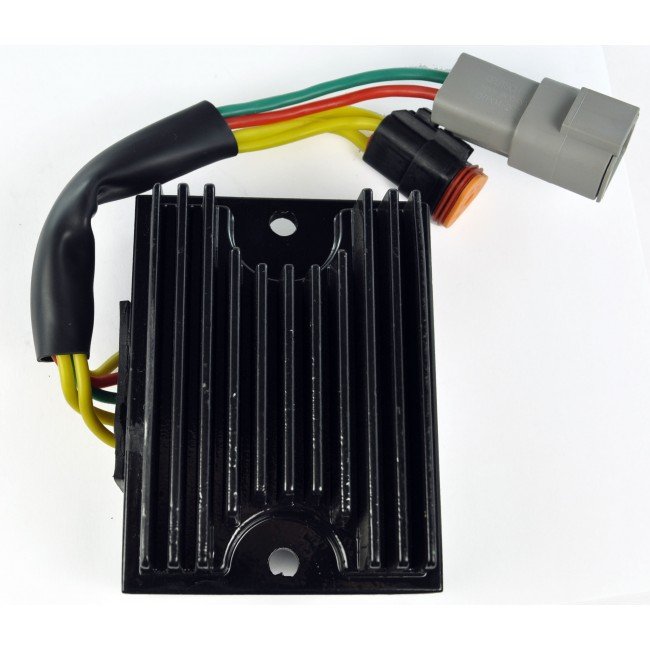

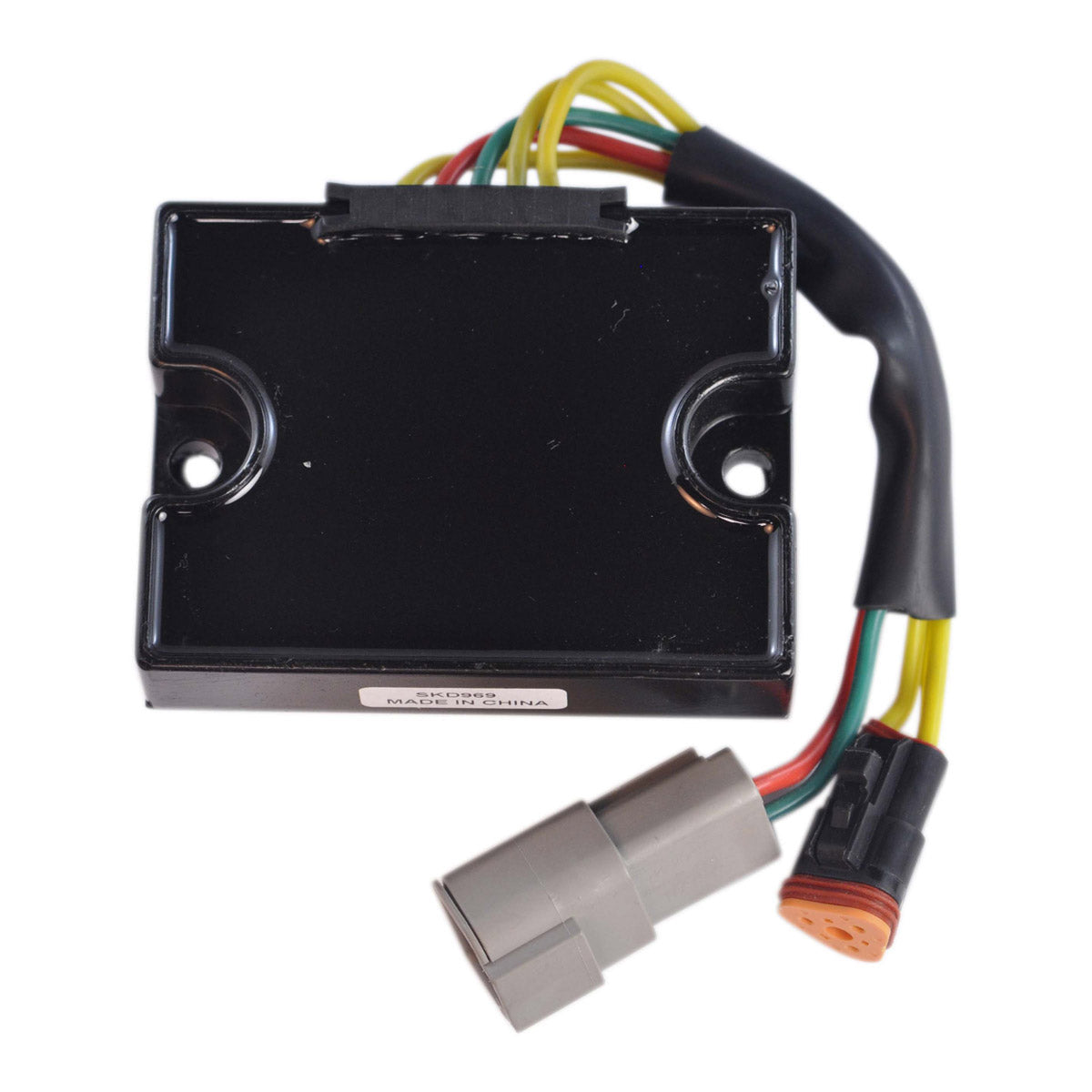

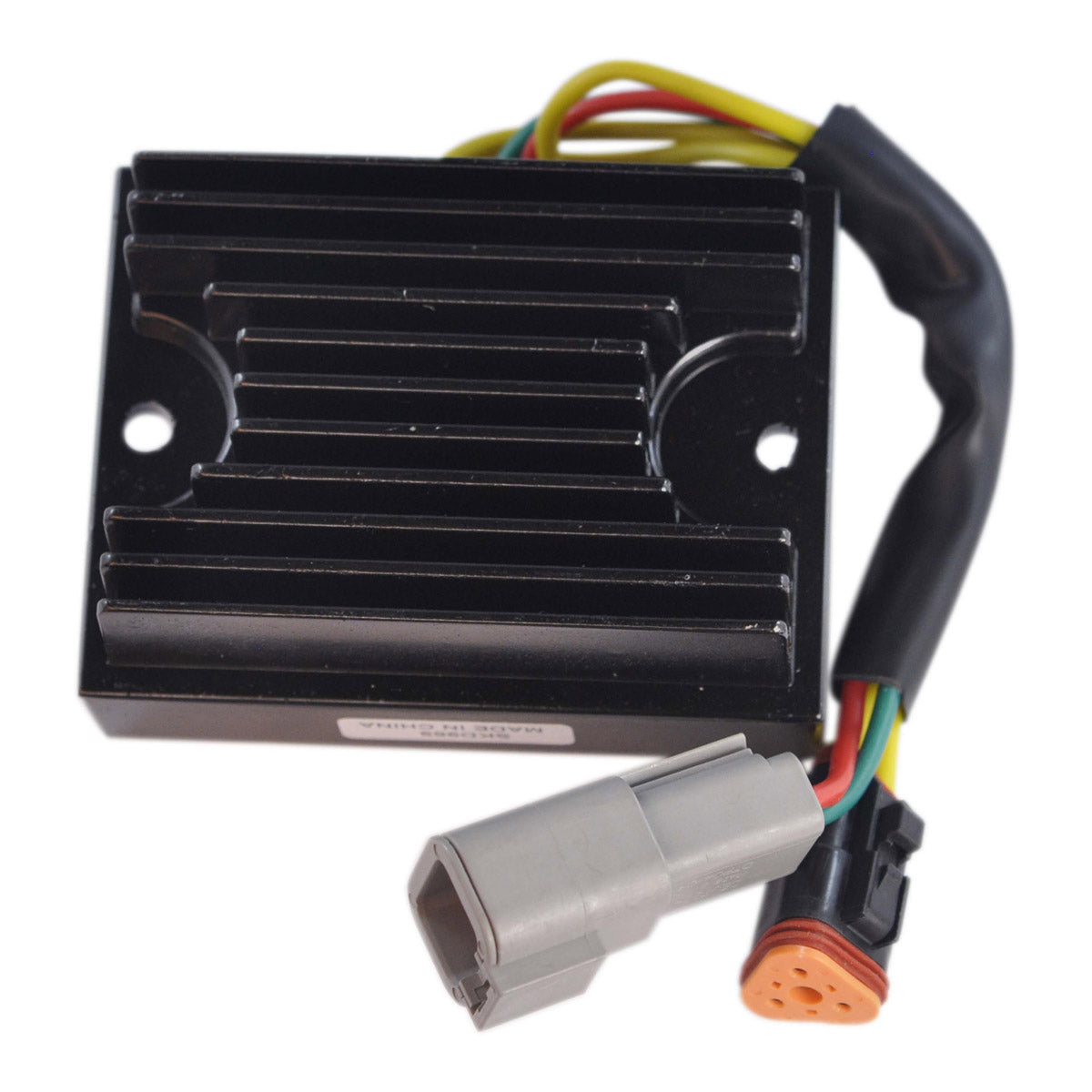

This is a brand new aftermarket improved AC voltage regulator rectifier, supplied as a direct replacement for the original unit fitted to the Sea-Doo 1500 GTX 4-TEC, the 215 RXP and the Speedster 200 between 2002 and 2007. It is plug-and-play and a direct fit, so installation is easy and no assembly is required.

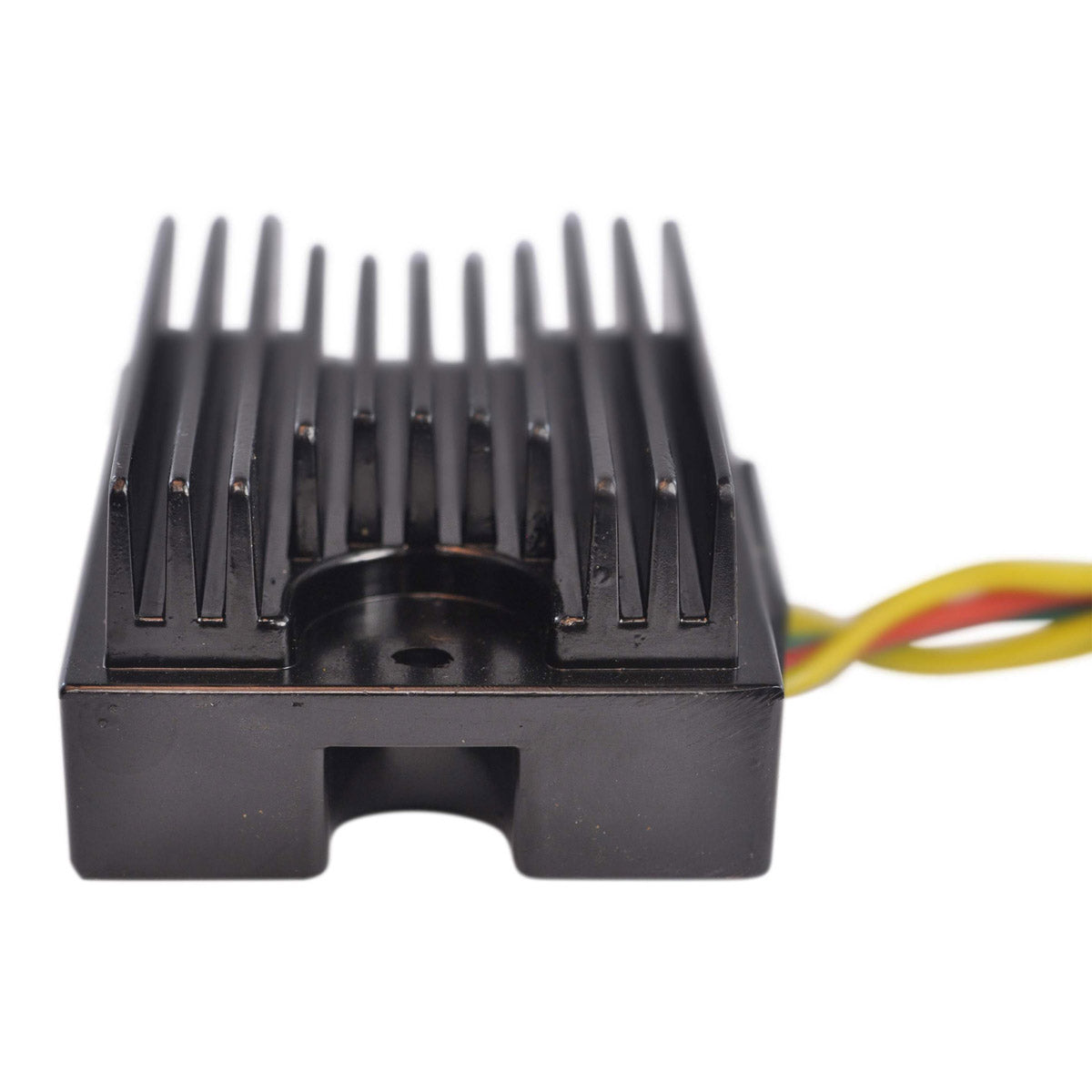

The heat sink and the charging capability are both improved over the original, and a higher grade of electrical component is used throughout, so the quality exceeds the OEM equipment. Every unit is tested before it is shipped. The unit measures 95 mm by 75 mm by 42 mm, with 83 mm between the mounting holes and 280 mm of lead on two plugs carrying five pins in total, so it goes back into the original mounting position without adapting the loom.
Key Features
- Brand new aftermarket improved voltage regulator rectifier
- AC regulator rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Improved heat sink and improved charging capability
- Higher grade of electrical components
- Quality exceeds the OEM equipment
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30Y06 |
| Type | AC voltage regulator rectifier |
| Width | 95 mm |
| Length | 75 mm |
| Height | 42 mm |
| Mounting hole spacing | 83 mm centre to centre |
| Wire length | 280 mm |

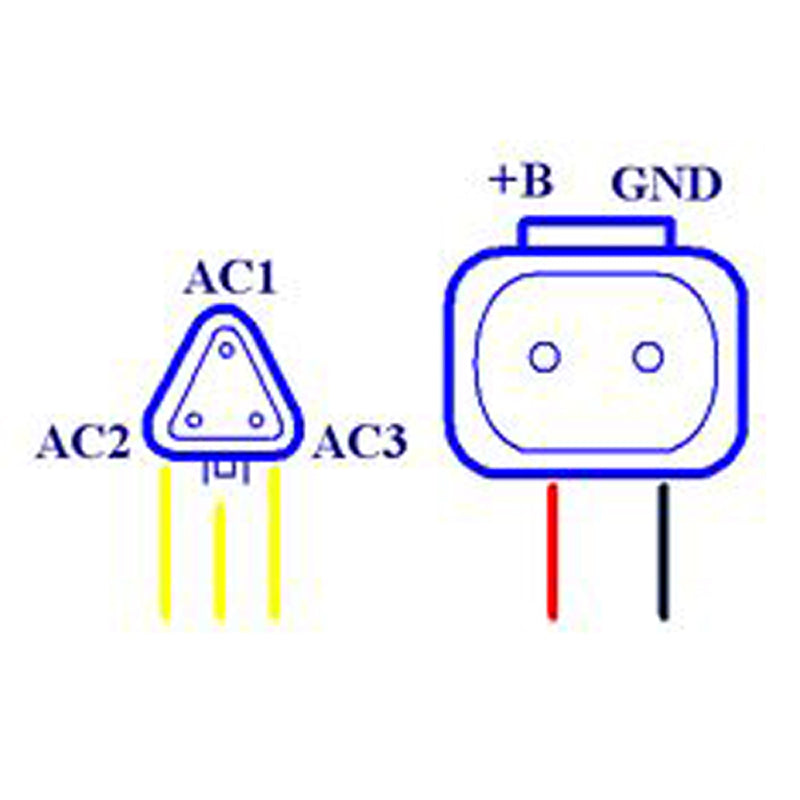

| Number of plugs | 2 |
| Number of pins | 5 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Less than 15 V |
| Operating temperature | -20 to 85 degrees C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Sea-Doo 1500 GTX 4-TEC | 2002-2007 |
| Sea-Doo 215 RXP | 2002-2007 |
| Sea-Doo Speedster 200 | 2002-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 278001969 | Sea-Doo |
| 278001581 | Sea-Doo |
| 15-110A | Brand not specified on the manufacturer listing |
Frequently Asked Questions
Does this fit without modification?

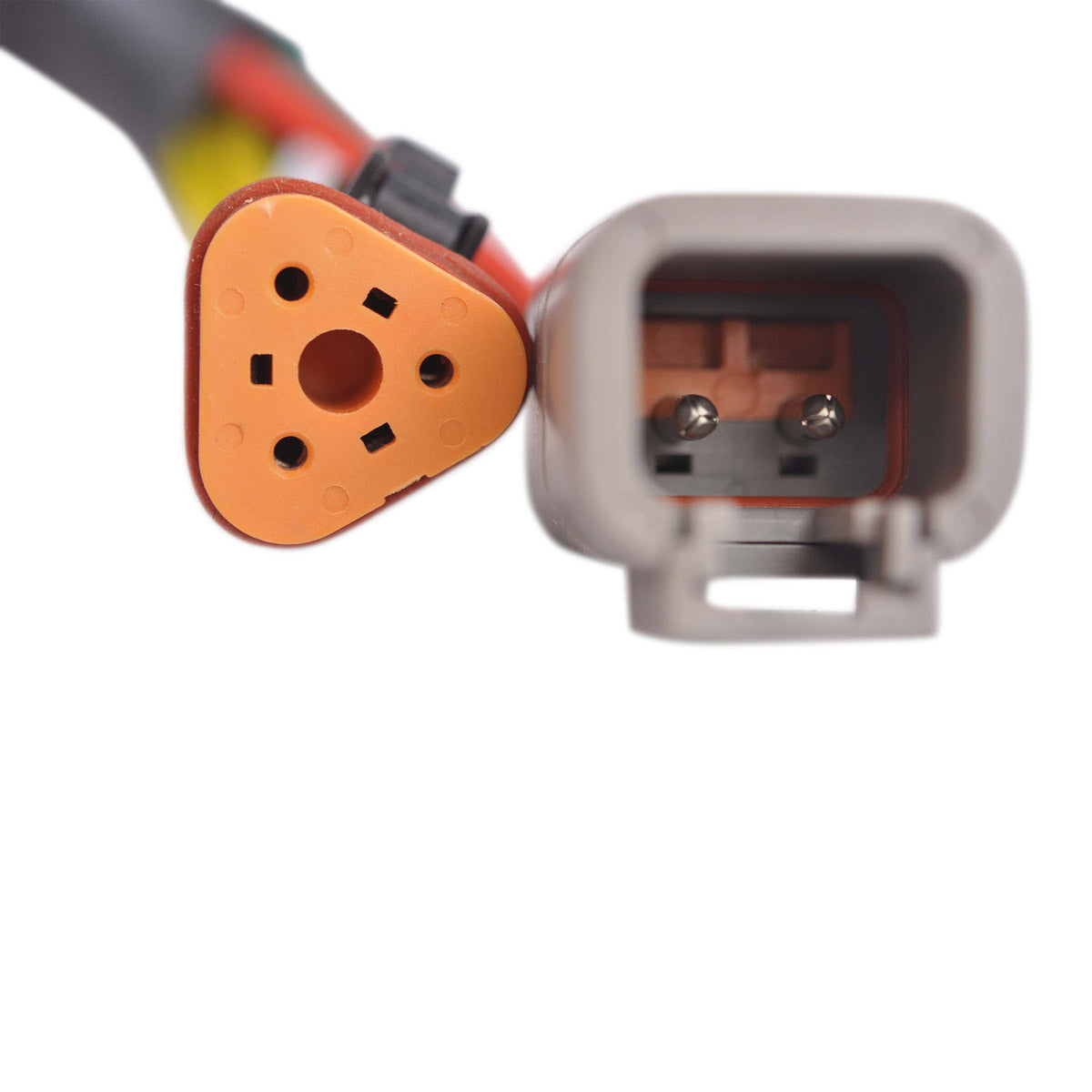

Yes. It is a direct replacement for the original unit, plug-and-play and a direct fit, with no assembly required. The mounting holes are 83 mm centre to centre and there are two plugs carrying five pins between them.
What is included?
The AC voltage regulator rectifier with 280 mm leads. No separate connector kit is listed for this part.
How do I know my old regulator has failed?
With the engine running, measure the voltage at the battery. A healthy system holds around 14.5 V. A reading that stays at resting battery voltage means the unit has stopped charging, and a reading above 15 V means it has stopped regulating and is overcharging. On a personal watercraft, also inspect the connectors: salt and damp corrode the pins, and a green or crusted plug will cause the same symptoms as a dead regulator.
How do I confirm this is the right part for my craft?
Check the number on the unit you are removing. If it is 278001969, 278001581 or 15-110A, RM30Y06 is the correct replacement.
