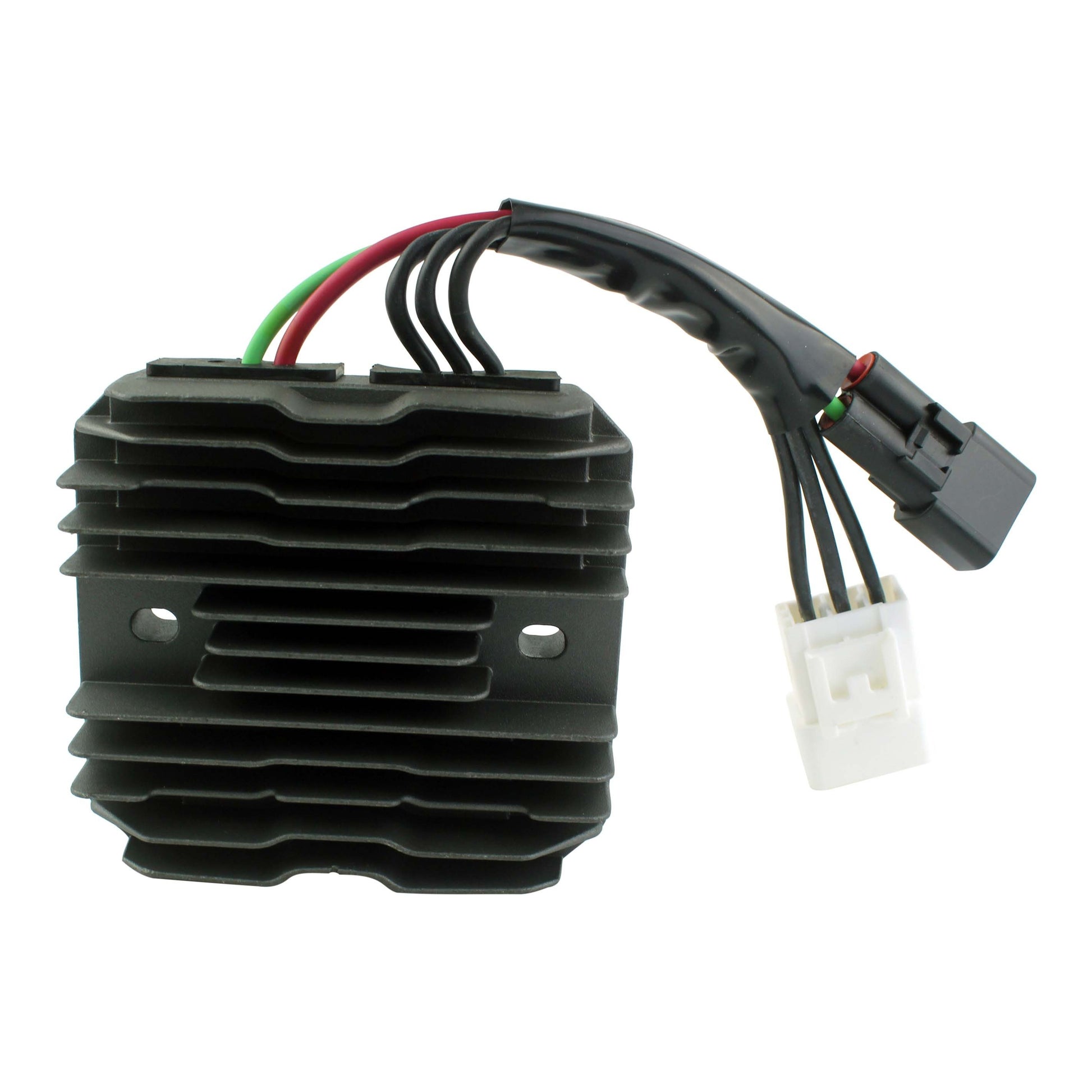

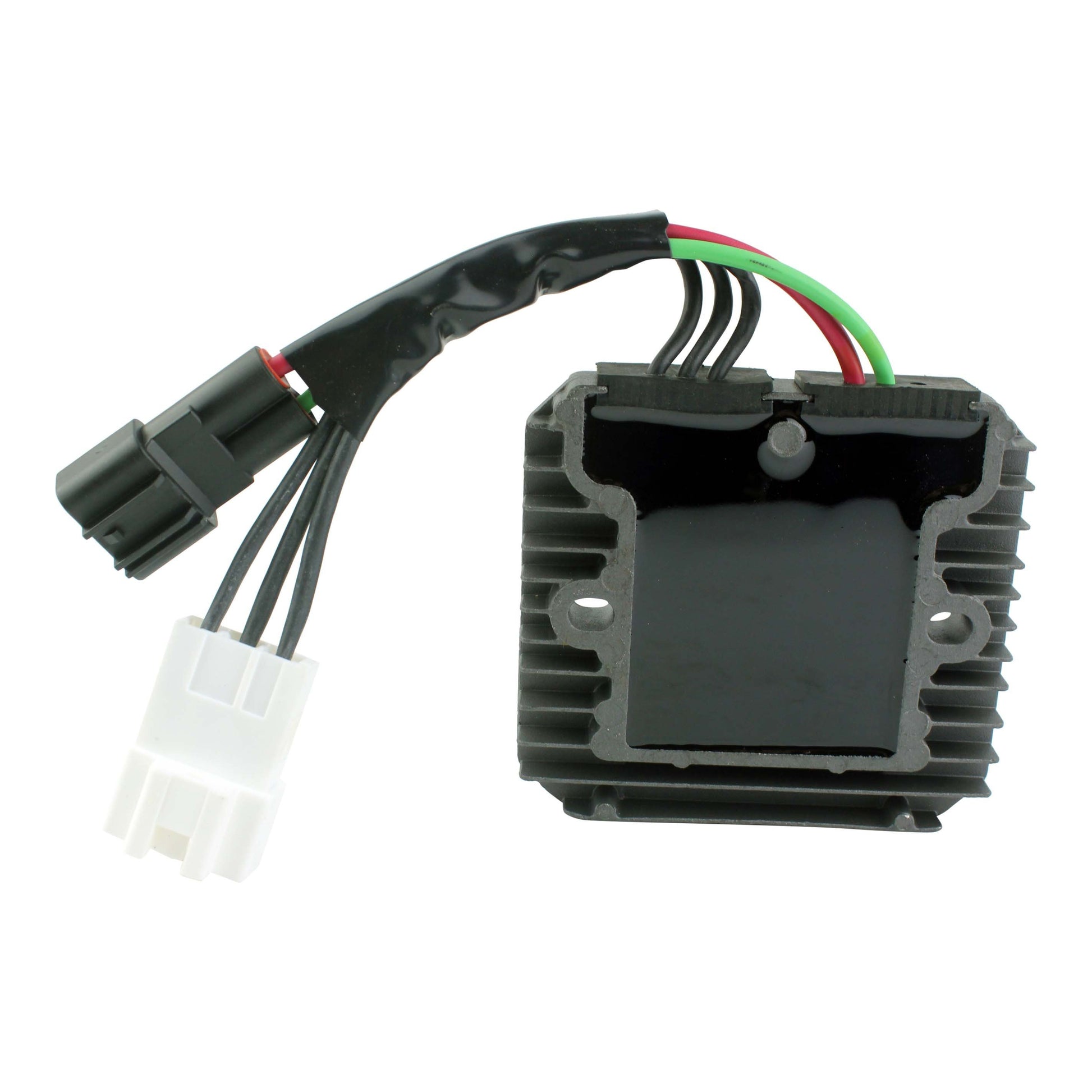

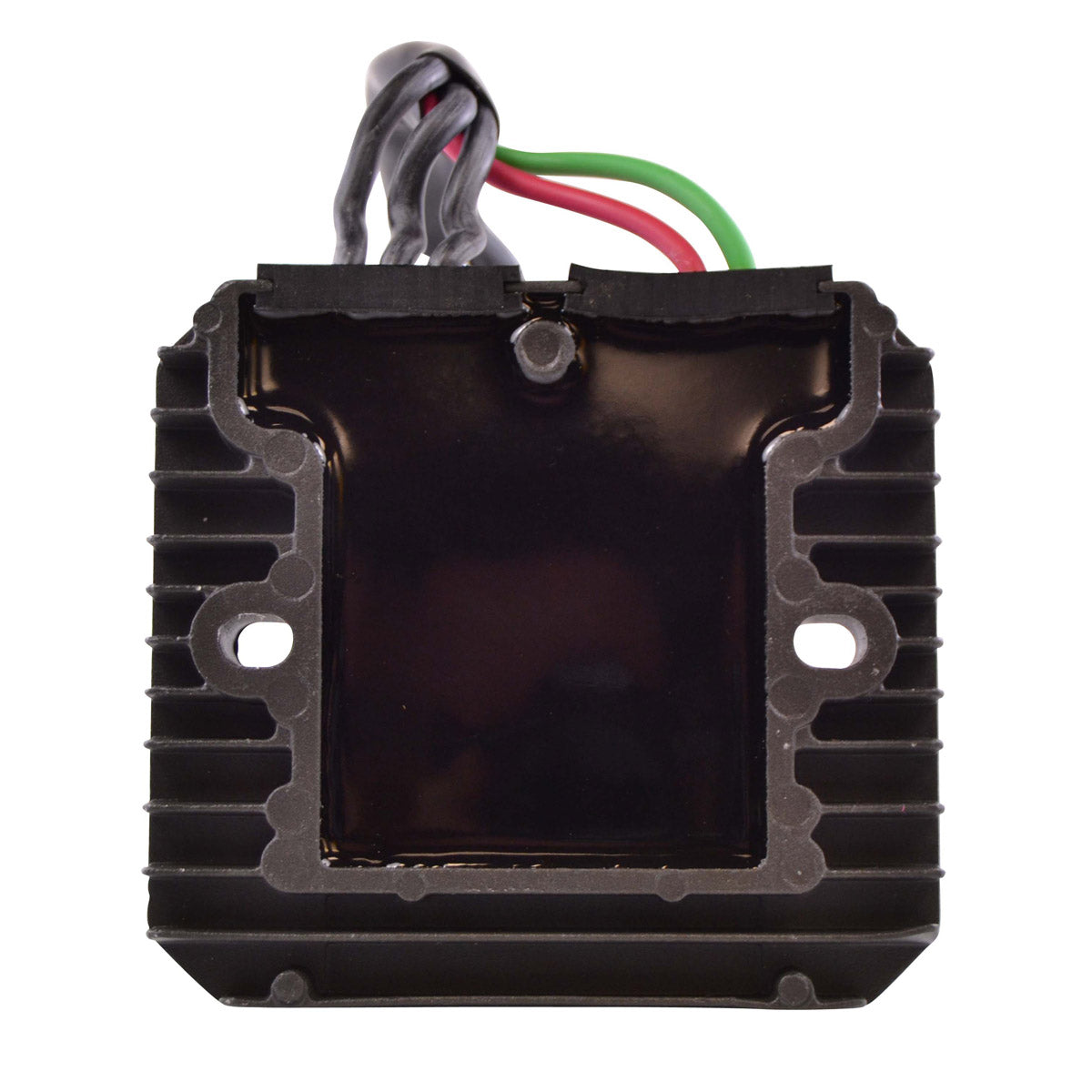

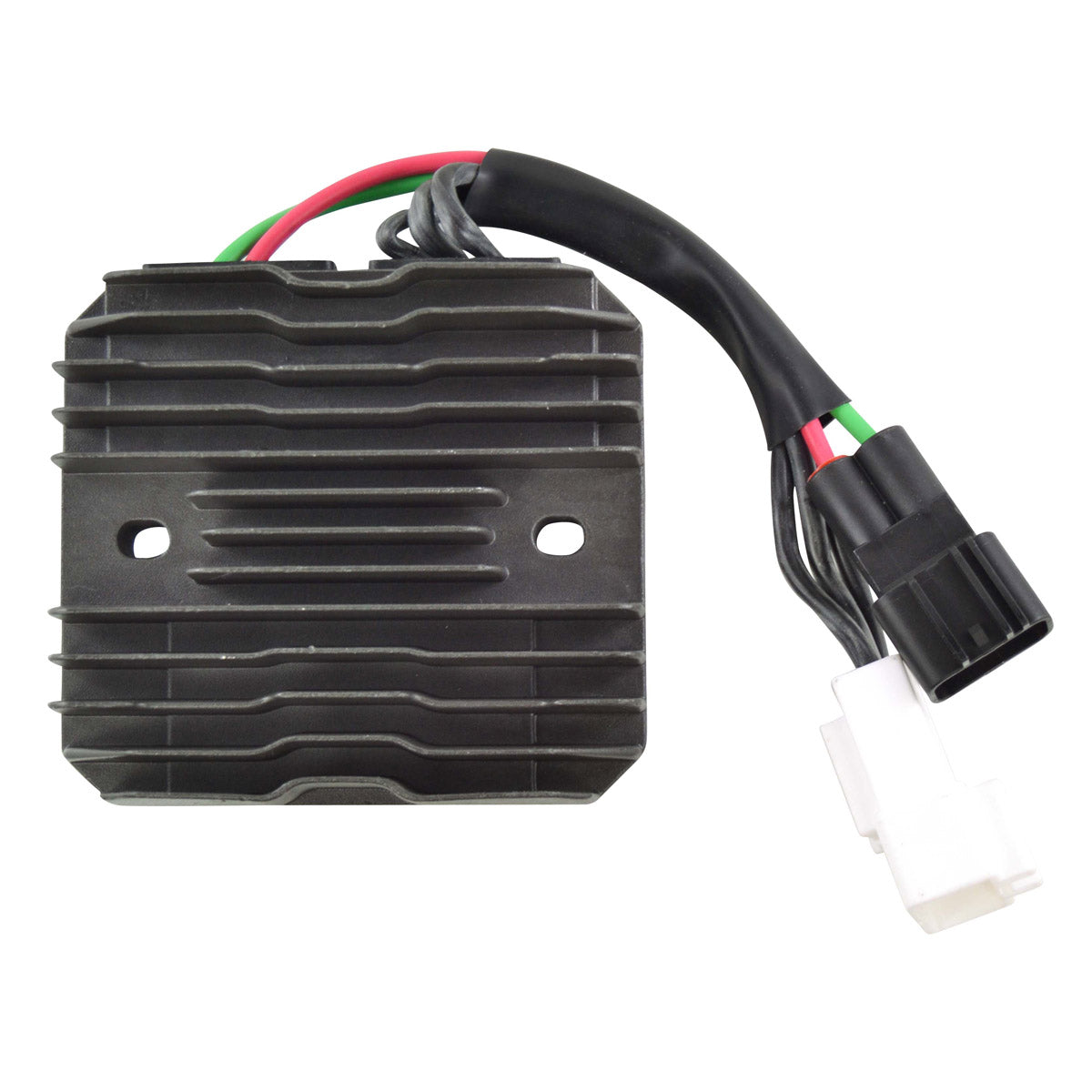

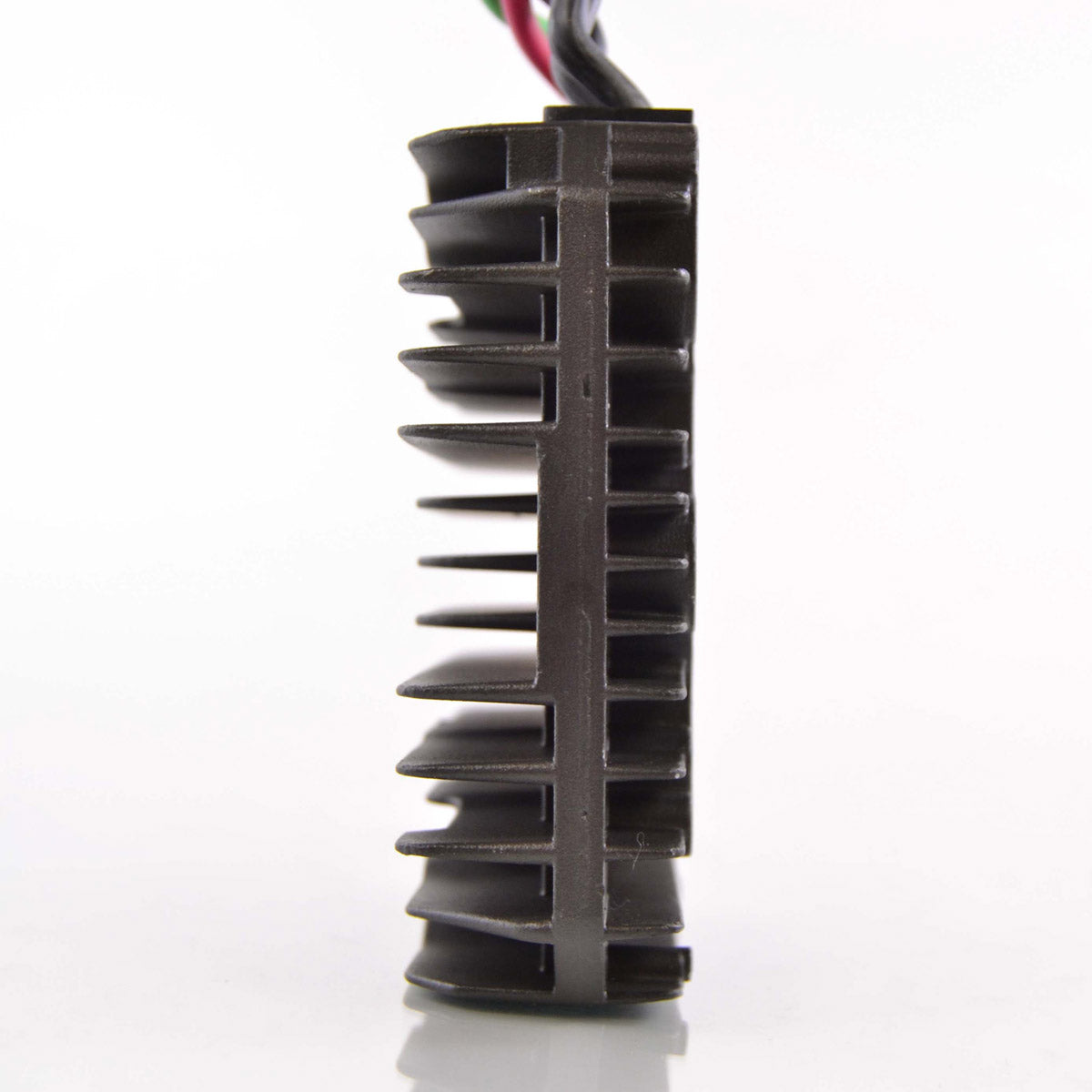

Voltage Regulator Rectifier for Suzuki Boulevard C109 / M109 and Burgman AN 650
Suzuki Boulevard C109, M109, R and Burgman AN 650 / 1800 - 2003-2009 - Part number RM30337
This is a brand new aftermarket voltage regulator rectifier built as a direct replacement for the original unit fitted to the Suzuki Boulevard C109 and M109 1800 cruisers and the Burgman AN 650 maxi-scooter. It is a plug-and-play, direct fit part: the old regulator comes off and this one goes straight on in its place, using the same two factory plugs and the same mounting points. No assembly is required and nothing on the wiring loom needs to be cut, spliced or adapted.
The regulator rectifier does two jobs at once. It rectifies the alternating current produced by the stator into the direct current your battery and electrical system actually run on, and it regulates that output so the charging voltage is held at a safe level rather than climbing with engine speed. When the unit fails, one of two things usually happens: the charging output collapses and the battery is slowly drained until the bike will not start, or regulation is lost and the battery is overcharged and cooked. This replacement is manufactured with a higher grade of electric components than the original part, and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket unit, direct replacement for the original regulator rectifier
- Plug-and-play direct fit - no assembly required and no modification to the loom
- Built with a higher grade of electric components than the original part

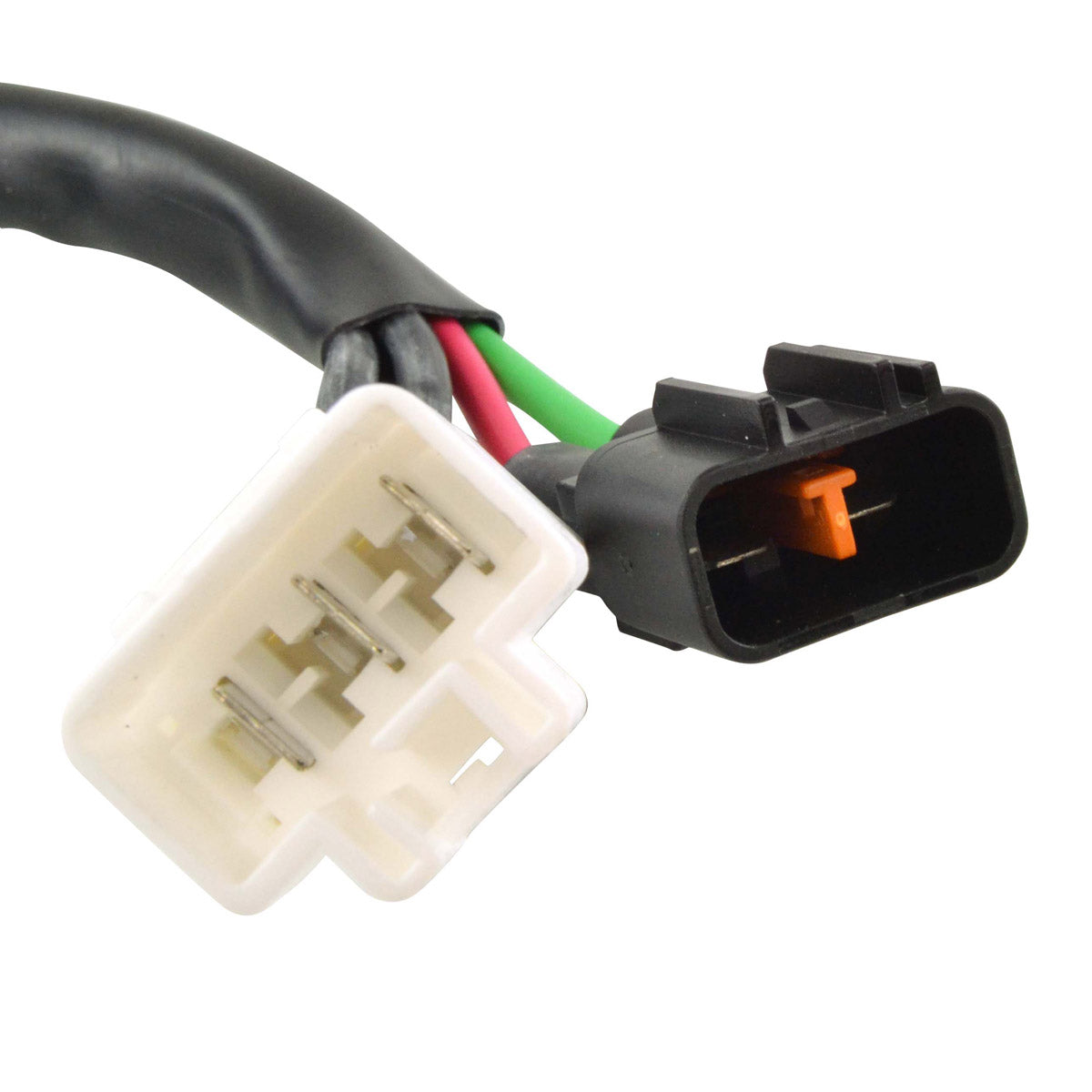

- Two plugs, five pins and five wires, matching the factory connector layout
- Wire lengths of 130 mm and 160 mm
- Charging output regulated at 14.5 V +/- 0.5 V
- Rated for a maximum charging current of 50 A / 500 W
- Open circuit voltage held below 15 V
- Rated for operation from -20 C to 85 C
- Mounting holes at 77 mm centre to centre for a bolt-in fit
- Tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30337 |
| Width | 100 mm |
| Length | 110 mm |
| Height | 35 mm |
| Fixation holes, centre to centre | 77 mm |
| Wire lengths | 130 mm and 160 mm |
| Number of plugs | 2 |
| Number of pins | 5 |
| Number of wires | 5 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | <15 V |
| Operation temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki Boulevard C109 / C109 R (1800) | 2003-2009 |
| Suzuki Boulevard M109 / M109 R (1800) | 2003-2009 |
| Suzuki Burgman AN 650 | 2003-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32800-10G00 | Suzuki |
| 32800-10G10 | Suzuki |
| 32800-10G20 | Suzuki |
Frequently Asked Questions
Will this fit without modifying my bike?
Yes. This is a direct fit, plug-and-play replacement. It uses the same two plugs with five pins and five wires as the original unit, and the mounting holes are 77 mm apart centre to centre so it bolts to the standard bracket. No assembly is required and no cutting, splicing or adapting of the loom is needed.
What is included?
One RM30337 voltage regulator rectifier, supplied with its two connector plugs and wiring pigtails at 130 mm and 160 mm. No mounting hardware, loom adaptors or fitting accessories are supplied, so keep the original bolts when you remove the old unit.
How do I know my old regulator rectifier has failed?
The usual signs are a battery that keeps going flat, dim or flickering lights, or a battery that runs hot and loses electrolyte from overcharging. The quickest check is to measure the voltage at the battery terminals with the engine running: a healthy system should sit at around 14.5 V. A reading well below that means the unit is not charging, and a reading above 15 V means regulation has been lost. Both point to a failed regulator rectifier.
What does the 50 A / 500 W rating mean in practice?
That is the maximum charging current and power the unit is rated to handle. It gives comfortable headroom over the standard electrical load on these machines, so the regulator is not working at its limit when the lights, heated grips and other accessories are all drawing at once. The unit is also rated to operate from -20 C to 85 C.
