Regulator Rectifier for Suzuki Boulevard S50 VS800 1993-2009, Compatible with Multiple Suzuki Models
Regulator Rectifier for Suzuki Boulevard S50 VS800 1993-2009, Compatible with Multiple Suzuki Models
SKU:RM30010
Free shipping over £150. Terms apply
Couldn't load pickup availability
Voltage Regulator Rectifier 50A - RM30010
Suzuki Boulevard S50 and S83, Intruder VS800 and VS1400, DR 650 S and SE - 1992-2009

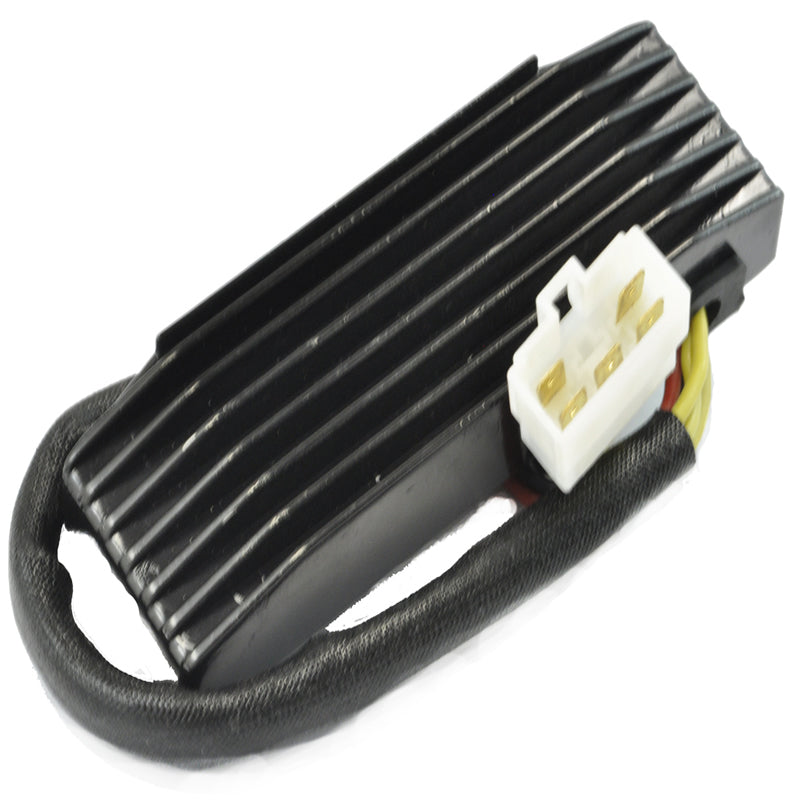

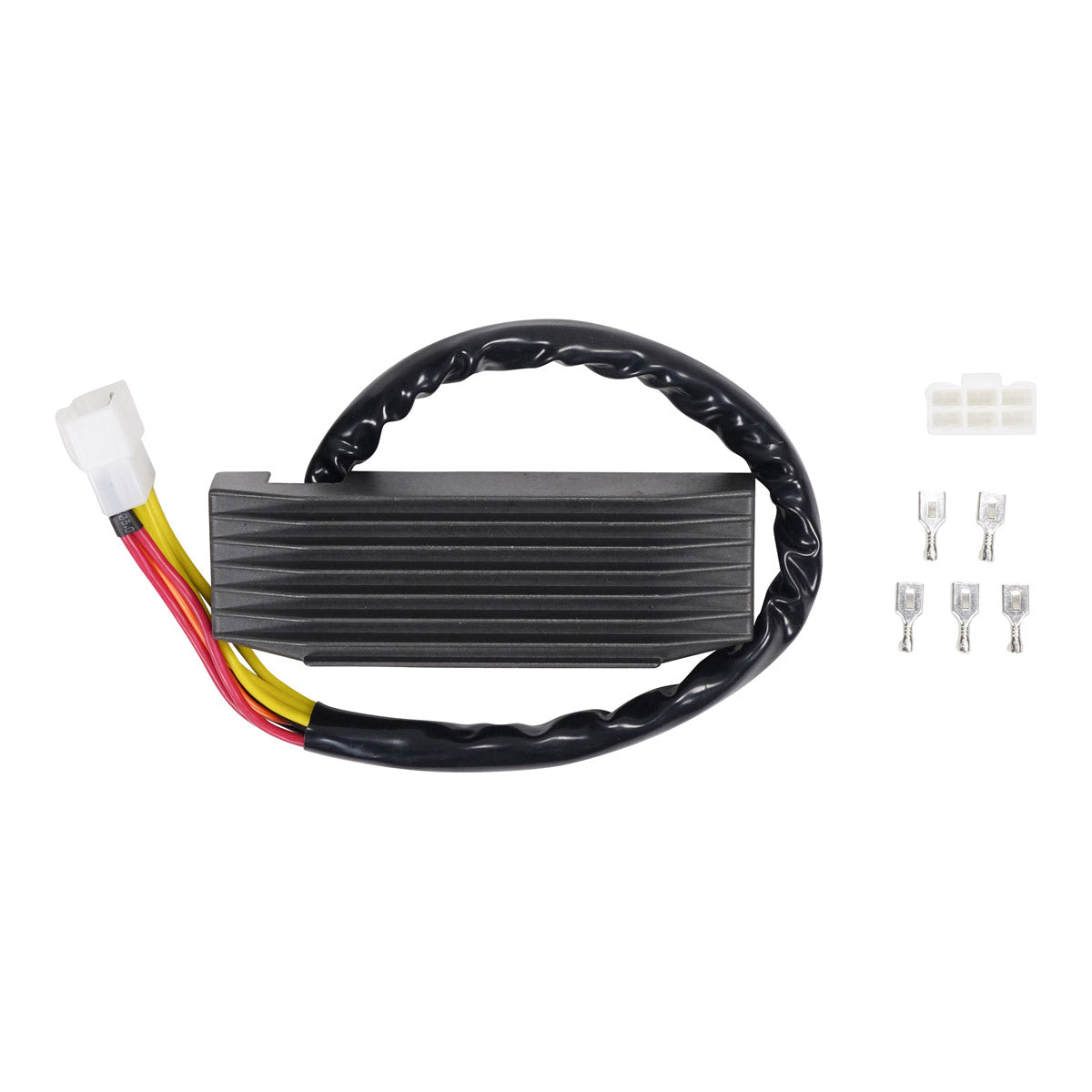

The RM30010 is a brand new voltage regulator rectifier covering a wide span of Suzuki cruisers and the DR 650 single, from the Boulevard S50 and S83 through the Intruder VS800 and VS1400 to the DR 650 S and SE. It is a direct replacement for the original unit - plug-and-play, direct fit and easy to install, with no assembly required. The quality exceeds the OEM equipment, the heat sink and charging capabilities are improved on the original design, and a higher grade of electrical component is used throughout.

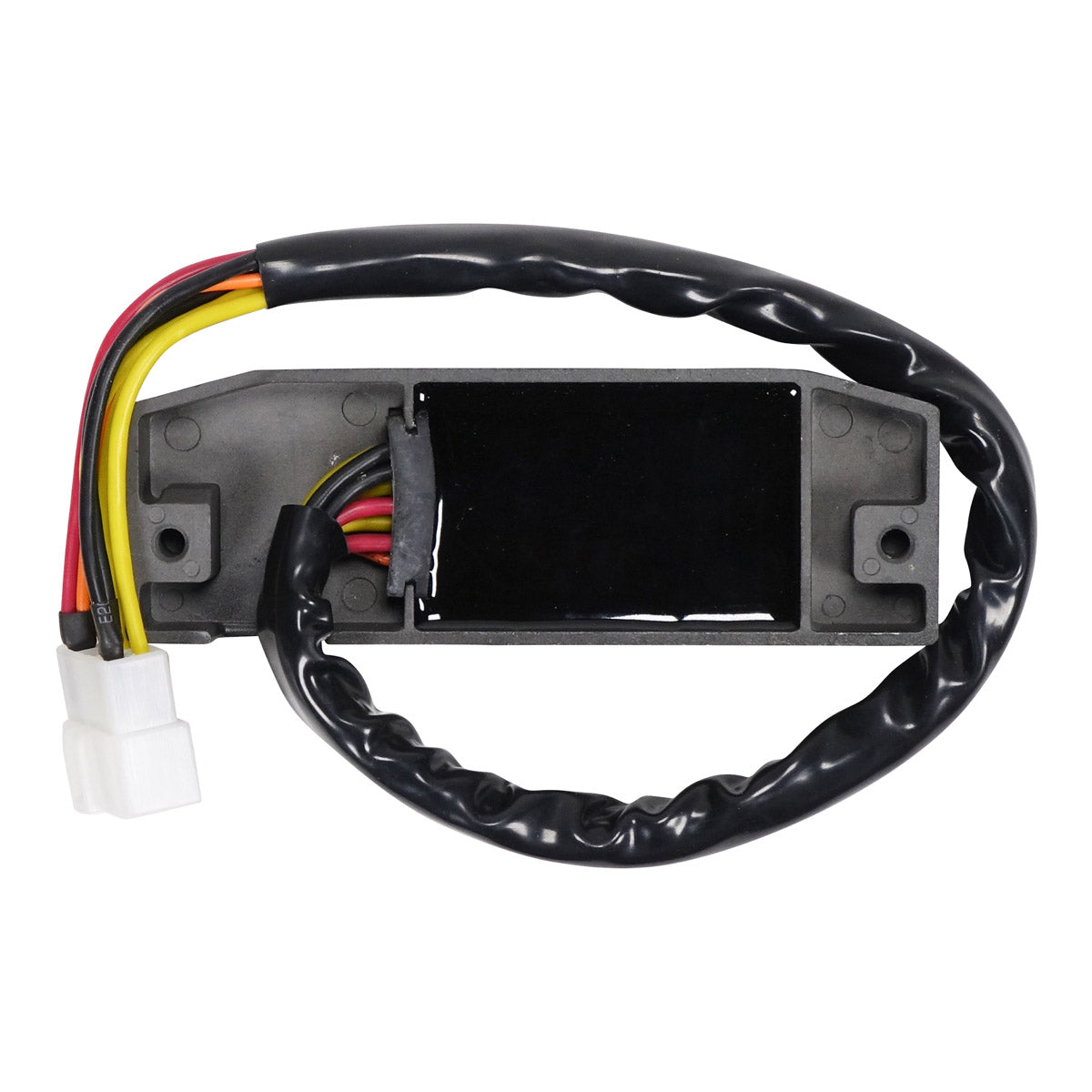

This is a long, slim unit: 50 mm wide, 145 mm long and 25 mm high, with a generous 130 mm between the fixation hole centres and 440 mm wires, which suits the mounting positions used across these models. It carries a single six-pin plug on five wires. Electrically it is rated at a maximum charging current of 50 A / 500 W with a minimum charging voltage of 14.5 V plus or minus 0.5 V, open circuit voltage held below 15 V, and an operating range of -20 C to 85 C. Every unit is tested before it ships. Please note that there are two possible regulators for the VS 1400 GL Intruder depending on the year of the machine: this regulator is the one that fits the 1996-2004 VS 1400 GL Intruder.
Key Features
- Brand new unit, a direct replacement for the original
- Plug-and-play, direct fit, easy installation with no assembly required
- Quality that exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade electrical components throughout
- Maximum charging current of 50 A / 500 W
- Minimum charging voltage of 14.5 V +/- 0.5 V
- Long 440 mm wires and 130 mm fixation hole spacing

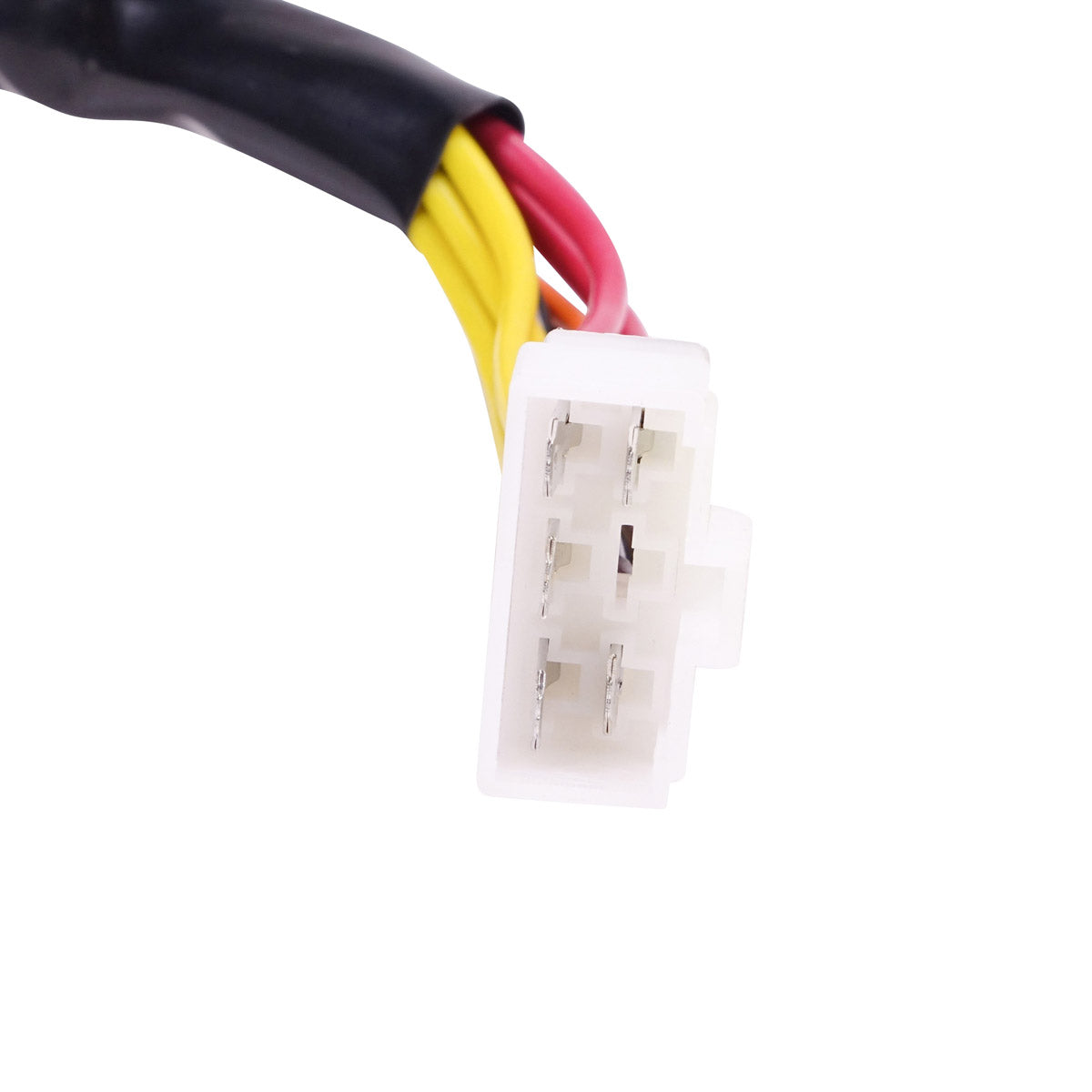

- Single six-pin plug on five wires
- Every unit is tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30010 |
| Width | 50 mm |
| Length | 145 mm |
| Height | 25 mm |
| Wire length | 440 mm |
| Fixation holes, centre to centre | 130 mm |
| Number of plugs | 1 |
| Number of pins | 6 |
| Number of wires | 5 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Below 15 V |
| Operating temperature | -20 C to 85 C |
Vehicle Fitment Guide
The years shown are the overall model year span served by this regulator. Please confirm your own machine against the OEM part number cross reference below before ordering.
| Make & Model | Years |
|---|---|
| Suzuki Boulevard S50 (VS800) | 1992-2009 |
| Suzuki Boulevard S83 (VS1400) | 1992-2009 |
| Suzuki Intruder VS800 | 1992-2009 |
| Suzuki Intruder VS1400 | 1992-2009 |
| Suzuki Intruder VS 1400 GL | 1996-2004 |
| Suzuki DR 650 S | 1992-2009 |
| Suzuki DR 650 SE | 1992-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32800-12E01 | Suzuki |
| 32800-12E00 | Suzuki |
Frequently Asked Questions
Does this fit without modification?
Yes. It is a plug-and-play, direct fit replacement with no assembly required. The mounting holes sit 130 mm apart centre to centre and the unit uses a single six-pin plug on five 440 mm wires, so those figures are worth checking against the part currently fitted.
I have a VS 1400 GL Intruder - is this the right one?
There are two possible regulators for the VS 1400 GL Intruder depending on the year of the machine. This regulator is the one that fits the 1996-2004 VS 1400 GL Intruder. If your machine falls outside those years, check the OEM number on your existing unit against 32800-12E01 and 32800-12E00 before ordering.
What is included?
The voltage regulator rectifier unit, tested before dispatch. No assembly is required, and the unit is supplied ready to plug into the existing harness connector.
How do I know my old regulator has failed?
With the engine running, check the voltage across the battery terminals. A healthy system should reach a minimum charging voltage of 14.5 V plus or minus 0.5 V and hold below roughly 15 V. If the voltage never rises above resting battery level the rectifier side has failed; if it climbs well past 15 V the regulation side has failed and the battery is being overcharged.
