Voltage Regulator Rectifier for Suzuki
DR 650, GS 500 and GSF 400 Bandit - 1988-2002

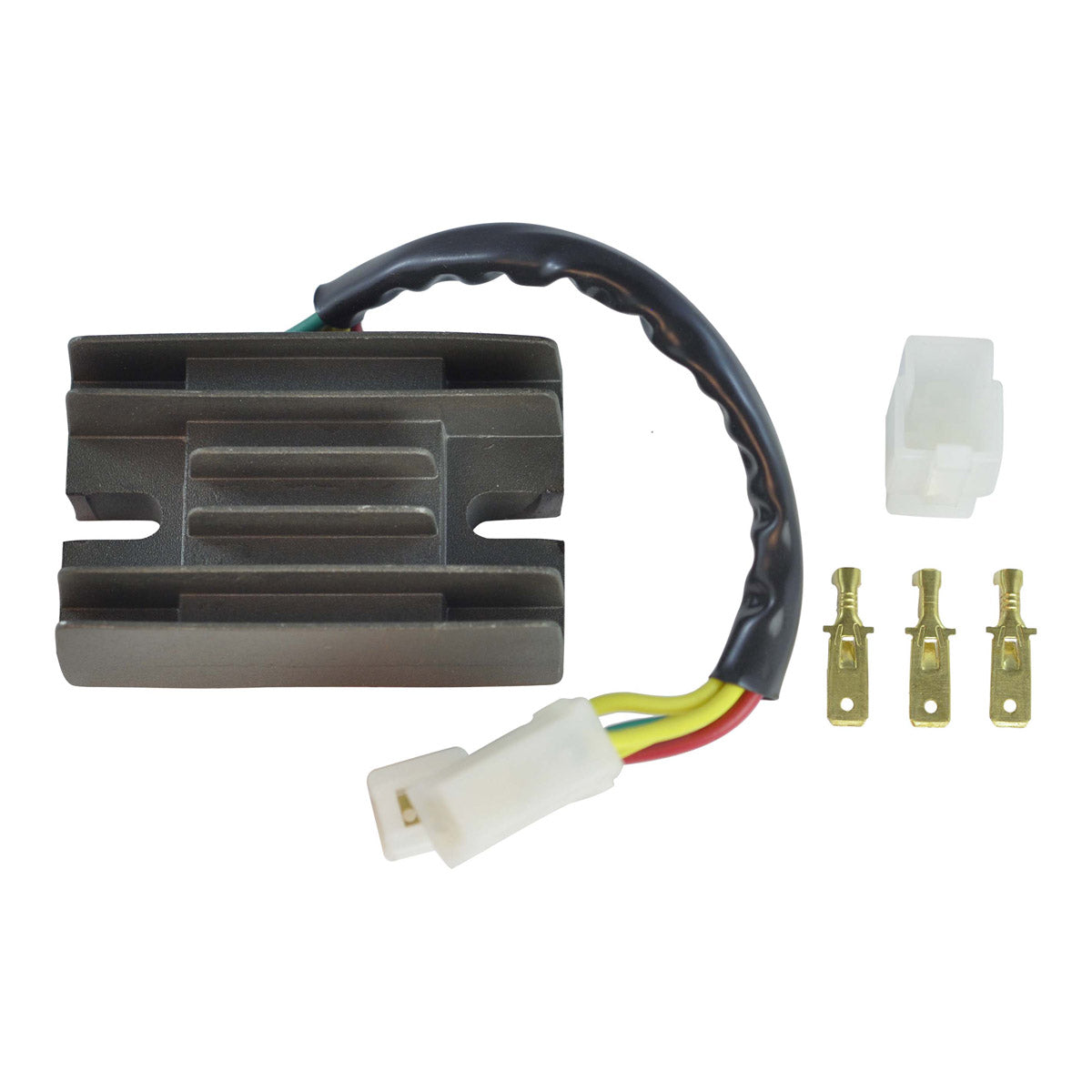

This is a brand new aftermarket voltage regulator rectifier, supplied as a direct replacement for the original unit on the Suzuki DR 650, GS 500 and GSF 400 Bandit. It does two jobs in one housing. The rectifier converts the alternating current made by the stator into direct current for the battery and the rest of the electrical system, and the regulator holds that output at a controlled level so the battery is charged fully but never overcharged. Installation is plug and play, a direct fit with no assembly required.

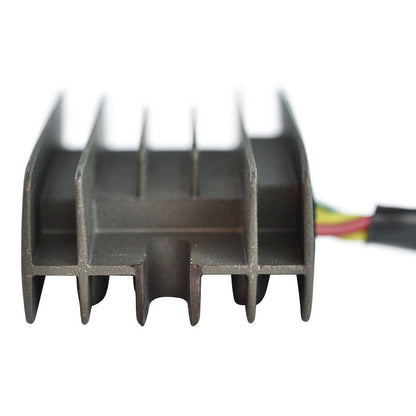

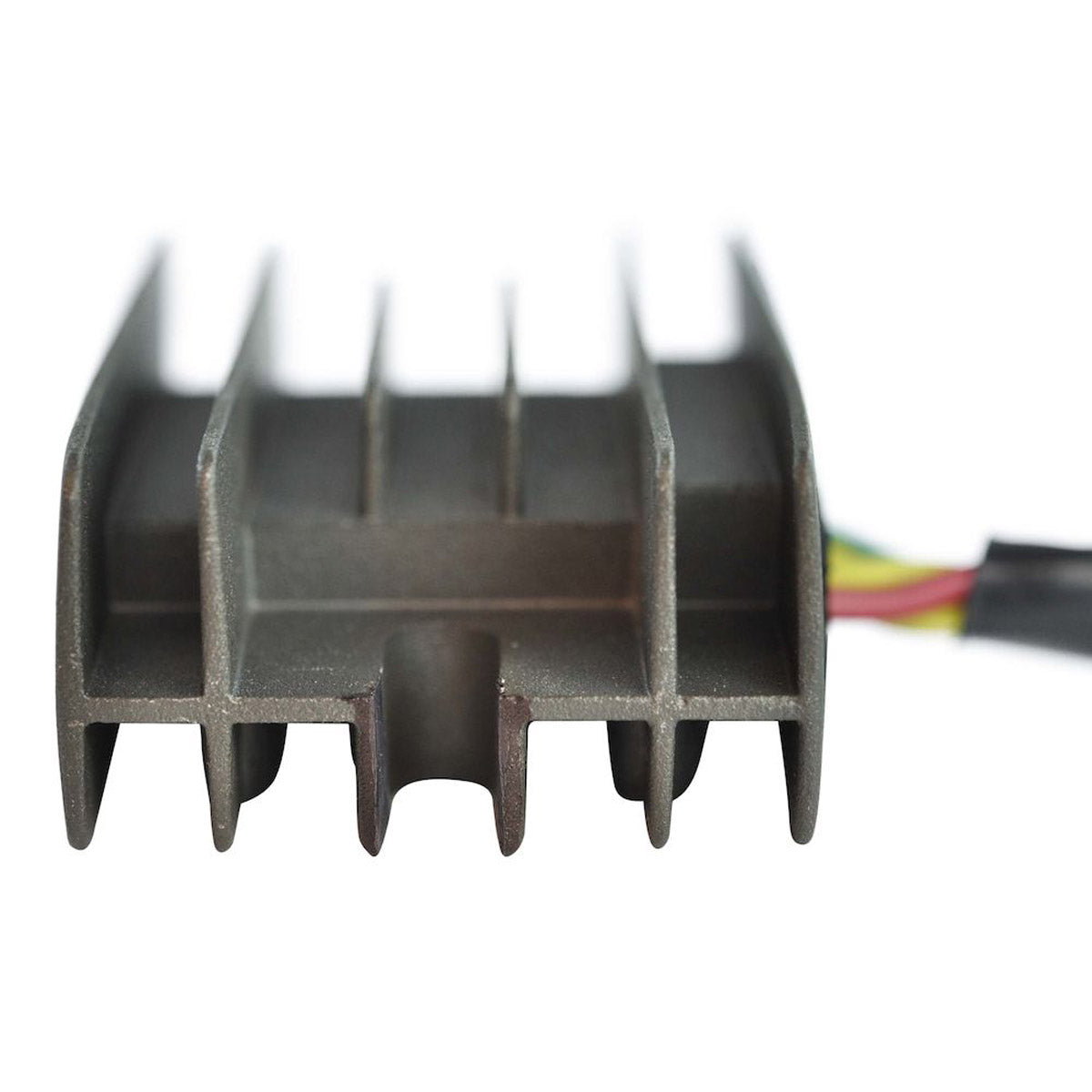

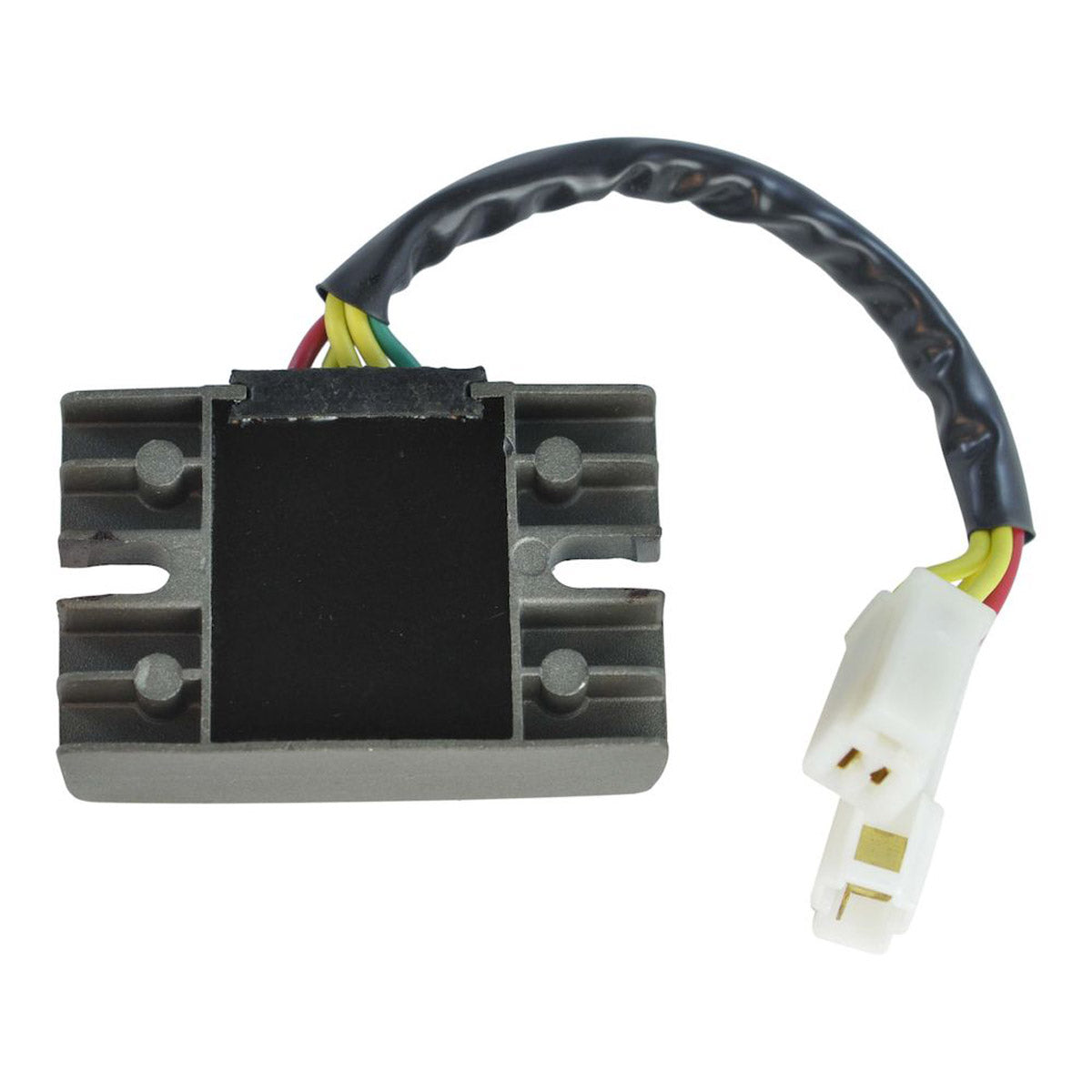

The unit is compact at 75 mm long by 50 mm wide by 25 mm high, with 60 mm centre to centre between the fixation holes and 200 mm of wire. It carries two plugs, five pins and five wires, and is rated to a maximum charging current of 25 A or 300 W. Higher grade electric components, an improved heat sink and better charging capability mean the quality exceeds the OEM equipment, and all products shipped are tested. An opposite connector for the main harness side is supplied with the part, because that connector frequently melts or corrodes and is itself a common cause of repeat charging faults. Part reference RM30407.
Key Features
- Brand new aftermarket unit, direct replacement to your original
- Plug and play, direct fit, easy installation, no assembly required
- Higher grade of electric components
- Improved heat sink and charging capabilities
- Quality exceeds the OEM equipment
- All products shipped are tested

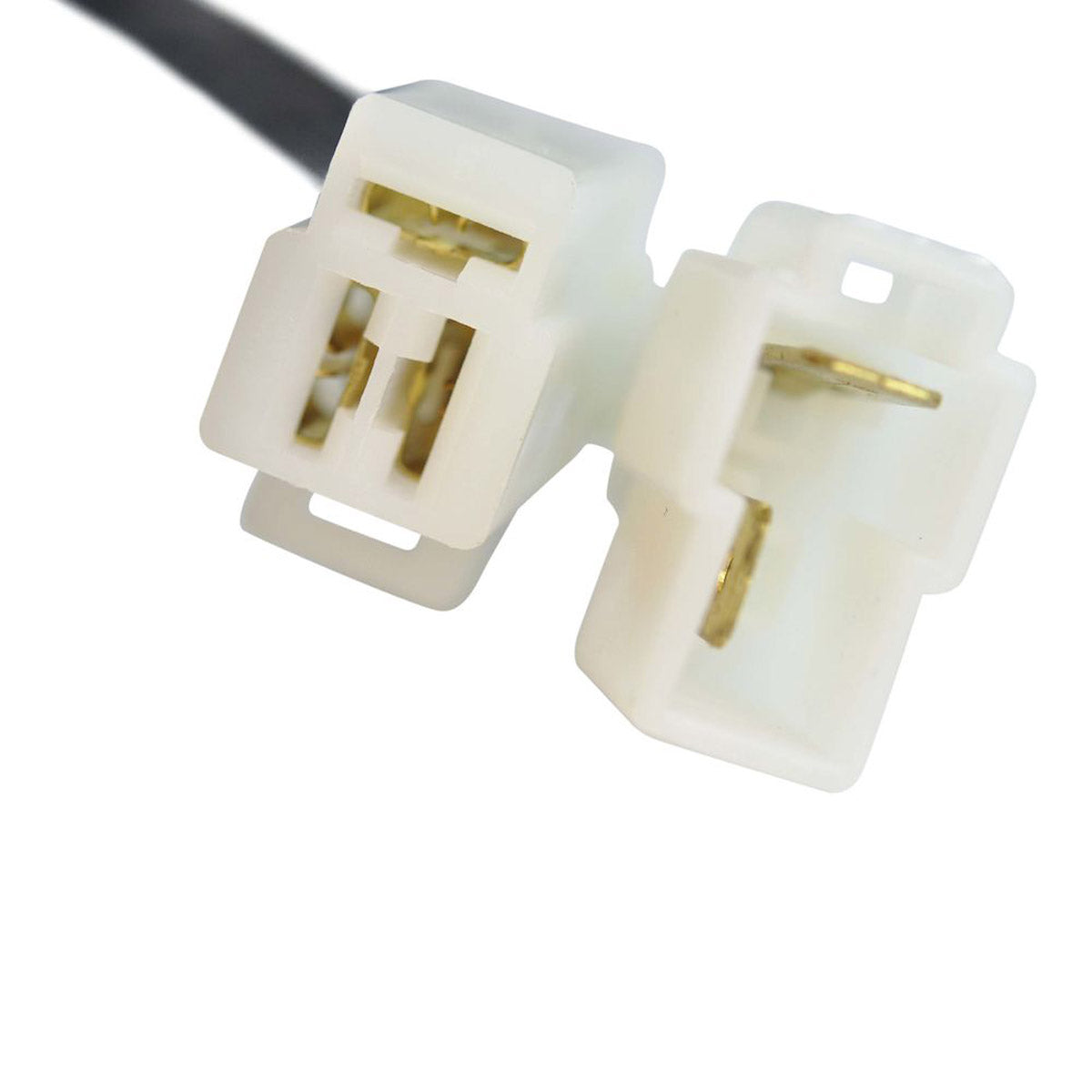

- Opposite connector for the main harness side included
Technical Specs
| Specification | Detail |
|---|---|
| Width | 50 mm |
| Length | 75 mm |
| Height | 25 mm |
| Wire length | 200 mm |
| Distance between fixation holes | 60 mm (centre to centre) |
| Number of plugs | 2 |
| Number of pins | 5 |
| Number of wires | 5 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 25 A / 300 W |
| Open circuit voltage | Under 15 V |
| Operation temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki DR 650 | 1988-2002 |
| Suzuki GS 500 | 1988-2002 |
| Suzuki GSF 400 Bandit | 1988-2002 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32800-33C00 | Suzuki |
| 32800-33C01 | Suzuki |
| 32800-30B01 | Suzuki |
Frequently Asked Questions
Will this fit without modification?
Yes. It is plug and play and a direct fit, with two plugs, five pins and five wires matching the factory layout and 60 mm centre to centre mounting holes. No assembly and no cutting or splicing is required.
What is included?
The voltage regulator rectifier unit plus the opposite connector for the main harness side, so both halves of the connection can be renewed together.
How do I know my old regulator rectifier has failed?
Measure across the battery terminals with the engine running. Around 14.5 V is correct. A reading that never rises above resting battery voltage means it has stopped charging; a reading above 15 V means it is overcharging, which boils the battery and blows bulbs. Repeatedly flat batteries, lights that dim or flare with revs, and a scorched or blistered regulator body are all typical.
Why is a harness connector supplied with the unit?
The regulator connector carries the full charging current, and on these bikes the harness side is often found melted or corroded. A damaged connector will overheat and take out a new regulator, so replacing both sides at once is the durable repair.
