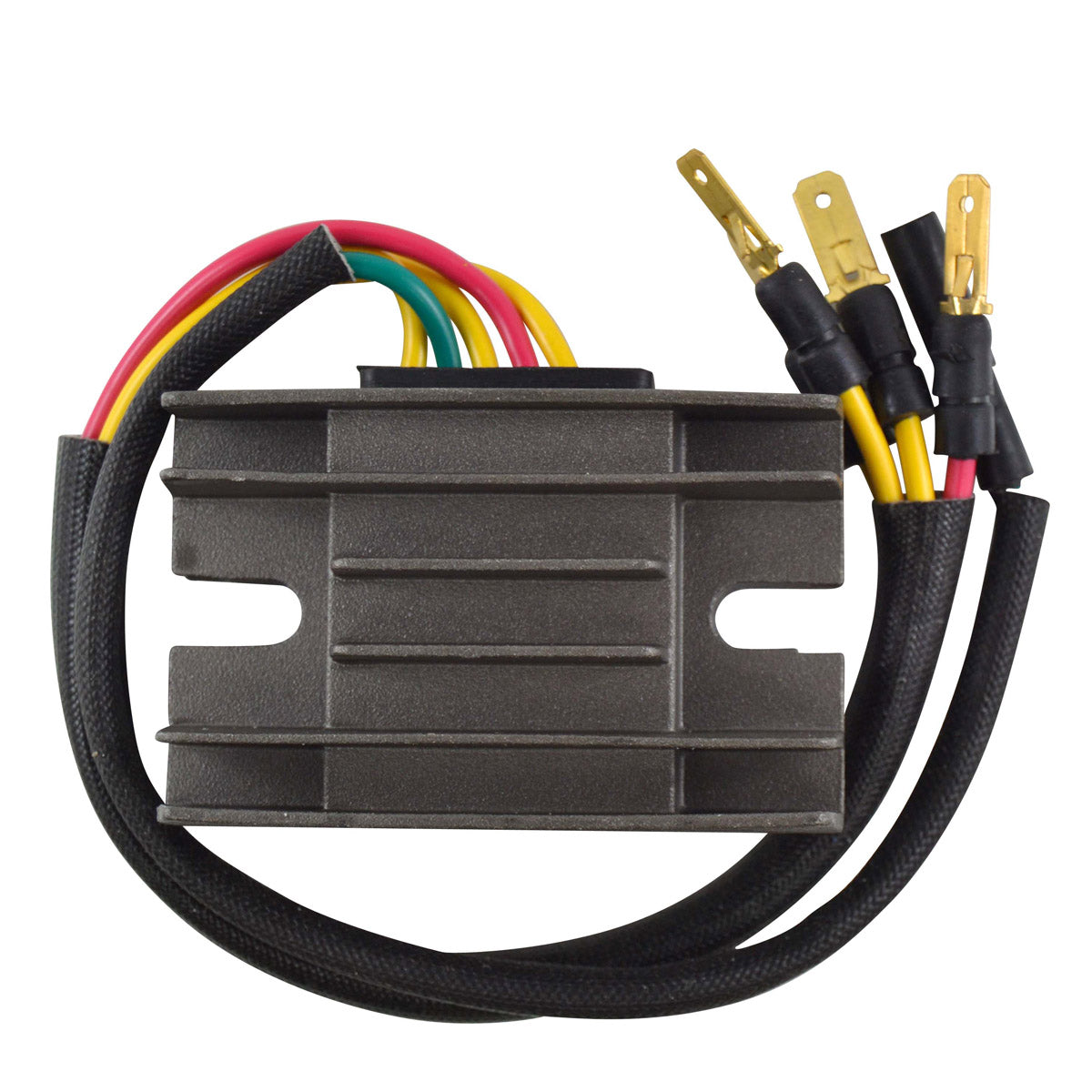

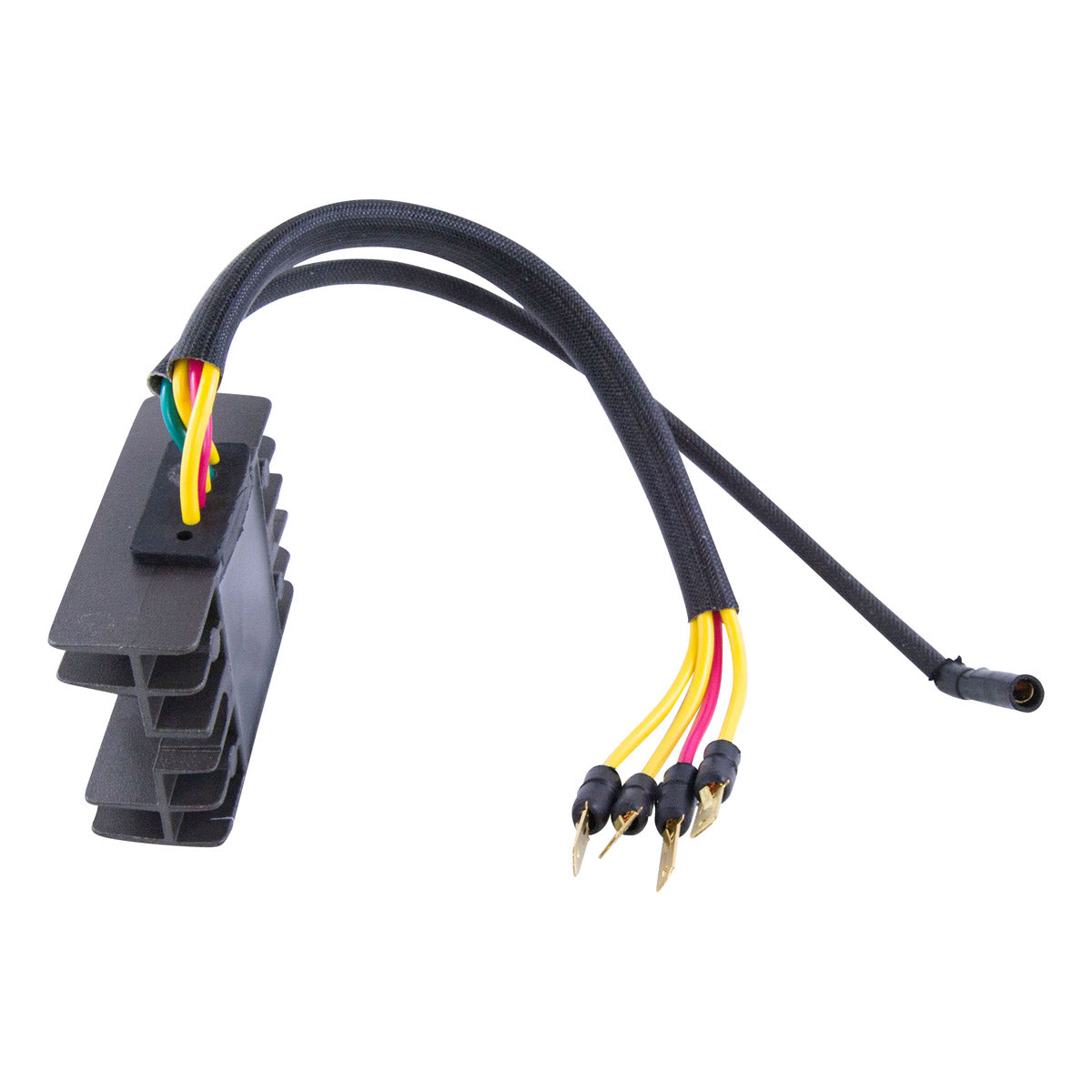

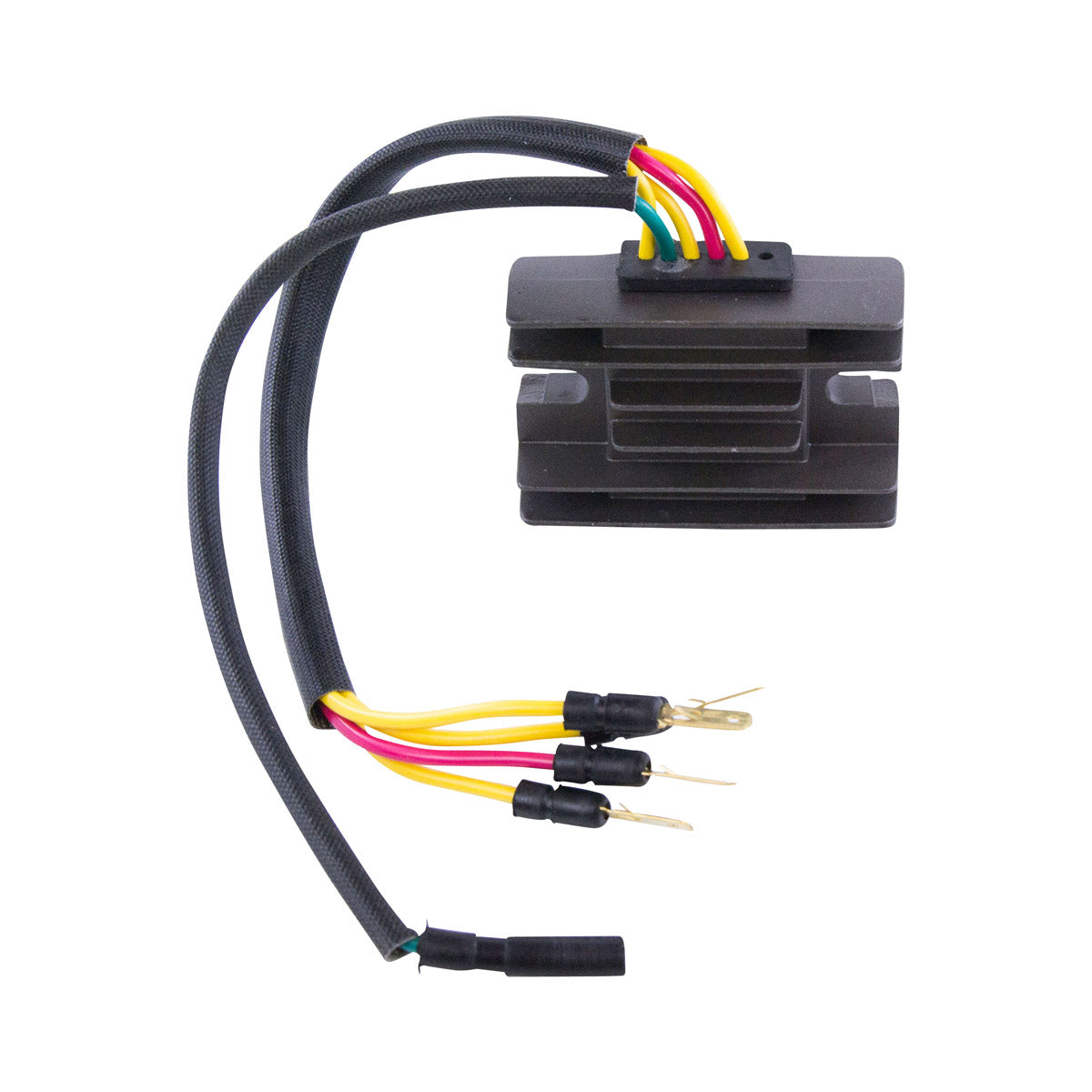

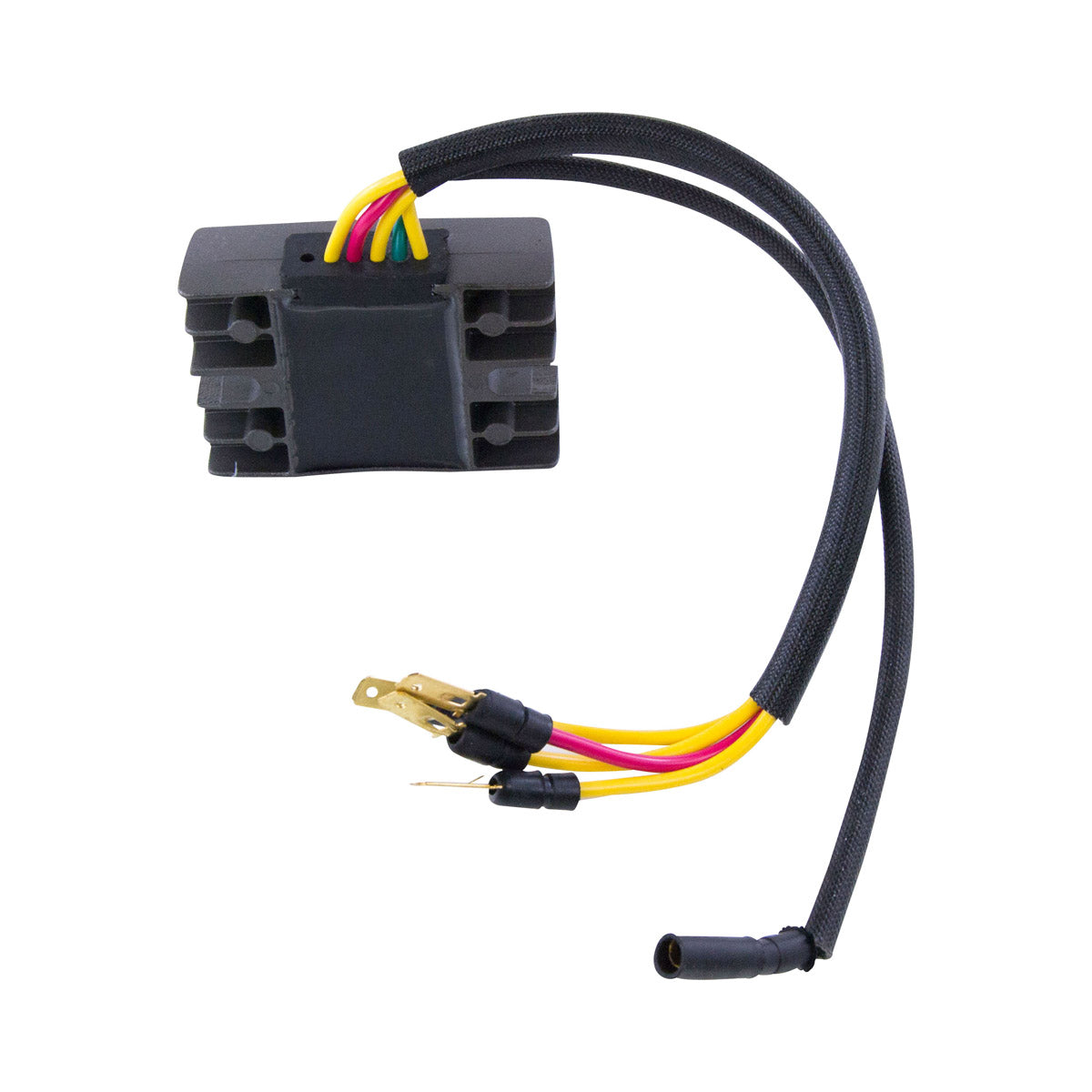

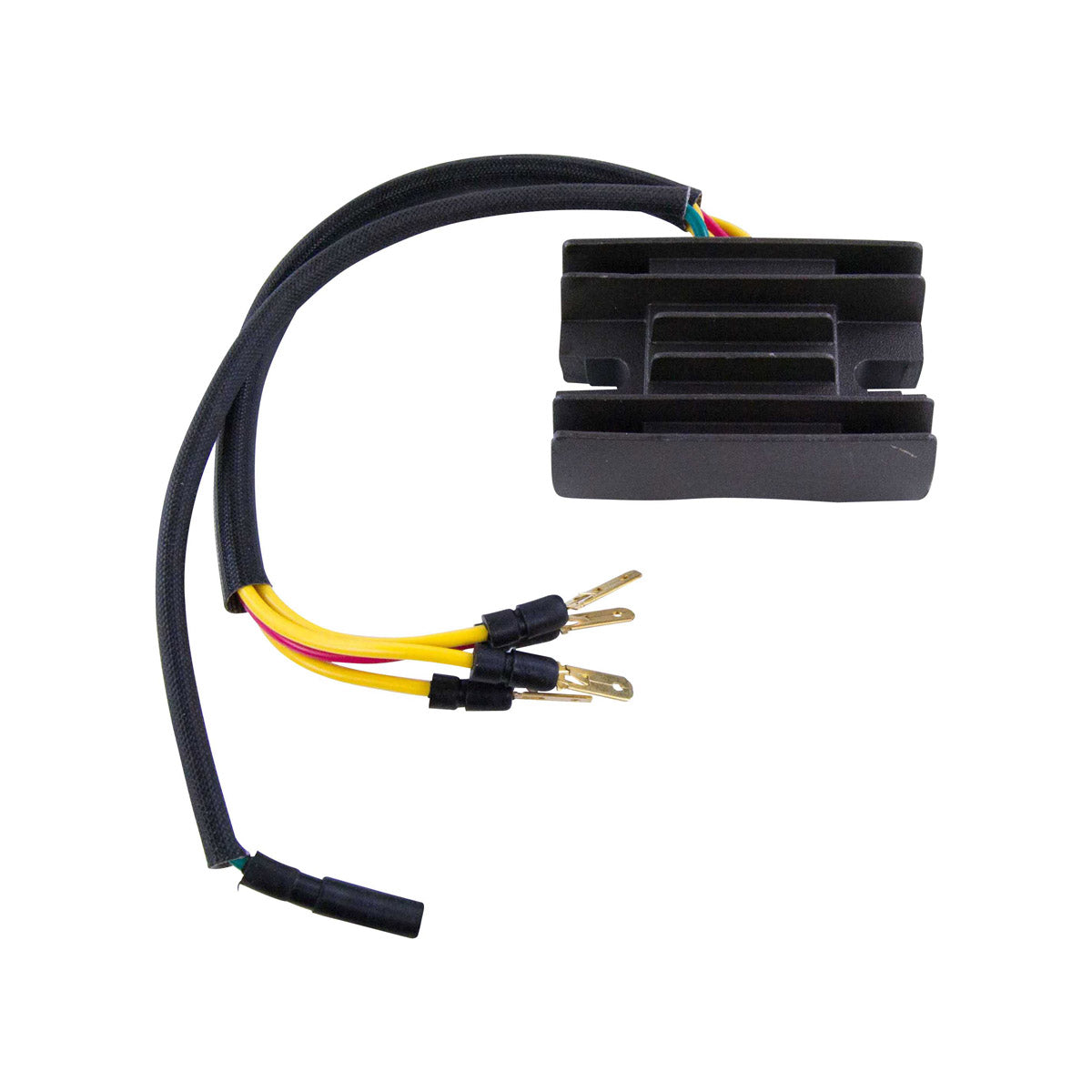

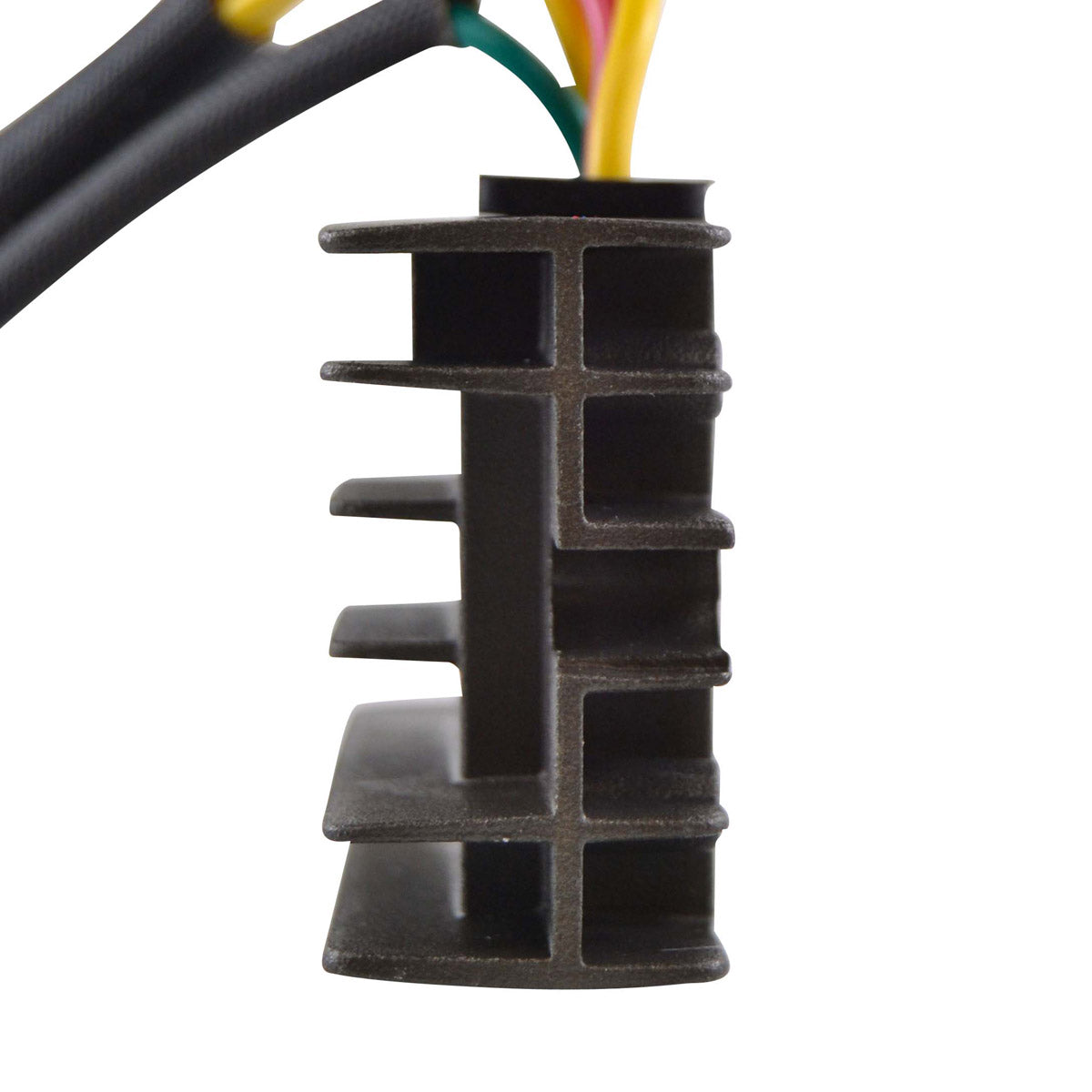

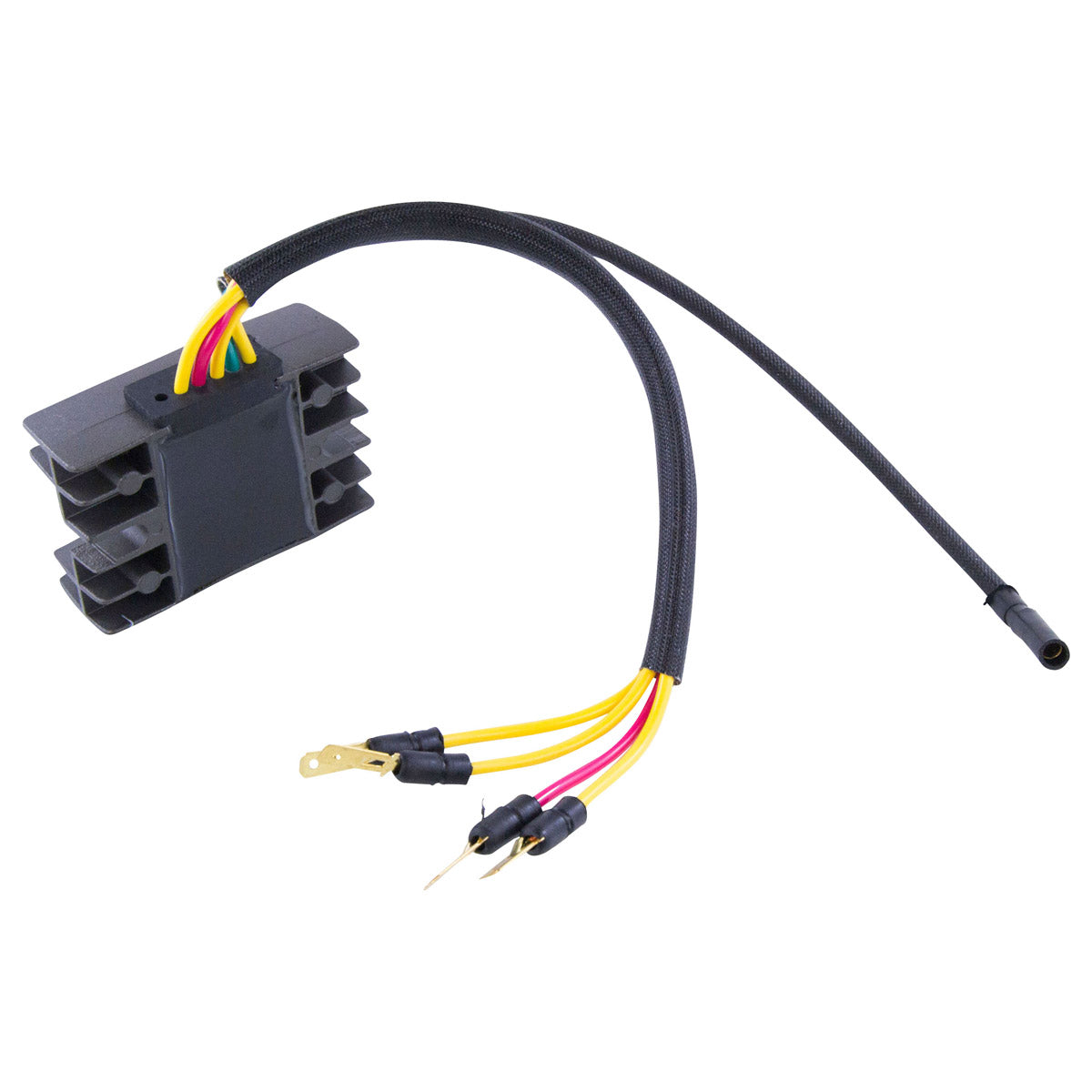

Voltage Regulator Rectifier - RM30002
Suzuki GS 300, 450, 650, 700, 750, 1000, 1100 and 1150 - 1982-1988
The RM30002 is a brand new aftermarket voltage regulator rectifier for the air-cooled Suzuki GS range built between 1982 and 1988. It is a direct replacement for the original unit: plug-and-play, direct fit and easy to install, with no assembly required. The regulator rectifier is the component that converts the alternating current produced by the stator into direct current the battery can accept, and then holds that output at a safe level. When it fails, the machine either stops charging or steadily overcharges and destroys the battery.

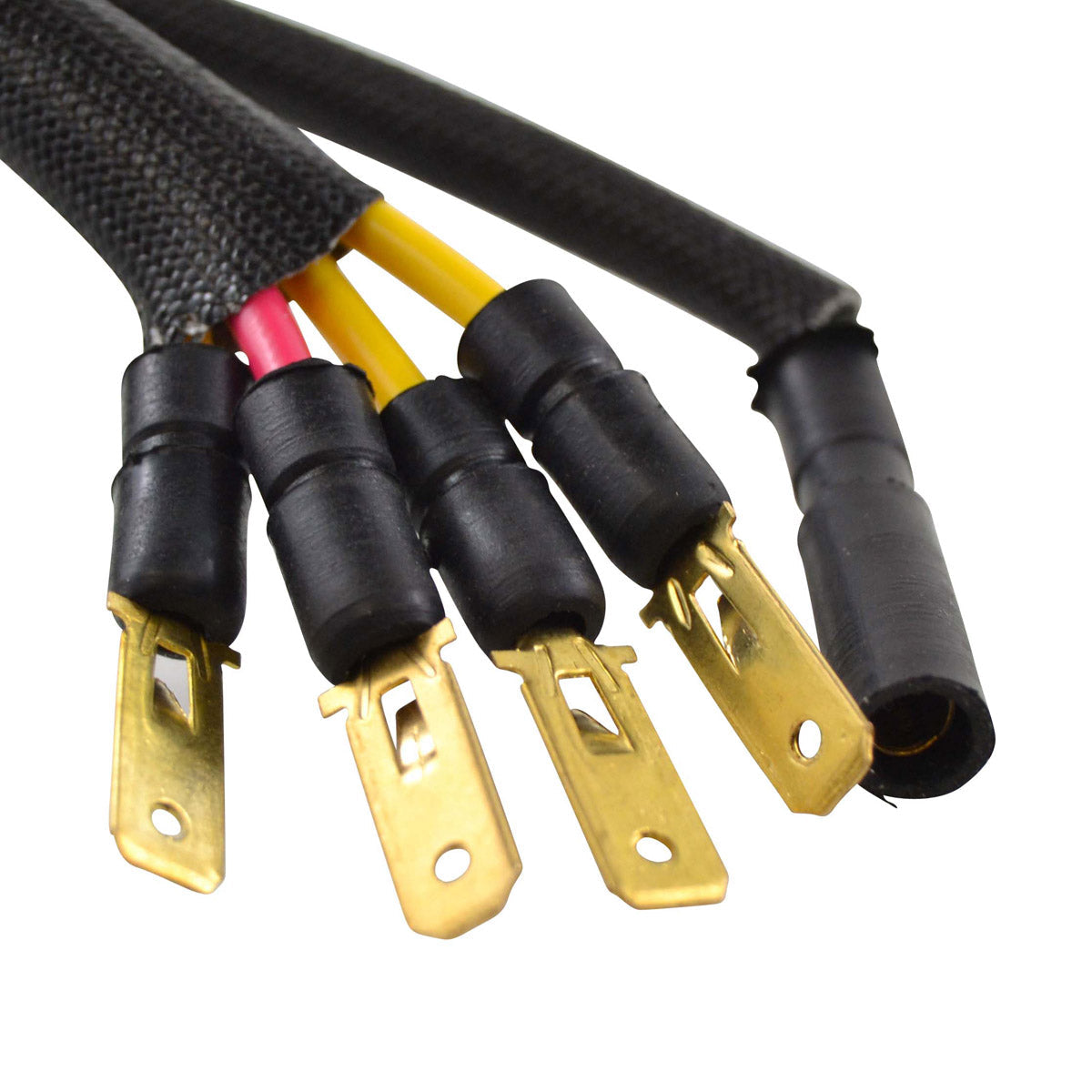

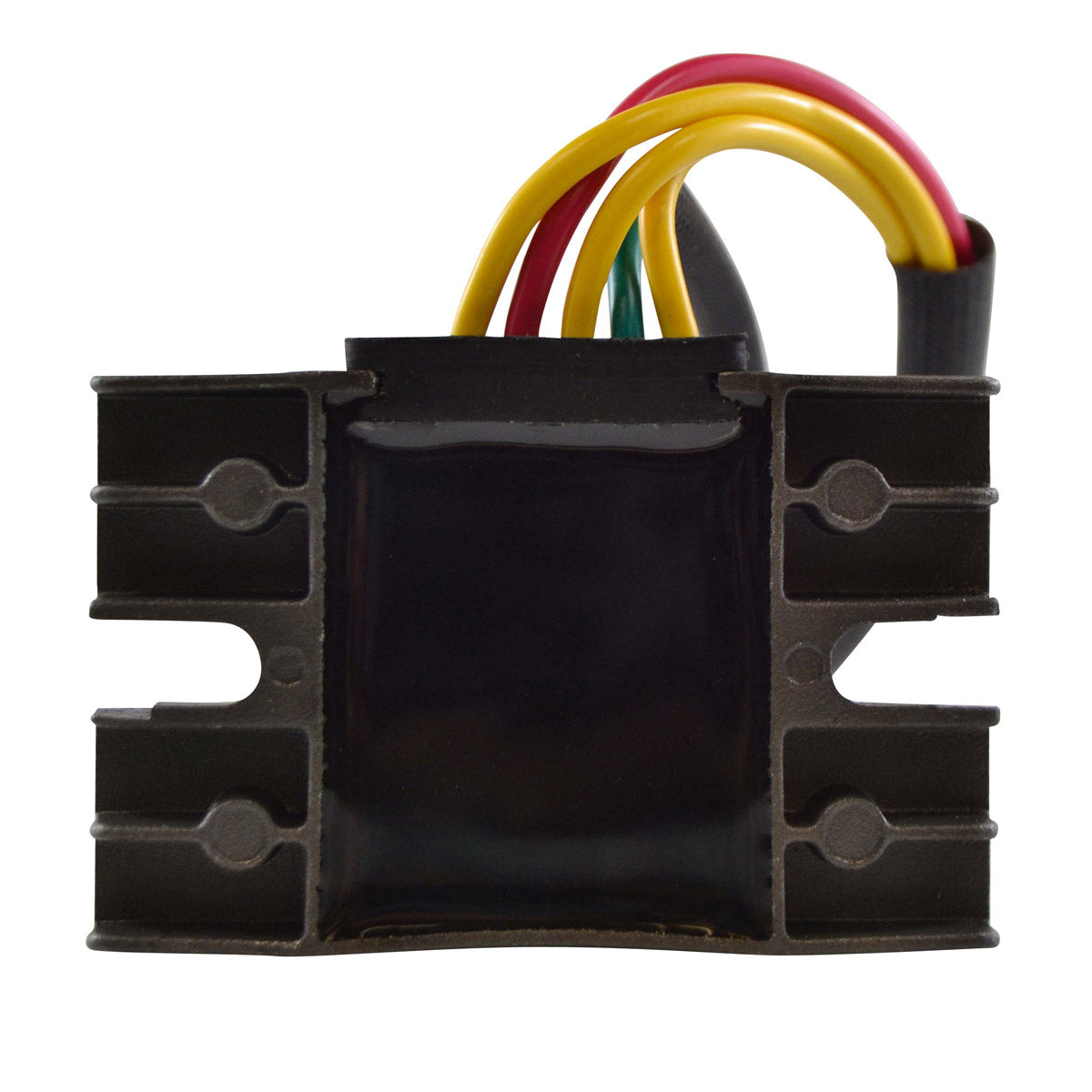

This unit is built with a higher grade of electrical components than the original and an improved heat sink for better thermal performance, and RMSTATOR test every unit before it ships. It is rated for a maximum charging current of 25 A / 300 W with a minimum charging voltage of 14.5 V plus or minus 0.5 V, and open circuit voltage is held below 15 V. The compact 48 mm by 75 mm by 25 mm body carries five pins on five wires of 250 mm, with 60 mm between the fixation hole centres. The opposite connector for the main harness side is supplied as well, because that plug is very often melted, corroded or defective by the time the regulator itself fails, and a poor connection there is a major cause of repeat electrical problems.
Key Features
- Brand new aftermarket unit, a direct replacement for the original
- Plug-and-play, direct fit, easy installation with no assembly required
- Quality that exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade electrical components throughout
- Maximum charging current of 25 A / 300 W
- Minimum charging voltage of 14.5 V +/- 0.5 V
- Compact 48 mm by 75 mm by 25 mm body with 250 mm wires
- Opposite connector for the main harness side supplied with the unit
- Every unit is tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30002 |
| Width | 48 mm |
| Length | 75 mm |
| Height | 25 mm |
| Wire length | 250 mm |
| Fixation holes, centre to centre | 60 mm |
| Number of pins | 5 |
| Number of wires | 5 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 25 A / 300 W |
| Open circuit voltage | Below 15 V |
| Operating temperature | -20 C to 85 C |
Vehicle Fitment Guide
The years shown are the overall model year span served by this regulator. Please confirm your own machine against the OEM part number cross reference below before ordering.
| Make & Model | Years |
|---|---|
| Suzuki GS 300 | 1982-1988 |
| Suzuki GS 450 | 1982-1988 |
| Suzuki GS 650 | 1982-1988 |
| Suzuki GS 700 | 1982-1988 |
| Suzuki GS 750 | 1982-1988 |
| Suzuki GS 1000 | 1982-1988 |
| Suzuki GS 1100 | 1982-1988 |
| Suzuki GS 1150 | 1982-1988 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32800-45250 | Suzuki |
| 32800-44230 | Suzuki |
| 32800-44130 | Suzuki |
| 32800-00A00 | Suzuki |
| 32800-09300 | Suzuki |
| 32800-09301 | Suzuki |
| 32800-04A00 | Suzuki |
| 32800-04A01 | Suzuki |
| 32800-40A00 | Suzuki |
Frequently Asked Questions
Does this fit without modification?
Yes. It is a plug-and-play direct fit for the original unit, with no assembly required. The mounting holes are 60 mm apart centre to centre and there are five wires of 250 mm carrying five pins, so compare those against your existing part if you want to confirm before ordering.
What is included?

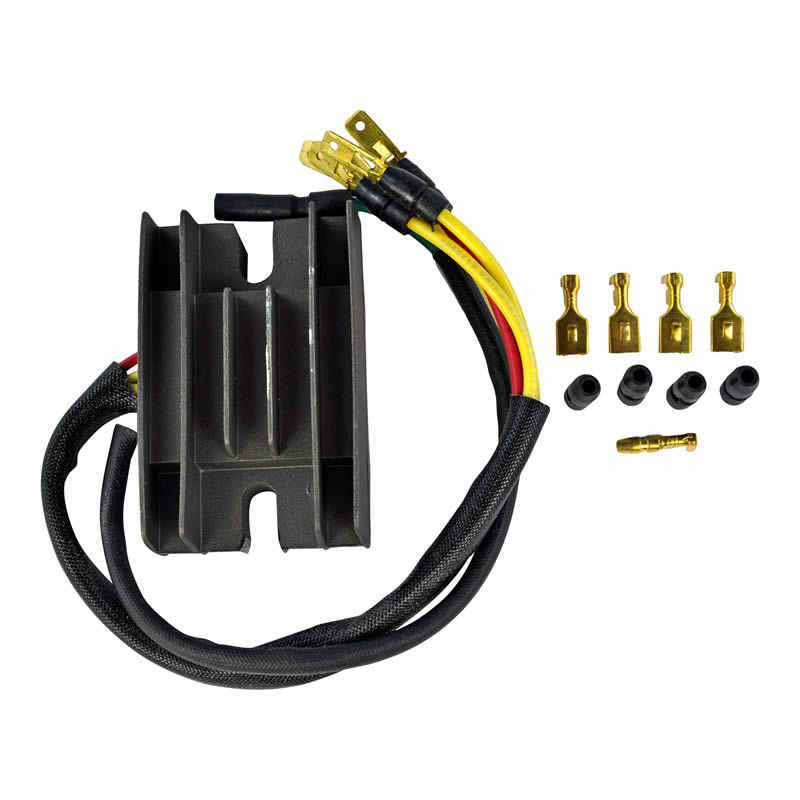

The voltage regulator rectifier and the opposite connector for the main harness side. RMSTATOR include that second connector because the harness plug is so often melted, corroded or defective, and leaving a damaged one in place is a major cause of repeat electrical faults.
How do I know my old regulator has failed?
With the engine running, measure across the battery terminals. A working system should show a minimum charging voltage of 14.5 V plus or minus 0.5 V and should not exceed roughly 15 V. If the voltage sits at resting battery level the unit has stopped charging; if it climbs well beyond 15 V the regulation side has failed and the battery will be damaged. Burnt or discoloured connector pins are another common sign.
Is 25 A enough for my GS?
The RM30002 is rated at 25 A / 300 W maximum charging current, which is the correct specification for this application across the Suzuki GS models listed above. It is supplied to the same specification for every model in the fitment table.
